American Lighting LED-DRJ LED-DRJ-200-12 200W LED Driver

American Lighting LED-DRJ 200W LED Driver 12V Non-Dimming, Wet Rated - 120-277V

$162.36

~~$0.00~~

Description

American Lighting LED-DRJ LED-DRJ-200-12 200W LED Driver — 12V DC

The American Lighting LED-DRJ-200-12 is a high-performance 200W Constant Voltage LED Driver designed for both indoor and outdoor applications. With an input voltage range of 120-277V AC and an output of 12V DC, this driver is ideal for powering LED systems that require reliable and consistent power. It features a non-dimmable design, making it suitable for installations where dimming is not necessary. The driver is housed in a robust aluminum enclosure with an integrated junction box, providing protection and ease of installation in wet locations.

Key Features

Power Output: Provides a maximum power output of 200W, ensuring ample power for demanding LED applications.
Input Voltage Range: Compatible with 120-277V AC, allowing for versatile installation options.
Output Voltage: Supplies a stable 12V DC output, ideal for low-voltage LED systems.
Dimming Capability: Non-dimmable design, suitable for applications where dimming is not required.
Minimum Load: Requires a minimum load of 30W for optimal performance.

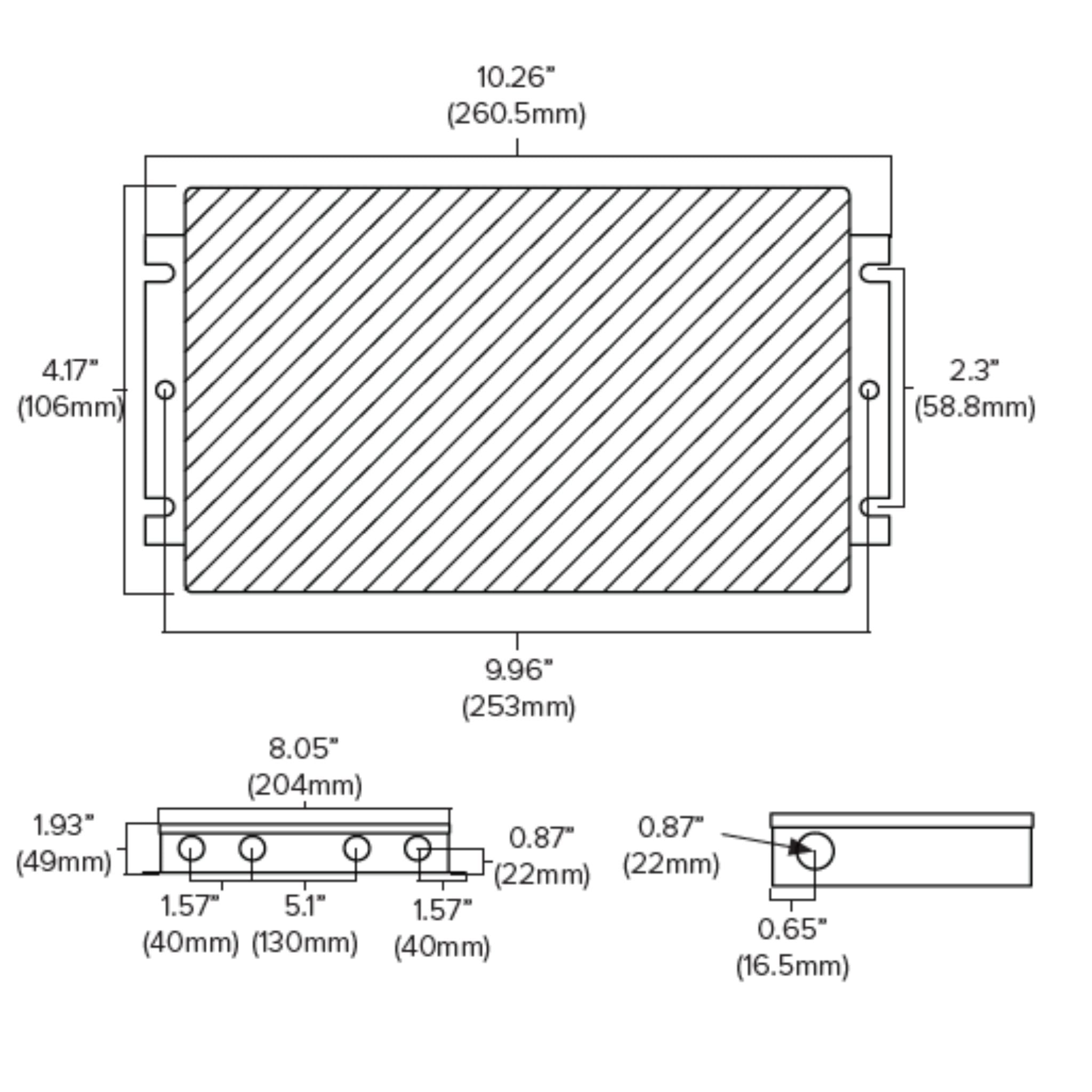

Dimensions: Compact design measuring 10.26 in. L x 4.17 in. W x 1.93 in. H, fitting easily into various installation spaces.
Enclosure Type: Durable aluminum housing with an integrated junction box for secure and convenient wiring.
IP Rating: Wet rated, suitable for use in outdoor and wet environments.
Certifications: cULus Listed, Class 1, Class P, Type HL, and FCC compliant for safety and reliability.

Physical Design & Installation

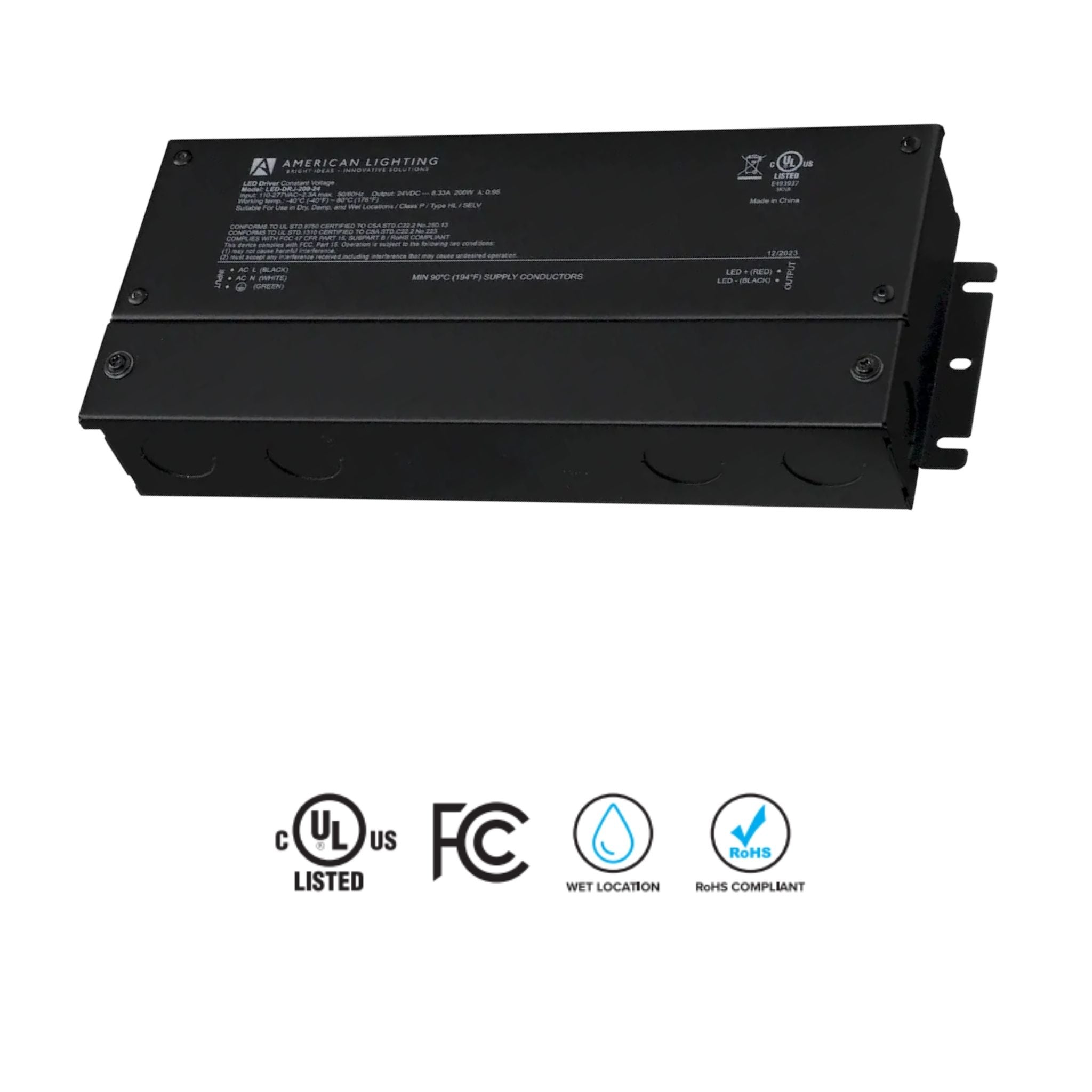

The driver features a slim, compact aluminum housing with an integrated junction box, facilitating easy installation and providing robust protection against environmental factors.

Dimming & Controls

This driver is designed for non-dimming applications, ensuring consistent power delivery without the need for dimming controls. It requires a minimum load of 30W to function optimally.

Performance & Build

Equipped with built-in protections against short circuit, over-current, over-voltage, and over-temperature, this driver ensures reliable performance. It is Class 1, Class P, and Type HL compliant, with a wet location rating for outdoor use.

Typical Applications

Outdoor lighting installations
Commercial LED lighting systems
Architectural lighting projects
Signage and display lighting

Specifications

Dimensions

Length/Depth

10.26 in

Width/Diameter

4.17 in

Height

1.93 in

Weight

4.17 lb

Documents

Specification

Style & Materials

Material

Aluminum

Electrical Information

Voltage

120-277V

Output Voltage

12V DC

Wattage Rating

200.0W

Amps Rating

16.66 A

Item Details

MPN

LED-DRJ-200-12

Brand

American Lighting

UPC

714176037417

Warranty & Certifications

Product Warranty

2 Years

Product Rating

Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the LED-DRJ-200-12 driver dimmable?

No, the LED-DRJ-200-12 driver is designed for non-dimming applications.

What is the input voltage range for this driver?

The input voltage range for the LED-DRJ-200-12 driver is 120-277V AC.

Does this driver include an integrated junction box?

Yes, the LED-DRJ-200-12 driver features an integrated junction box for easy installation.

What is the minimum load requirement for this driver?

The minimum load requirement for the LED-DRJ-200-12 driver is 30W.

Is the LED-DRJ-200-12 driver suitable for outdoor use?

Yes, the driver is wet rated and suitable for outdoor use.
