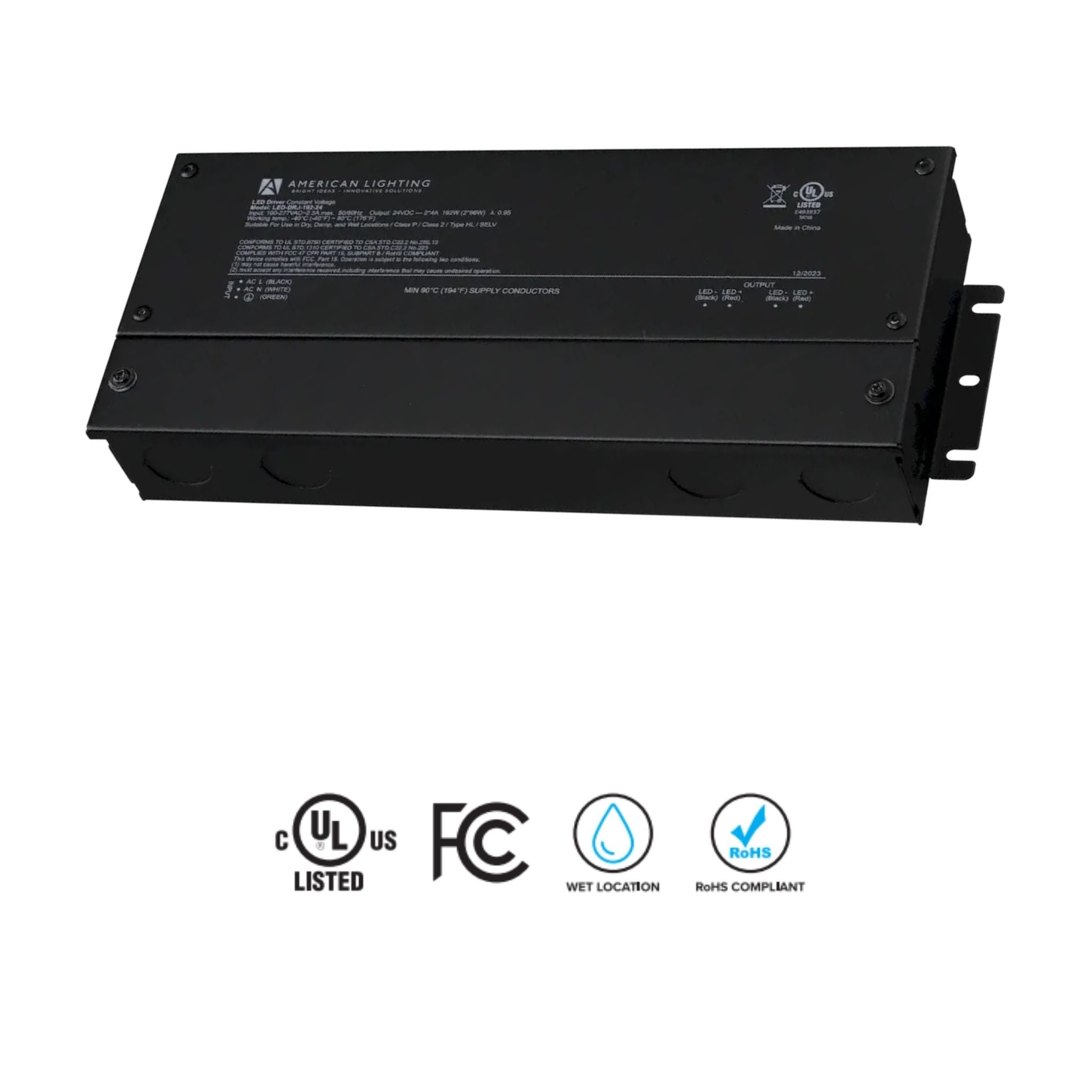

American Lighting LED-DRJ LED-DRJ-192-24 192W LED Driver | Integrated Junction Box

American Lighting LED-DRJ 192W LED Driver 24V Non-Dimming, Integrated Junction Box, Indoor/Outdoor - 120-277V

$153.54

~~$0.00~~

Description

American Lighting LED-DRJ LED-DRJ-192-24 192W LED Driver — 24V DC

The American Lighting LED-DRJ-192-24 is a reliable 192W LED Driver designed for 24V DC constant voltage applications. With a wide input voltage range of 120-277V AC, this driver is perfect for both indoor and outdoor installations. It features a non-dimming design, making it ideal for applications where dimming is not required. The durable aluminum housing includes an Integrated Junction Box, ensuring easy installation and protection against environmental factors. The LED-DRJ-192-24 is Class 2 rated and wet location approved, providing high reliability and safety.

Key Features

Power Output: Provides a total power output of 192W, divided into two 96W outputs.
Input Voltage: Accepts a wide range of 120-277V AC, suitable for various electrical systems.
Output Voltage: Consistently supplies 24V DC for LED lighting applications.
Dimming: Non-dimming design for stable, constant voltage output.
Minimum Load: Requires a minimum load of 19.2W (2 x 9.6W) for optimal performance.

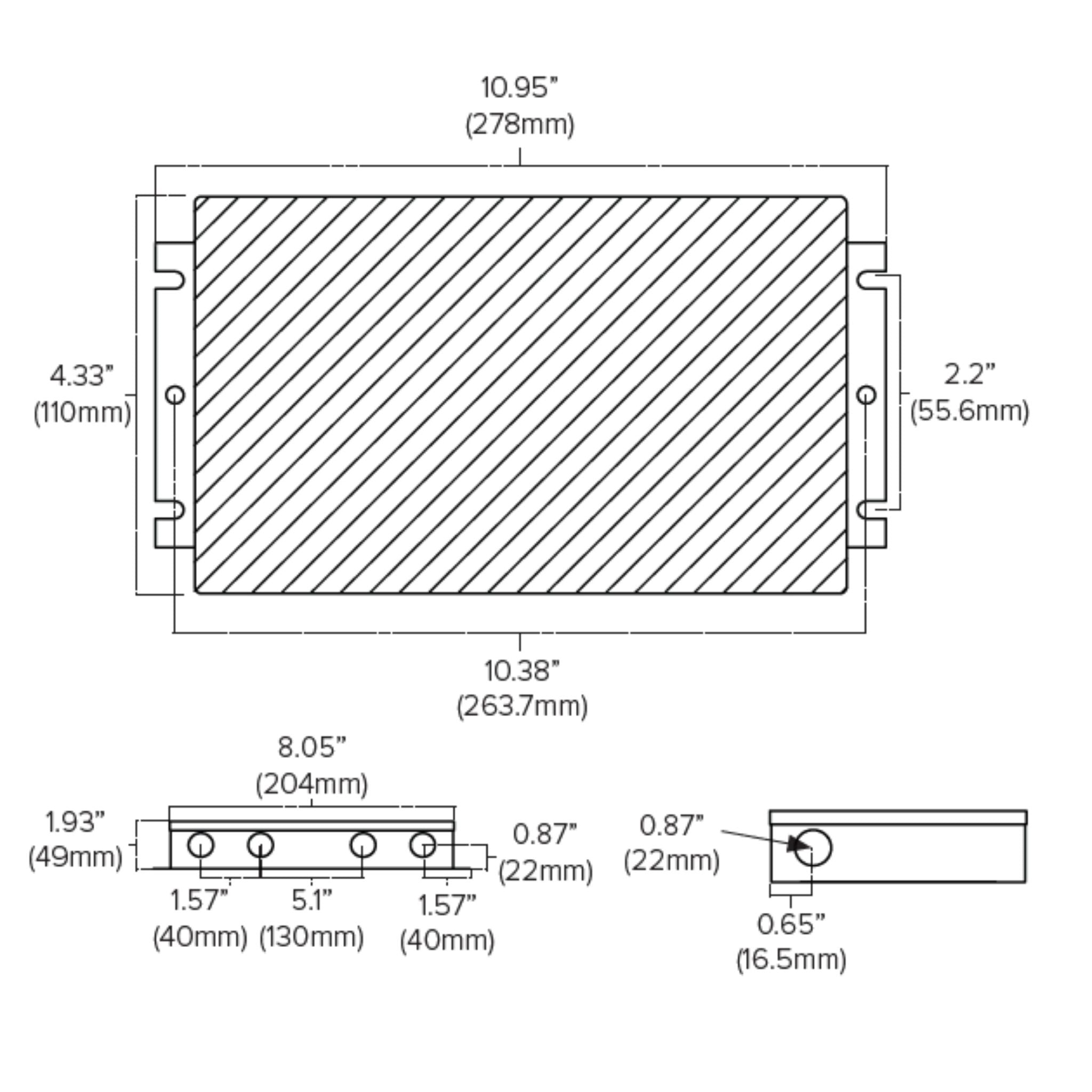

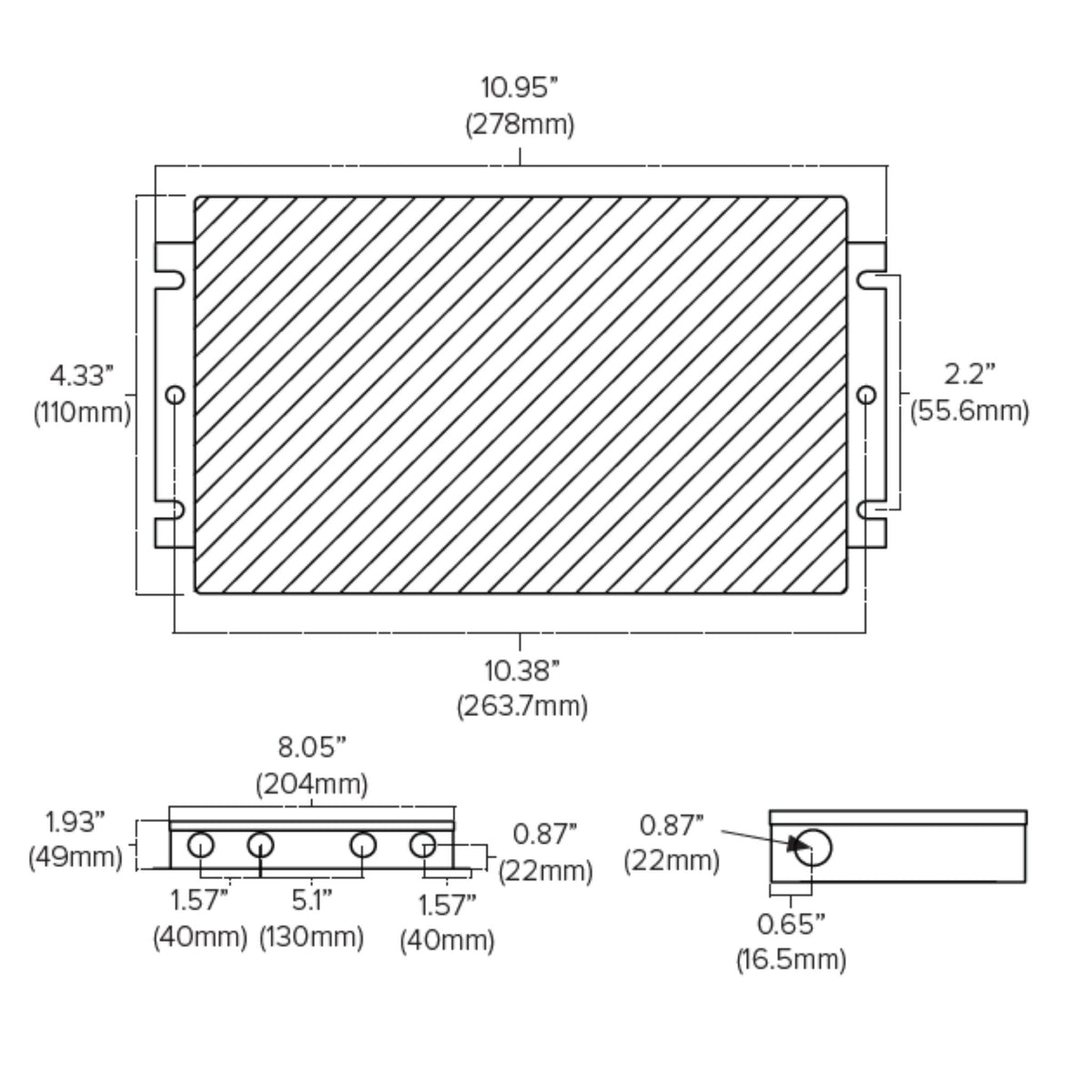

Dimensions: Compact size of 10.95 in. L x 4.33 in. W x 1.93 in. H for easy integration.
Enclosure Type: Durable aluminum housing with integrated junction box for secure installations.
IP Rating: Wet rated for outdoor use, ensuring protection against moisture.
Class 2: Compliant with Class 2 standards for safe operation.
Certifications: cULus Listed, FCC compliant for quality assurance.

Physical Design & Installation

The driver features a robust aluminum enclosure with an integrated junction box, providing a secure and easy installation process. Its compact design allows for versatile mounting options.

Dimming & Controls

This driver is designed for non-dimming applications, ensuring a stable 24V DC output without the need for dimming controls. It requires a minimum load of 19.2W for optimal performance.

Performance & Build

Equipped with short circuit, over-current, over-voltage, and over-temperature protections, this driver ensures reliable performance. It is Class 2 compliant and wet location rated, making it suitable for various environments.

Typical Applications

Outdoor LED lighting installations
Commercial lighting projects
Architectural lighting designs
Signage and display lighting

Specifications

Dimensions

Length/Depth

10.95 in

Width/Diameter

4.33 in

Height

1.93 in

Weight

2.21 lb

Documents

Specification

Style & Materials

Material

Aluminum

Electrical Information

Voltage

120-277V

Output Voltage

24V DC

Wattage Rating

192.0W

Amps Rating

4.0 A

Item Details

MPN

LED-DRJ-192-24

Brand

American Lighting

UPC

714176073347

Warranty & Certifications

Product Warranty

2 Years

Product Rating

Class 2, Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the LED-DRJ-192-24 compatible with dimming systems?

No, the LED-DRJ-192-24 is designed for non-dimming applications only.

What is the minimum load requirement for this driver?

The minimum load requirement is 19.2W, divided into two 9.6W outputs.

Does the driver include an integrated junction box?

Yes, the driver features an integrated junction box for easy installation.

What input voltage range does the LED-DRJ-192-24 support?

It supports a wide input voltage range of 120-277V AC.

Is the LED-DRJ-192-24 suitable for outdoor use?

Yes, it is wet rated and suitable for both indoor and outdoor installations.
