American Lighting LED-DRJ 150W LED Driver 24V Non-Dimming, Wet Rated, Indoor/Outdoor - 120-277V
Available in stock (139)
About this item
About this item
- Output Voltage: Provides a stable 24V DC output for consistent LED performance.
- Dimming: Non-dimmable design ensures straightforward installation without dimming controls.
- Input Voltage: Operates efficiently with a wide input range of 120-277V AC.
- Enclosure: Features a durable aluminum housing with an integrated junction box for secure installations.
- Protection: Built-in protections against short circuit, over-current, over-voltage, and over-temperature ensure longevity.
We process payments securely and do not store credit card information.
Description
Description

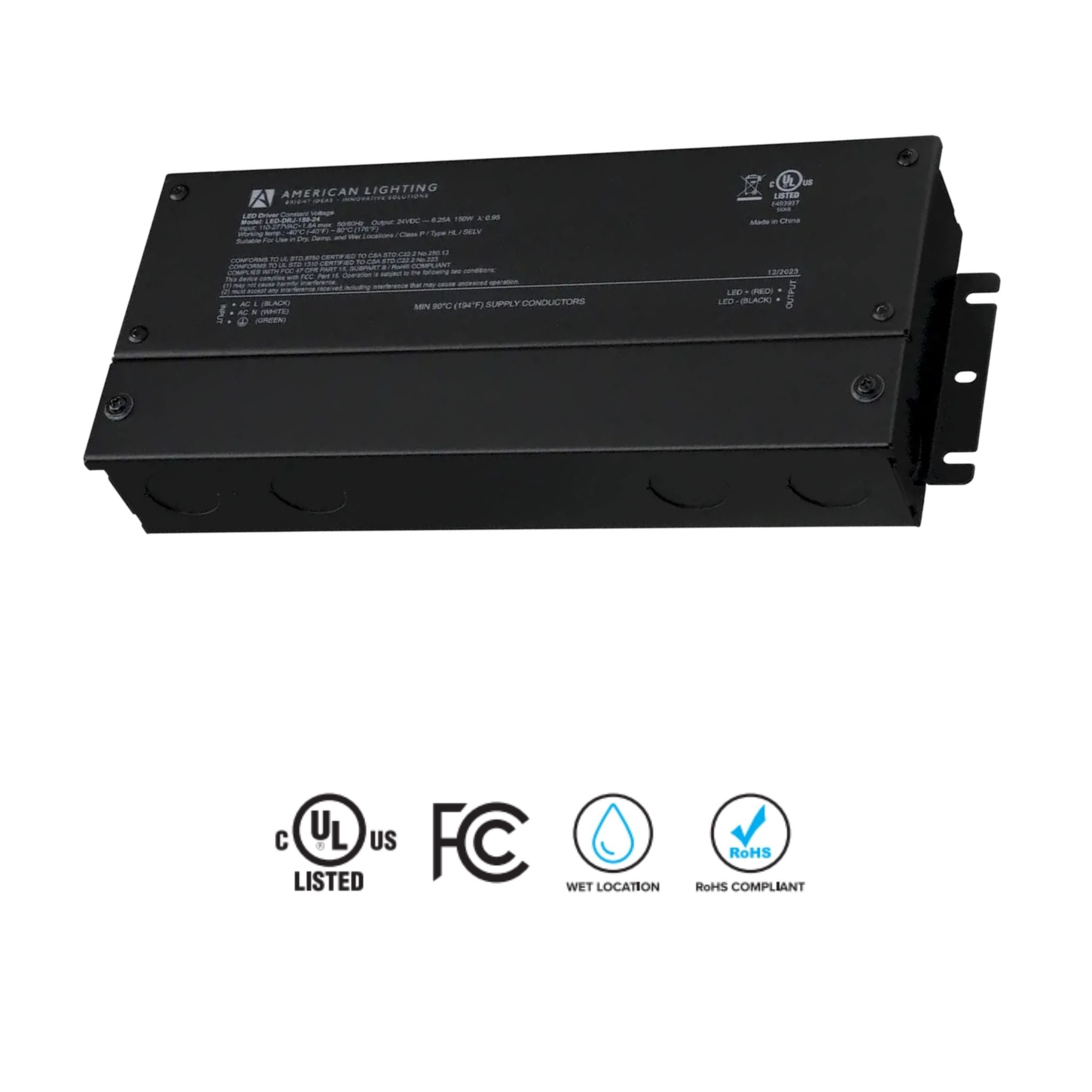

American Lighting LED-DRJ LED-DRJ-150-24 150W LED Driver — 24V DC
The American Lighting LED-DRJ-150-24 is a robust 150W LED Driver designed for both indoor and outdoor applications. With an input voltage range of 120-277V AC and a constant output of 24V DC, this driver is ideal for powering LED systems requiring stable voltage. The non-dimmable design simplifies installation in environments where dimming is not required. Featuring a Class 1 rating and housed in a durable aluminum enclosure with an Integrated Junction Box, it is suitable for wet locations, ensuring reliable performance in various settings.
Key Features
- Power Output: Delivers a maximum power of 150W for high-demand LED applications.
- Output Voltage: Consistently provides 24V DC for optimal LED operation.
- Input Voltage Range: Compatible with 120-277V AC, accommodating various electrical systems.
- Dimming Capability: Non-dimmable, ideal for installations without dimming requirements.
- Minimum Load: Requires a minimum load of 15W for efficient operation.

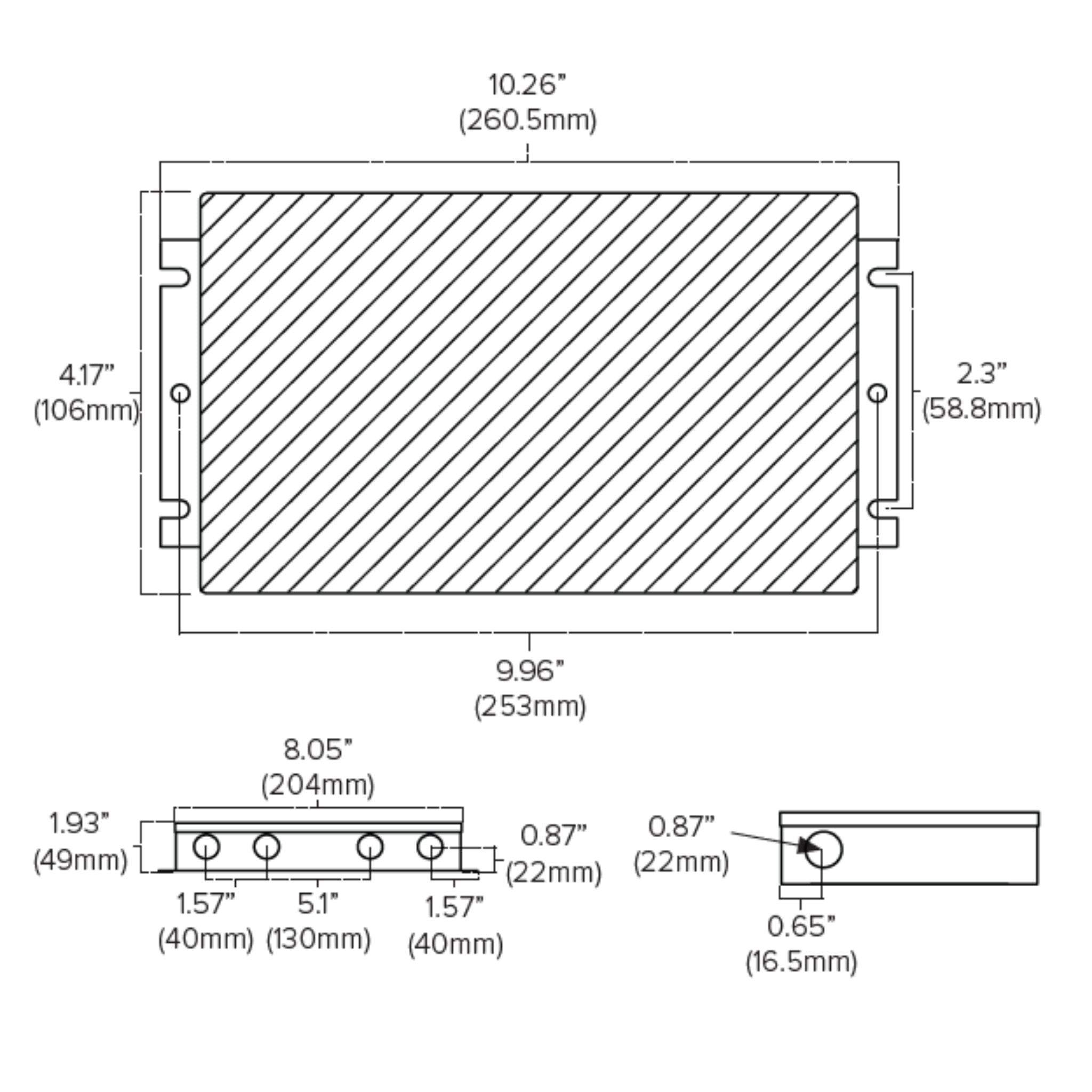

- Dimensions: Compact design measuring 10.26 in. L x 4.17 in. W x 1.93 in. H for easy integration.
- Enclosure Type: Sturdy aluminum housing with integrated junction box for secure connections.
- IP Rating: Wet location rated, suitable for outdoor and indoor use.
- Certifications: cULus Listed, ensuring compliance with safety standards.
Physical Design & Installation
The driver features a compact aluminum enclosure with an integrated junction box, providing a secure and streamlined installation process.
Dimming & Controls
This non-dimmable driver is designed for straightforward installations where dimming is not required, supporting a minimum load of 15W.
Performance & Build
Equipped with short circuit, over-voltage, and thermal protection, this driver ensures reliable performance. It is Class 1 compliant and wet location rated.
Typical Applications
- Outdoor lighting installations
- Indoor commercial lighting
- Architectural lighting projects
- Signage and display lighting
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the LED-DRJ-150-24 compatible with dimming systems?
Is the LED-DRJ-150-24 compatible with dimming systems?
What is the minimum load requirement for this driver?
What is the minimum load requirement for this driver?
Does the driver include an integrated junction box?
Does the driver include an integrated junction box?
What input voltage range does the LED-DRJ-150-24 support?
What input voltage range does the LED-DRJ-150-24 support?
Is the LED-DRJ-150-24 suitable for outdoor use?
Is the LED-DRJ-150-24 suitable for outdoor use?
