American Lighting LED-DRJ LED-DRJ-100-12 96W LED Driver

American Lighting LED-DRJ 96W LED Driver 12V DC - Non-Dimmable, Wet Rated, 120-277V

$117.99

~~$0.00~~

Description

American Lighting LED-DRJ LED-DRJ-100-12 96W LED Driver — 12V DC

The American Lighting LED-DRJ-100-12 is a robust 96W LED Driver designed for both indoor and outdoor applications. With an input voltage range of 120-277V AC and a constant 12V DC output, this driver is ideal for powering LED lighting systems. It features a non-dimmable design, making it perfect for installations where dimming is not required. The driver is housed in a durable aluminum enclosure with an Integrated Junction Box, ensuring reliable performance even in wet locations.

Key Features

Power Output: Delivers a maximum power of 96W for efficient LED lighting.
Output Voltage: Consistent 12V DC output for stable lighting performance.
Input Voltage: Wide range of 120-277V AC for versatile installation options.
Dimming: Non-dimmable design for straightforward applications.
Minimum Load: Requires a minimum load of 10W for optimal operation.

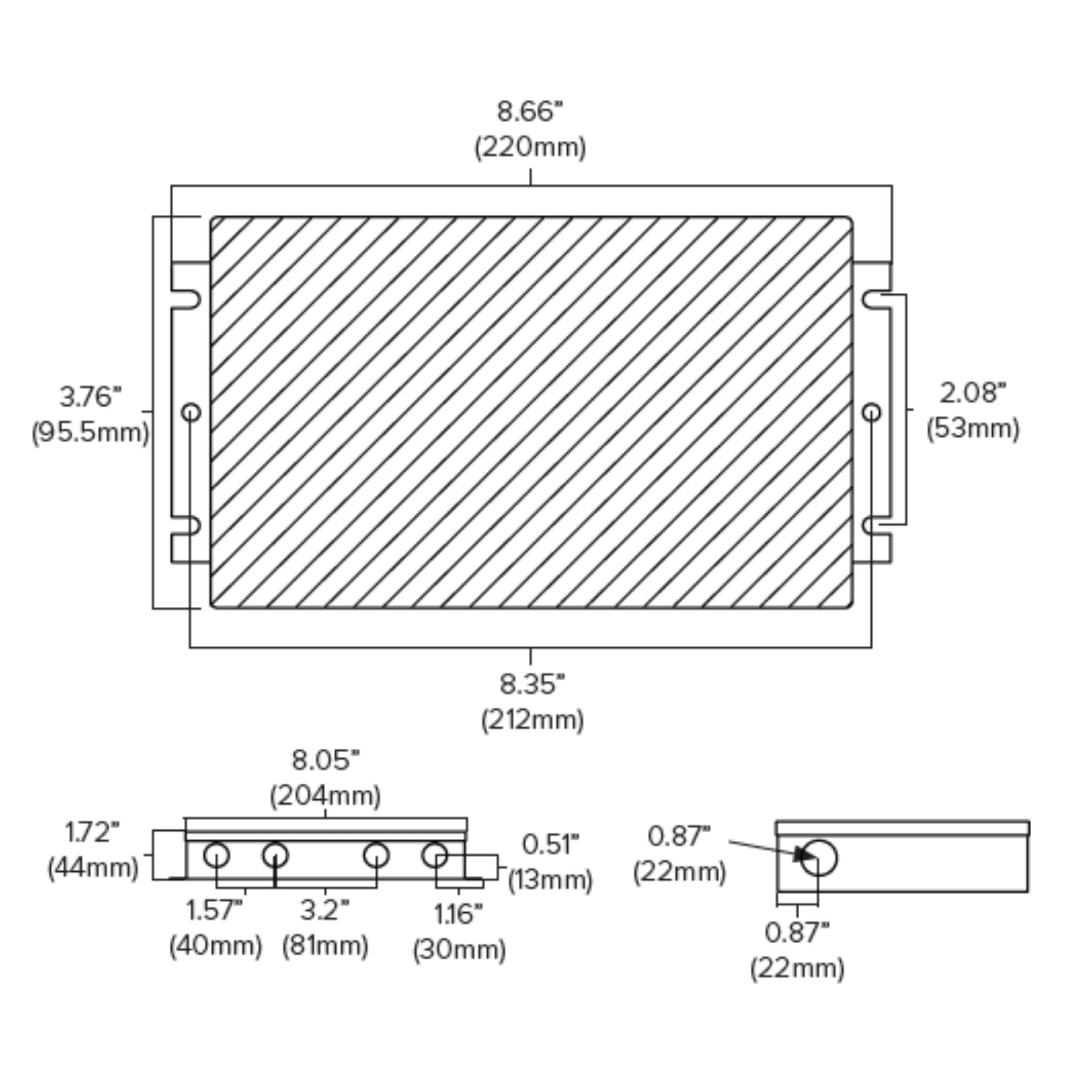

Dimensions: Compact size of 8.66 in. L x 3.76 in. W x 1.72 in. H for easy integration.
Enclosure Type: Durable aluminum housing with integrated junction box for secure wiring.
IP Rating: Wet location rated for outdoor use.
Class 2: Compliant with Class 2 standards for safe operation.
Certifications: cULus Listed for quality assurance.

Physical Design & Installation

The driver features a compact aluminum enclosure with an integrated junction box, providing a secure and streamlined installation process.

Dimming & Controls

This driver is designed for non-dimming applications, ensuring a straightforward setup without the need for additional dimming controls. It requires a minimum load of 10W.

Performance & Build

Equipped with short circuit, over-current, and over-temperature protections, this driver ensures reliable performance. It is Class 2 compliant and wet location rated, making it suitable for various environments.

Typical Applications

Outdoor LED lighting installations
Indoor commercial lighting systems
Architectural lighting projects

Specifications

Dimensions

Length/Depth

8.66 in

Width/Diameter

3.76 in

Height

1.72 in

Weight

3 lb

Documents

Specification

Style & Materials

Material

Aluminum

Electrical Information

Voltage

120-277V

Output Voltage

12V DC

Wattage Rating

96.0W

Amps Rating

8.33 A

Item Details

MPN

LED-DRJ-100-12

Brand

American Lighting

UPC

714176073293

Warranty & Certifications

Product Warranty

2 Years

Product Rating

Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the LED-DRJ-100-12 driver dimmable?

No, the LED-DRJ-100-12 driver is designed for non-dimming applications.

What is the input voltage range for this driver?

The input voltage range for the LED-DRJ-100-12 driver is 120-277V AC.

Does this driver include an integrated junction box?

Yes, the LED-DRJ-100-12 driver features an integrated junction box for secure installations.

What is the minimum load requirement for this driver?

The minimum load requirement for the LED-DRJ-100-12 driver is 10W.

Is the LED-DRJ-100-12 driver suitable for outdoor use?

Yes, the driver is wet location rated, making it suitable for outdoor use.
