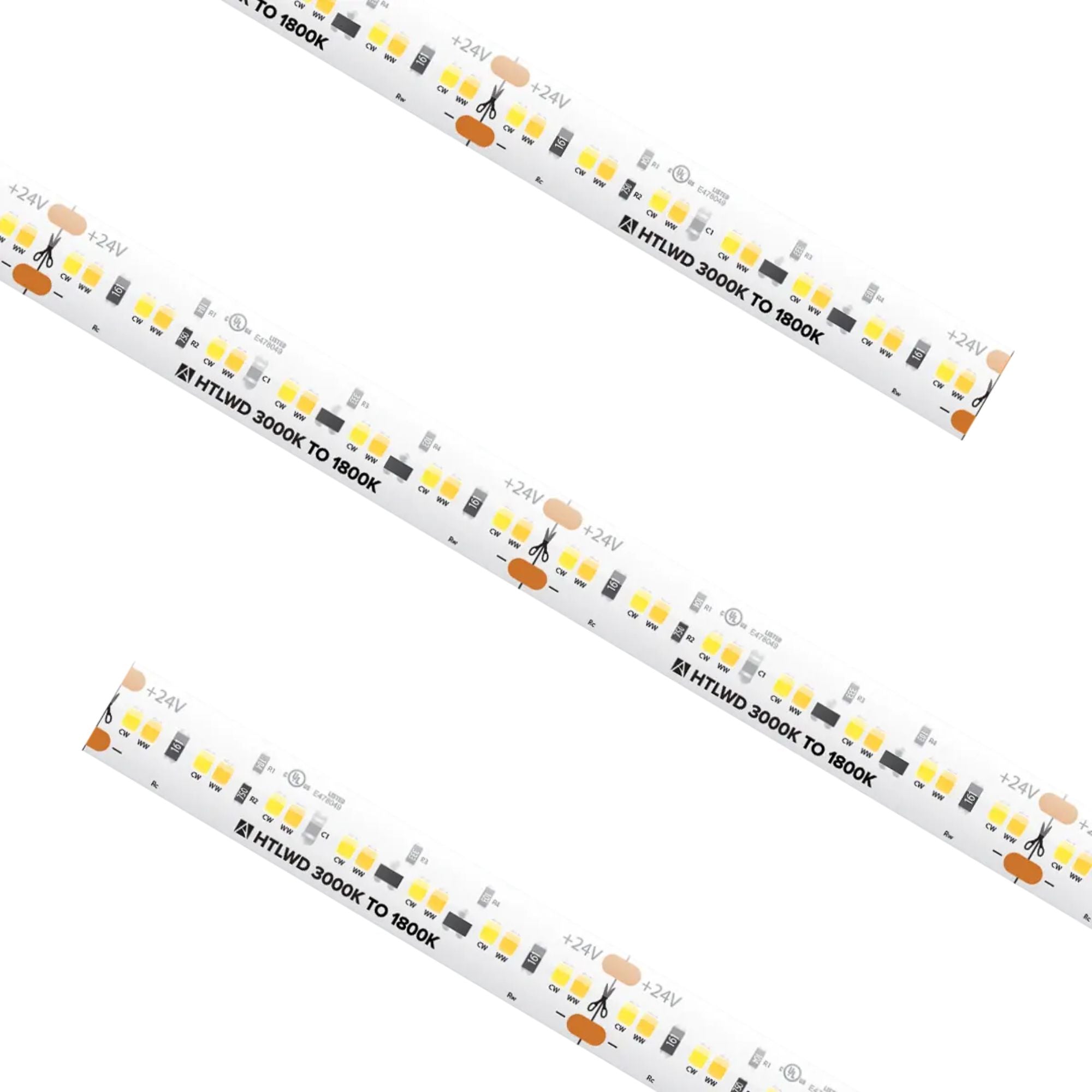

American Lighting Trulux LED Tape Light — Warm Dim & High Performance

The HTLWD-3018-16 from American Lighting is a high-performance LED Tape Light featuring Warm Dim technology that smoothly transitions from 3000K to 1800K. This 16.4ft tape light operates on 24V DC and is rated IP54, making it suitable for indoor dry and damp environments.

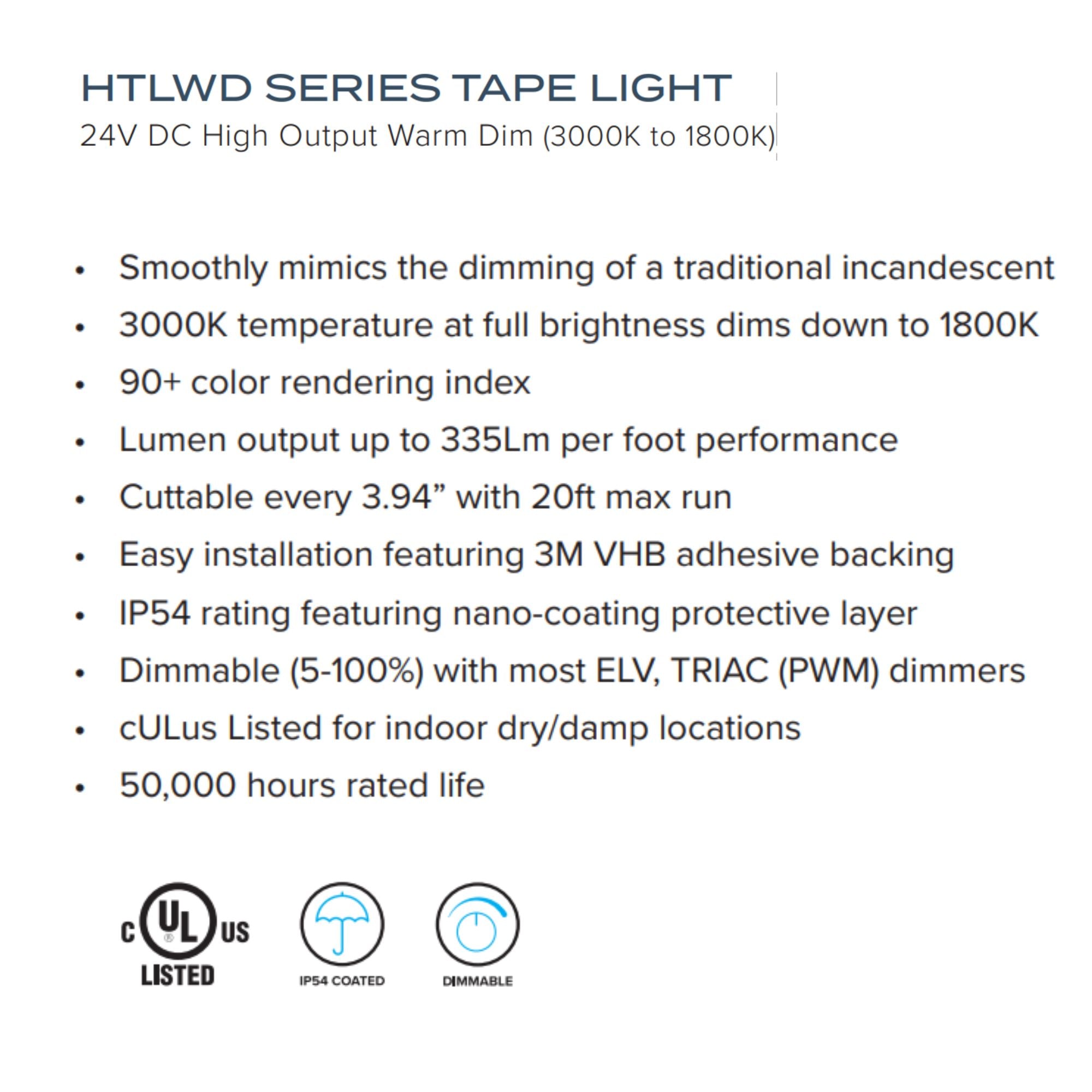

Key Features

• Voltage: 24V DC operation for efficient power usage.
• Wattage: Consumes 4W per foot for energy-efficient lighting.
• Lumens: Delivers up to 335 lumens per foot for bright illumination.
• LEDs: Features 2835 LEDs with a 90+ CRI for superior color rendering.
• Max Run: Supports up to 20ft continuous runs.
• Cuttable: Can be cut every 3.94 inches for custom installations.
• Width: 10mm PCB width for compatibility with most channels.
• Beam Angle: 120-degree beam angle for wide light distribution.

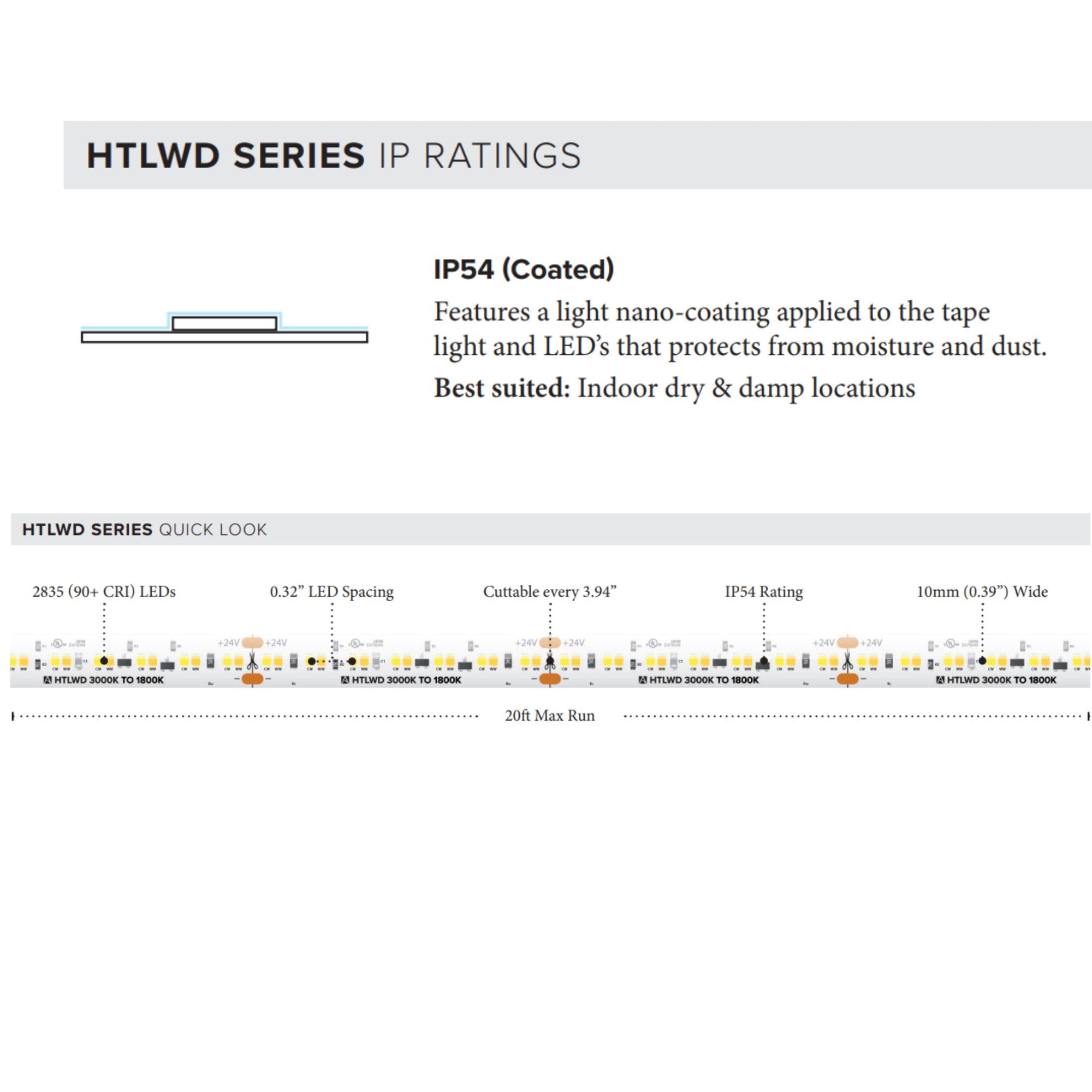

• IP Rating: IP54 with nano-coating for moisture and dust protection.
• Certifications: cULus Listed for dry and damp locations.

Core Design & Construction

The tape light features a 10mm wide PCB, ensuring compatibility with standard aluminum channels. It includes a nano-coating for protection against moisture and dust, and uses 3M VHB adhesive backing for secure mounting.

LED Illumination & Performance

With a lumen output of 335 lumens per foot and a CRI of 90+, this tape light provides high-quality illumination. The Warm Dim feature allows for a smooth transition from 3000K to 1800K, mimicking traditional incandescent dimming.

Power, Wiring & Installation

This tape light requires a 24V DC power supply and is dimmable with most ELV and TRIAC dimmers. It can be cut every 3.94 inches and supports a maximum continuous run of 20ft to prevent voltage drop.

Where This Tape Works Best

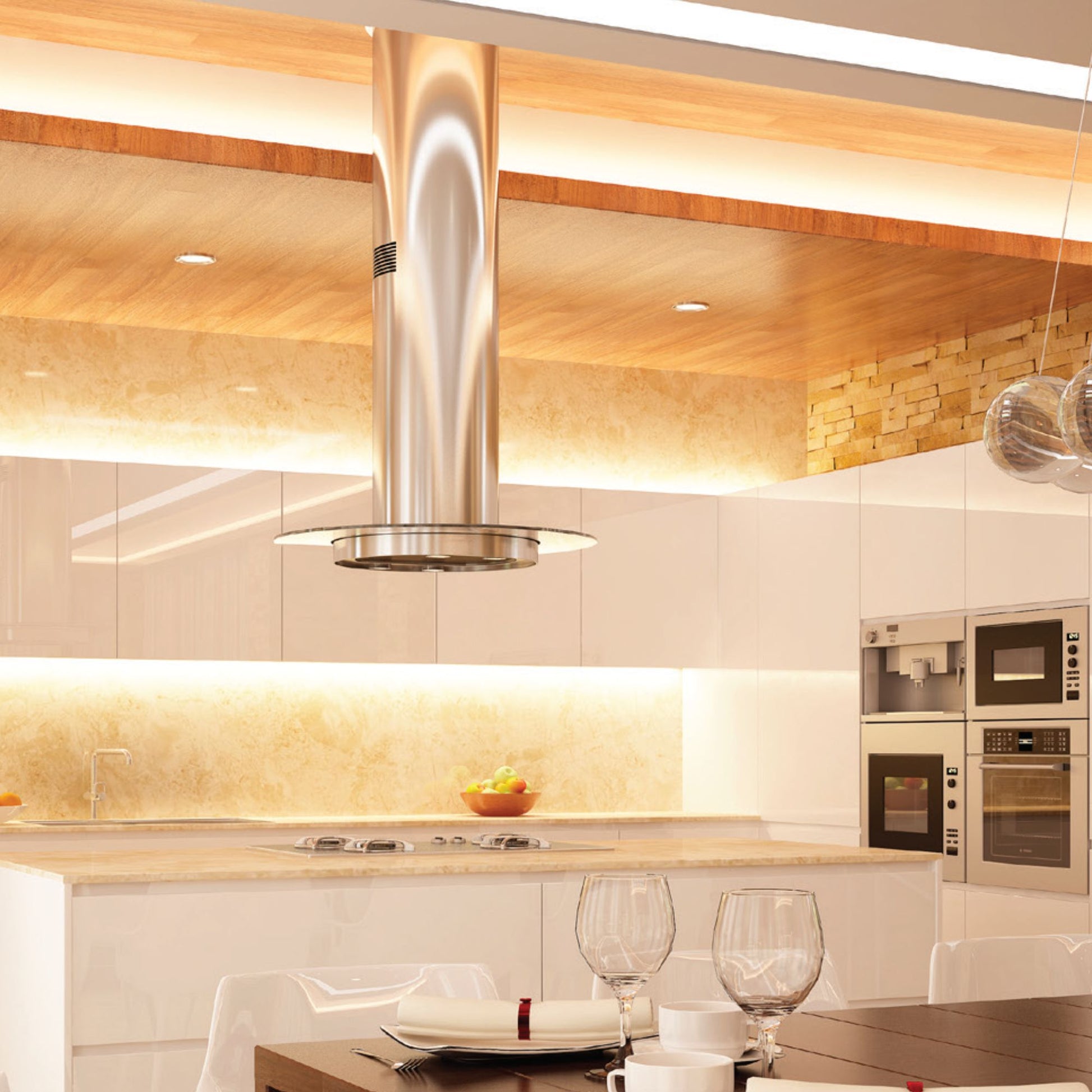

• Cove lighting
• Under cabinet lighting

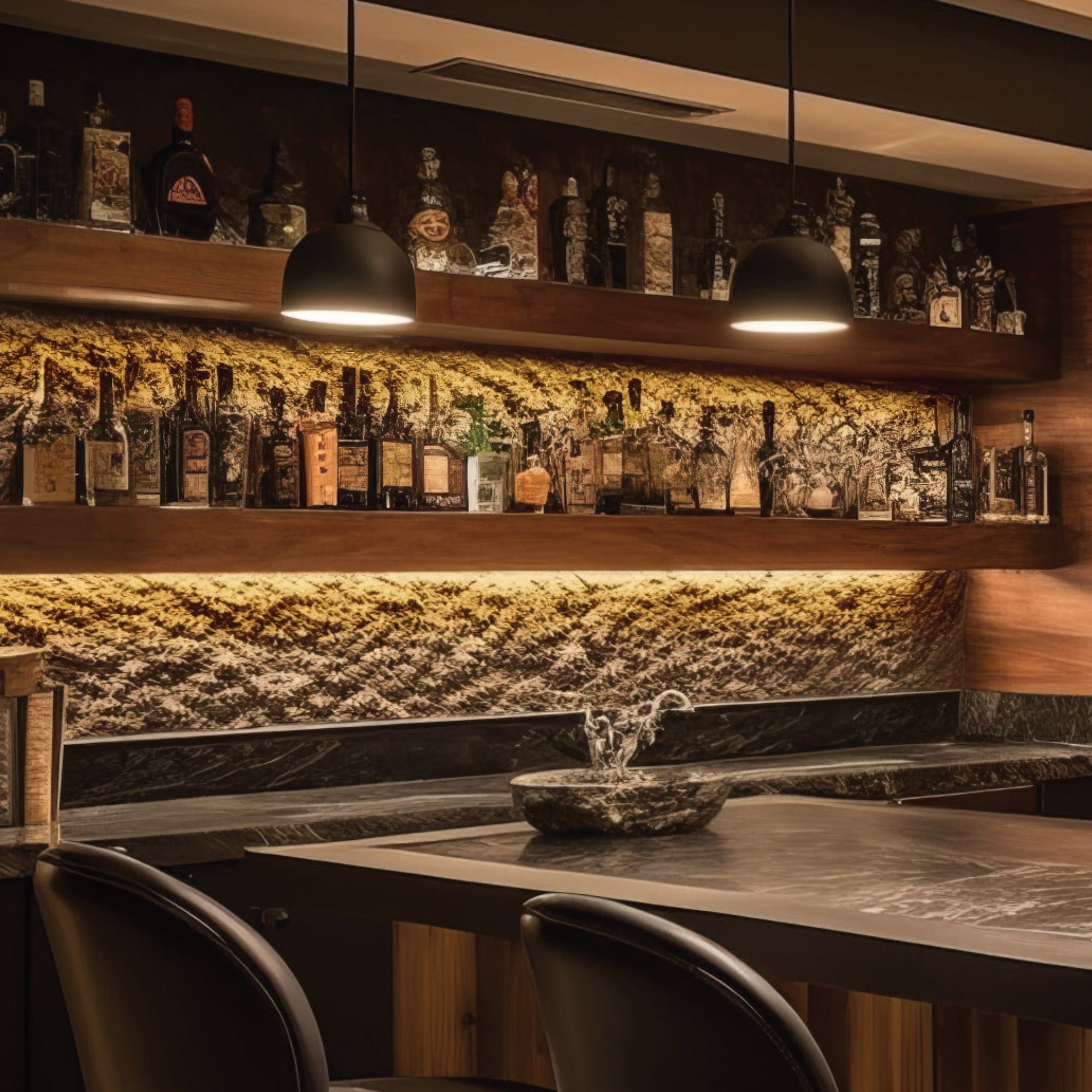

• Accent lighting
• Display case lighting

What's Included

• 16.4ft reel of tape light
• 6ft lead and tail
• (1) TL-CONKIT
• (2) TL-BLKS
• (2) TL-2PWR-HD
