Trulux, 16.4ft, COB Tape Light, IP65, 3000K, 379 Lumens/ft, 24V
Available in stock (342)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power use.
- Color Temperature: Emits a warm 3000K light, ideal for cozy environments.
- Max Run: Supports up to 16.4ft continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 1.97 inches for custom lengths.
- IP Rating: IP65 rated, suitable for wet locations.
We process payments securely and do not store credit card information.
Description
Description

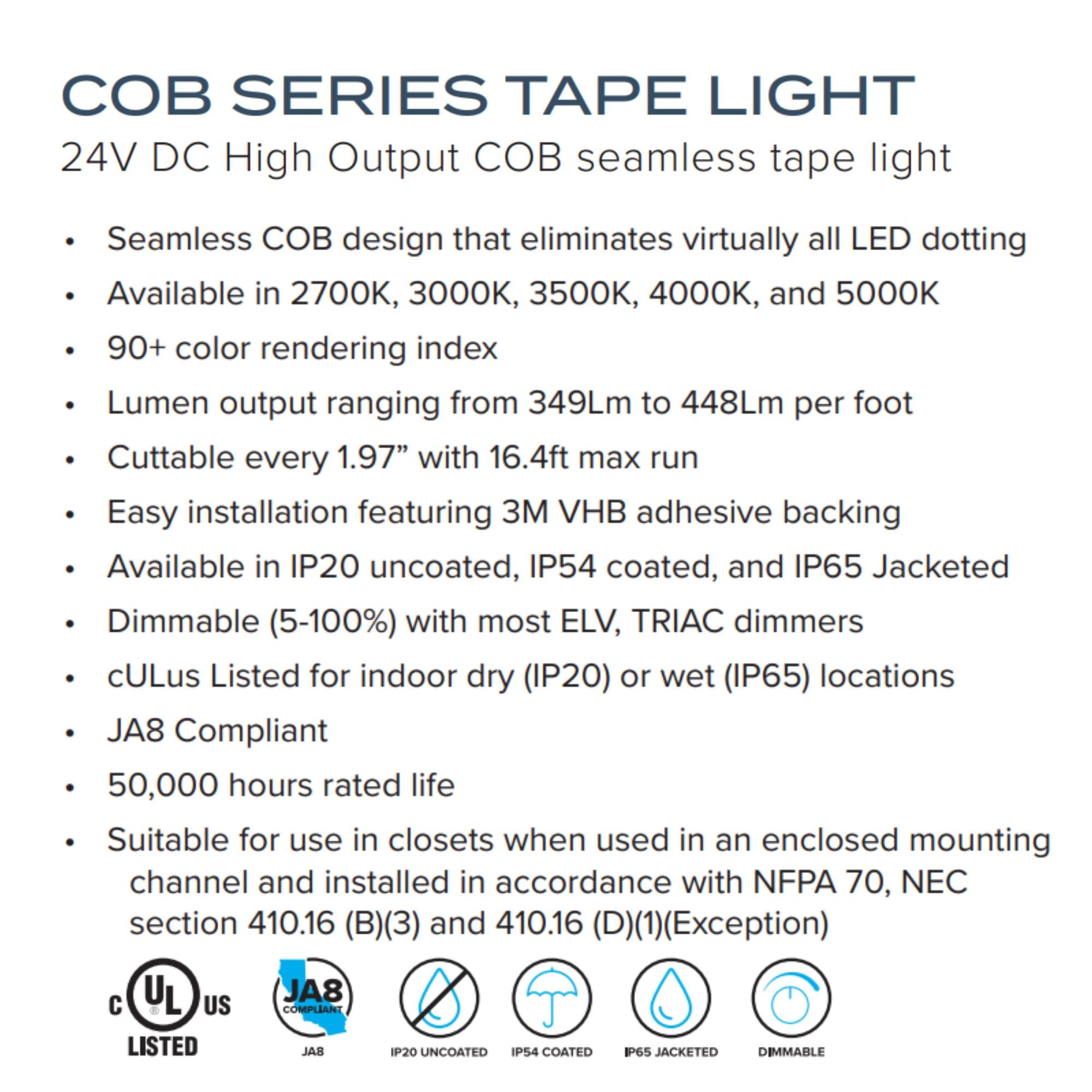

Trulux COB Tape Light — 3000K & Seamless Illumination
The Trulux HTL65-COB-WW-16 is a high-performance COB Tape Light designed for seamless illumination. With a length of 16.4ft, this tape light operates at 24V DC and is IP65 rated for wet locations, making it ideal for both indoor and outdoor applications.
Key Features
- Voltage: 24V DC ensures efficient power consumption.
- Wattage: Consumes 4.5W per foot.
- Lumens: Delivers 379 lumens per foot for bright illumination.
- LEDs per Foot: Seamless COB design eliminates visible diodes.
- Max Run: Capable of a 16.4ft continuous run.
- Cut Increments: Cuttable every 1.97 inches for custom installations.
- PCB Width: 10mm width for compatibility with various channels.
- Beam Angle: 120-degree beam angle for wide light distribution.

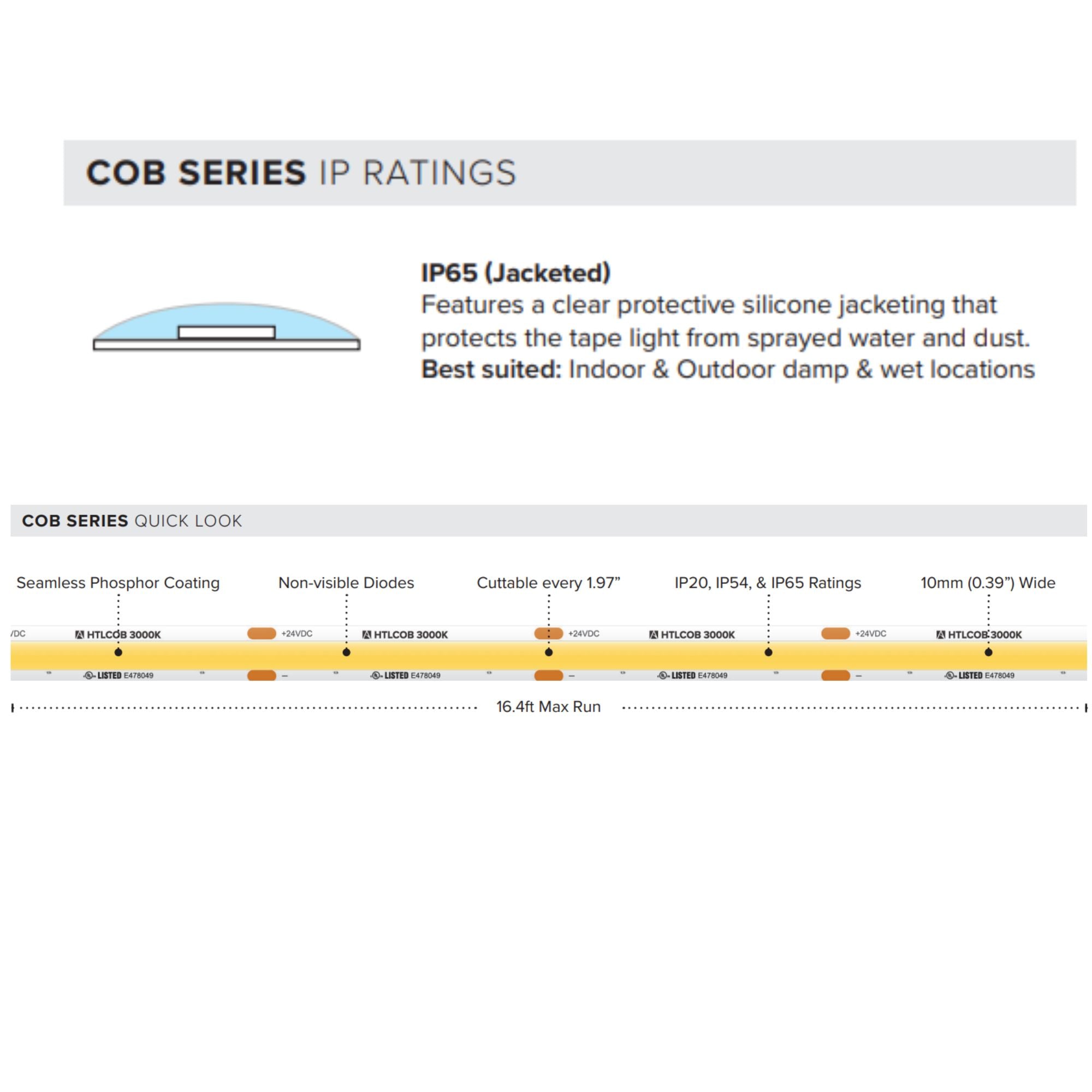

- IP Rating: IP65 jacketed for protection against water and dust.
- Certifications: cULus Listed, JA8 Compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a protective silicone jacketing for durability in wet environments and uses 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
With a high CRI of 90+, the tape light provides excellent color rendering. The COB design offers a seamless line of light, eliminating dotting and providing uniform illumination.
Power, Wiring & Installation
This tape light requires a 24V DC power supply and is dimmable with most ELV and TRIAC dimmers. It can be cut every 1.97 inches, allowing for precise customization. The maximum continuous run is 16.4ft to prevent voltage drop.

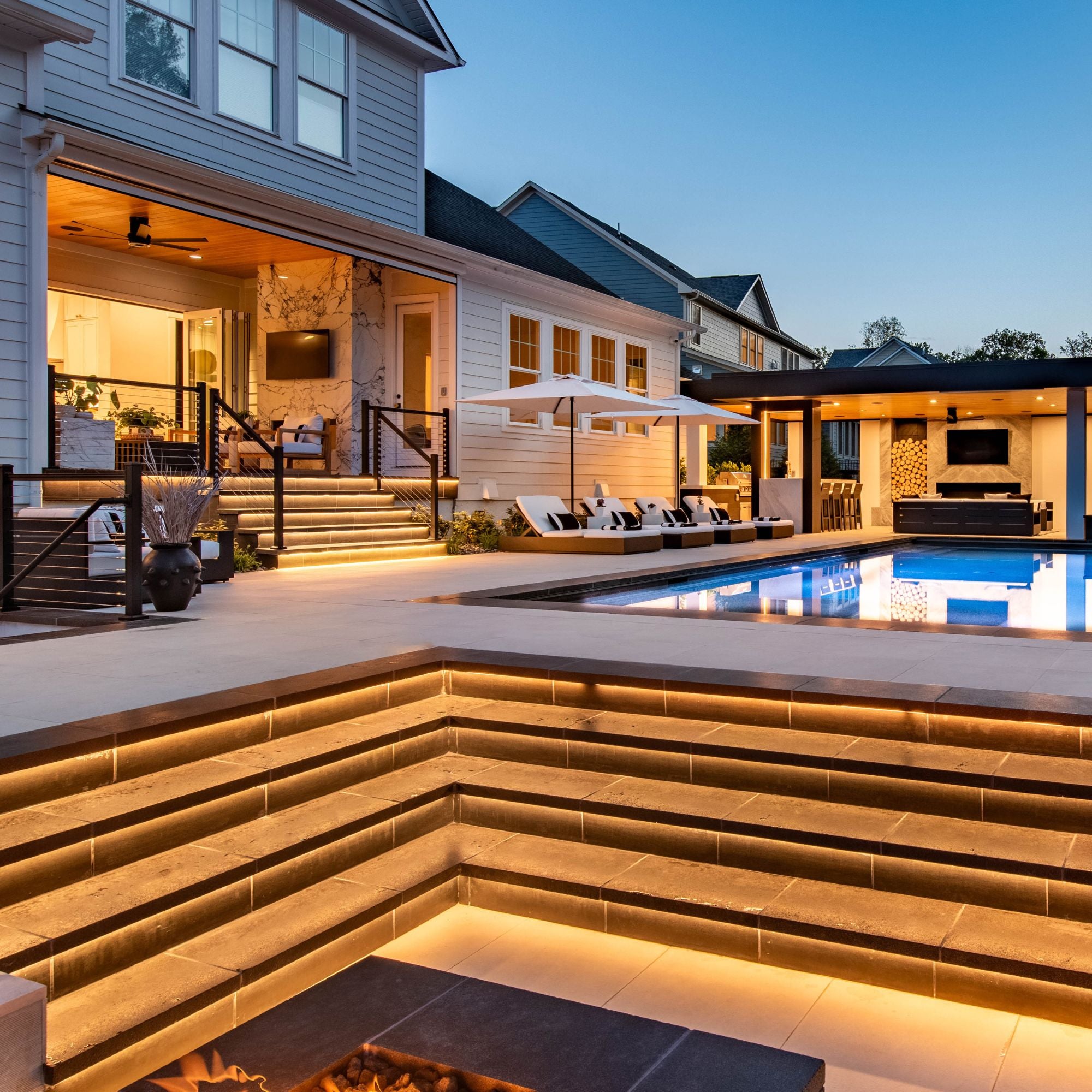

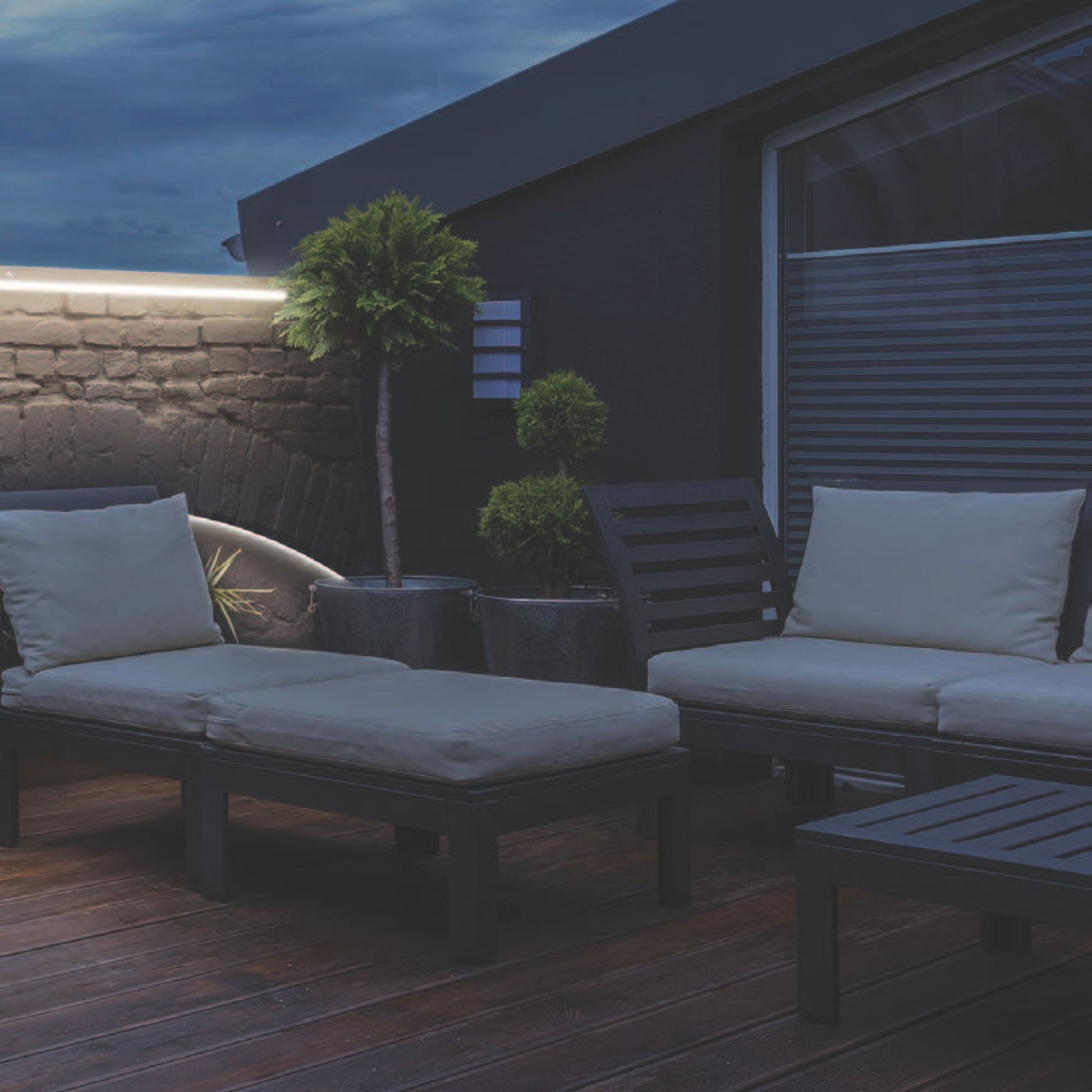

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Outdoor pathways
- Accent lighting

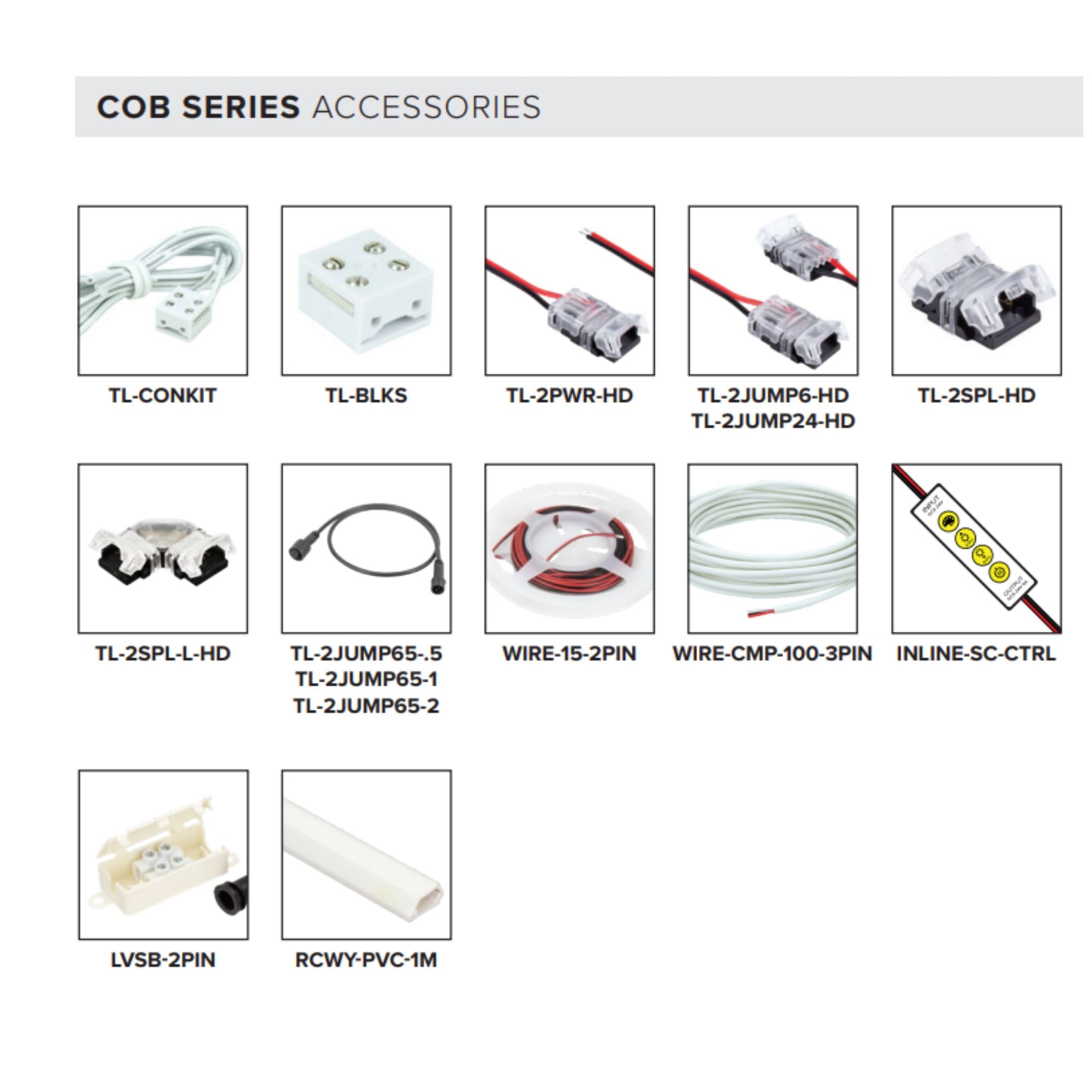

What's Included
- 16.4ft reel
- 2ft lead with 6-inch conkit
- 2ft tail with 6-inch conkit
- (2) TL-2PWR-HD connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the HTL65-COB-WW-16?
What is the maximum run length for the HTL65-COB-WW-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the HTL65-COB-WW-16?
What voltage is required for the HTL65-COB-WW-16?
Is the HTL65-COB-WW-16 suitable for outdoor use?
Is the HTL65-COB-WW-16 suitable for outdoor use?
What type of dimmers are compatible with this tape light?
What type of dimmers are compatible with this tape light?
