Trulux COB Series, 16.4ft, LED Tape Light, IP65, 2700K, 349 Lumens/ft, 24V
Available in stock (374)
About this item
About this item
- Voltage: Operates on 24V DC for efficient power consumption.
- Color Temperature: Emits a warm 2700K light, ideal for cozy environments.
- Max Run: Supports up to 16.4ft continuous run to minimize voltage drop.
- Cut Increments: Field cuttable every 1.97in for custom lengths.
- IP Rating: IP65 rated for wet locations, suitable for indoor and outdoor use.
We process payments securely and do not store credit card information.
Description
Description

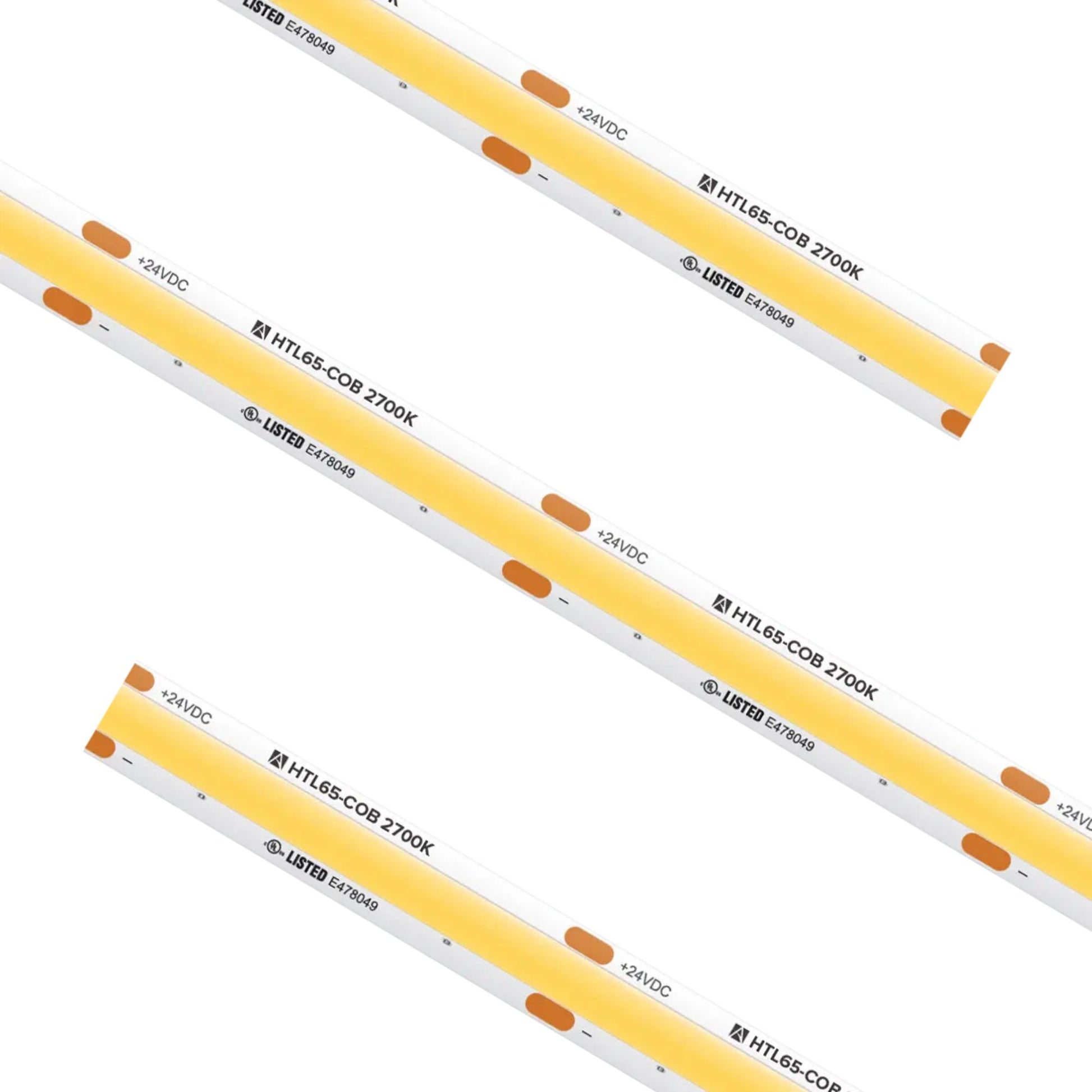

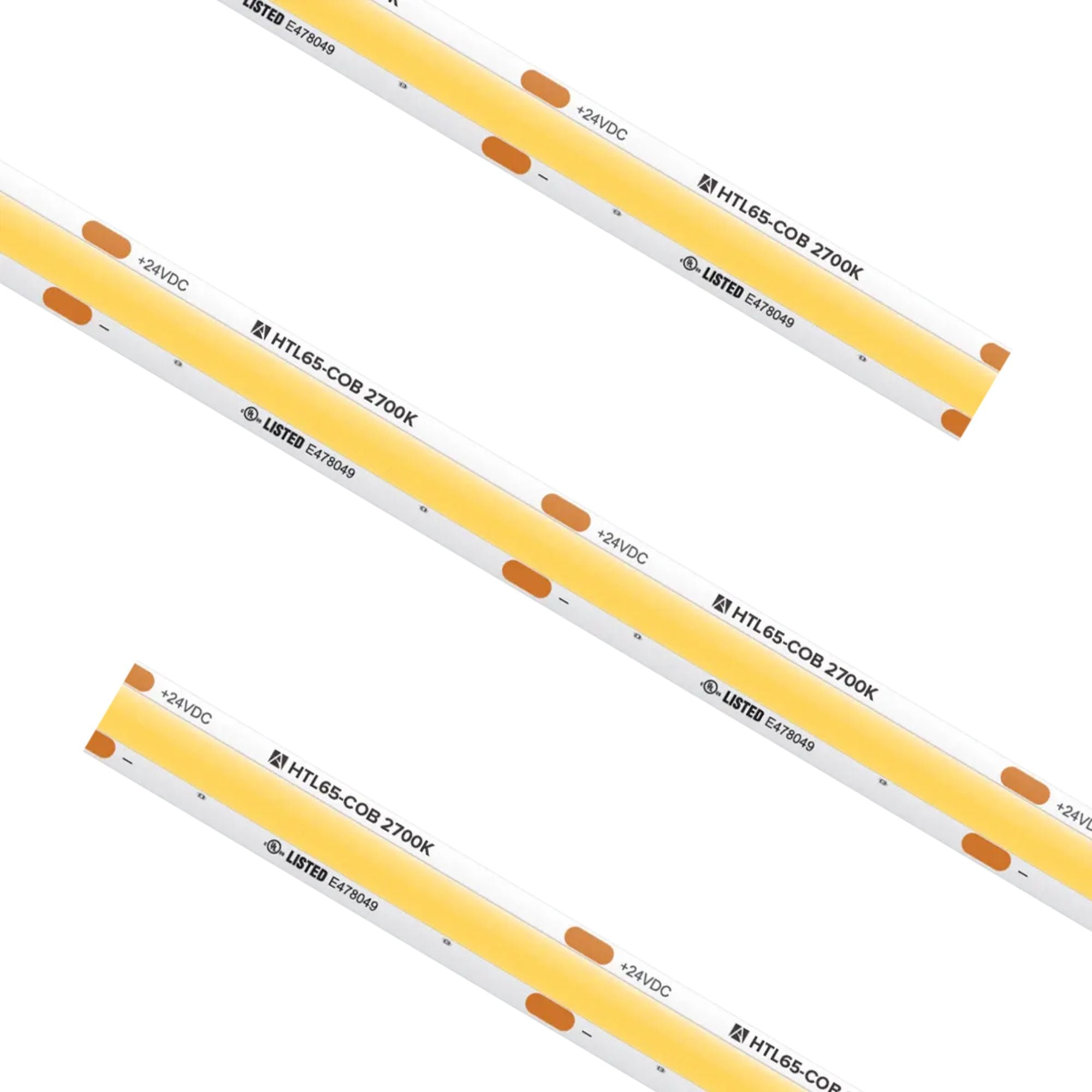

Trulux COB Series LED Tape Light — 2700K & Seamless Illumination
The Trulux HTL65-COB-UWW-16 is a 16.4ft LED tape light featuring COB technology for uniform illumination without visible diodes. It operates on 24V DC and is IP65 rated, making it suitable for wet locations. This tape light delivers 349 lumens per foot with a 90+ CRI, ensuring high-quality light output.
Key Features
- Voltage: 24V DC for stable and efficient operation.
- Wattage: Consumes 4.5W per foot.
- Lumens: Provides 349 lumens per foot.
- LEDs per Foot: Seamless COB design eliminates visible diodes.
- Max Run: Capable of a 16.4ft continuous run.
- Cut Increments: Cuttable every 1.97 inches for precise installations.
- PCB Width: 10mm for compatibility with various channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP65 for wet location use.
- Certifications: cULus Listed, JA8 Compliant.

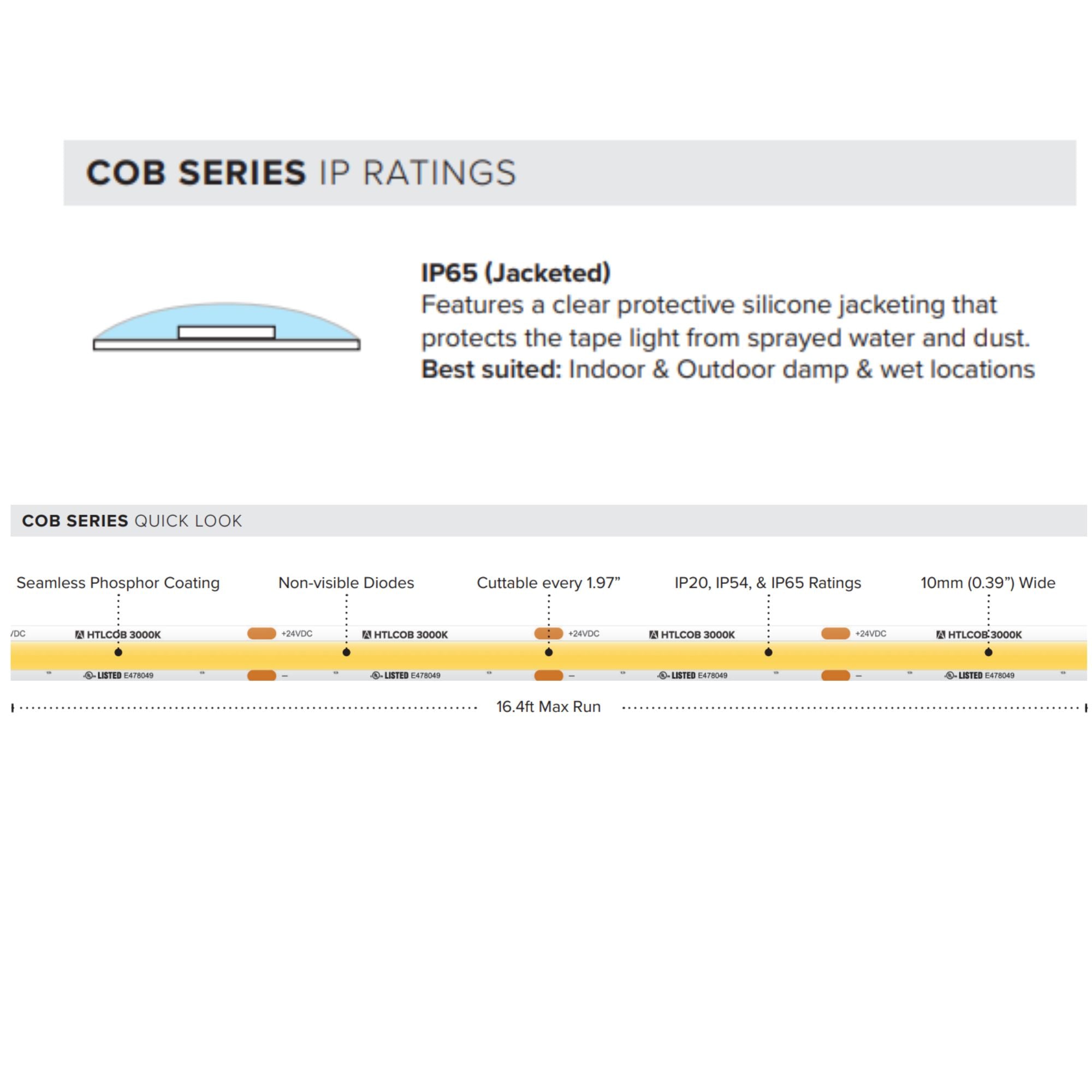

Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a protective silicone jacket for IP65 rating, and a 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
With a light output of 349 lumens per foot and a 90+ CRI, this COB tape light provides high-quality illumination with a seamless appearance, eliminating dotting and spot-glare.
Power, Wiring & Installation
Requires a 24V DC power supply. The tape light is field cuttable every 1.97 inches and supports a maximum continuous run of 16.4ft. It is dimmable with most ELV and TRIAC dimmers.

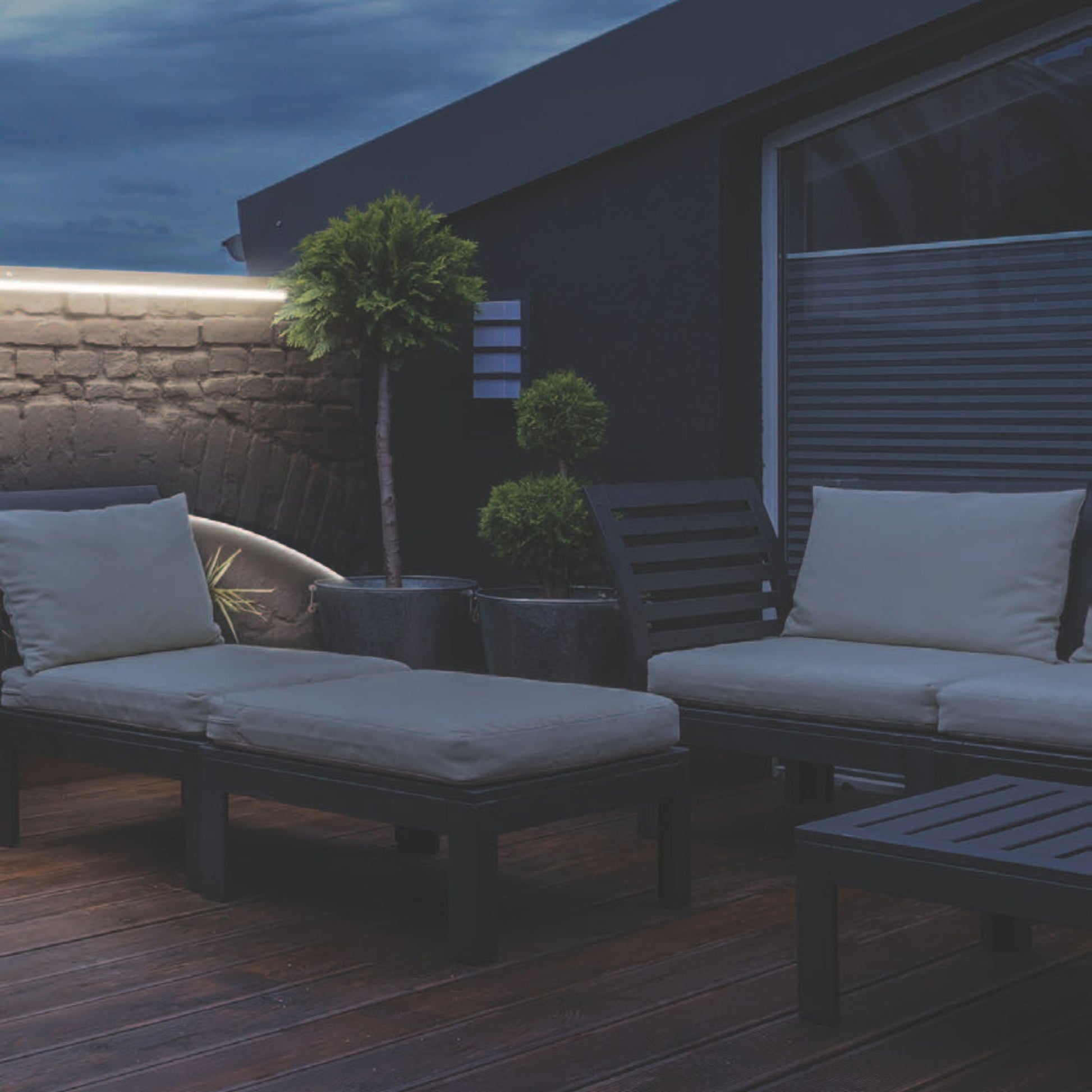

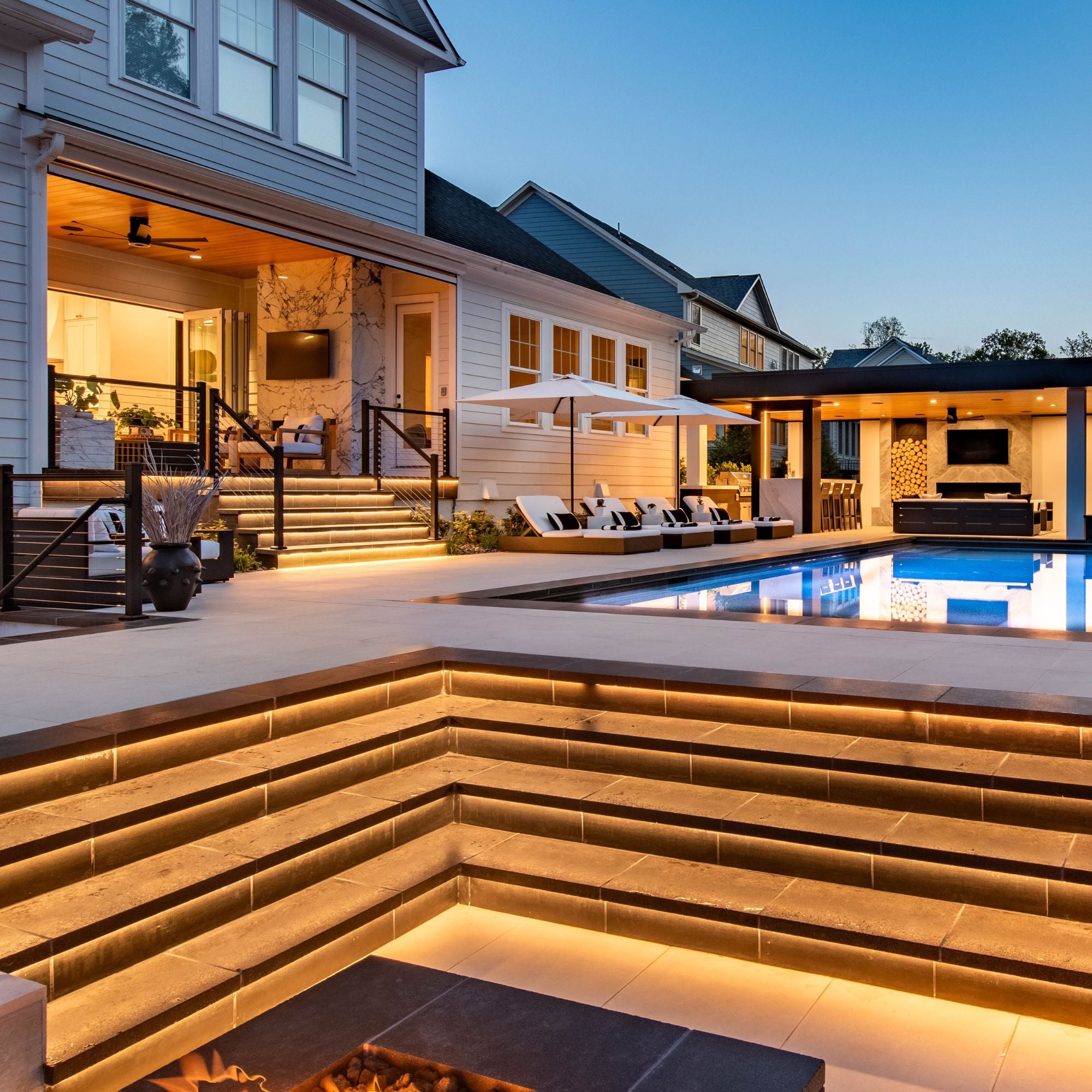

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Outdoor pathways
- Accent lighting in wet locations

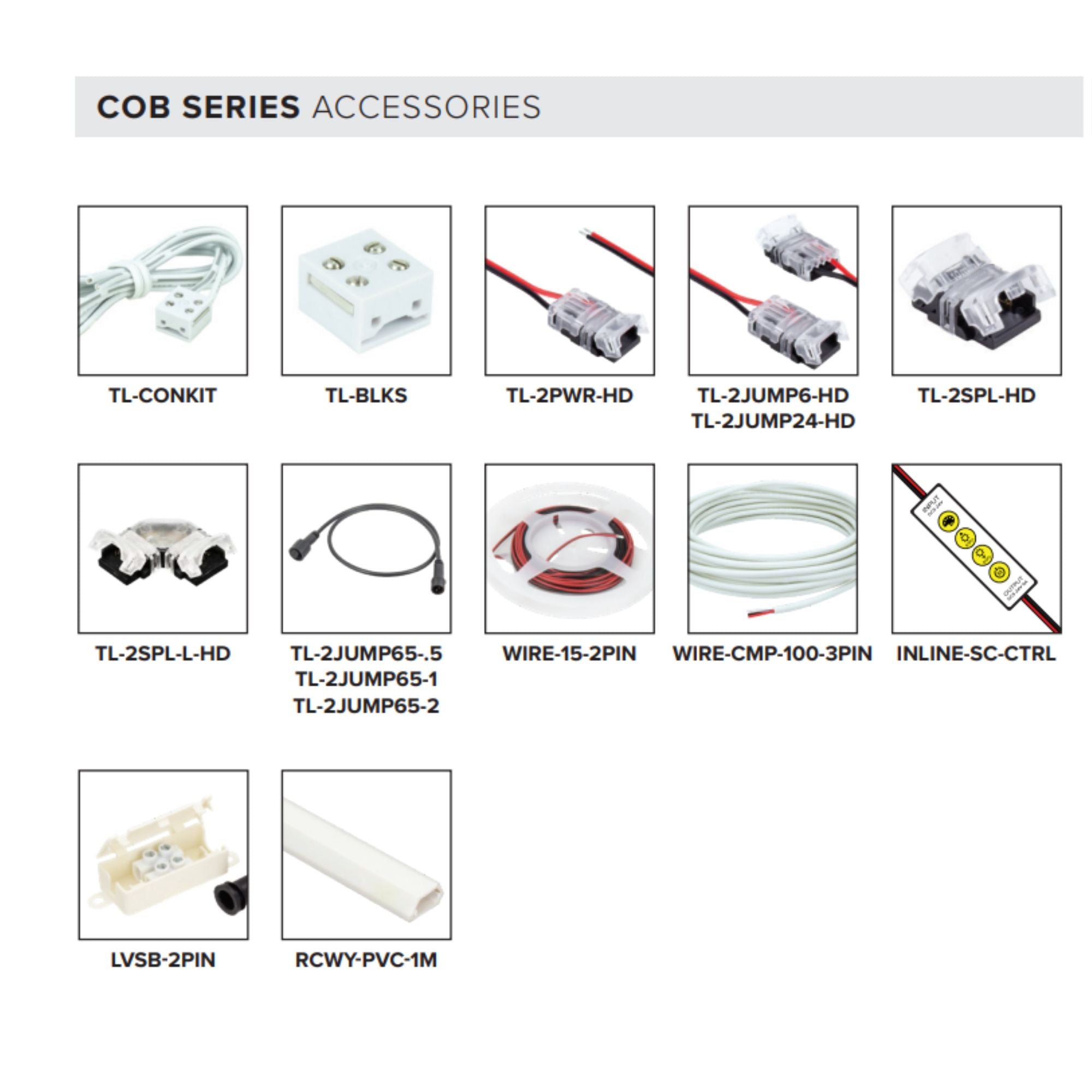

What's Included
- 16.4ft reel
- 2ft lead with 6in conkit
- 2ft tail with 6in conkit
- (2) TL-2PWR-HD connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the HTL65-COB-UWW-16?
What is the maximum run length for the HTL65-COB-UWW-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the HTL65-COB-UWW-16?
What voltage is required for the HTL65-COB-UWW-16?
Is the HTL65-COB-UWW-16 suitable for outdoor use?
Is the HTL65-COB-UWW-16 suitable for outdoor use?
What type of channels are compatible with this tape light?
What type of channels are compatible with this tape light?
