Trulux, 16.4ft, COB Tape Light, IP65, 3500K, 387 Lumens/ft, 24V
Available in stock (27)
About this item
About this item
- Color Temperature: Provides 3500K neutral white light, ideal for various applications.
- Voltage & Max Run: Operates at 24V DC with a maximum run of 16.4ft to prevent voltage drop.
- Cuttable Increments: Field cuttable every 1.97 inches for precise length adjustments.
- IP Rating: IP65 rated for wet locations, suitable for indoor and outdoor use.
- COB Technology: Seamless dotless design eliminates LED dotting for uniform illumination.
We process payments securely and do not store credit card information.
Description
Description

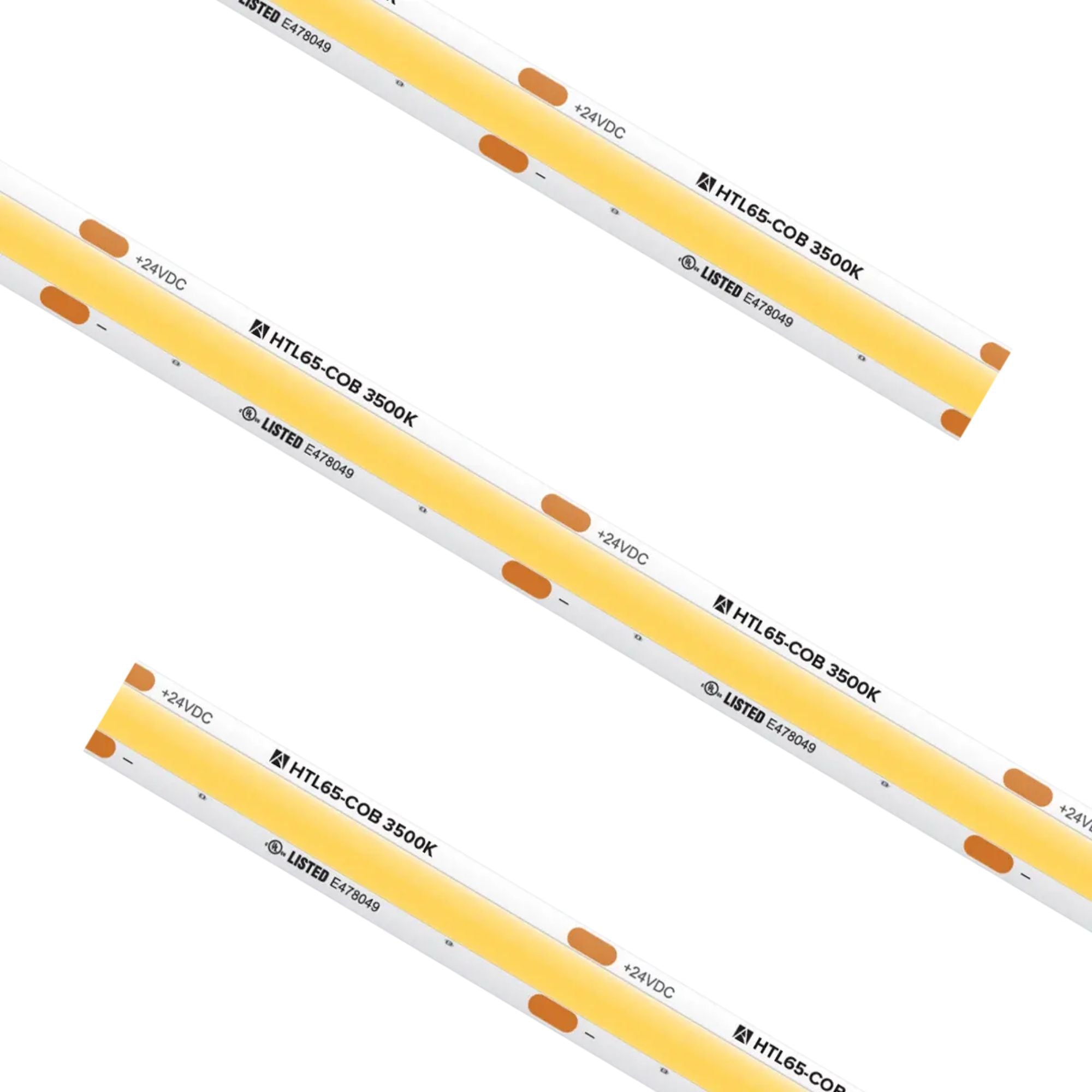

Trulux COB Tape Light — 3500K & Seamless Design
The Trulux HTL65-COB-NW-16 is a high-performance COB tape light offering 3500K neutral white light. This 16.4ft tape light operates at 24V DC and is IP65 rated for wet locations, making it suitable for both indoor and outdoor applications.
Key Features
- Voltage: Operates at 24V DC for consistent performance.
- Wattage: Consumes 4.5W per foot for energy efficiency.
- Lumens: Delivers 387 lumens per foot for bright illumination.
- LEDs per Foot: Features COB technology for a seamless light output.
- Maximum Run: Supports up to 16.4ft continuous run to avoid voltage drop.
- Cuttable: Can be cut every 1.97 inches for custom lengths.
- PCB Width: Measures 10mm wide for compatibility with various channels.
- Beam Angle: Provides a 120-degree beam angle for wide coverage.

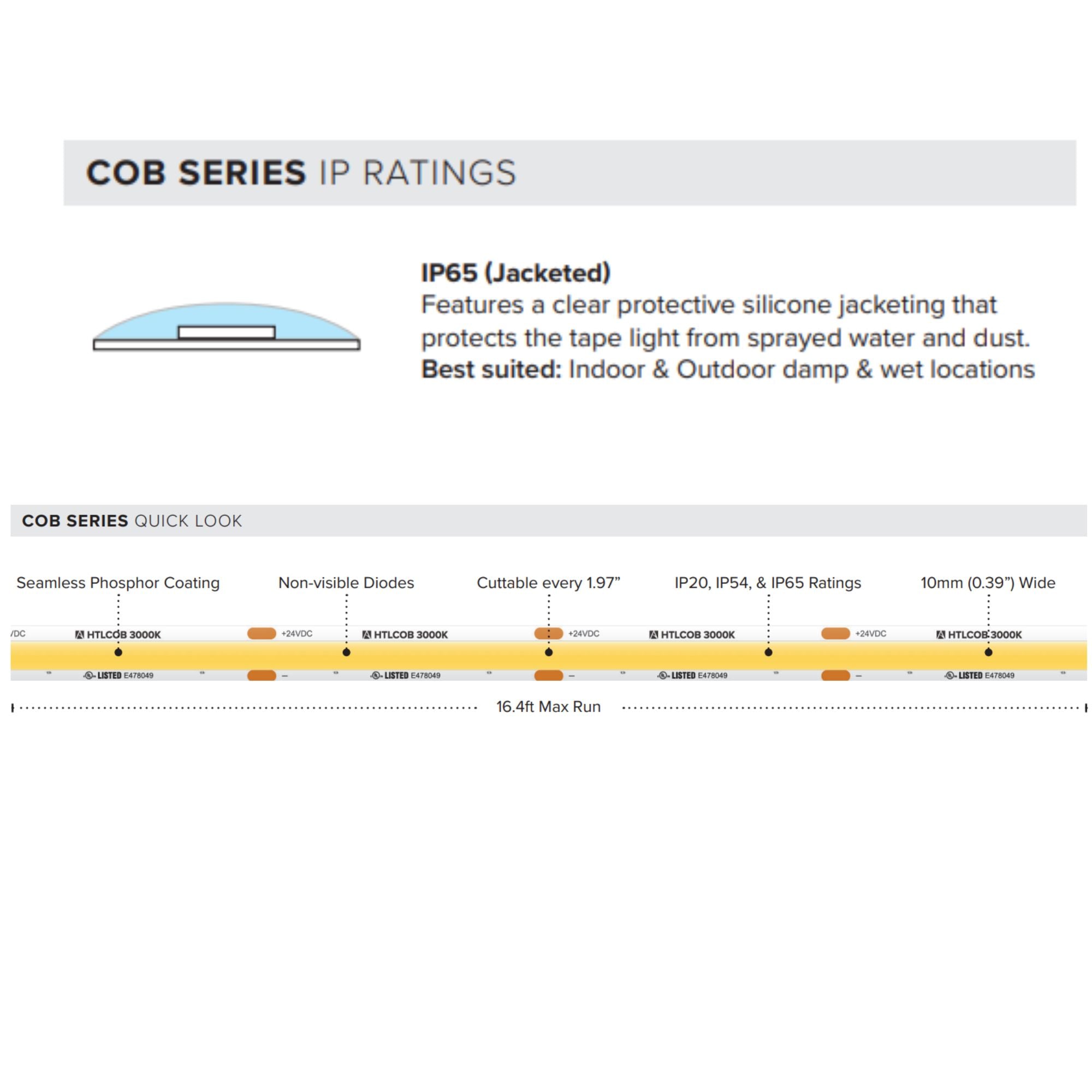

- IP Rating: IP65 rated for protection against water and dust.
- Certifications: cULus Listed, JA8 Compliant for quality assurance.
Core Design & Construction
The tape light features a 10mm wide PCB, suitable for most aluminum channels. It includes a clear silicone jacket for IP65 protection and a 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
With 387 lumens per foot and a 90+ CRI, this COB tape light ensures high-quality, uniform illumination without visible diodes.
Power, Wiring & Installation
Requires a 24V DC driver (sold separately). The tape is field cuttable every 1.97 inches and supports dimming with most ELV and TRIAC dimmers.

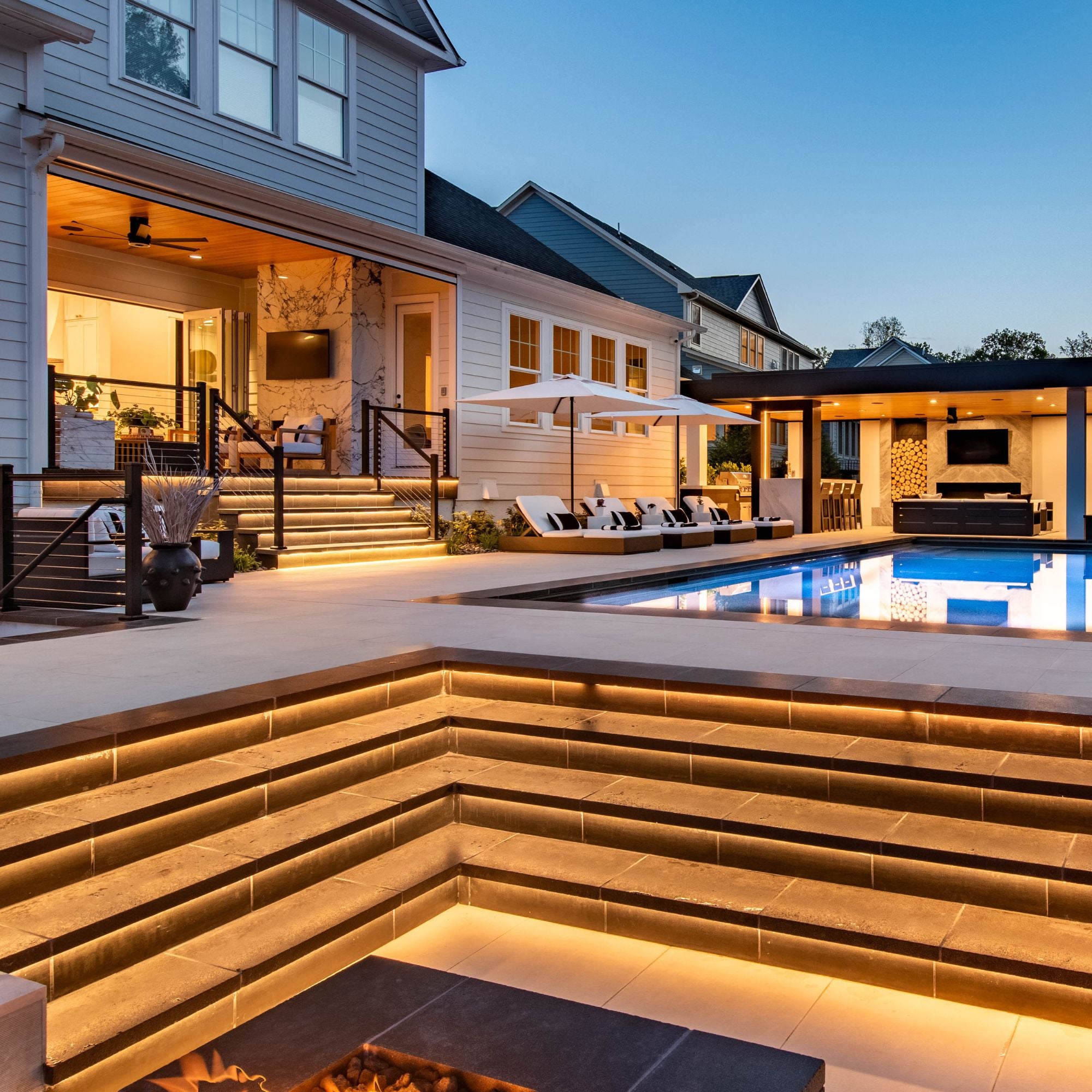

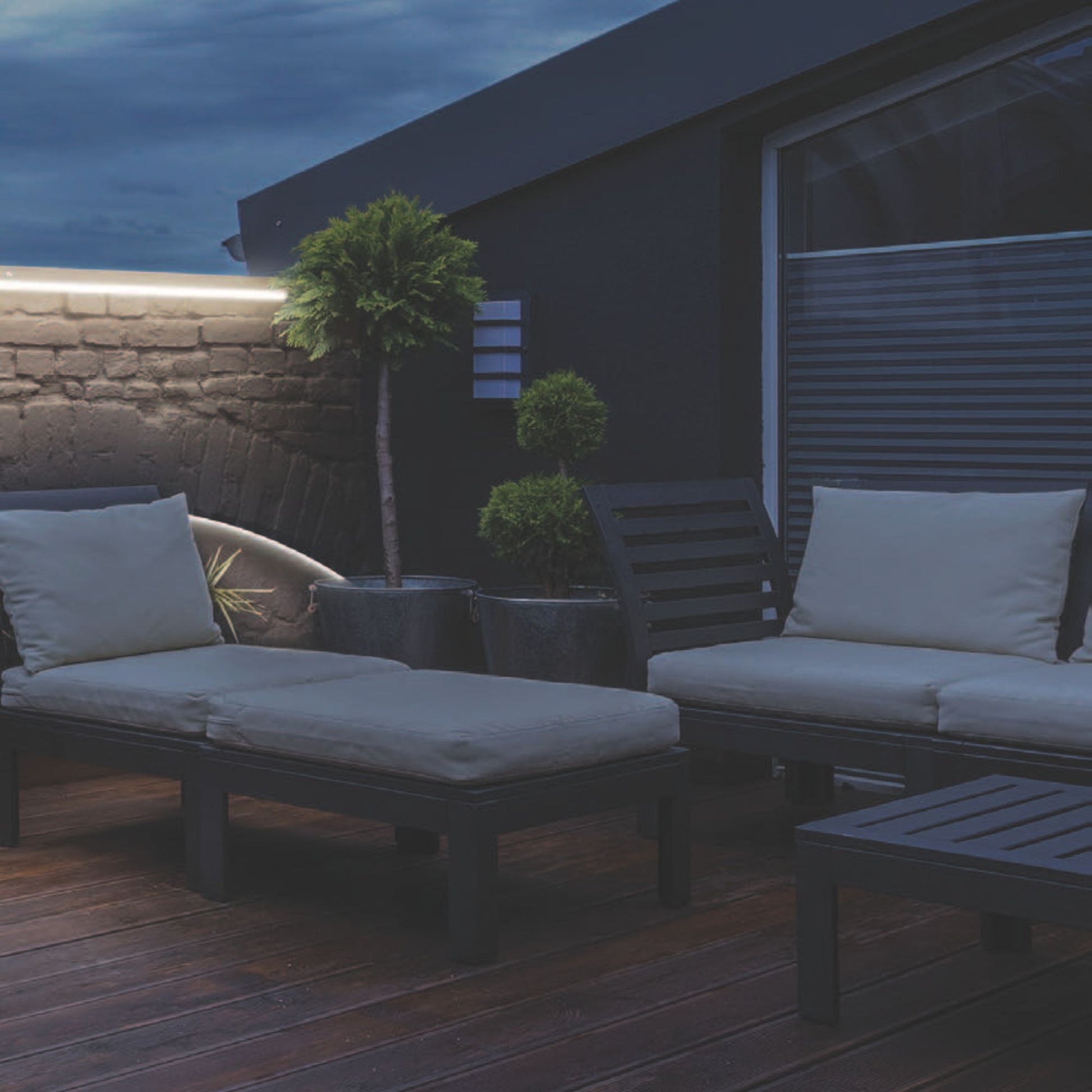

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Outdoor pathways
- Accent lighting
What's Included
- 16.4ft reel
- 2ft lead with 6-inch conkit
- 2ft tail with 6-inch conkit

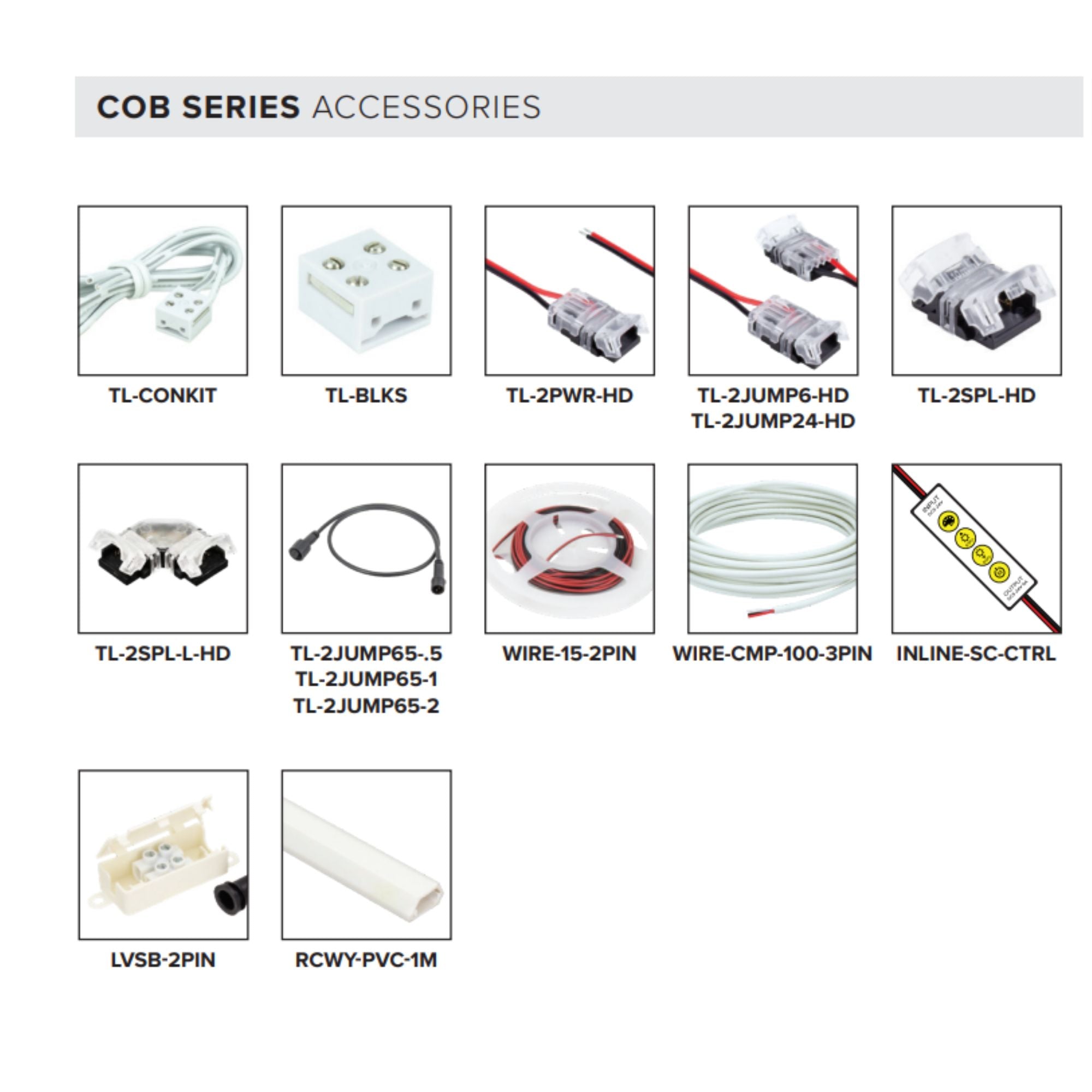

- (2) TL-2PWR-HD connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the HTL65-COB-NW-16?
What is the maximum run length for the HTL65-COB-NW-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for the HTL65-COB-NW-16?
What voltage is required for the HTL65-COB-NW-16?
Is the HTL65-COB-NW-16 suitable for outdoor use?
Is the HTL65-COB-NW-16 suitable for outdoor use?
What type of dimmers are compatible with this tape light?
What type of dimmers are compatible with this tape light?
