Trulux, 16.4ft, COB Tape Light, IP65, 5000K, 434 Lumens/ft, 24V
Available in stock (2020)
About this item
About this item
- Color Temperature: Provides a crisp 5000K light, ideal for task lighting and workspaces.
- Voltage: Operates on 24V DC, ensuring efficient power consumption and compatibility with low-voltage systems.
- Max Run Length: Supports up to 16.4ft continuous runs, minimizing voltage drop and maintaining consistent brightness.
- Cuttable Increments: Field cuttable every 1.97 inches, allowing for precise customization to fit any space.
- IP Rating: IP65 rated, suitable for both indoor and outdoor wet locations, offering protection against water and dust.
We process payments securely and do not store credit card information.
Description
Description

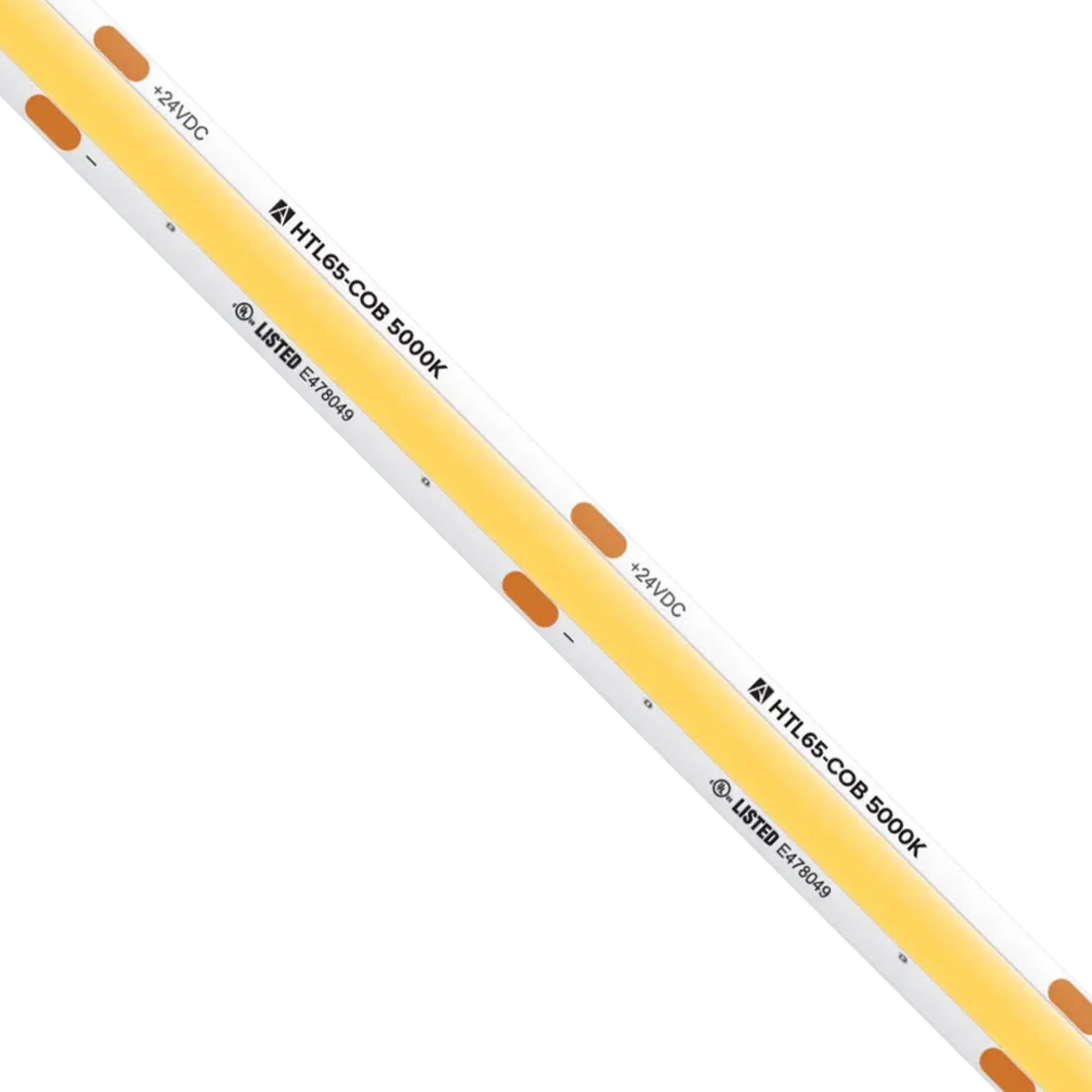

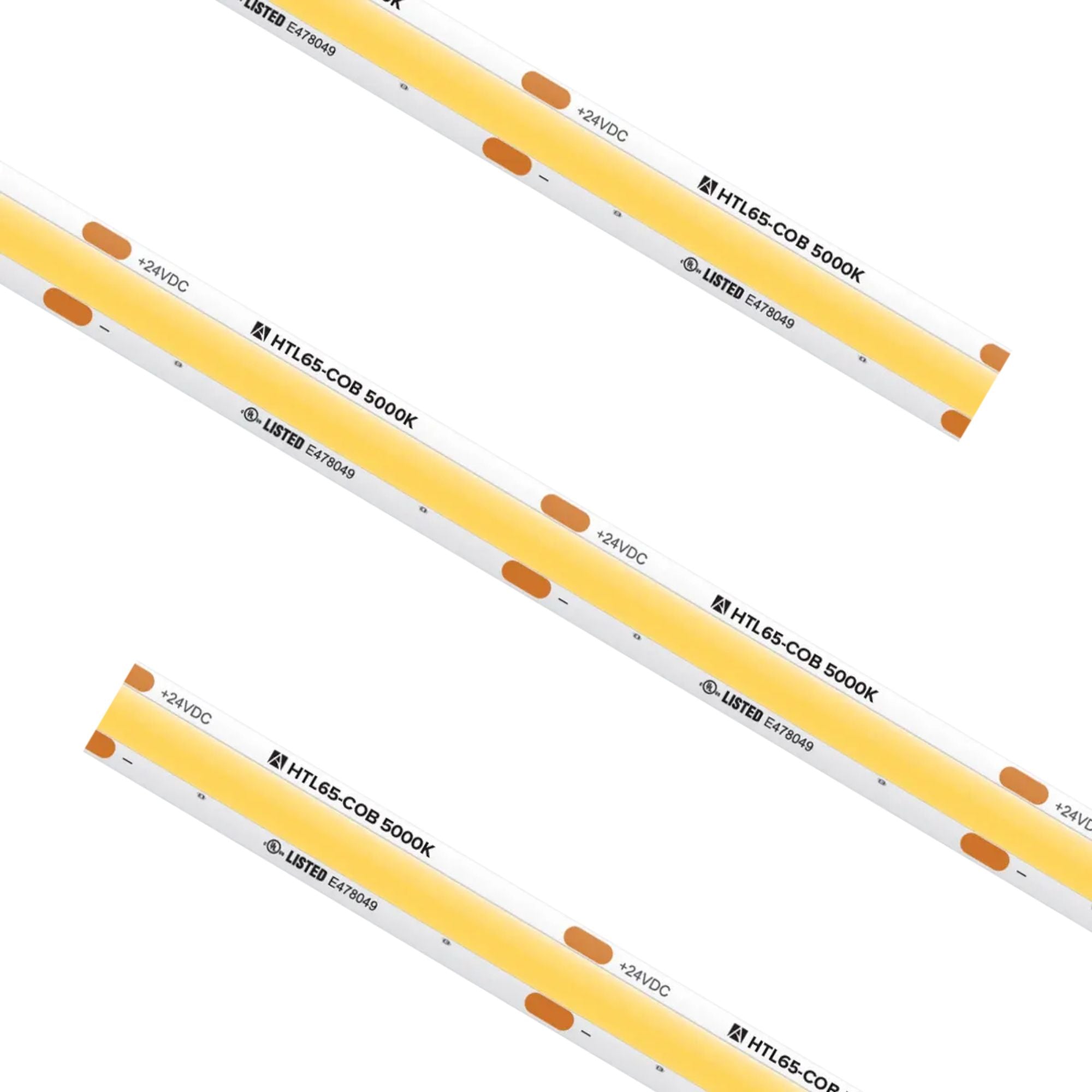

Trulux COB Tape Light — 5000K & Seamless Illumination
The Trulux HTL65-COB-CW-16 is a high-performance COB tape light designed for seamless illumination. This 16.4ft tape light operates at 24V DC and is IP65 rated, making it suitable for wet locations. With a color temperature of 5000K, it delivers a bright and clear light output.
Key Features
- Voltage: 24V DC for efficient energy use.
- Wattage: 4.5W per foot for optimal power consumption.
- Lumens: 434 lumens per foot for bright illumination.
- LEDs per Foot: Seamless COB design for uniform light distribution.
- Max Run: 16.4ft to prevent voltage drop.
- Cut Increments: 1.97 inches for precise customization.
- PCB Width: 10mm for compatibility with standard channels.
- Beam Angle: 120 degrees for wide light distribution.

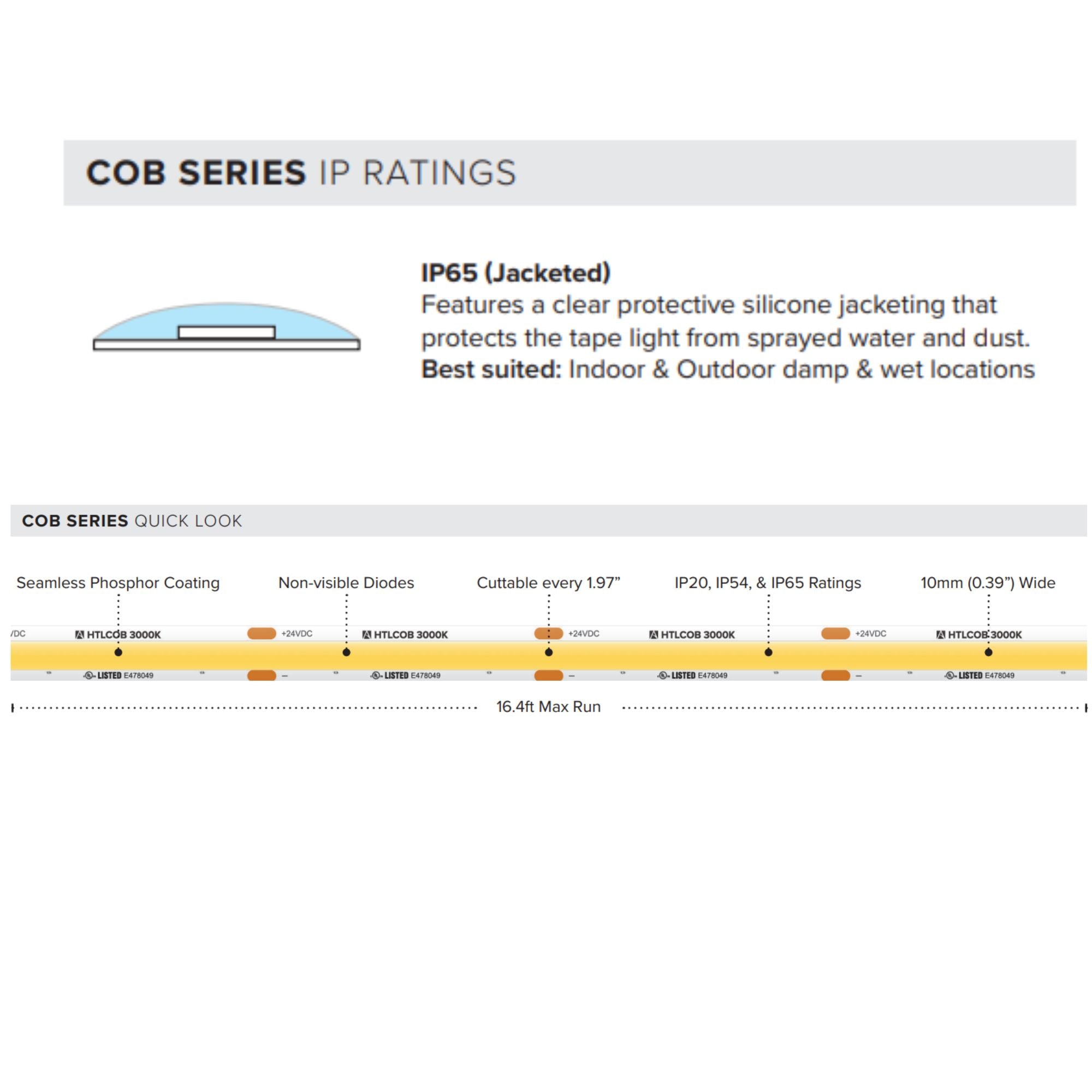

- IP Rating: IP65 for wet location use.
- Certifications: cULus Listed, JA8 Compliant for quality assurance.

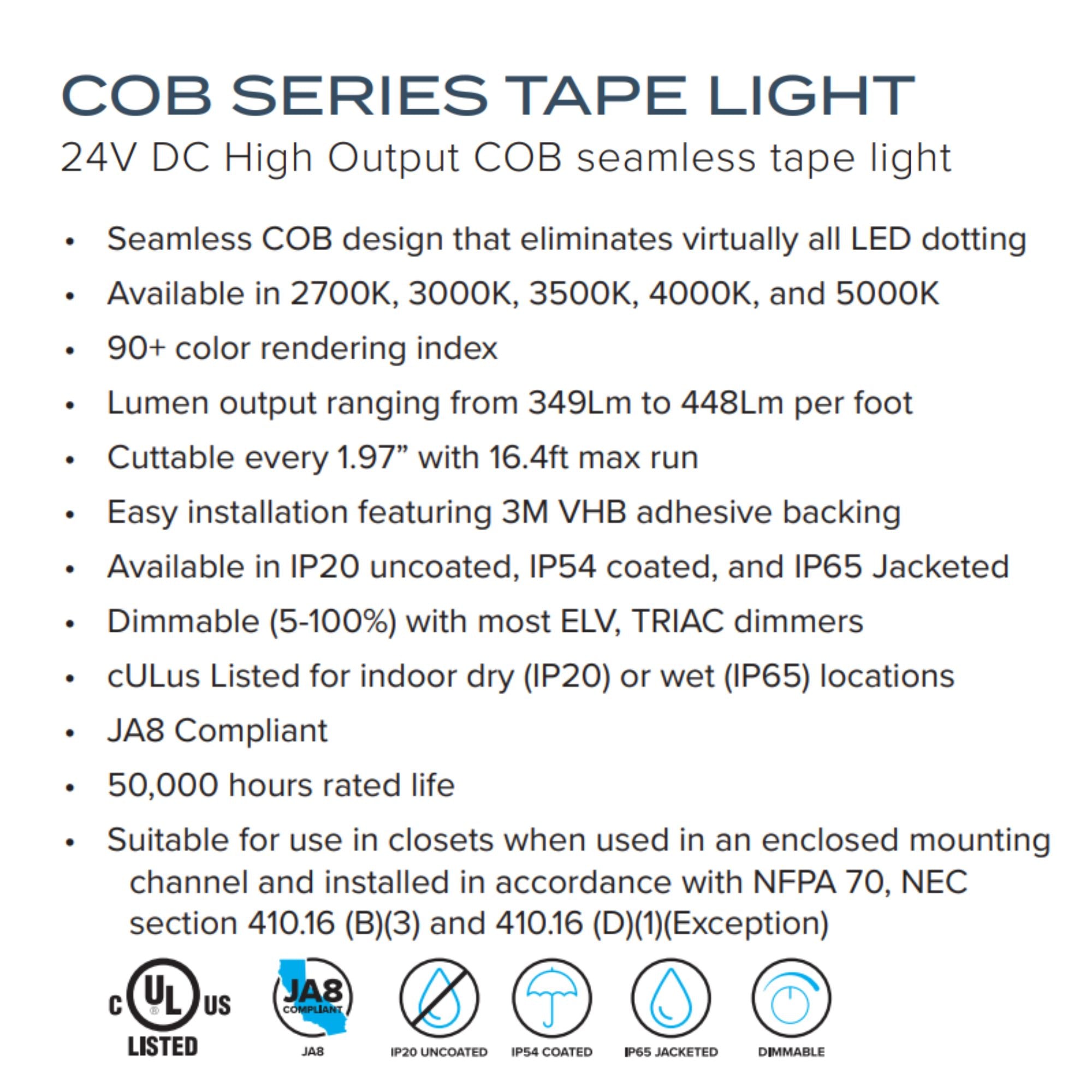

Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a clear silicone jacket for IP65 protection, and a 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
With 434 lumens per foot and a 90+ CRI, this COB tape light provides high-quality, uniform illumination without visible diodes, making it ideal for reflective surfaces.
Power, Wiring & Installation
Requires a 24V DC driver, sold separately. The tape is field cuttable every 1.97 inches and supports dimming from 5-100% with compatible ELV and TRIAC dimmers.

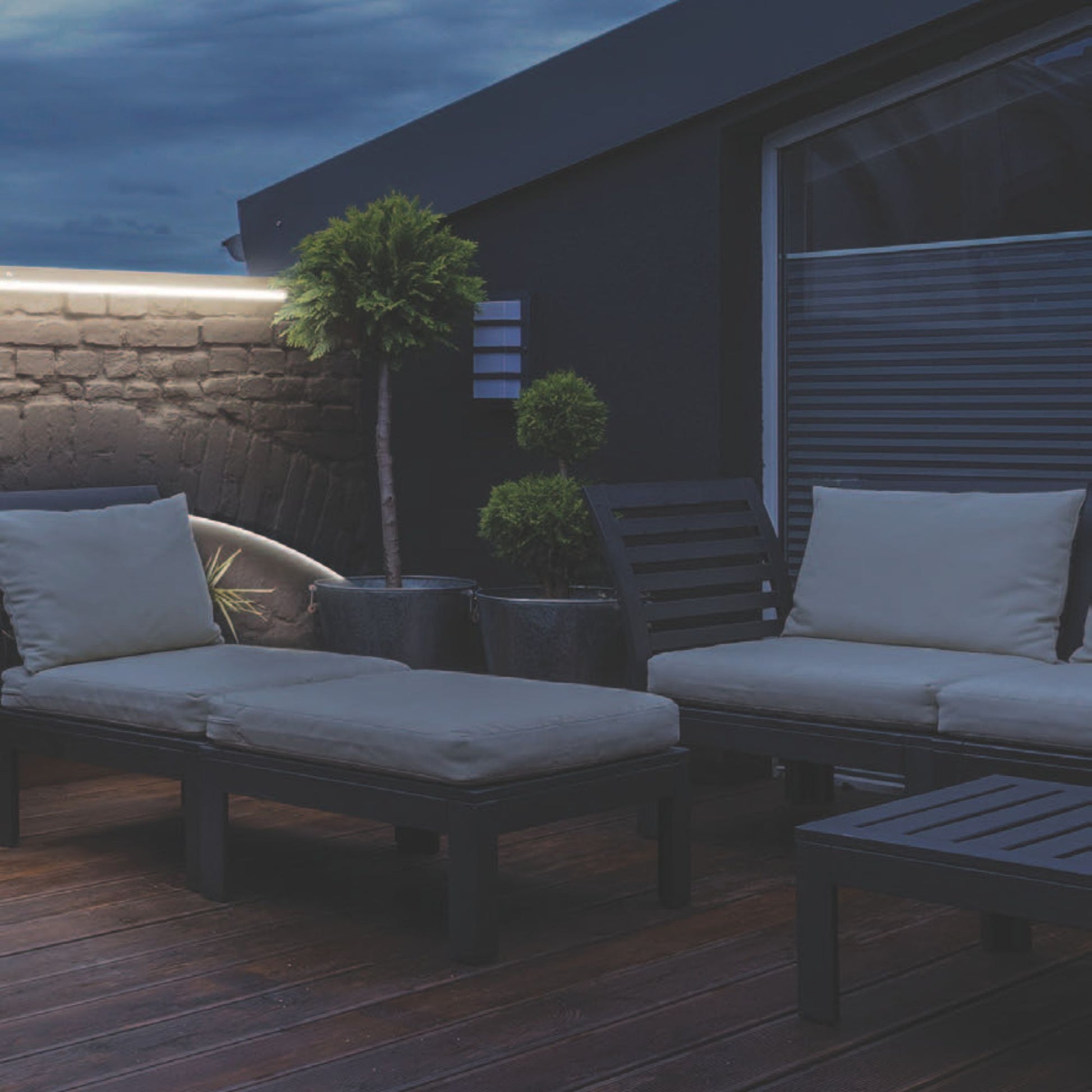

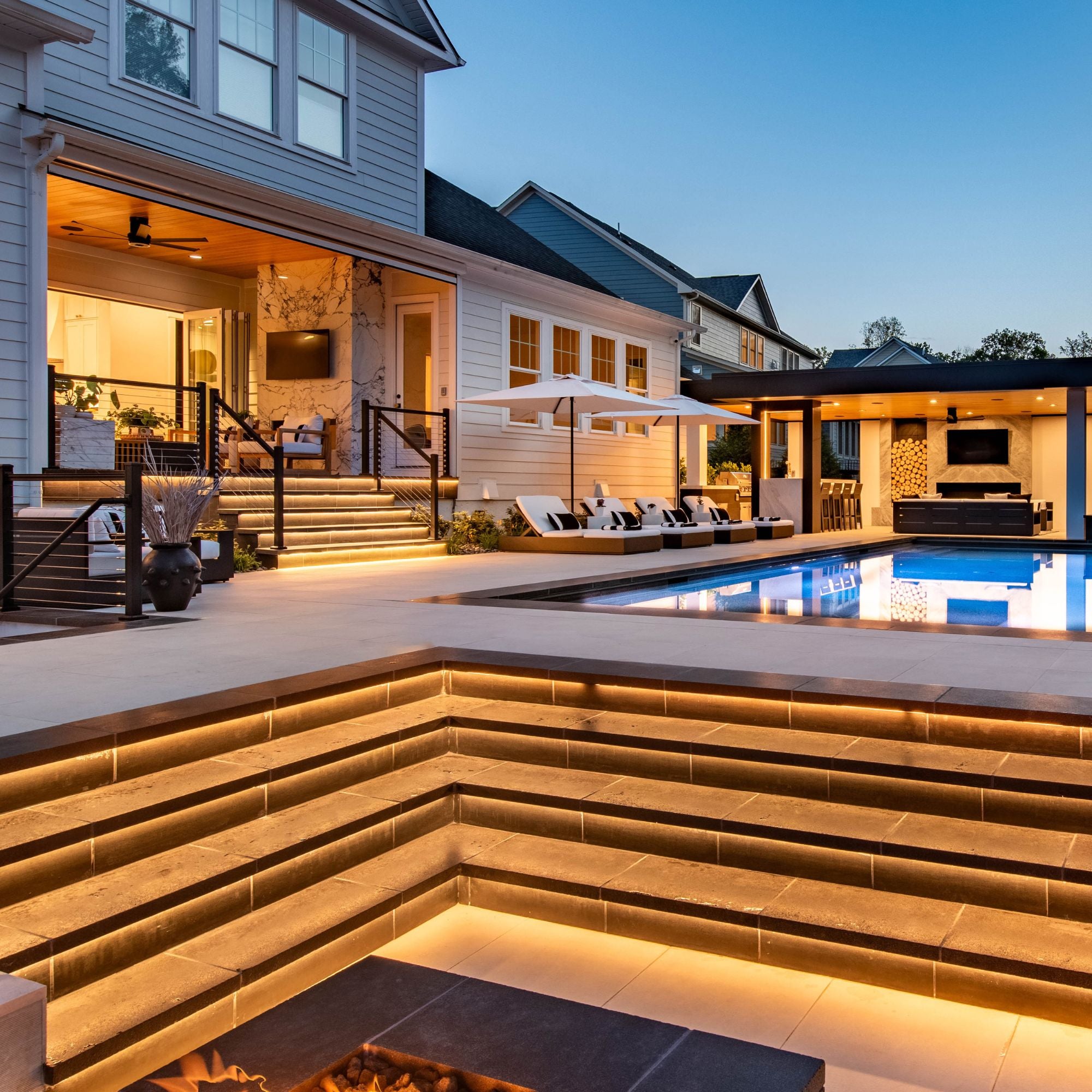

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Outdoor pathways
- Accent lighting
- Retail displays

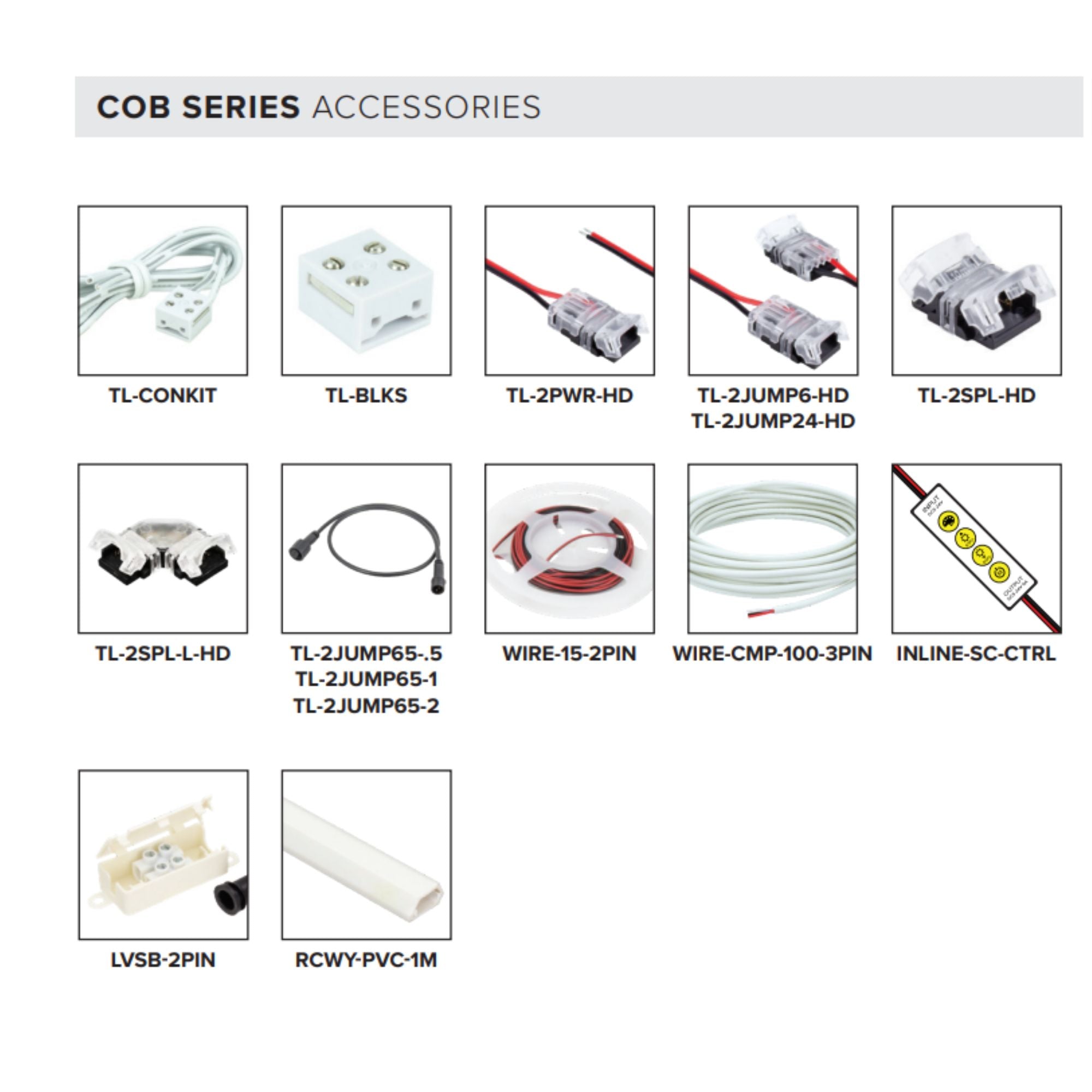

What's Included
- 16.4ft spool of tape light
- 2ft lead with 6 inch Conkit
- 2ft tail with 6 inch Conkit
- (2) TL-2PWR-HD connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the HTL65-COB-CW-16?
What is the maximum run length for the HTL65-COB-CW-16?
How often can the tape be cut?
How often can the tape be cut?
What voltage is required for the HTL65-COB-CW-16?
What voltage is required for the HTL65-COB-CW-16?
Is the HTL65-COB-CW-16 suitable for outdoor use?
Is the HTL65-COB-CW-16 suitable for outdoor use?
What type of dimmers are compatible with this tape light?
What type of dimmers are compatible with this tape light?
