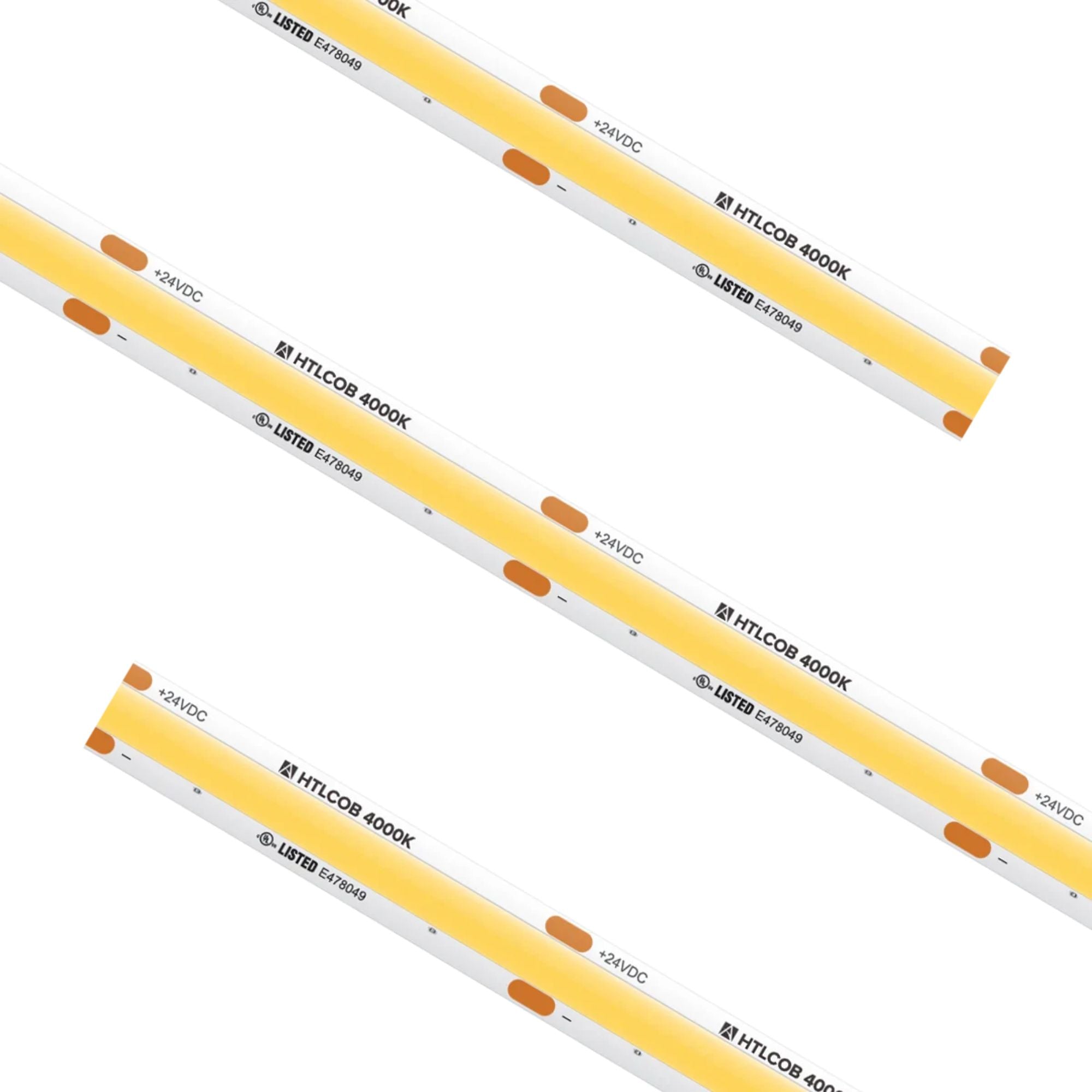

American Lighting Trulux, 16.4ft, COB LED Tape Light, IP54, 4000K, 460 Lumens/ft, 24V
Available in stock (1367)
About this item
About this item
- Voltage: Operates on 24V DC for efficient power consumption.
- Color Temperature: Provides a crisp 4000K neutral white light.
- Lumens per Foot: Delivers up to 460 lumens per foot for bright illumination.
- Max Run: Supports a maximum continuous run of 16.4 feet.
- Cut Increments: Field cuttable every 1.97 inches for custom lengths.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Trulux COB LED Tape Light — 4000K & Seamless Design
The HTL-COB-WH-16 is a high-performance COB LED Tape Light from American Lighting's Trulux series. This 16.4ft tape light operates at 24V DC and is IP54 rated, making it suitable for damp locations. It features a seamless design that eliminates LED dotting, providing uniform illumination ideal for areas with low clearance or reflective surfaces.
Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: Consumes 4.5 watts per foot.
- Lumens: Up to 460 lumens per foot for bright, effective lighting.
- LEDs per Foot: Seamless COB design for dotless illumination.
- Maximum Run: 16.4 feet to prevent voltage drop.

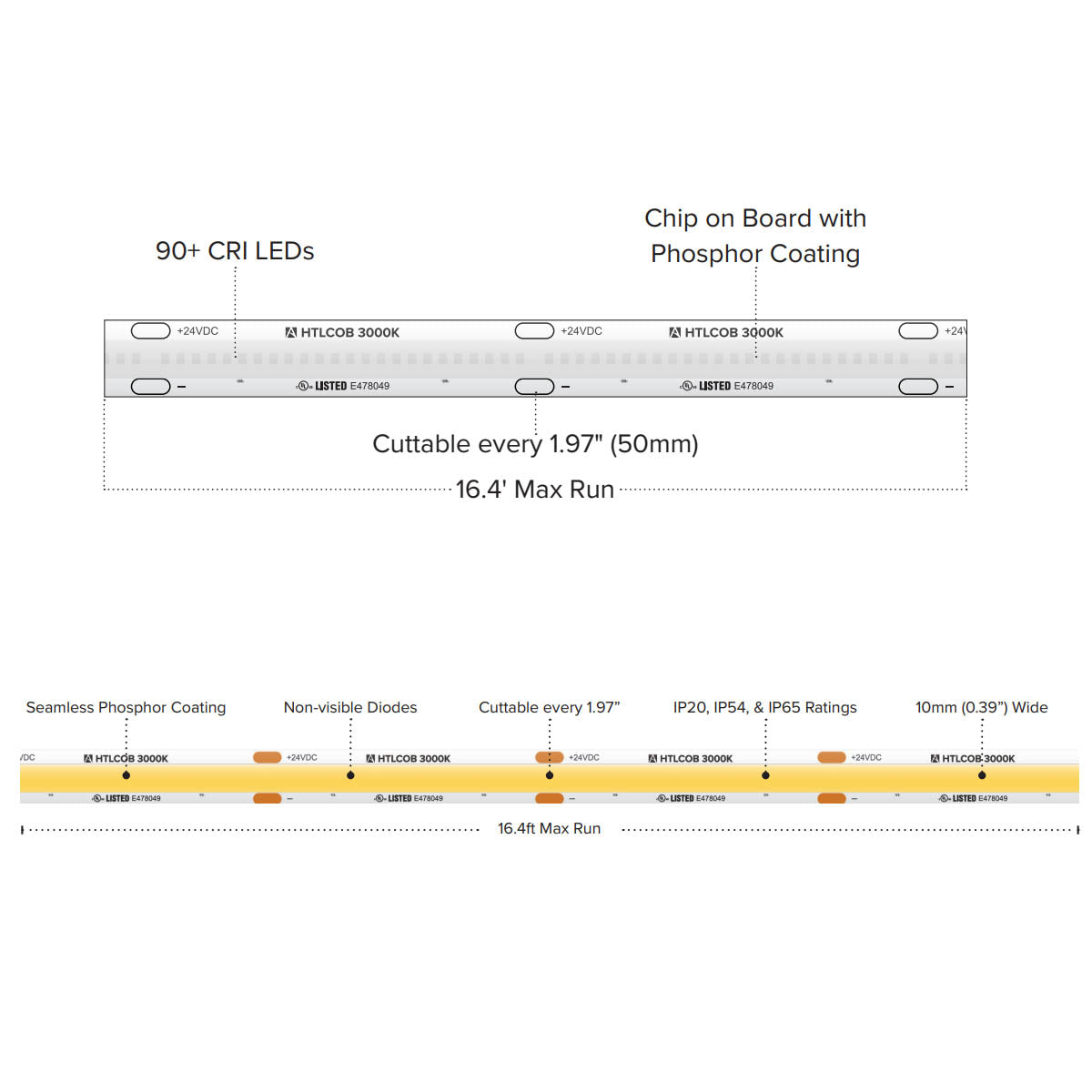

- Cuttable Increments: Every 1.97 inches for precise customization.
- PCB Width: 10mm, compatible with various mounting channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP54, suitable for indoor damp locations.
- Certifications: cULus Listed, JA8 Compliant.
Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a light nano-coating for protection against moisture and dust, and a 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
With up to 460 lumens per foot and a 90+ CRI, this COB LED tape light provides high-quality illumination. The seamless design ensures a continuous line of light without visible diodes.
Power, Wiring & Installation
This tape light requires a 24V DC power supply and is dimmable with most ELV and TRIAC dimmers. It can be cut every 1.97 inches and supports a maximum run of 16.4 feet to prevent voltage drop.
Where This Tape Works Best
- Cove lighting

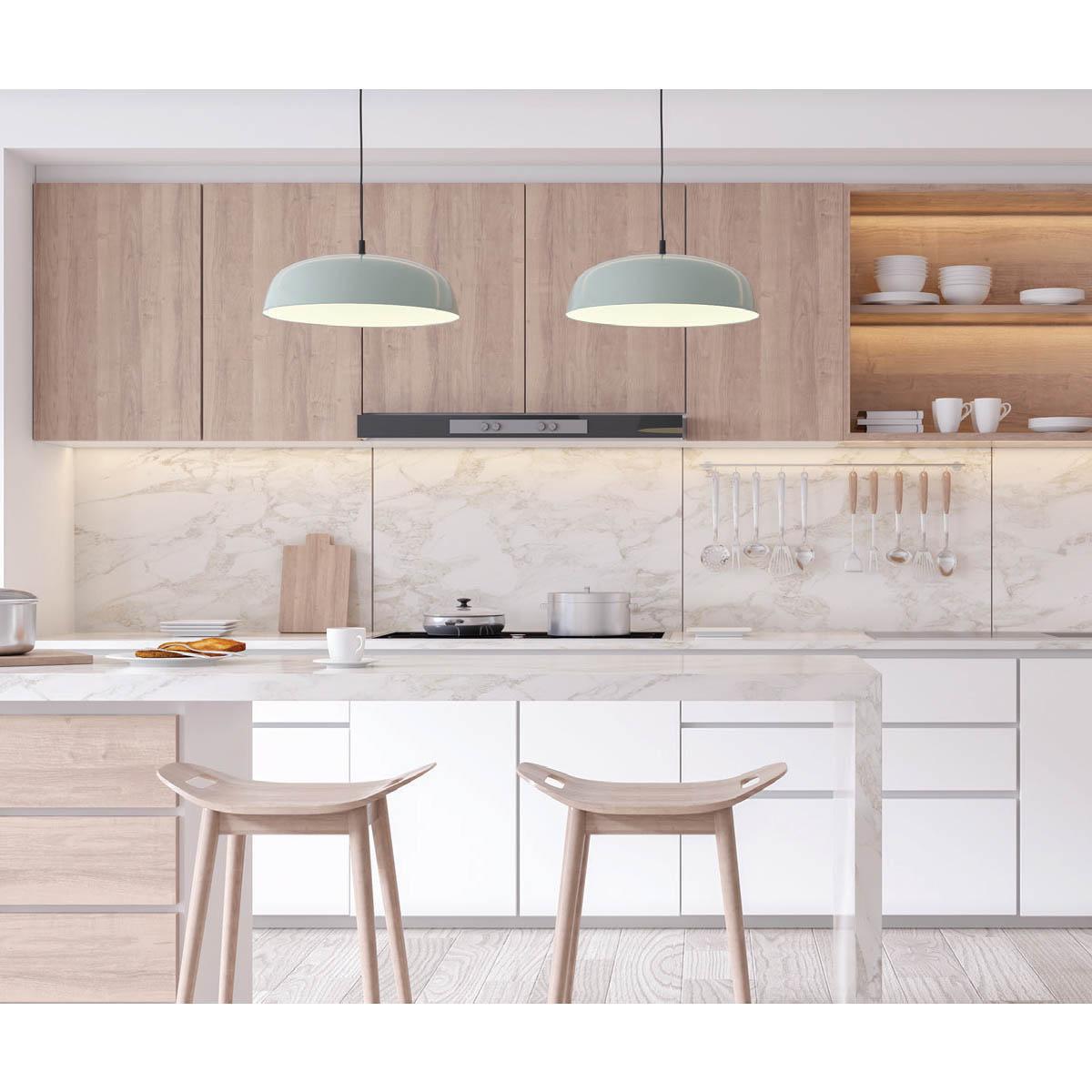

- Under cabinet lighting
- Accent lighting
- Retail displays
- Architectural features
What's Included
- 16.4ft reel
- 6ft lead and tail
- (1) TL-CONKIT
- (2) TL-BLKS
- (2) TL-2PWR-HD
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the HTL-COB-WH-16?
What is the maximum run length for the HTL-COB-WH-16?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this tape light?
What voltage is required for this tape light?
Is the HTL-COB-WH-16 suitable for outdoor use?
Is the HTL-COB-WH-16 suitable for outdoor use?
What type of dimmers are compatible with this tape light?
What type of dimmers are compatible with this tape light?
