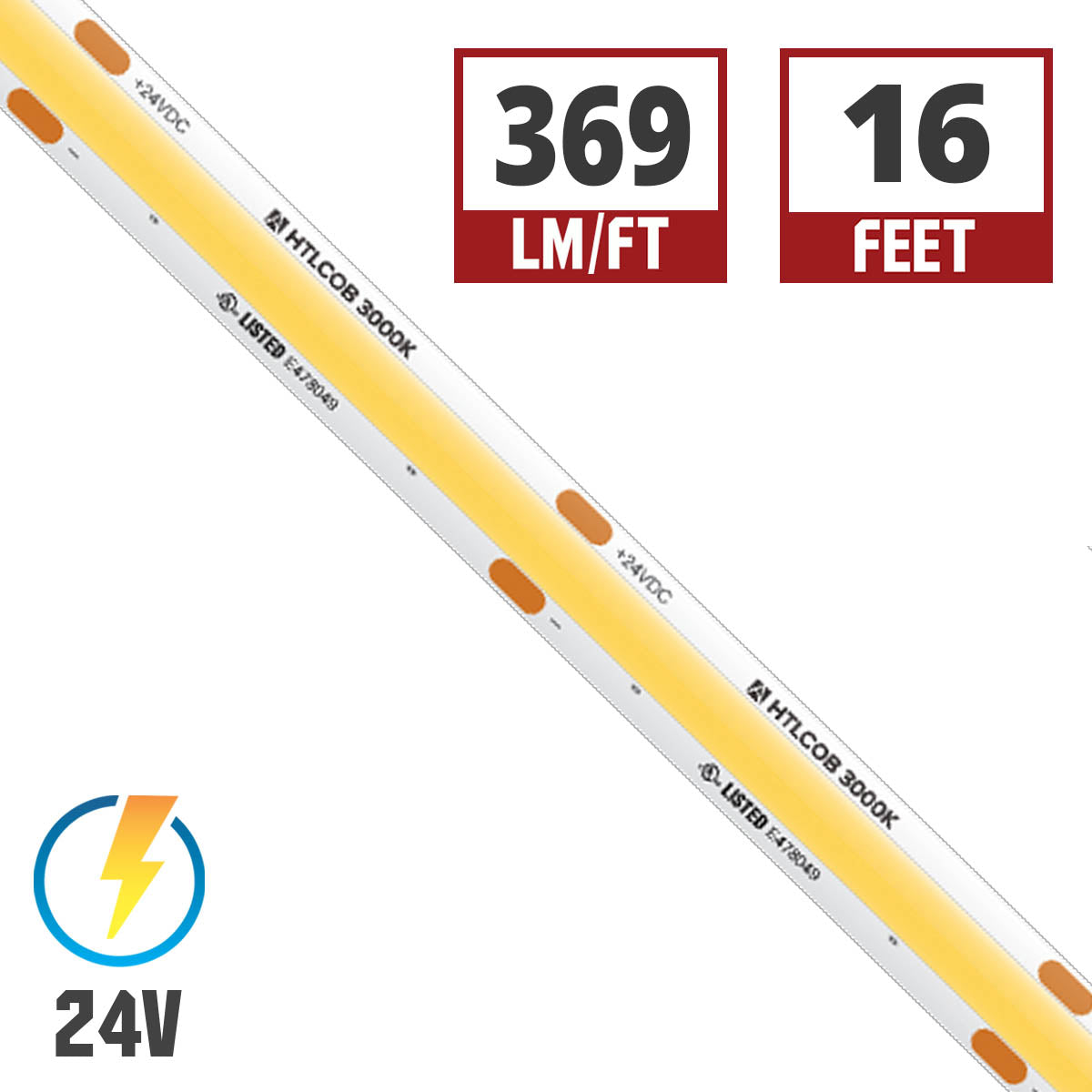

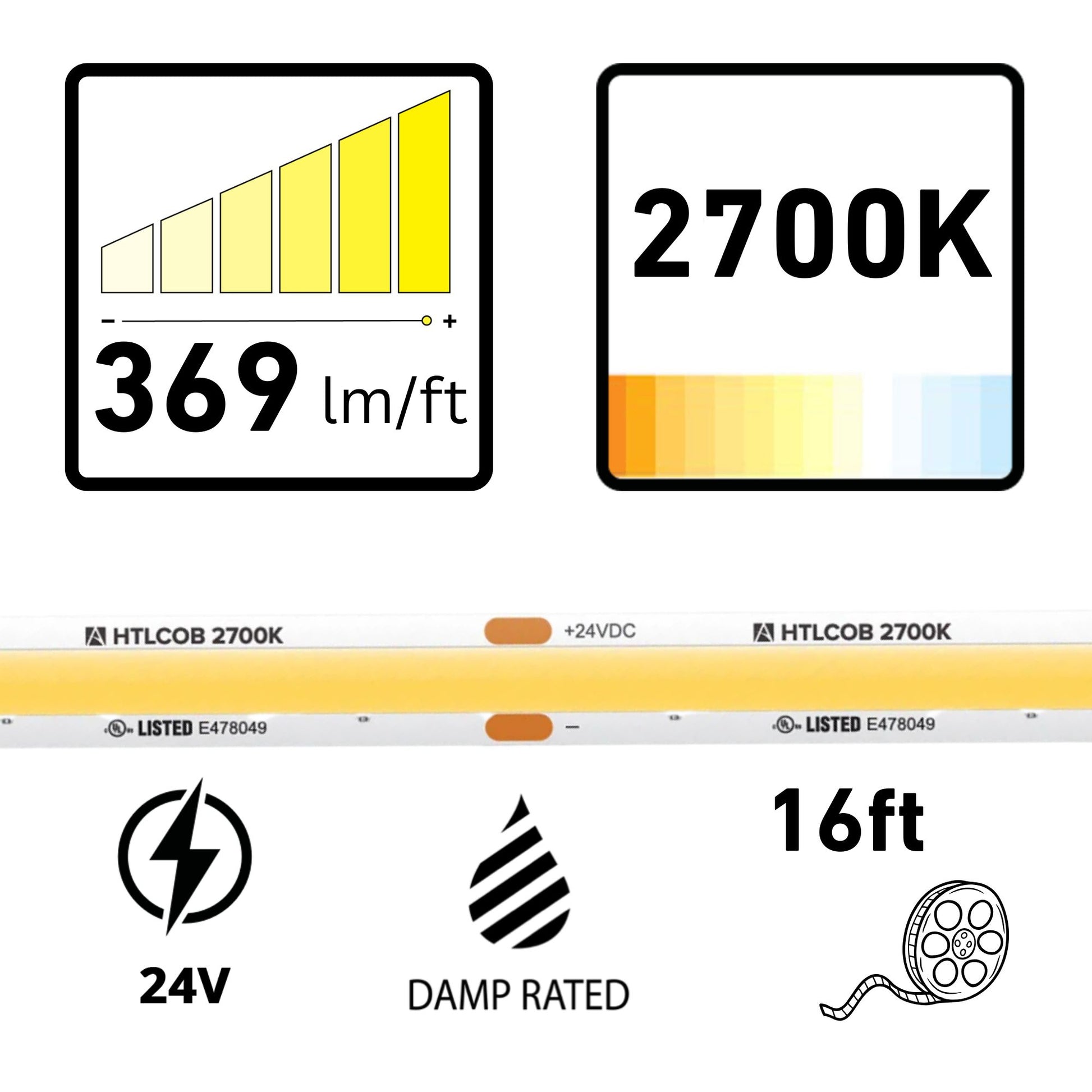

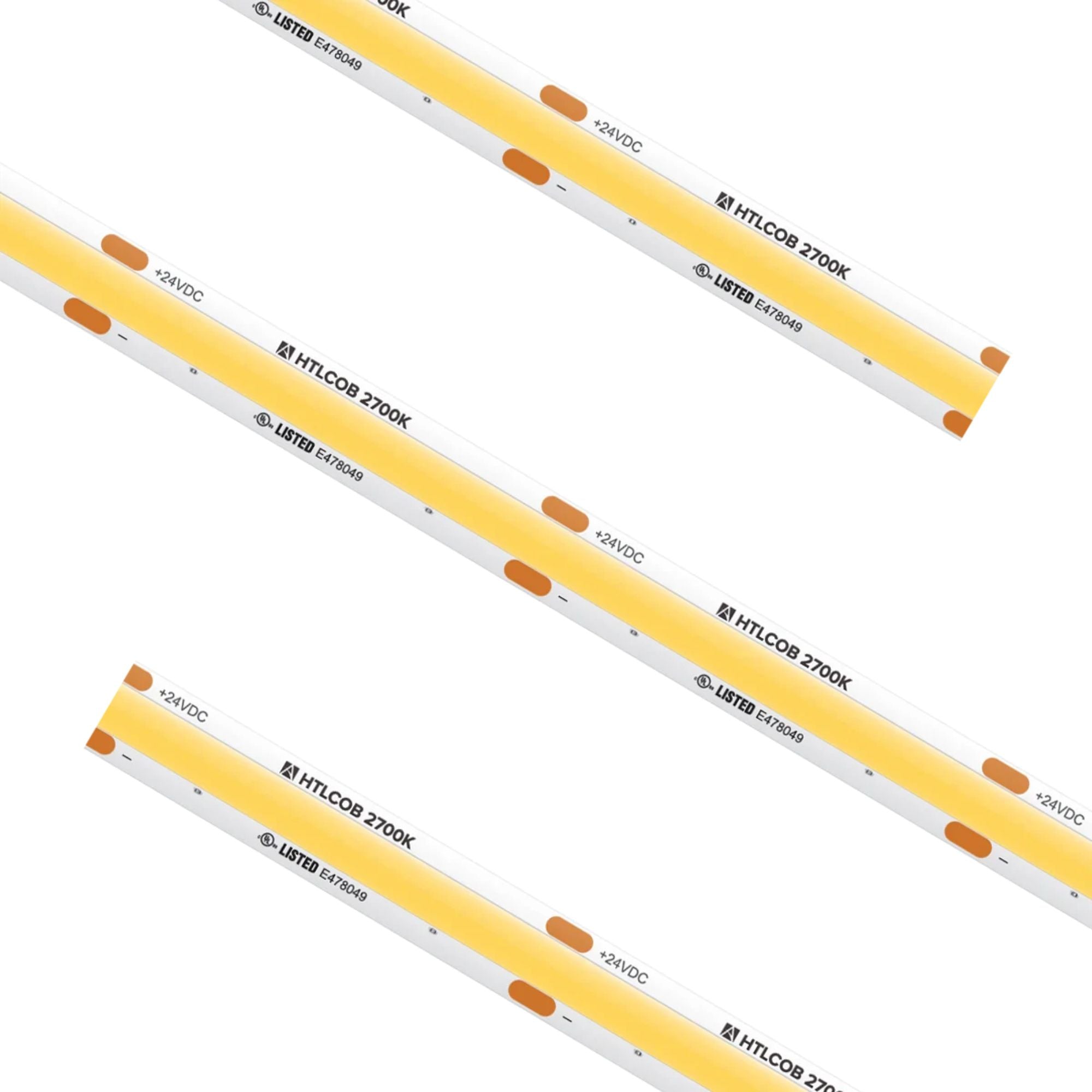

American Lighting Trulux 16.4ft COB Tape Light, IP54, 2700K, 369 Lumens/ft, 24V
Available in stock (1129)
About this item
About this item
- Voltage: Operates at 24V DC, ideal for consistent power delivery in various installations.
- Color Temperature: Emits a warm 2700K light, perfect for creating cozy environments.
- Lumens per Foot: Delivers 369 lumens per foot for bright and efficient lighting.
- Max Run: Supports up to 16.4ft continuous run to minimize voltage drop.
- Cut Increments: Field cuttable every 1.97 inches for precise length customization.
We process payments securely and do not store credit card information.
Description
Description

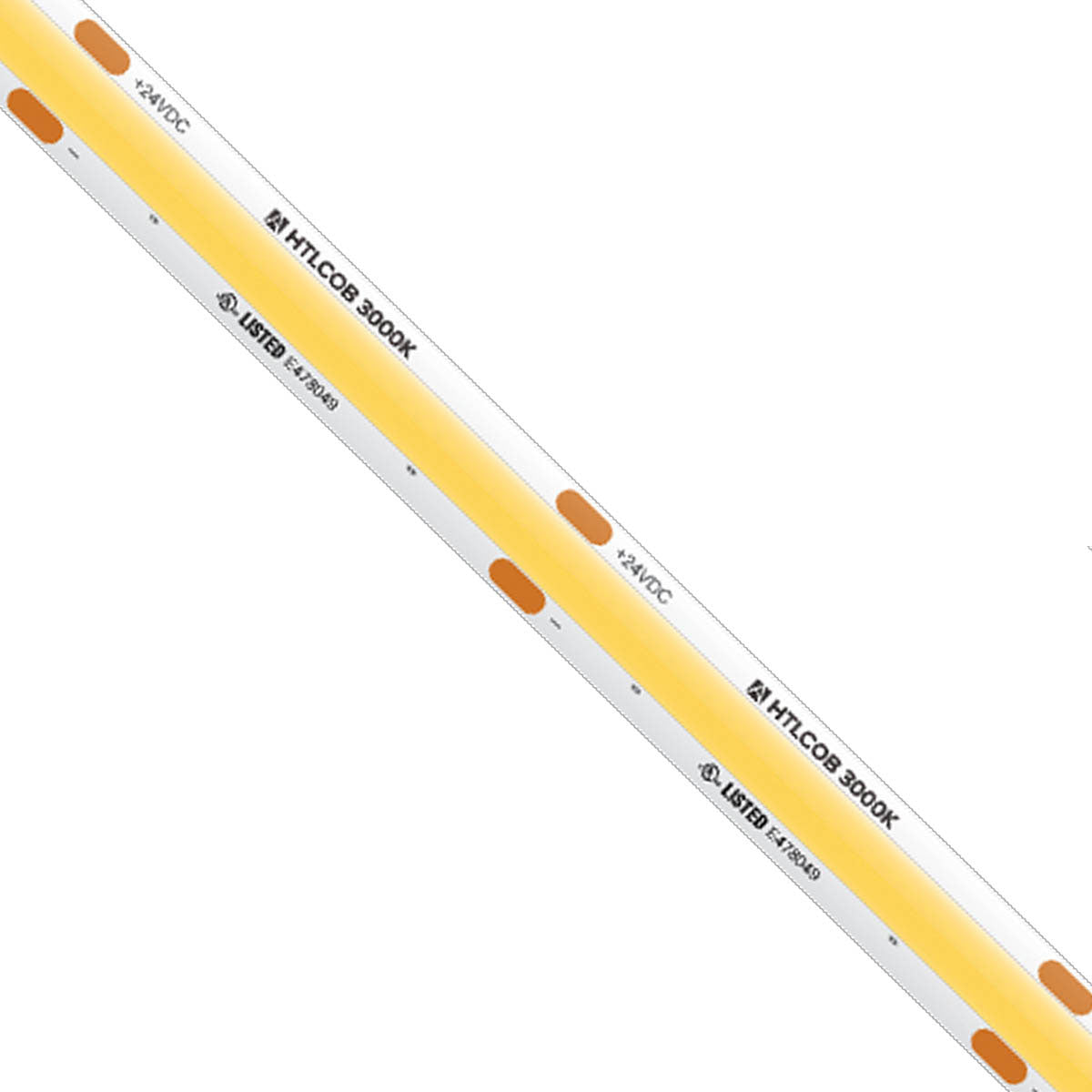

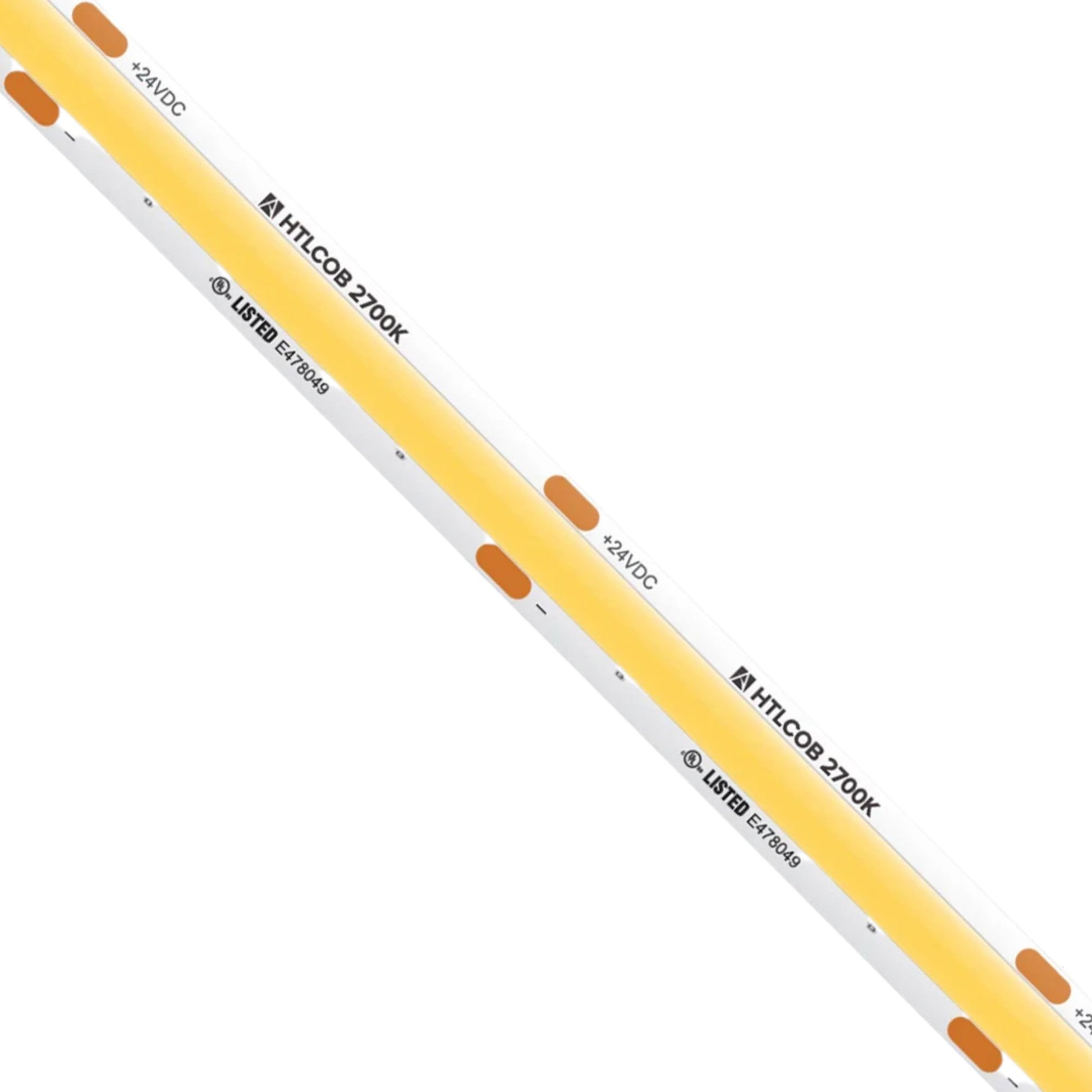

American Lighting Trulux COB Tape Light — 2700K & Seamless Illumination
The HTL-COB-UWW-16 is a high-performance COB Tape Light from American Lighting's Trulux series, featuring a seamless design for uniform illumination. This 16.4ft tape light operates at 24V DC and is IP54 rated for damp locations, making it suitable for a variety of indoor applications.
Key Features
- Voltage: 24V DC ensures stable and efficient power usage.
- Wattage: Consumes 4.5W per foot for energy-efficient operation.
- Lumens: Provides 369 lumens per foot for bright lighting.
- LEDs per Foot: Seamless COB design eliminates visible diodes.
- Max Run: Capable of a 16.4ft maximum run to prevent voltage drop.

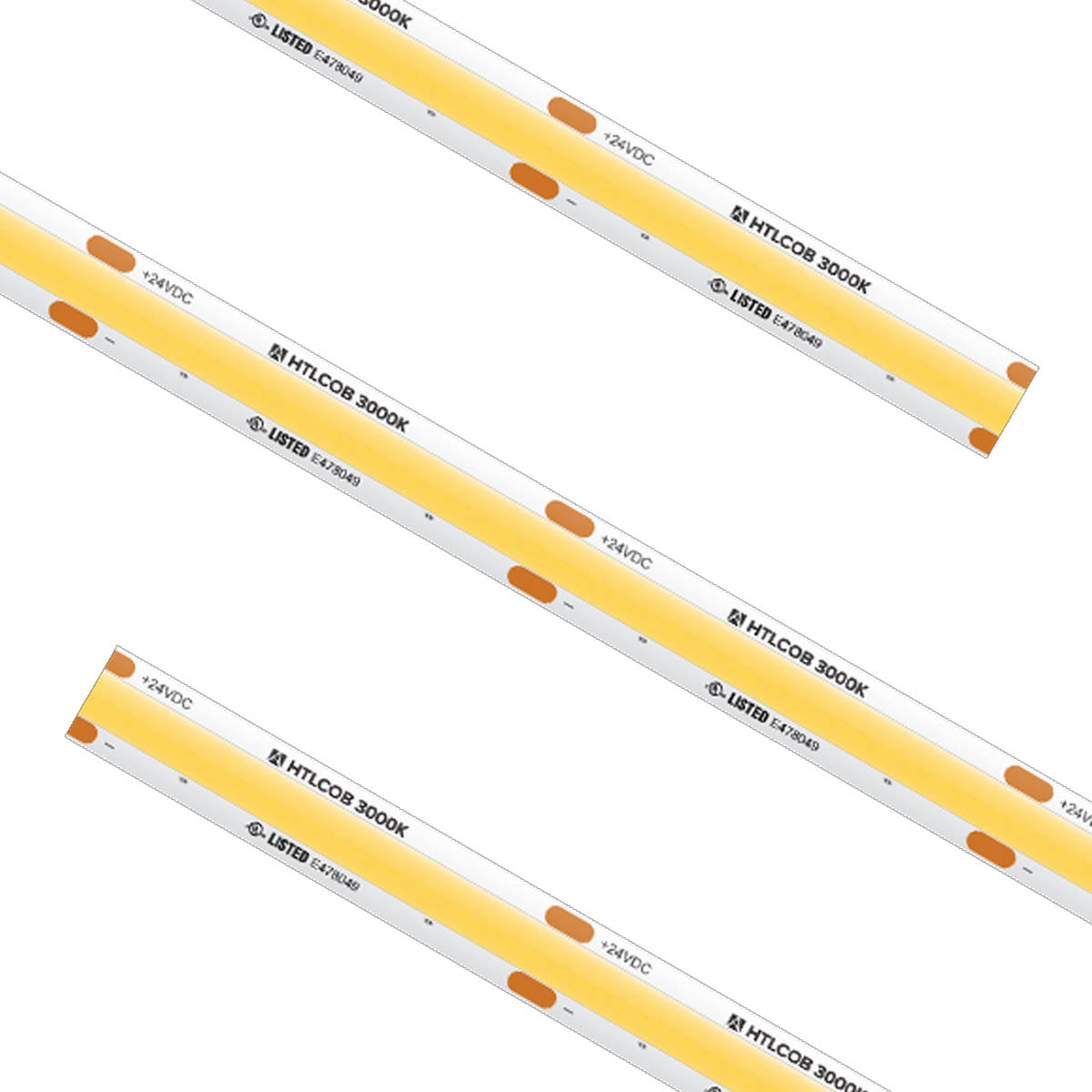

- Cut Increments: Cuttable every 1.97 inches for custom installations.
- PCB Width: 10mm width compatible with various mounting channels.
- Beam Angle: 120-degree beam angle for wide light distribution.
- IP Rating: IP54 rated for protection against dust and moisture.
- Certifications: cULus Listed, JA8 Compliant for quality assurance.
Core Design & Construction

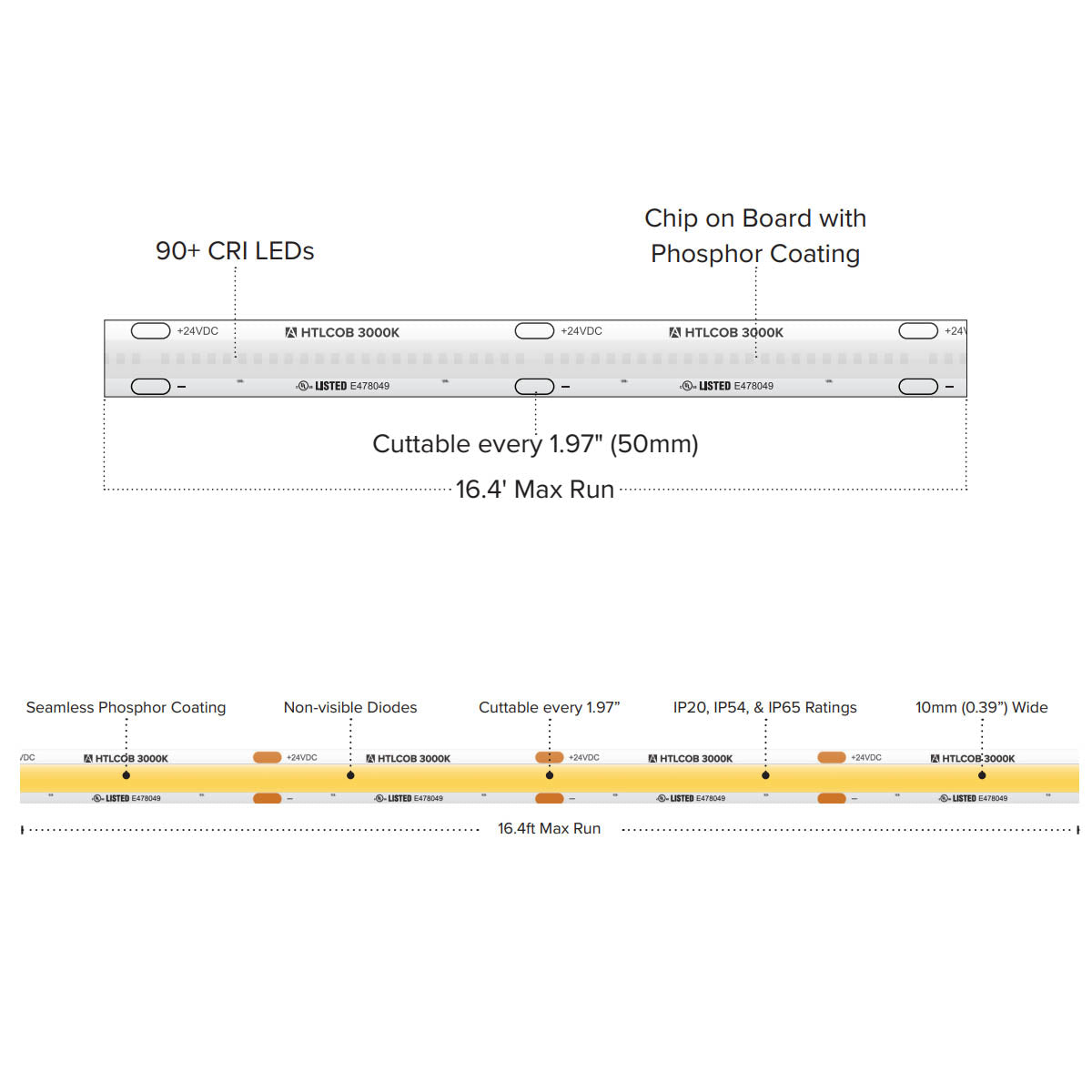

This tape light features a 10mm wide PCB, making it compatible with a range of aluminum channels. It includes a light nano-coating for IP54 protection, and the 3M VHB adhesive backing ensures secure installation.
LED Illumination & Performance
With a lumen output of 369 lumens per foot and a CRI of 90+, this COB tape light offers high-quality illumination with a seamless light engine, eliminating dotting and providing a smooth light output.
Power, Wiring & Installation
Requires a 24V DC power supply, with field-cuttable increments of 1.97 inches. The tape light supports a maximum continuous run of 16.4ft and is dimmable with most ELV and TRIAC dimmers.
Where This Tape Works Best

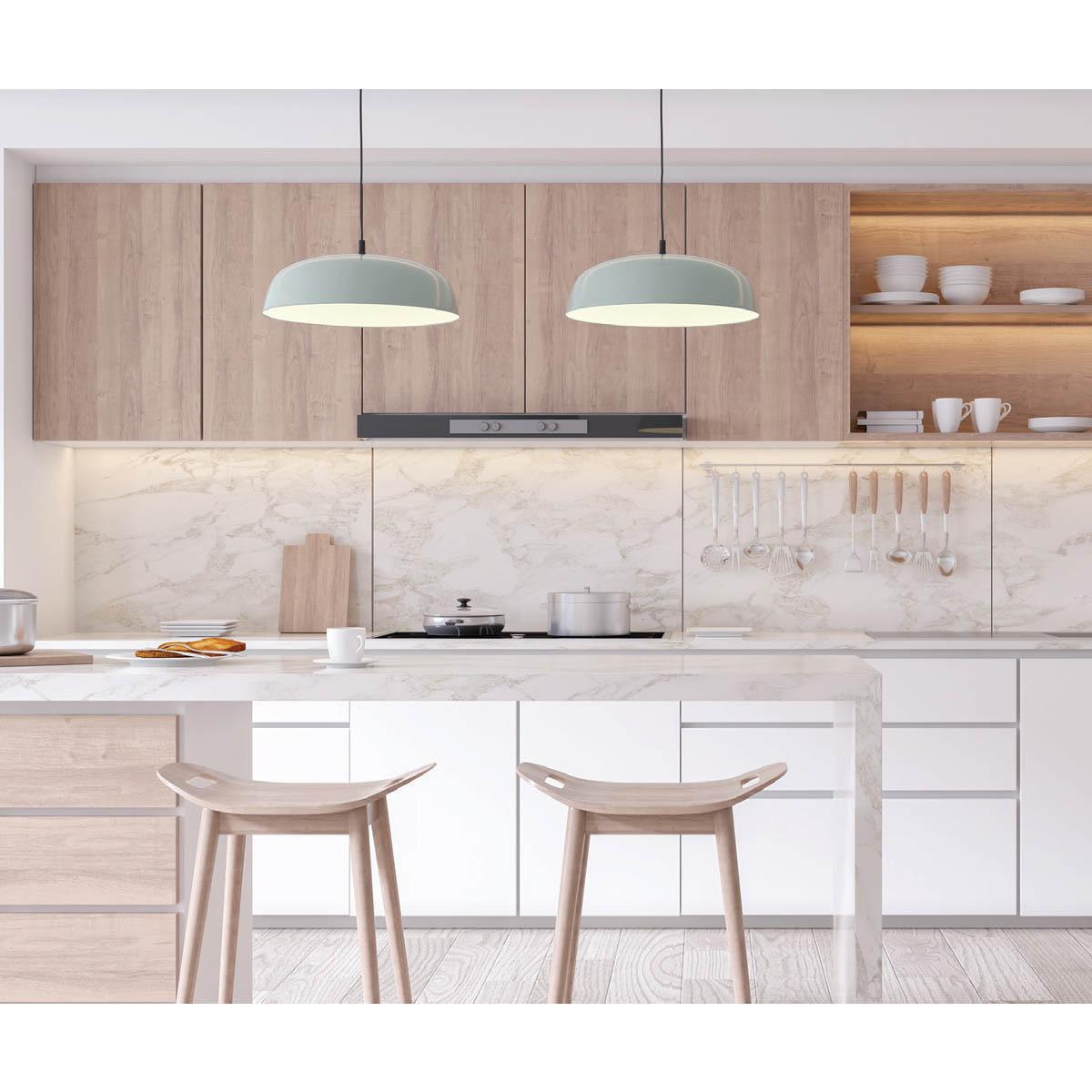

- Under cabinet lighting
- Cove lighting

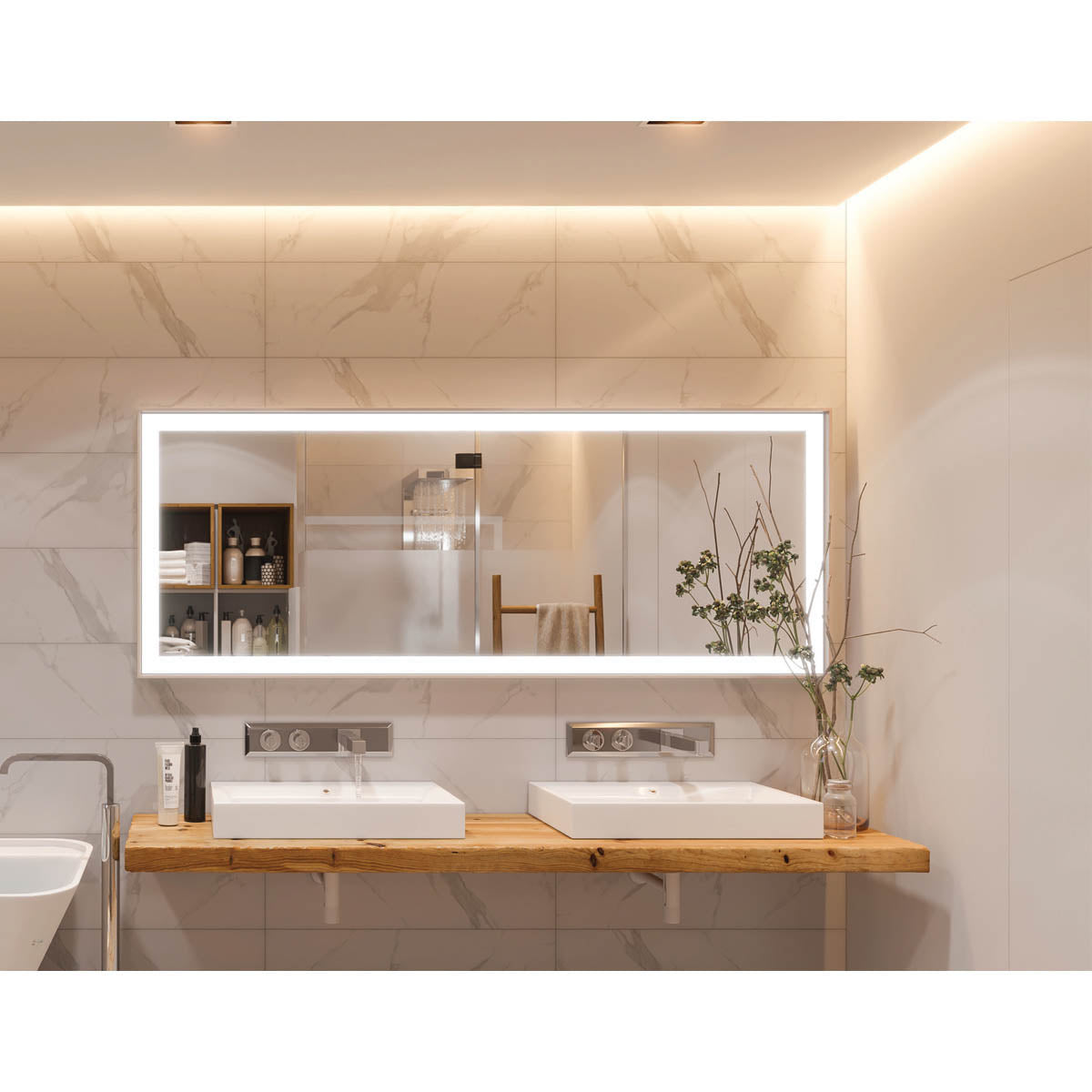

- Accent lighting
- Display case lighting
- Task lighting
What's Included
- 16.4ft reel
- 6ft lead
- 6ft tail
- (1) TL-CONKIT
- (2) TL-BLKS
- (2) TL-2PWR-HD
Specifications
