Trulux, 16.4ft, COB Tape Light, IP54, Tunable White, 400 Lumens/ft, 24V
Available in stock (315)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- Color Temperature: Tunable from 2700K to 6000K for versatile lighting applications.
- Lumens per Foot: Delivers up to 400 lumens per foot for bright illumination.
- Max Run: Supports a maximum run length of 16.4 feet to prevent voltage drop.
- Cut Increments: Field cuttable every 2.46 inches for custom installations.
We process payments securely and do not store credit card information.
Description
Description
Trulux COB Tape Light — Tunable White & Seamless Illumination
The Trulux HTL-COB-TW-16 COB Tape Light offers a tunable white range from 2700K to 6000K, providing seamless illumination without visible diodes. This 16.4ft tape light operates at 24V DC and is IP54 rated for damp locations, making it ideal for versatile indoor applications.

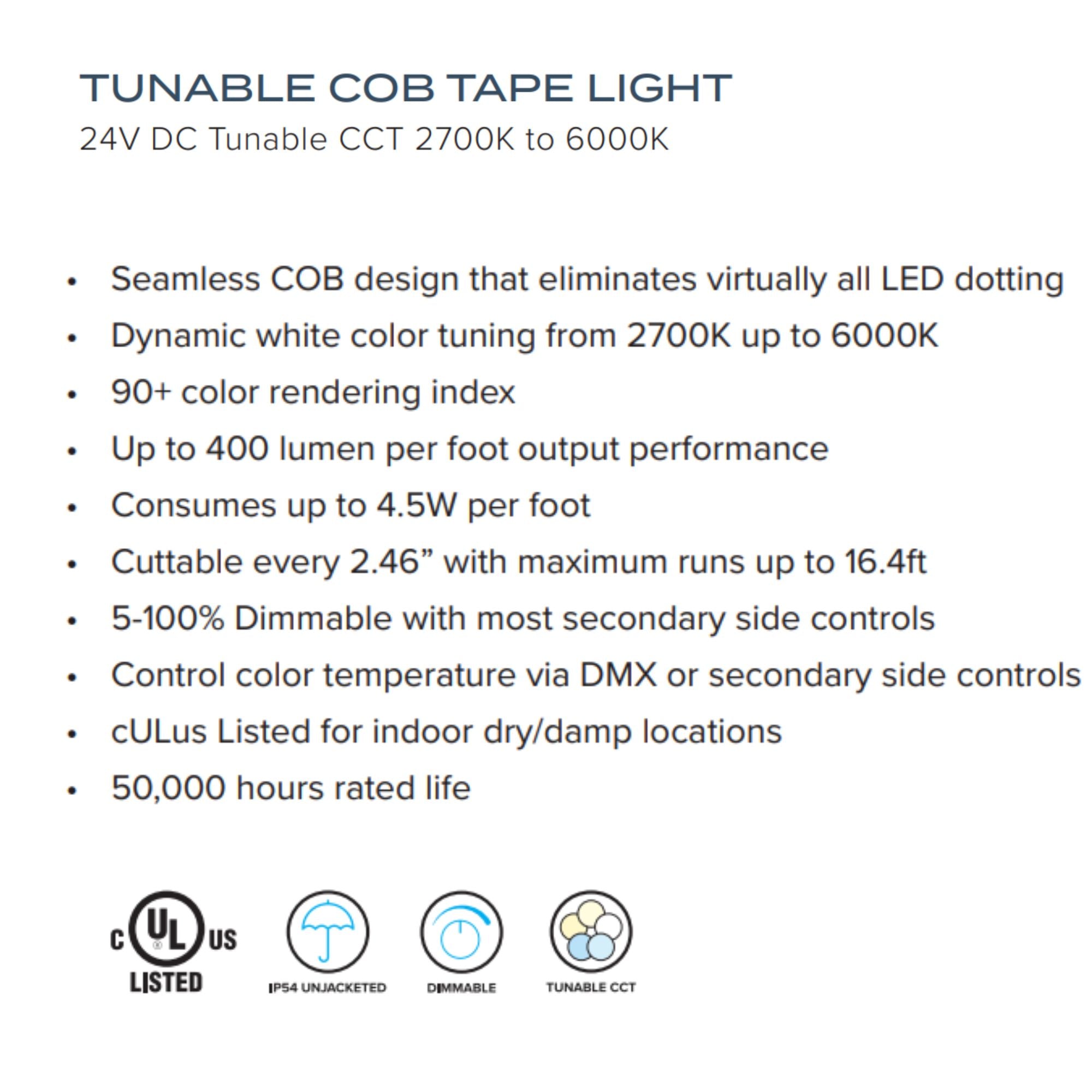

Key Features
- Voltage: 24V DC for consistent power delivery.
- Wattage: Consumes 4.5W per foot for energy efficiency.
- Lumens: Up to 400 lumens per foot for bright lighting.
- LEDs per Foot: Seamless COB design eliminates LED dotting.
- Max Run: 16.4ft to ensure optimal performance.
- Cut Increments: Cuttable every 2.46 inches for custom lengths.
- PCB Width: 10mm for compatibility with various channels.
- Beam Angle: 120 degrees for wide light distribution.

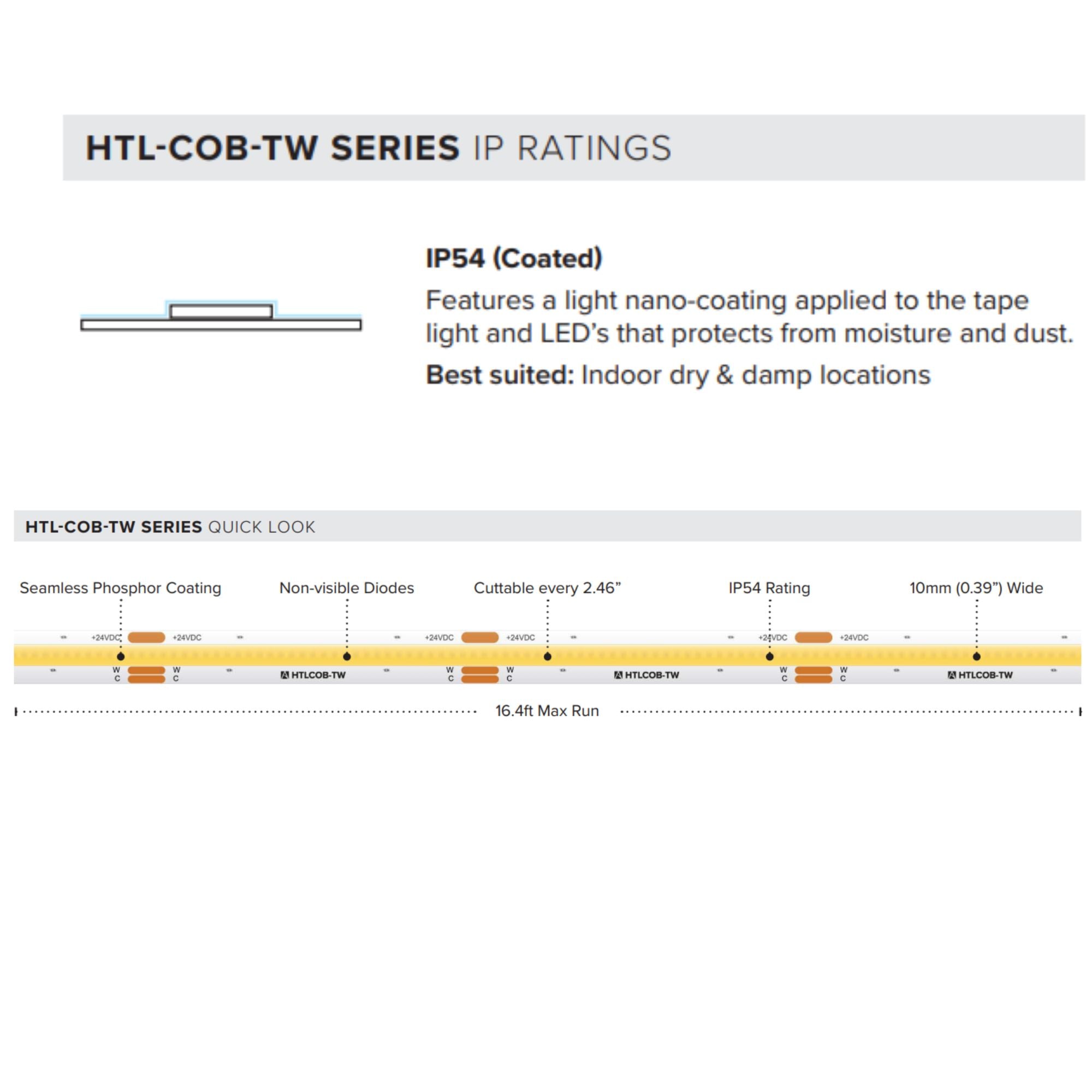

- IP Rating: IP54 for protection against dust and moisture.
- Certifications: cULus Listed for dry and damp locations.
Core Design & Construction
The tape light features a 10mm wide PCB suitable for most aluminum channels, with a protective nano-coating for moisture and dust resistance. It includes a reliable adhesive backing for easy installation.
LED Illumination & Performance
With up to 400 lumens per foot and a 90+ CRI, this COB tape light provides high-quality, uniform illumination. The tunable white feature allows for dynamic lighting adjustments.
Power, Wiring & Installation
Requires a 24V DC power supply. The tape is cuttable every 2.46 inches and supports a maximum continuous run of 16.4ft. It is dimmable from 5-100% with compatible controllers.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Retail displays
- Architectural features
What's Included
- 16.4ft reel
- 6ft lead and tail
- (2) TL-4PWR-HD connectors
- TL-3SPL-COB connector
- TL-3PWR-COB connector
- TL-3JUMP6-COB connector
