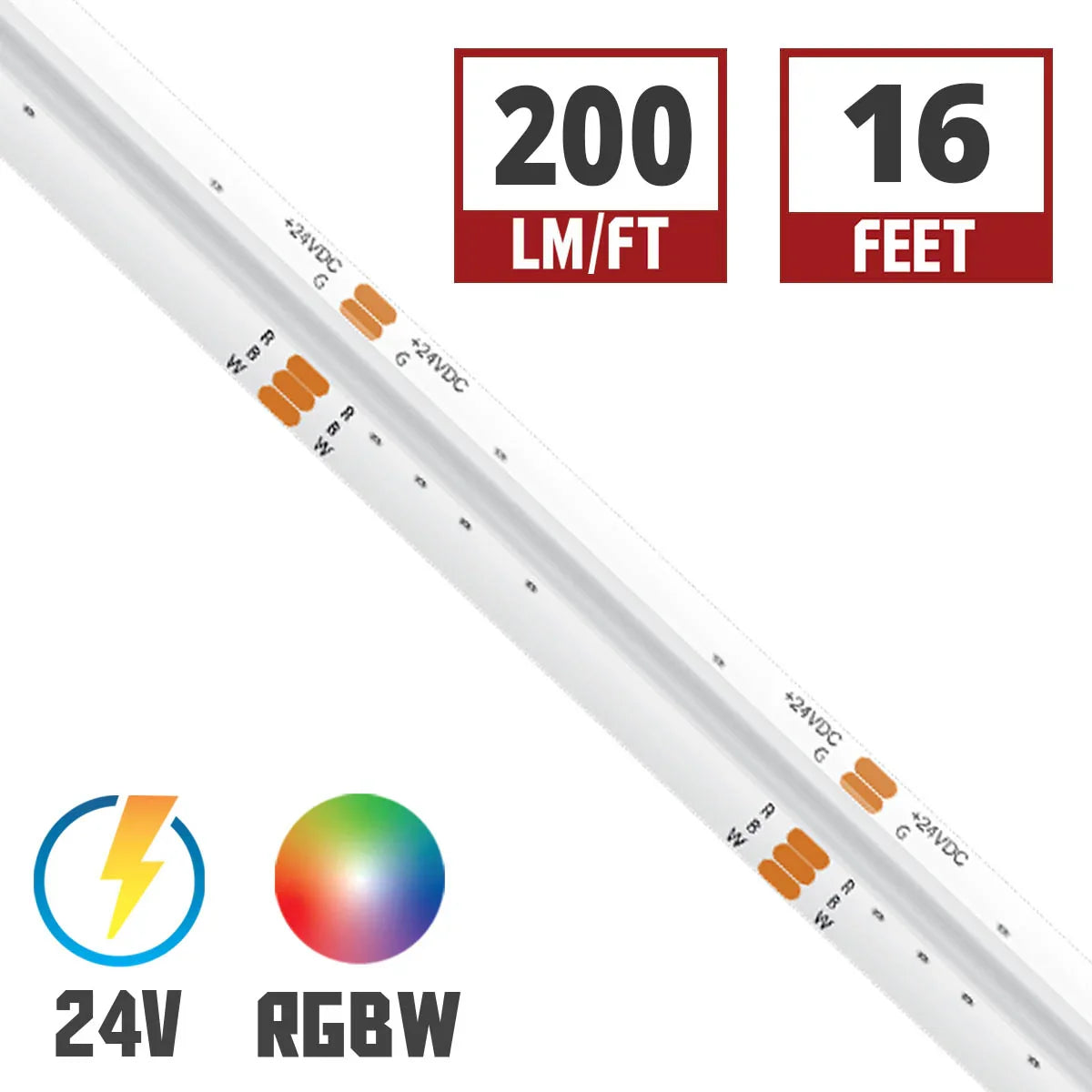

Trulux, 16.4ft, COB Tape Light, RGBW, 200Lm/ft, 24V
Available in stock (878)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- Color Technology: RGBW with 3000K for versatile color mixing and warm white illumination.
- Max Run: Supports up to 16.4ft continuous run to minimize voltage drop.
- Cuttable Increments: Field cuttable every 3.28 inches for custom lengths.
- IP Rating: IP54 rated for protection against dust and moisture in damp locations.
We process payments securely and do not store credit card information.
Description
Description

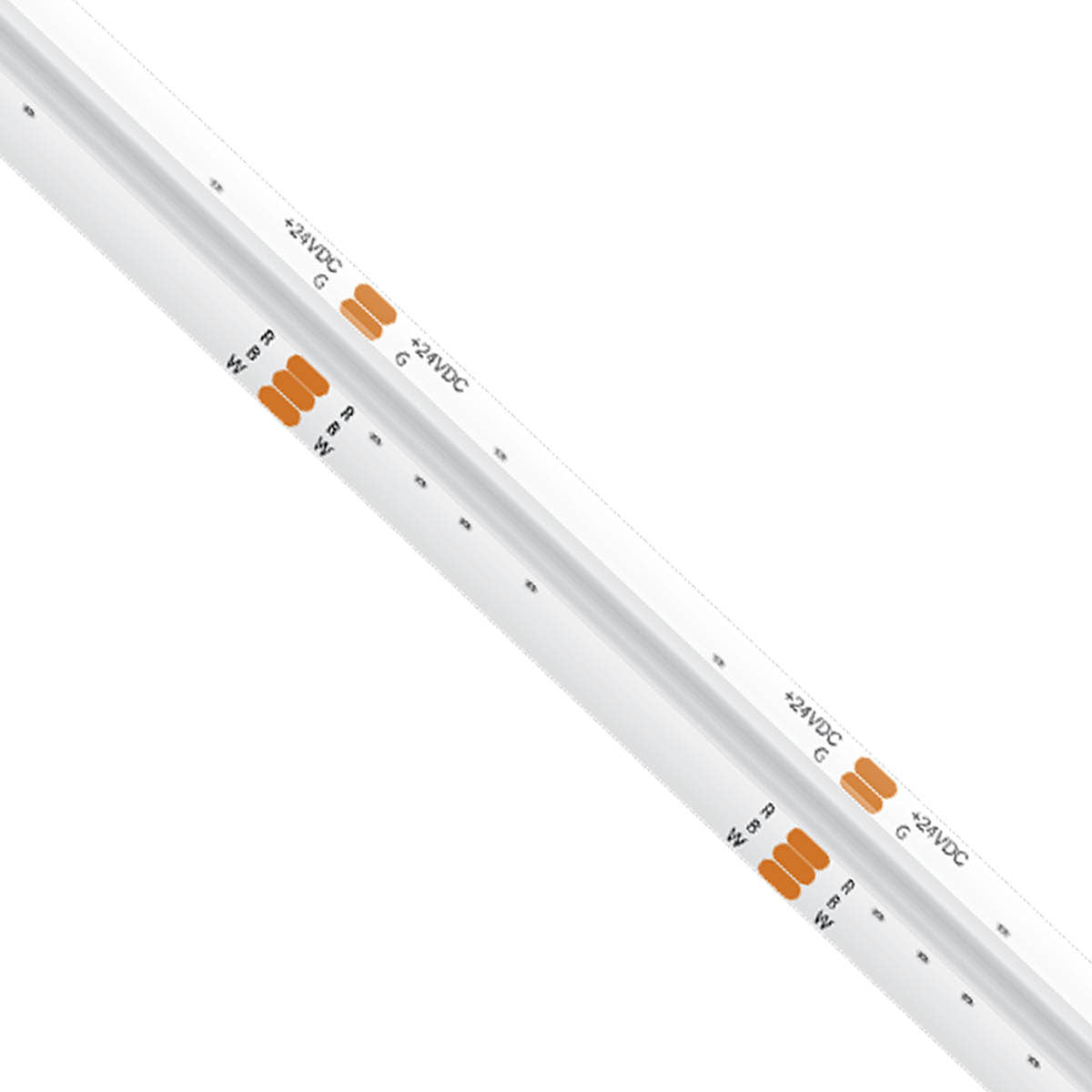

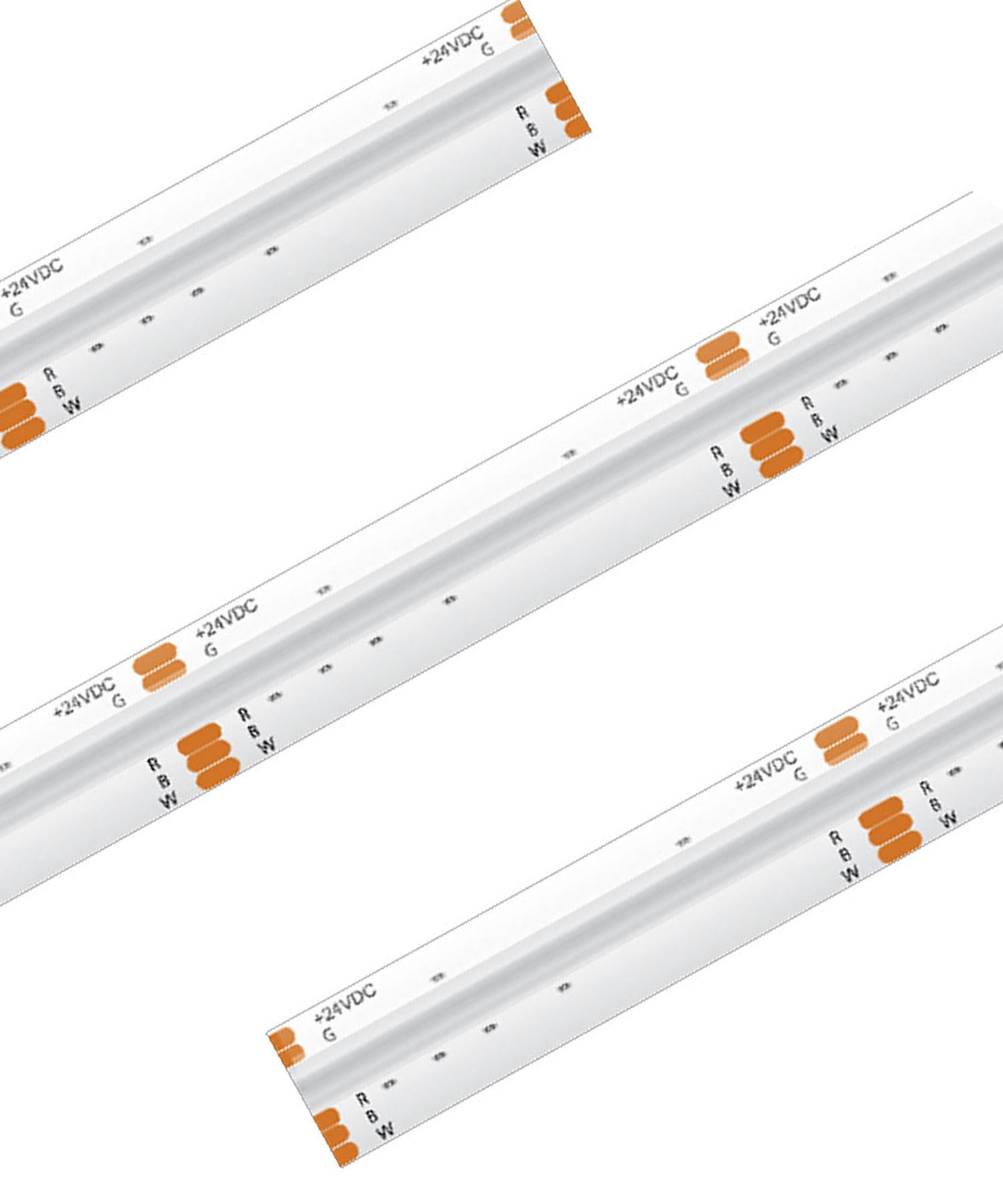

Trulux COB Tape Light — RGBW & Seamless Illumination
The Trulux HTL-COB-RGBW-16 is a high-performance COB tape light designed for dynamic lighting applications. With a length of 16.4 feet, this tape light operates at 24V DC and is IP54 rated for damp locations. It features a seamless design that eliminates LED dotting, providing uniform illumination.
Key Features
- Voltage: 24V DC for stable and efficient operation.
- Wattage: Consumes 4.5W per foot for energy-efficient lighting.
- Lumens: Delivers up to 200 lumens per foot for bright illumination.
- LEDs per Foot: Seamless COB design for continuous light output.
- Max Run: Supports up to 16.4 feet to prevent voltage drop.

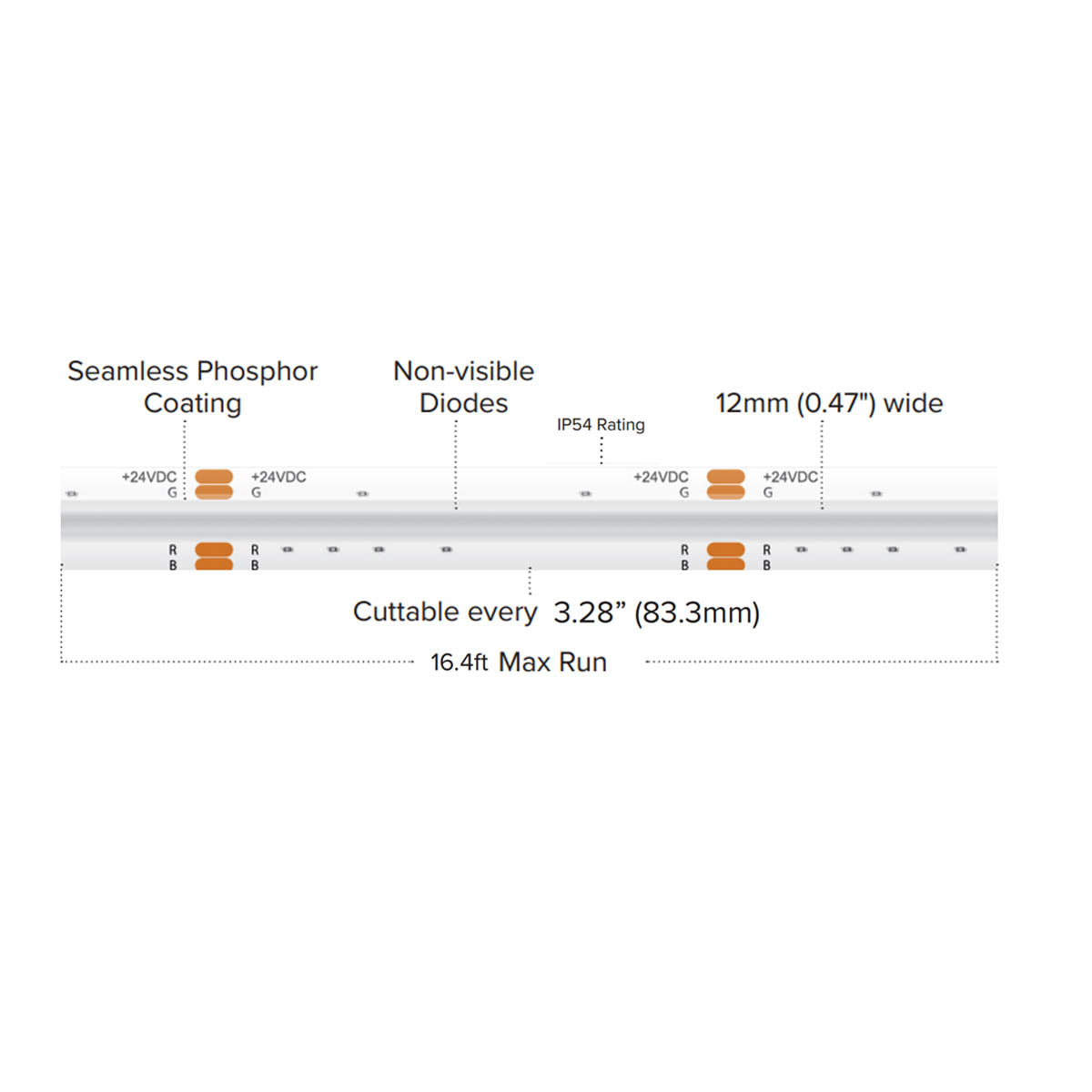

- Cut Increments: Cuttable every 3.28 inches for precise installations.
- PCB Width: 12mm for compatibility with various channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP54 for protection in damp environments.
- Certifications: cULus Listed for dry and damp locations.
Core Design & Construction
The tape light features a 12mm wide PCB, ensuring compatibility with standard channels. It is coated with a light nano-coating for moisture and dust protection, and includes a 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
Offering up to 200 lumens per foot with a CRI of 90+, this COB tape light provides vibrant RGBW color mixing and warm white illumination, ideal for creating dynamic lighting effects.
Power, Wiring & Installation
Requires a 24V DC power supply and is cuttable every 3.28 inches. The maximum continuous run is 16.4 feet. Dimmable from 5-100% with a secondary side controller.
Where This Tape Works Best

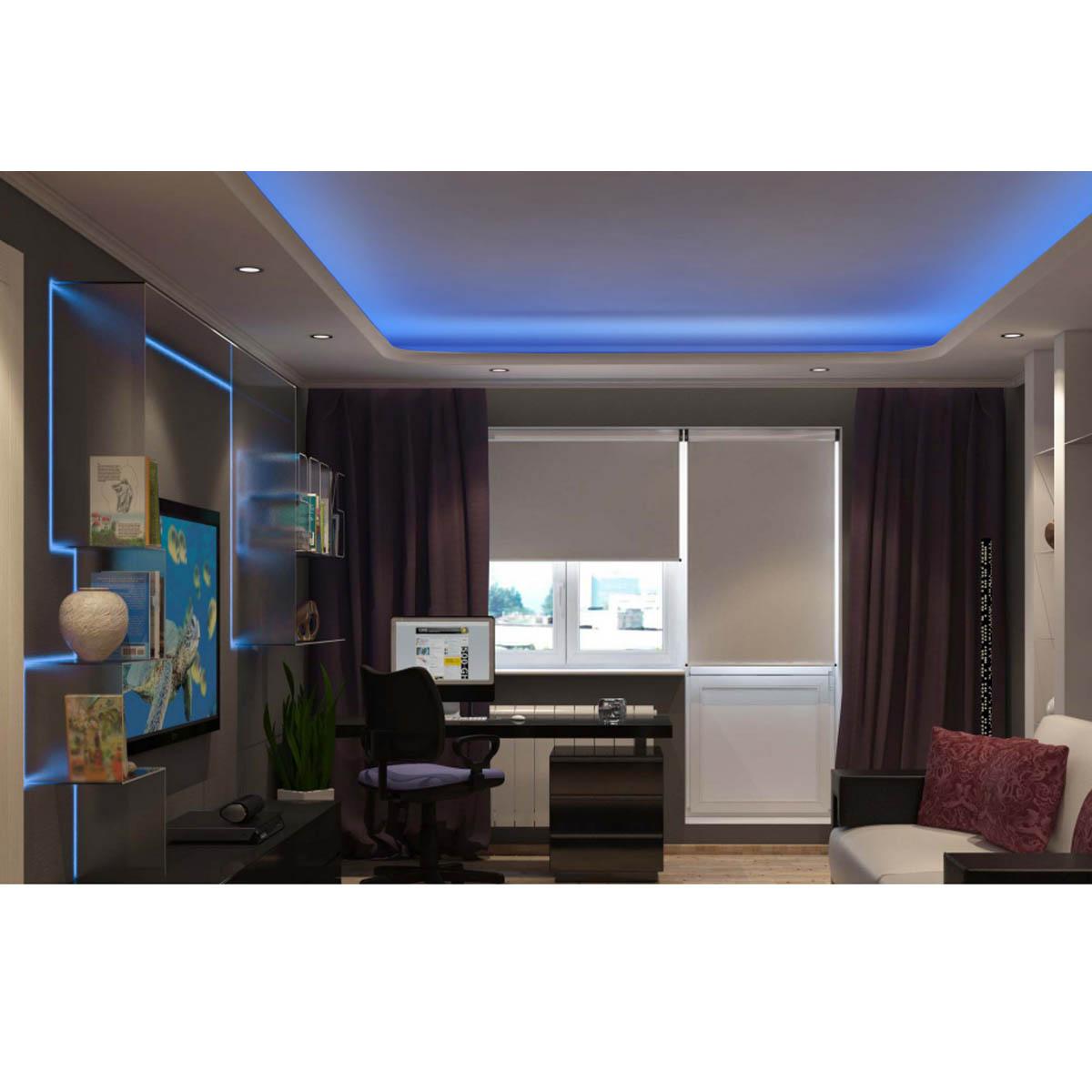

- Cove lighting
- Under cabinet lighting
- Accent lighting

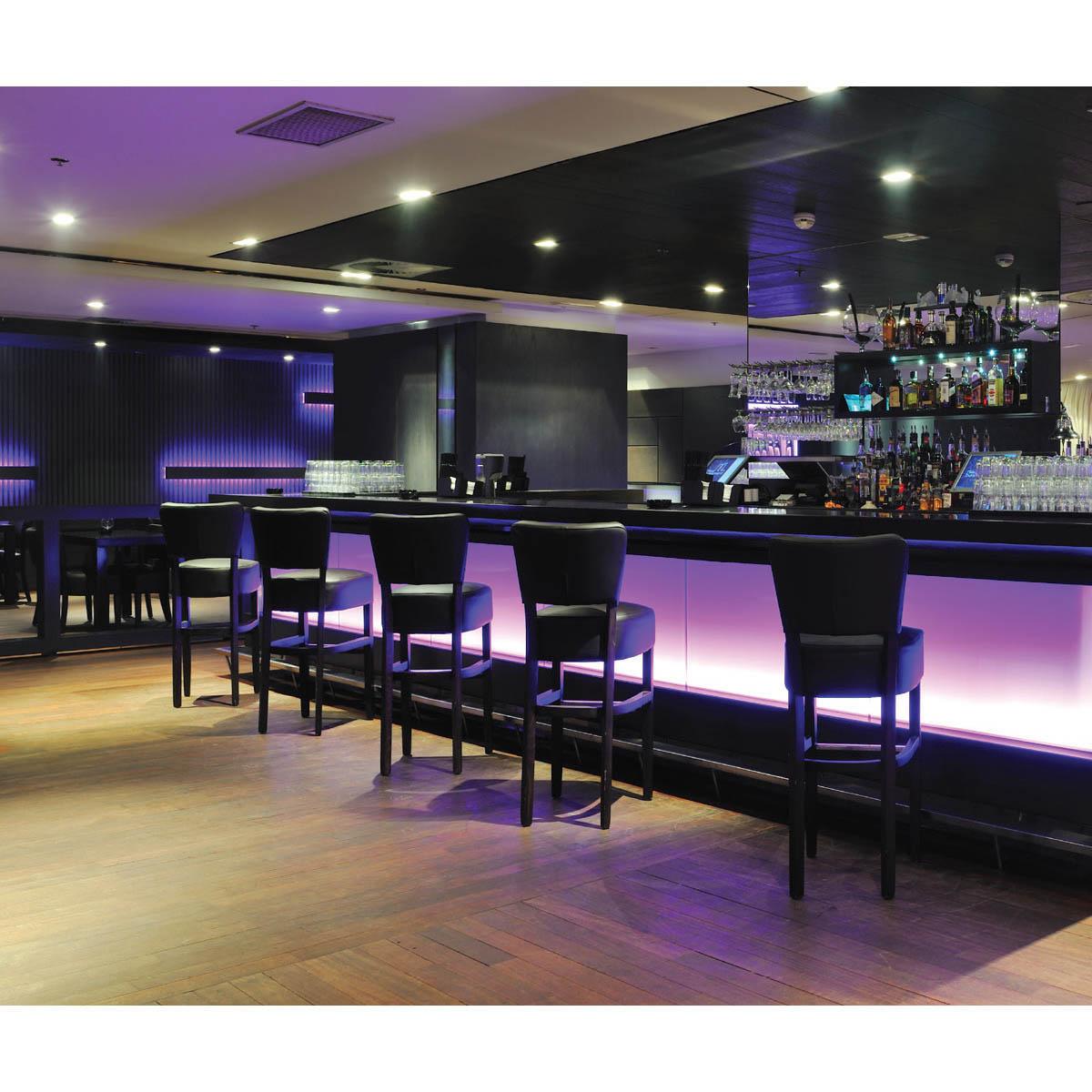

- Retail displays
What's Included
- 16.4ft reel
- 6ft lead and tail
- (2) TL-5PWR-COB connectors
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the Trulux HTL-COB-RGBW-16?
What is the maximum run length for the Trulux HTL-COB-RGBW-16?
How often can the Trulux HTL-COB-RGBW-16 be cut?
How often can the Trulux HTL-COB-RGBW-16 be cut?
What voltage is required for the Trulux HTL-COB-RGBW-16?
What voltage is required for the Trulux HTL-COB-RGBW-16?
Is the Trulux HTL-COB-RGBW-16 compatible with standard channels?
Is the Trulux HTL-COB-RGBW-16 compatible with standard channels?
Does the Trulux HTL-COB-RGBW-16 require a driver for dimming?
Does the Trulux HTL-COB-RGBW-16 require a driver for dimming?
