American Lighting Trulux, 16ft, COB Tape Light, IP54, RGBTW, 225 Lumens/ft, 24V
Available in stock (734)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- Color Technology: RGBTW offers RGB plus tunable white from 2700K to 6000K.
- Max Run: Supports up to 16ft continuous run to prevent voltage drop.
- Cut Increments: Field cuttable every 2 inches for custom installations.
- IP Rating: IP54 rated for protection against dust and moisture in indoor environments.
We process payments securely and do not store credit card information.
Description
Description

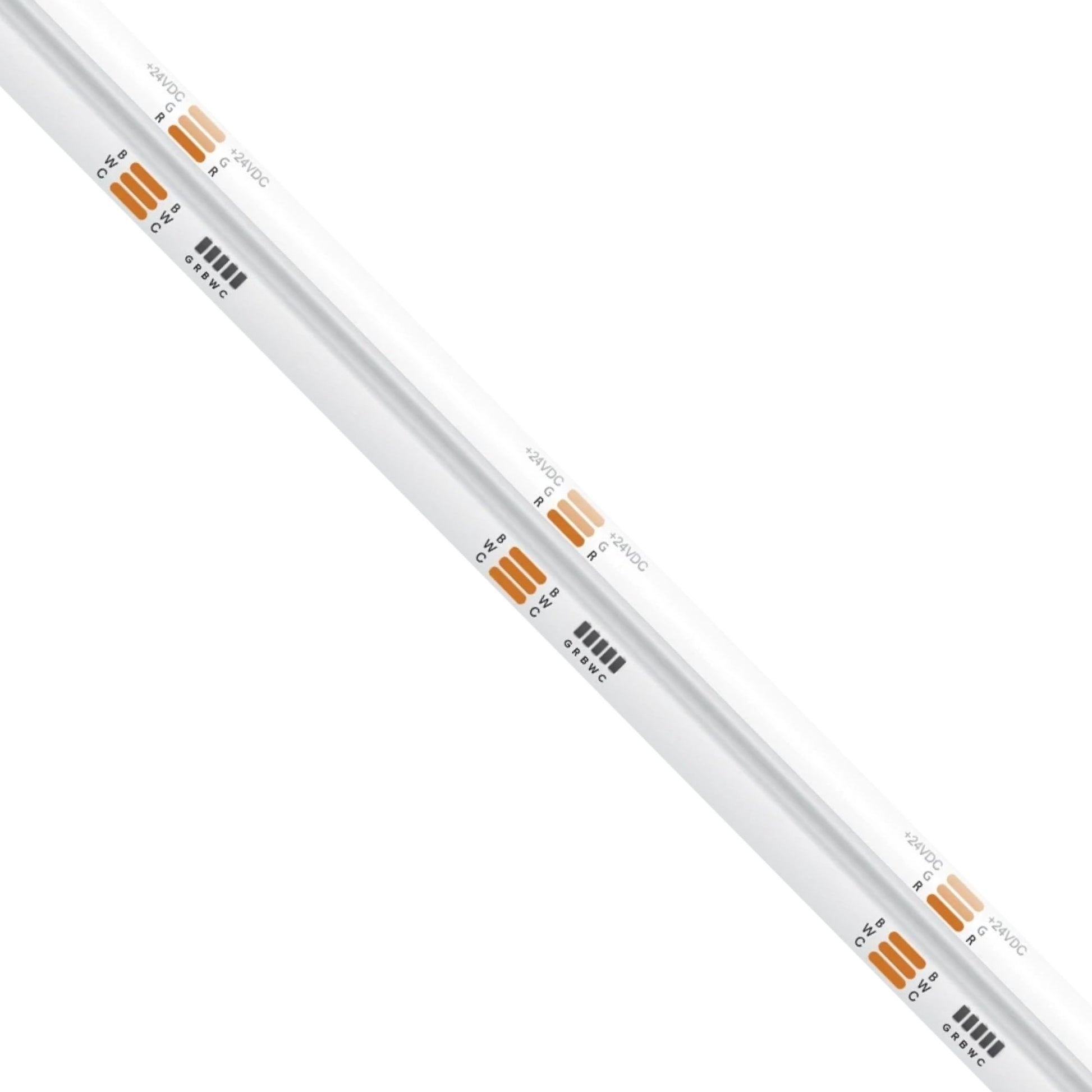

American Lighting Trulux COB Tape Light — RGBTW & Seamless Illumination
The HTL-COB-RGBTW is a 16ft COB tape light offering RGB + Tunable White capabilities, allowing for a wide range of color combinations. Operating at 24V DC, this tape light is IP54 rated, making it suitable for dry and damp indoor environments.
Key Features
- Voltage: 24V DC ensures efficient power usage.
- Wattage: Consumes 4.5W per foot for high output.
- Lumens: Delivers up to 225 lumens per foot for bright illumination.
- LEDs per Foot: Seamless COB design eliminates LED dotting.
- Max Run: Supports up to 16ft continuous run.
- Cut Increments: Cuttable every 2 inches for precise installations.
- PCB Width: 12mm width for compatibility with various channels.
- Beam Angle: 120-degree beam angle for wide light distribution.
- IP Rating: IP54 for indoor dry and damp locations.
- Certifications: cULus Listed for safety and performance.

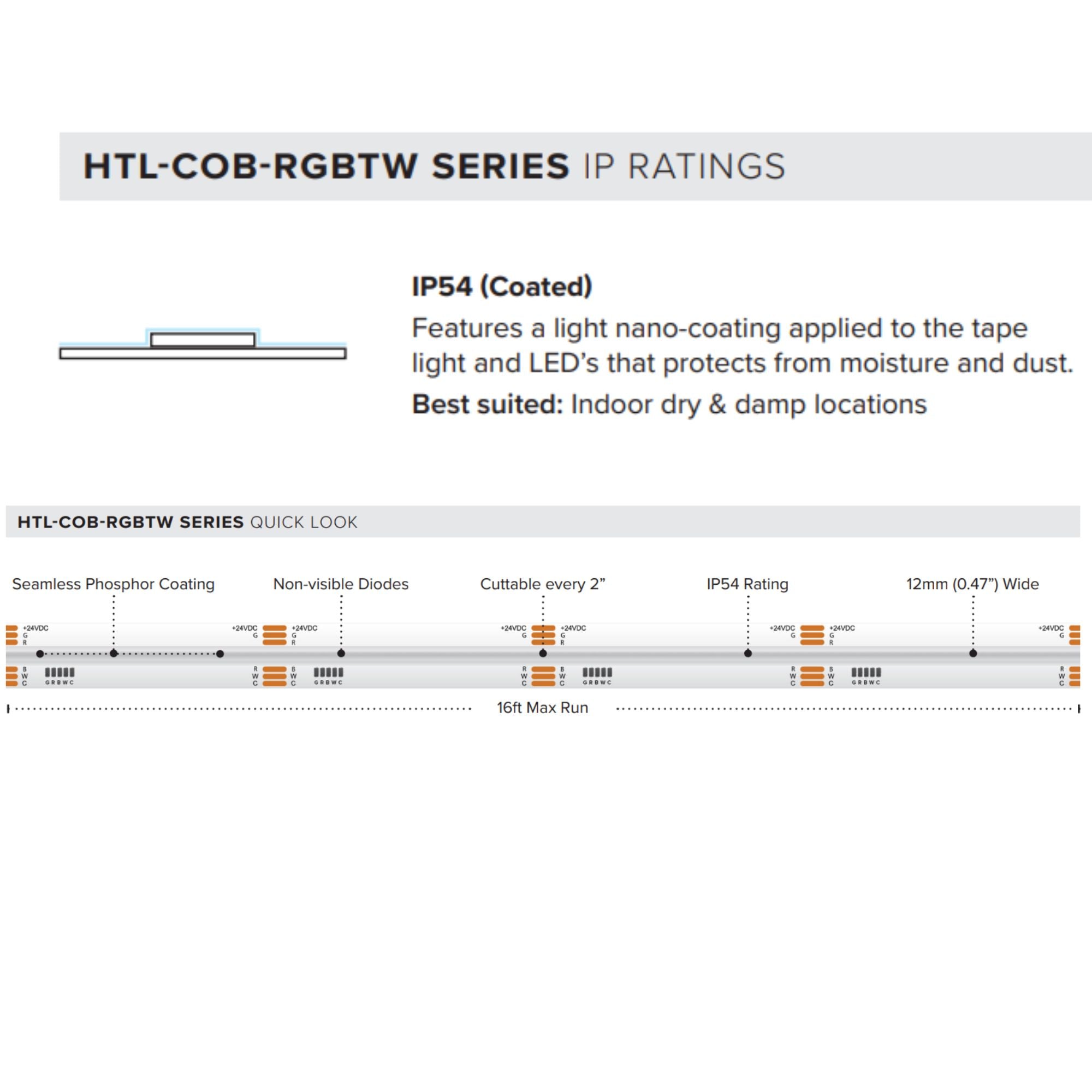

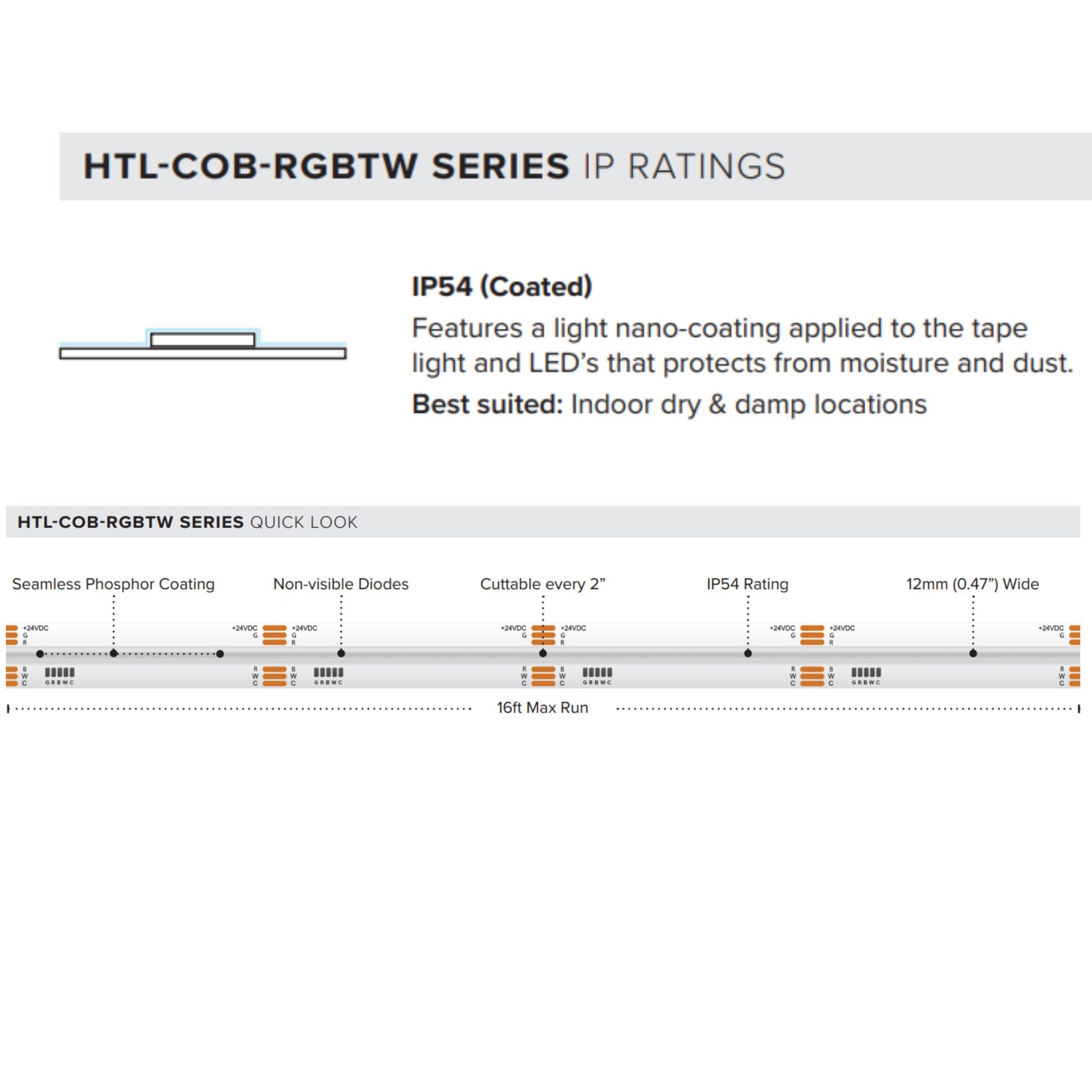

Core Design & Construction
The tape light features a 12mm wide PCB, ideal for channel compatibility, with a nano-coating for protection. It includes a 3M VHB adhesive backing for secure mounting.
LED Illumination & Performance
With up to 225 lumens per foot and a CRI of 90+, the COB light engine provides vibrant and accurate color rendering.
Power, Wiring & Installation
Requires a 24V driver, cuttable every 2 inches, with a max run of 16ft. Dimmable with a secondary side controller.

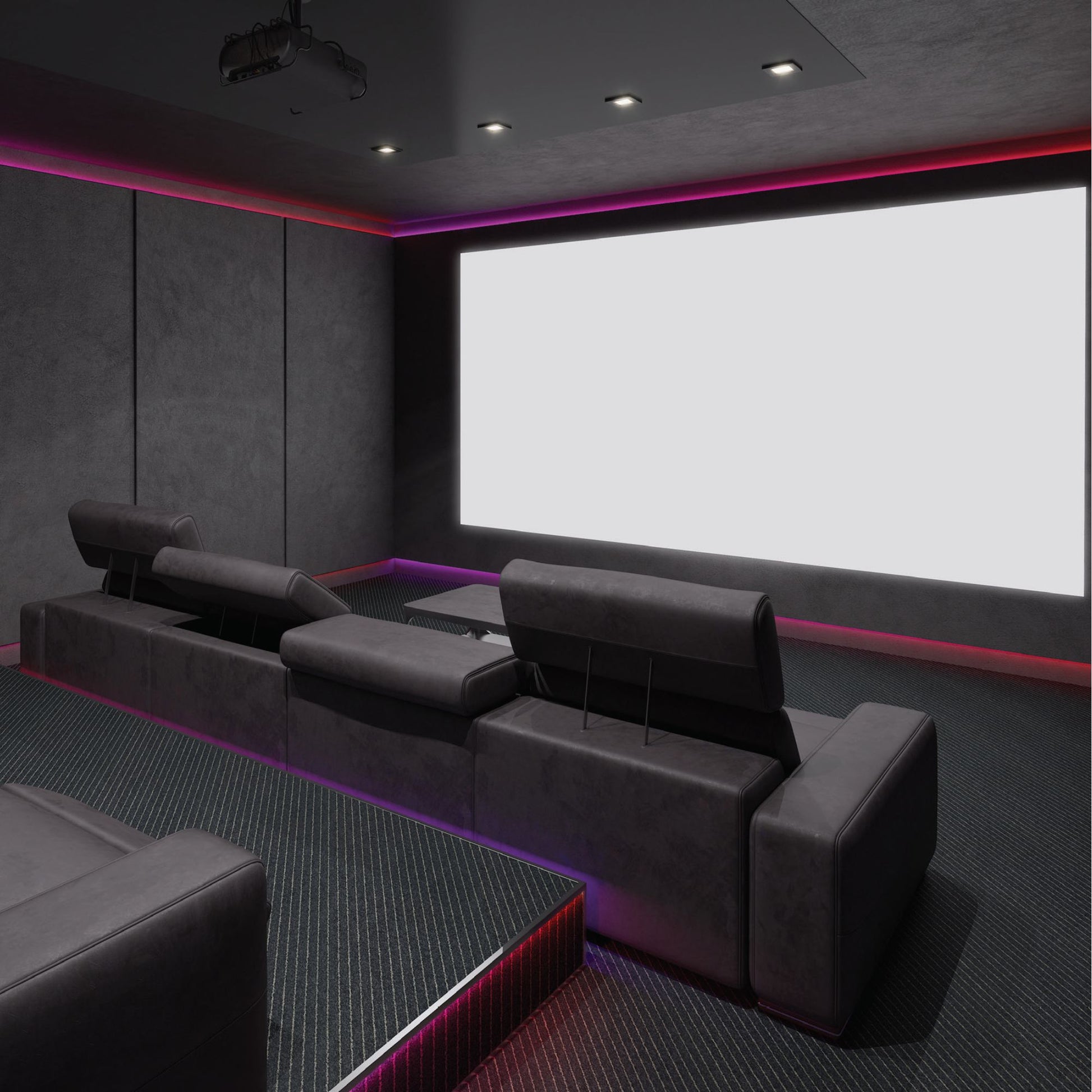

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Retail displays
What's Included
- 16ft reel of tape light
- 6ft lead and tail
- (2) TL-6PWR-HD connectors
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the HTL-COB-RGBTW tape light?
What is the maximum run length for the HTL-COB-RGBTW tape light?
How often can the HTL-COB-RGBTW tape light be cut?
How often can the HTL-COB-RGBTW tape light be cut?
What voltage is required for the HTL-COB-RGBTW tape light?
What voltage is required for the HTL-COB-RGBTW tape light?
Is the HTL-COB-RGBTW tape light compatible with aluminum channels?
Is the HTL-COB-RGBTW tape light compatible with aluminum channels?
Does the HTL-COB-RGBTW tape light require a specific controller for dimming?
Does the HTL-COB-RGBTW tape light require a specific controller for dimming?
