American Lighting Trulux, 16.4ft, Pixel COB Tape Light, IP54, 3000K, 280Lm/ft, 24V
Available in stock (1016)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- Color Temperature: Emits a warm 3000K light, ideal for cozy environments.
- Max Run: Supports up to 16.4ft continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 3.94in for custom installations.
- IP Rating: IP54 rated, suitable for dry and damp indoor locations.
We process payments securely and do not store credit card information.
Description
Description

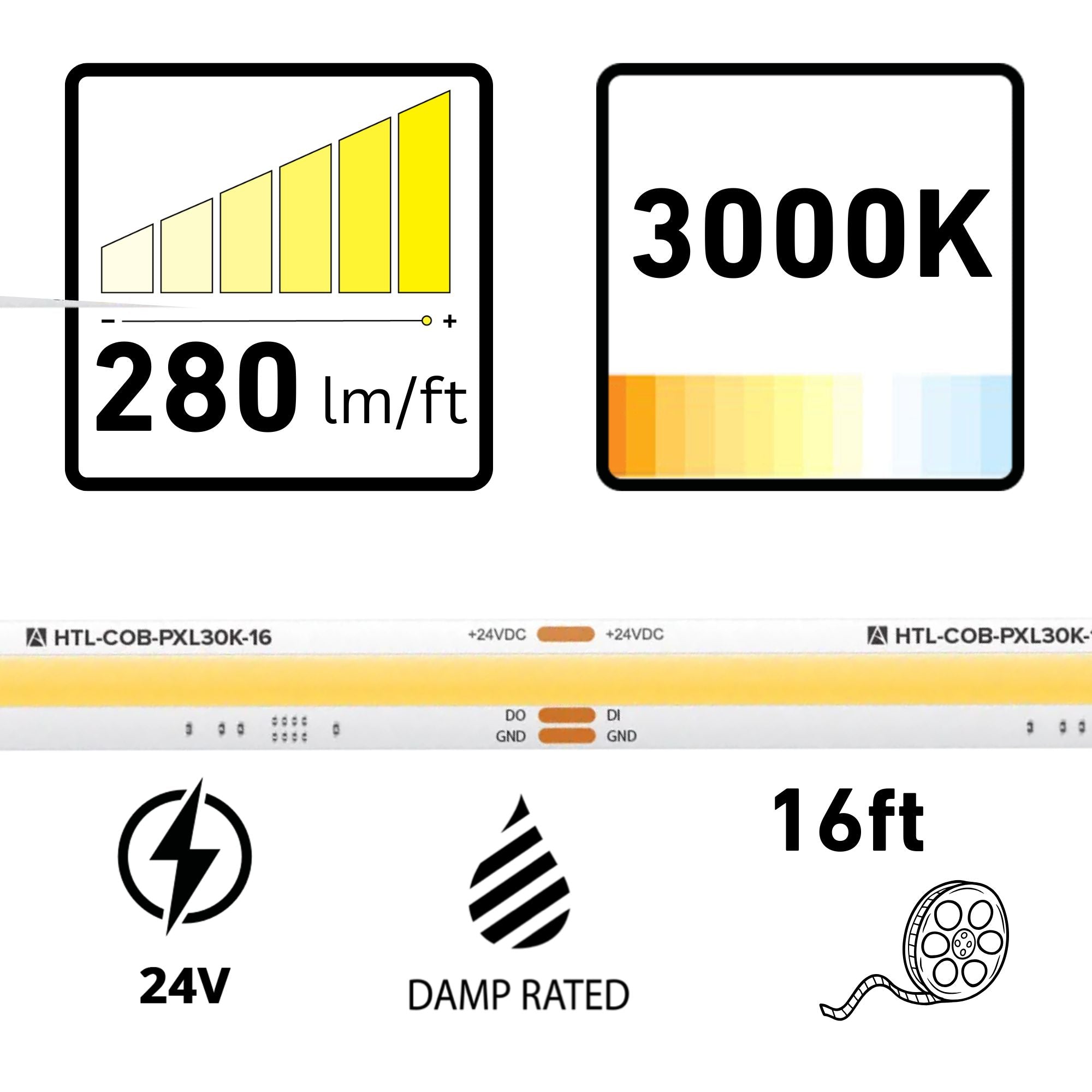

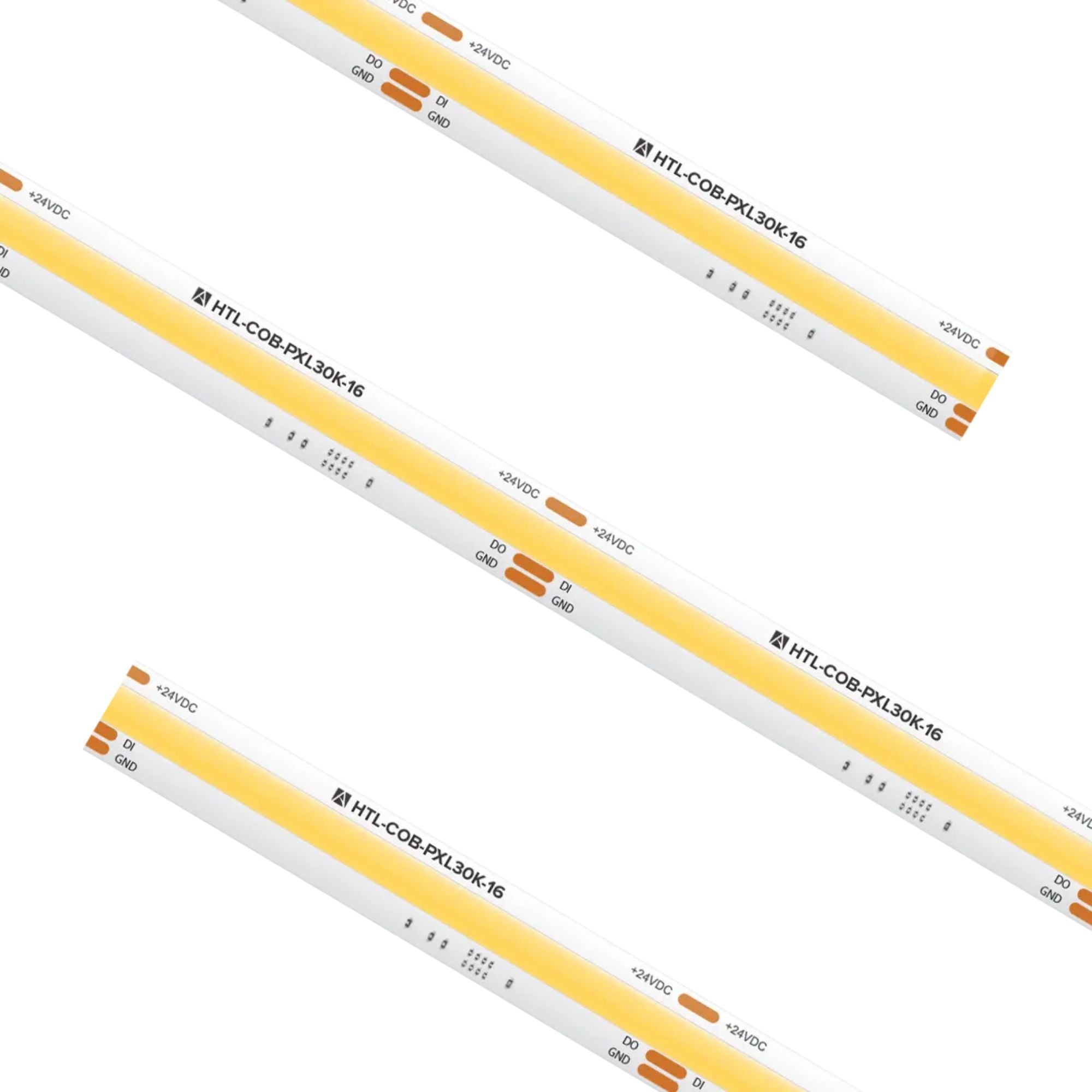

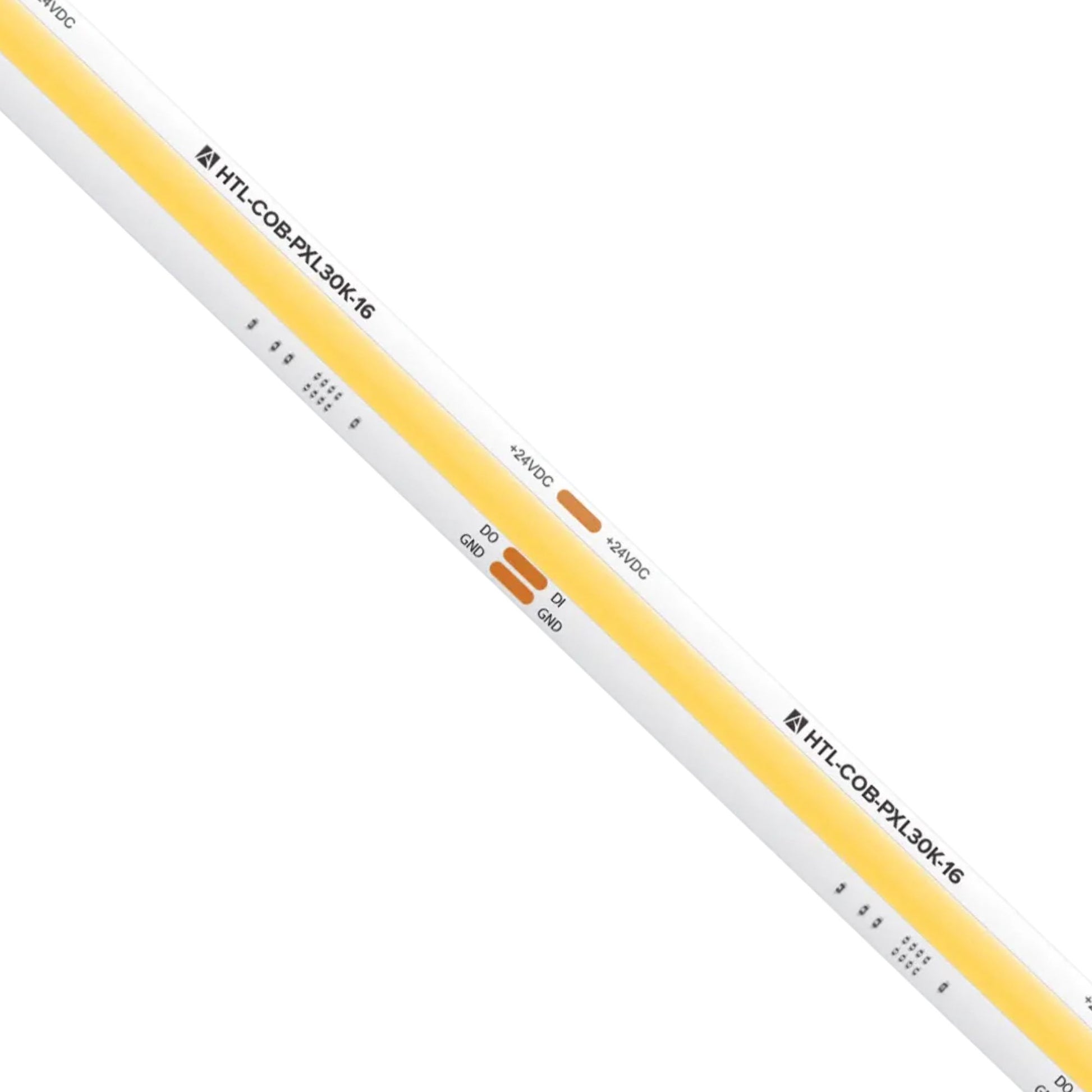

American Lighting Trulux COB Tape Light — Pixel 3000K & Seamless COB Design
The HTL-COB-PXL30K-16 is a high-performance COB tape light from American Lighting's Trulux series. This 16.4ft tape light operates at 24V DC and is IP54 rated, making it suitable for dry and damp indoor environments. The seamless COB design ensures a smooth, dot-free illumination with a warm 3000K color temperature.
Key Features
- Voltage: 24V DC for optimal power efficiency.
- Wattage: Consumes 3.04W per foot.
- Lumens: Delivers up to 280 lumens per foot.
- LEDs per Foot: Pixel resolution of 1.31in for dynamic effects.
- Max Run: 16.4ft maximum continuous run length.
- Cut Increments: Cuttable every 3.94in for precise installations.
- PCB Width: 0.35in width for compatibility with various channels.
- Beam Angle: 120° for wide light distribution.

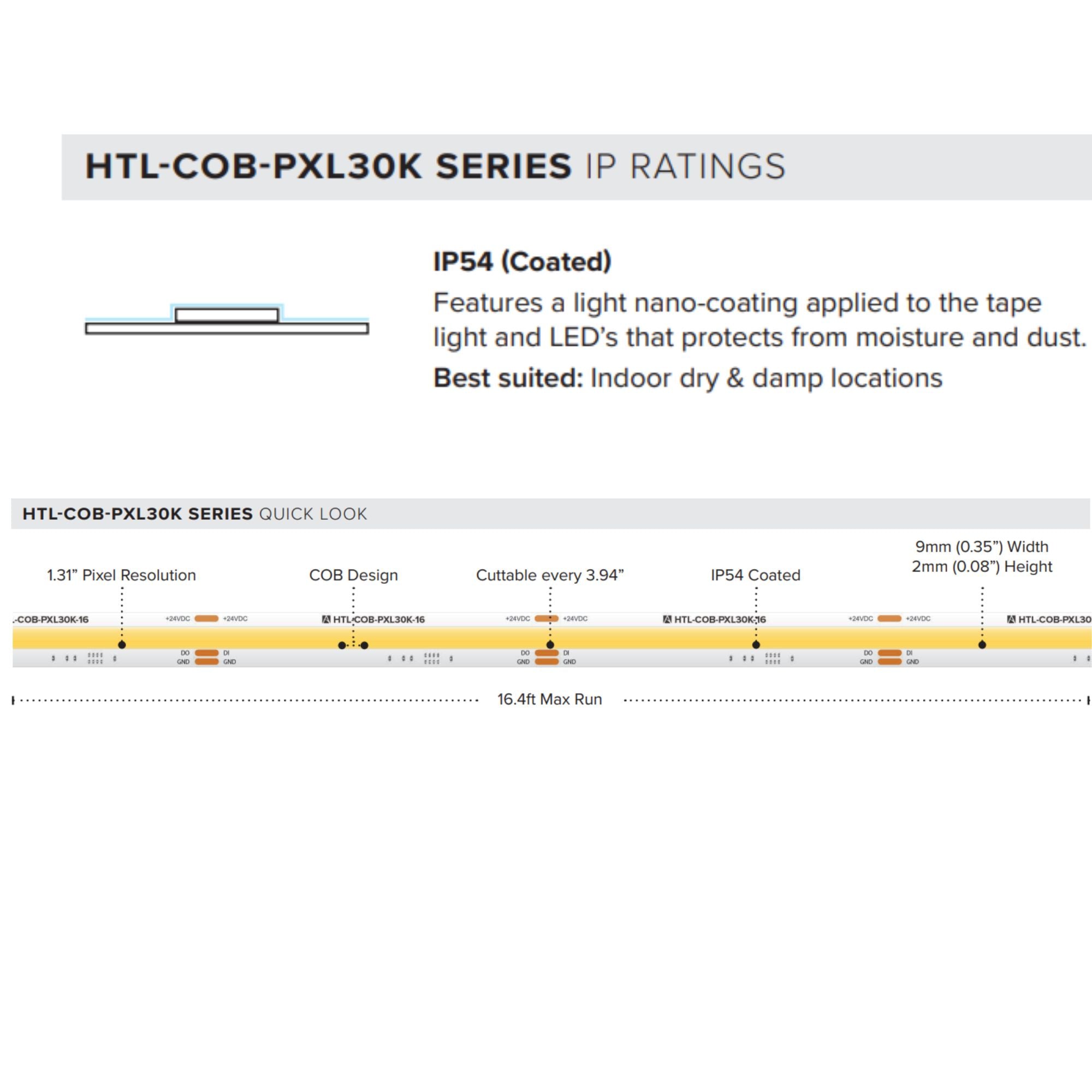

- IP Rating: IP54, suitable for dry and damp locations.
- Certifications: cULus Listed for safety and reliability.
Core Design & Construction
The tape light features a 0.35in wide PCB, ensuring compatibility with most aluminum channels. It is coated with a light nano-coating for protection against moisture and dust, and includes a 3M adhesive backing for secure mounting.
LED Illumination & Performance
With up to 280 lumens per foot and a high CRI of 90+, this COB tape light provides vibrant and accurate color rendering. The seamless COB design eliminates LED dotting, offering a smooth and continuous light output.

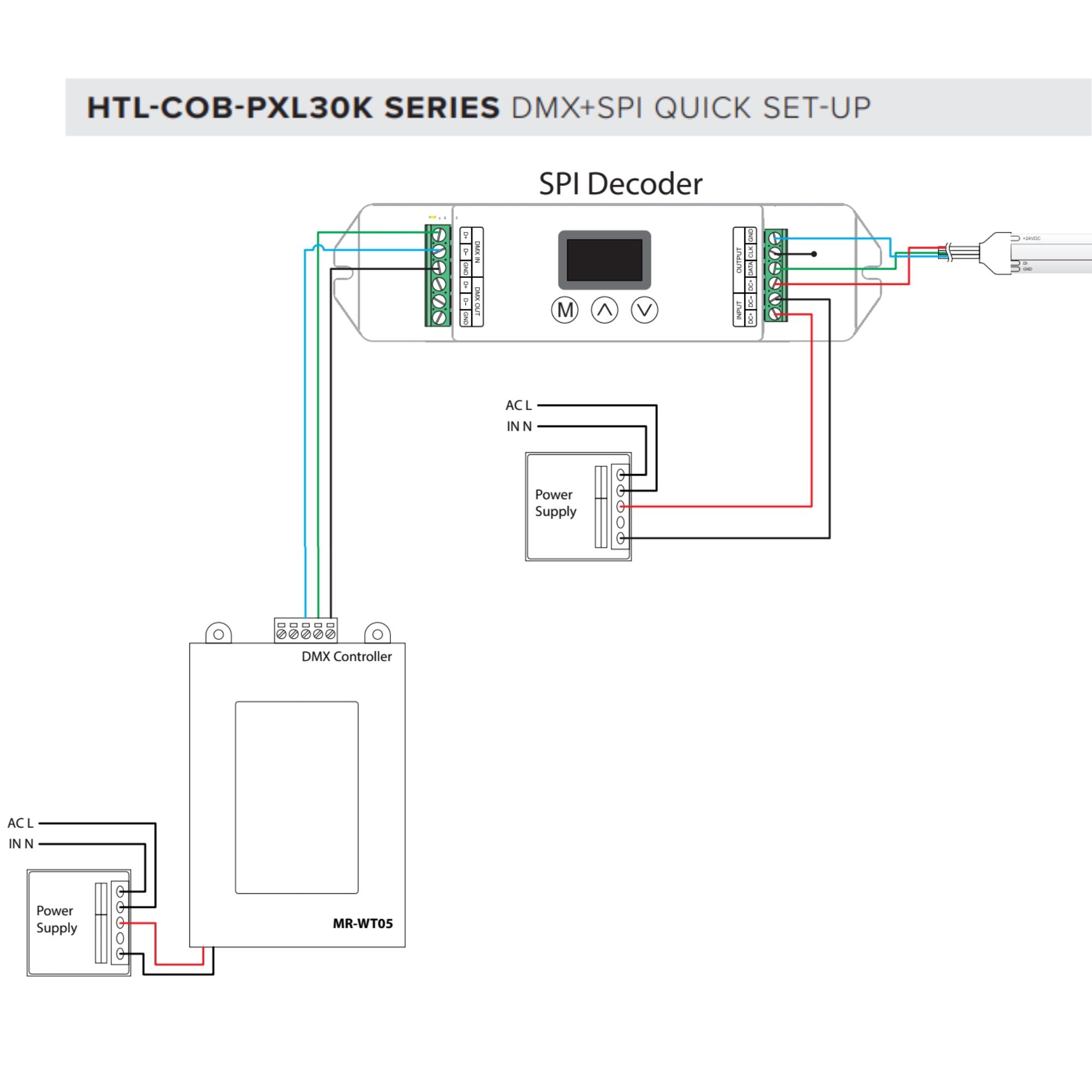

Power, Wiring & Installation
This tape light requires a 24V DC power supply and is cuttable every 3.94in. It supports a maximum run of 16.4ft to prevent voltage drop. The tape is dimmable, compatible with most MLV, ELV, and TRIAC dimmers.
Where This Tape Works Best

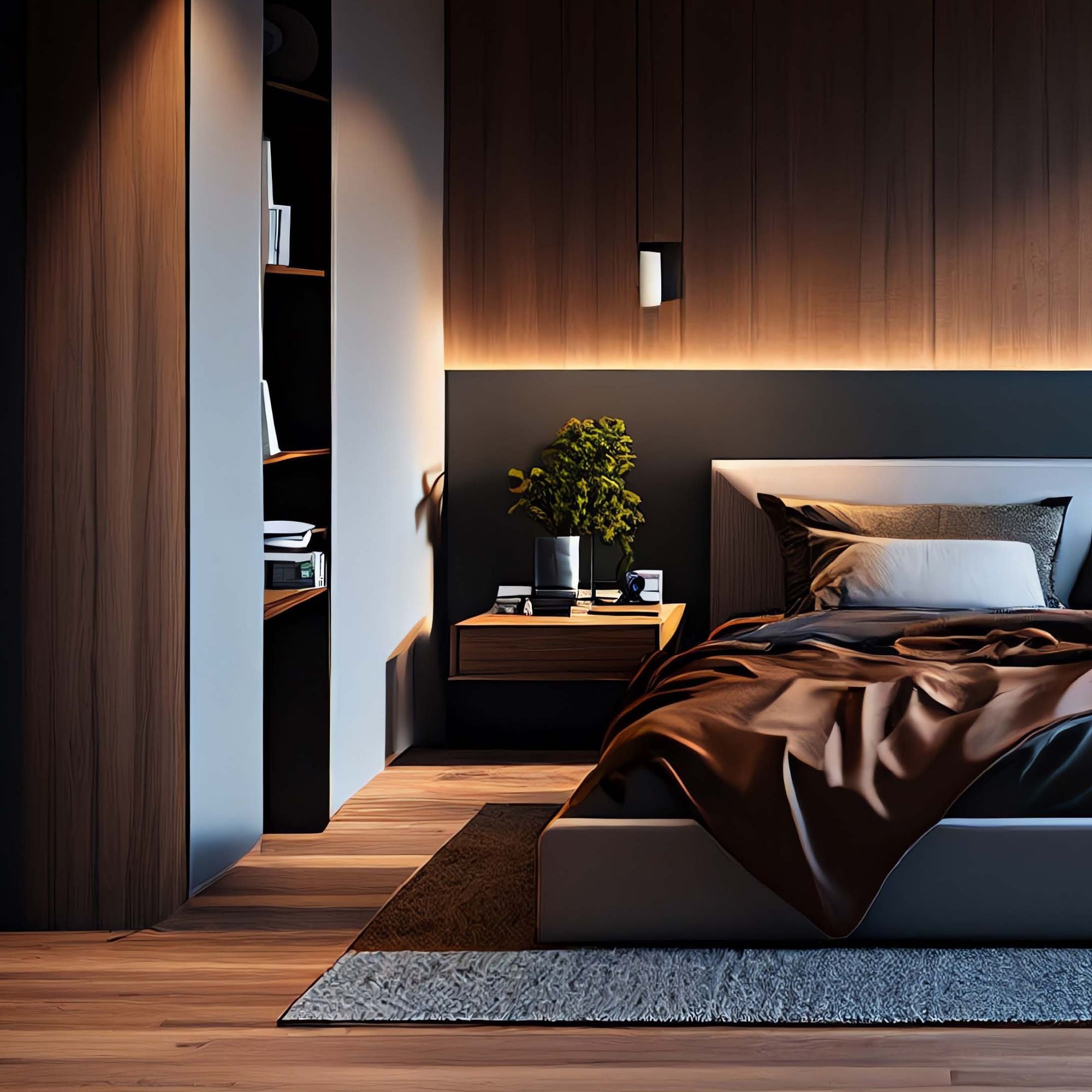

- Cove lighting for ambient illumination.

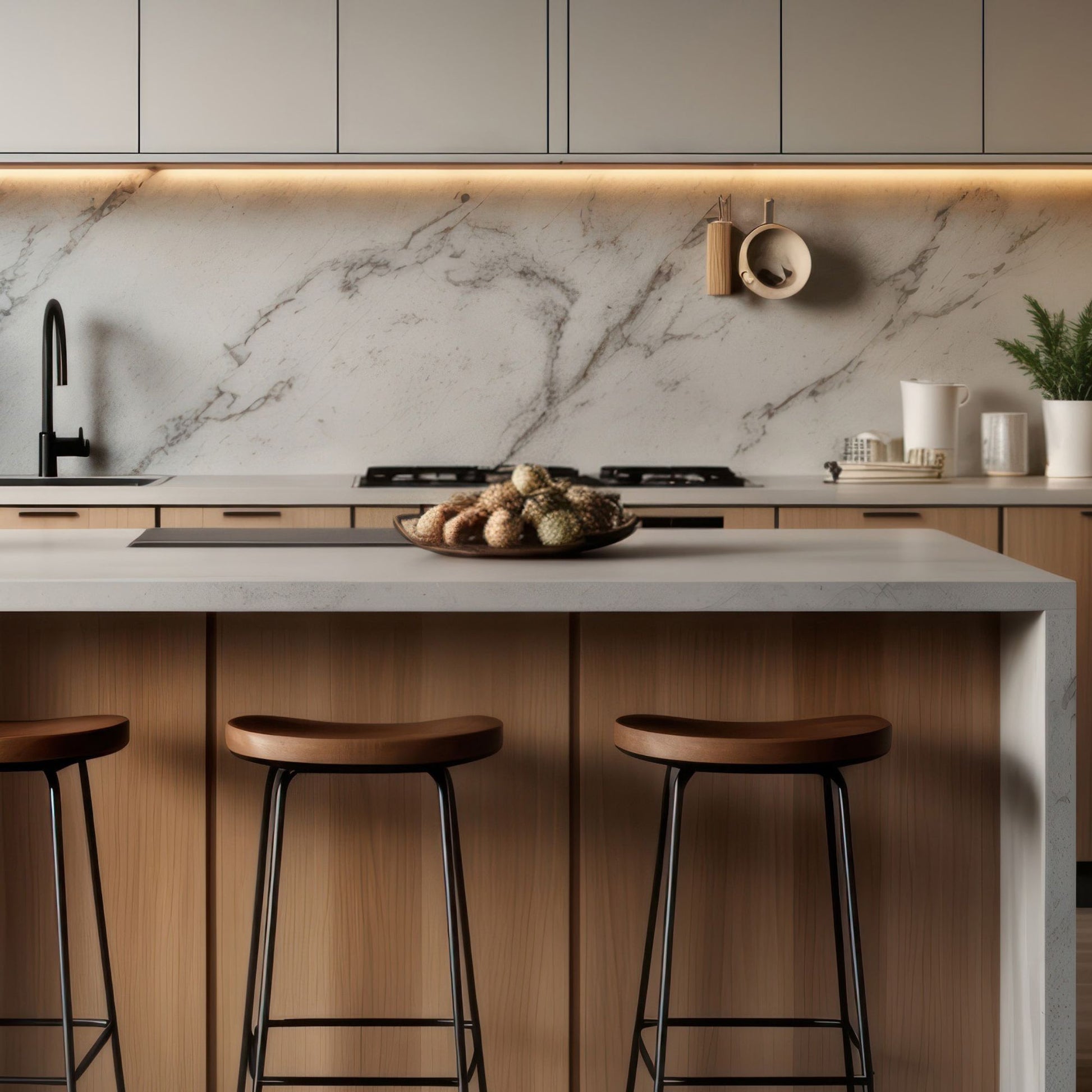

- Under cabinet lighting for task lighting.
- Accent lighting in retail displays.
- Architectural lighting for dynamic effects.
What's Included
- 16.4ft spool of COB tape light.
- Attached 6ft lead wires.
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the HTL-COB-PXL30K-16?
What is the maximum run length for the HTL-COB-PXL30K-16?
How often can the HTL-COB-PXL30K-16 be cut?
How often can the HTL-COB-PXL30K-16 be cut?
What voltage is required for the HTL-COB-PXL30K-16?
What voltage is required for the HTL-COB-PXL30K-16?
Is the HTL-COB-PXL30K-16 suitable for outdoor use?
Is the HTL-COB-PXL30K-16 suitable for outdoor use?
What type of dimmers are compatible with the HTL-COB-PXL30K-16?
What type of dimmers are compatible with the HTL-COB-PXL30K-16?
