American Lighting Trulux, 16.4ft, COB Tape Light, IP54, 5000K, 448 Lumens/ft, 24V
Available in stock (216)
About this item
About this item
- Voltage: Operates at 24V DC for efficient energy use.
- Color Temperature: Provides a crisp 5000K daylight appearance.
- Max Run: Supports up to 16.4ft continuous run to minimize voltage drop.
- Cuttable Increments: Customizable every 1.97 inches for precise installations.
- IP Rating: IP54 coating protects against dust and moisture for indoor damp locations.
We process payments securely and do not store credit card information.
Description
Description

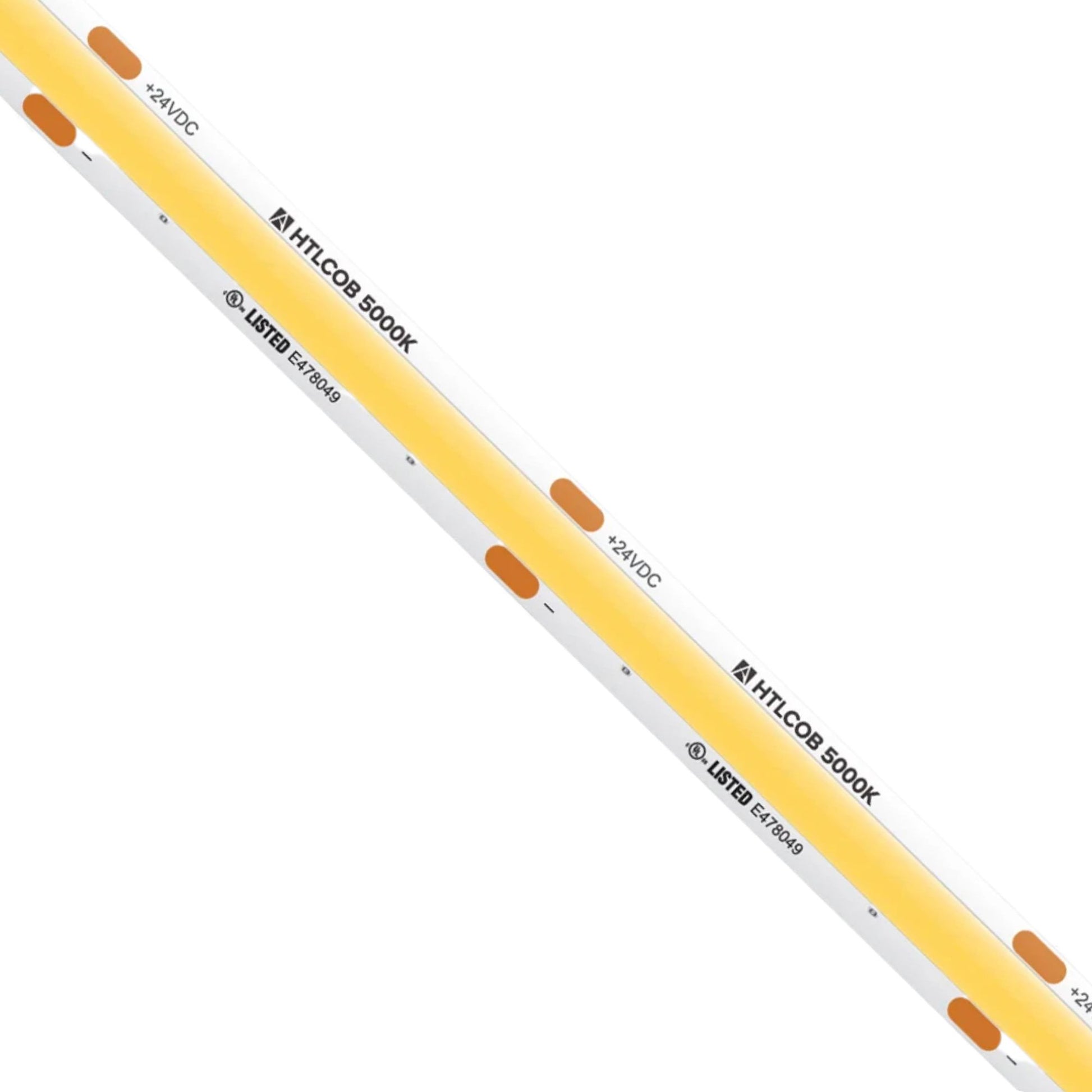

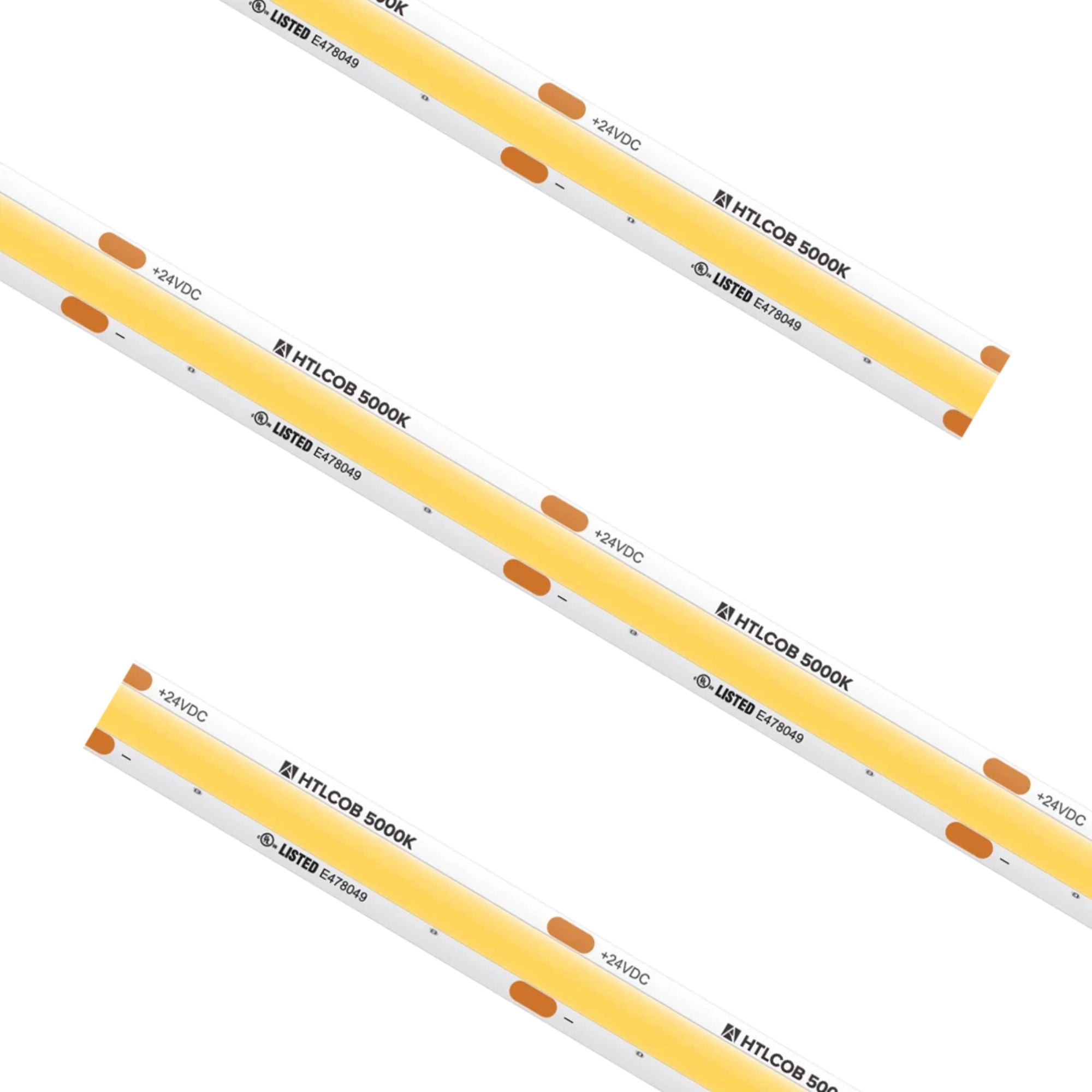

American Lighting Trulux COB Tape Light — 5000K & Seamless Illumination
The HTL-COB-CW-16 is a high-performance COB Tape Light from American Lighting's Trulux series, offering a seamless line of light in a 16.4ft length. Operating at 24V DC, this tape light is designed for IP54 rated environments, making it suitable for indoor damp locations.

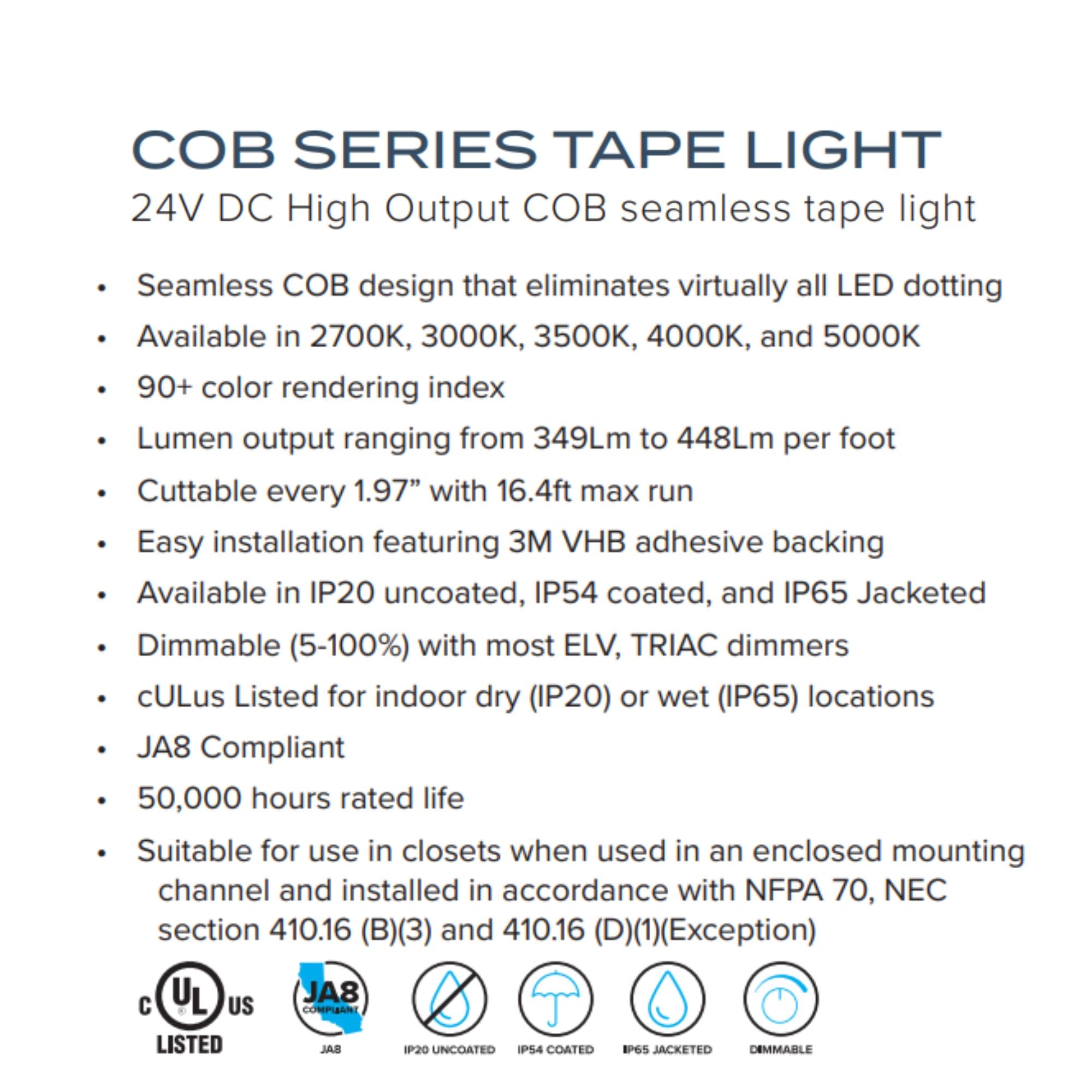

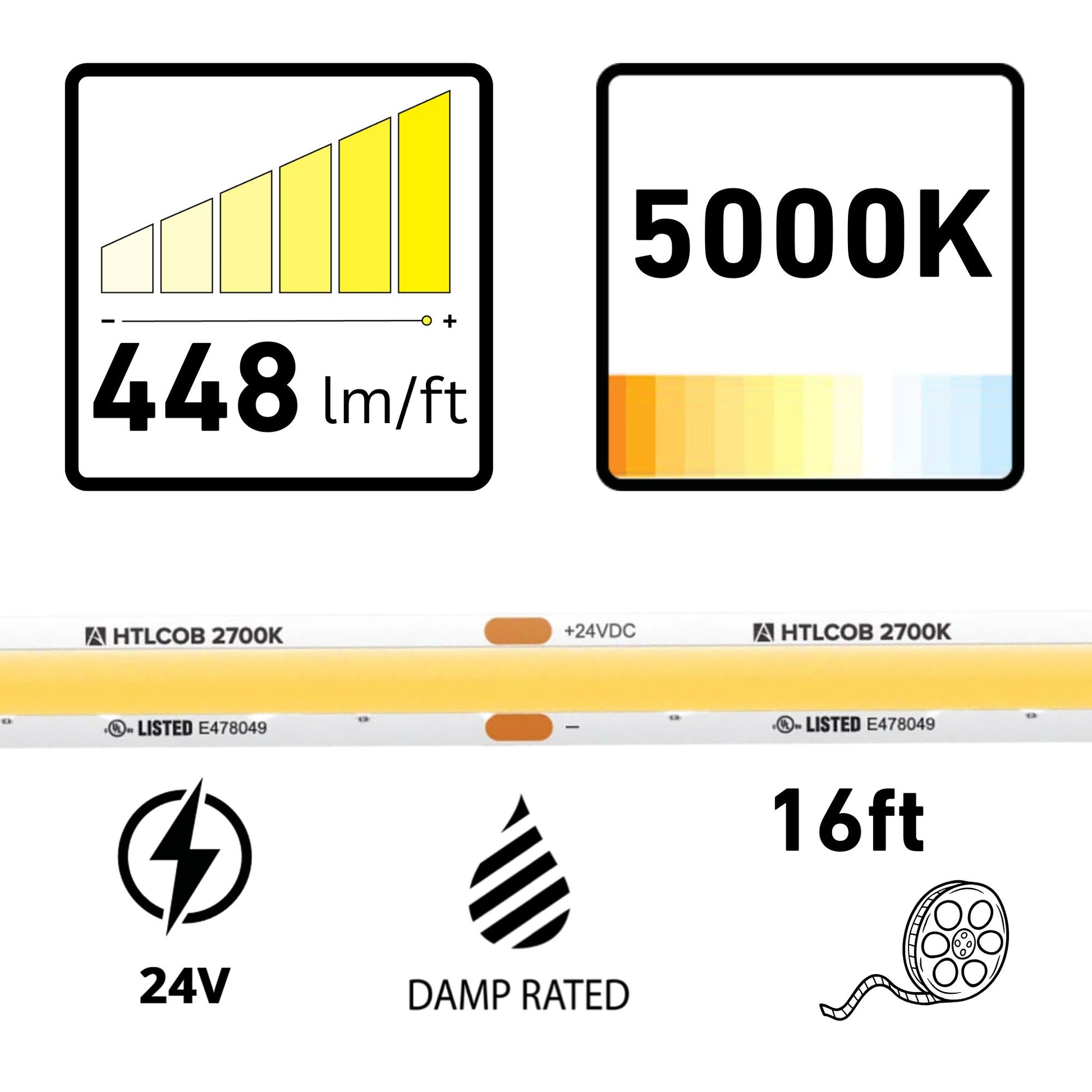

Key Features
- Voltage: 24V DC ensures efficient power consumption.
- Wattage: Consumes 4.5W per foot.
- Lumens: Delivers up to 448 lumens per foot for bright illumination.
- LEDs per Foot: COB technology for a dotless light output.
- Maximum Run: Supports up to 16.4ft continuous run.

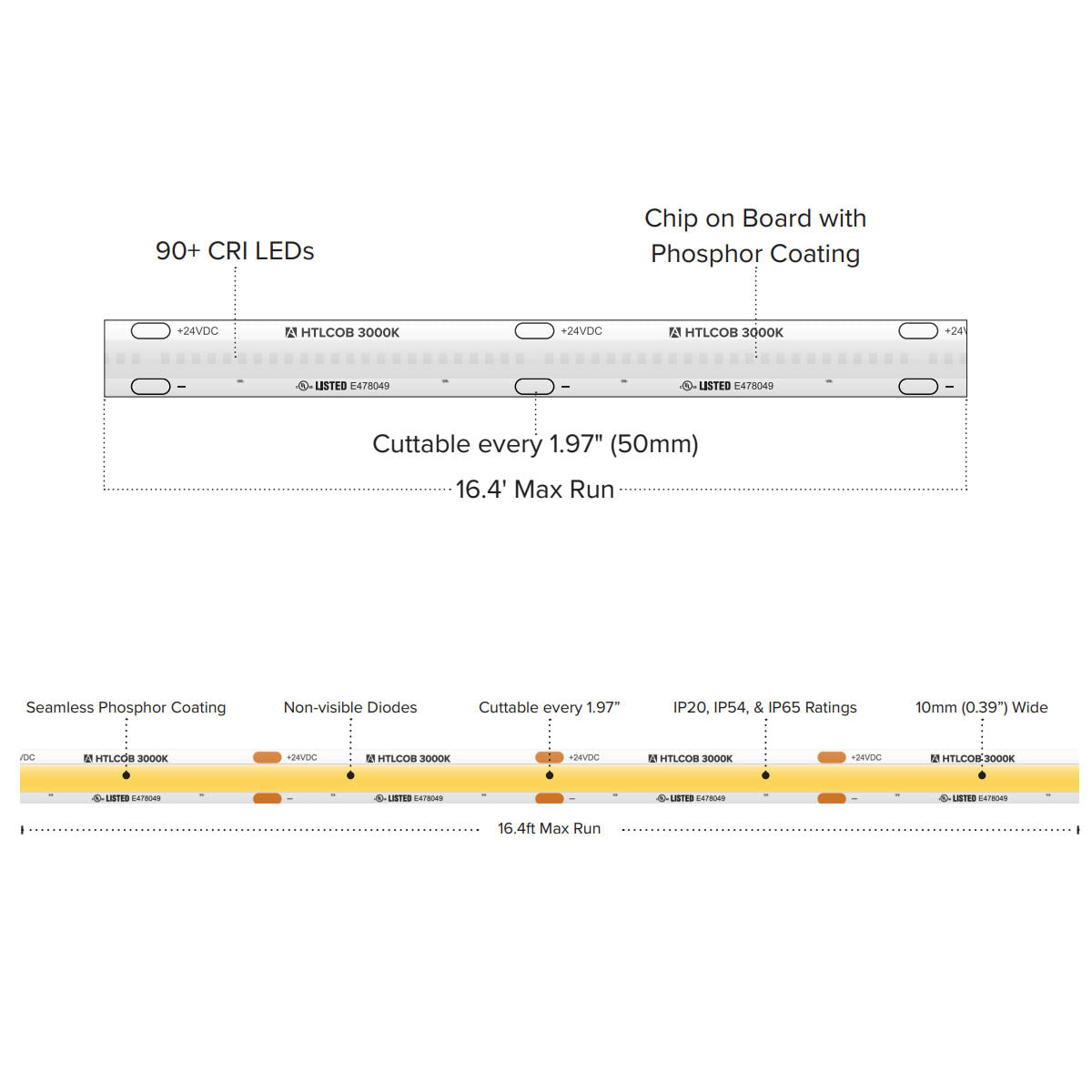

- Cut Increments: Field cuttable every 1.97 inches for custom lengths.
- PCB Width: 10mm width for compatibility with standard channels.
- Beam Angle: 120-degree beam angle for wide light distribution.
- IP Rating: IP54 rated for protection against dust and moisture.
- Certifications: cULus Listed and JA8 Compliant for quality assurance.
Core Design & Construction

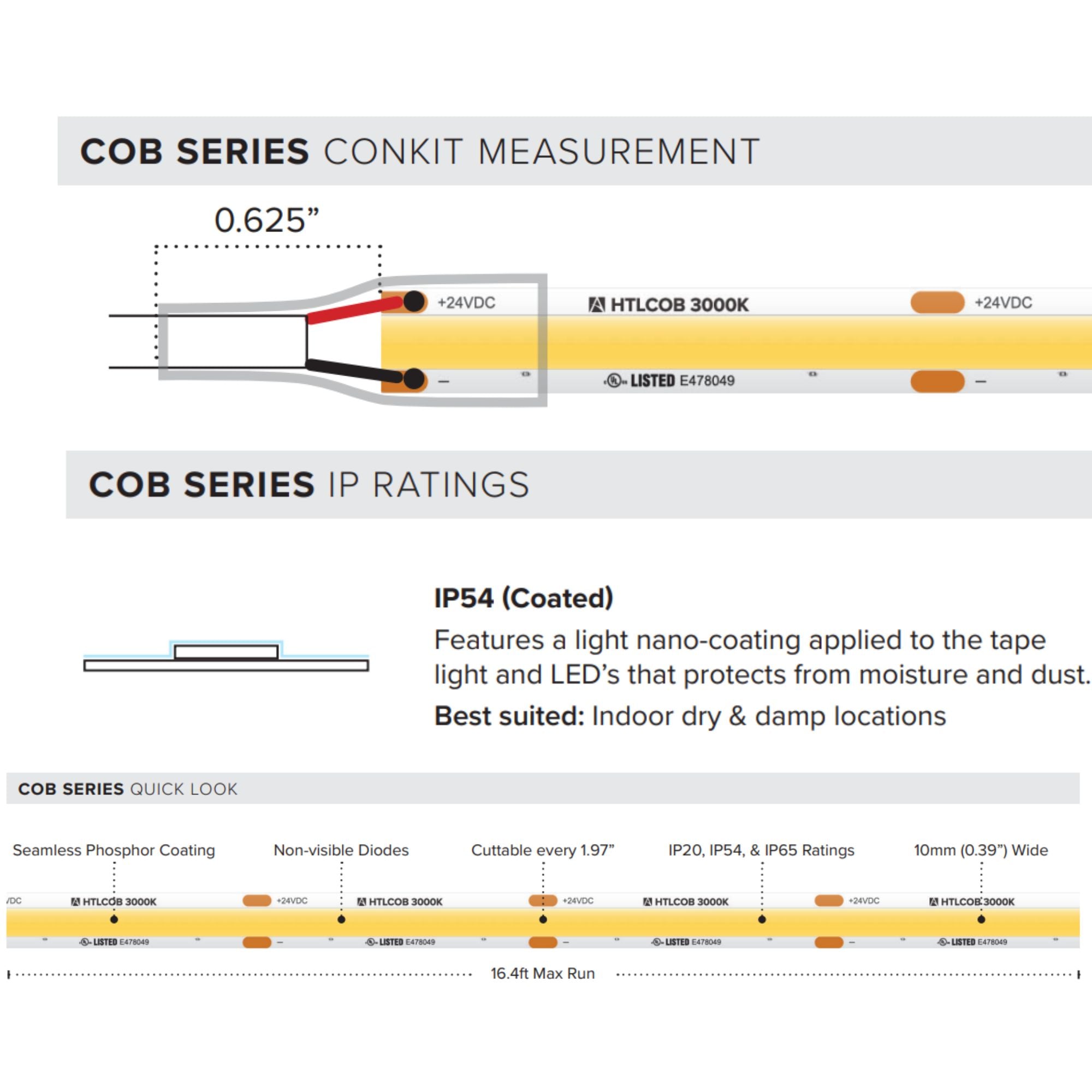

The tape light features a 10mm wide PCB, ensuring compatibility with a variety of aluminum channels. It includes a light nano-coating for protection against moisture and dust, and uses 3M VHB adhesive backing for secure installations.
LED Illumination & Performance
With a high CRI of 90+, the tape light provides up to 448 lumens per foot, utilizing COB technology for a seamless, dotless light output. The 5000K color temperature offers a bright, daylight-like appearance.
Power, Wiring & Installation
This tape light operates at 24V DC, requiring a compatible driver. It is field-cuttable every 1.97 inches and supports a maximum continuous run of 16.4ft. It is dimmable with most ELV and TRIAC dimmers.
Where This Tape Works Best

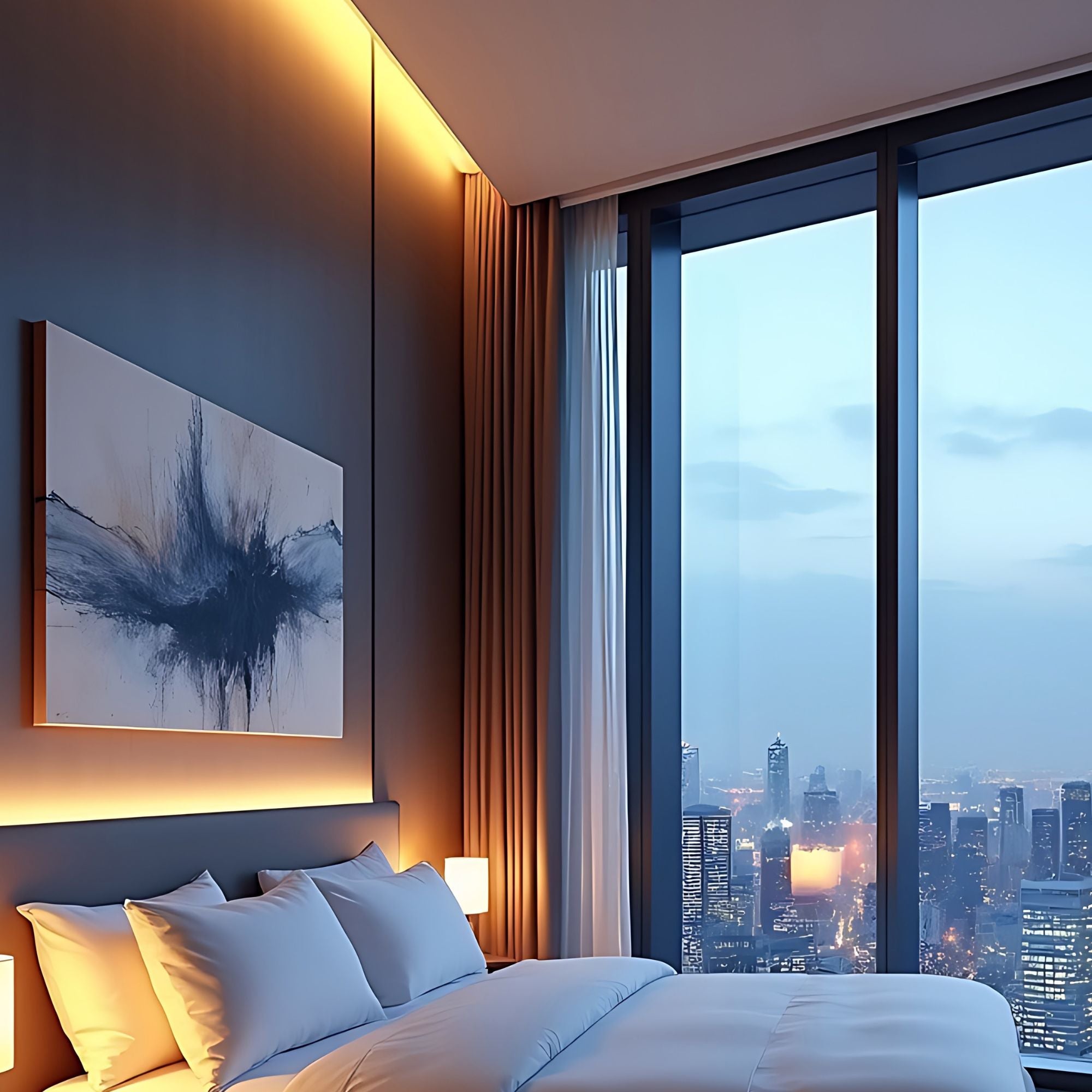

- Cove lighting

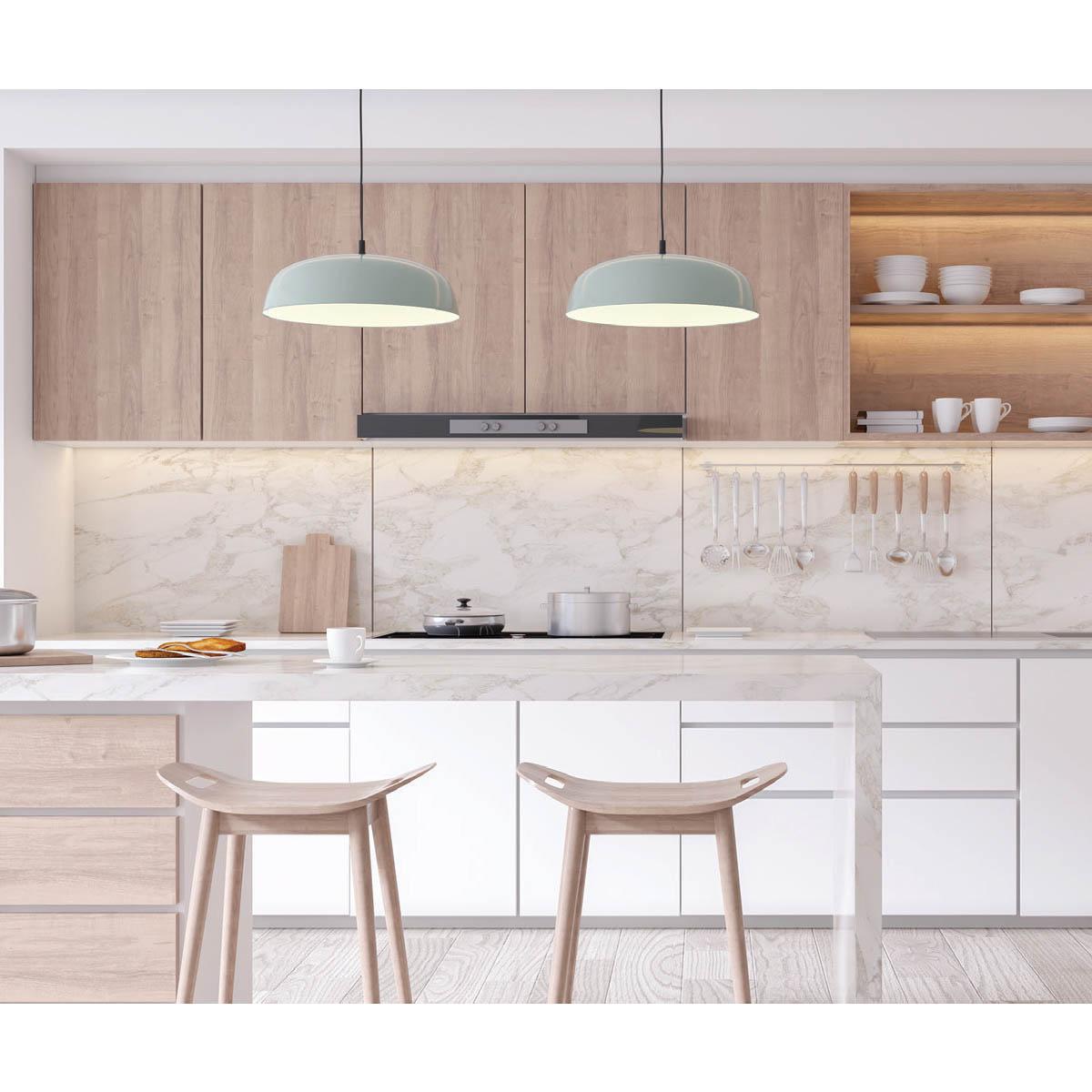

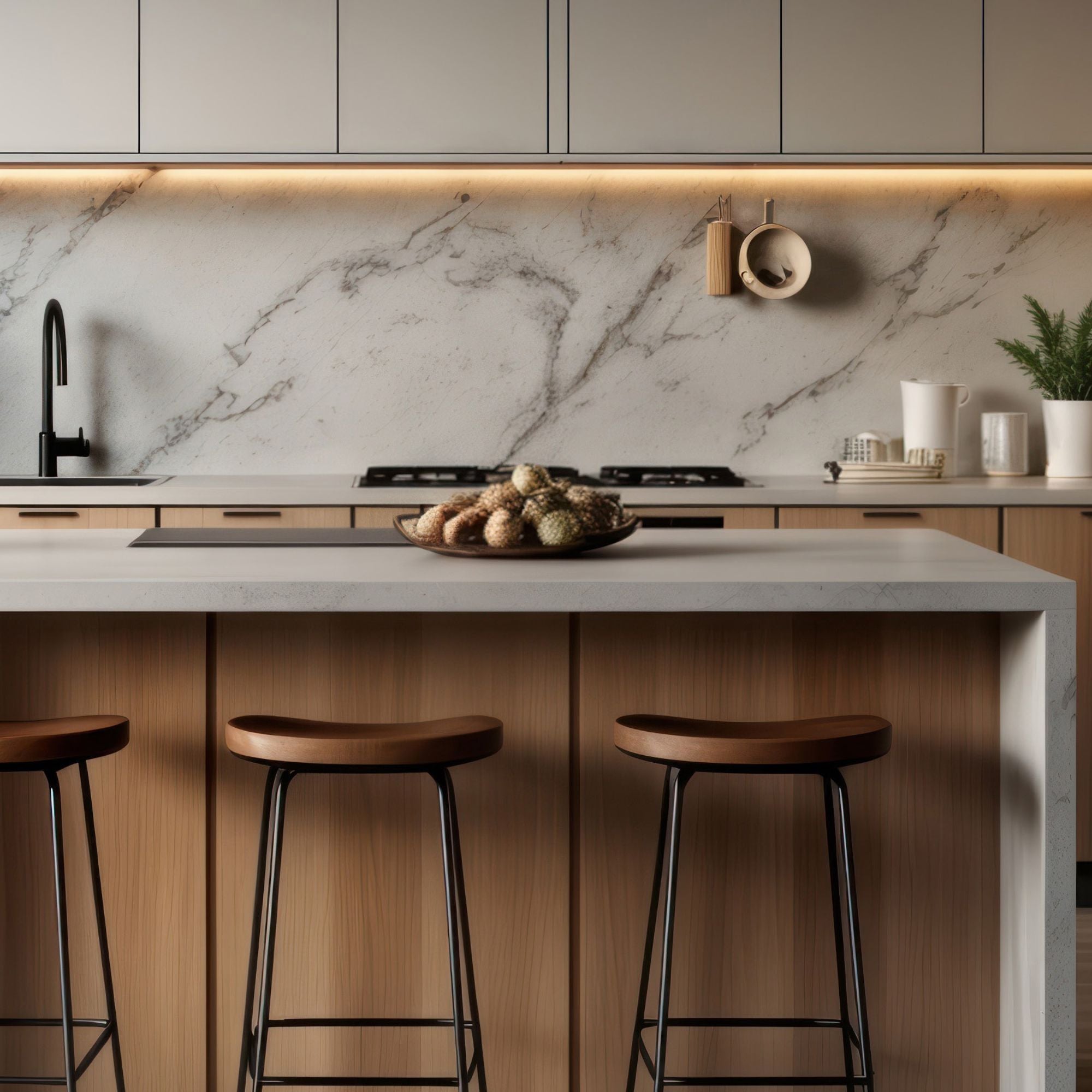

- Under cabinet lighting
- Accent lighting
- Display case lighting
- Architectural reveals

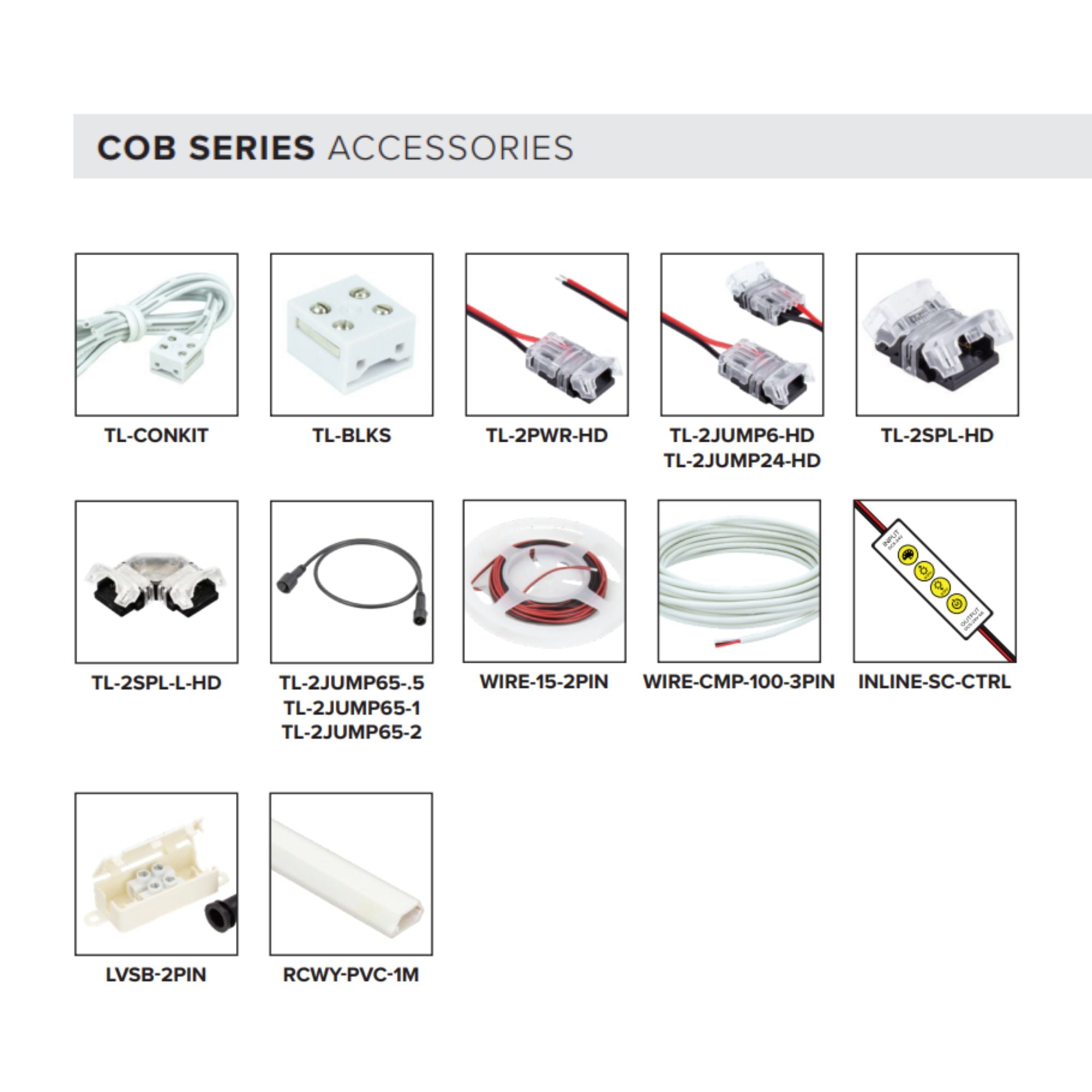

What's Included
- 16.4ft Reel
- 6ft lead and tail
- (1) TL-CONKIT
- (2) TL-BLKS
- (2) TL-2PWR-HD
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the HTL-COB-CW-16?
What is the maximum run length for the HTL-COB-CW-16?
How often can the HTL-COB-CW-16 be cut?
How often can the HTL-COB-CW-16 be cut?
What voltage does the HTL-COB-CW-16 require?
What voltage does the HTL-COB-CW-16 require?
Is the HTL-COB-CW-16 compatible with dimmers?
Is the HTL-COB-CW-16 compatible with dimmers?
What is the width of the HTL-COB-CW-16 tape light?
What is the width of the HTL-COB-CW-16 tape light?
