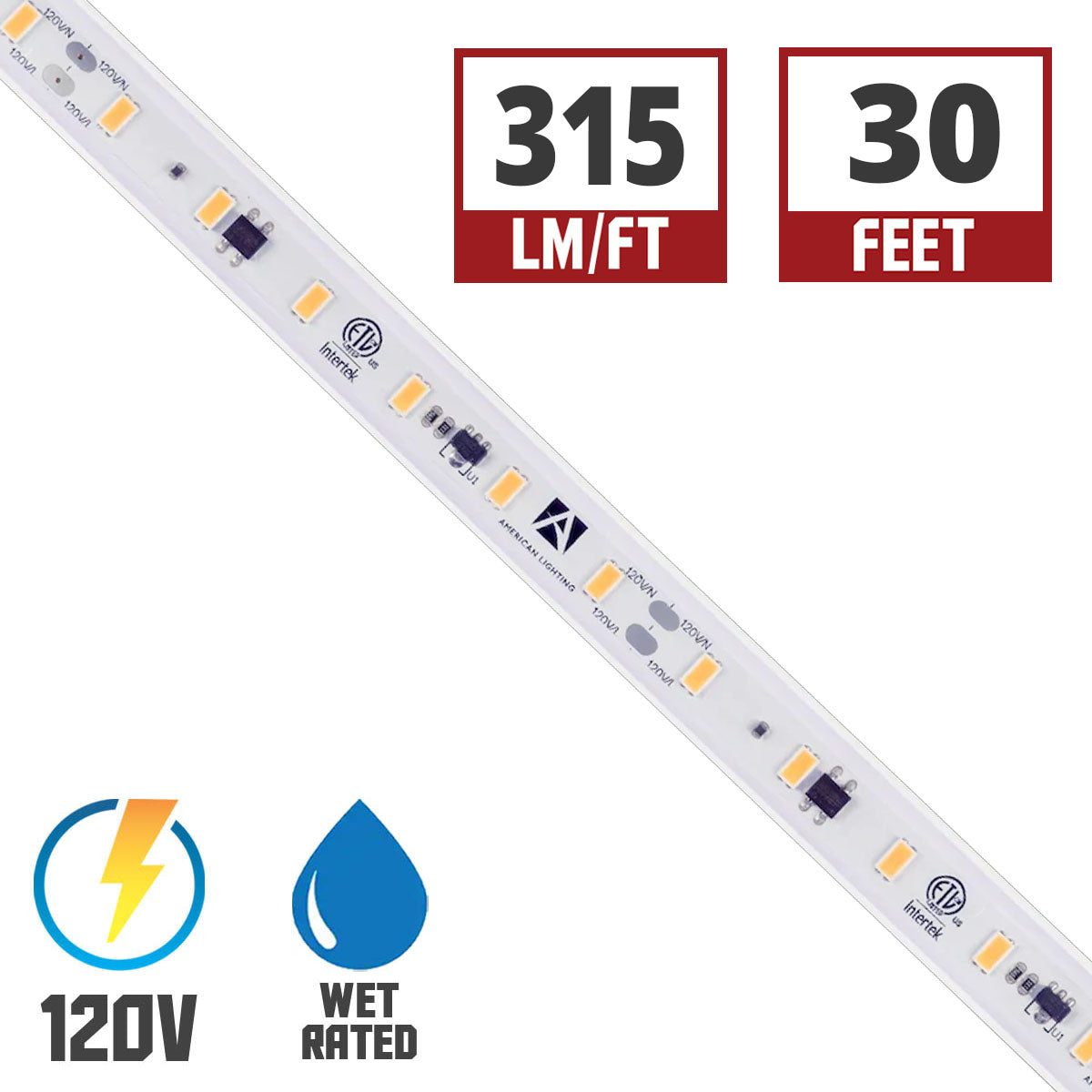

American Lighting Hybrid 3, 30ft, LED Tape Light Kit, IP65, 3000K, 315 Lumens/ft, 120V
Available in stock (517)
About this item
About this item
- Voltage: Operates on 120V AC for direct connection without a driver.
- Color Temperature: Provides a warm 3000K light, ideal for cozy environments.
- Lumens per Foot: Delivers up to 315 lumens per foot for bright illumination.
- Max Run: Supports up to 164ft, but recommended not to exceed 75ft in a single run to prevent voltage drop.
- IP Rating: IP65 rated for wet locations, suitable for indoor and outdoor use.
We process payments securely and do not store credit card information.
Description
Description

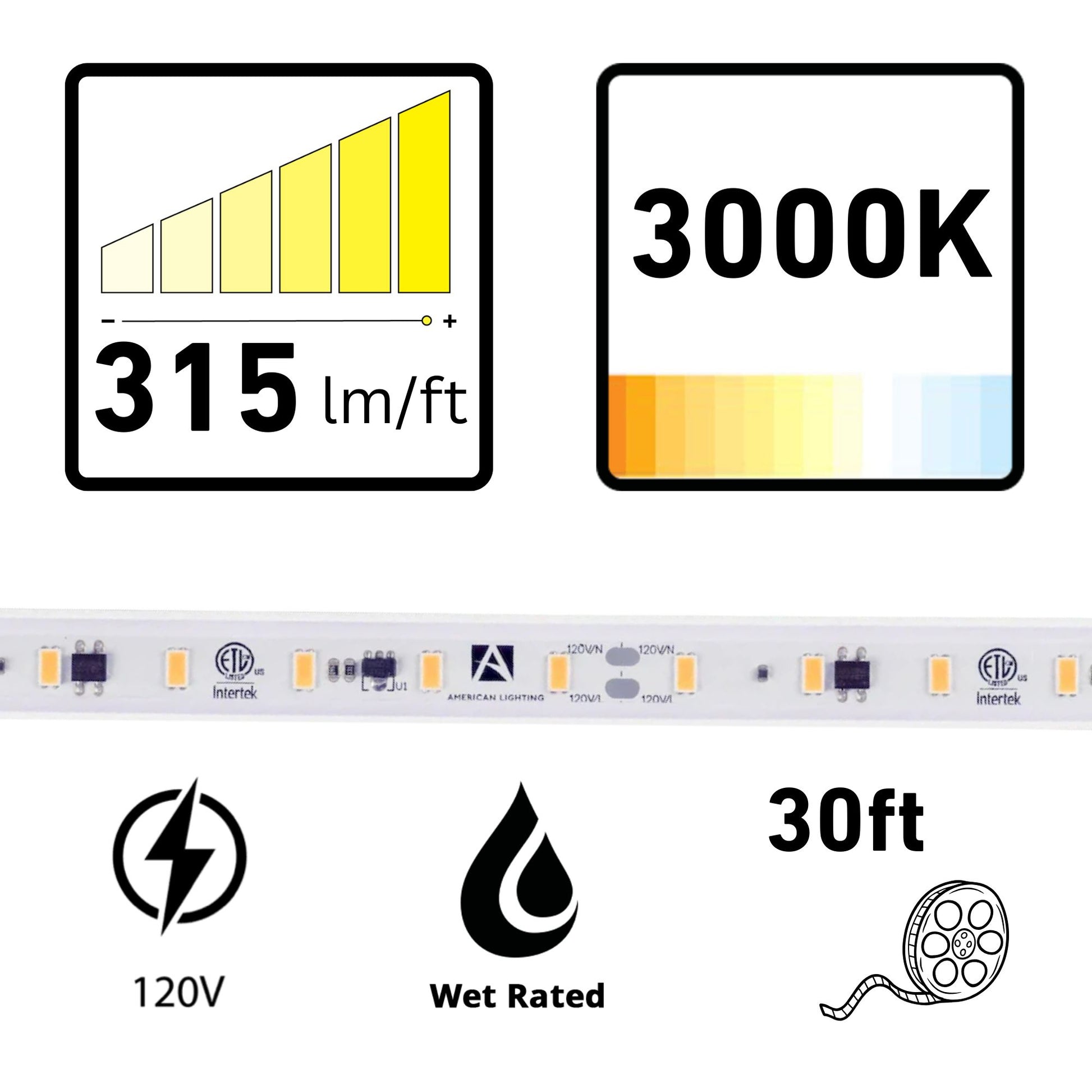

American Lighting Hybrid 3 LED Tape Light — 3000K & IP65 Rated
The American Lighting 120-H3-KIT-30-30 is a 30ft LED tape light kit designed for both indoor and outdoor applications. This kit operates on 120V AC and features an IP65 rating, making it suitable for wet locations. With a color temperature of 3000K, it provides a warm and inviting light output, perfect for hospitality and home theater settings.
Key Features
- Voltage: 120V AC operation for direct connection.
- Wattage: Consumes 4W per foot for energy efficiency.
- Lumens per Foot: Up to 315Lm for bright illumination.
- LEDs per Foot: 20 LEDs per foot for consistent lighting.
- Maximum Run: 164ft total, with a recommended max of 75ft per run.
- Cuttable Increments: Every 4 inches for customizable lengths.
- PCB Width: 15mm for compatibility with standard channels.
- Beam Angle: Wide distribution for even lighting.
- IP Rating: IP65 for wet location use.
- Certifications: cETLus Listed for safety and reliability.
Core Design & Construction
The Hybrid 3 features a 15mm wide PCB, ensuring compatibility with most aluminum channels. It is encased in a flexible housing that provides an IP65 rating, suitable for wet locations. The tape light includes a durable adhesive backing for easy installation.
LED Illumination & Performance
With up to 315 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The 3000K color temperature offers a warm, inviting glow, ideal for various settings.
Power, Wiring & Installation
This tape light operates on 120V AC, eliminating the need for a driver. It is cuttable every 4 inches, allowing for custom lengths. The maximum continuous run is 75ft to prevent voltage drop, and it is dimmable with most CL and ELV dimmers.
Where This Tape Works Best

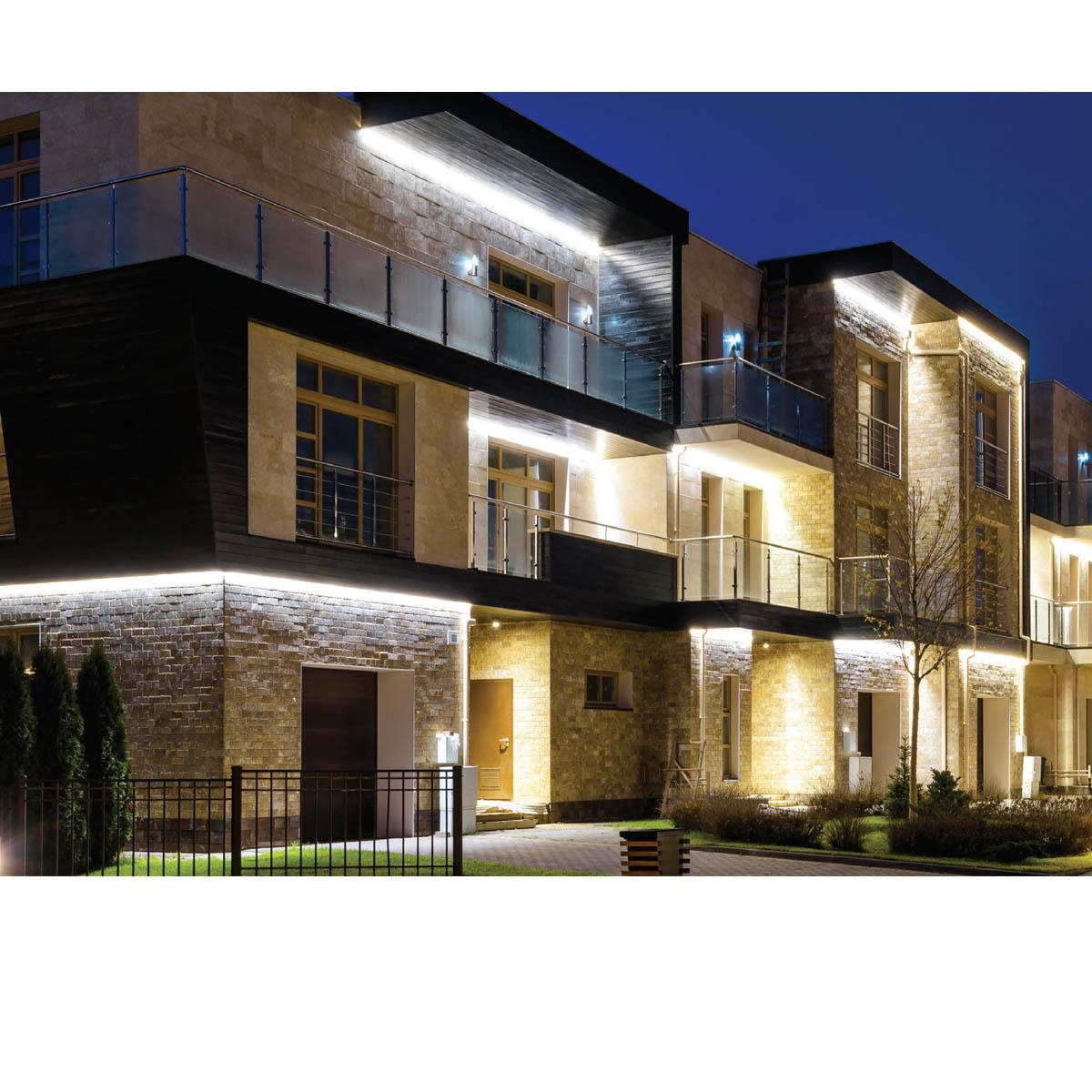

- Outdoor pathways

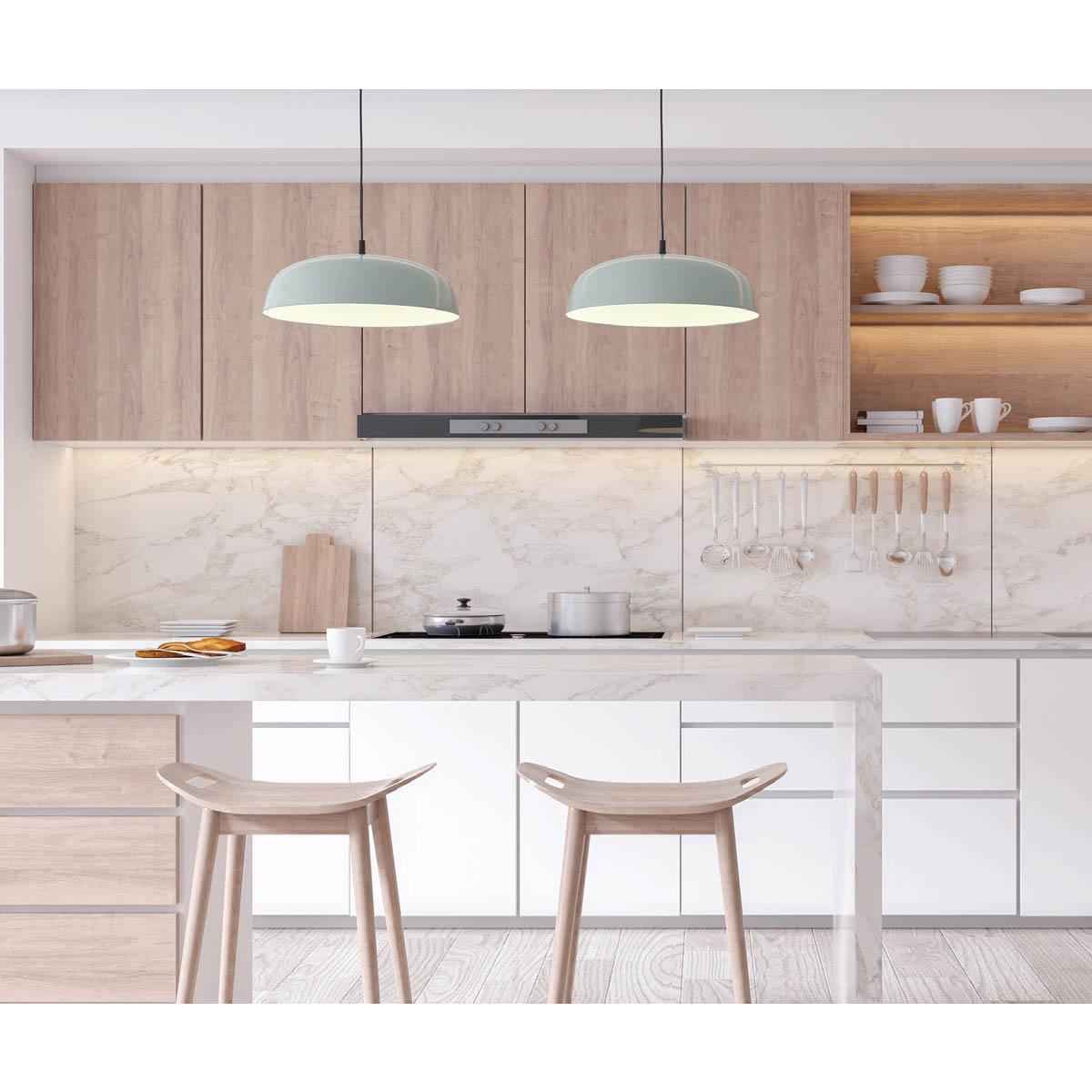

- Under cabinet lighting
- Cove lighting
- Home theaters
- Hospitality environments
What's Included

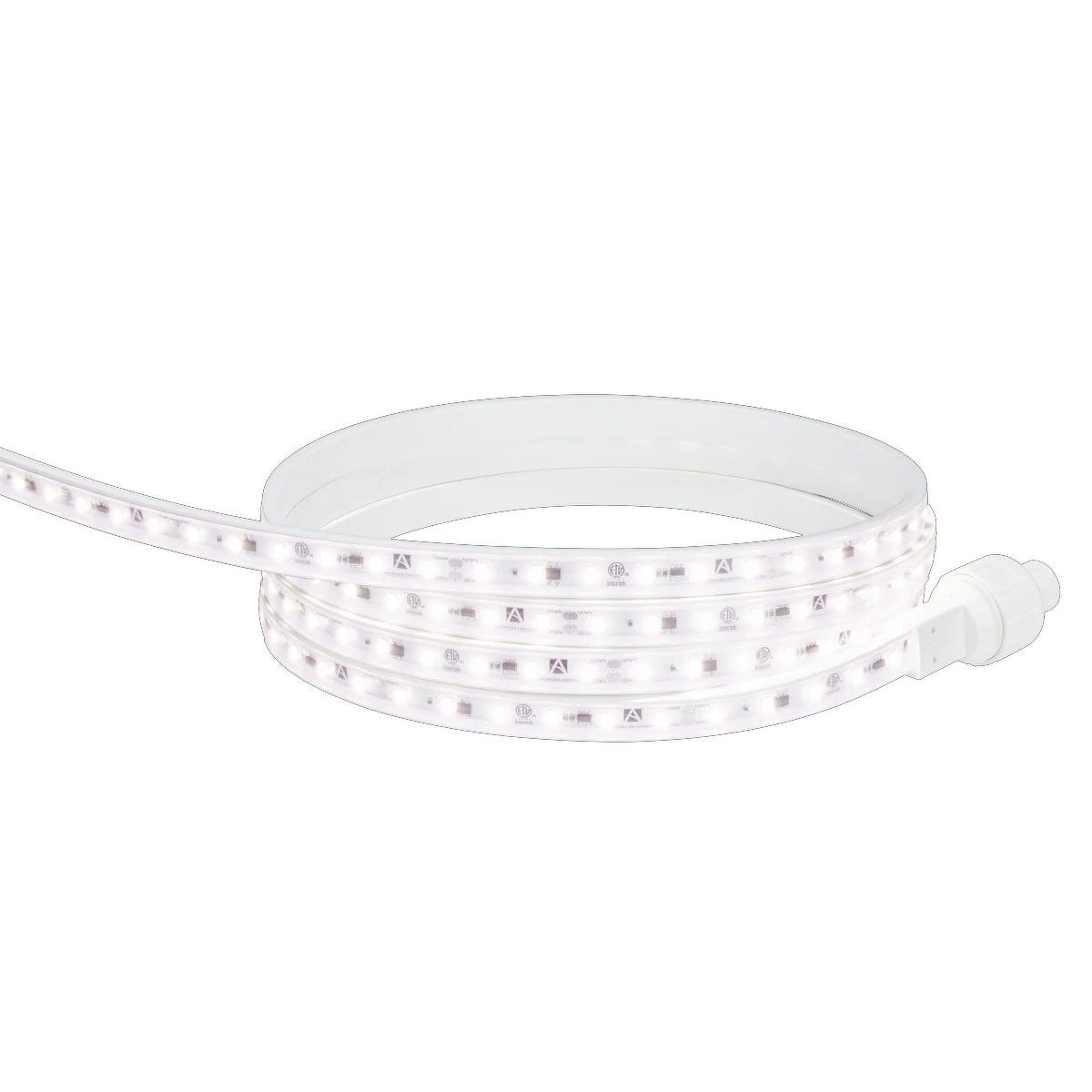

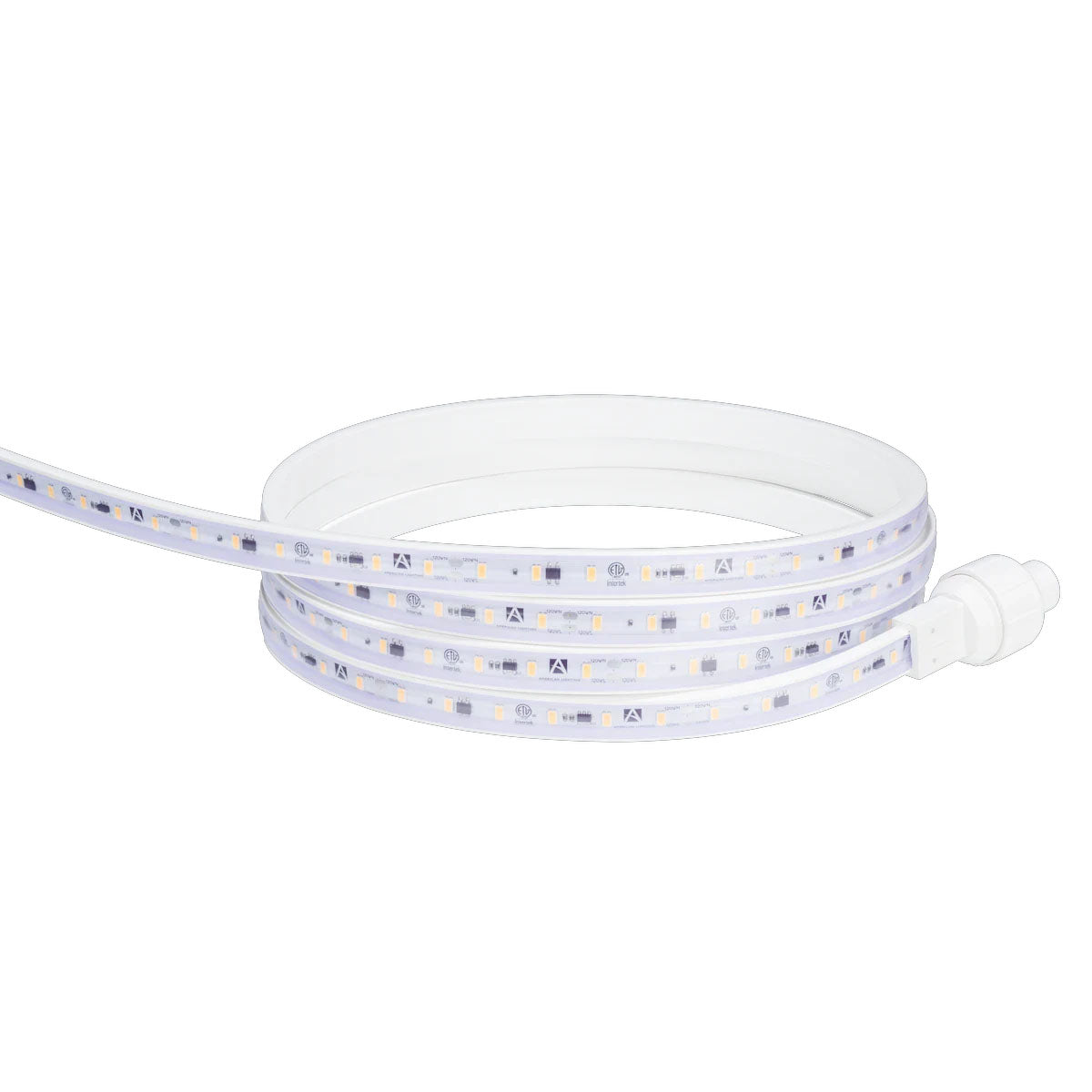

- 30ft LED tape light

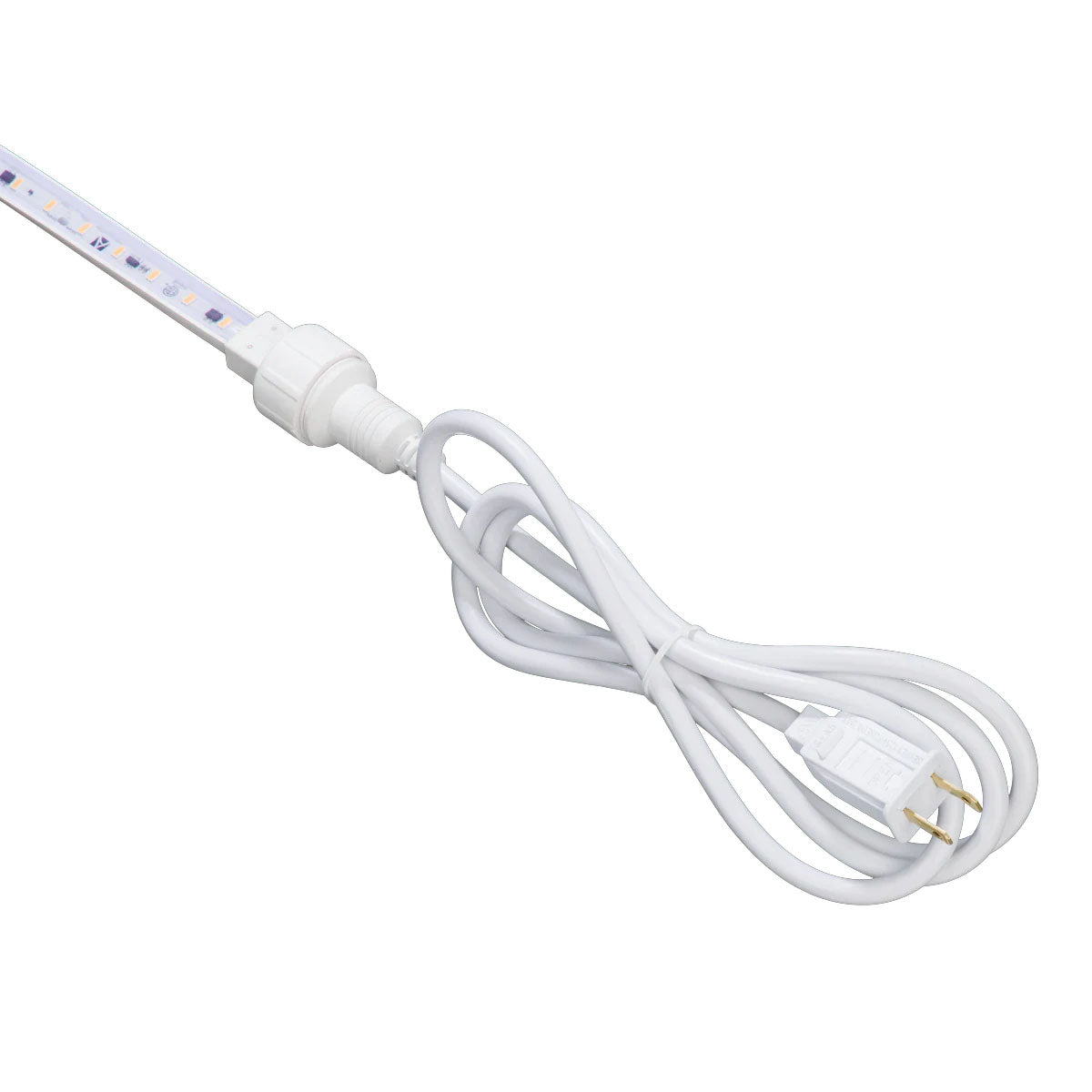

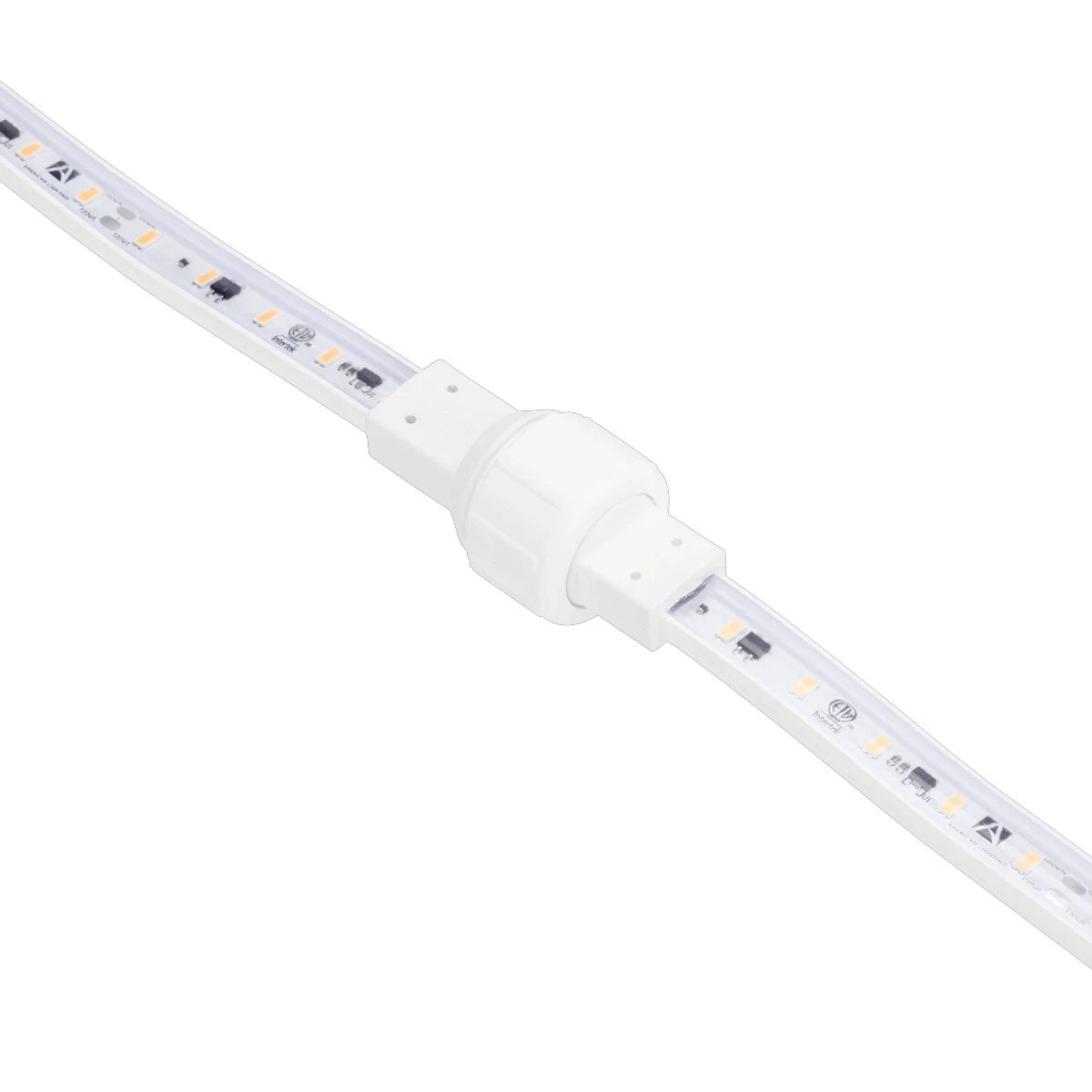

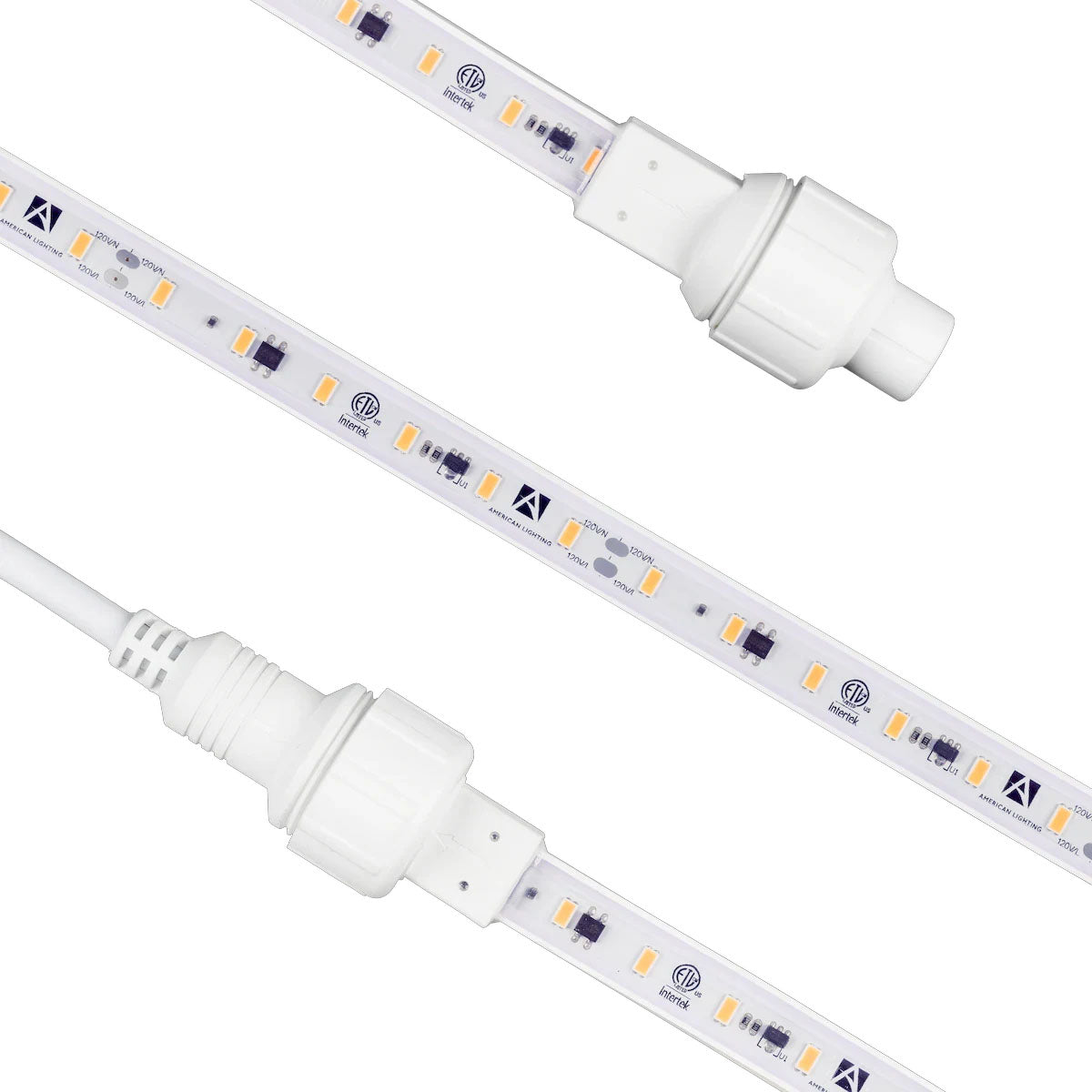

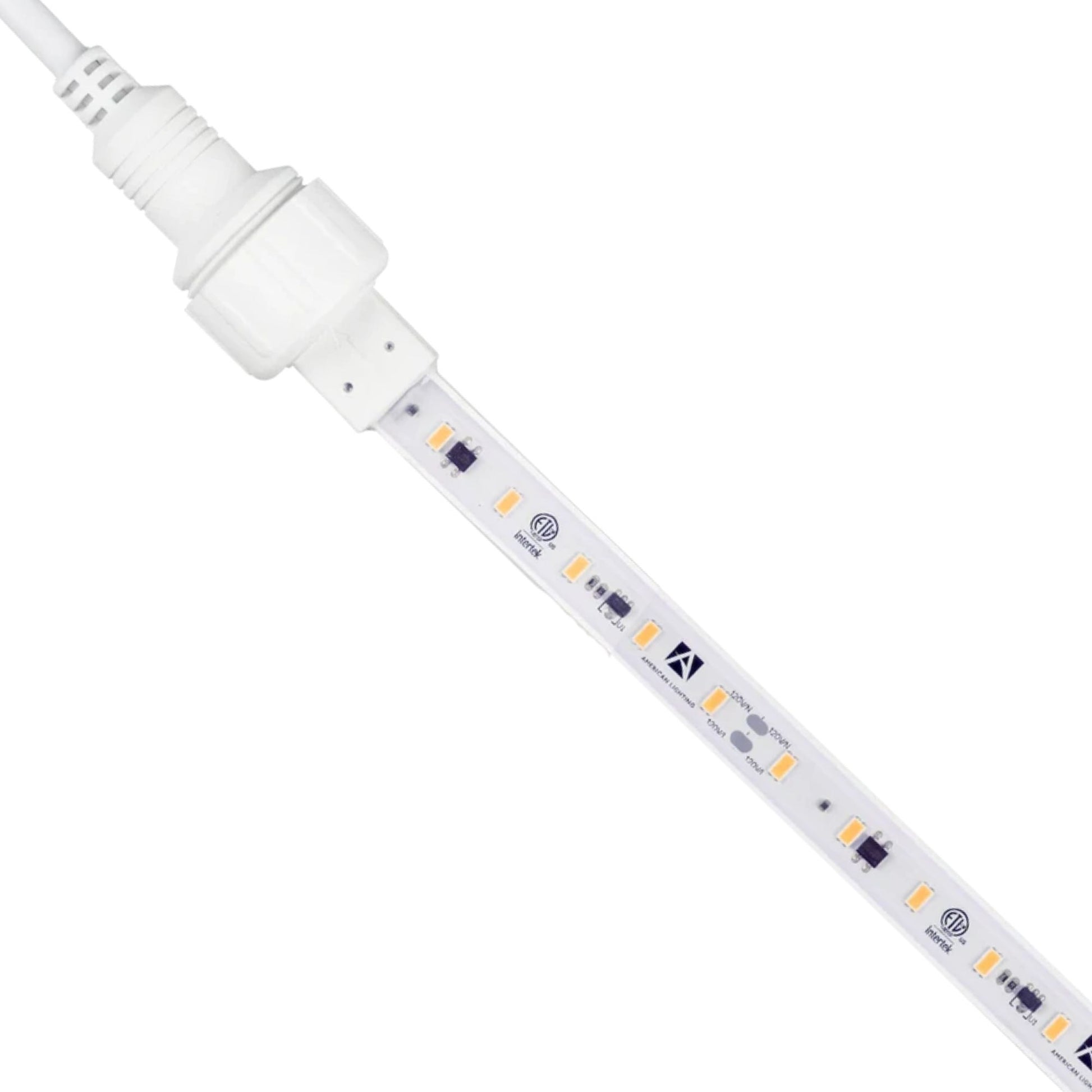

- 5ft removable power plug and female connector
- Removable end cap
- Plastic mounting clips (1 per foot)
