American Lighting Economy 45 EE45-AAFR-2M-BNDL1 2M Surface Mount Tape Light Channel Bundle, Aluminum
Out of stock
About this item
About this item
- 2M Corner Channel: The 2M bundle uses an angled-edge channel design for 90-degree mount installations in corner-light applications.
- Aluminum Construction: Lightweight anodized aluminum in Aluminum finish dissipates heat for the installed tape light.
- Enclosed Frosted Lens: The UV- and flame-resistant lens protects the light source and diffuses light to help minimize visible diode imaging.
- Listed Mounting Components: One end cap with a hole, one end cap without a hole and six mounting clips are listed for completing the channel installation.
- Field-Cuttable Assembly: Both channel and lens are field cuttable for surface-mount window-frame, display-case and corner installations.
We process payments securely and do not store credit card information.
Description
Description

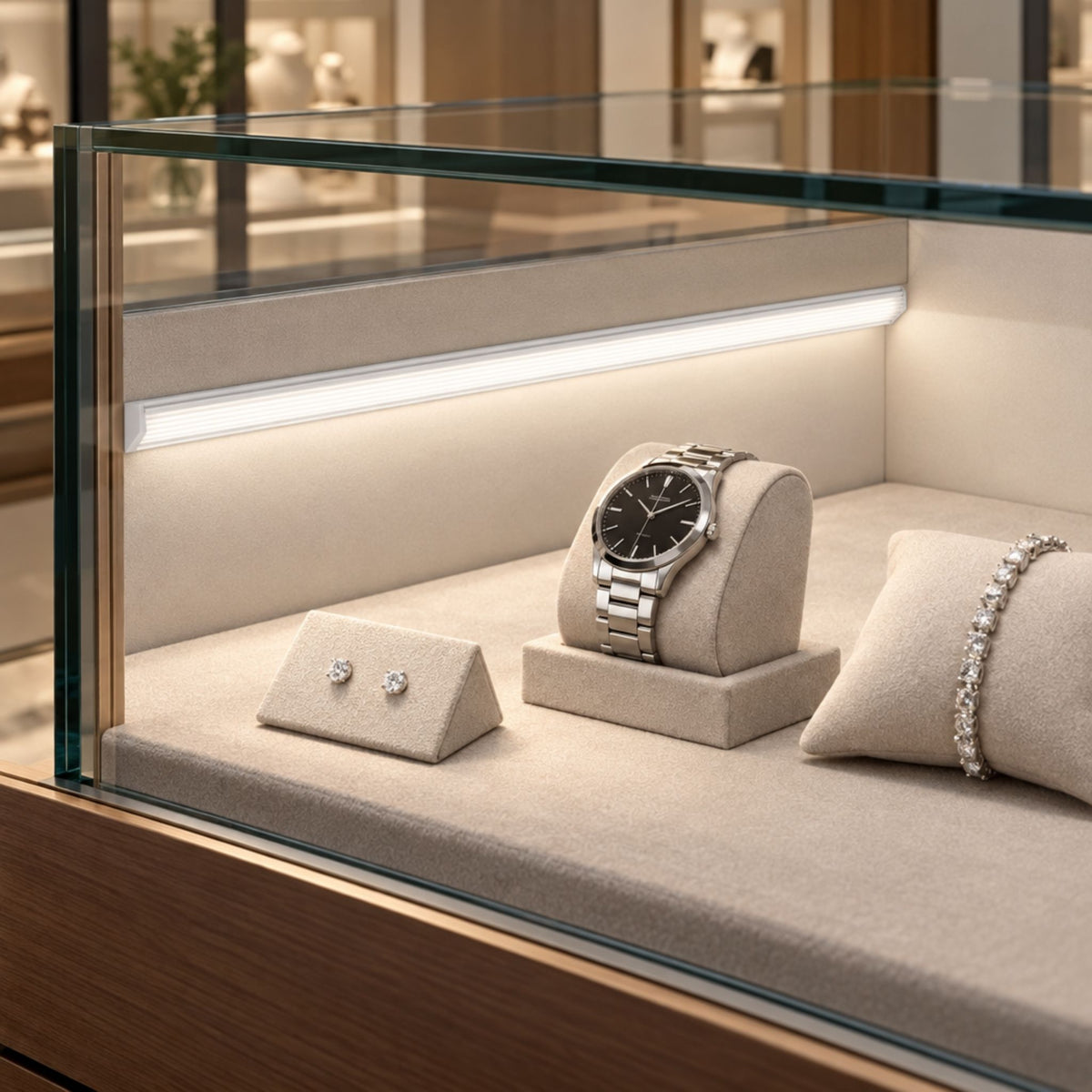

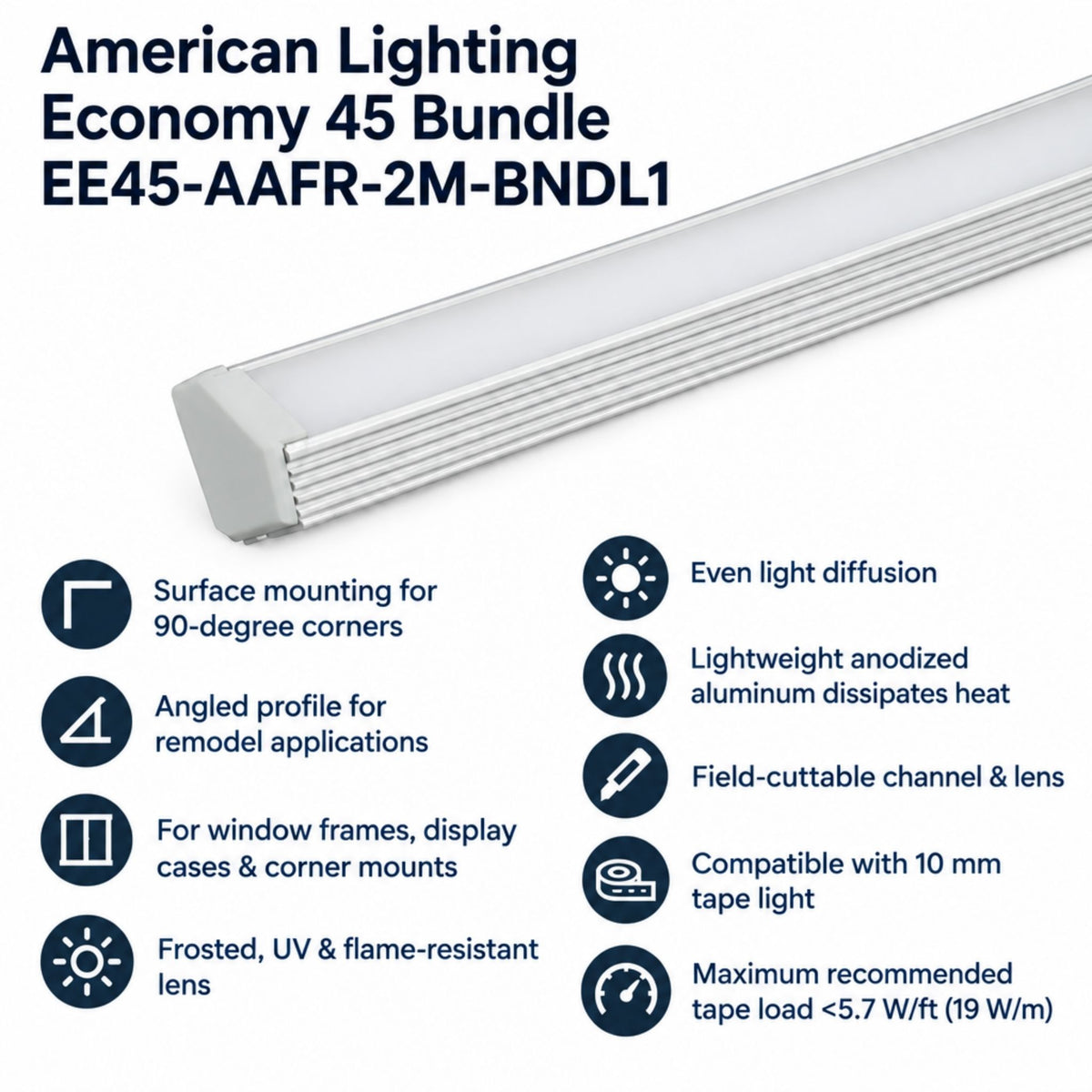

The American Lighting Economy 45 EE45-AAFR-2M-BNDL1 is a 2M Surface Mount Tape Light Channel Bundle in Aluminum finish for corner-light applications. Its angled-edge design supports 90-degree mount installations in window frames, display cases and similar locations.
Lightweight anodized aluminum dissipates heat, while the enclosed frosted lens protects the light source, diffuses light and helps minimize visible diode imaging. The lens is UV- and flame-resistant. The single-bundle ordering row lists one end cap with a hole, one end cap without a hole and six mounting clips.
The general specification identifies 10 mm tape compatibility. The compatibility list names static-white, tunable-CCT and RGB tape at below 4.5 W/ft. Both channel and lens are field cuttable. Tape light and a suitable power supply are separate essentials, not listed among the bundle contents.
Specifications
Specifications

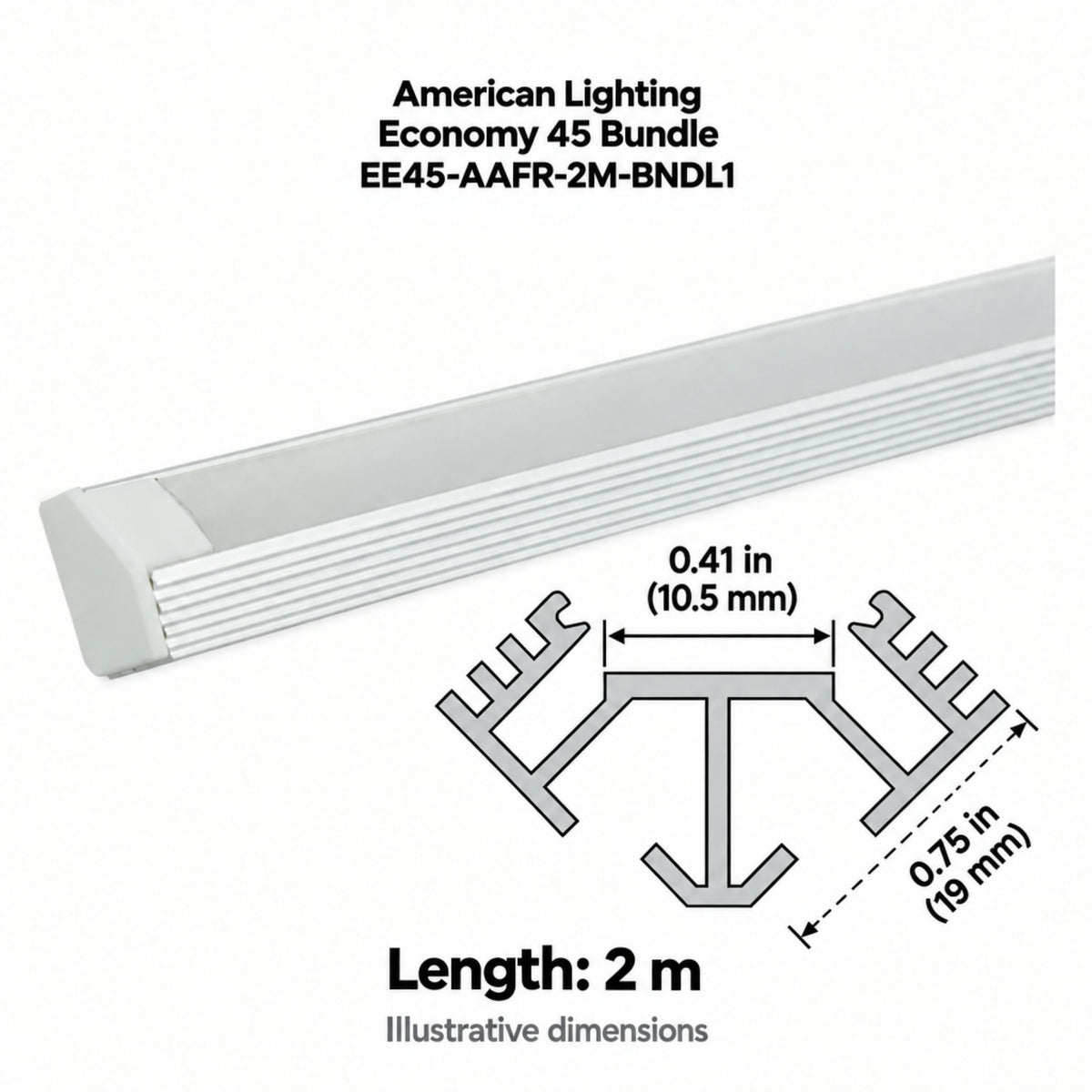

Dimensions
Documents
Style & Materials
Item Details
Frequently Asked Questions
What mounting applications is Economy 45 designed for?
What mounting applications is Economy 45 designed for?
What included components are confirmed in the ordering row?
What included components are confirmed in the ordering row?
What tape width and tape load should be used?
What tape width and tape load should be used?
Is 12 mm RGBW tape confirmed to fit?
Is 12 mm RGBW tape confirmed to fit?
Can the channel and lens be cut to length?
Can the channel and lens be cut to length?
