American Lighting EE1-AAFR-2M-BNDL1 Economy 2M Surface-Mount Channel Bundle
Available in stock (6284)
About this item
About this item
- Low-profile surface mounting: The 2M channel measures 16mm wide by 7.77mm high for installations with limited space.
- Anodized aluminum: Lightweight channel construction helps dissipate heat from the tape light.

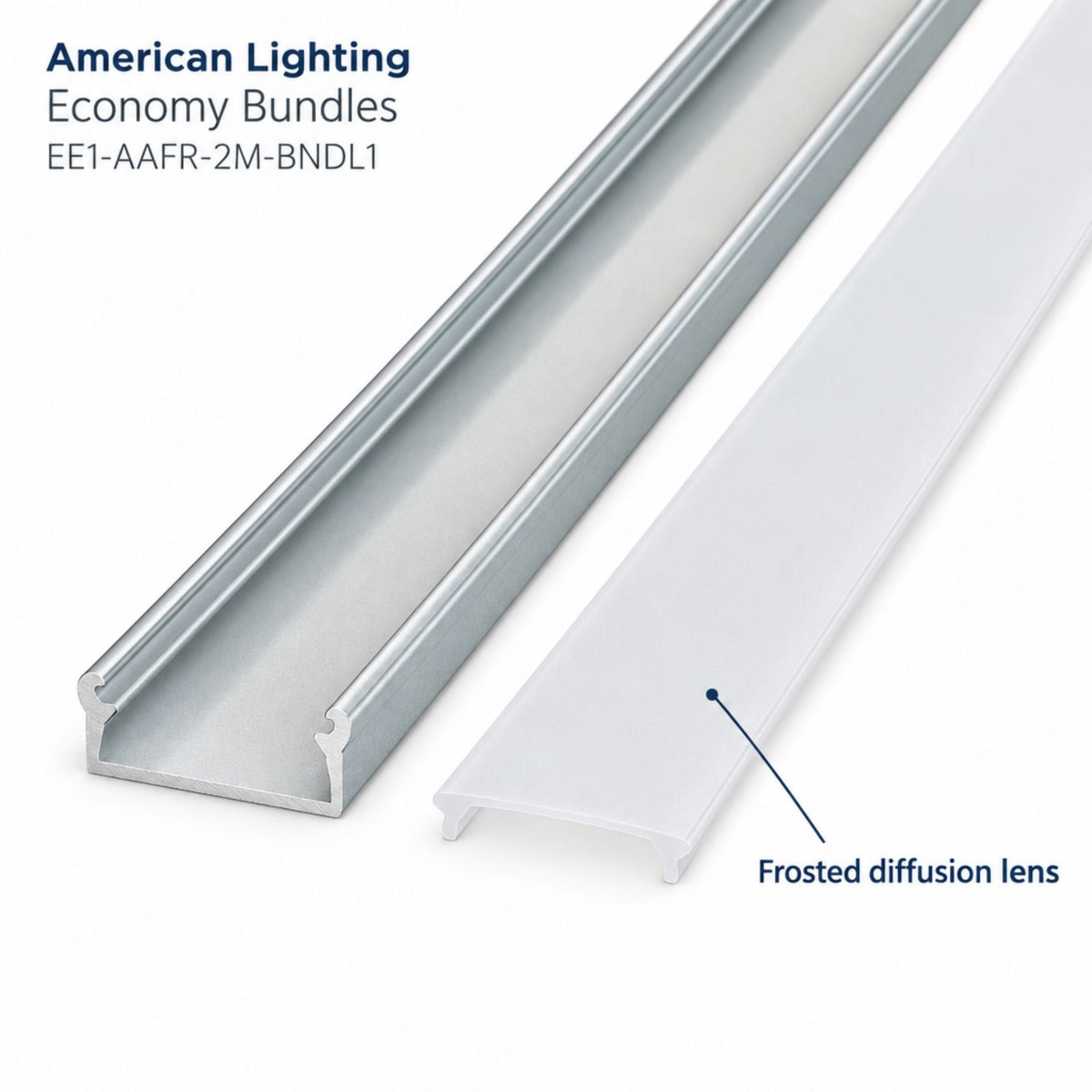

- Frosted diffusion lens: UV- and flame-resistant lens helps diffuse light and minimize visible diode imaging.

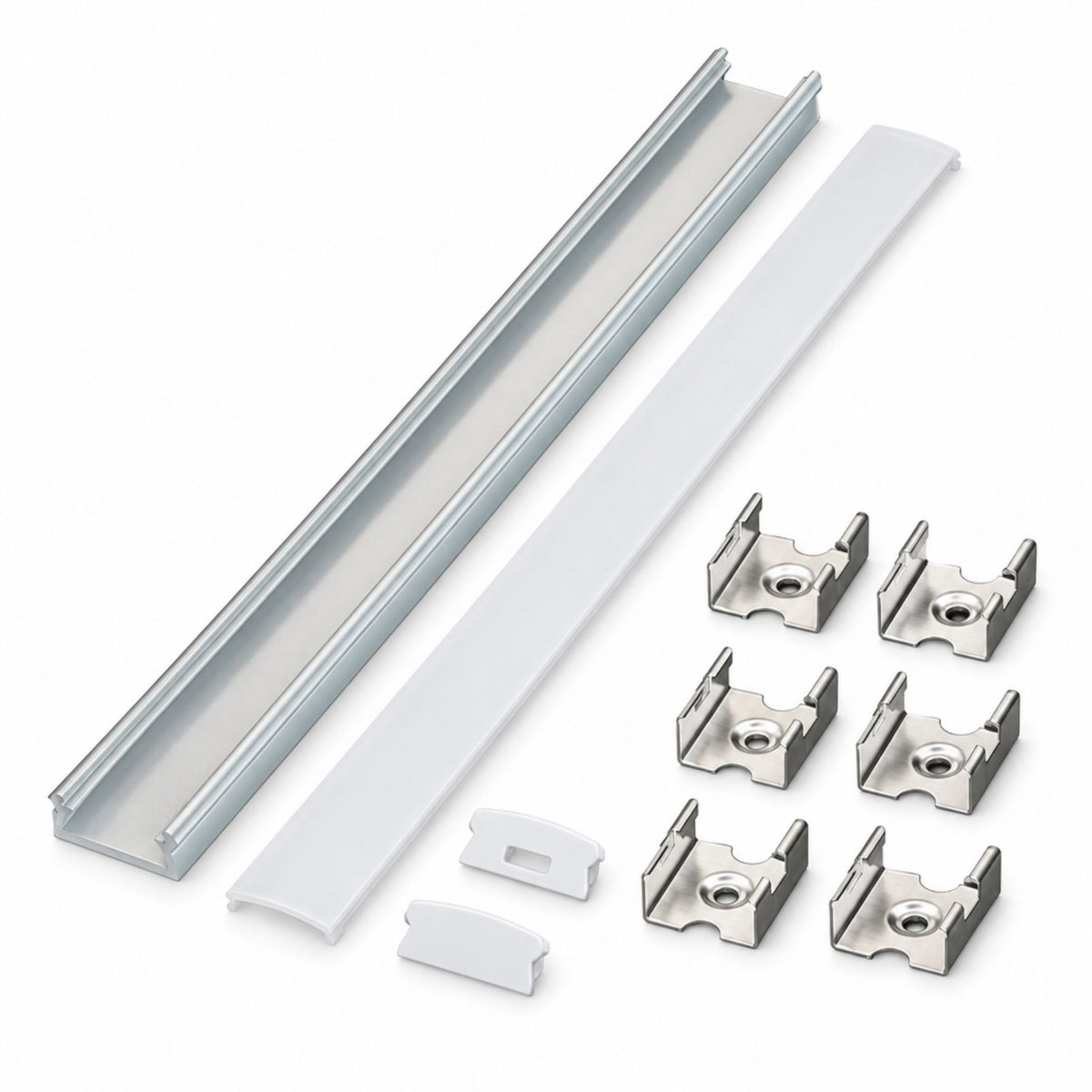

- Included mounting accessories: One end cap with a hole, one without a hole, and six mounting clips accompany the channel and lens.

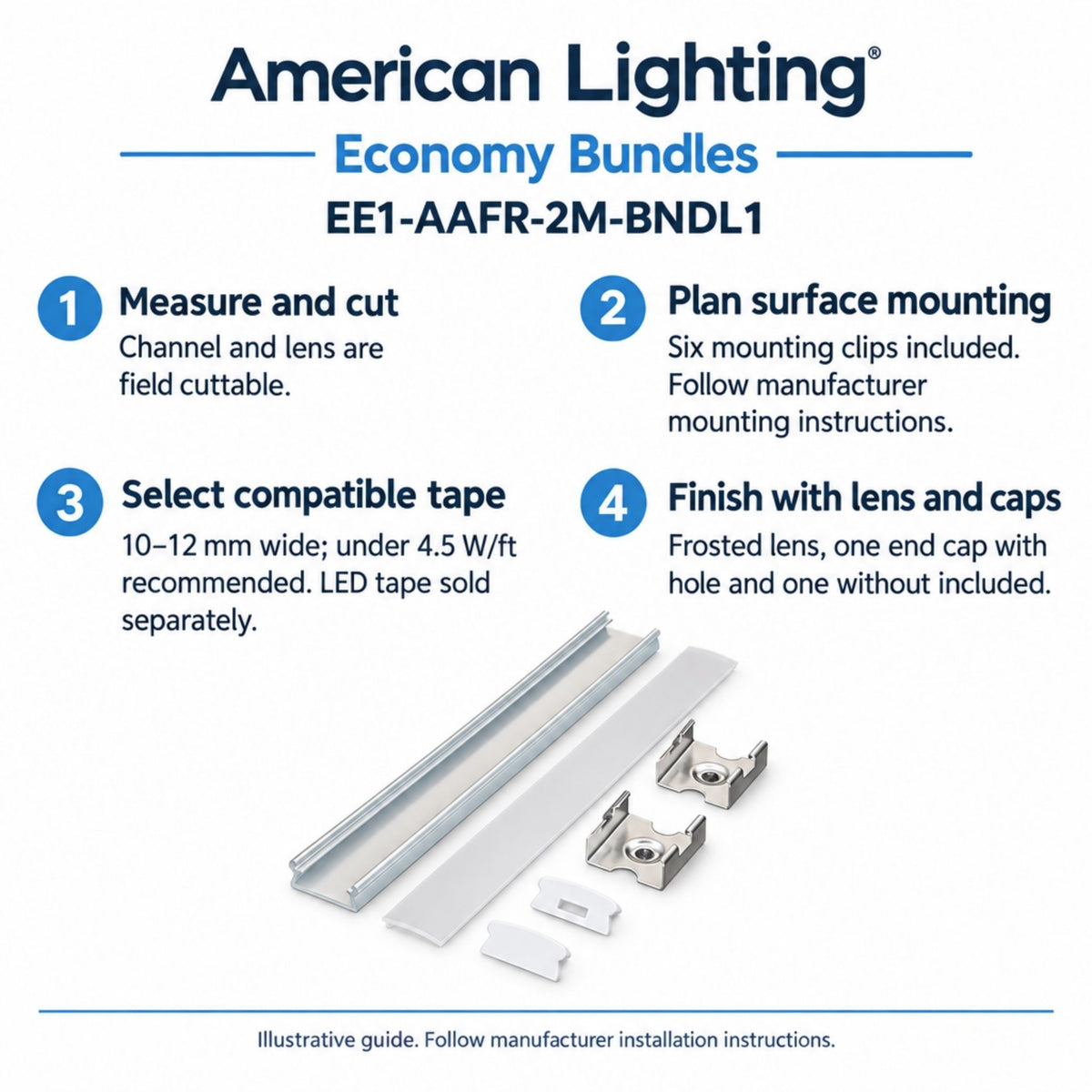

- Field-cuttable assembly: Channel and lens can be cut to suit the installation; compatible with 10–12mm tape light rated below 4.5W/ft.
We process payments securely and do not store credit card information.
Description
Description
The American Lighting EE1-AAFR-2M-BNDL1 Economy Bundle provides a low-profile, surface-mount channel assembly for tape light installations. Its lightweight anodized aluminum channel helps dissipate heat, while the frosted diffusion lens helps minimize visible diode imaging.

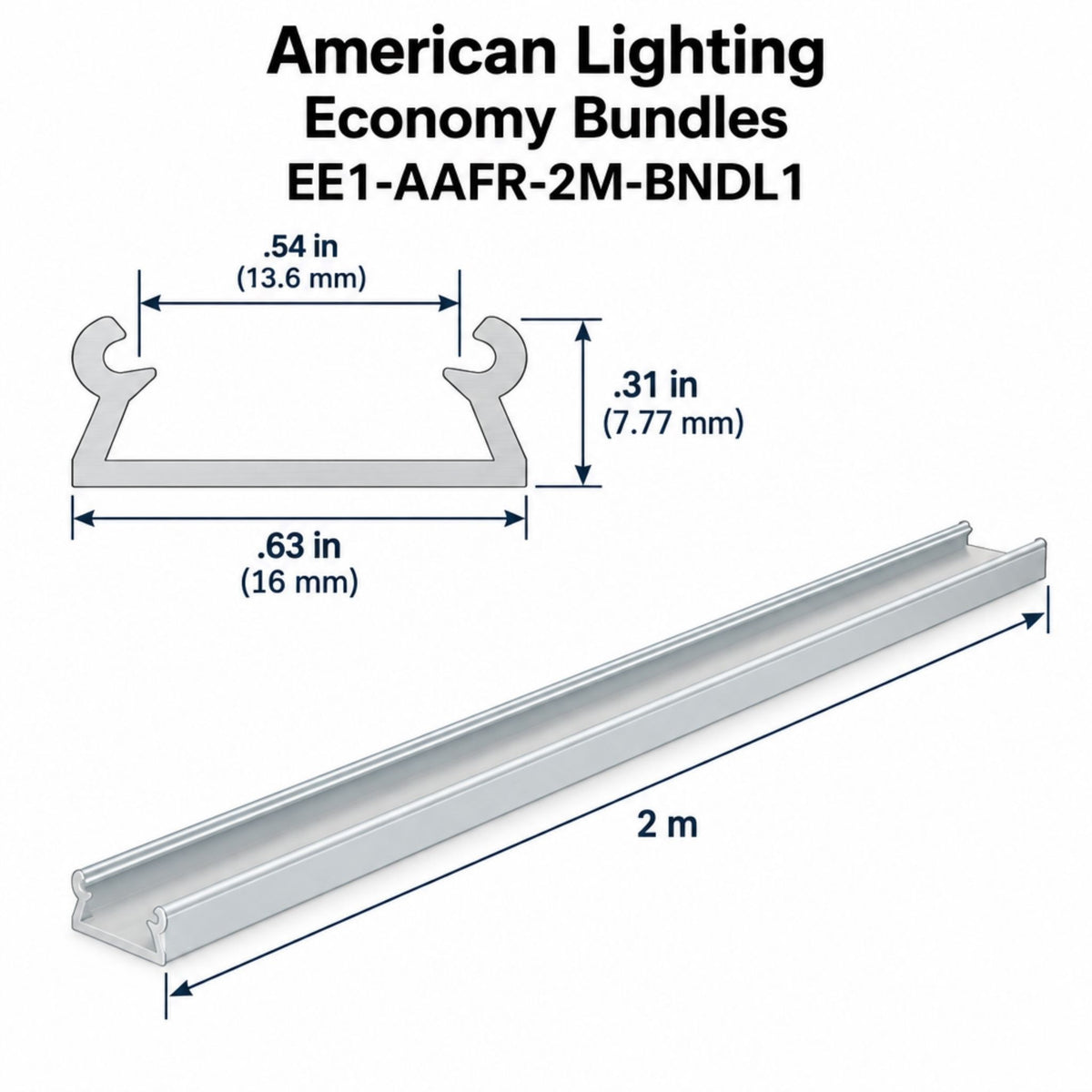

This single-unit bundle includes one 2M Economy Channel, one 2M High Grade Diffusion Lens, one end cap with a hole, one end cap without a hole, and six mounting clips. The channel measures 16mm wide by 7.77mm high, with a 13.6mm inner width. The channel and lens are field cuttable.
Compatible with 10–12mm-wide tape light, including 10mm static white, 10mm tunable CCT, and 12mm RGBW tape. Recommended for tape light rated below 4.5W/ft (15W/m). The frosted lens is UV and flame resistant. Tape light is not included in the listed bundle contents.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What are the channel dimensions?
What are the channel dimensions?
What is included in the single-unit bundle?
What is included in the single-unit bundle?
Which tape light is compatible?
Which tape light is compatible?
Can the channel and lens be cut?
Can the channel and lens be cut?
Is this bundle rated for wet locations?
Is this bundle rated for wet locations?
