American Lighting DEC-DMX-SPI Decoder for Pixel Tape & Neon, 5-24V DC, 510 RGB / 512 RGBW Channels
Available in stock (401)
About this item
About this item
- Pixel Addressing & Sequencing: Provides SPI signal output for pixel tape and pixel neon — pair with DMX512 controllers or software to create chasing, color fading, and dynamic lighting effects.
- Up to 1020 Pixel LEDs: Addresses up to 510 RGB channels or 512 RGBW channels, supporting 38 DMX protocols across a wide range of compatible pixel ICs.
- Built-In OLED Display: On-device OLED display and function keys allow real-time configuration of DMX address, chip type, RGB sequence, and pixel multiple — no computer required for basic setup.
- 16 Built-In Effect Modes: Features built-in sequencing, chasing, and color changing settings with 16 selectable effects and 16 speed levels for standalone operation.
- Wide Voltage & IC Compatibility: Operates on 5-24V DC constant voltage and supports both two-cable (DATA + CLK) and single-cable (DATA only) pixel IC wiring methods.
We process payments securely and do not store credit card information.
Description
Description

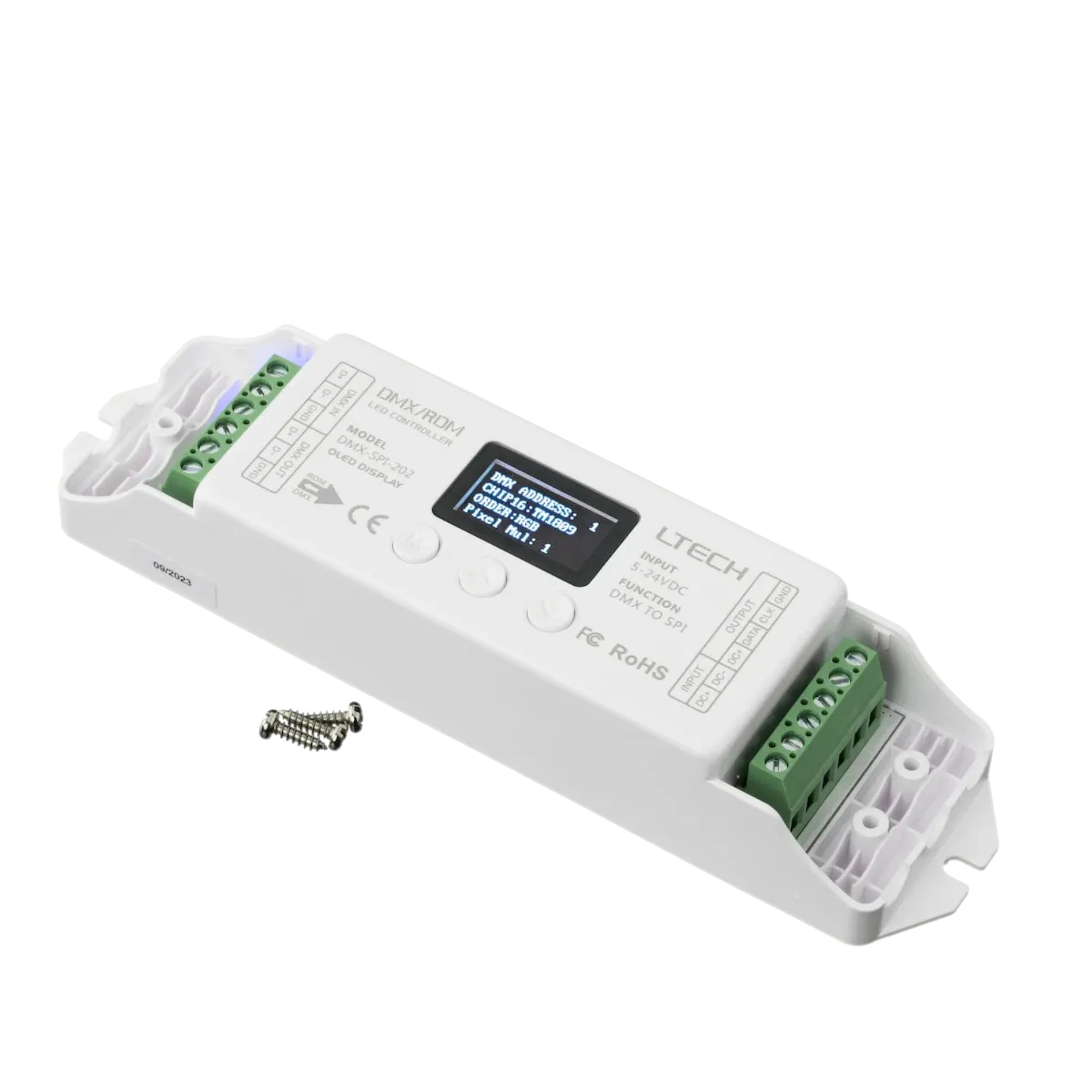

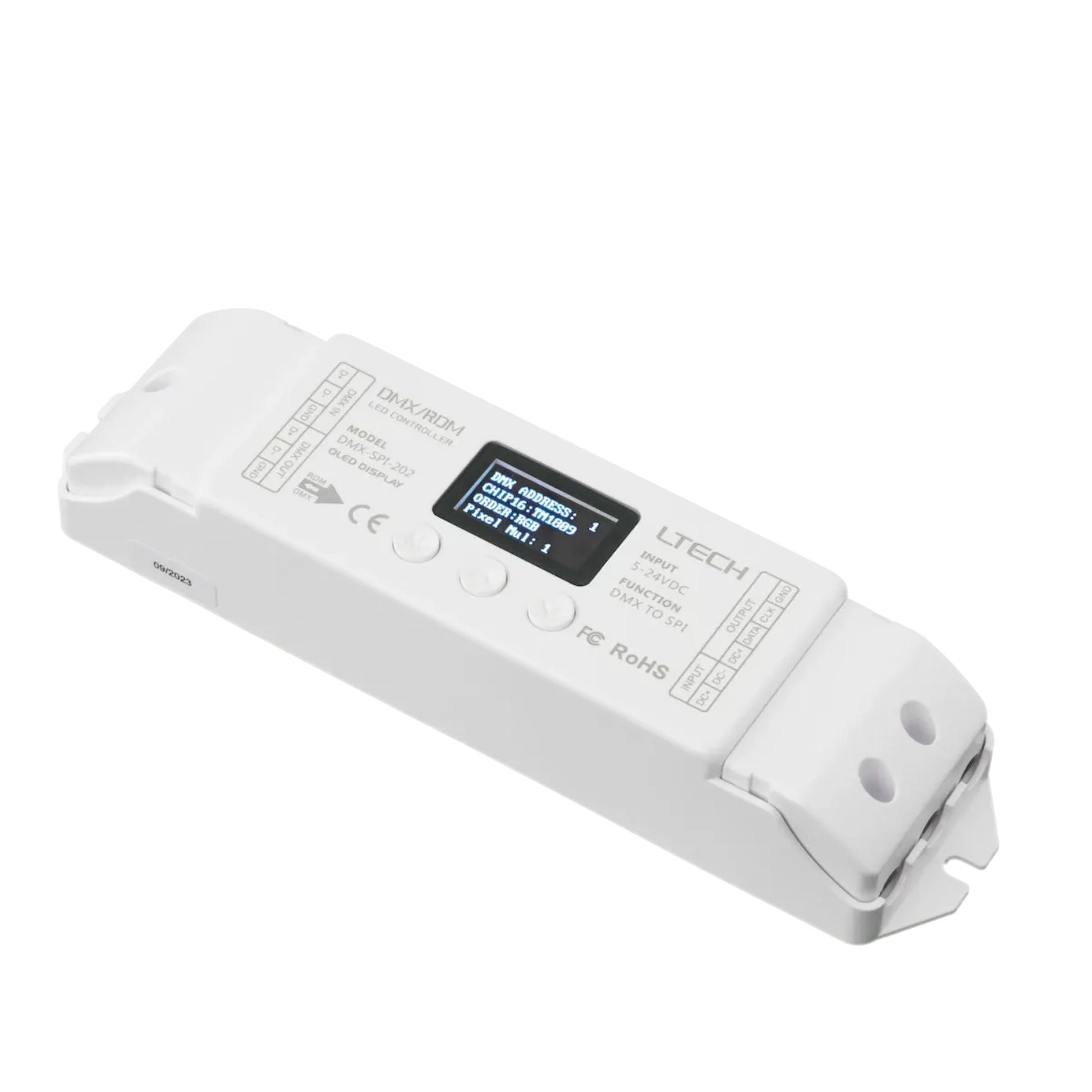

American Lighting DEC-DMX-SPI Decoder — Pixel Addressing & Sequencing for Pixel Tape and Neon
The American Lighting DEC-DMX-SPI Decoder allows for pixel addressing or sequencing of pixel tape light. Pair with DMX512 controllers or compatible DMX software programs to create dynamic and unique chasing or color fading effects. Features a built-in OLED display and function keys for on-device configuration — no computer required for basic setup.
Key Features
- SPI Signal Output: Provides SPI signal output for pixel tape and pixel neon addressing and sequencing.
- DMX512 Input: Pairs with DMX512 controllers — supports up to 38 protocols.
- Pixel Capacity: Capable of addressing up to 1020 pixel LEDs (510 RGB channels / 512 RGBW channels).
- Built-In Sequencing: Features built-in sequencing, chasing, and color changing settings with 16 selectable effects.
- OLED Display: On-board OLED display for real-time configuration of DMX address, chip type, RGB sequence, and pixel multiple.
- Self-Testing Interface: Built-in self-testing mode with 16 effects and 16 speed levels for 3CH (RGB) and 4CH (RGBW) configurations.
- PC Compatible: Compatible with PC interface DMX consoles and software.
- Wide Voltage Range: Requires 5-24V DC constant voltage power input, 0.2A maximum input current.
- RDM Support: Features DMX/RDM signal input and output connections.
- IP Rating: IP20 — suitable for dry indoor applications.
- Operating Temperature: -30°C (-22°F) to 55°C (131°F).
Compatible ICs
The DEC-DMX-SPI supports a wide range of pixel ICs across two wiring methods:
- Two-Cable (DATA + CLK): APA102, D705, GS8206, LPD1101, LPD6803, LPD8803, LPD8806, P9813, UCS6909, UCS6912, WS2801, WS2803.
- Single-Cable (DATA only): APA104, KL592D, SK6812, SM16703, TLS3001, TLS3002, TM1803, TM1804, TM1809, TM1812, TM1814, TM1914, TM1914A, UCS1903, UCS1909, UCS1912, UCS2903, UCS2904B, UCS2909, UCS2912, UCS8904A, WS2811, WS2812.
Built-In Effect Modes (16 Total)
- Red Jumping, Green Jumping, Blue Jumping, White Smooth
- 7 Colors Jumping, 7 Colors Smooth, White Meteor, 7 Colors Meteor
- 7 Colors Flow, 7 Colors Float, Red/White Float, Green/White Float
- Blue/White Float, Yellow/White Float, Purple/White Float, Cyan/White Float

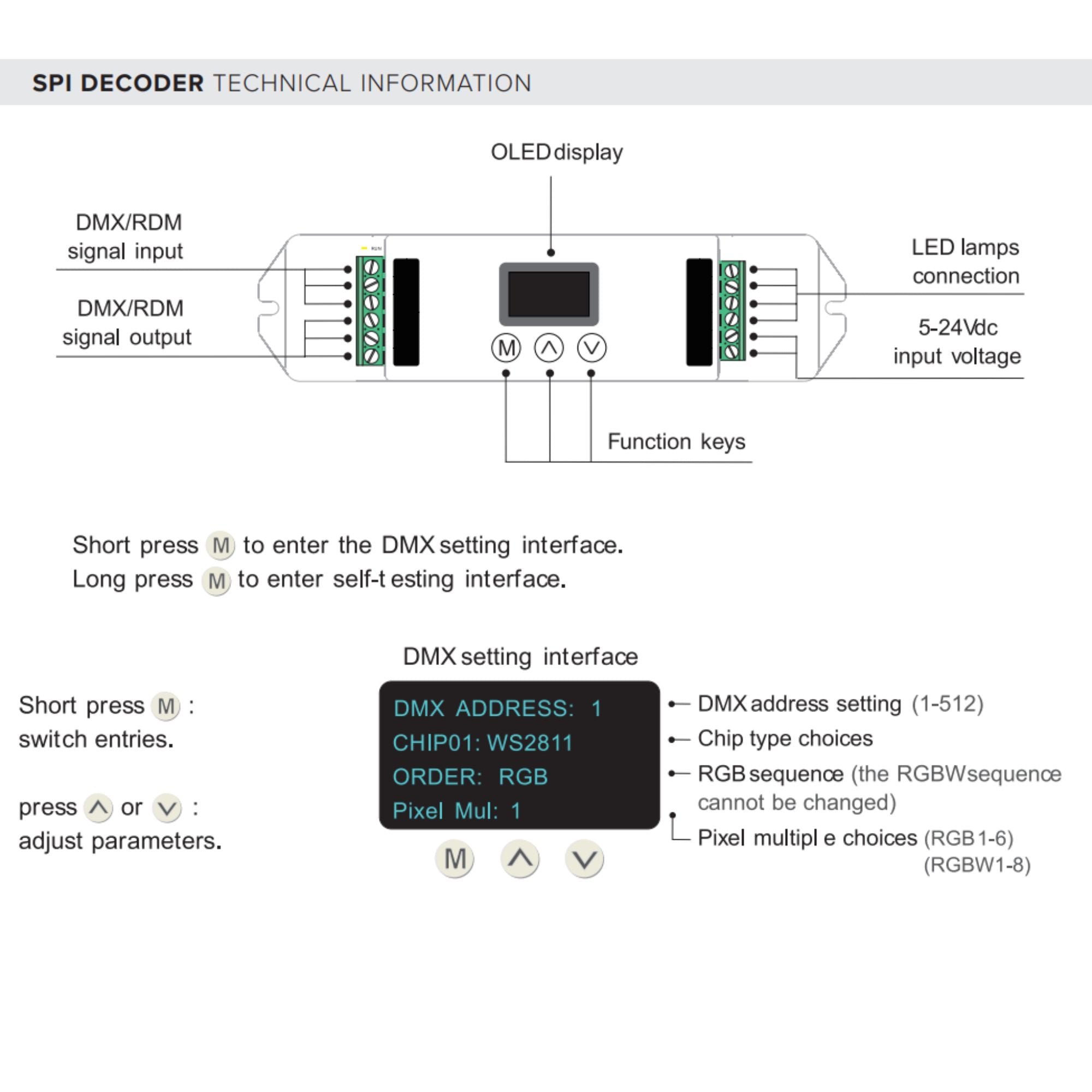

DMX Setting Interface
Short press M to enter the DMX setting interface; long press M to enter the self-testing interface. Use the ▲ and ▼ keys to adjust parameters. Configurable settings include:
- DMX Address: 1–512
- Chip Type: Selectable from supported IC list
- RGB Sequence: Adjustable (RGBW sequence cannot be changed)
- Pixel Multiple: RGB 1–6 / RGBW 1–8
Connections
- DMX/RDM signal input and output
- LED lamps connection output
- 5-24V DC input voltage
Specifications
Specifications

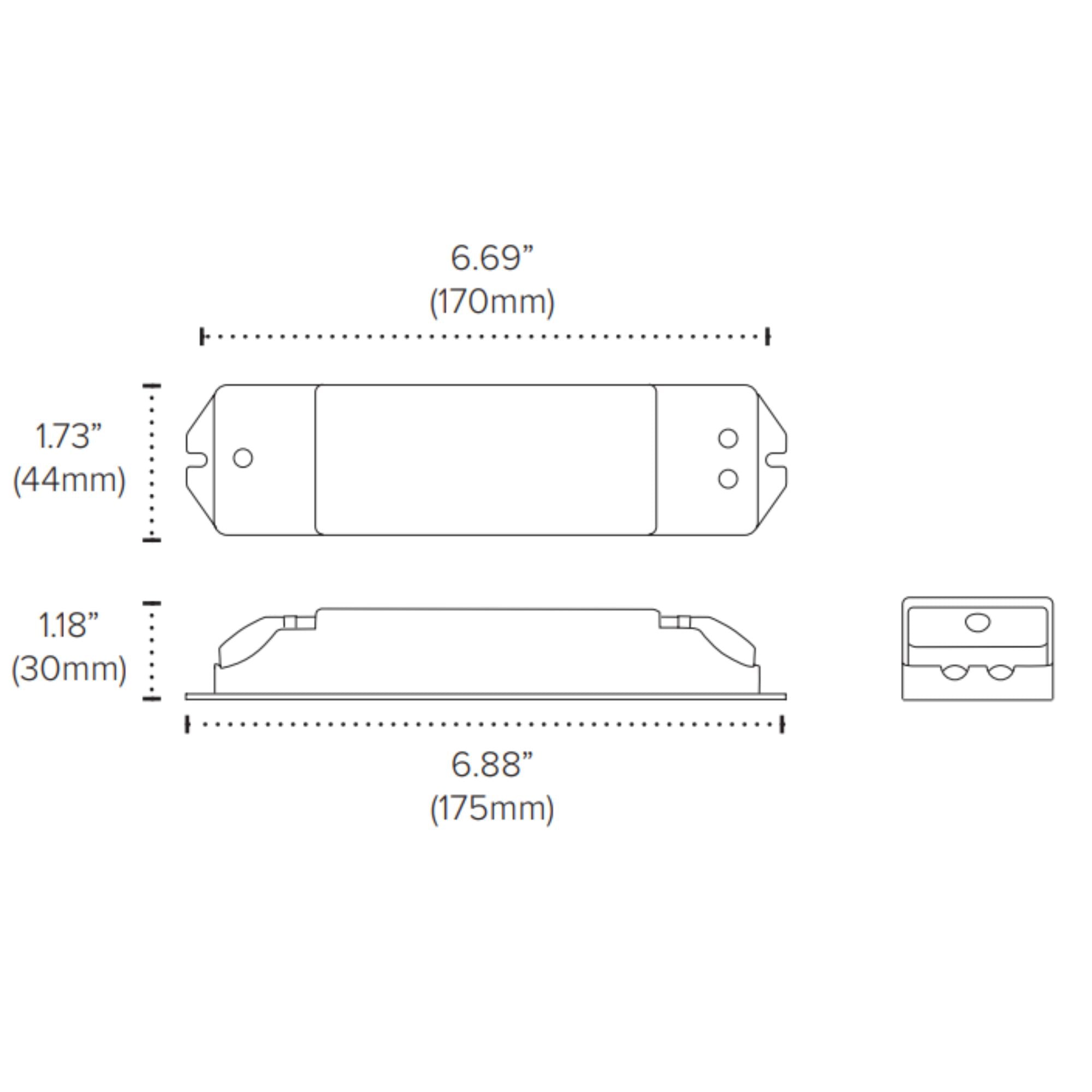

Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum number of pixel LEDs the DEC-DMX-SPI can address?
What is the maximum number of pixel LEDs the DEC-DMX-SPI can address?
What DMX protocols does the DEC-DMX-SPI support?
What DMX protocols does the DEC-DMX-SPI support?
The decoder pairs with DMX512 controllers and supports up to 38 protocols, compatible with a wide range of pixel ICs across both two-cable (DATA + CLK) and single-cable (DATA only) wiring methods.
What types of pixel tape and neon is the DEC-DMX-SPI compatible with?
What types of pixel tape and neon is the DEC-DMX-SPI compatible with?
The DEC-DMX-SPI is compatible with pixel tape light and pixel neon that use SPI-controlled ICs. It supports both two-cable (DATA + CLK) and single-cable (DATA only) pixel products, covering a wide range of ICs including WS2811, WS2812, SK6812, APA102, LPD8806, and more.
What power supply does the DEC-DMX-SPI require?
What power supply does the DEC-DMX-SPI require?
The DEC-DMX-SPI requires a 5-24V DC constant voltage power input with a maximum input current of 0.2A. A compatible constant voltage power supply is required and sold separately.
Can the DEC-DMX-SPI operate standalone without a DMX controller?
Can the DEC-DMX-SPI operate standalone without a DMX controller?
Yes. The decoder features 16 built-in effect modes (including jumping, smooth, meteor, flow, and float effects) with 16 speed levels that can be accessed via the self-testing interface — no DMX controller required for standalone operation.
