American Lighting CTRLW-DMXB-RGBTW-4Z RGBTW 4-Zone DMX Wall Controller, Touch-Sensitive, 12-24V DC
Available in stock (349)
About this item
About this item
- RGBTW 4-Zone Touch Control: Touch-sensitive in-wall controller with a color circle, slider bar, and color tone shortcuts for RGB, tunable white, and full RGBTW tape light — across 4 independent zones.
- 16 Savable Scenes: 4 savable scenes per zone (A, B, C, D) across 4 zones — 16 total scenes — for instant recall of preferred lighting settings.
- 16 Auto-Play Dynamic Effects: Built-in auto-play function with 16 selectable effects including color jumping, strobe, gradient, and full color gradient, with adjustable speed.
- Standard Single-Gang Fit: Fits standard single-gang junction boxes for easy retrofit or new construction installation — no special hardware required.
- DMX 512 Output: Outputs DMX 512 signal for use with compatible American Lighting DMX decoders. UL Listed, FCC & RoHS Compliant. Not compatible with pixel products.
We process payments securely and do not store credit card information.
Description
Description

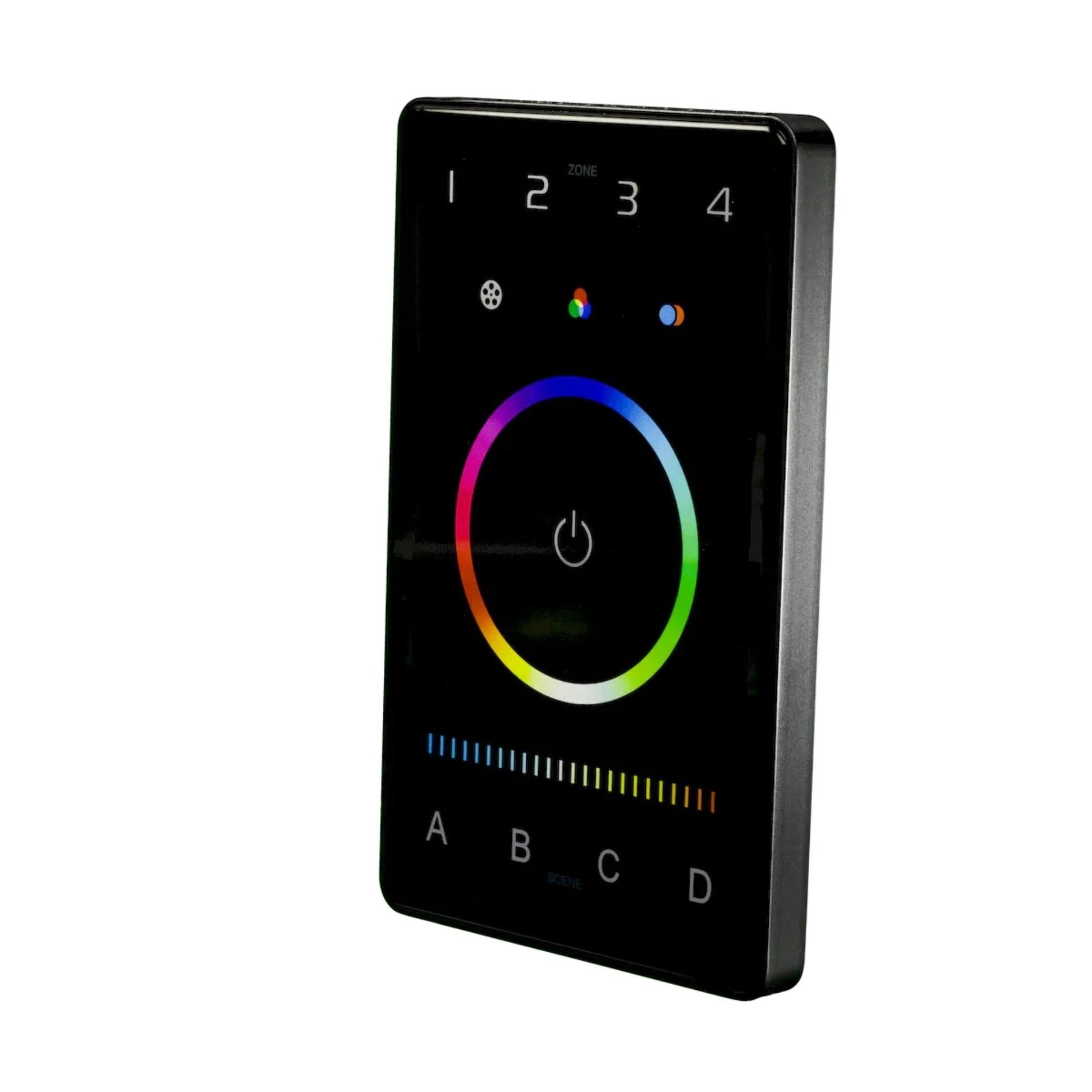

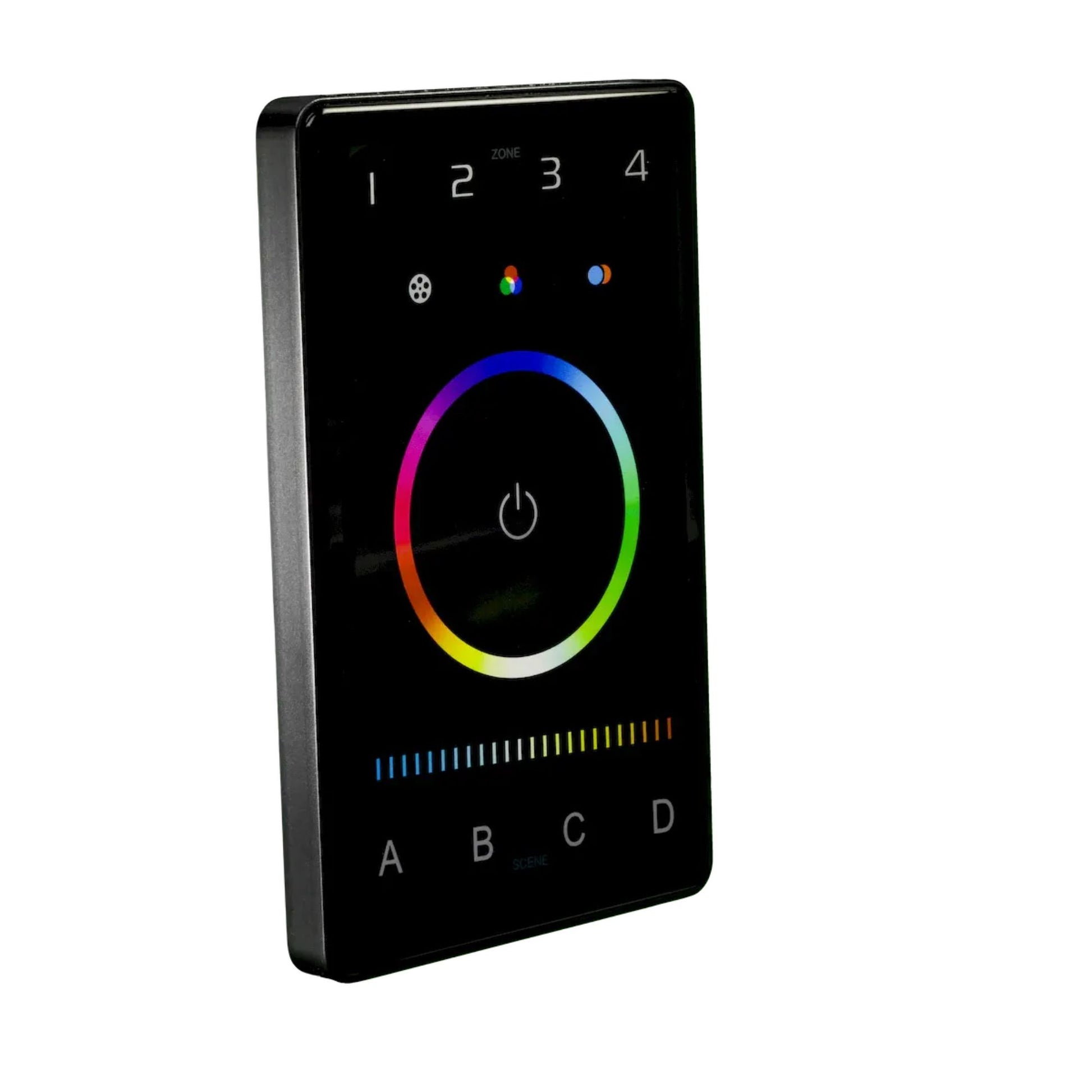

American Lighting RGBTW 4-Zone DMX Wall Controller — Touch-Sensitive, In-Wall, 12-24V DC
The American Lighting CTRLW-DMXB-RGBTW-4Z is a sleek, touch-sensitive in-wall DMX wall controller designed for RGBTW tape light applications. Mastermind a dynamic lighting scheme with RGB + Tunable CCT shortcuts for color mixing and brightness control across four independent zones. Features a 16-mode auto-play function, touch color circle, touch slider bar, and four savable scenes per zone. Fits standard single-gang junction boxes for convenient installation and full functionality.
Key Features
- Touch-Sensitive Operation: Touch color circle with color tone shortcuts, touch slider bar for full-range dimming (1–100%), and zone keys for independent zone control.
- 4-Zone Control: Controls up to 4 independent zones, each with 4 savable scenes (A, B, C, D) — 16 total savable scenes.
- 16 Auto-Play Modes: Built-in auto-play function with 16 selectable dynamic effects including color jumping, color strobe, gradient effects, and full color gradient.
- RGBTW Compatibility: Supports RGB, RGBW, RGBTW, and TW (tunable white) tape light configurations via a 5-channel DMX decoder (required, sold separately).
- Color Tone Shortcuts: Quick-access buttons for Cool White, Neutral White, and Warm White tunable white presets.
- DMX 512 Signal Output: Outputs DMX 512 signal for use with compatible DMX decoders.
- Standard Single-Gang Fit: Fits standard single-gang junction boxes for easy retrofit or new construction installation.
- Not Compatible with Pixel Products: Designed for non-pixel (static zone) tape light applications only.
- Input Voltage: 12-24V DC, 200mA power consumption.
- Operating Temperature: -20°C to 55°C (-4°F to 131°F).
- Certifications: UL Listed, FCC Compliant, RoHS Compliant. Dry location rated.

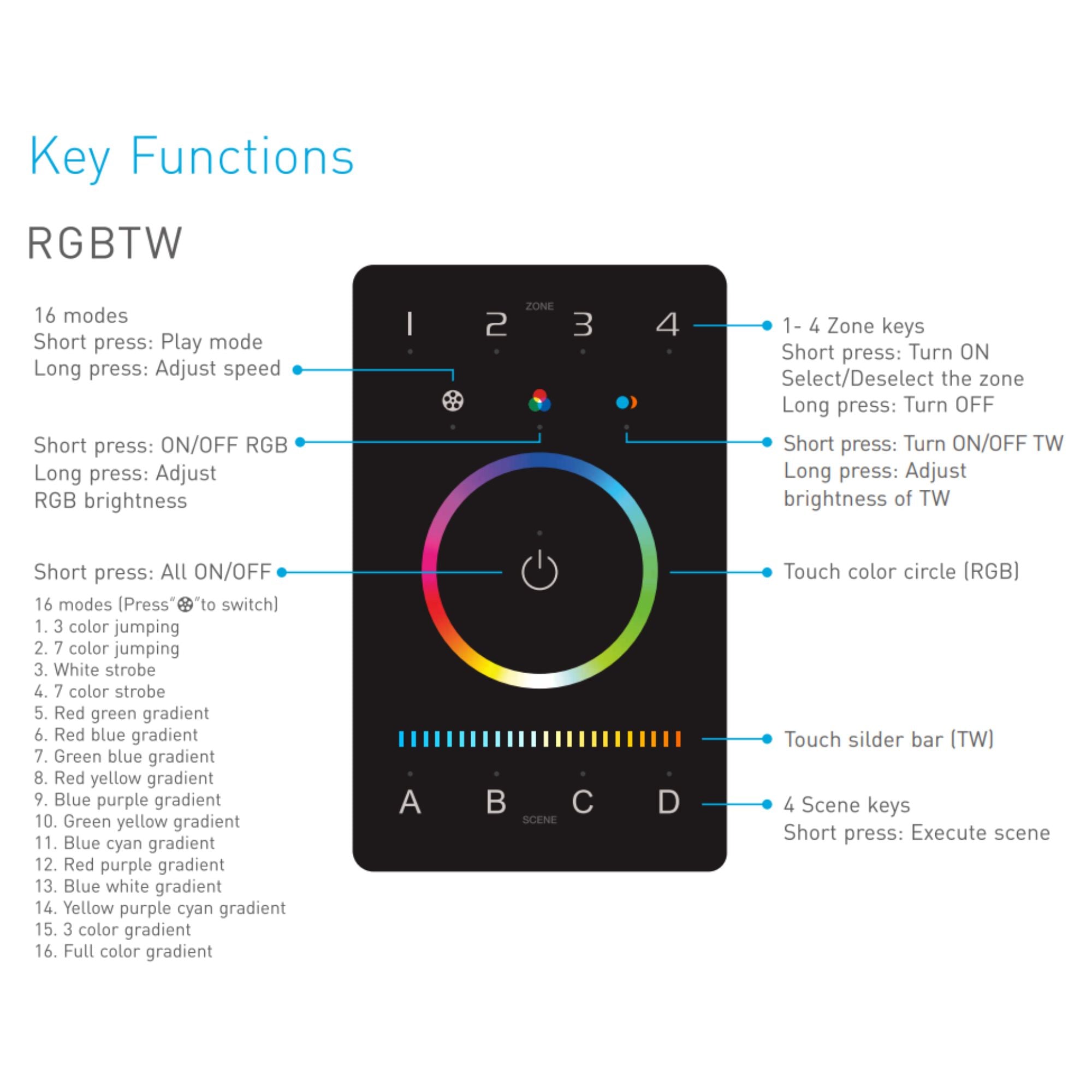

Key Functions — RGBTW Mode
- Zone Keys (1–4): Short press to turn ON / select or deselect the zone; long press to turn OFF.
- RGB Button: Short press to turn ON/OFF RGB; long press to adjust RGB brightness.
- TW Button: Short press to turn ON/OFF TW; long press to adjust brightness of TW.
- Power Button: Short press for All ON/OFF.
- Auto-Play Button: Short press to play mode; long press to adjust speed. 16 modes (press to switch): 3 color jumping, 7 color jumping, white strobe, 7 color strobe, red green gradient, red blue gradient, green blue gradient, red yellow gradient, green yellow gradient, blue cyan gradient, blue purple gradient, red purple gradient, blue white gradient, yellow purple cyan gradient, 3 color gradient, full color gradient.
- Touch Color Circle (RGB): Touch to select RGB color.
- Touch Slider Bar (TW): Touch to adjust tunable white color temperature.
- Scene Keys (A, B, C, D): Short press to execute scene.
Recommended Decoders
- REC-DMX-5A-4Z — DMX 4-Channel Decoder, 12-24V DC, 4×5A, 4×(60–180W), dry location
- REC-DMX-RJ45-5CH — DMX 5-Channel Decoder, 12-24V DC, 5×8A, 5×(96–192W), dry location
- REC-DMX-RJ45-3X4CH — DMX 3-Port 4-Channel Decoder, 12-24V DC, 12×(3×4)×5A, 12×(60–120W), dry location
- DEC-DMX-IP67 — DMX 4-Channel IP67 Decoder, 12-24V DC, 4×5A, 4×(60–180W), wet location

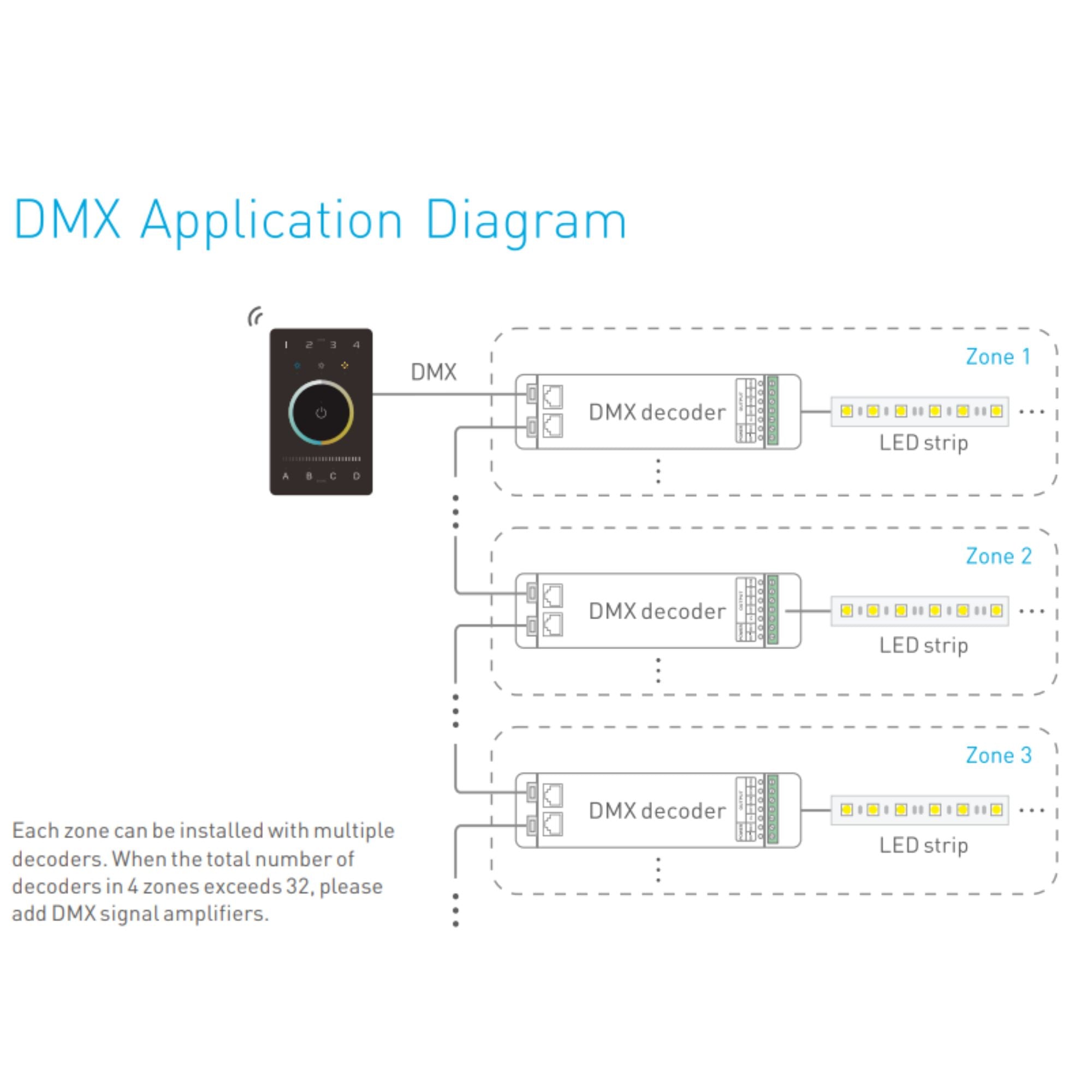

Control can be powered from the secondary side of a 12-24V DC driver being used to power the decoder.
Recommended Transceiver
- CTRL-WDMX-TRNRCV — Wireless DMX Transceiver, 5-24V DC, FCC Compliant, RoHS Compliant, dry location
What's Included
- (1) RGBTW 4-Zone DMX Wall Controller
Requires 12-24V DC power supply and compatible DMX decoder — sold separately.
Specifications
Specifications

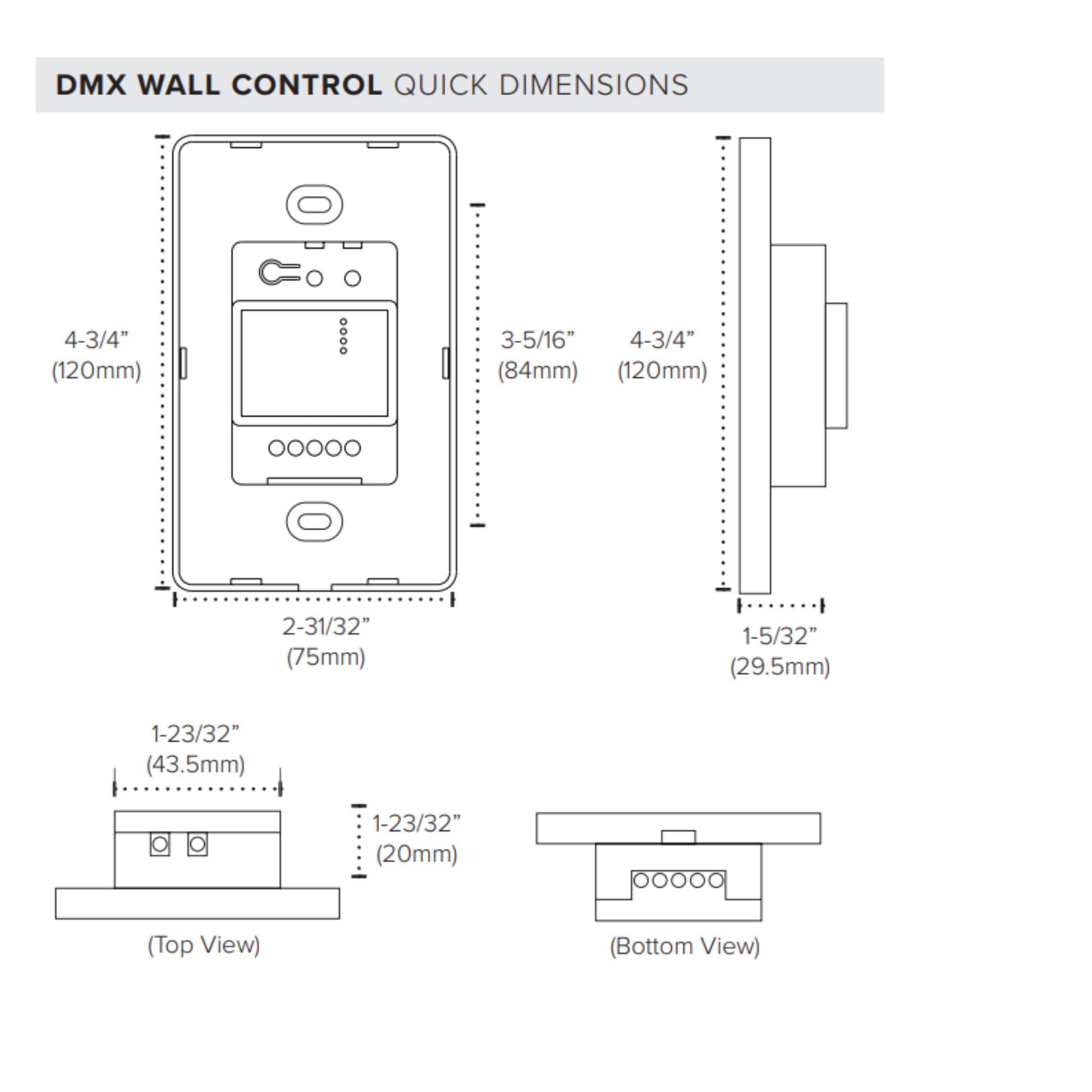

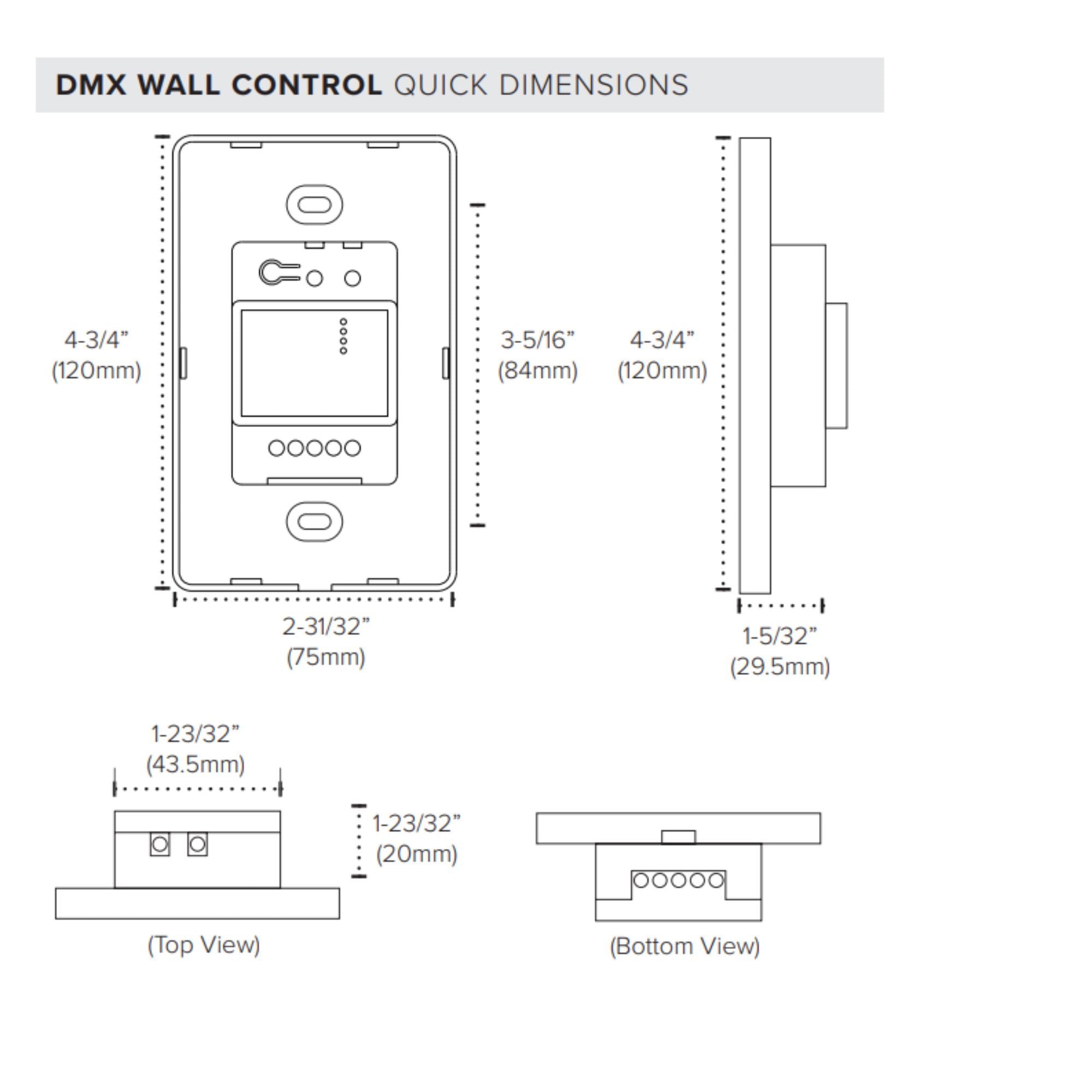

Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What tape light types is the CTRLW-DMXB-RGBTW-4Z compatible with?
What tape light types is the CTRLW-DMXB-RGBTW-4Z compatible with?
The CTRLW-DMXB-RGBTW-4Z is compatible with RGB, RGBW, RGBTW, and tunable white (TW) LED tape light. It is not compatible with pixel products.
Does the CTRLW-DMXB-RGBTW-4Z require a DMX decoder to operate?
Does the CTRLW-DMXB-RGBTW-4Z require a DMX decoder to operate?
Yes. The controller outputs a DMX 512 signal and requires a compatible 5-channel DMX decoder — such as the REC-DMX-RJ45-5CH or REC-DMX-5A-4Z — sold separately. It can be powered from the secondary side of the 12-24V DC driver used to power the decoder.
How many zones and scenes does the CTRLW-DMXB-RGBTW-4Z support?
How many zones and scenes does the CTRLW-DMXB-RGBTW-4Z support?
The controller supports 4 independent zones, each with 4 savable scenes (A, B, C, D), for a total of 16 savable scenes. Each zone can be controlled independently or all zones can be controlled simultaneously.
What are the 16 auto-play modes on the CTRLW-DMXB-RGBTW-4Z?
What are the 16 auto-play modes on the CTRLW-DMXB-RGBTW-4Z?
The 16 built-in auto-play modes include: 3 color jumping, 7 color jumping, white strobe, 7 color strobe, red green gradient, red blue gradient, green blue gradient, red yellow gradient, green yellow gradient, blue cyan gradient, blue purple gradient, red purple gradient, blue white gradient, yellow purple cyan gradient, 3 color gradient, and full color gradient. Speed is adjustable via long press of the auto-play button.
Does the CTRLW-DMXB-RGBTW-4Z fit a standard wall box?
Does the CTRLW-DMXB-RGBTW-4Z fit a standard wall box?
Yes. The controller fits standard single-gang junction boxes for convenient retrofit or new construction installation — no special hardware or oversized wall box required.
