Description

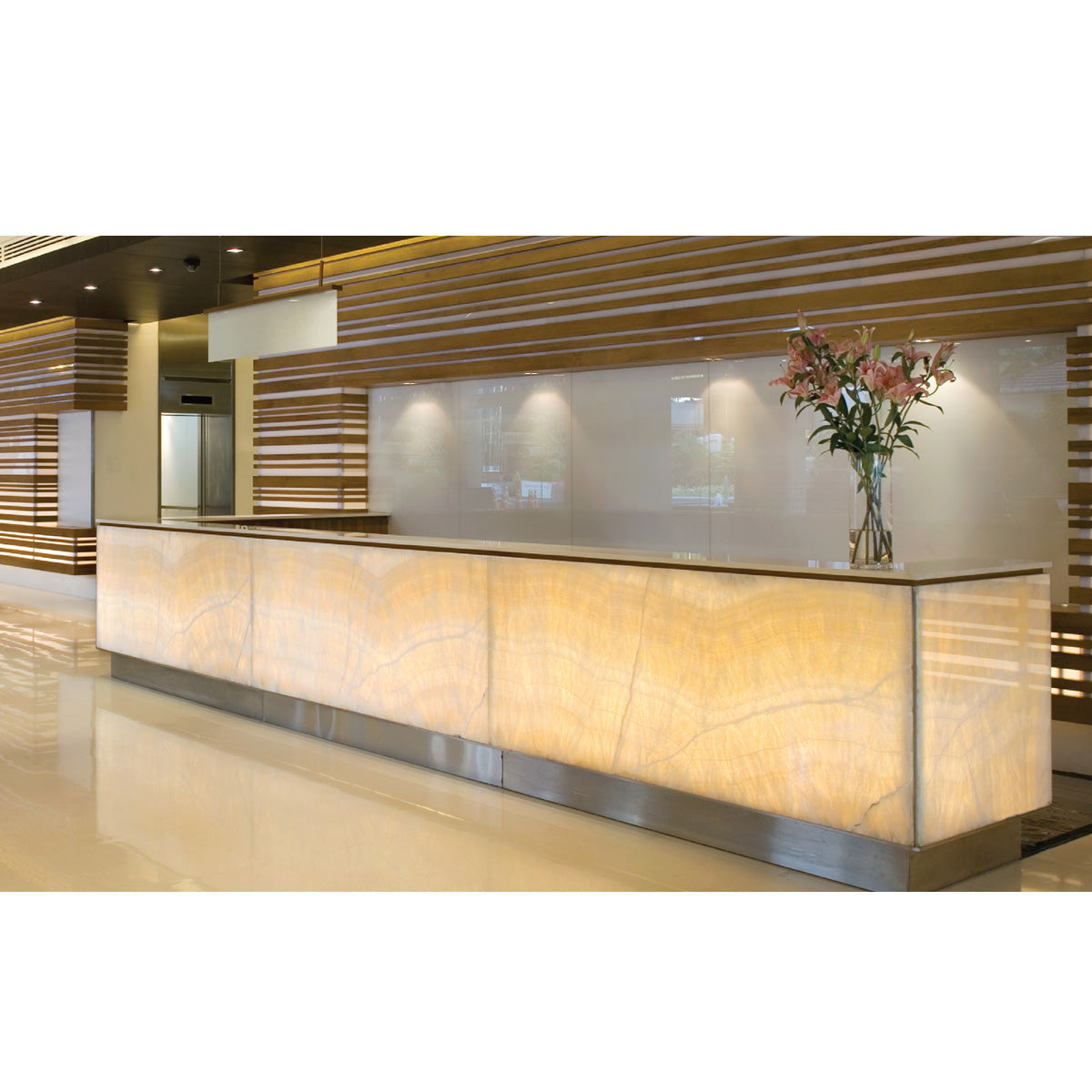

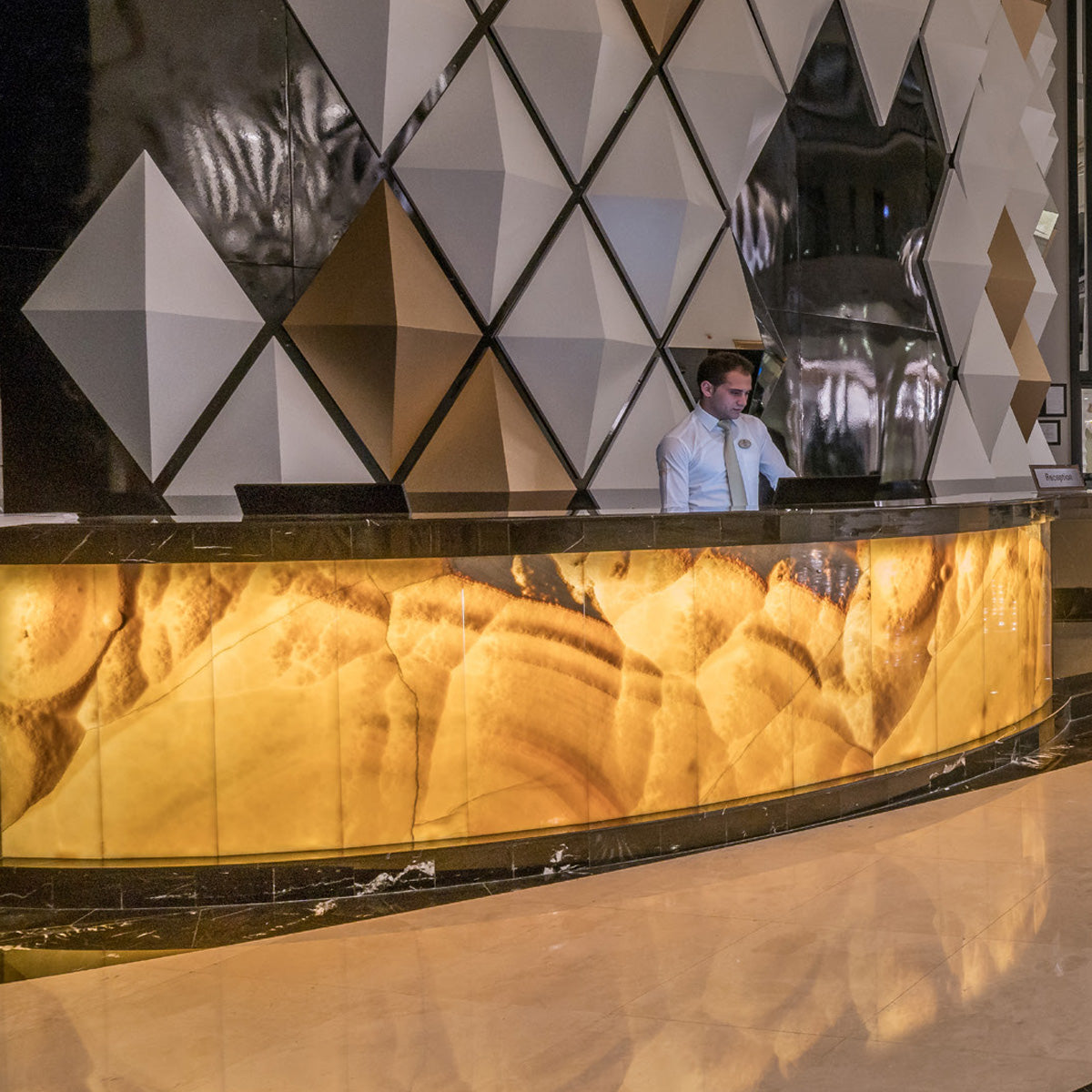

Illuminate your space with the American CNVS-CW-12x24 Flexible Canvas LED Light Sheet. This sleek and versatile lighting solution from American Lighting's Trulux Series is perfect for backlighting semi-transparent countertops and architectural features. With its slim profile and flexible design, it seamlessly integrates into any setting. Despite consuming just 20W per sheet, it emits an impressive 2050 lumens, providing bright and efficient lighting. Plus, it offers dimmable functionality, allowing you to adjust the brightness from 5-100%. Transform your space with the Trulux CNVS-CW-12x24 Canvas LED Tape Light sheet and experience the perfect blend of style and function.

Specifications

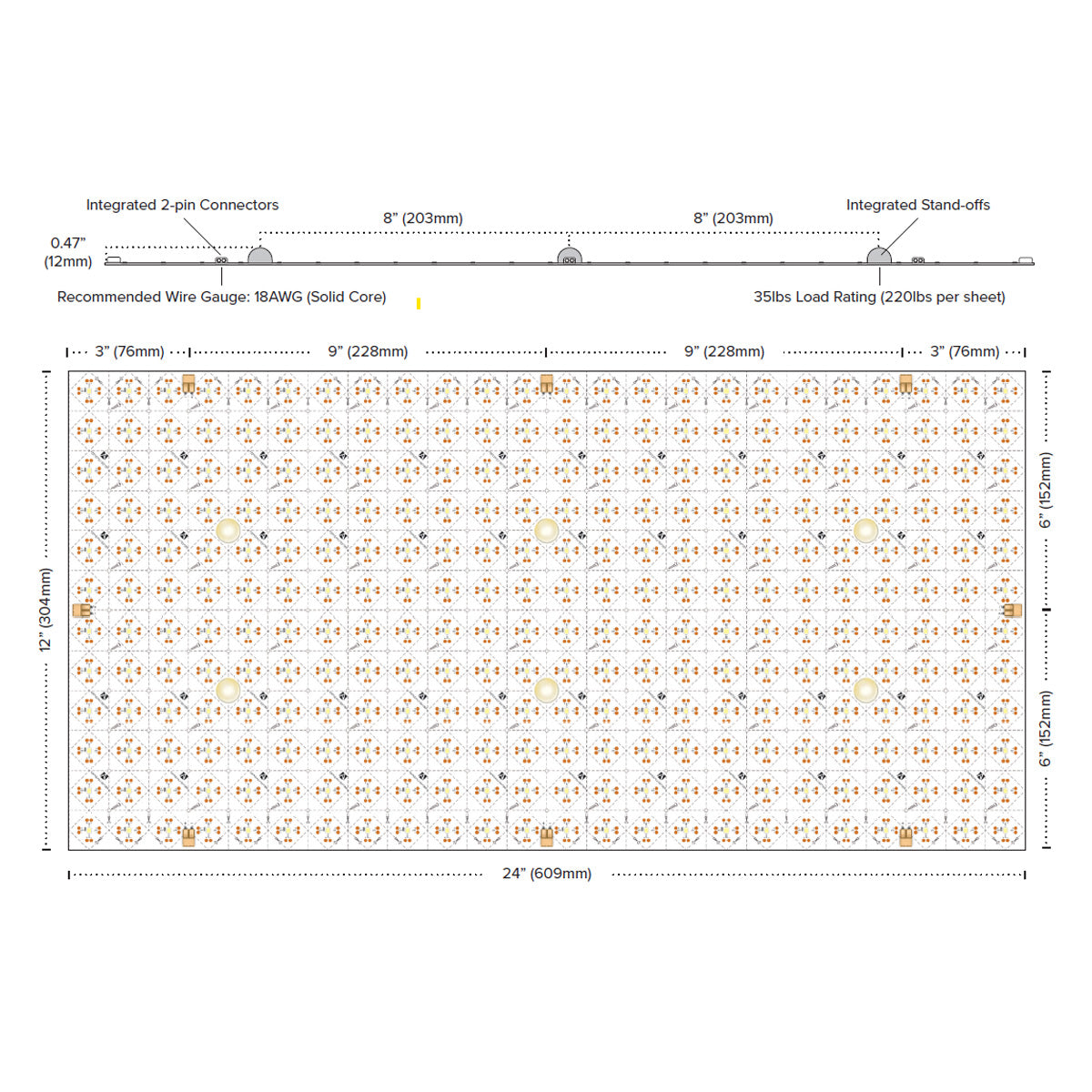

Dimensions

Length/Depth
24 in
Width/Diameter
12 in
Height
0.47 in
Weight
1.9 lb

Characteristics & Features

Lamp Color
5000K
Color Rendering
90 CRI
Delivered Lumens
2050
Beam Angle
120
Dimmable
Yes

Electrical Information

Voltage
24V
Total Wattage
20W

Item Details

MPN
CNVS-CW-12x24
Brand
American Lighting
Family
Trulux
UPC
714176022215

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Dry Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the difference between Lumens and Watts?

Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.

What is Color Rendering Index (CRI) and why does it matter?

CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.

How do I know if my light fixture is dimmable?

For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.

What does "Integrated LED" mean compared to a standard fixture?

An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.

What does the "L70" lifespan rating mean on LED fixtures?

Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.

American Lighting

For over 30 years, American Lighting has been a leading innovator in the industry, dedicated to providing complete and cutting-edge lighting solutions. The brand offers a vast and versatile range of products designed for residential, commercial, and specialty applications. From advanced LED tape light and seamless under-cabinet fixtures to robust outdoor and landscape lighting, American Lighting prides itself on delivering high-quality, reliable, and user-friendly systems that empower users to create stunning visual environments.
