Premium LED Channel Ray Modules for Sign & Display Lighting
American Lighting's Stranded Channel Ray Modules deliver professional-grade illumination for signage, displays, and architectural applications. Engineered with high-quality optics, each module creates broad, uniform lighting without hotspots—perfect for trade shows, retail displays, and temporary installations.
Static White Models - Key Features
- 3M™ Adhesive Backing - Easy, secure installation and removal for temporary applications
- Maximum Flexibility - Up to 20 modules per string, 167-170" total length
- IP66 Rated - Suitable for wet locations and outdoor use
- cURus Recognized - Certified for safety and reliability
- 50,000 Hours Rated Life - Long-lasting performance with minimal maintenance
- Non-Dimmable - Consistent, reliable output
- 24V DC Operation - Standard low voltage power
RGBW Model - Key Features
- 3M™ Adhesive Backing - Easy, secure installation and removal for temporary applications
- Maximum Flexibility - Up to 20 modules per string, 143.5" total length
- IP65 Rated - Suitable for wet locations and outdoor use
- cURus Recognized - Certified for safety and reliability
- 50,000 Hours Rated Life - Long-lasting performance with minimal maintenance
- Non-Dimmable - Consistent, reliable output
- RGBW Color Control - Full spectrum color mixing with dedicated white channel
- 12V DC Operation - Low voltage power for color-changing applications
Available Configurations
Static White Options (24V DC, IP66):

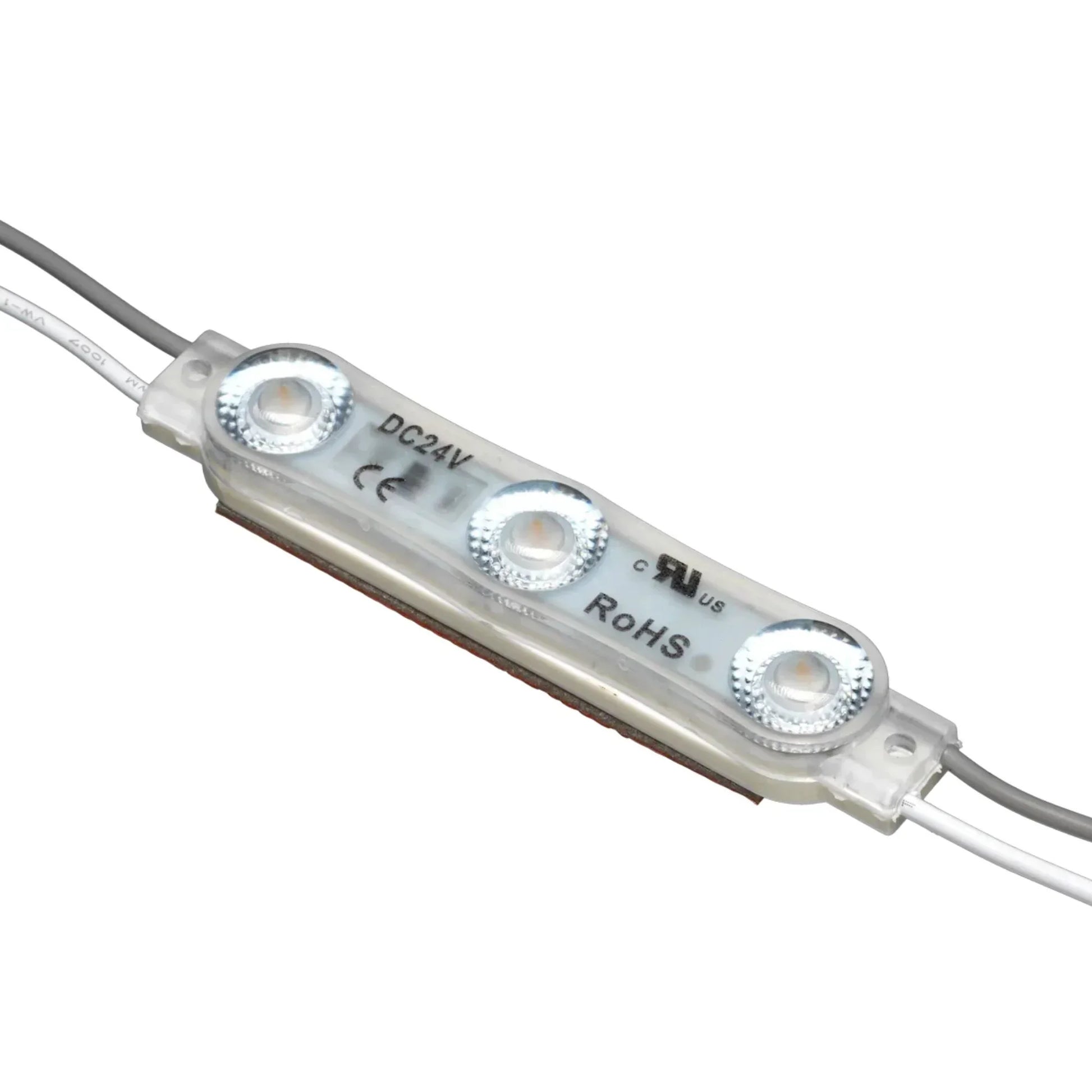

- CR3-24VDC-30-5-20: 3000K Warm White, 3 LEDs, 68Lm per module, 170" string, 5" spacing
- CR3-24VDC-60-5-20: 6000K Cool White, 3 LEDs, 68Lm per module, 170" string, 5" spacing
- CR4-24VDC-30-5-20: 3000K Warm White, 4 LEDs, 220Lm per module, 167" string, 5.8" spacing
- CR4-24VDC-60-5-20: 6000K Cool White, 4 LEDs, 220Lm per module, 167" string, 5.8" spacing
RGBW Color Option (12V DC, IP65):

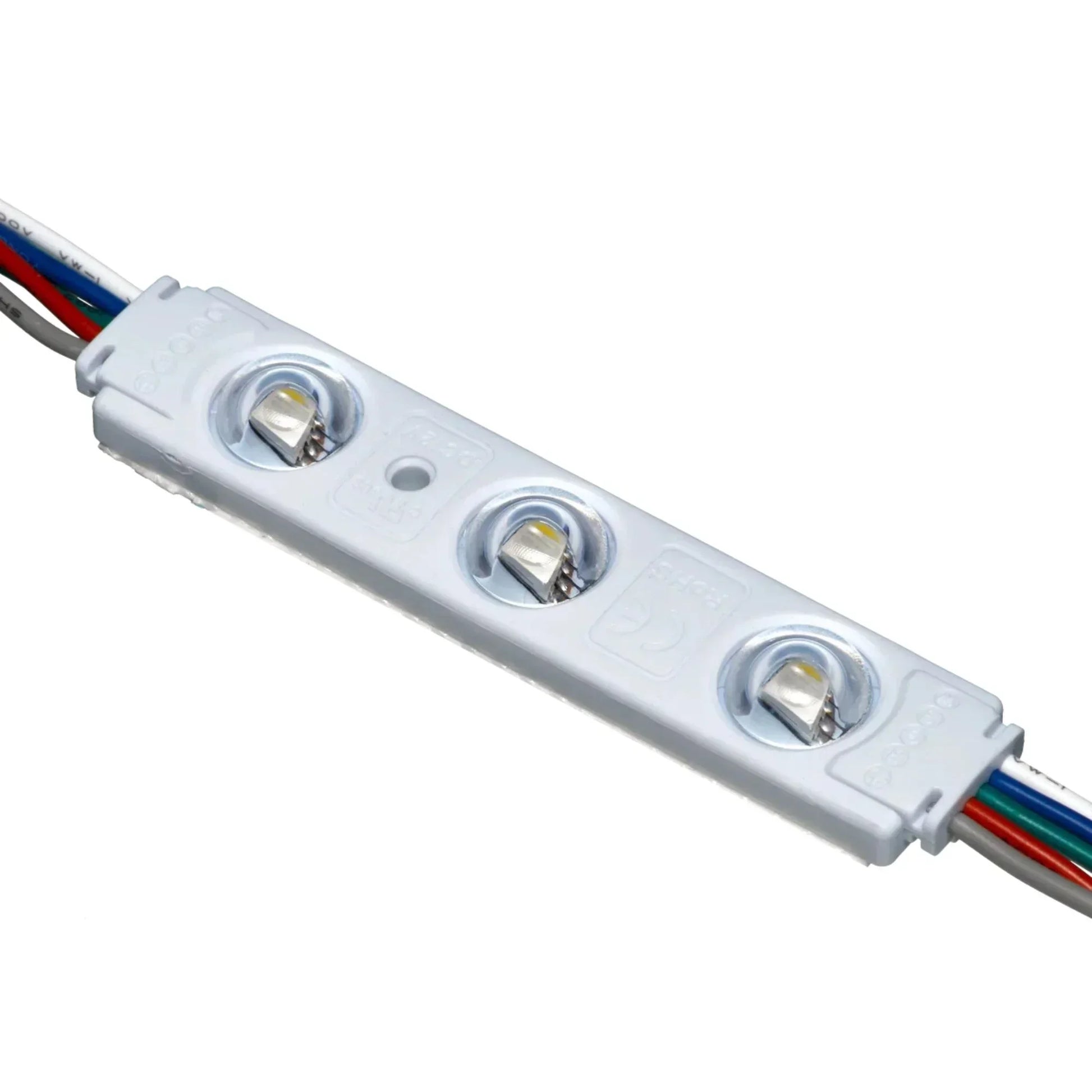

- CR3-12VDC-RGBW-5-20: RGBW Color, 3 LEDs, 100Lm per module, 143.5" string, 3.39" spacing
Technical Specifications Summary
- CRI: 70+
- Beam Angle: 170°
- Operating Temperature: -25°C (13°F) to 60°C (140°F)
- Mounting: Surface mount with 3M™ Tape
- Certifications: cETLus Listed - Wet Locations - IP65/IP66 Housing
- Rated Life: 50,000 Hours
Applications
Ideal for trade show displays, retail signage, channel letters, lightboxes, architectural accent lighting, dynamic color displays, and any application requiring versatile, high-quality LED illumination with easy installation.
