American Lighting AML-DEC-DMX-RJ45-5X5CH 25-Channel DMX Decoder, 5×5CH, RJ45/XLR3/XLR5, 12-24V DC, 4A per Channel
Available in stock (289)
About this item
About this item
- 25 Total PWM Output Channels: 5 ports × 5 channels deliver 25 independent PWM output channels at 4A per channel — supporting up to 48W per channel at 12V DC or 96W per channel at 24V DC.
- Multi-Group DMX RGBW Control: Designed for multi-group DMX RGBW channel control across complex, multi-zone low-voltage lighting installations.

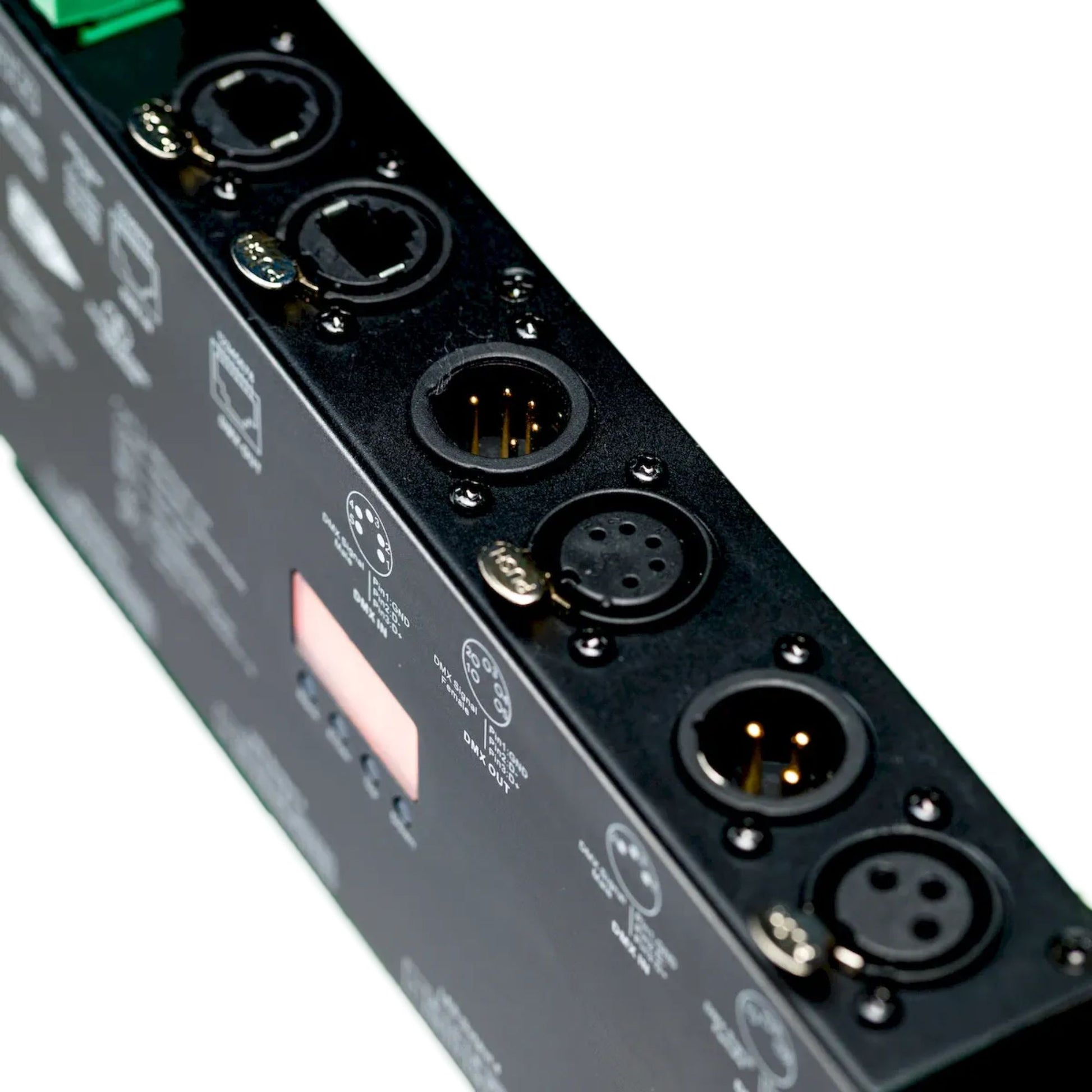

- RJ45, XLR3, or XLR5 Connections: Supports all three DMX signal connection types for seamless integration into new and existing DMX installations.
- 8-Bit or 16-Bit PWM Resolution: Selectable output resolution with 0.1–9.9 gamma correction for smooth, precise, natural-looking dimming performance.
- Metal Housing with Digital Display: Durable metal enclosure with on-board digital display for easy on-device configuration. DMX512/RDM signal support. Dry location rated.
We process payments securely and do not store credit card information.
Description
Description

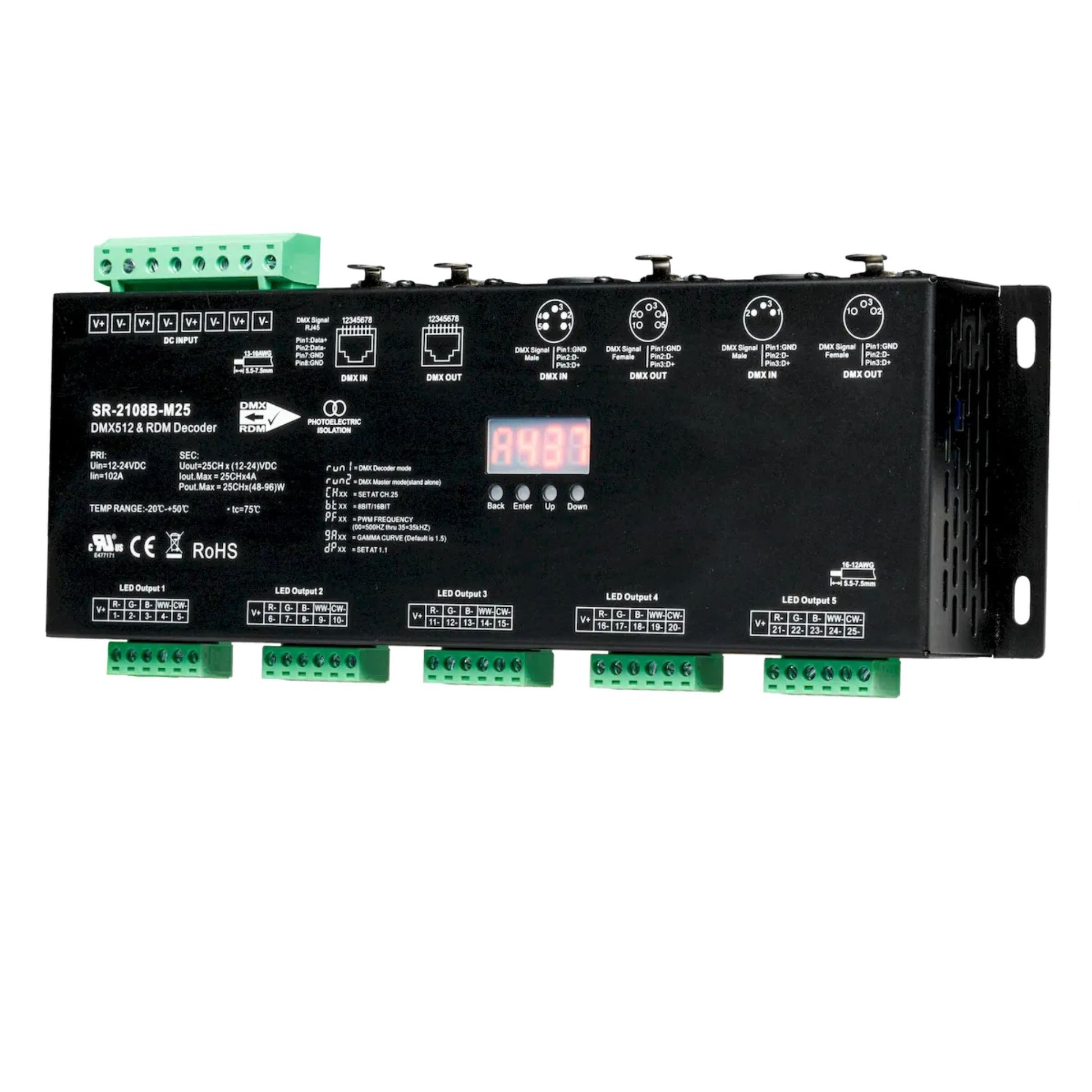

American Lighting 25-Channel DMX Decoder — 5×5 Multi-Group RGBW Control with RJ45, XLR3 & XLR5
The American Lighting AML-DEC-DMX-RJ45-5X5CH is a 5×5 channel DMX signal receiver and decoder delivering 25 total PWM output channels across 5 ports for use with DMX controllers and low-voltage lighting. Designed for multi-group DMX RGBW channel control, it supports RJ45, XLR3, or XLR5 DMX connections and features selectable 8-bit or 16-bit PWM output resolution with 0.1–9.9 gamma correction for smooth, precise dimming. Metal housing with digital display for on-device configuration.
Key Features
- 25 Total PWM Output Channels: 5 ports × 5 channels = 25 total PWM output channels at 4A per channel maximum.
- Multi-Group DMX RGBW Control: Supports multi-group DMX RGBW channel control for complex, multi-zone lighting installations.
- RJ45, XLR3, or XLR5: Flexible DMX input/output connections — compatible with RJ45, XLR3, and XLR5 signal wiring.
- DMX512/RDM Signal: Supports DMX512 and RDM input/output signal protocol.
- 8-Bit or 16-Bit PWM Resolution: Selectable 8-bit or 16-bit PWM output resolution ratio for smooth, precise dimming performance.
- Gamma Correction: 0.1 to 9.9 gamma value output dimming curve range for natural-looking dimming response.
- Max Load: 25 × 48–96W (4A per channel at 12–24V DC).
- Metal Housing with Digital Display: Durable metal enclosure with on-board digital display for easy on-device configuration.
- Input Voltage: 12–24V DC constant voltage.
- Output Current: 25 channels × 4A.
- Dimensions: 11.54"L × 3.62"W × 1.42"H.
- Storage/Ambient Temperature: -4°F to 122°F (-20°C to 50°C).
- Operating Temperature: 167°F (75°C).
- IP Rating: Dry location rated.
- Requires: Master DMX controller and 12-24V DC power supply — both sold separately.
Connections
- RJ45 In/Out
- XLR3 In/Out
- XLR5 In/Out

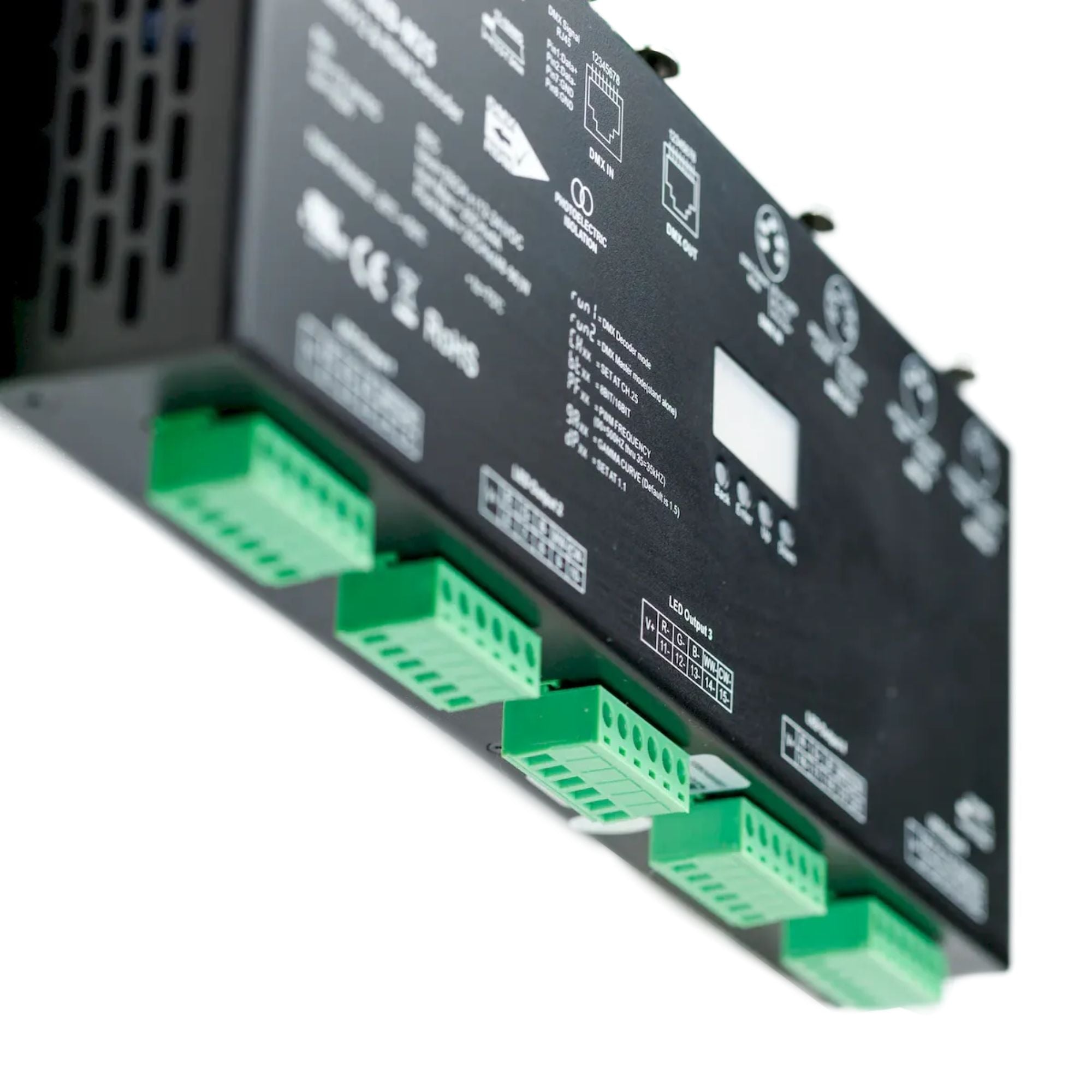

- LED output terminals (5 ports × 5 channels)
- 12–24V DC constant voltage input

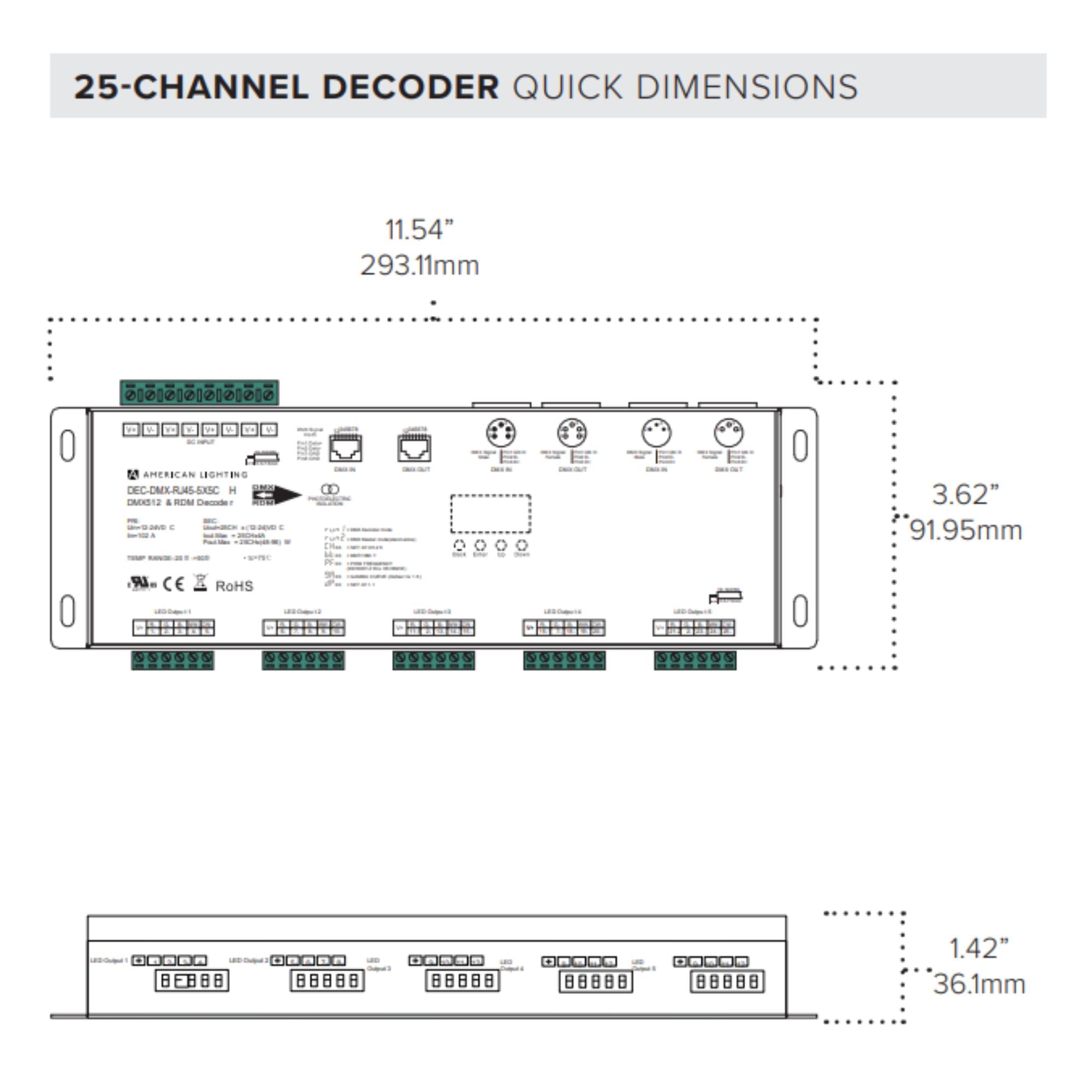

Dimensions
- Length: 11.54" (293mm)
- Width: 3.62" (92mm)
- Height: 1.42" (36mm)

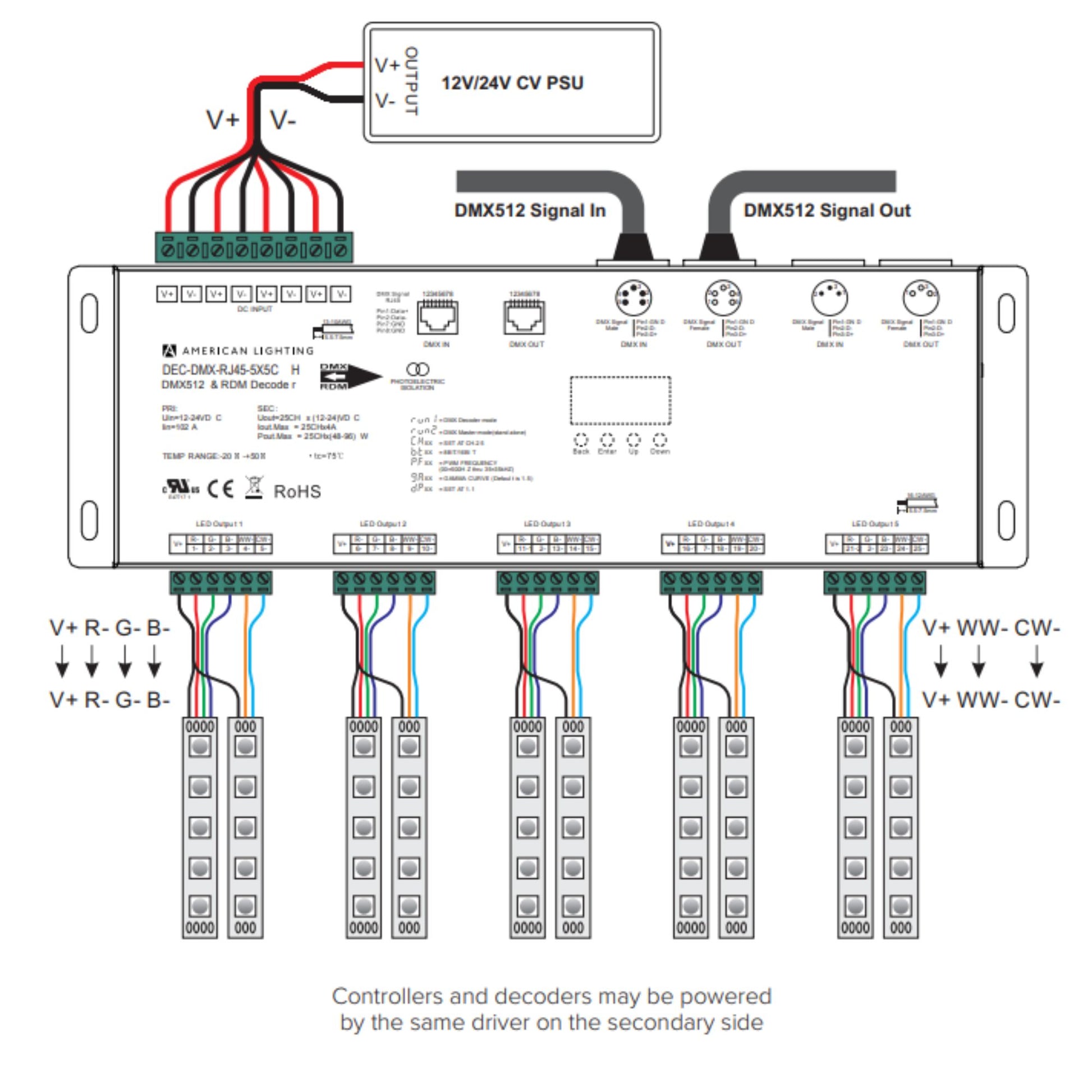

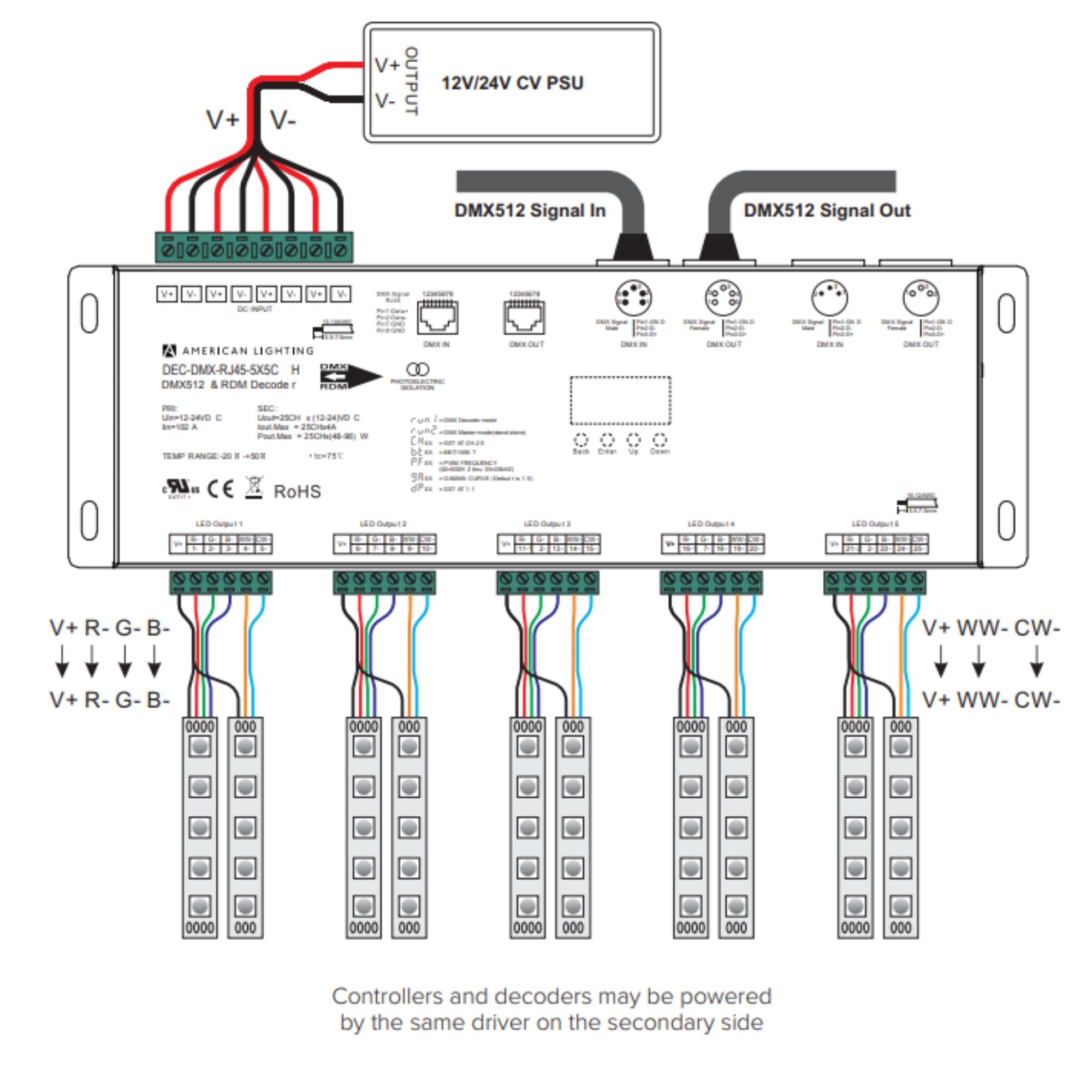

⚠ Important Installation Notes
- Requires a master DMX controller and 12-24V DC constant voltage driver for operation — both sold separately.
- Do not connect more than one power supply to the input side of the decoder.
- For dry location use only.
What's Included
- (1) 25-Channel DMX Decoder
Requires 12-24V DC power supply and DMX controller — sold separately.
Specifications
Specifications
Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How many output channels does the AML-DEC-DMX-RJ45-5X5CH provide?
How many output channels does the AML-DEC-DMX-RJ45-5X5CH provide?
What DMX connection types does the AML-DEC-DMX-RJ45-5X5CH support?
What DMX connection types does the AML-DEC-DMX-RJ45-5X5CH support?
The decoder supports RJ45, XLR3, and XLR5 DMX input and output connections, allowing seamless integration into new and existing DMX installations regardless of the signal wiring type used.
What lighting applications is the AML-DEC-DMX-RJ45-5X5CH designed for?
What lighting applications is the AML-DEC-DMX-RJ45-5X5CH designed for?
The decoder is designed for multi-group DMX RGBW channel control with low-voltage LED tape light and neon. It supports up to 25 channels max and requires a master DMX controller and 12-24V DC constant voltage power supply, both sold separately.
What PWM resolution options does the AML-DEC-DMX-RJ45-5X5CH offer?
What PWM resolution options does the AML-DEC-DMX-RJ45-5X5CH offer?
The decoder offers selectable 8-bit or 16-bit PWM output resolution with a 0.1–9.9 gamma value output dimming curve range for smooth, precise, and natural-looking dimming performance.
Is the AML-DEC-DMX-RJ45-5X5CH suitable for outdoor or wet location use?
Is the AML-DEC-DMX-RJ45-5X5CH suitable for outdoor or wet location use?
No. The AML-DEC-DMX-RJ45-5X5CH is rated for dry location use only, with a storage and ambient temperature range of -4°F to 122°F (-20°C to 50°C) and an operating temperature of 167°F (75°C).
