American Lighting Adaptive Pro 60W LED Driver 24V DC Multi-Protocol Dimming, Wet Rated, 120-277V
Available in stock (4974)
About this item
About this item
- Output Power: Provides a reliable 24V DC output at 60W, ideal for consistent LED lighting performance.
- Dimming Capability: Features multi-protocol dimming including ELV, MLV, TRIAC, 0-10V, and PWM for versatile control.
- Input Voltage: Operates efficiently with a wide input voltage range of 120-277V, suitable for various installations.
- Enclosure Type: Encased in a durable aluminum enclosure with multiple knockouts for easy installation.
- Protection: Equipped with short circuit, over-voltage, and over-temperature protections for enhanced safety.
We process payments securely and do not store credit card information.
Description
Description

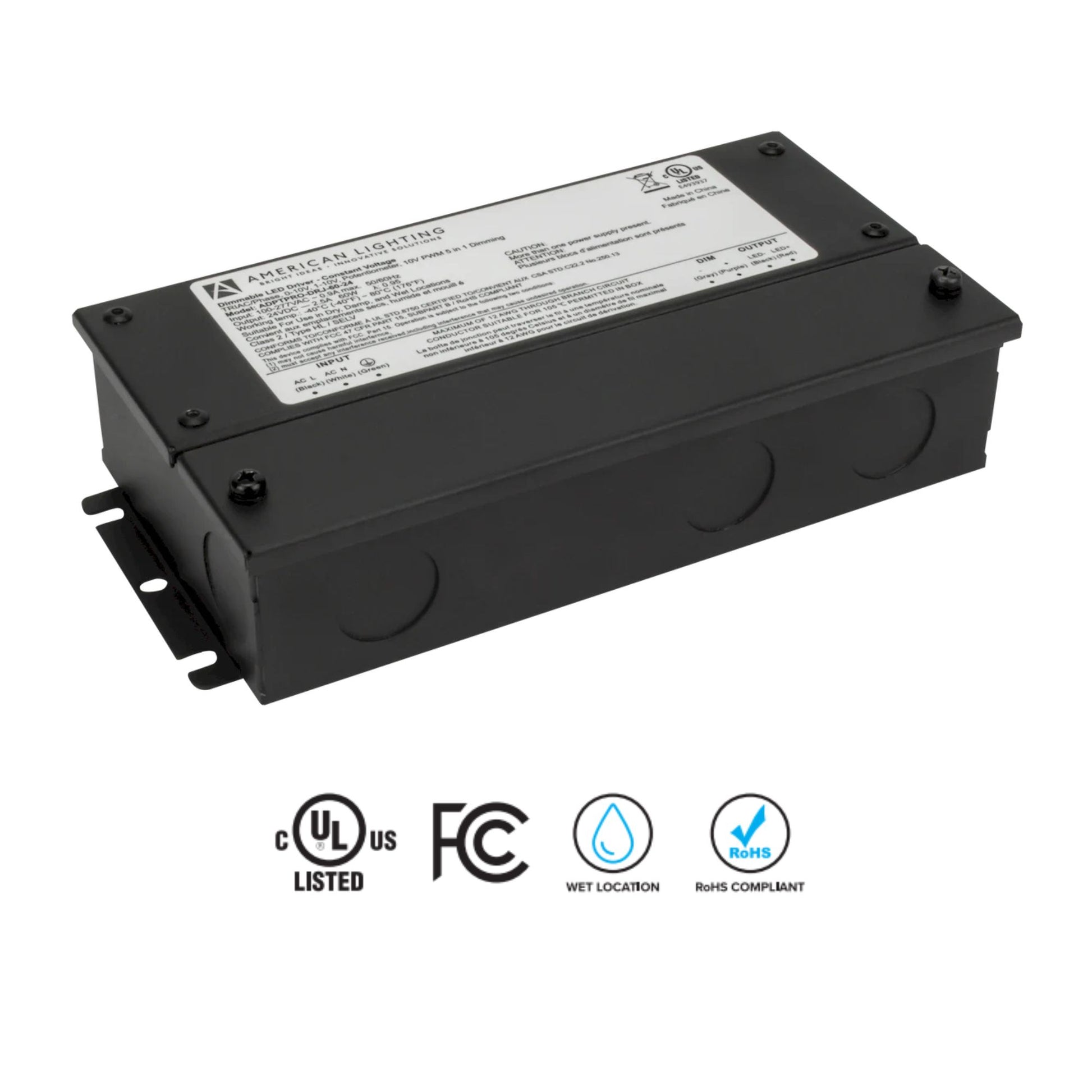

American Lighting Adaptive Pro ADPTPRO-DRJ-60-24 60W LED Driver — 24V DC
The American Lighting Adaptive Pro ADPTPRO-DRJ-60-24 is a robust 60W LED Driver designed for high-performance lighting applications. Delivering a consistent 24V DC output, this driver supports multi-protocol dimming, including ELV, MLV, TRIAC, 0-10V, and PWM, making it highly versatile for various lighting setups. With an input voltage range of 120-277V, it is suitable for both residential and commercial environments. The driver is housed in a low-profile aluminum enclosure with knockouts, ensuring easy installation and integration into your lighting system.
Key Features
- Power Output: Delivers a stable 24V DC output at 60W for reliable LED operation.
- Input Voltage Range: Compatible with 120-277V AC, accommodating diverse electrical systems.
- Dimming Options: Supports ELV, MLV, TRIAC, 0-10V, and PWM dimming for flexible lighting control.
- Minimum Load: Requires a minimum load of 6W for optimal performance.

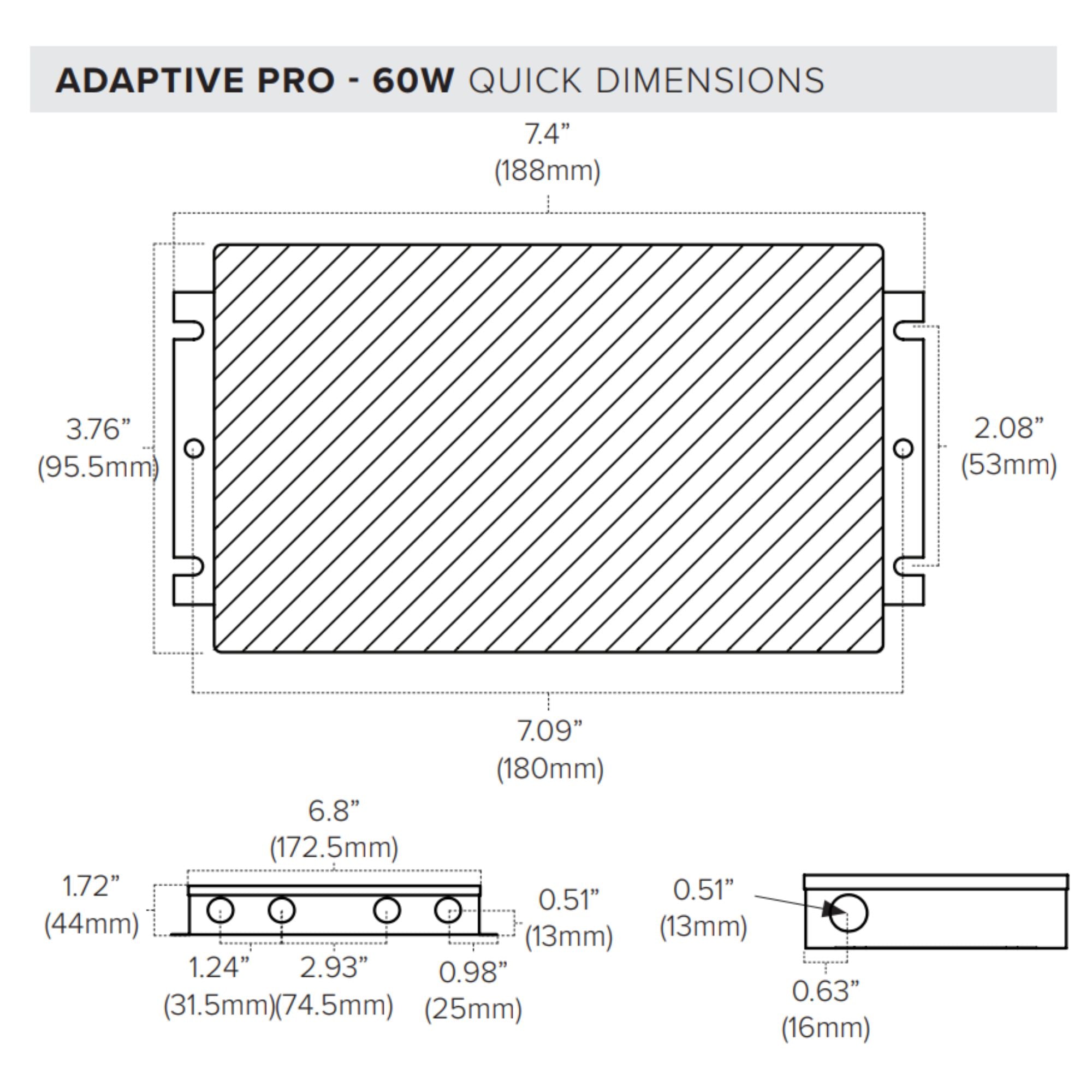

- Dimensions: Measures 6.85 in. L x 2.79 in. W x 1.73 in. H, compact for easy installation.
- Enclosure Type: Features a robust aluminum enclosure with multiple knockouts for versatile wiring.
- IP Rating: Rated for wet locations, suitable for indoor and outdoor use.
- Class 2 Compliance: Meets Class 2 standards for safe operation.
- Certifications: cULus Listed, ensuring compliance with safety standards.
Physical Design & Installation

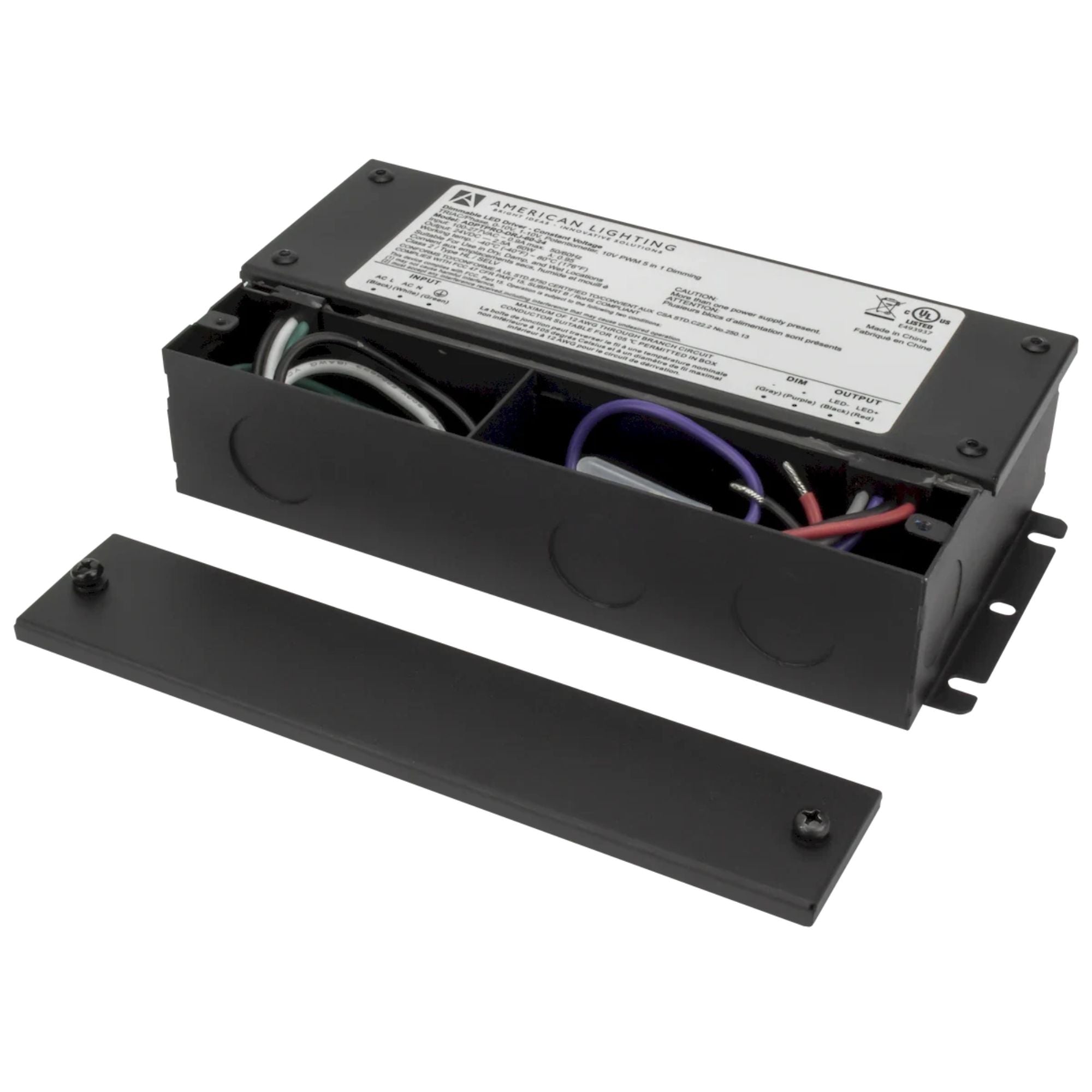

The driver is encased in a durable aluminum enclosure with multiple knockouts, facilitating straightforward installation and wiring configurations.
Dimming & Controls
Compatible with a wide range of dimming systems, including ELV, MLV, TRIAC, 0-10V, and PWM, providing 0-100% dimming capability. The minimum load requirement is 6W.
Performance & Build
Incorporates short circuit, over-voltage, and over-temperature protections. Complies with Class 2 standards and is wet location rated.
Typical Applications
- Commercial lighting installations
- Residential lighting systems
- Outdoor architectural lighting
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
