American Lighting Adaptive Pro 200W LED Driver 24V DC, Multi-Protocol Dimming, Wet Rated, 120-277V
Available in stock (1667)
About this item
About this item
- Output Voltage: Delivers a consistent 24V DC output, ideal for powering LED fixtures.
- Dimming Capability: Features multi-protocol dimming, compatible with ELV, MLV, TRIAC, 0-10V, and PWM systems.
- Input Voltage: Operates efficiently across a wide range of 120-277V AC input voltages.
- Enclosure: Encased in a robust metal housing, suitable for wet locations.
- Protection: Includes short circuit, over-voltage, over-temperature, and overload protections for enhanced safety.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Adaptive Pro ADPTPRO-DR-200-24 200W LED Driver — 24V DC
The American Lighting Adaptive Pro ADPTPRO-DR-200-24 is a versatile 200W LED Driver designed for outdoor applications. With a robust 24V DC output, it ensures reliable power delivery for LED fixtures. This Constant Voltage driver supports a wide input voltage range of 120-277V and features Multi-Protocol Dimming capabilities, making it compatible with various dimming systems. Encased in a durable metal housing, it is Wet Rated for outdoor use, ensuring longevity and performance in challenging environments.
Key Features
- Power Output: Provides a maximum power output of 200W, suitable for high-demand LED applications.
- Output Voltage: Consistent 24V DC output for stable LED performance.
- Dimming Protocols: Supports ELV, MLV, TRIAC, 0-10V, and PWM dimming for versatile control options.
- Minimum Load: Requires a minimum load of 20W for optimal operation.

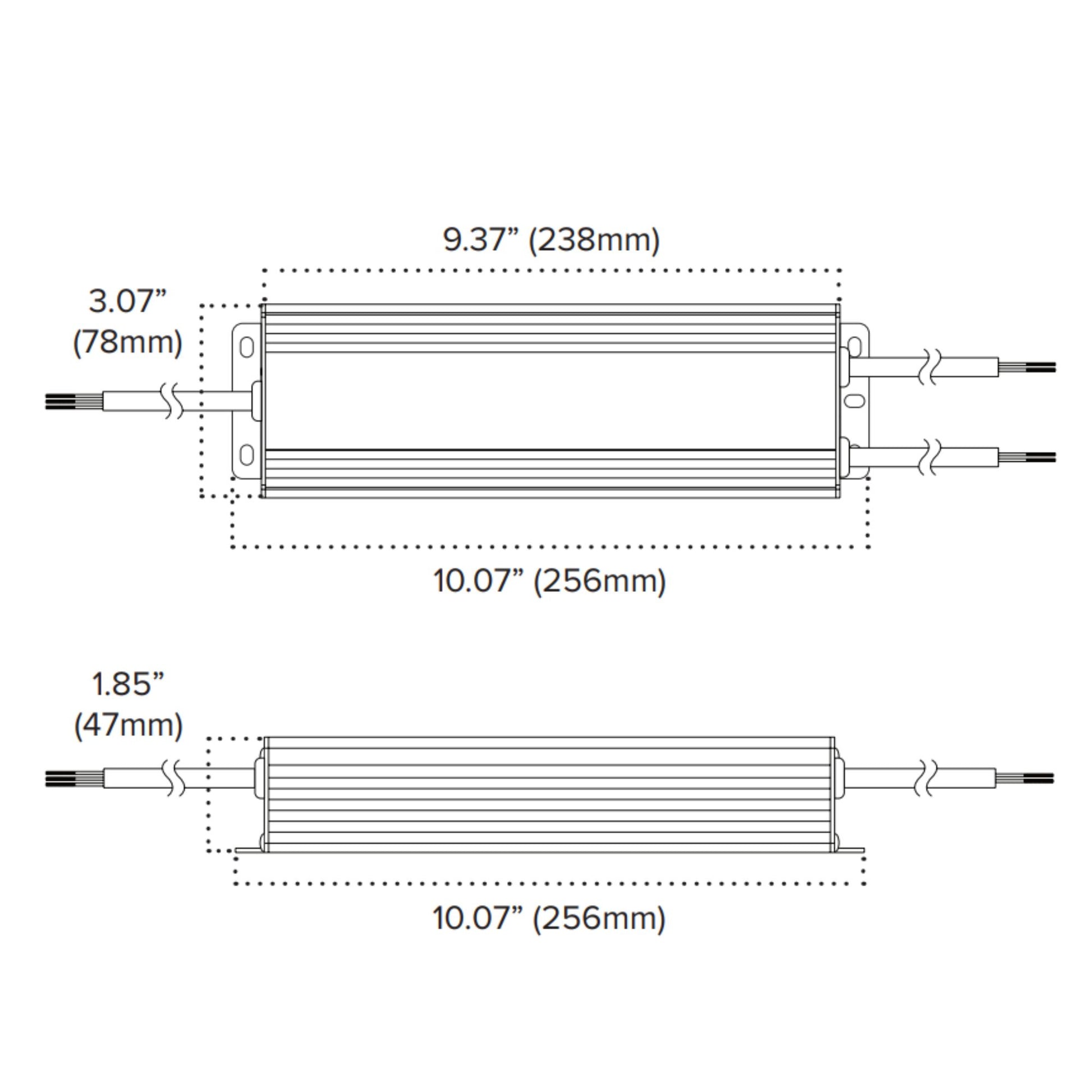

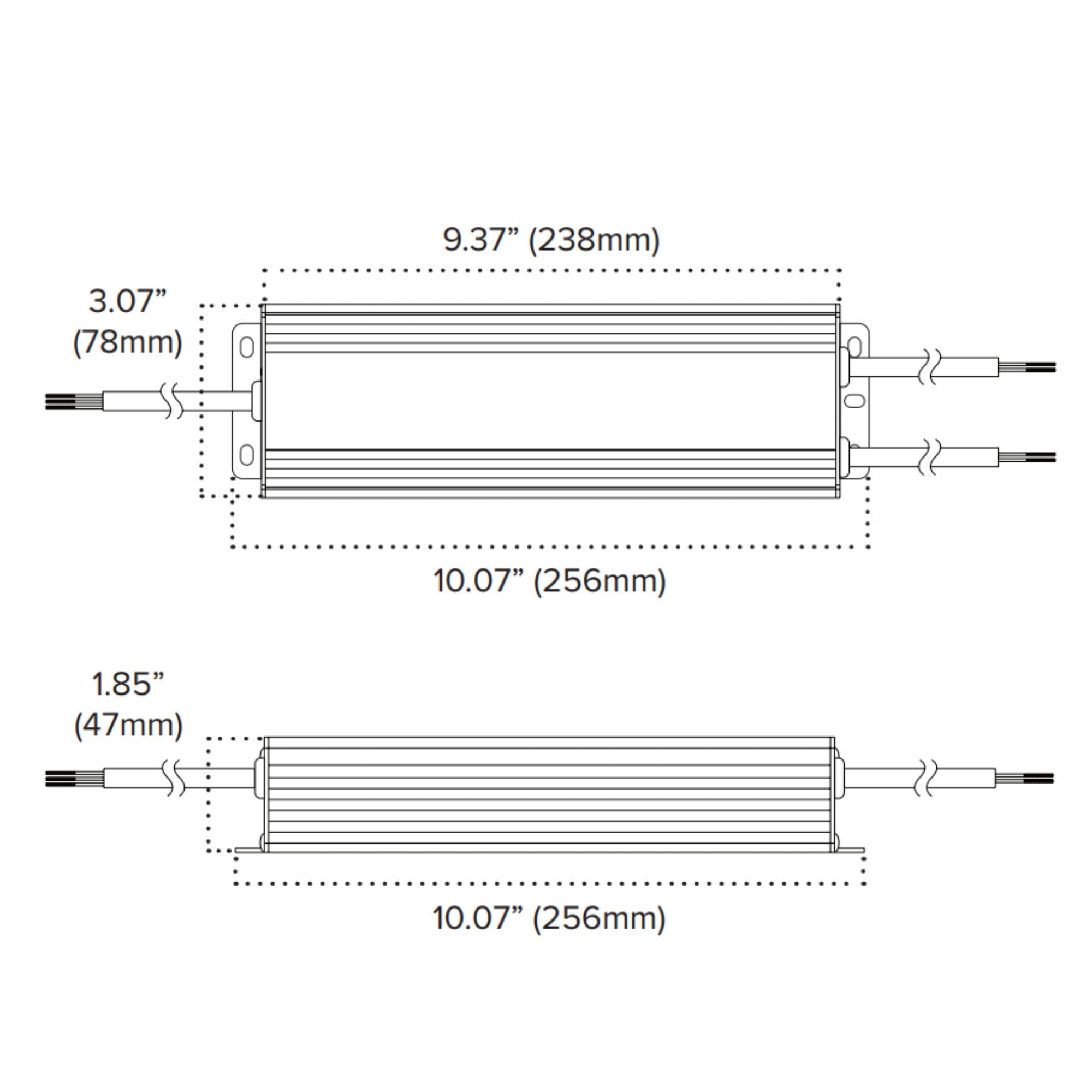

- Dimensions: Compact design measuring 10.07 in. L x 3.07 in. W x 1.85 in. H.
- Enclosure Type: Durable metal housing with a sealed design for wet locations.
- IP Rating: Rated for wet locations, ensuring protection against water ingress.
- Class 2: Compliant with Class I standards for safe operation.

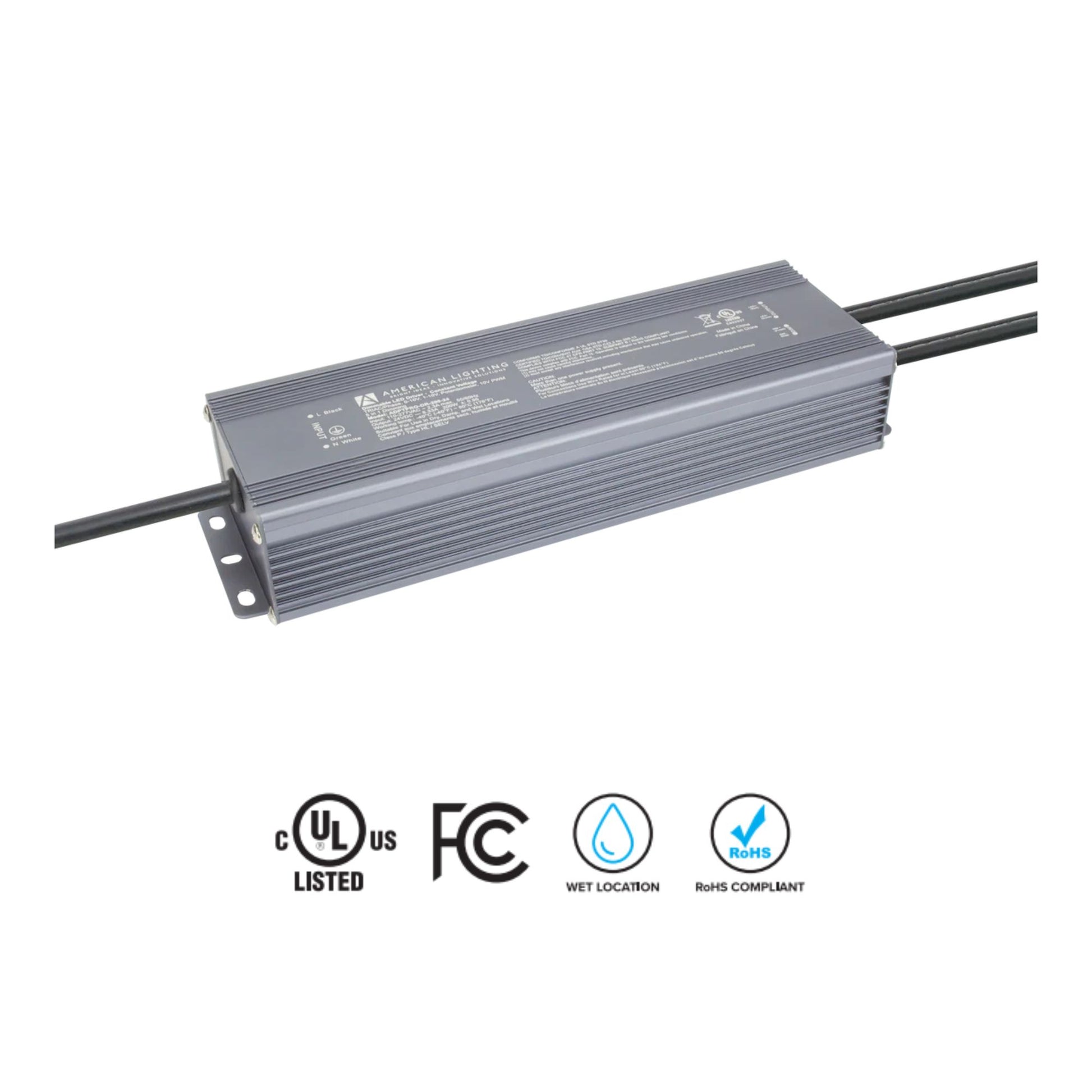

- Certifications: cULus Listed, FCC Compliant for quality assurance.
Physical Design & Installation

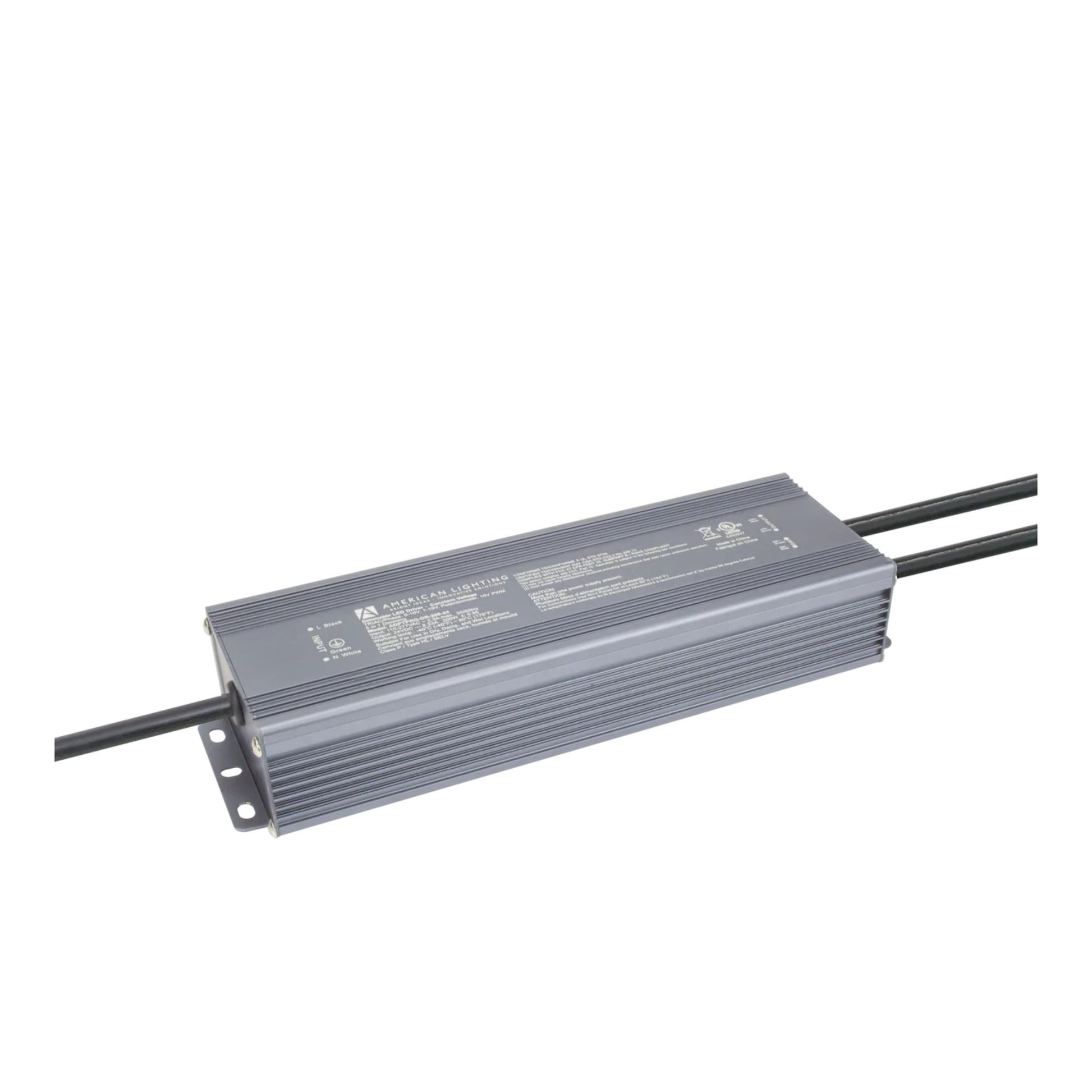

The driver features a low-profile aluminum enclosure, designed to withstand outdoor conditions. It includes multiple knockouts for flexible wiring options.
Dimming & Controls

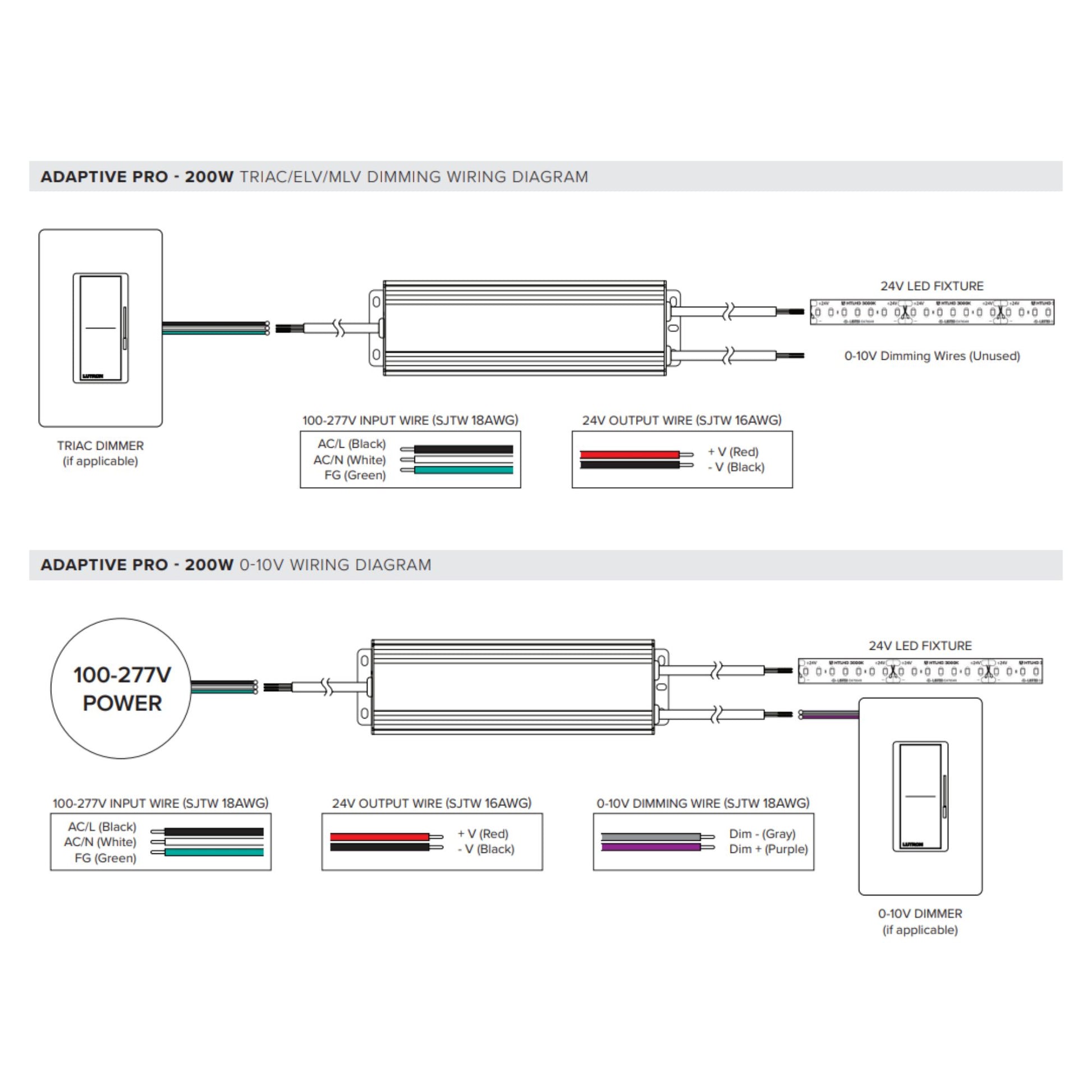

Compatible with a range of dimming systems, including ELV, MLV, TRIAC, 0-10V, and PWM. The driver requires a minimum load of 20W for proper dimming functionality.
Performance & Build
Equipped with short circuit, over-voltage, over-temperature, and overload protections. It is Class I compliant and wet location rated, ensuring reliable performance.
Typical Applications
- Outdoor lighting installations
- Commercial LED signage
- Architectural lighting projects
- Landscape lighting systems
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
