American Lighting Adaptive 96W LED Driver 24V DC, Multi-Protocol Dimming, Wet Rated, 120-277V
Available in stock (11717)
About this item
About this item
- Output Power: Delivers a robust 96W at 24V DC, ideal for powering LED fixtures.
- Dimming Compatibility: Supports multi-protocol dimming, including TRIAC, MLV, and ELV for versatile lighting control.
- Input Voltage Range: Operates efficiently within a wide 120-277V input range, suitable for various installations.
- Enclosure Design: Features a low-profile aluminum housing with integrated junction box for streamlined installation.
- Protection: Equipped with short circuit, overload, and over-temperature protections for enhanced reliability.
We process payments securely and do not store credit card information.
Description
Description

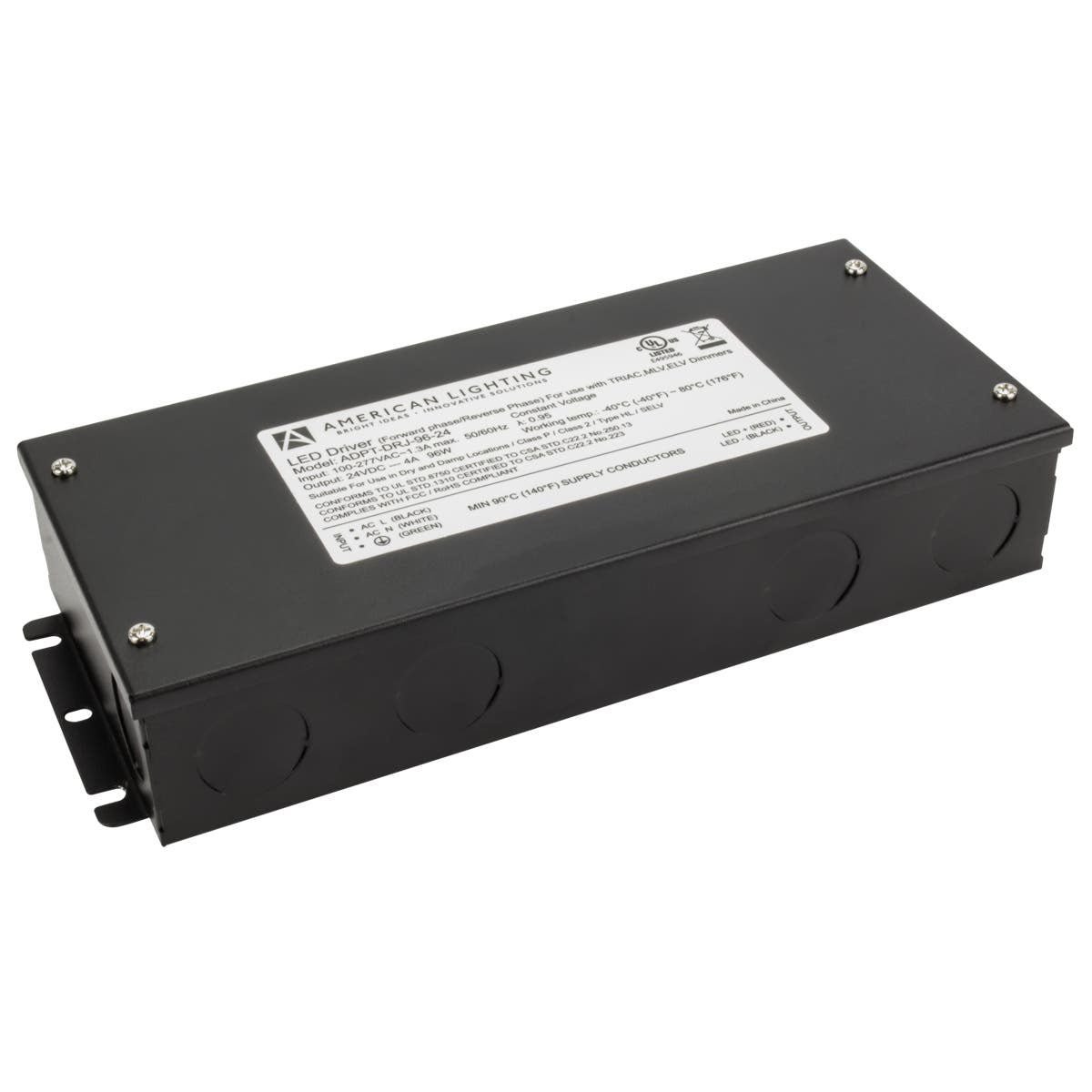

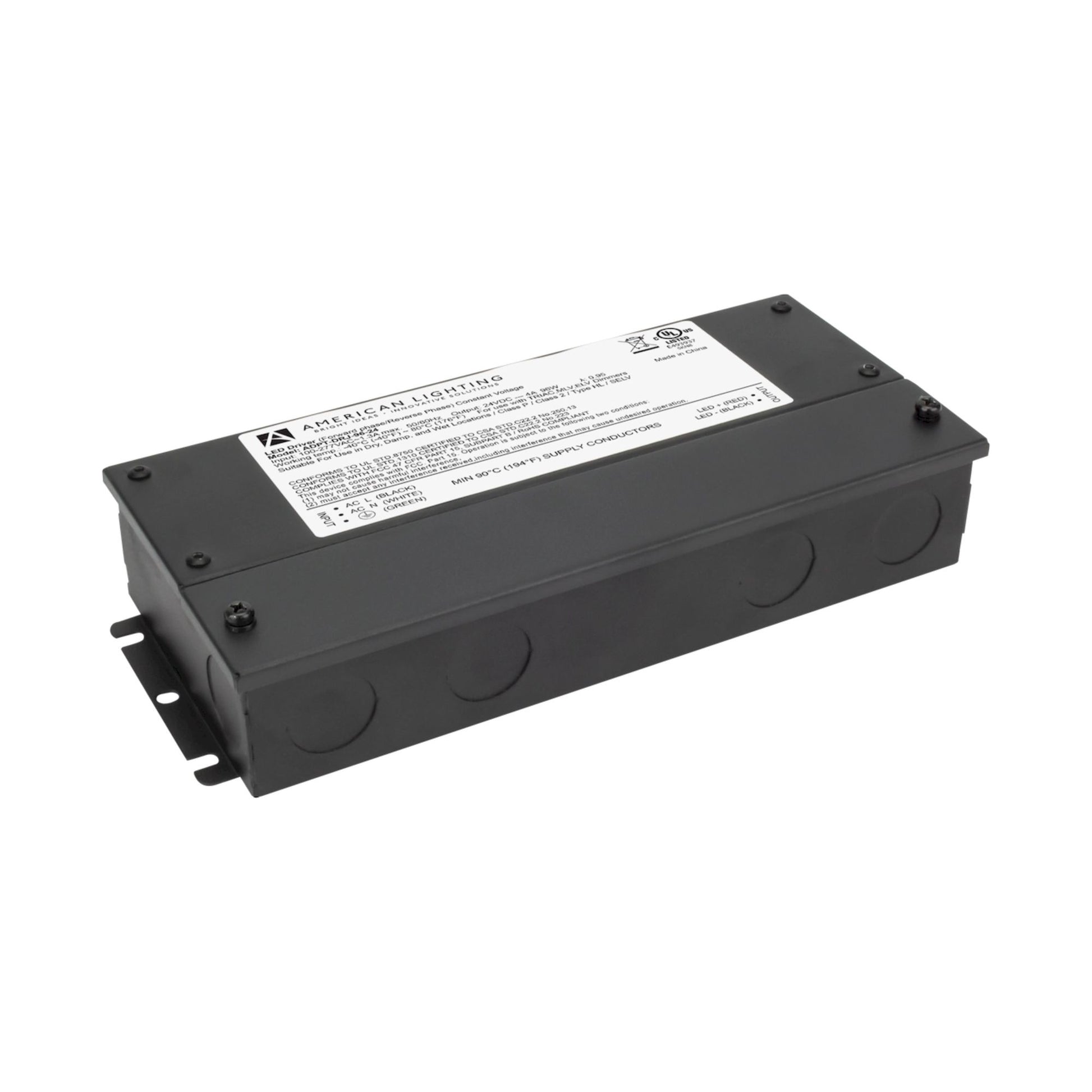

American Lighting Adaptive ADPT-DRJ-96-24 96W LED Driver — 24V DC
The American Lighting ADPT-DRJ-96-24 is a versatile 96W LED Driver designed for both indoor and outdoor applications. With an input voltage range of 120-277V and an output voltage of 24V DC, this driver ensures reliable power delivery for various LED lighting setups. It features constant voltage operation and supports multi-protocol dimming, making it compatible with TRIAC, MLV, and ELV dimmers. The driver is housed in a durable aluminum enclosure with an integrated junction box, offering easy installation and enhanced protection.
Key Features
- Power Output: Provides a maximum power output of 96W, suitable for a wide range of LED applications.
- Output Voltage: Delivers a stable 24V DC output for consistent lighting performance.
- Dimming Protocols: Compatible with TRIAC, MLV, and ELV dimmers for flexible lighting control.
- Minimum Load: Requires a minimum load of 9.6W to operate efficiently.

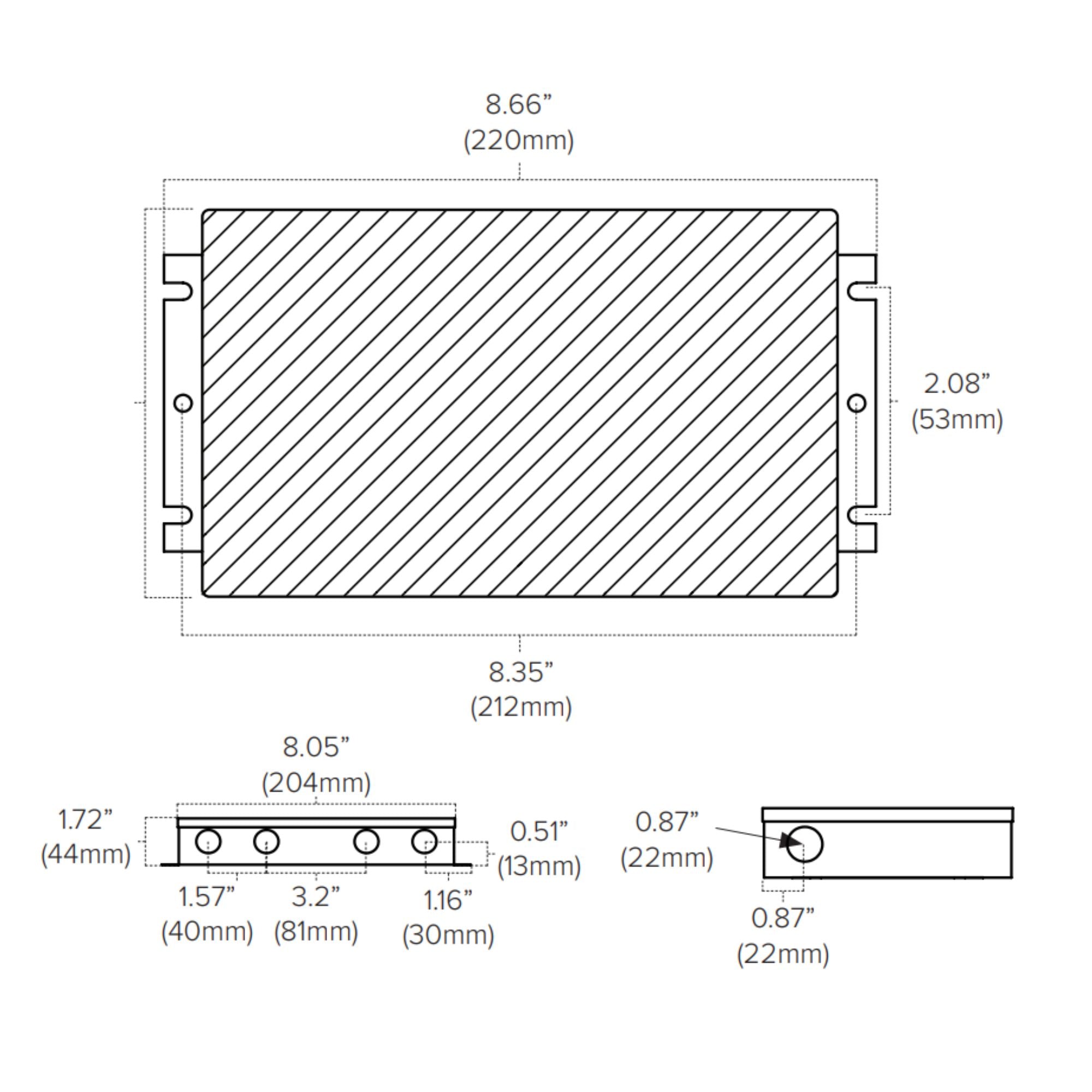

- Dimensions: Compact design measuring 8.66 in. L x 3.60 in. W x 1.61 in. H for easy integration.

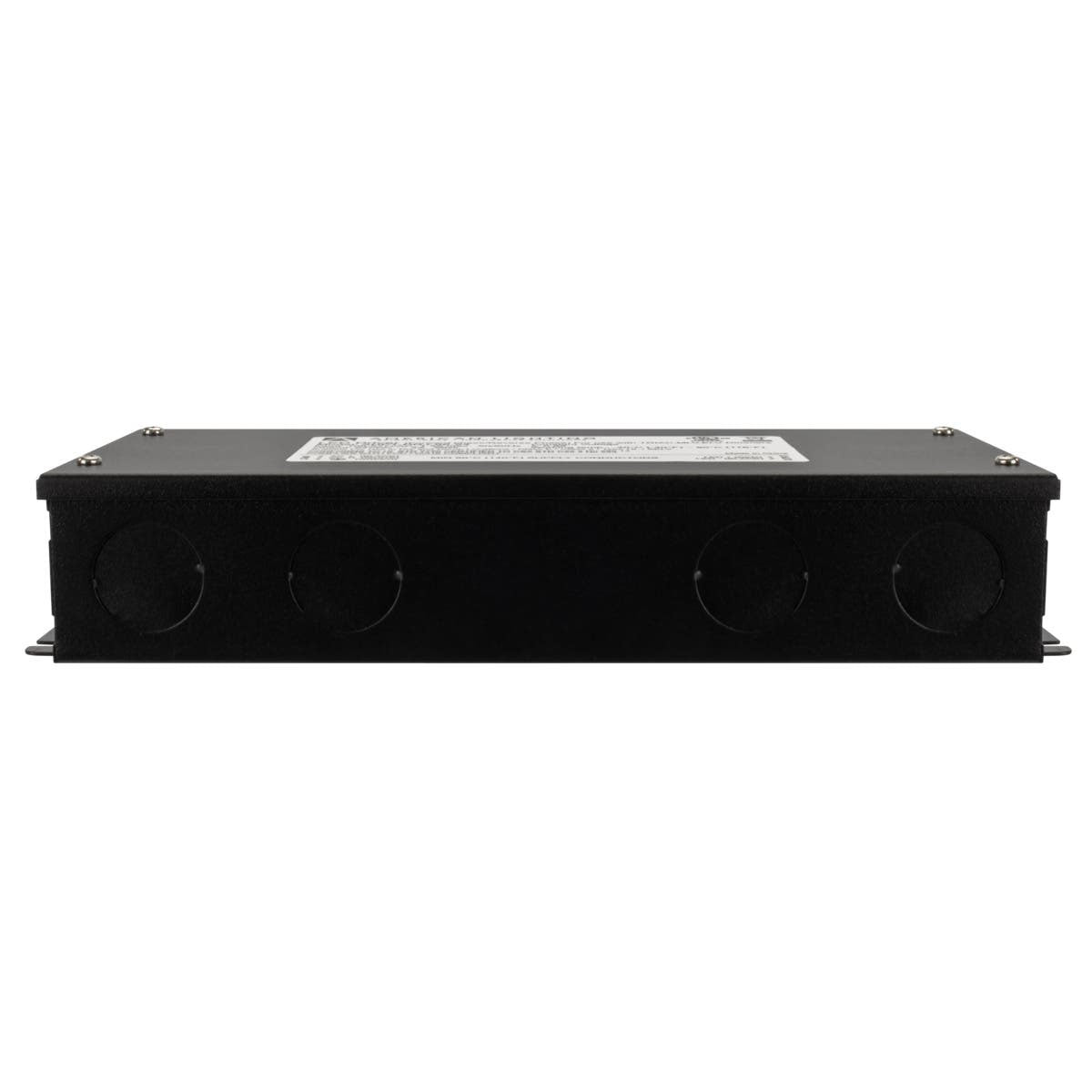

- Enclosure Type: Constructed with a robust aluminum housing featuring knockouts for versatile wiring options.
- IP Rating: Wet location rated, suitable for both indoor and outdoor installations.
- Class 2 Rating: Ensures safe operation and compliance with electrical standards.

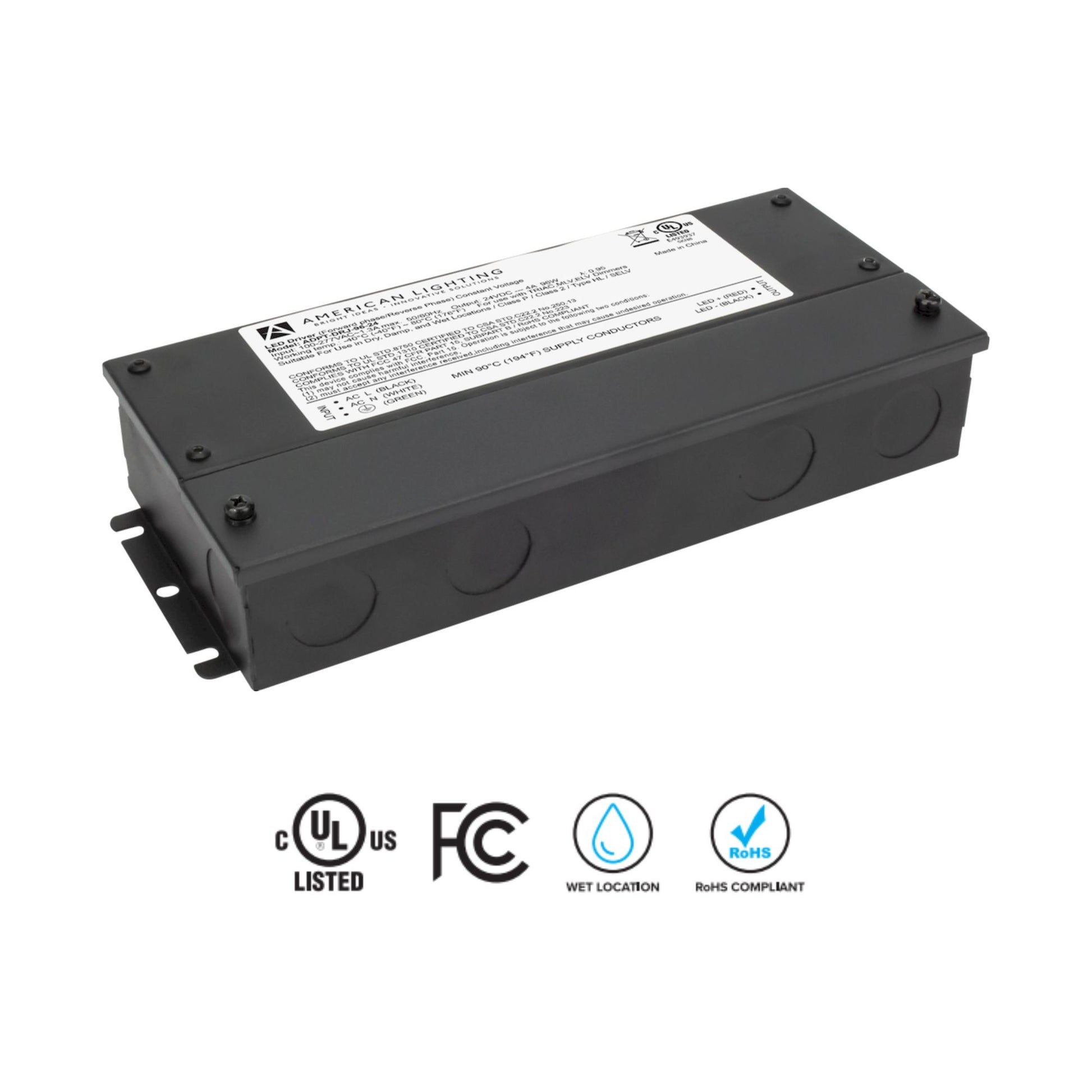

- Certifications: cULus Listed, FCC compliant, and Type HL certified for quality assurance.
Physical Design & Installation

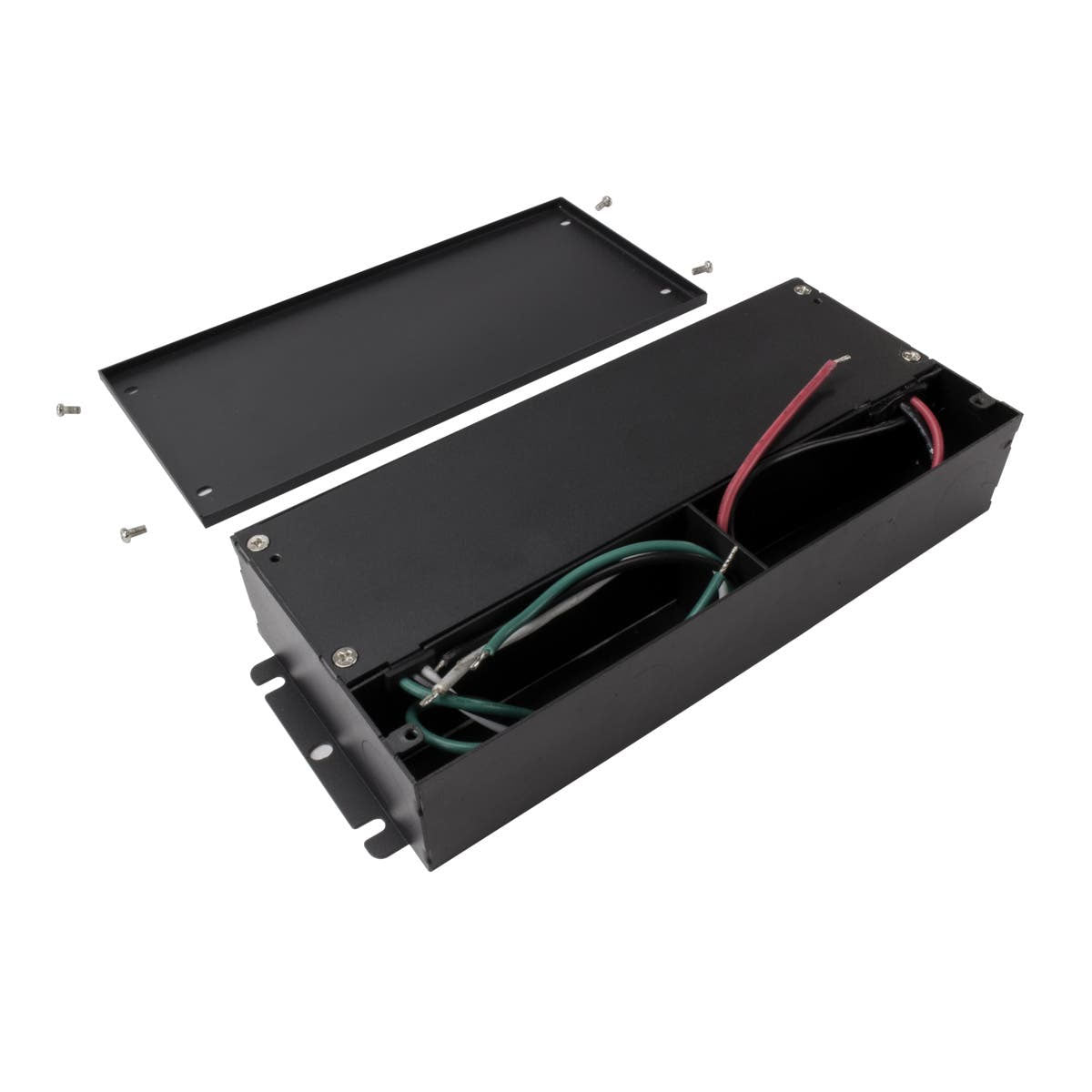

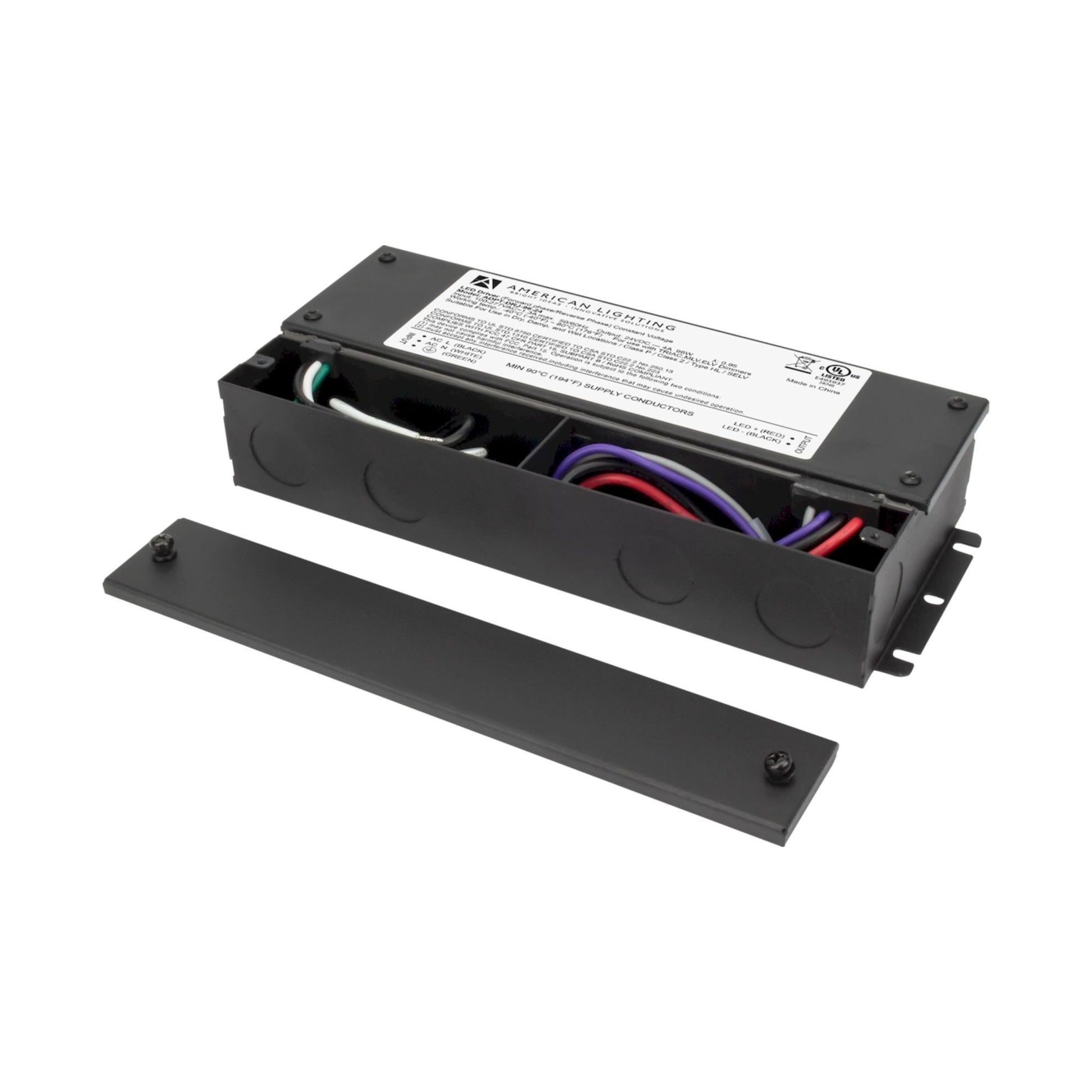

The driver features a sleek aluminum enclosure with an integrated junction box, providing a streamlined installation process with multiple knockouts for wiring flexibility.
Dimming & Controls

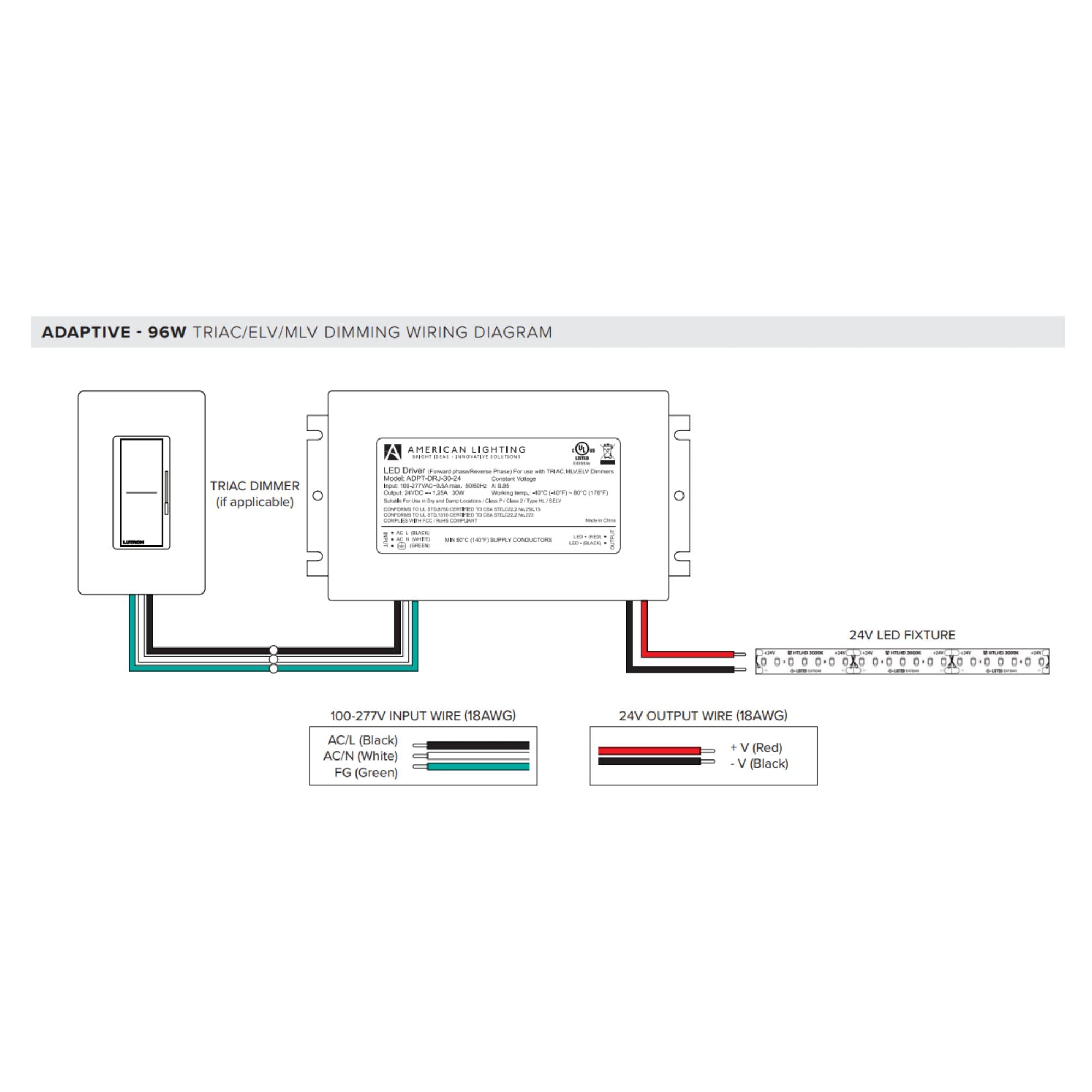

Supports a wide range of dimming protocols including TRIAC, MLV, and ELV, allowing for seamless integration with existing dimming systems. Minimum load requirement is 9.6W.
Performance & Build
Equipped with short circuit, overload, and over-temperature protections. Class 2 compliant and wet location rated, ensuring durability and safety in various environments.
Typical Applications
- Under cabinet lighting
- LED tape lights
- Outdoor LED fixtures
- Commercial lighting installations
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
