American Lighting Adaptive 192W LED Driver 24V Phase Dimming, Wet Rated, 120-277V
Available in stock (2635)
About this item
About this item
- Output Power: Delivers a robust 192W at 24V DC, ideal for powering a wide range of LED fixtures.
- Dimming Compatibility: Supports phase dimming with ELV, MLV, and TRIAC dimmers for flexible lighting control.
- Input Voltage Range: Operates efficiently within a wide 120-277V AC input range, suitable for various installations.
- Enclosure Design: Features a low-profile aluminum enclosure with integrated junction box for streamlined installation.
- Protection: Equipped with short circuit, overload, and over-temperature protections for enhanced reliability.
We process payments securely and do not store credit card information.
Description
Description

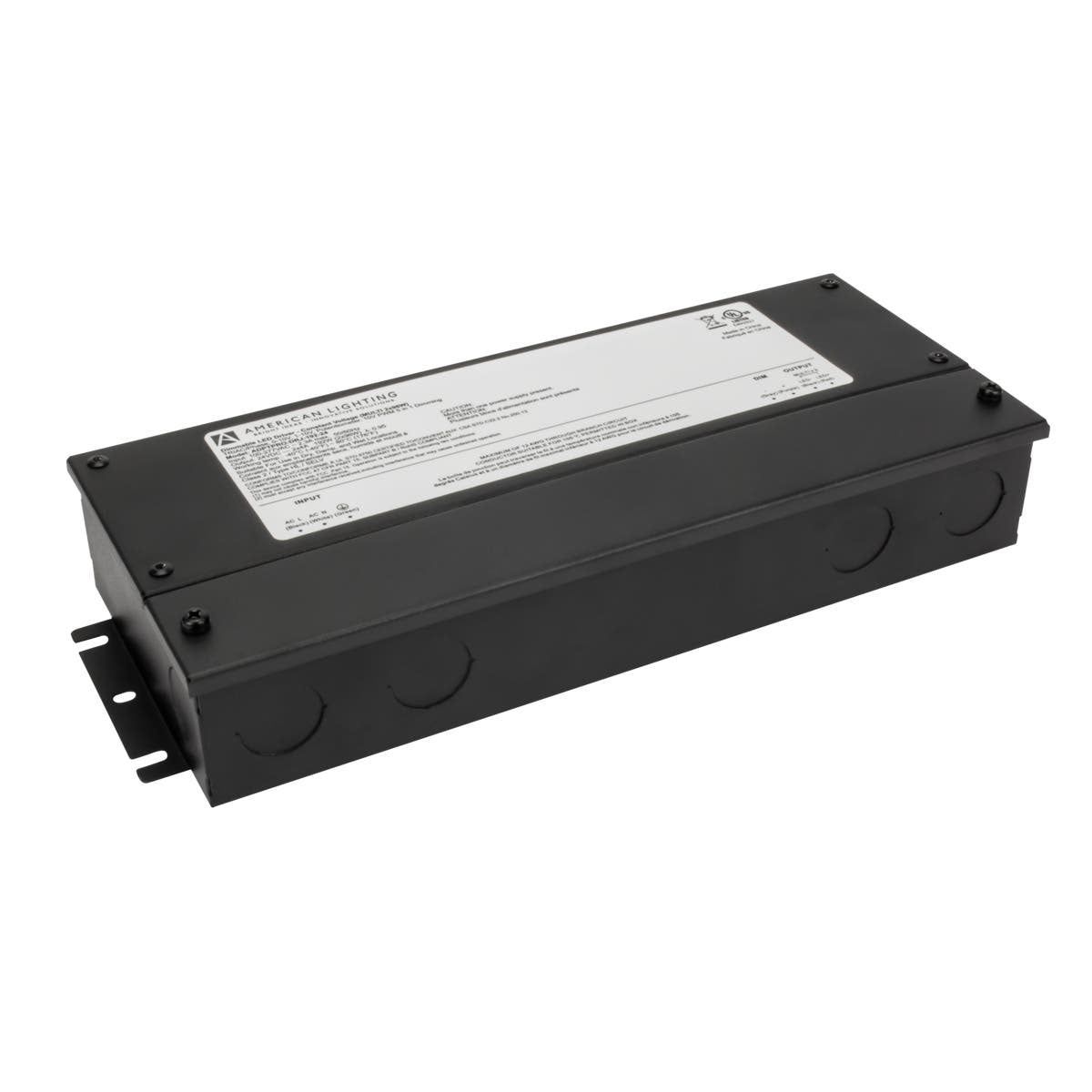

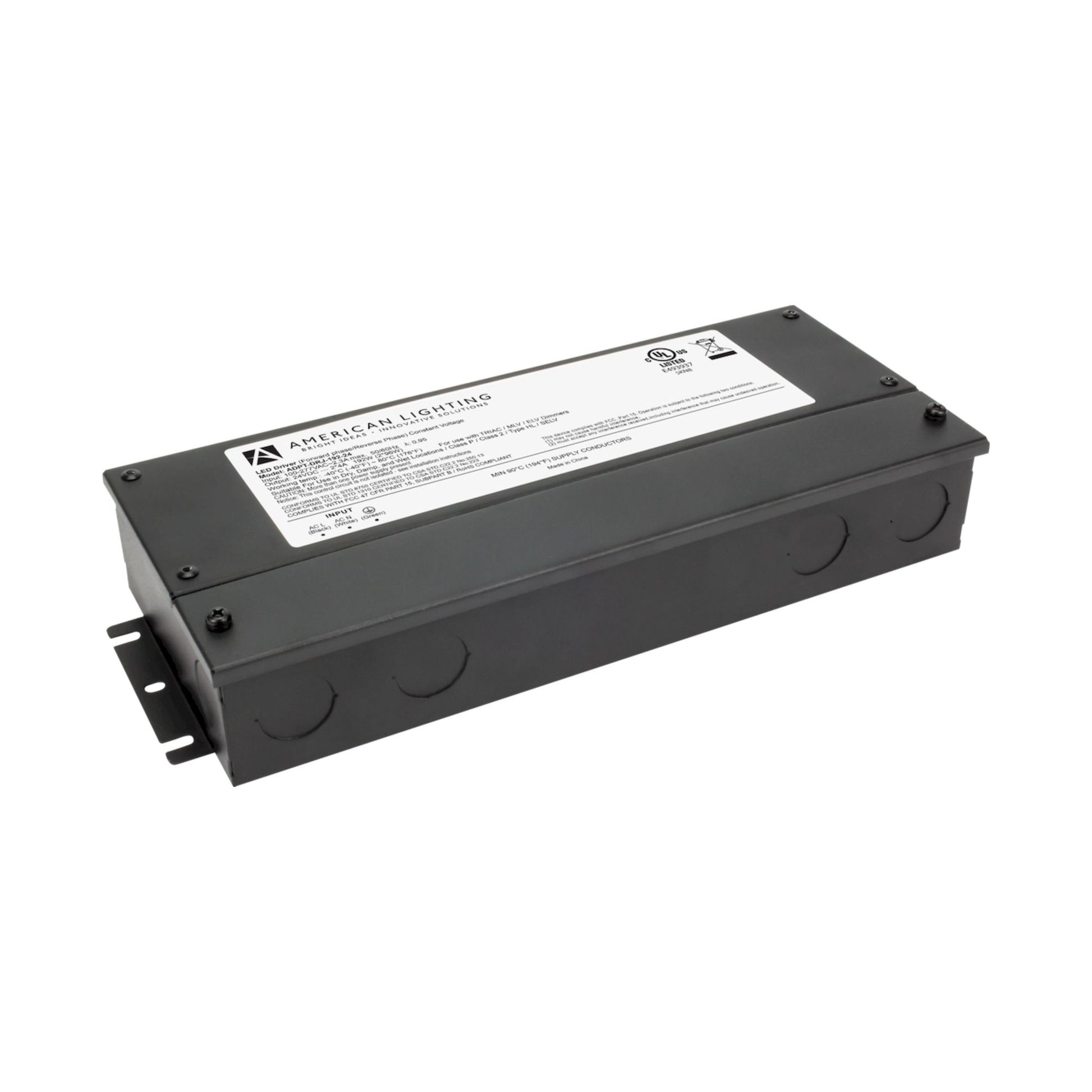

American Lighting Adaptive ADPT-DRJ-192-24 192W LED Driver — 24V DC
The American Lighting ADPT-DRJ-192-24 is a high-performance LED Driver designed to provide 192W of power at 24V DC. This driver is engineered for reliability and versatility, making it an excellent choice for under cabinet lights, tape lights, and various LED fixture installations. It features a wide input voltage range of 120-277V and supports phase dimming with ELV, MLV, and TRIAC dimmers. The driver is Class 2 rated and housed in a durable aluminum enclosure with an Integrated Junction Box for easy installation.
Key Features
- Power Output: Provides a maximum power output of 192W, suitable for extensive LED applications.
- Output Voltage: Consistent 24V DC output for reliable LED performance.
- Dimming Protocol: Compatible with ELV, MLV, and TRIAC dimmers for versatile lighting control.
- Minimum Load: Requires a minimum load of 19.2W for optimal performance.

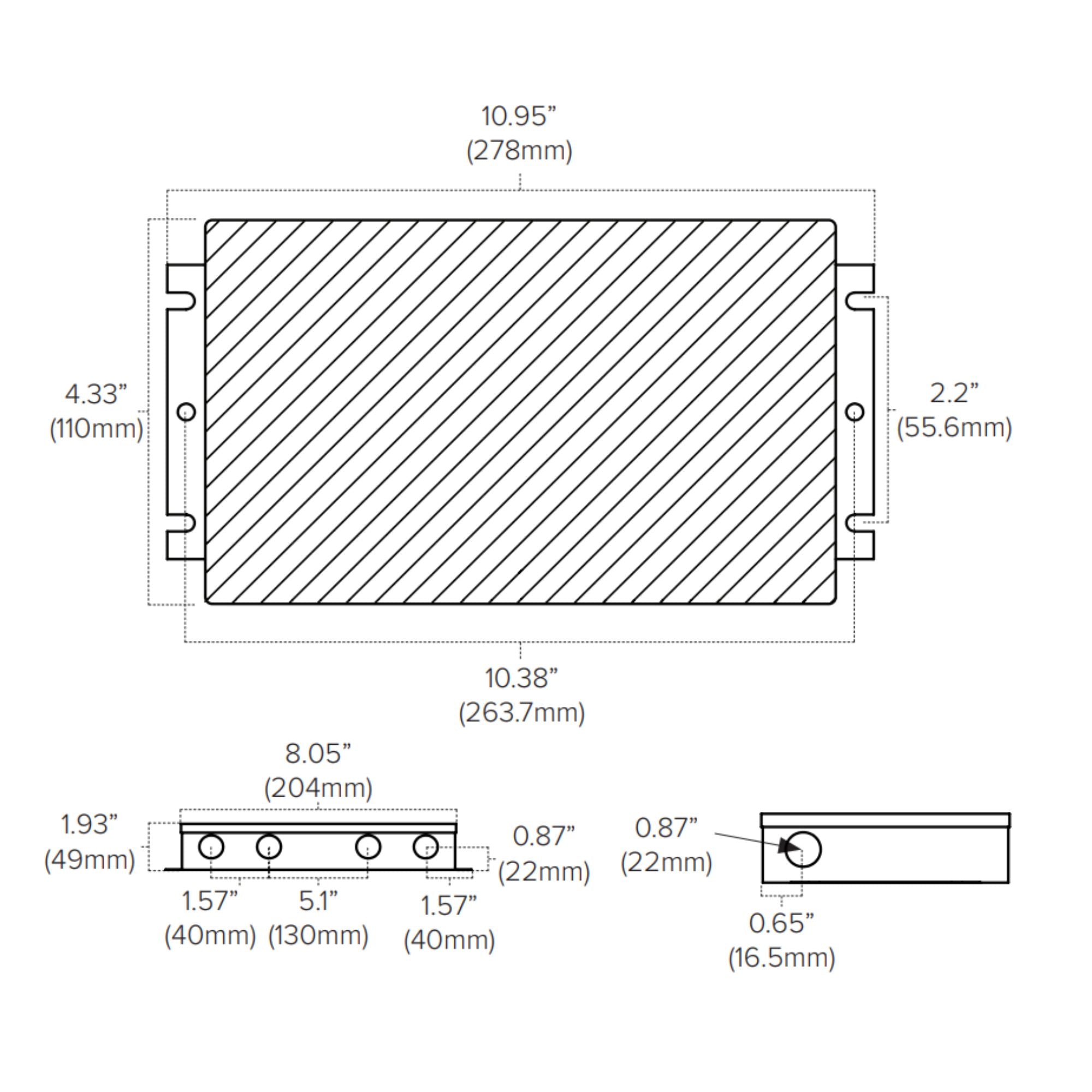

- Dimensions: Compact design measuring 10.93 in. L x 4.15 in. W x 1.81 in. H.
- Enclosure Type: Sturdy aluminum enclosure with integrated junction box for secure installations.
- IP Rating: Wet location rated, suitable for indoor and outdoor use.
- Class 2 Compliance: Ensures safety and reliability in various applications.

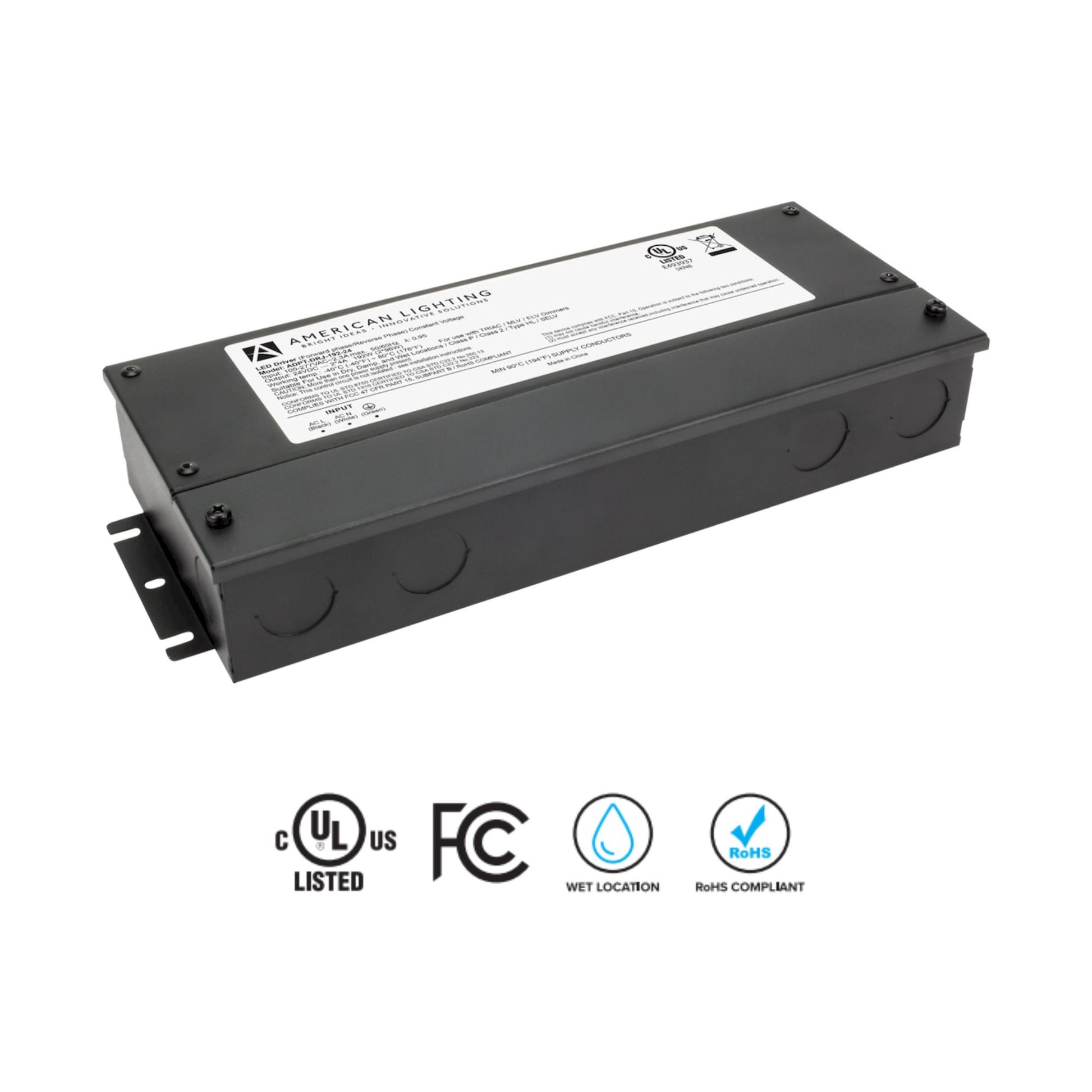

- Certifications: cULus Listed, FCC compliant, and Type HL certified for quality assurance.
Physical Design & Installation

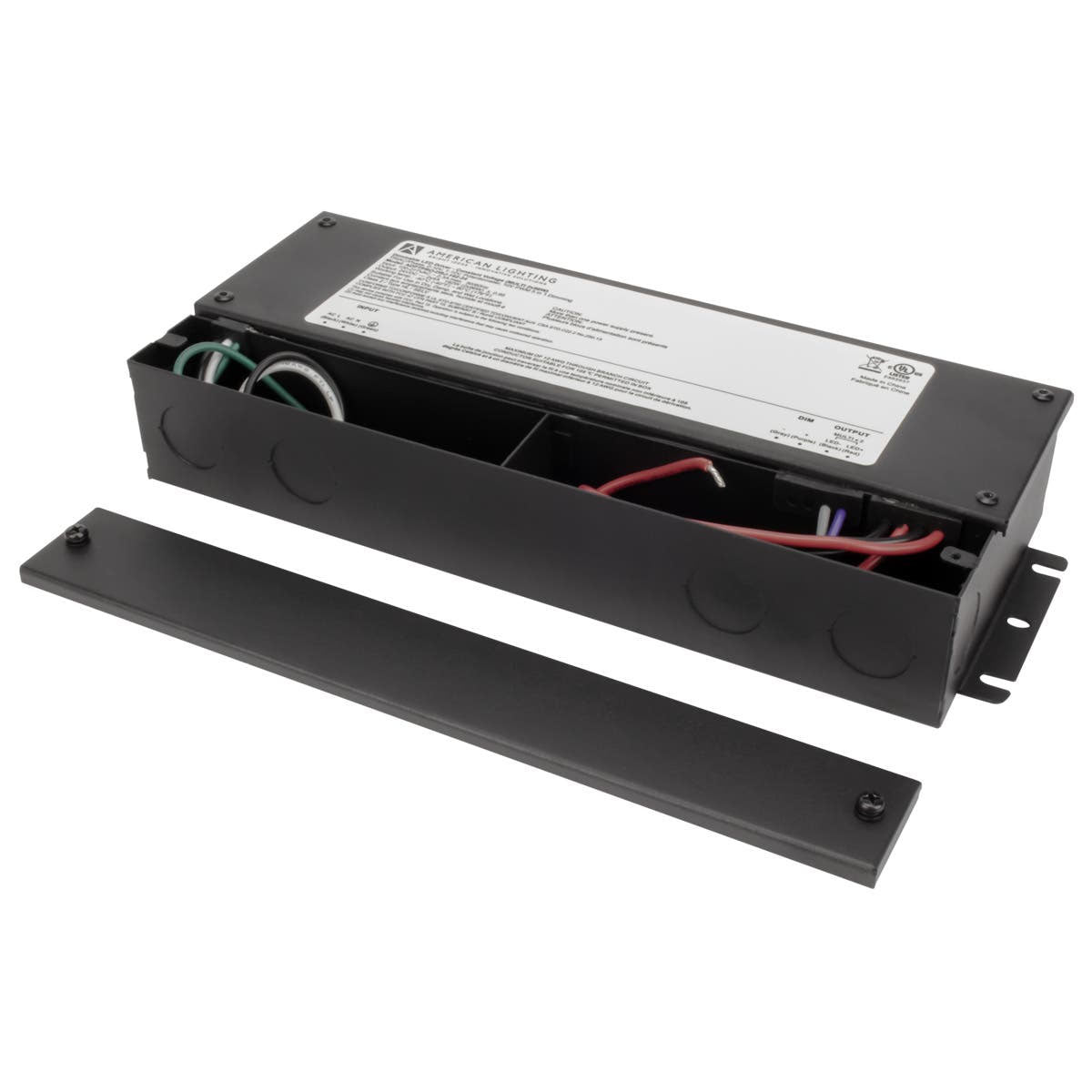

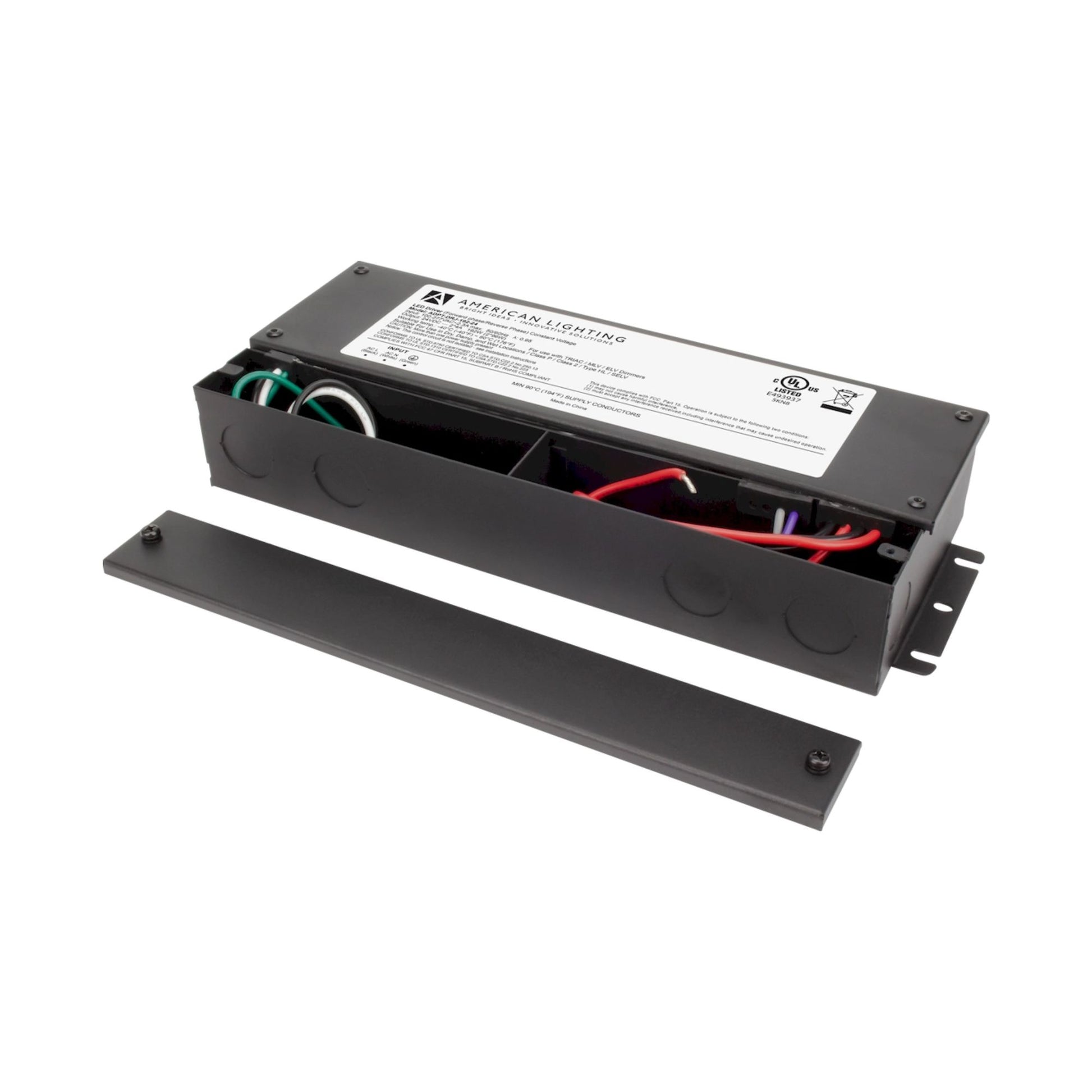

The driver is encased in a robust aluminum housing with a low-profile design, featuring an integrated junction box and knockouts for easy wiring and installation.

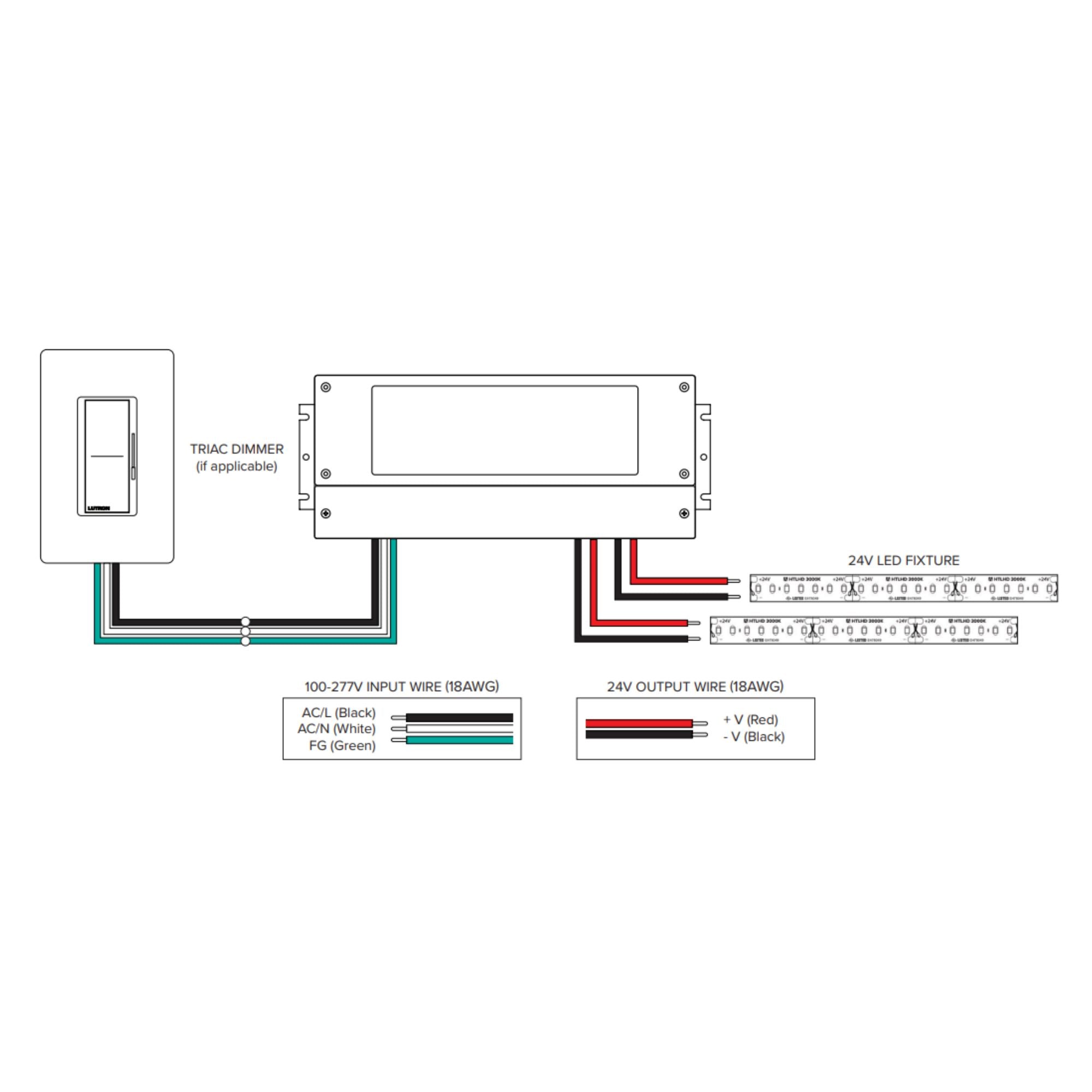

Dimming & Controls
Supports phase dimming with ELV, MLV, and TRIAC systems, offering a wide dimming range from 10% to 100%. Minimum load requirement is 19.2W.
Performance & Build
Includes protections against short circuit, overload, and over-temperature conditions. Rated for wet locations and compliant with Class 2 standards.
Typical Applications
- Under cabinet lighting
- LED tape lighting
- Outdoor LED fixtures
- Commercial LED installations
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
