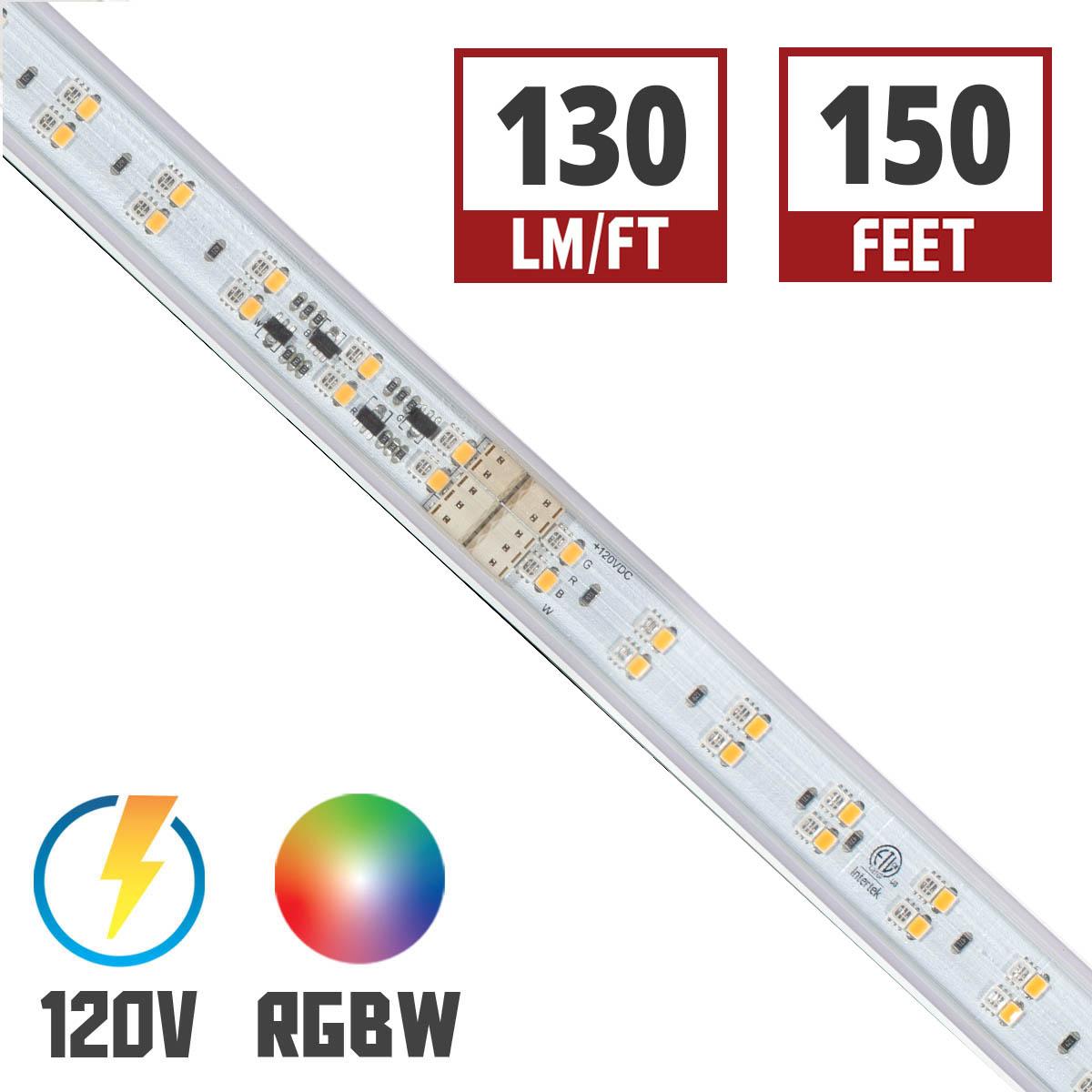

American Lighting Hybrid 3, 150ft, LED Tape Light, IP65, RGBW, 130 Lumens/ft, 120V
Out of stock
About this item
About this item
- Input Voltage: Operates at 120V, eliminating the need for a driver in installations up to 164ft.
- Color Technology: RGBW with 3000K white for versatile color options in lighting design.
- Max Run: Supports up to 164ft, though 75ft is recommended for optimal performance.
- Cuttable Increments: Field cuttable every 12 inches for custom installations.
- IP Rating: IP65 rated for wet locations, suitable for both indoor and outdoor use.
We process payments securely and do not store credit card information.
Description
Description

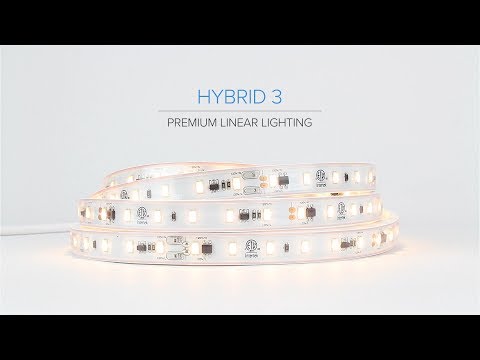

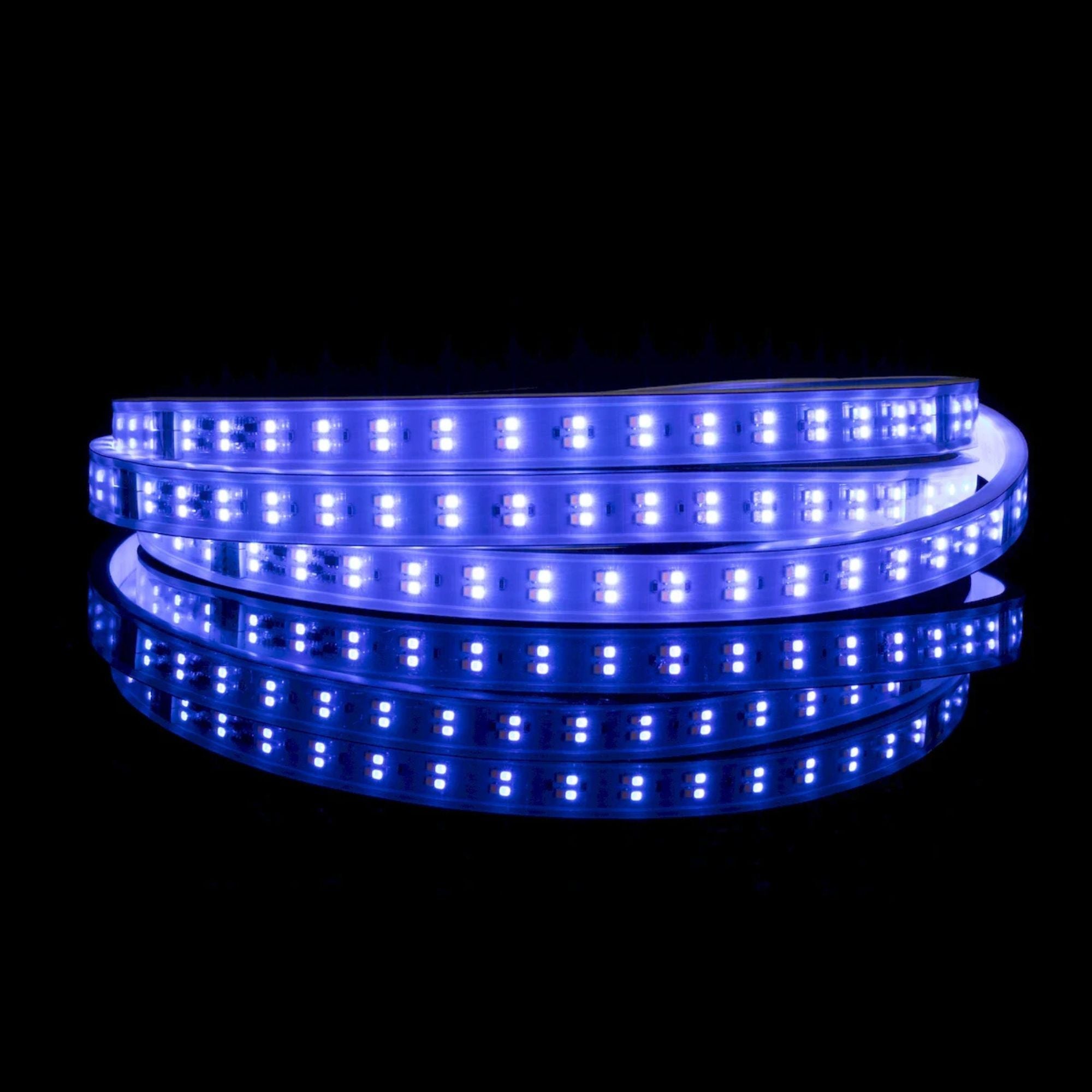

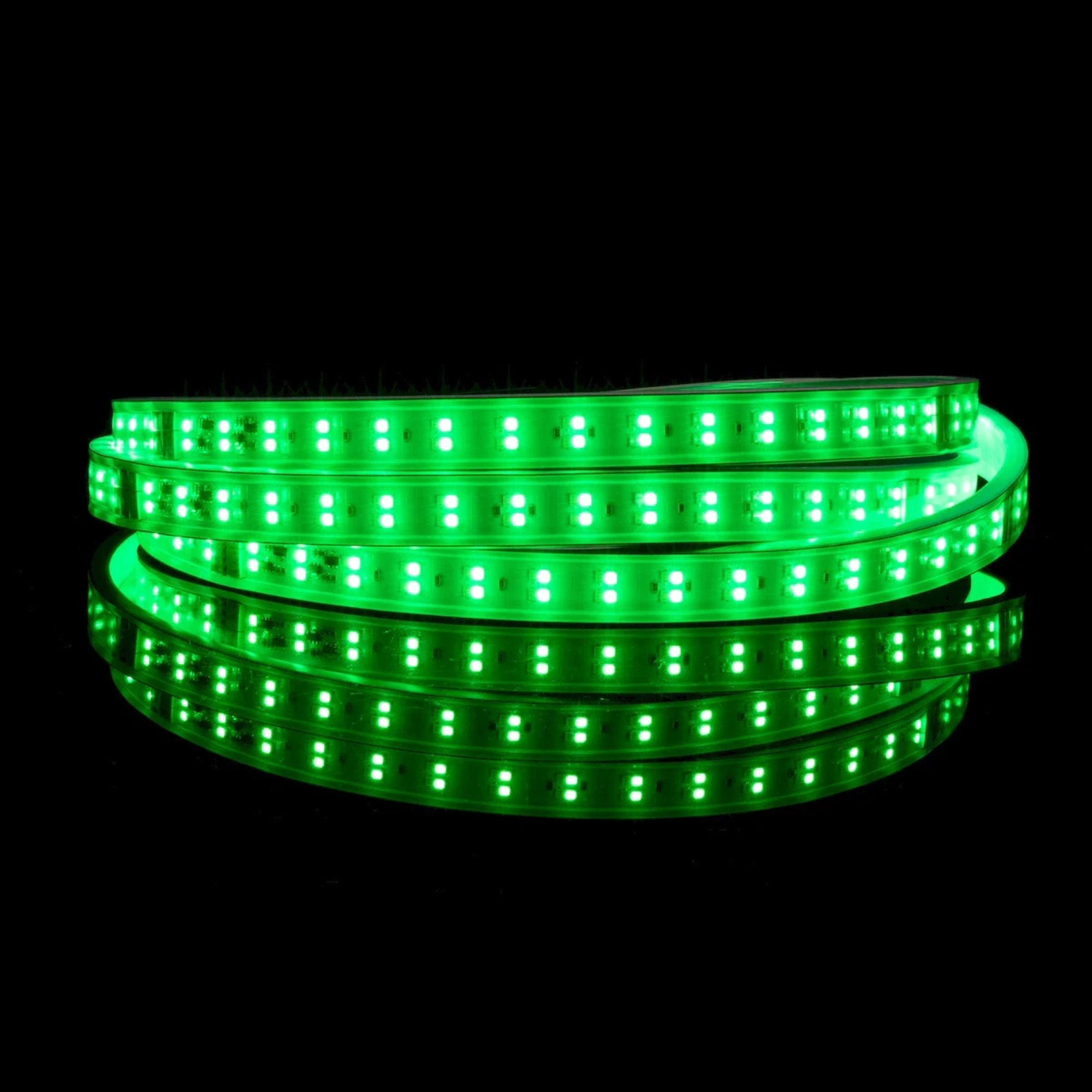

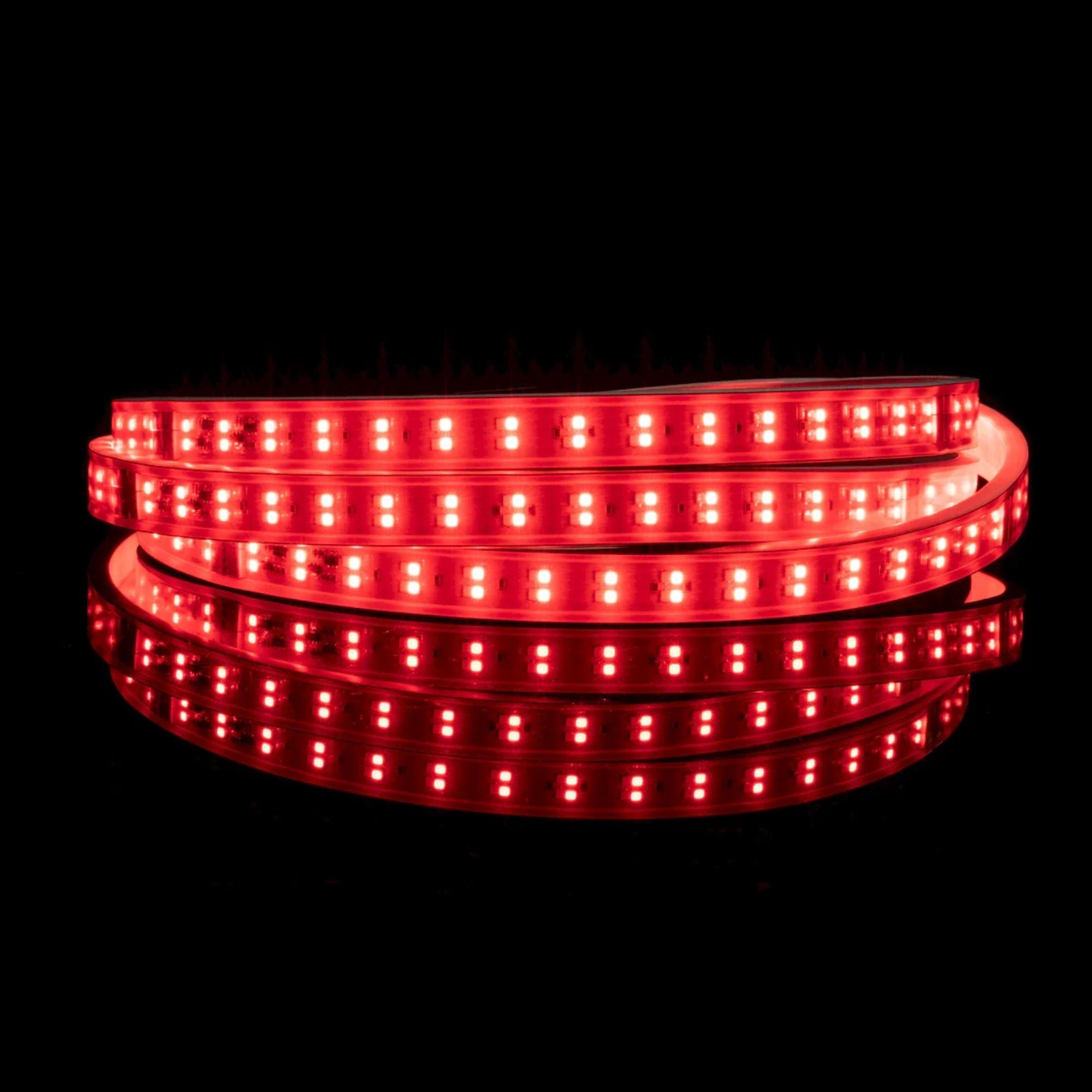

American Lighting Hybrid 3 LED Tape Light — RGBW & Color Changing
The American Lighting 120-H3-RGBW is a 150ft LED tape light designed for both indoor and outdoor applications. This tape light operates at 120V and is IP65 rated, making it suitable for wet locations. With a color temperature of RGB+3000K, it offers vibrant color-changing capabilities.

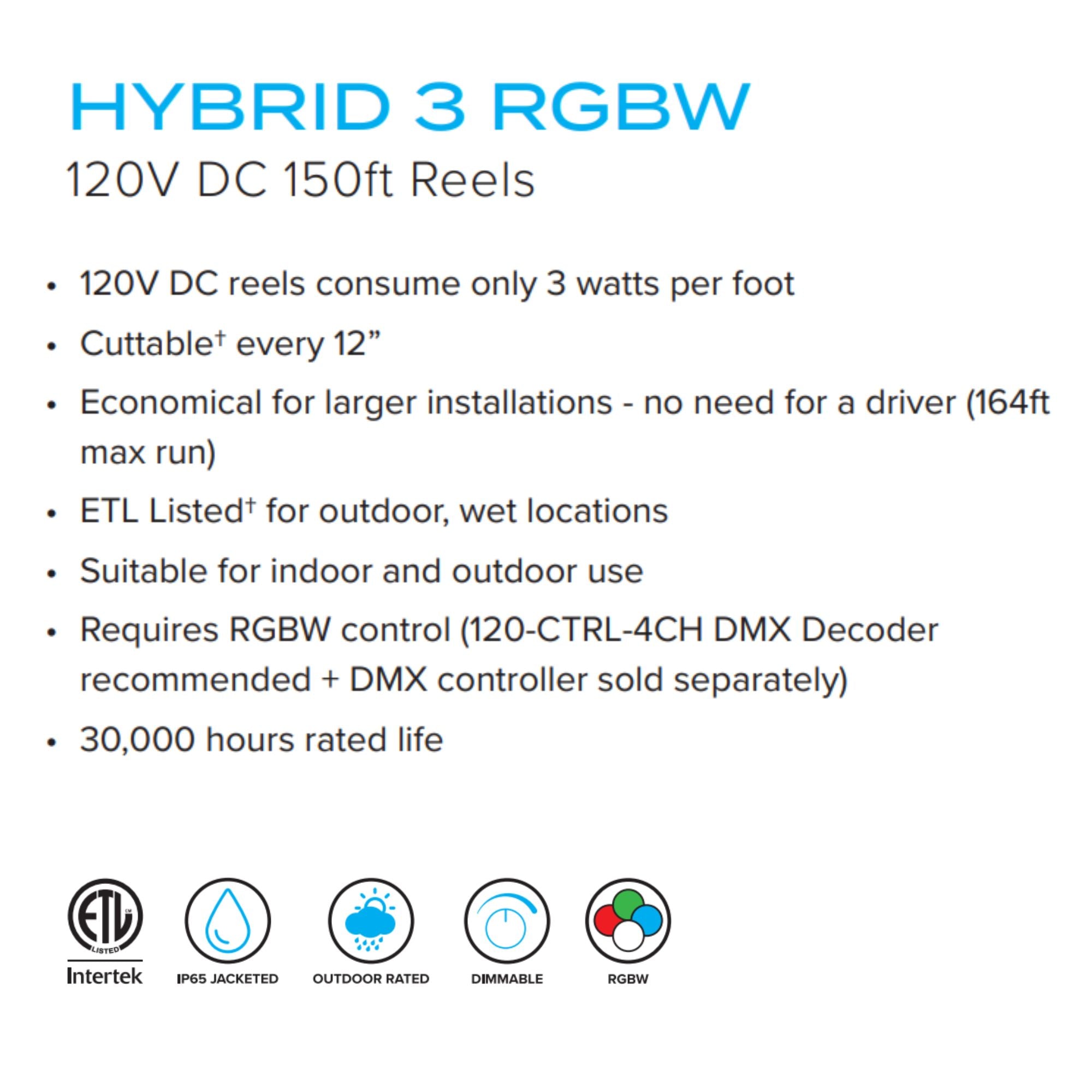

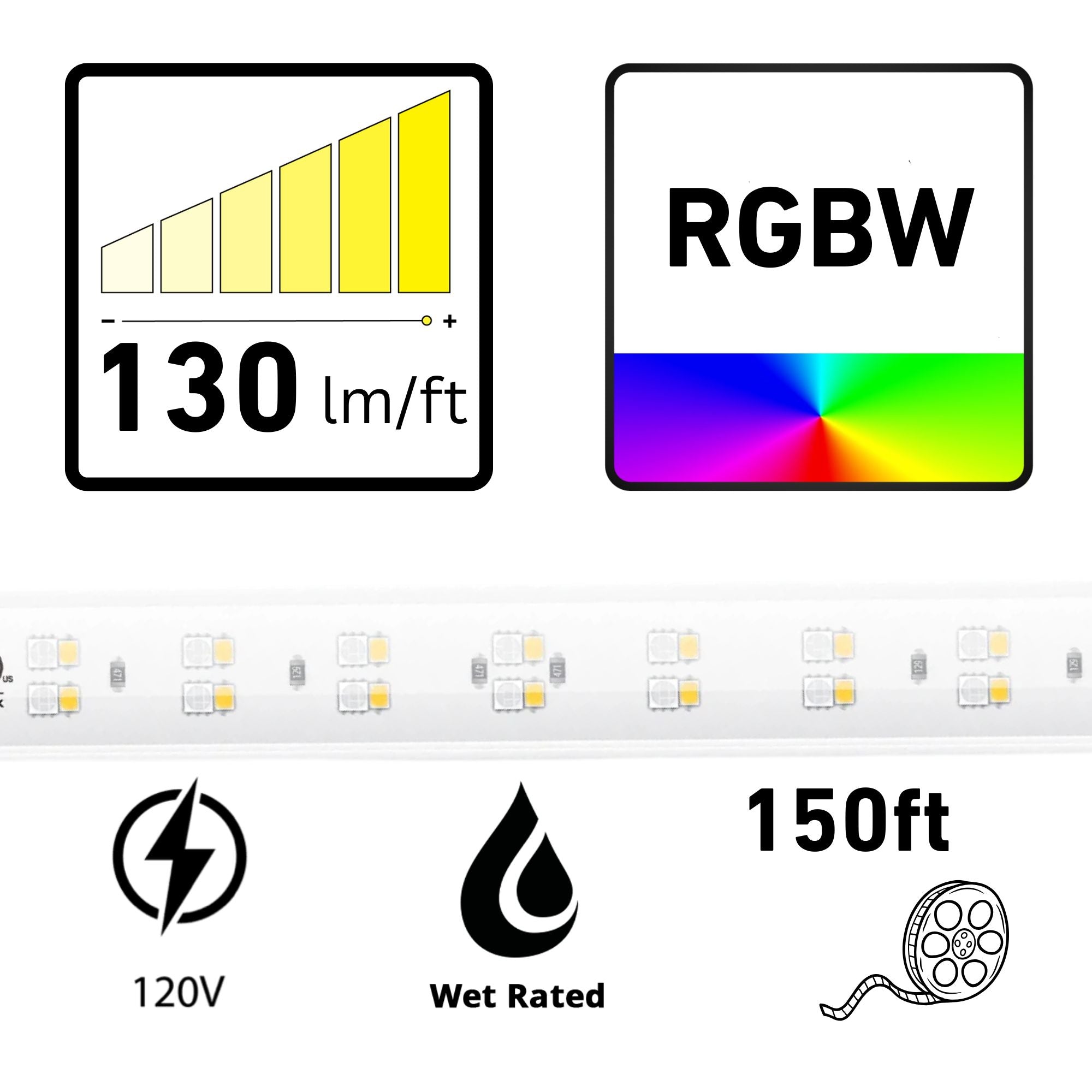

Key Features
- Voltage: 120V AC operation for direct connection without a driver.
- Wattage: Consumes 3 watts per foot.
- Lumens: Delivers 130 lumens per foot.

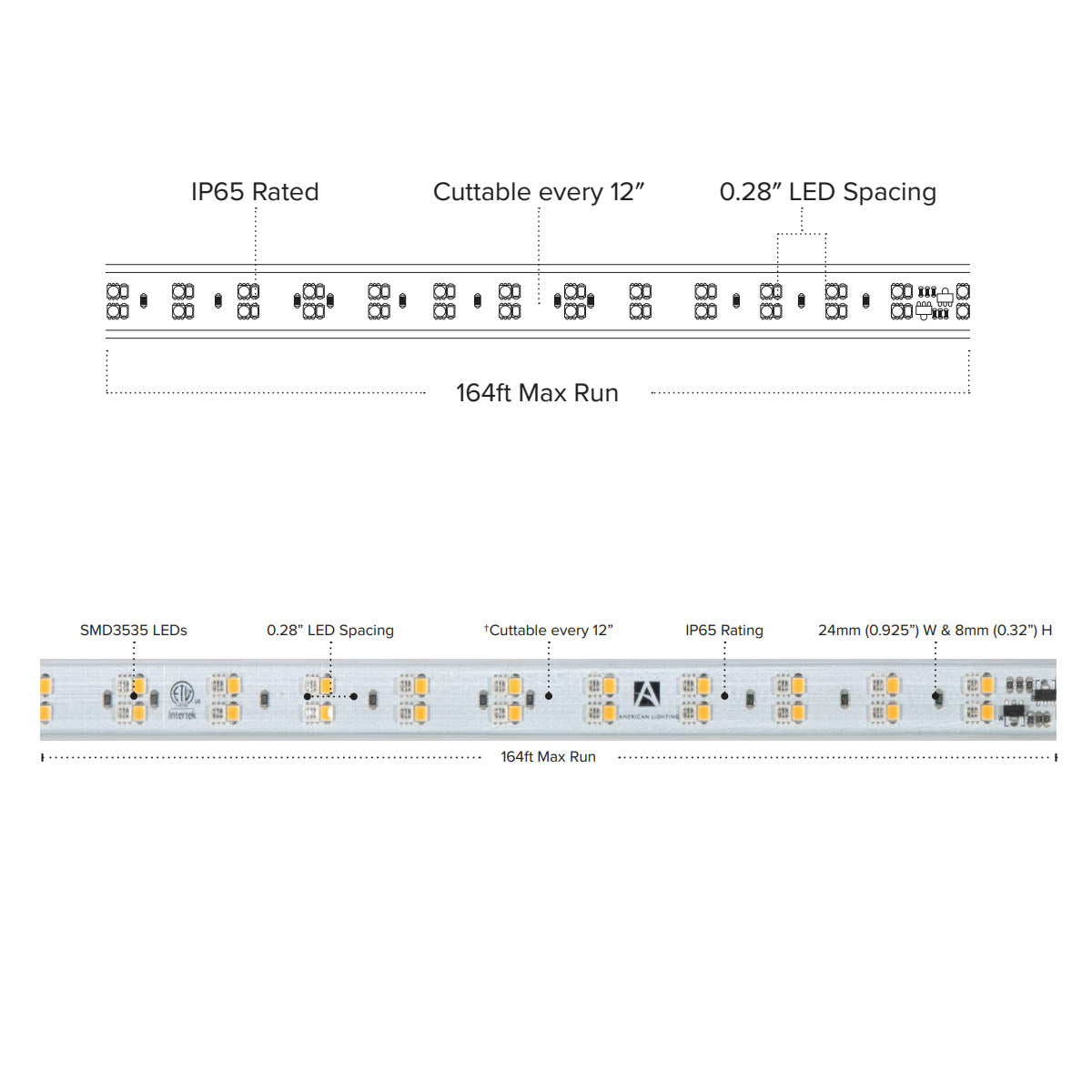

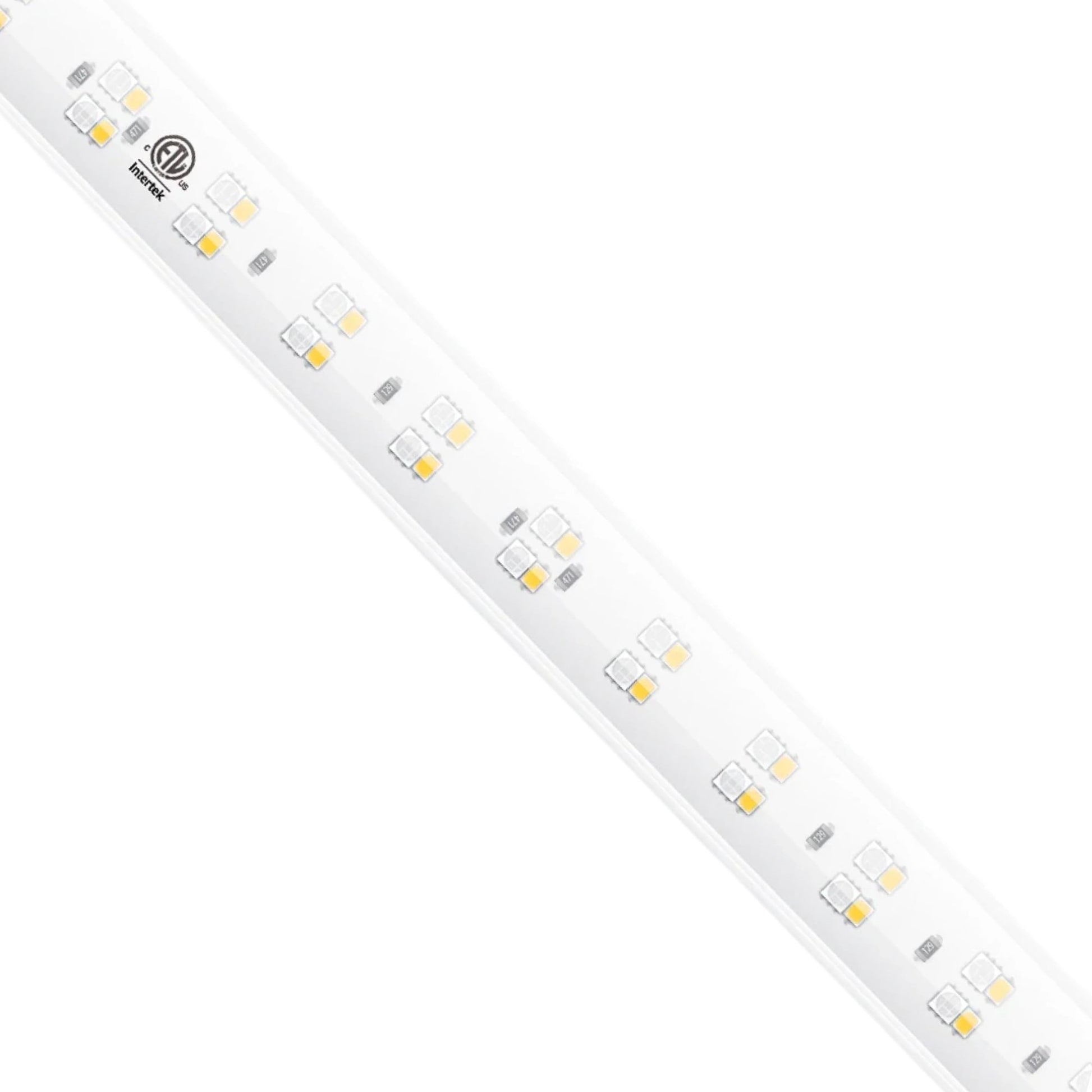

- LED Density: 120 LEDs per meter with a 0.28 inch spacing.
- Max Run Length: Capable of running up to 164 feet, with a recommended maximum of 75 feet per run.

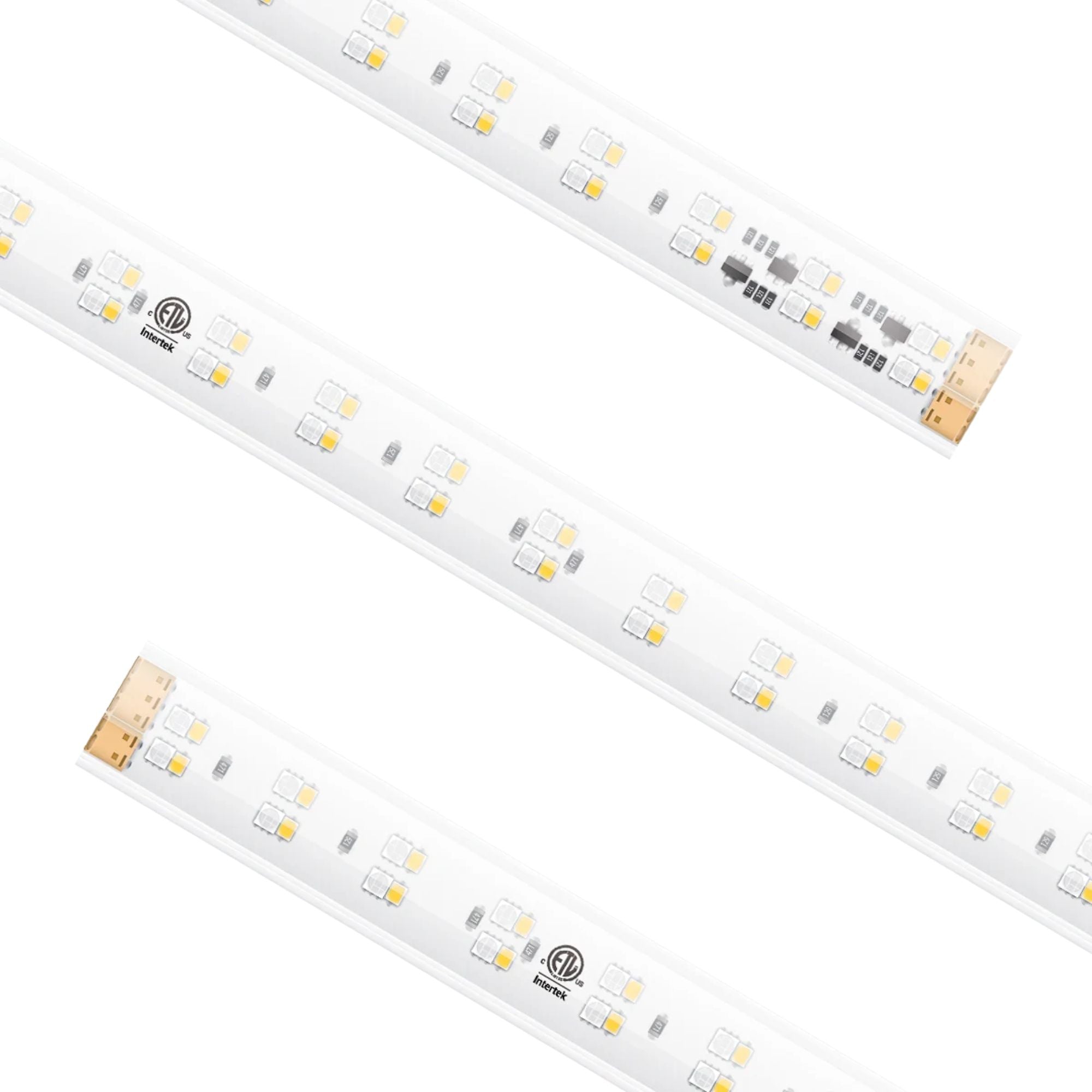

- Cuttable: Can be cut every 12 inches for custom lengths.
- PCB Width: Measures 24mm wide.
- Beam Angle: Not specified.
- IP Rating: IP65 for wet locations.
- Certifications: cETLus Listed (void if cut).

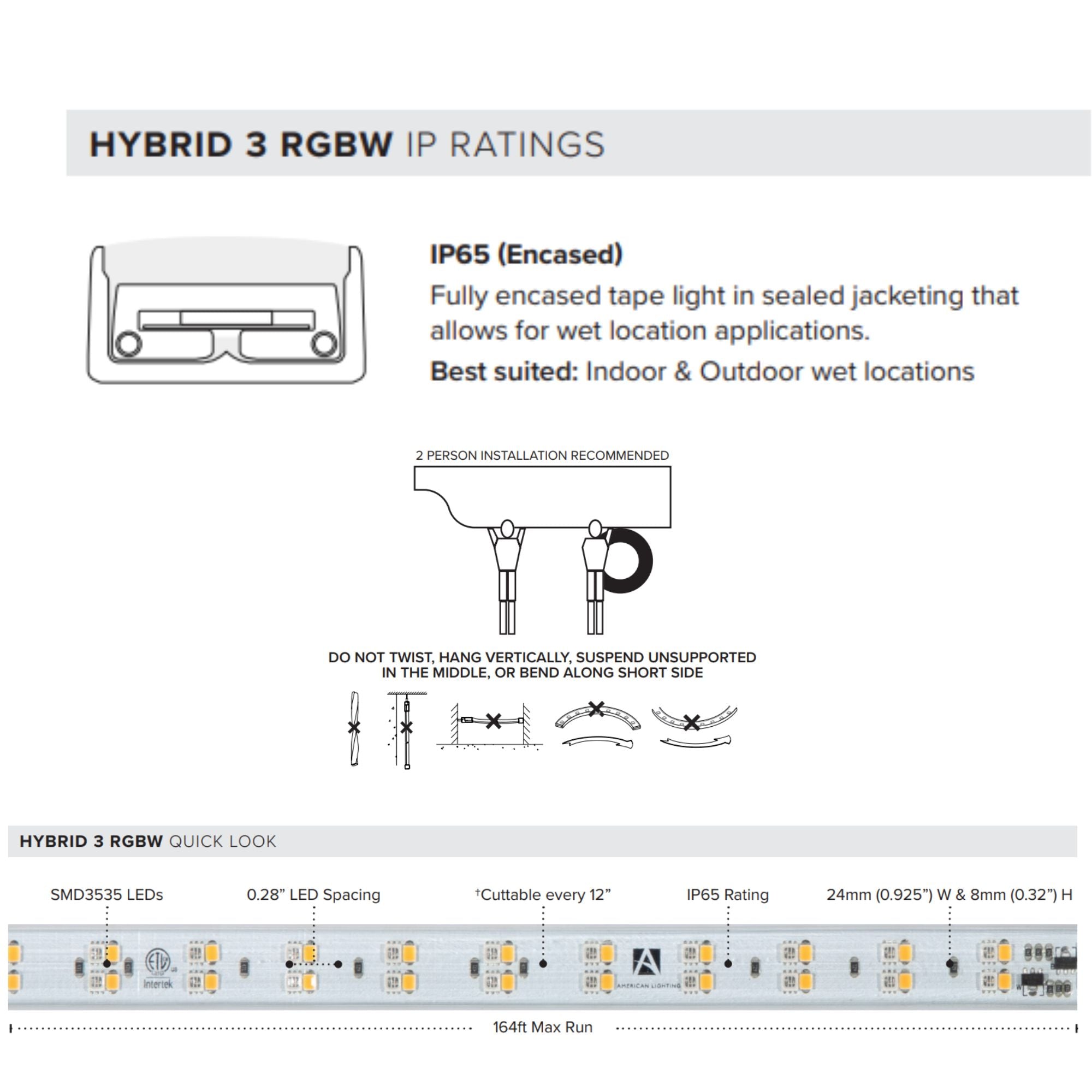

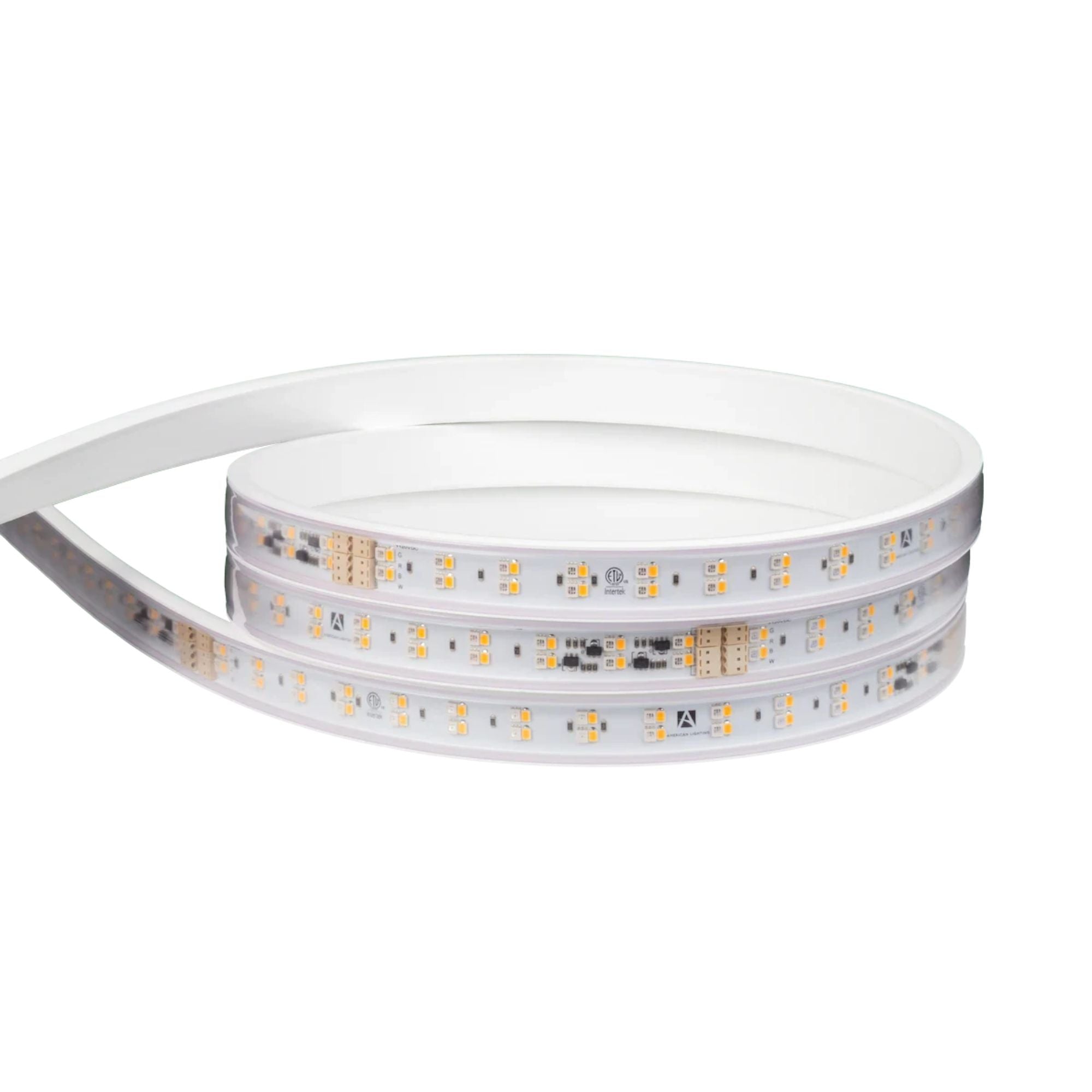

Core Design & Construction

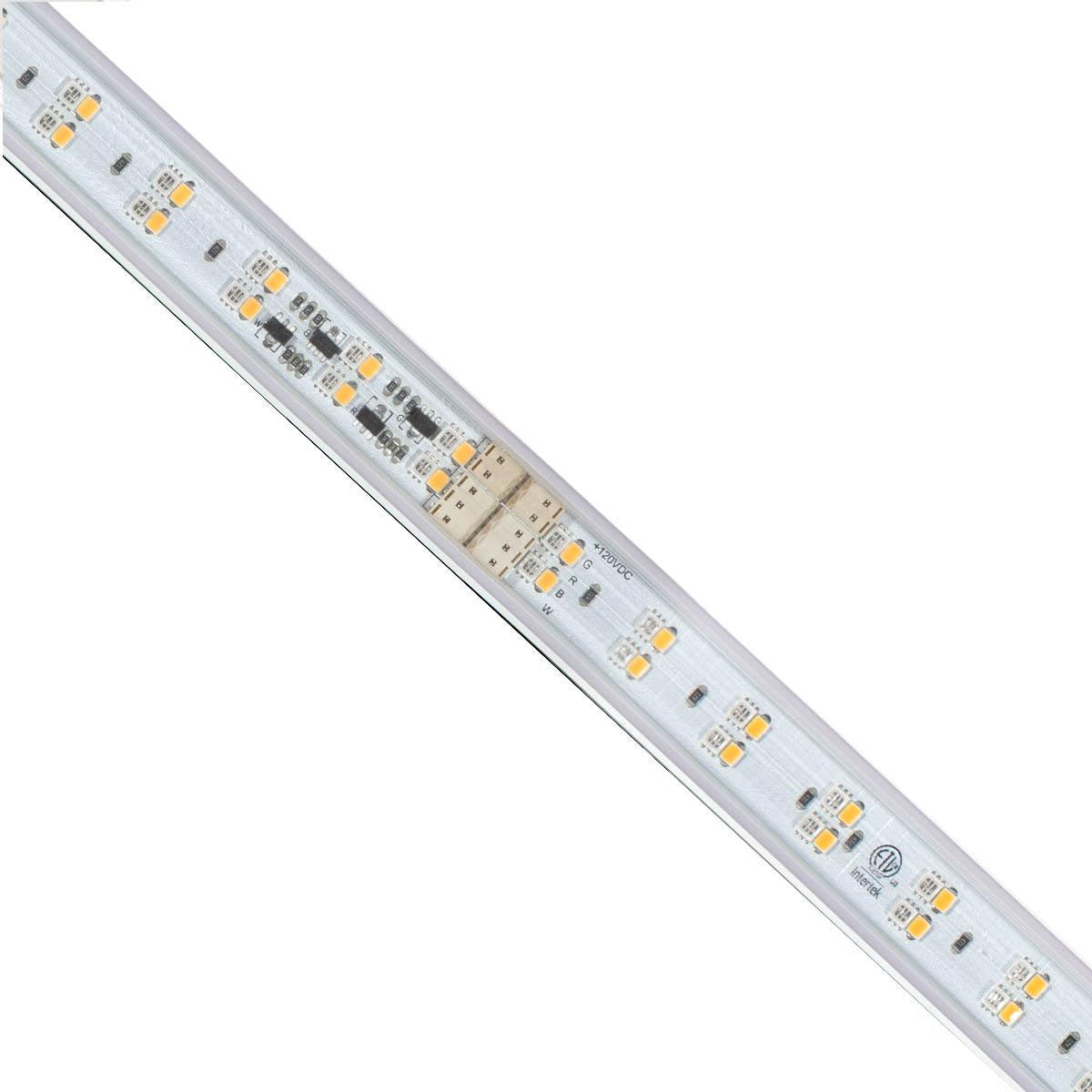

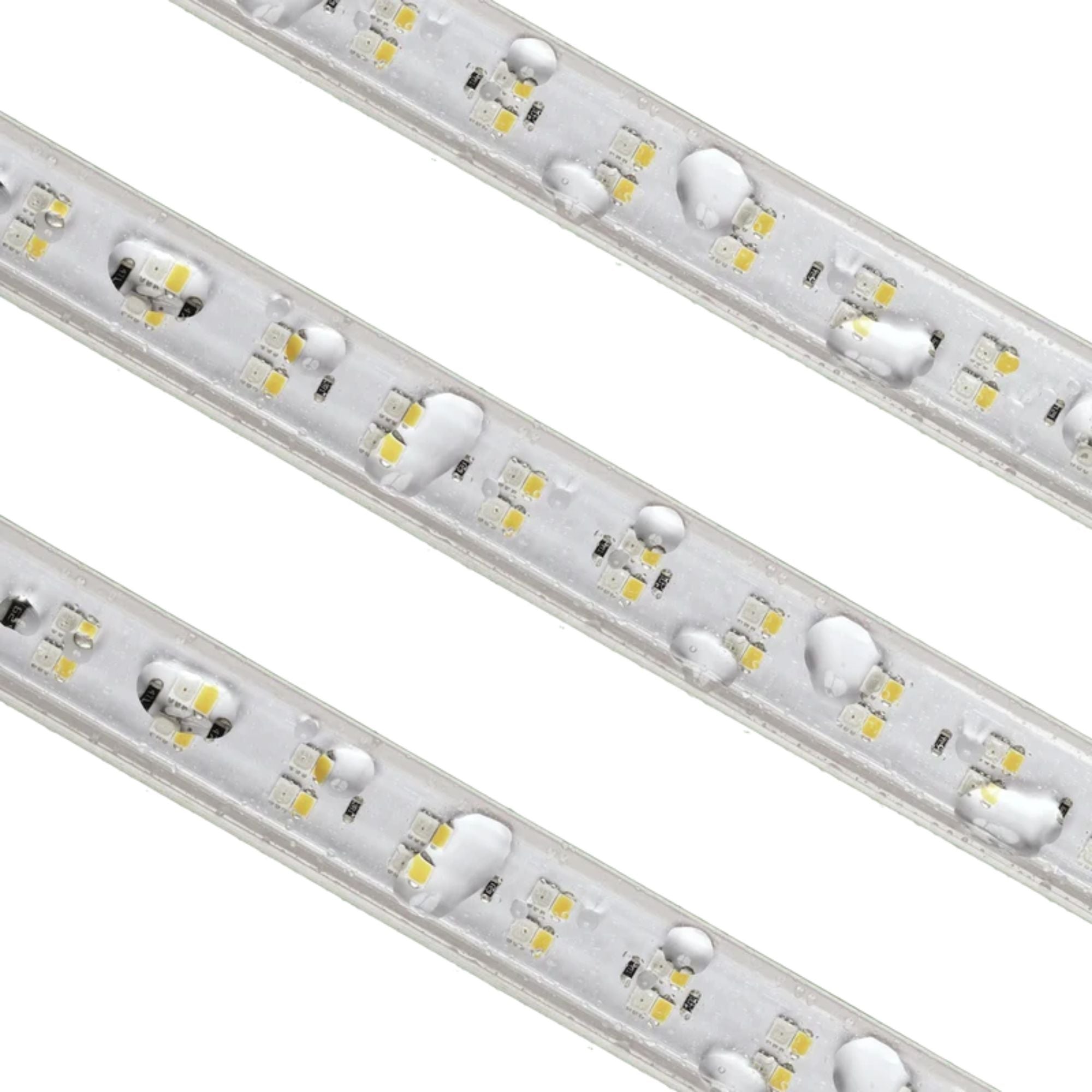

The tape light features a 24mm wide PCB, ensuring compatibility with standard mounting channels. It is encased in a protective IP65-rated jacket, suitable for wet environments, and includes a robust adhesive backing for secure installation.
LED Illumination & Performance

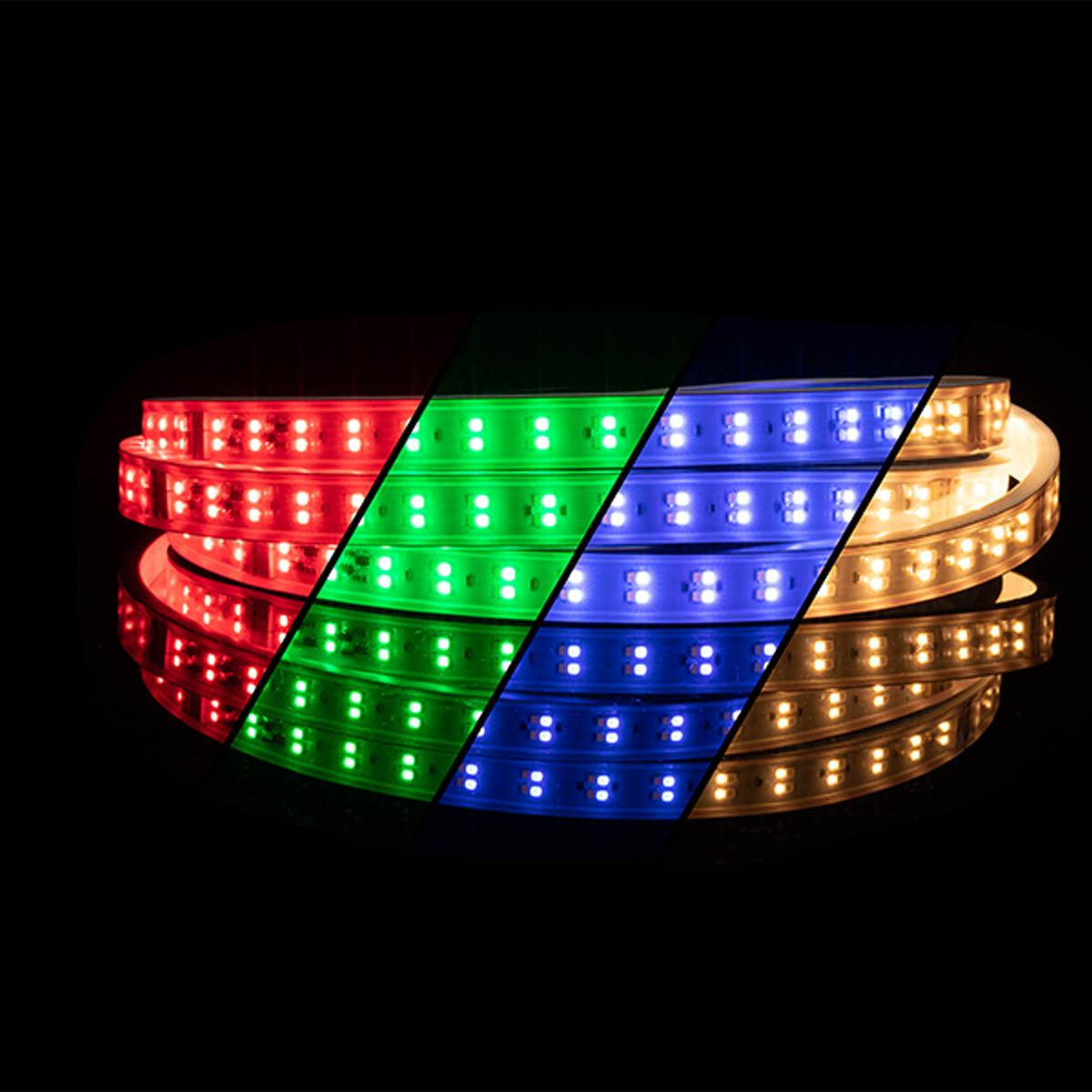

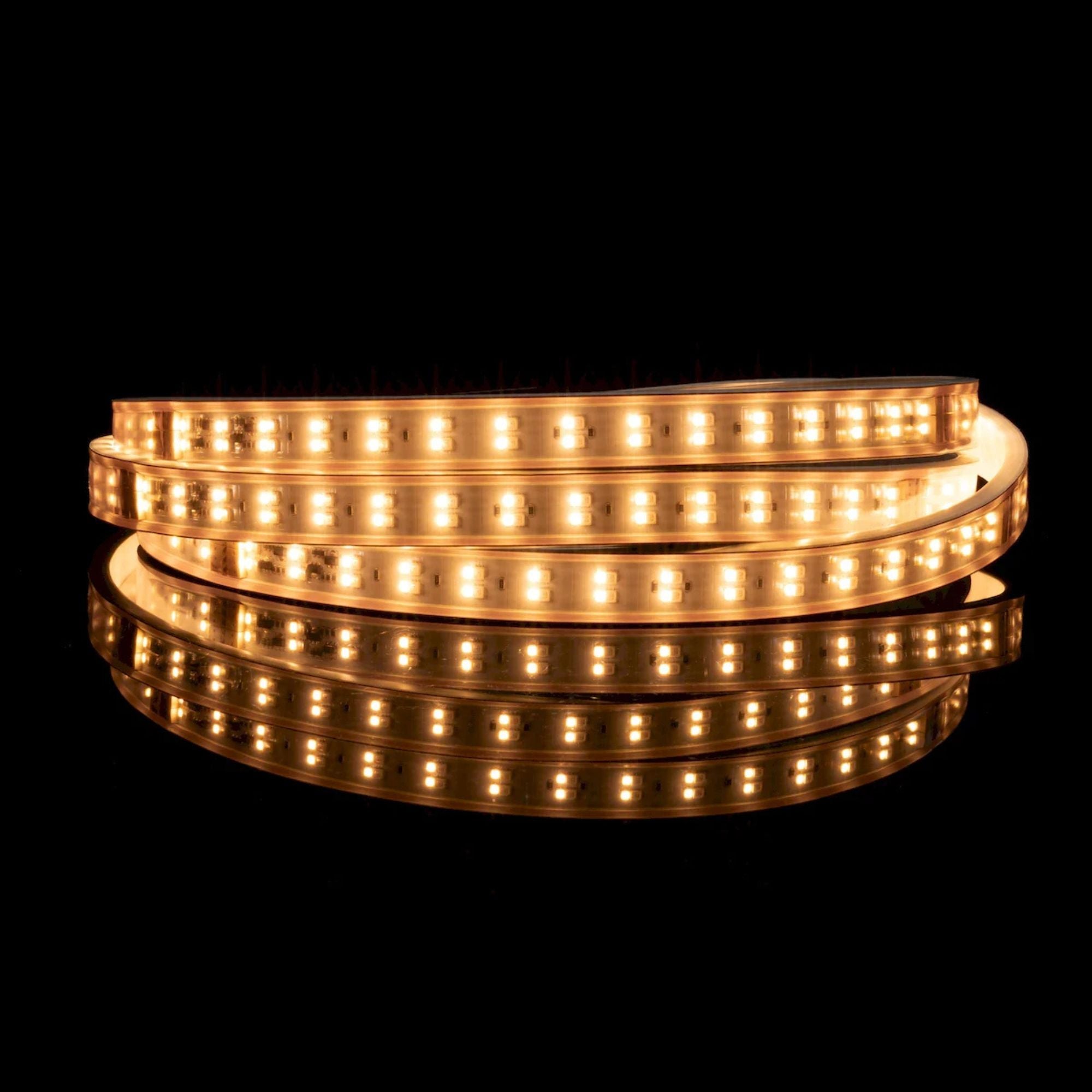

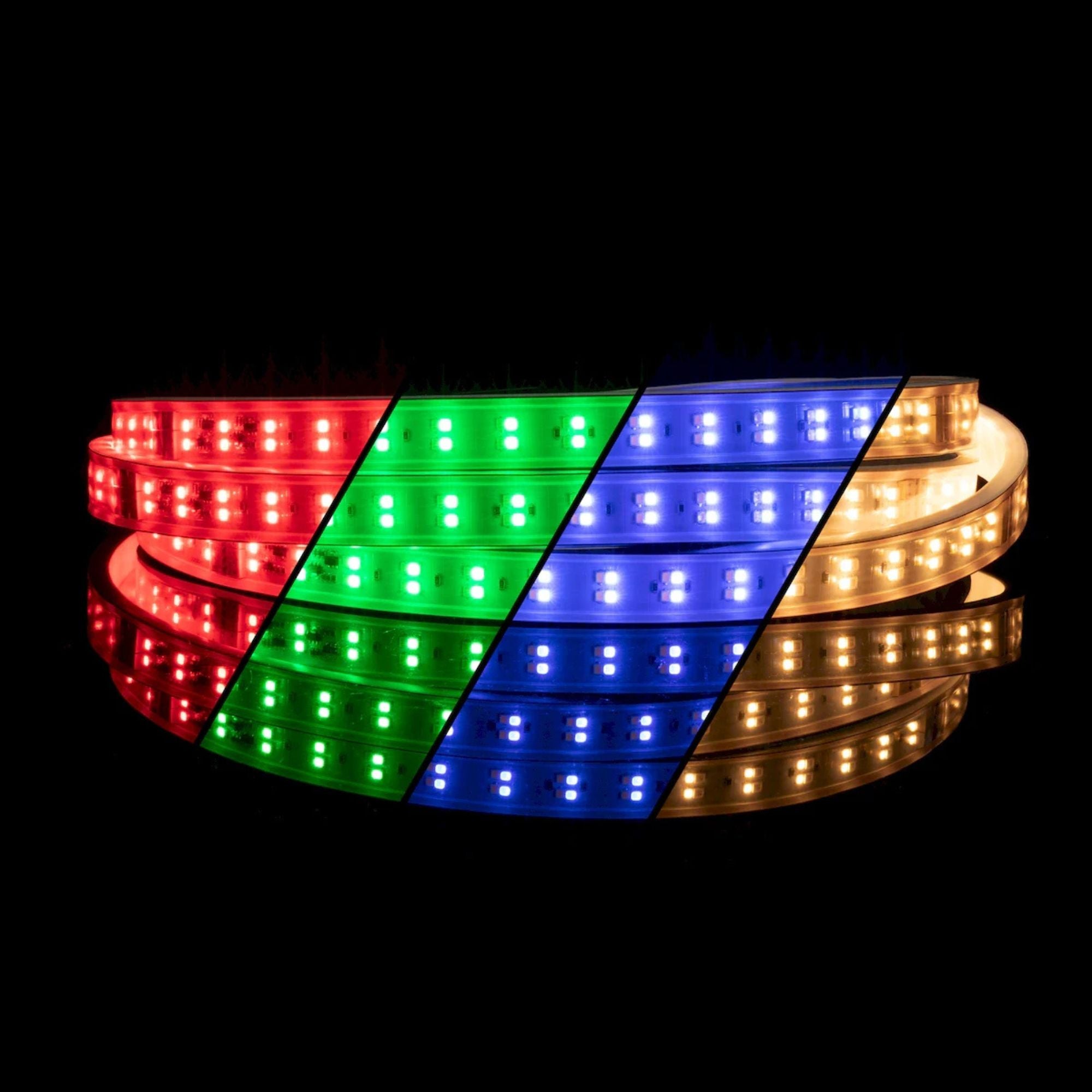

With 130 lumens per foot and a CRI of 90+ at 3000K, this tape light provides excellent color rendering and brightness. The RGBW configuration allows for dynamic color changes and warm white illumination.
Power, Wiring & Installation
This tape light operates directly on 120V, eliminating the need for a driver. It is cuttable every 12 inches and supports a maximum continuous run of 164 feet, though 75 feet is recommended to prevent voltage drop. Dimmable via DMX or RF controls.

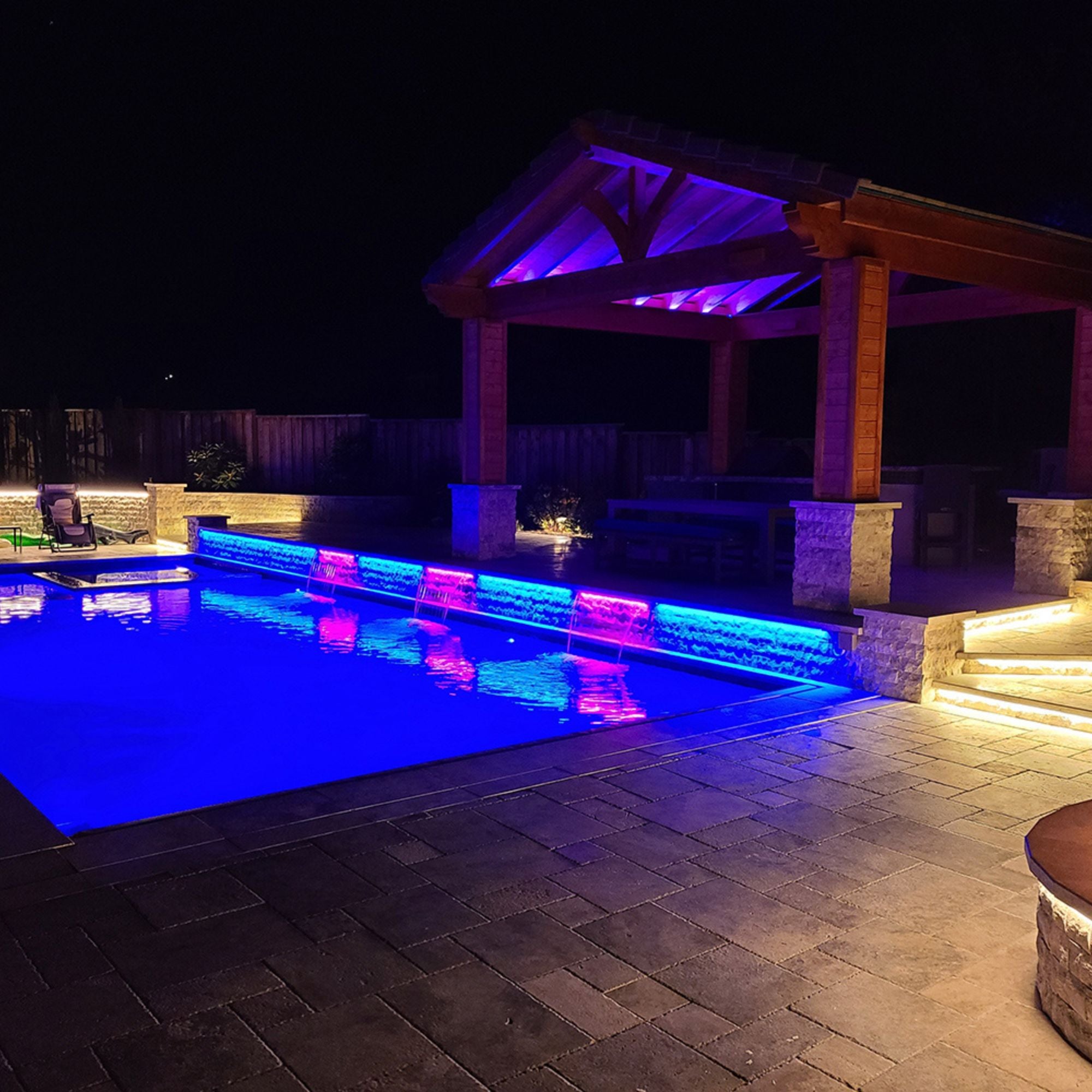

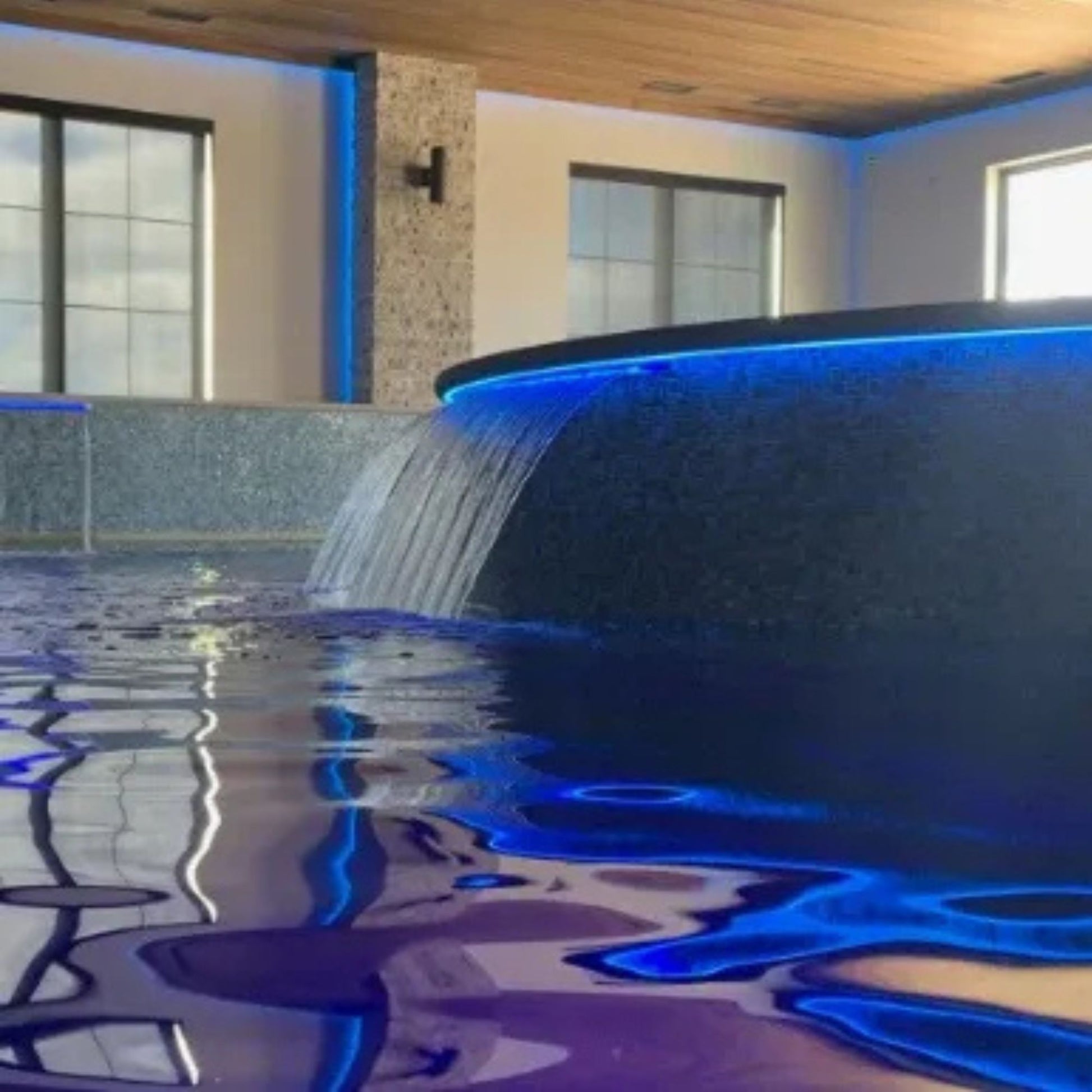

Where This Tape Works Best
- Outdoor pathways and landscapes
- Architectural accent lighting

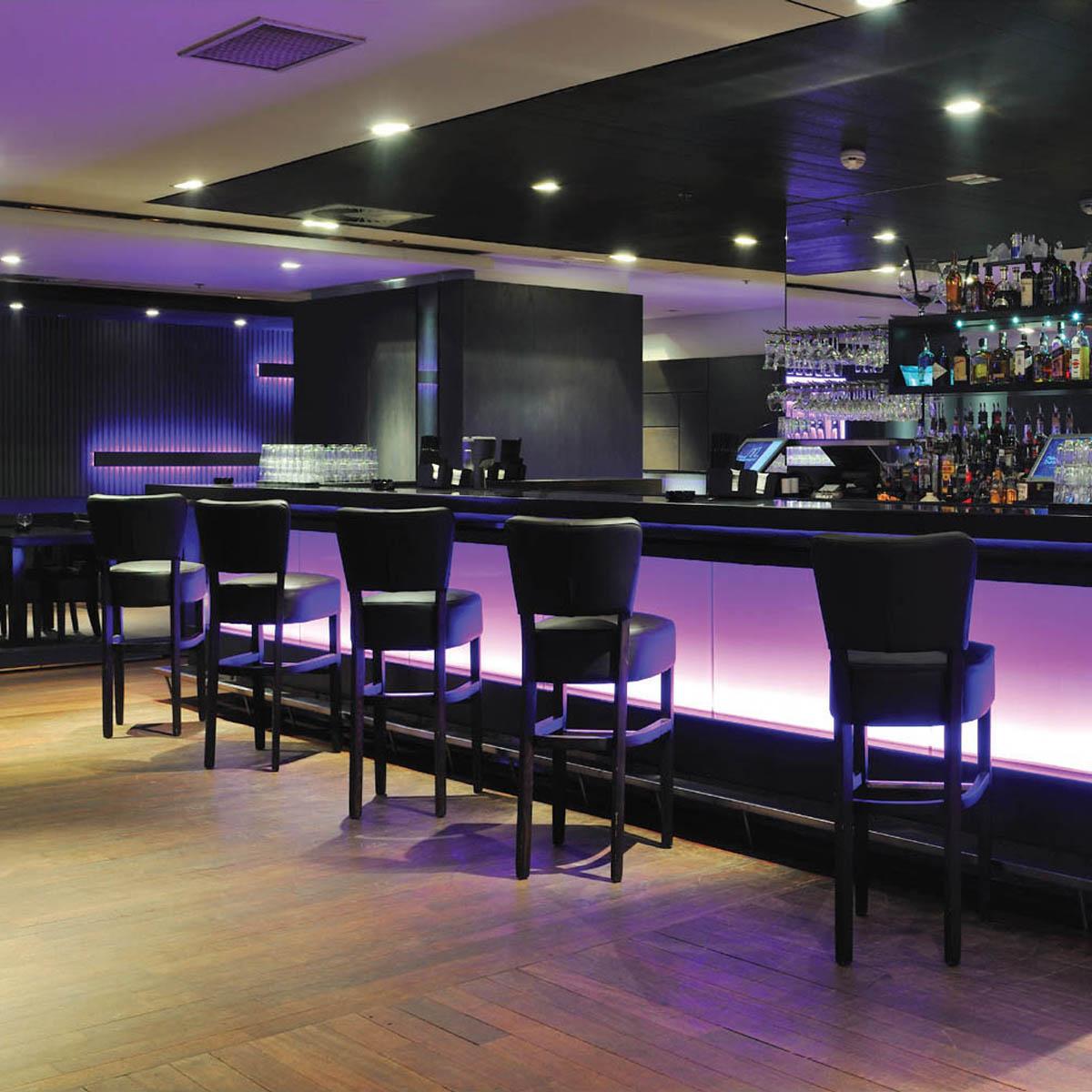

- Hospitality and entertainment venues

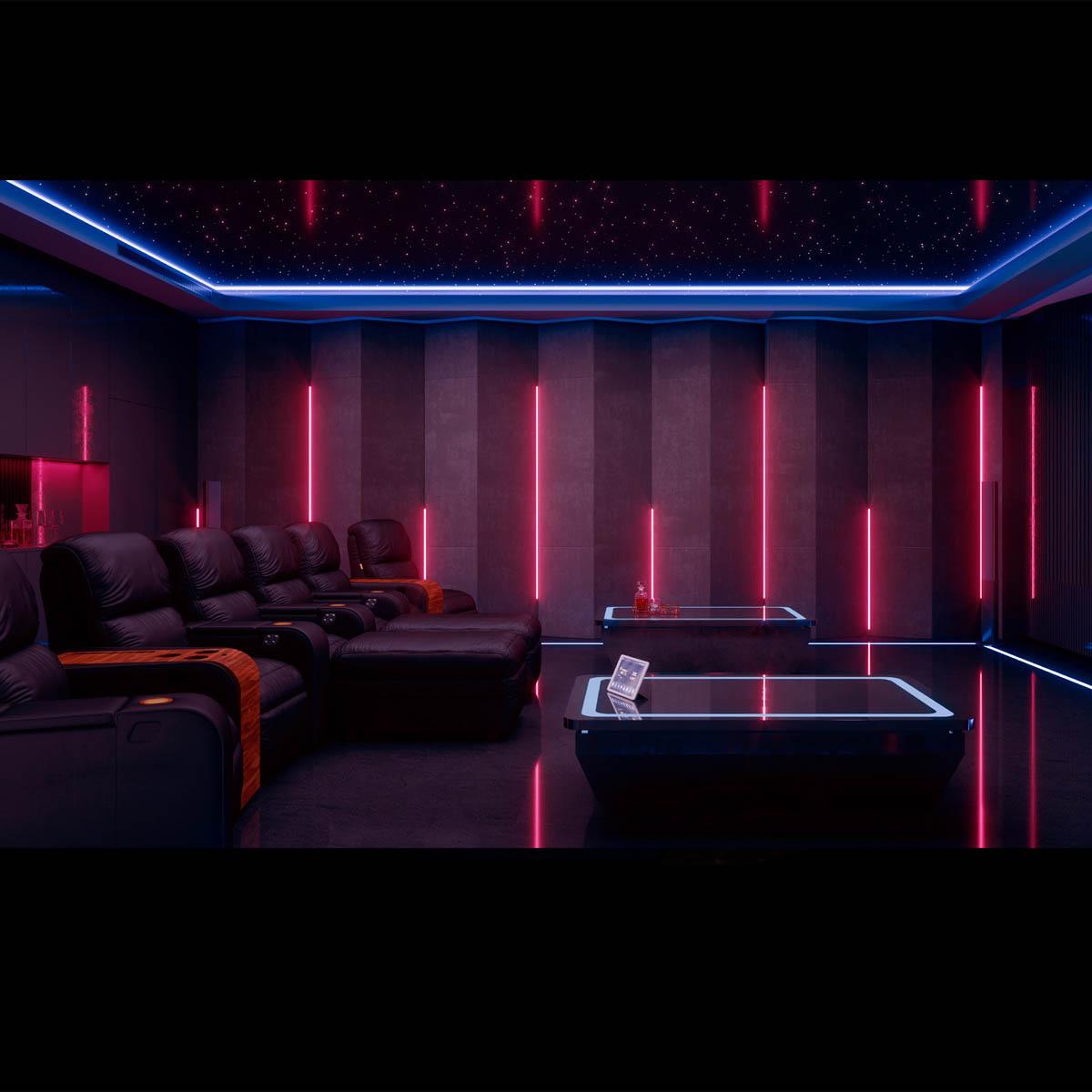

- Home theaters and media rooms
What's Included
- 150ft reel of LED tape light
- 5ft attached power cord with IP65 connection
- Four connection kits
- Fifty clear plastic mounting clips with screws
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
