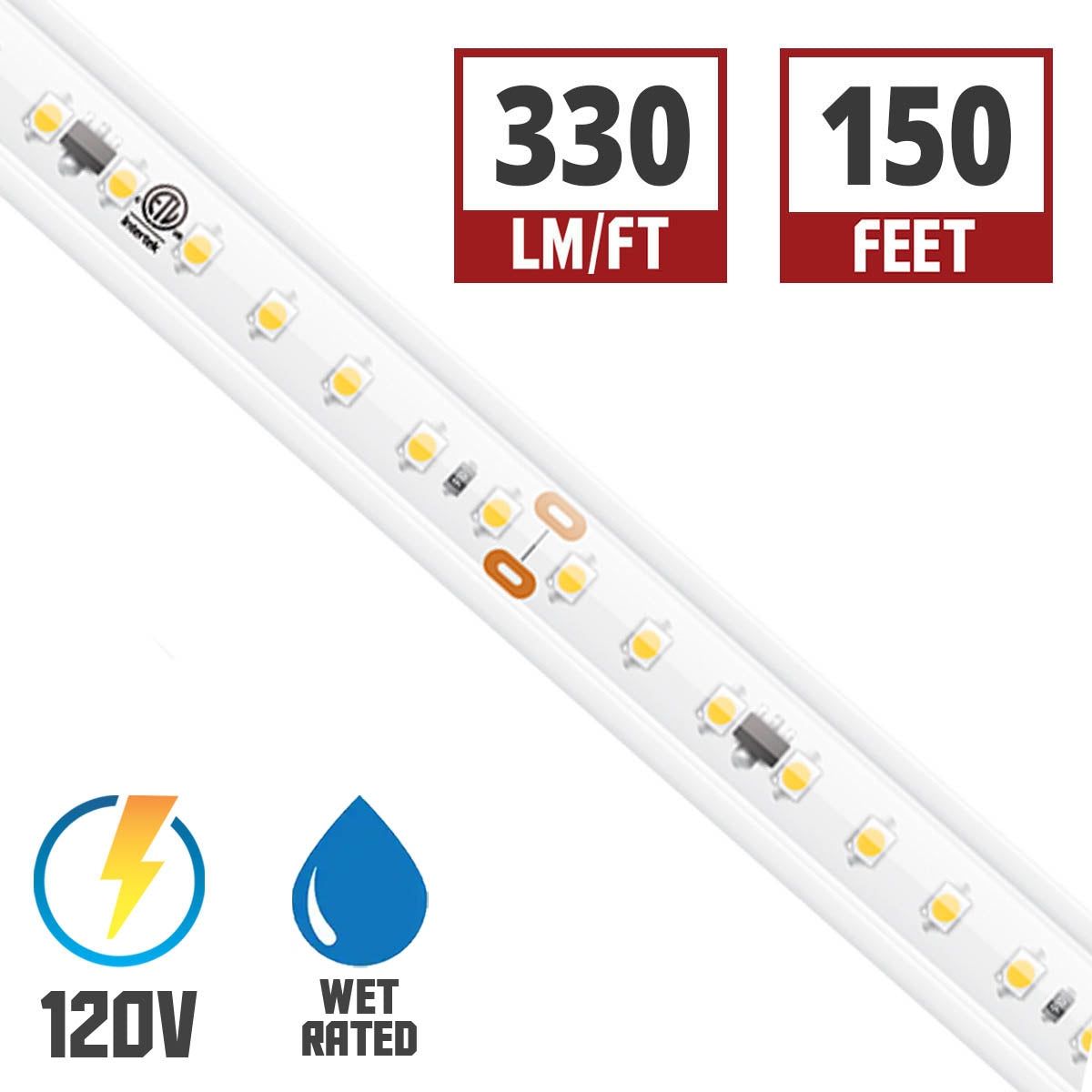

American Lighting Hybrid 3, 150ft, LED Tape Light, IP65, 5000K, 330 Lumens/ft, 120V
Made to Order
About this item
About this item
- Voltage: Operates at 120V AC for direct connection without a driver.
- Color Temperature: Provides a crisp 5000K daylight illumination.
- Max Run: Supports up to 164ft, with a recommended maximum of 75ft per run.
- Cut Increments: Field cuttable every 4 inches for custom lengths.
- IP Rating: IP65 rated for wet locations, suitable for outdoor use.
We process payments securely and do not store credit card information.
Description
Description

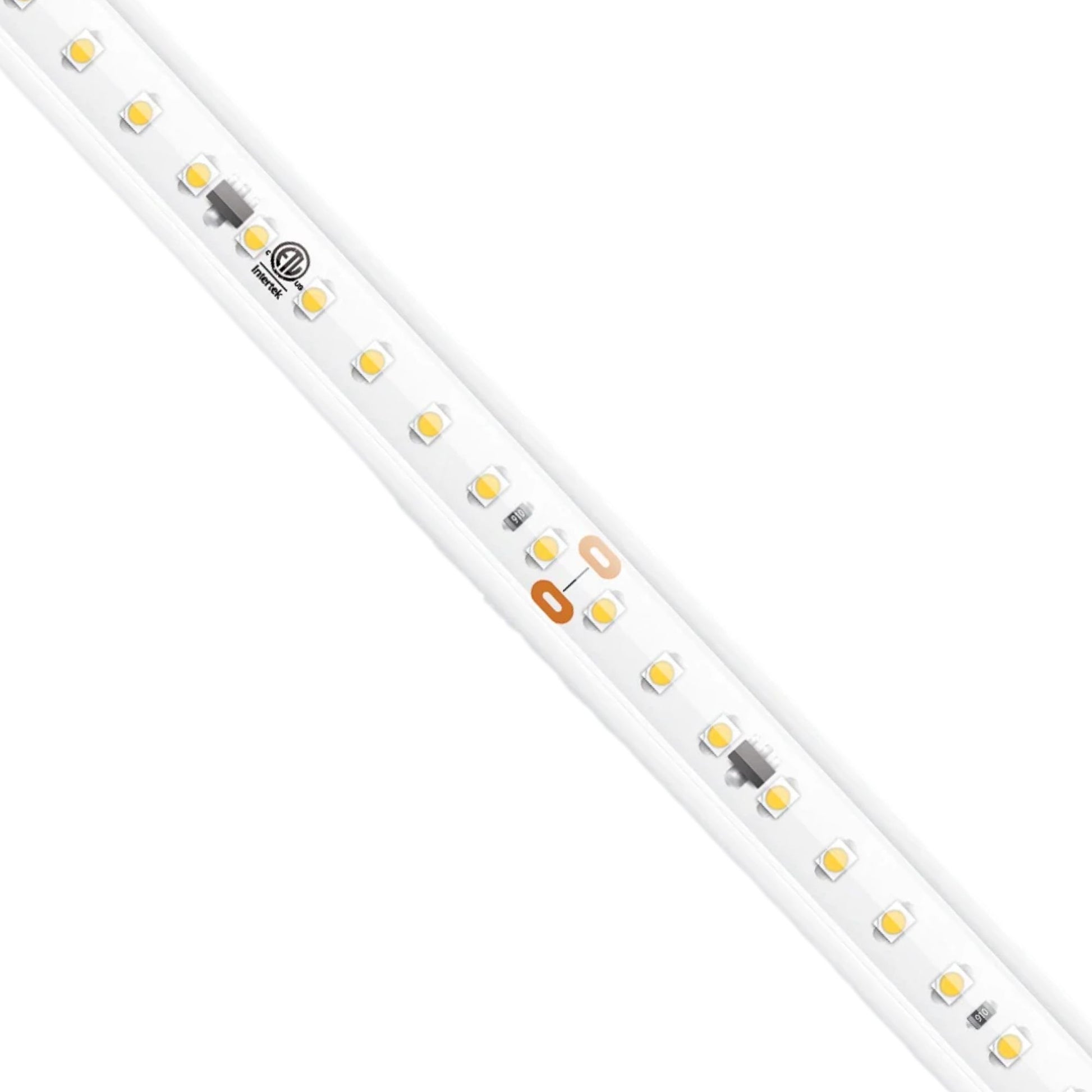

American Lighting Hybrid 3 LED Tape Light — 5000K & Wet Rated
The American Lighting 120-H3-50 is a 150ft LED tape light designed for both indoor and outdoor applications. This tape light operates at 120V AC and features an IP65 rating, making it ideal for wet locations. With a color temperature of 5000K, it delivers up to 330 lumens per foot, ensuring bright and efficient lighting.
Key Features
- Voltage: 120V AC operation eliminates the need for additional drivers.
- Wattage: Consumes 4W per foot for energy efficiency.
- Lumens: Offers up to 330 lumens per foot for bright illumination.

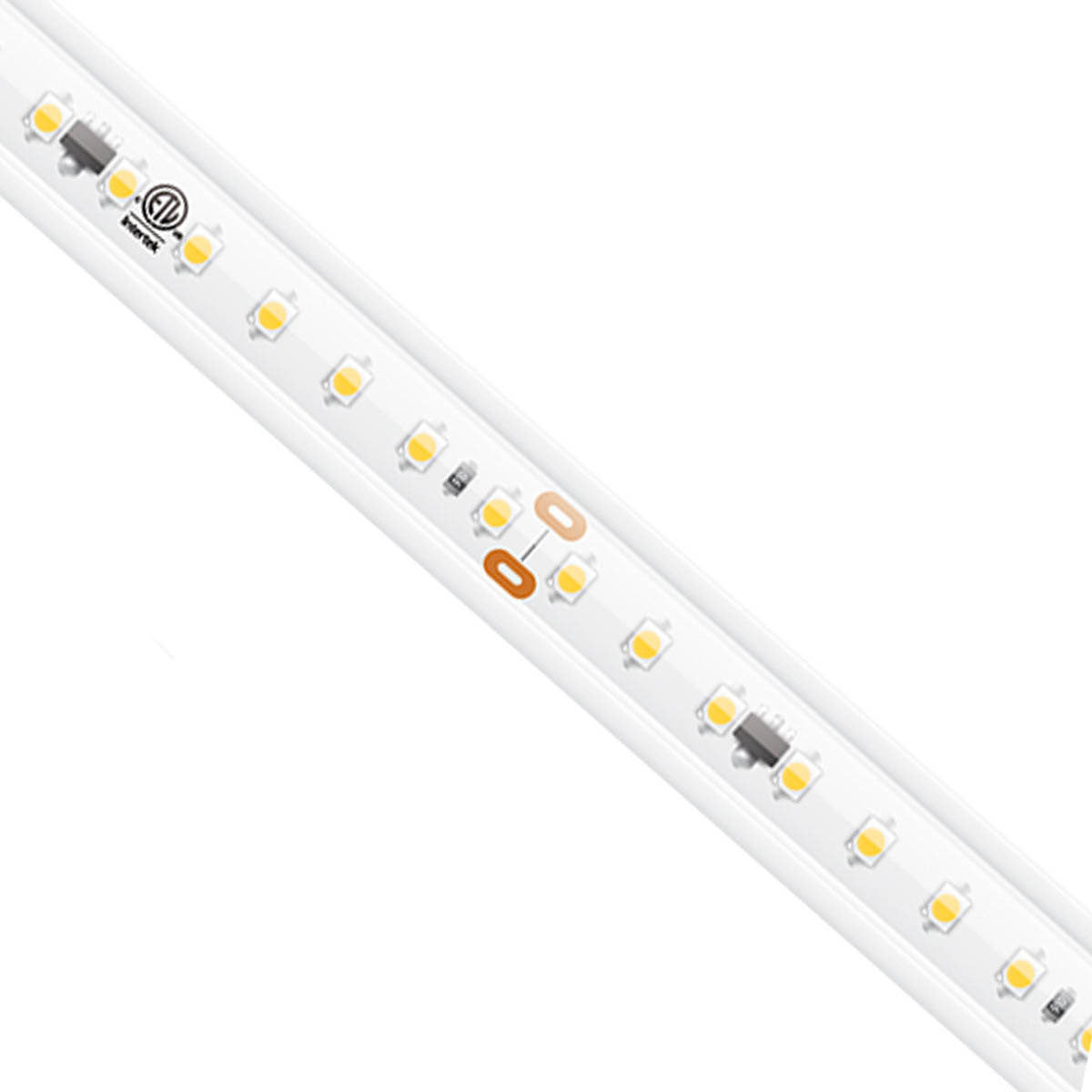

- LED Pitch: 20 LEDs per foot for consistent light distribution.

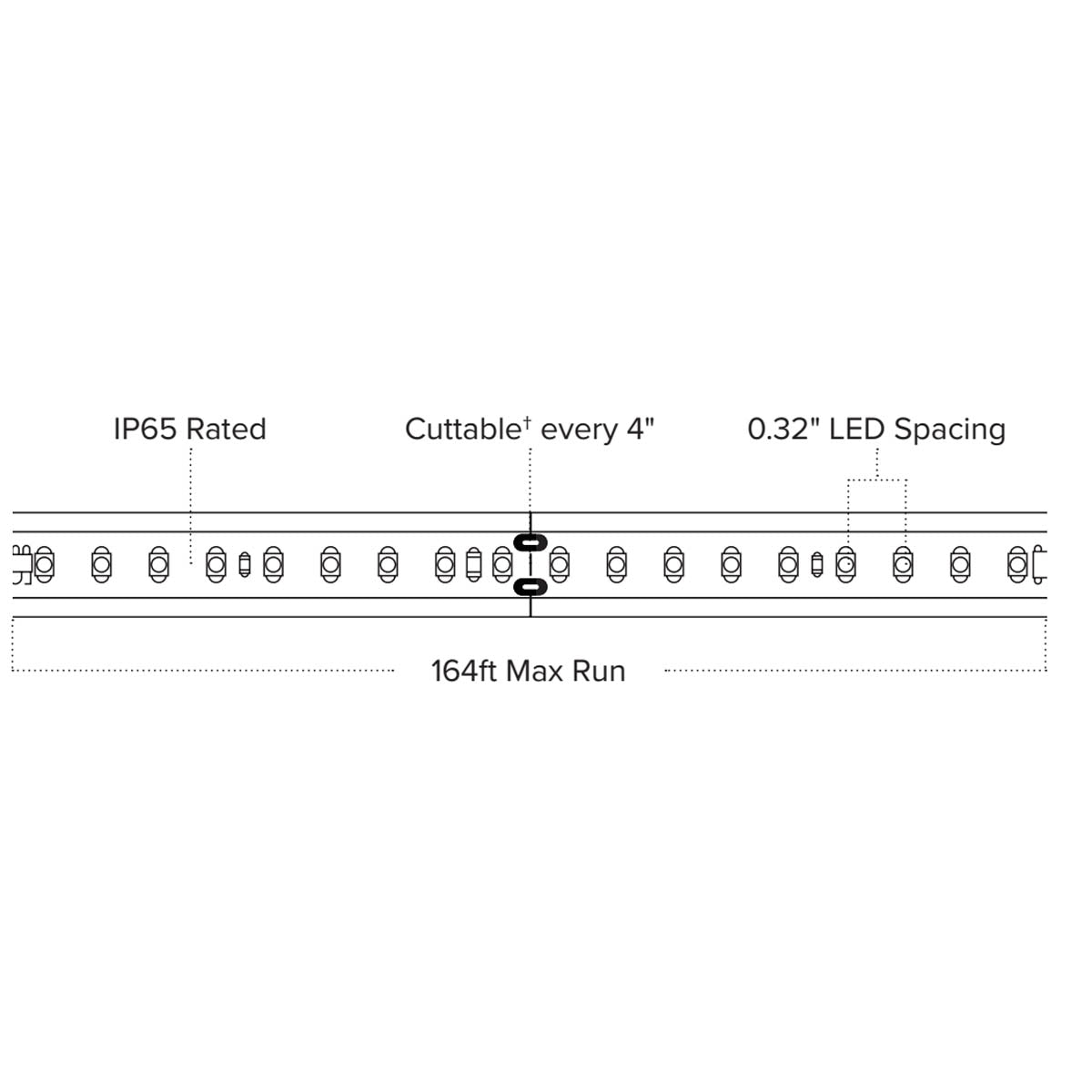

- Max Run: Capable of running up to 164ft, with a recommended maximum of 75ft per single run.
- Cuttable: Can be cut every 4 inches for custom installations.
- PCB Width: 15mm width for compatibility with standard channels.
- Beam Angle: Provides a wide beam angle for even light spread.
- IP Rating: IP65 rated for wet locations, suitable for outdoor use.
- Certifications: cETLus Listed, ensuring safety and quality.
Core Design & Construction
The Hybrid 3 tape light features a 15mm wide PCB, making it compatible with most aluminum channels. It is encased in a flexible PVC housing, providing protection against UV and salt spray, and includes a strong adhesive backing for secure mounting.
LED Illumination & Performance
With a high CRI of 90+, this tape light ensures accurate color rendering. The 5000K color temperature provides a bright, daylight-like illumination, ideal for task lighting and accent applications.
Power, Wiring & Installation
This tape light operates directly on 120V AC, eliminating the need for a separate driver. It is field cuttable every 4 inches, allowing for precise customization. The maximum recommended run is 75ft to prevent voltage drop, and it is dimmable with most CL and ELV dimmers.
Where This Tape Works Best

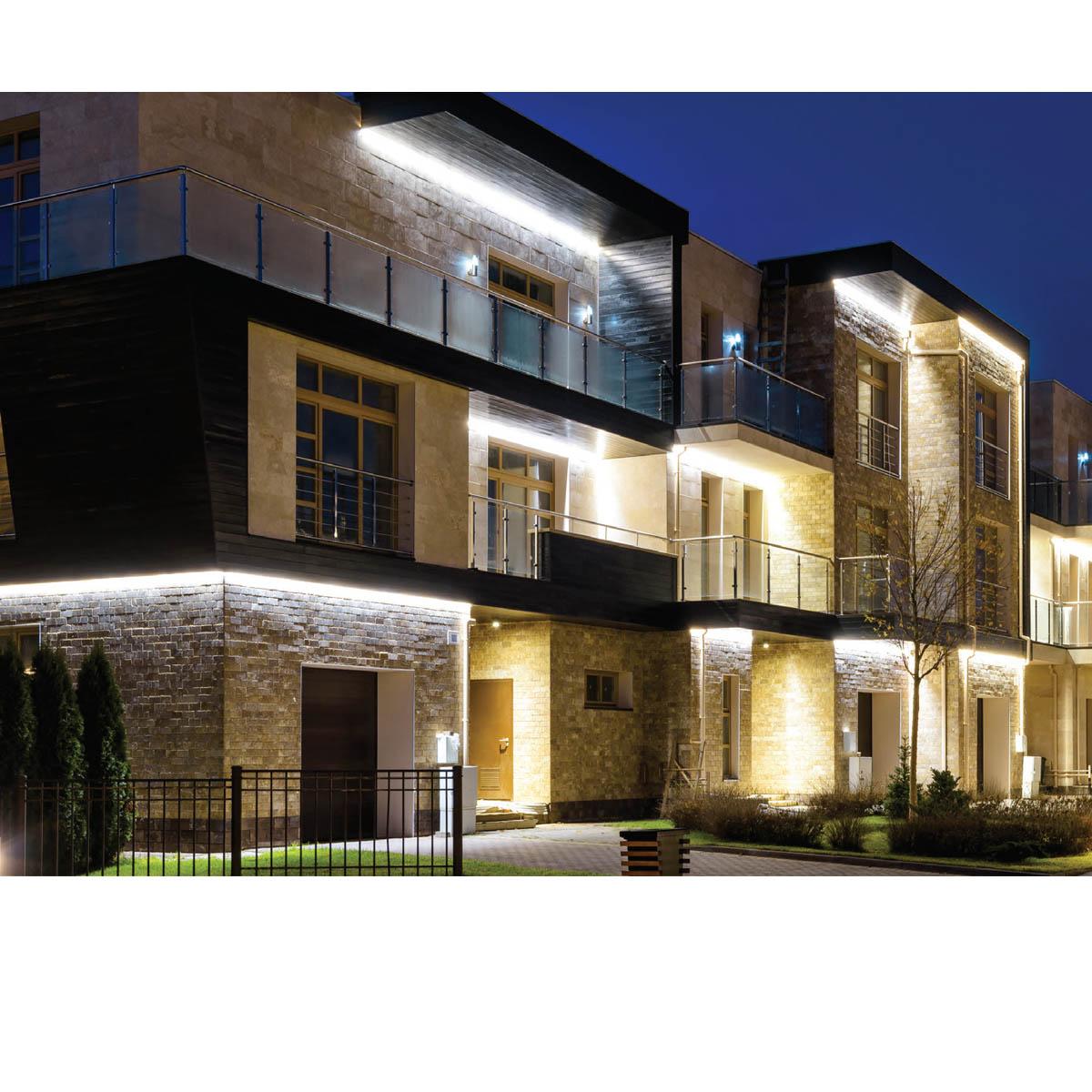

- Outdoor pathways and landscapes

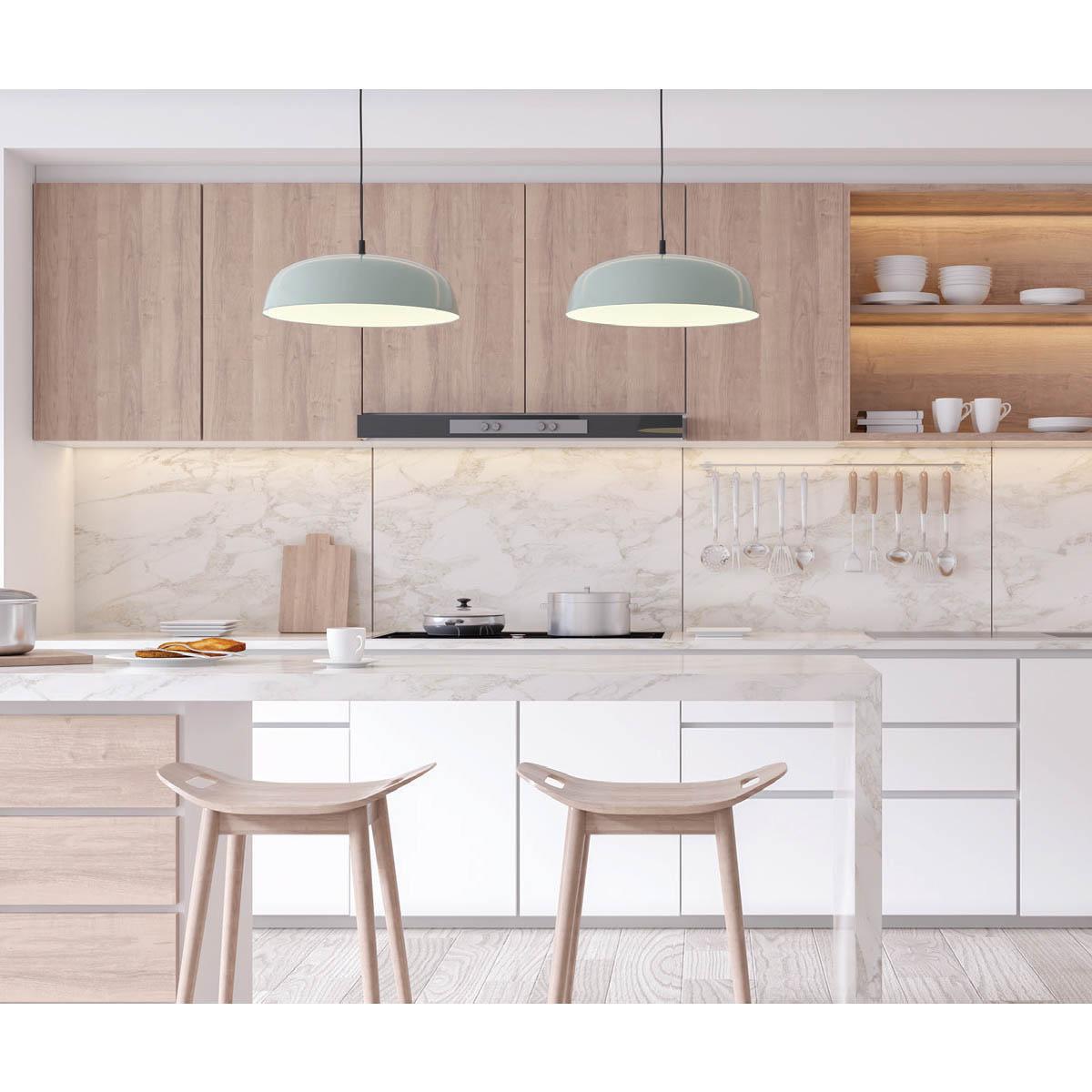

- Under cabinet lighting

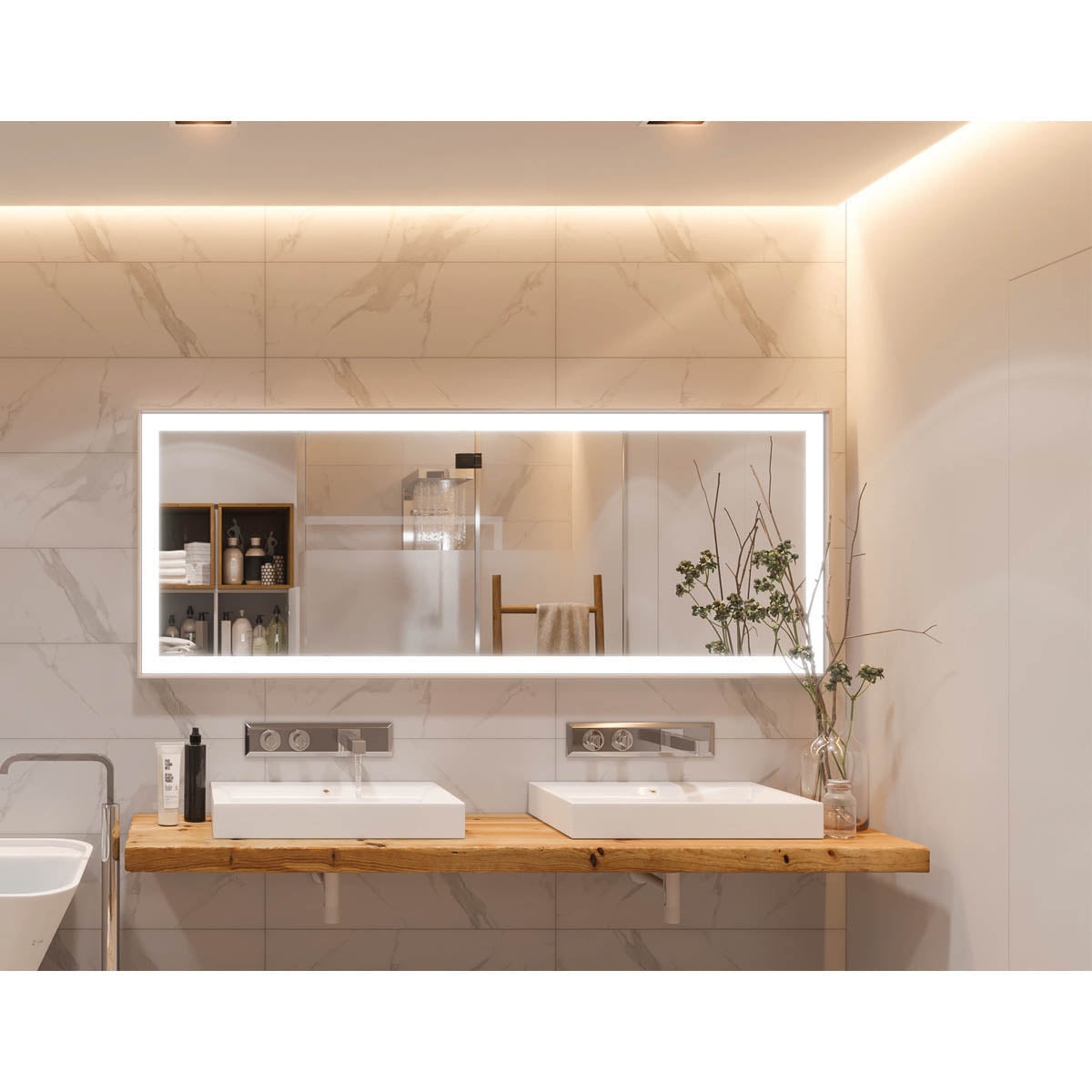

- Cove lighting
- Accent lighting in wet locations
What's Included

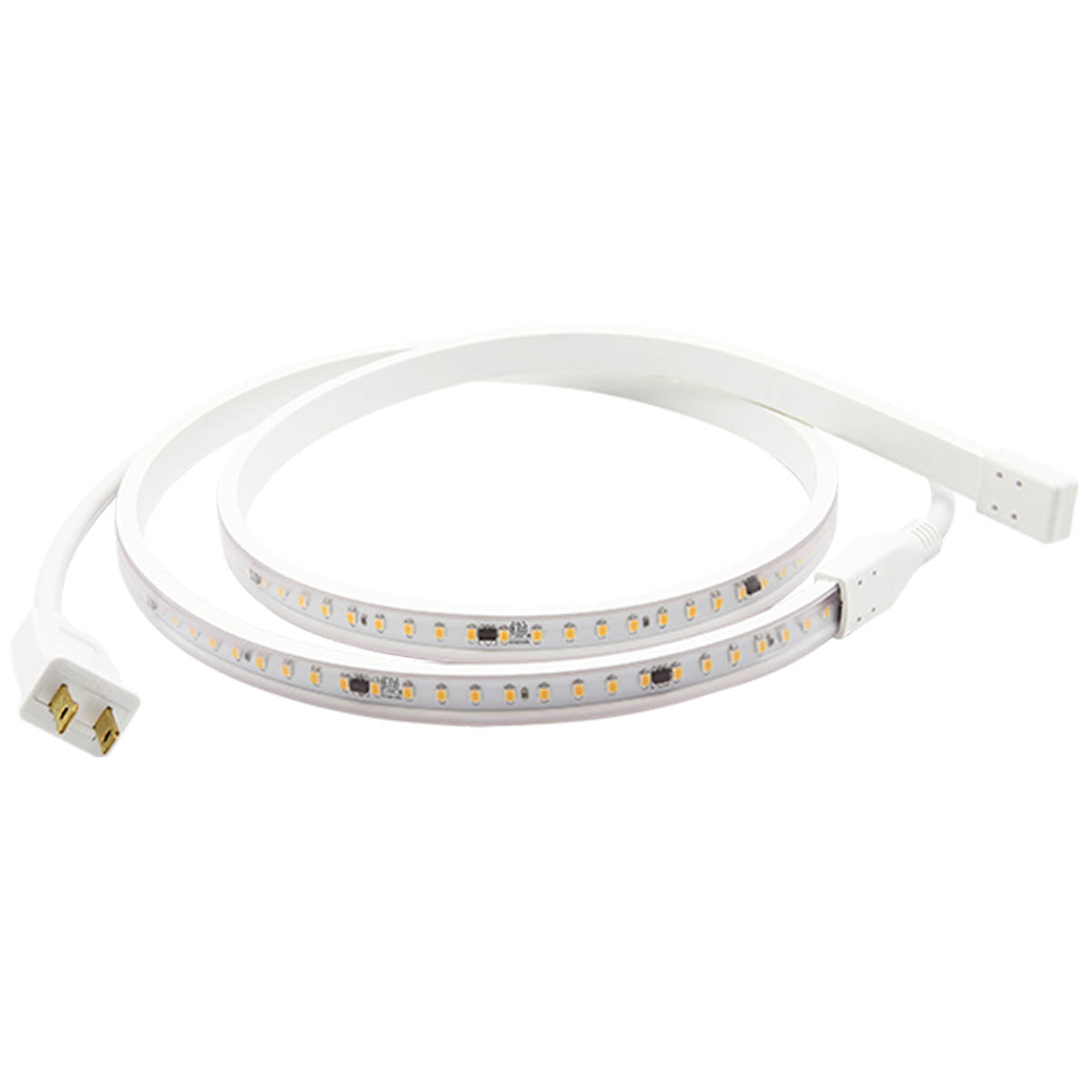

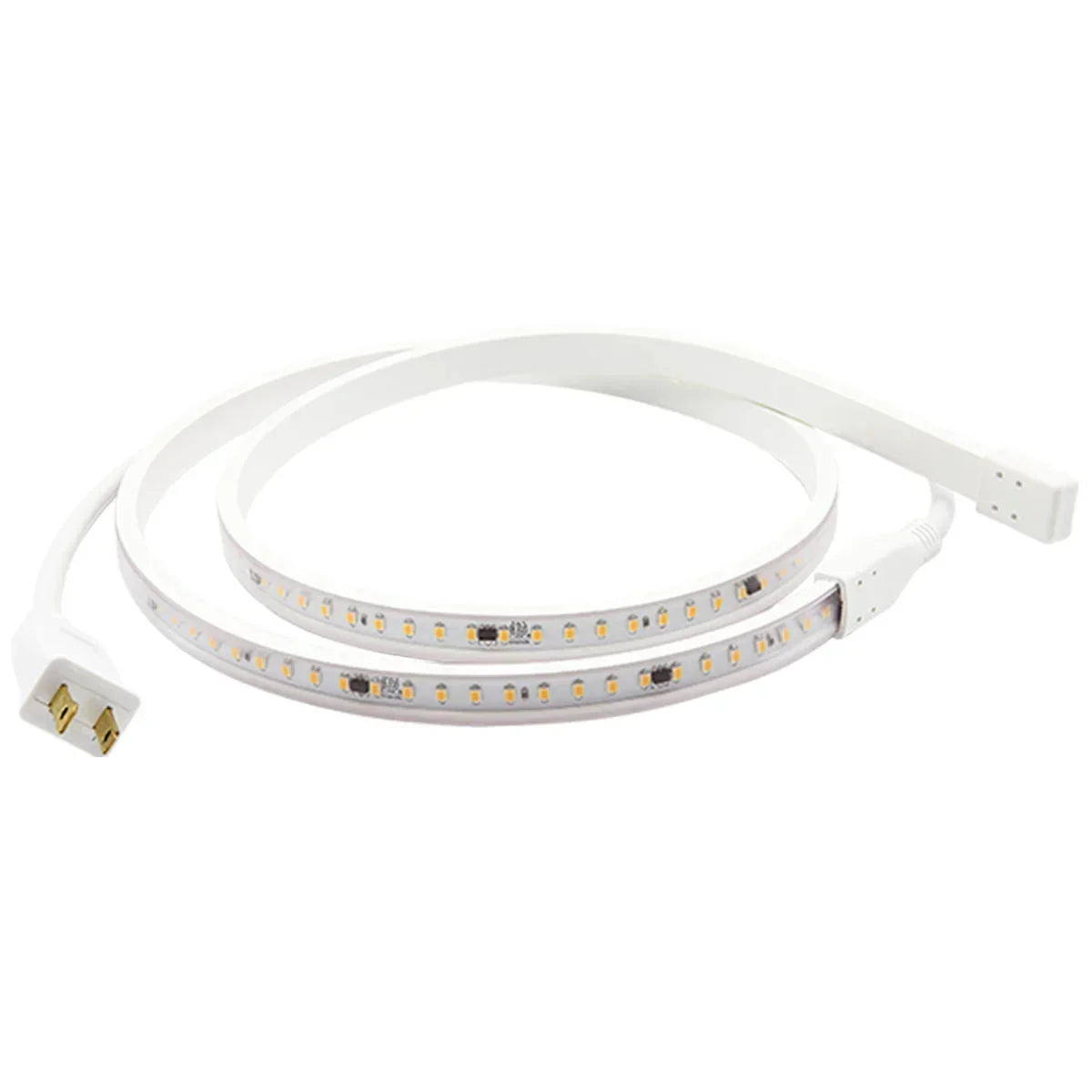

- 150ft reel of Hybrid 3 tape light
- 5ft attached power cord
- 4 power connection kits
- 50 clear plastic mounting clips with screws
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the Hybrid 3 tape light?
What is the maximum run length for the Hybrid 3 tape light?
Can the Hybrid 3 tape light be cut to custom lengths?
Can the Hybrid 3 tape light be cut to custom lengths?
What voltage does the Hybrid 3 tape light operate on?
What voltage does the Hybrid 3 tape light operate on?
Is the Hybrid 3 tape light suitable for outdoor use?
Is the Hybrid 3 tape light suitable for outdoor use?
What type of dimmers are compatible with the Hybrid 3 tape light?
What type of dimmers are compatible with the Hybrid 3 tape light?
