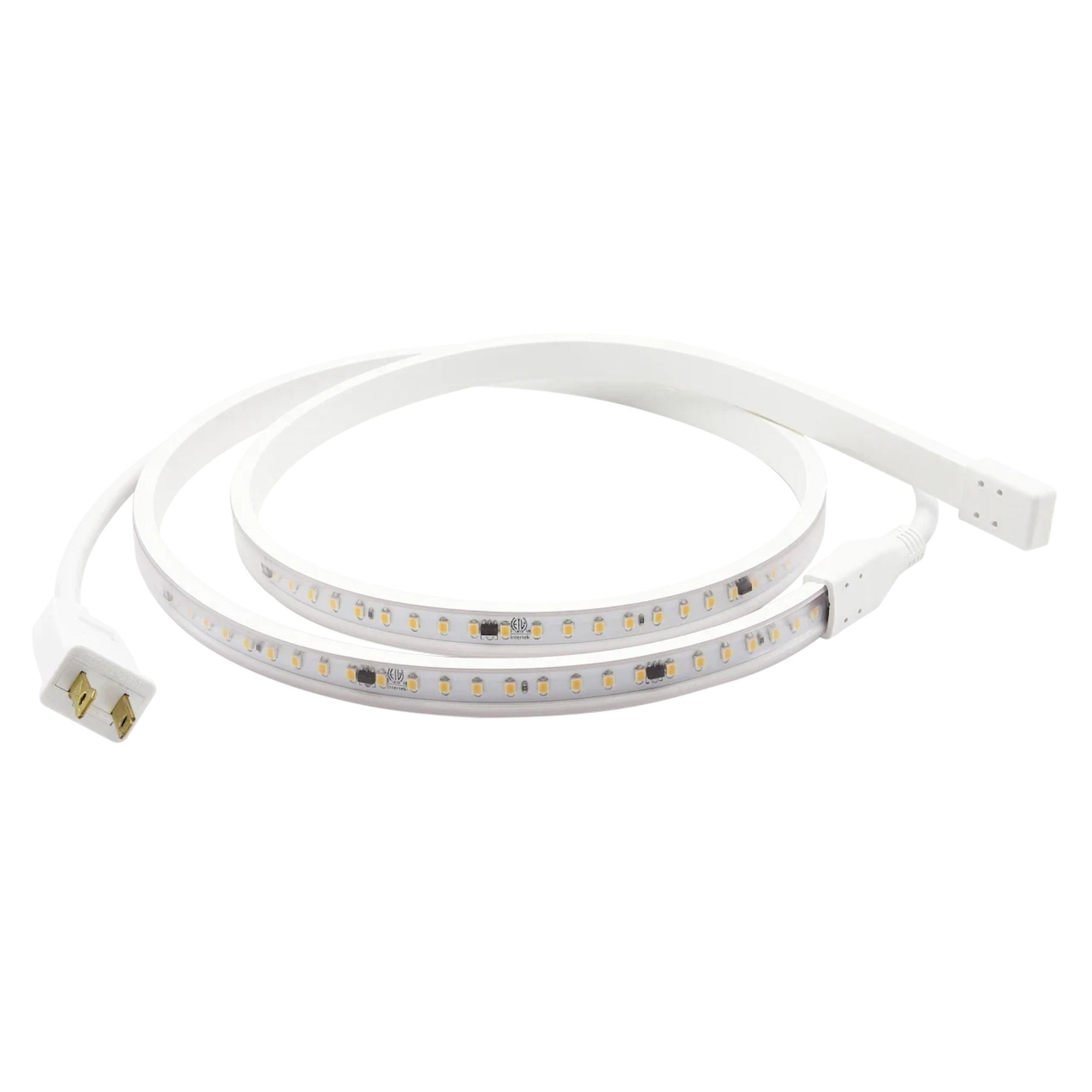

American Lighting Hybrid 3, 150ft, LED Tape Light, IP65, 3000K, 315 Lumens/ft, 120V
Available in stock (633)
About this item
About this item
- Voltage: Operates at 120V AC for easy installation without a driver.
- Color Temperature: Provides a warm 3000K light, ideal for cozy environments.

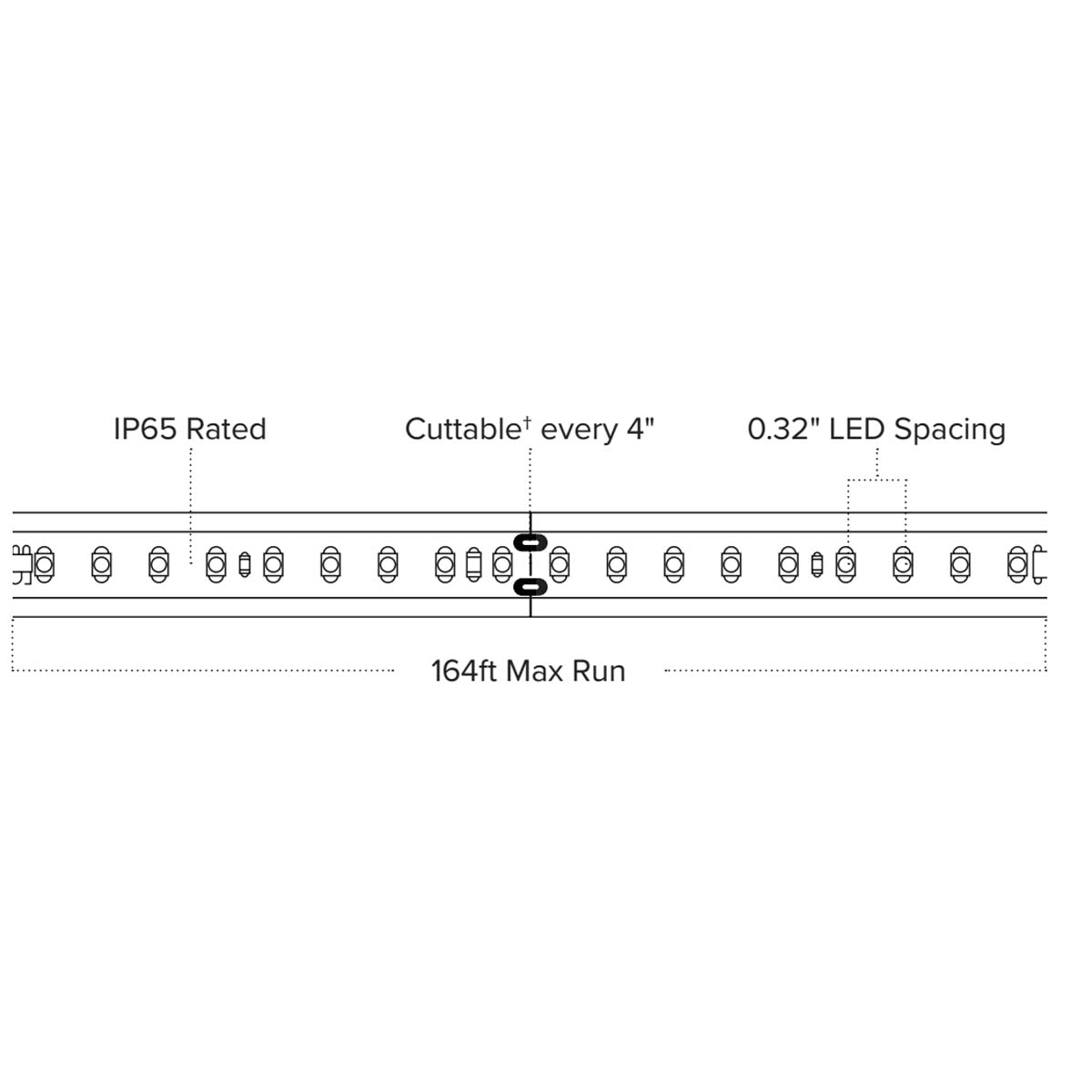

- Max Run: Capable of running up to 164ft, with a recommended max of 75ft per run to avoid voltage drop.
- Cuttable: Field cuttable every 4 inches for custom lengths, though cutting voids cETLus listing.
- IP Rating: IP65 rated for wet locations, suitable for both indoor and outdoor use.
We process payments securely and do not store credit card information.
Description
Description

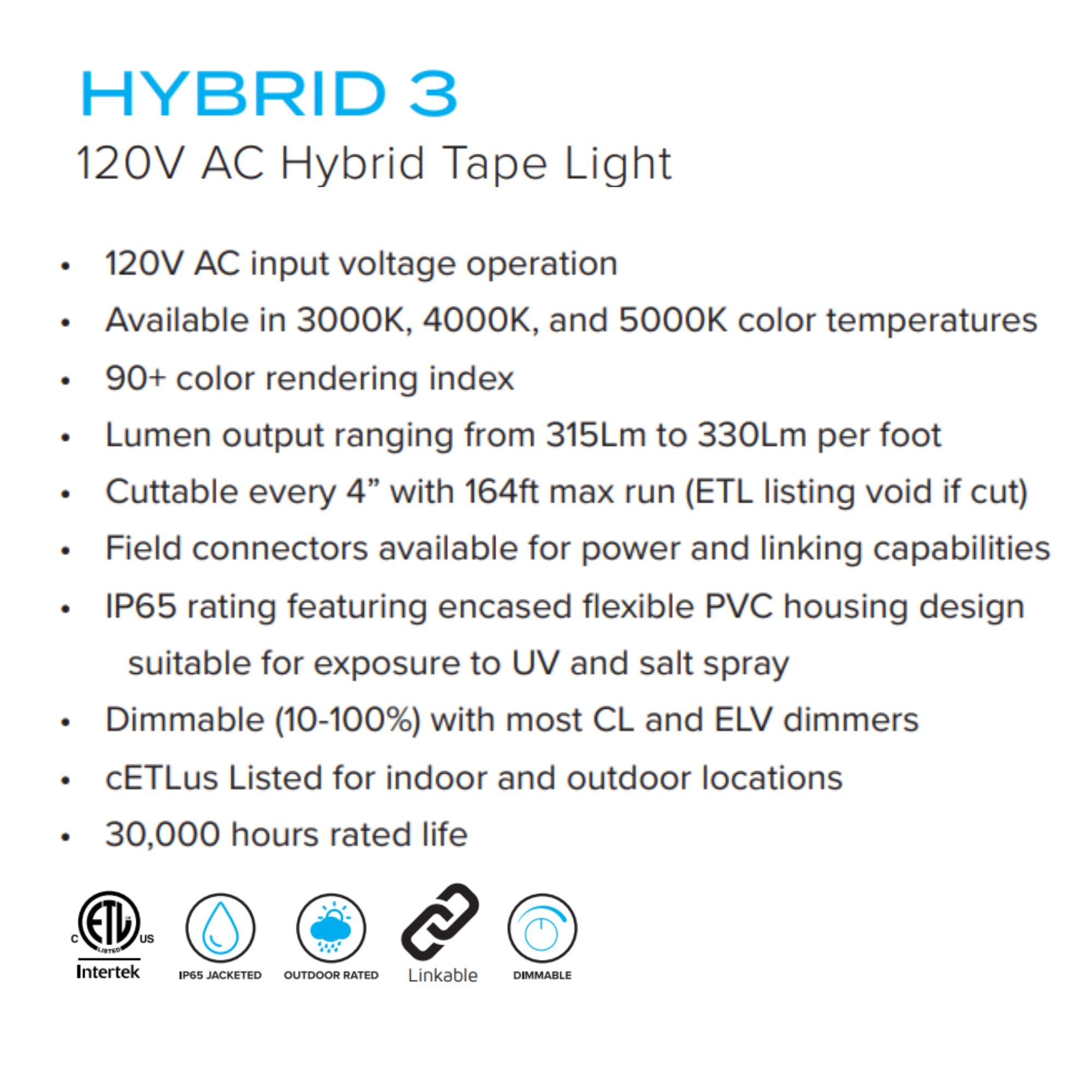

American Lighting Hybrid 3 LED Tape Light — 3000K & Wet Rated
The American Lighting 120-H3-30 is a 150ft LED tape light offering a warm 3000K color temperature. This tape light operates at 120V and is IP65 rated, making it suitable for wet locations. With a maximum run of 164ft, it is recommended to limit single runs to 75ft to prevent voltage drop.

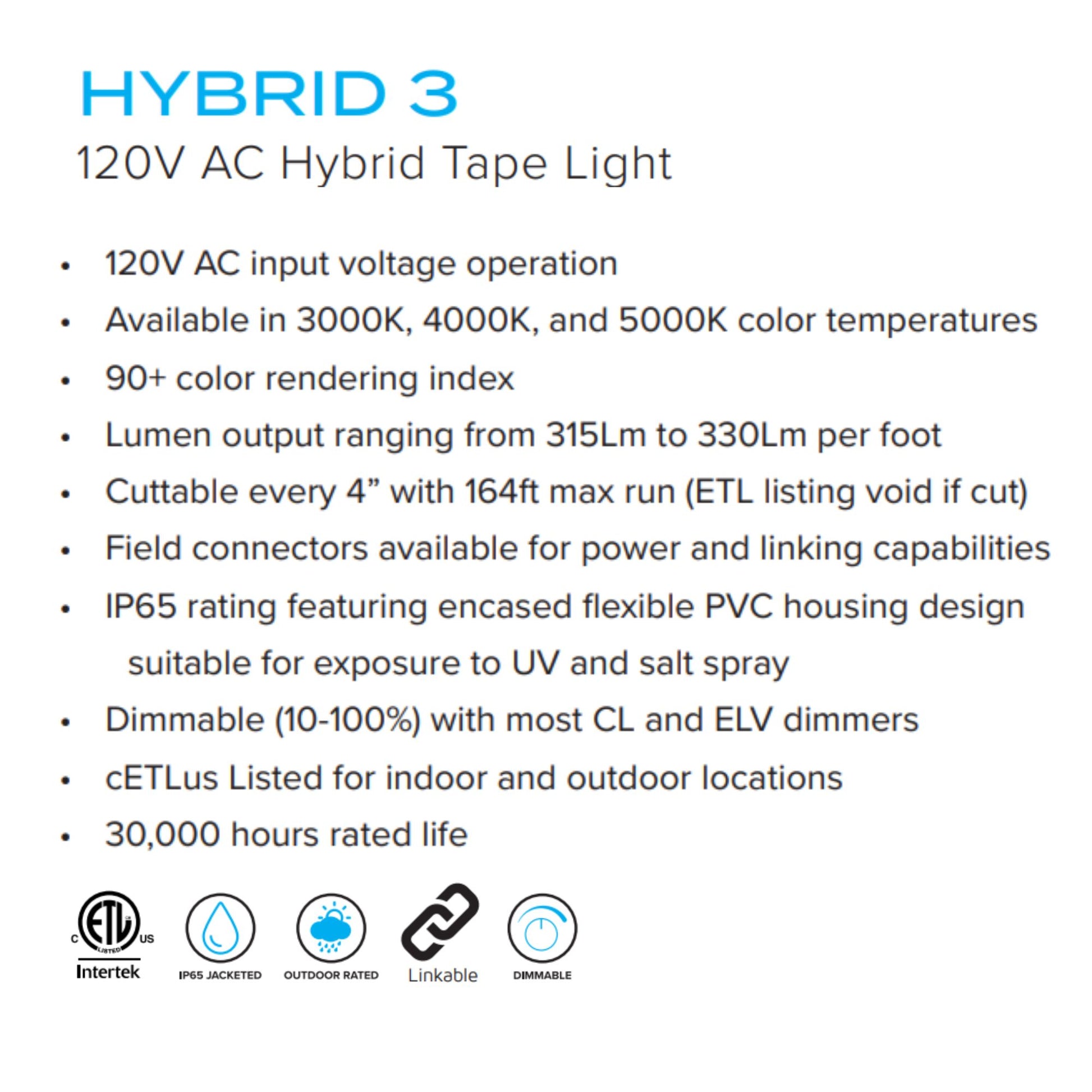

Key Features
- Voltage: 120V AC operation for direct connection.
- Wattage: Consumes 4W per foot.
- Lumens: Offers up to 315 lumens per foot.

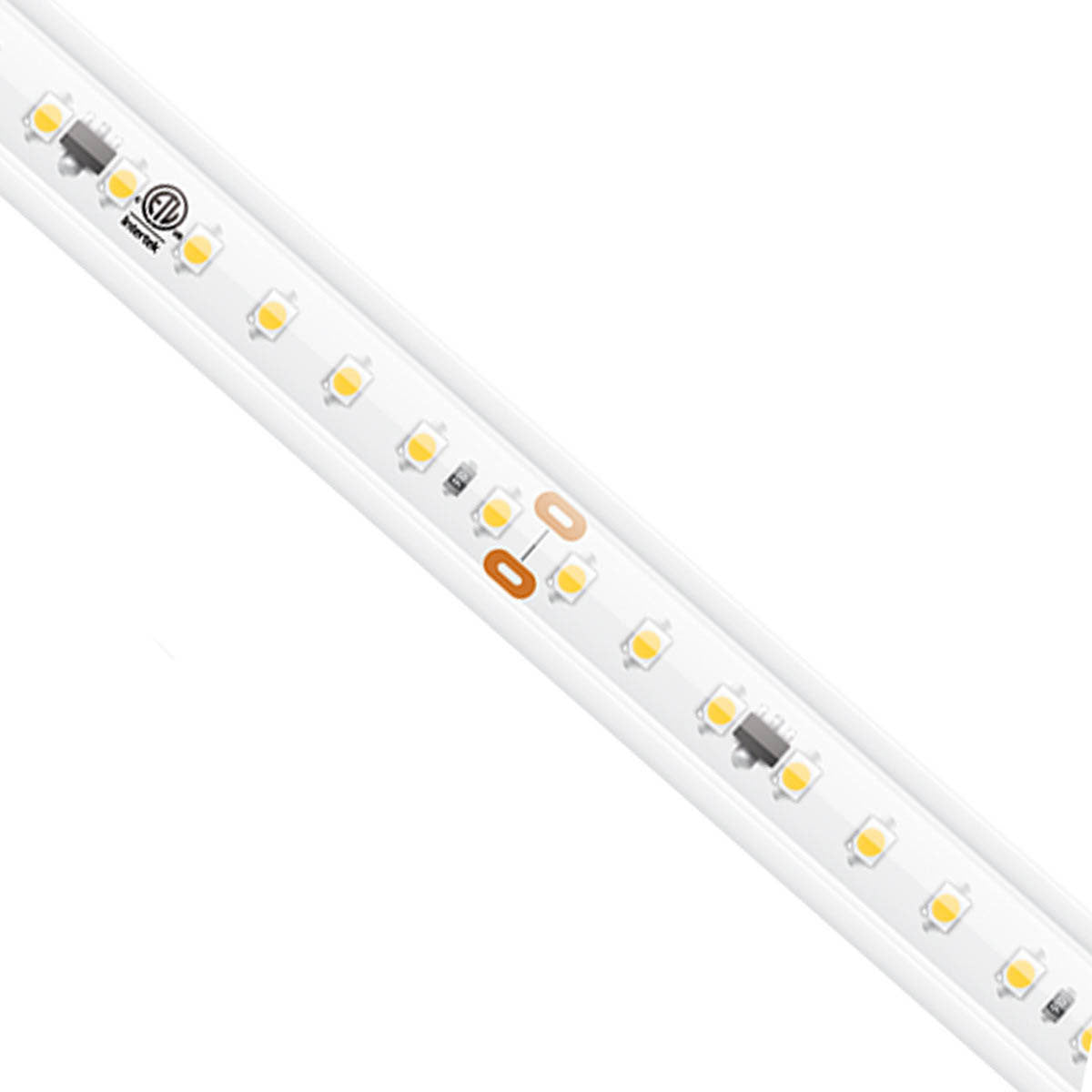

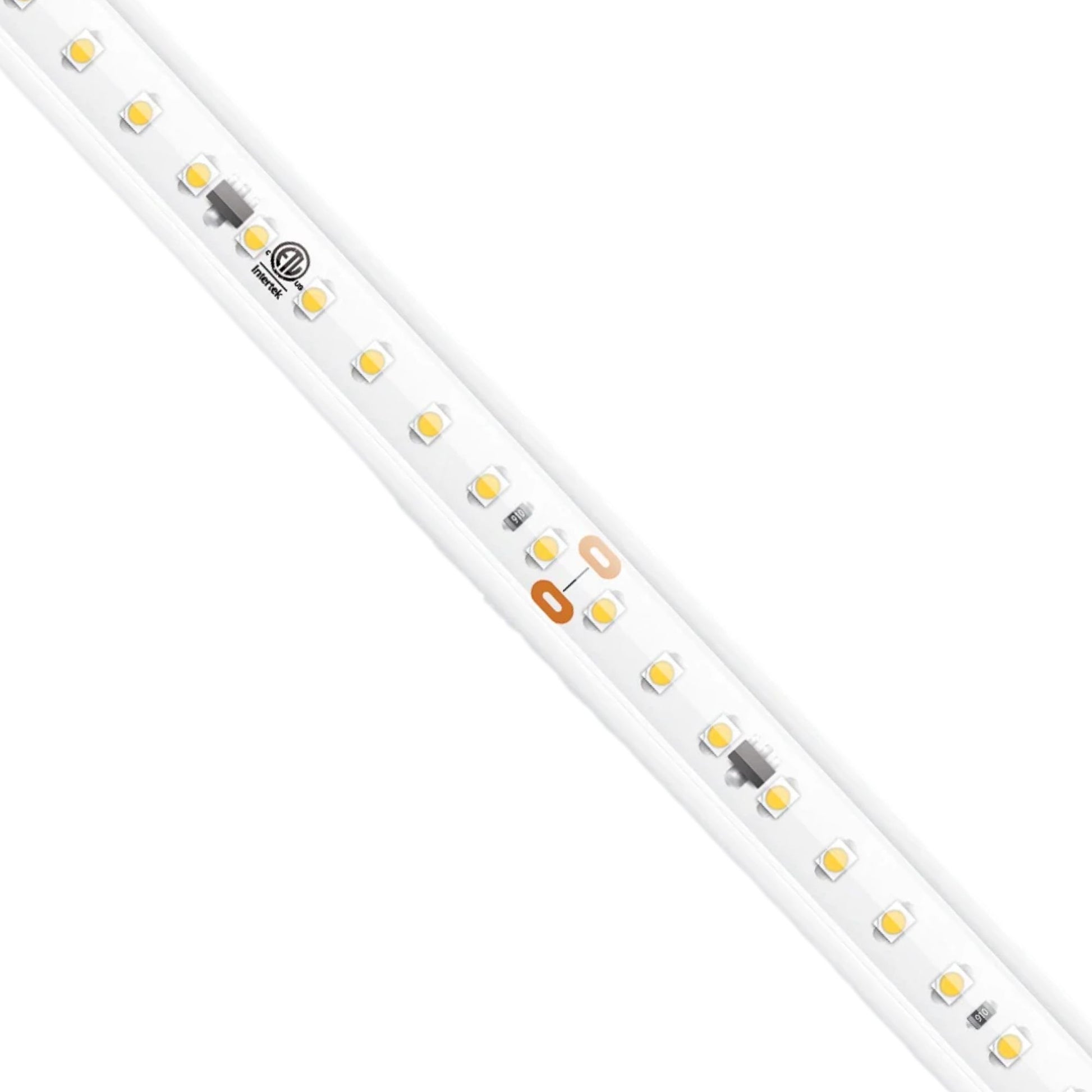

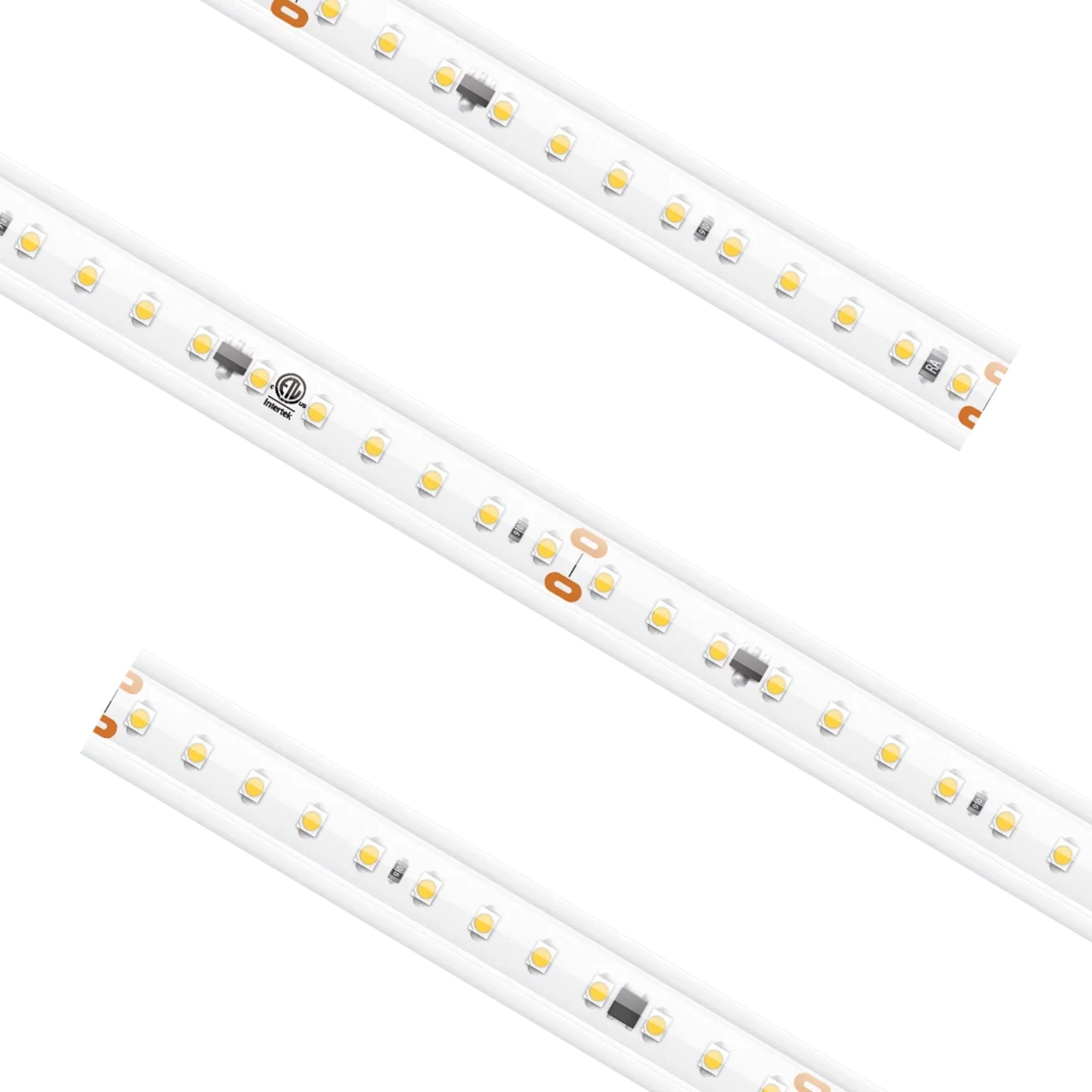

- LED Density: 20 LEDs per foot, spaced every 5/8 inch.
- Max Run: 164ft total, with a recommended max of 75ft per single run.
- Cuttable: Every 4 inches, though cutting voids cETLus listing.

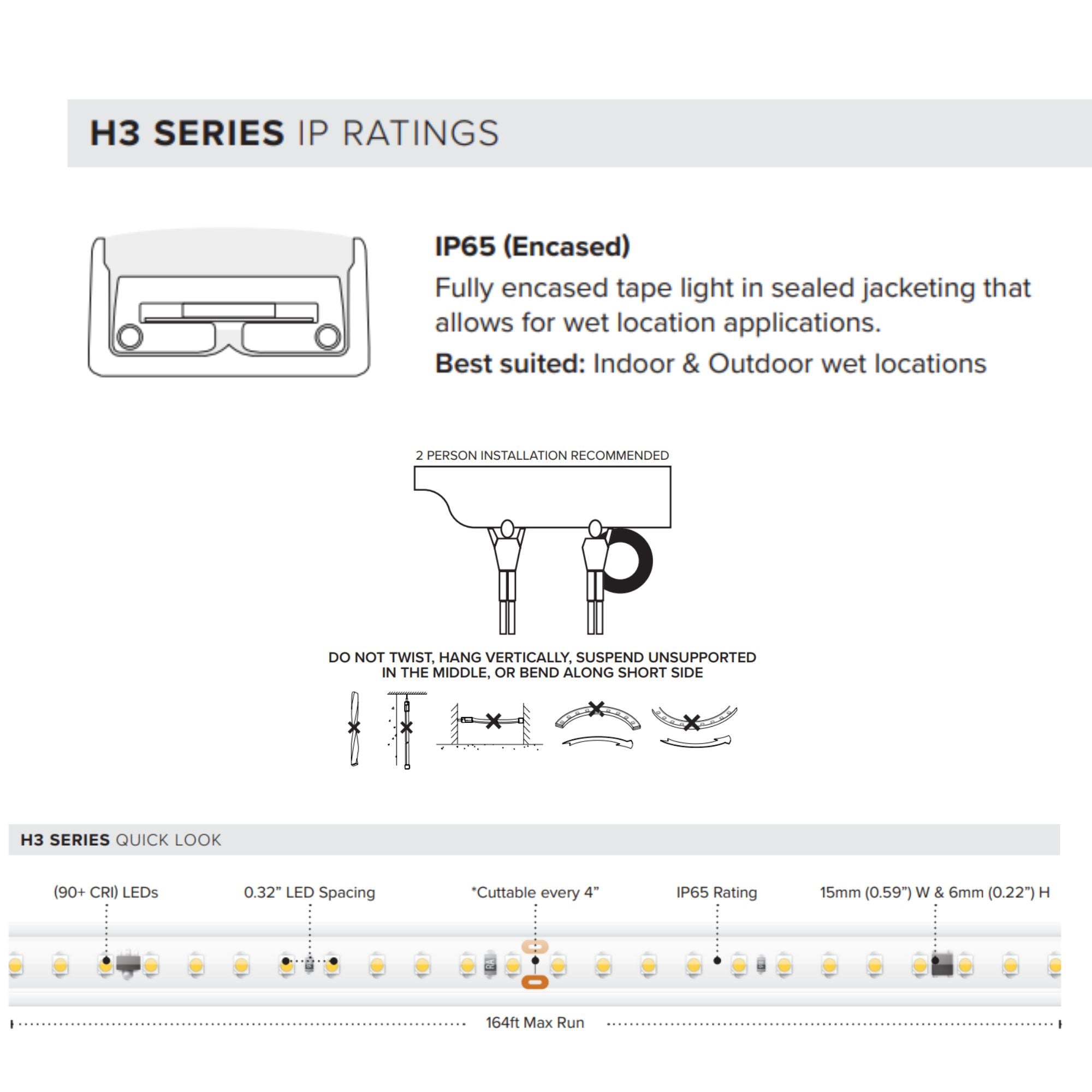

- PCB Width: 15mm, compatible with standard channels.
- Beam Angle: Wide distribution for even lighting.
- IP Rating: IP65 for wet locations.
- Certifications: cETLus Listed, void if cut.
Core Design & Construction
The Hybrid 3 features a 15mm wide PCB, ensuring compatibility with most aluminum channels. It is encased in a flexible PVC housing, providing protection against UV and salt spray, ideal for outdoor applications.
LED Illumination & Performance
With a lumen output of up to 315 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The light engine is designed for consistent color and brightness.
Power, Wiring & Installation
This 120V tape light requires no additional drivers, simplifying installation. It is field cuttable every 4 inches, though cutting voids the cETLus listing. Dimmable from 10-100% with compatible dimmers.

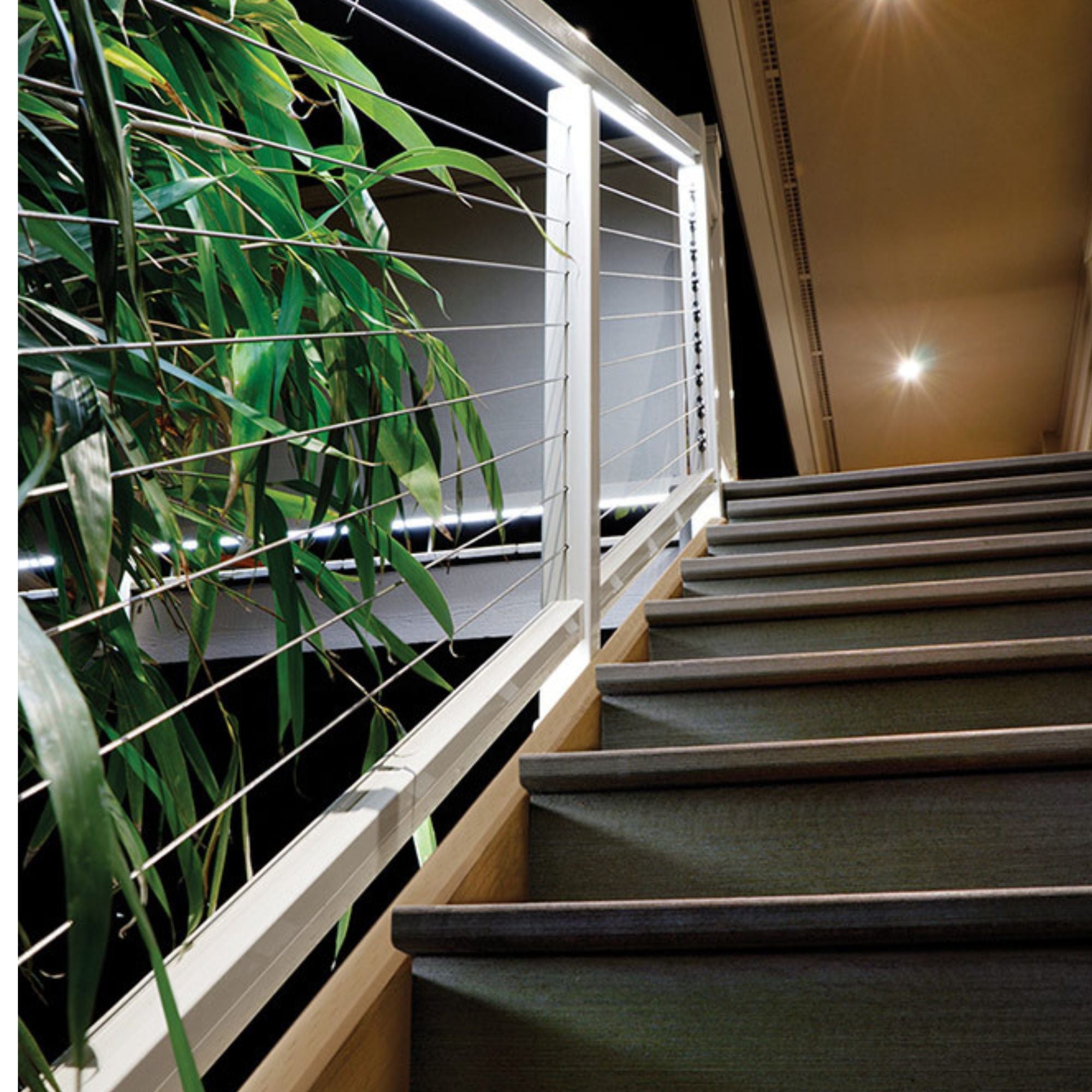

Where This Tape Works Best
- Cove lighting

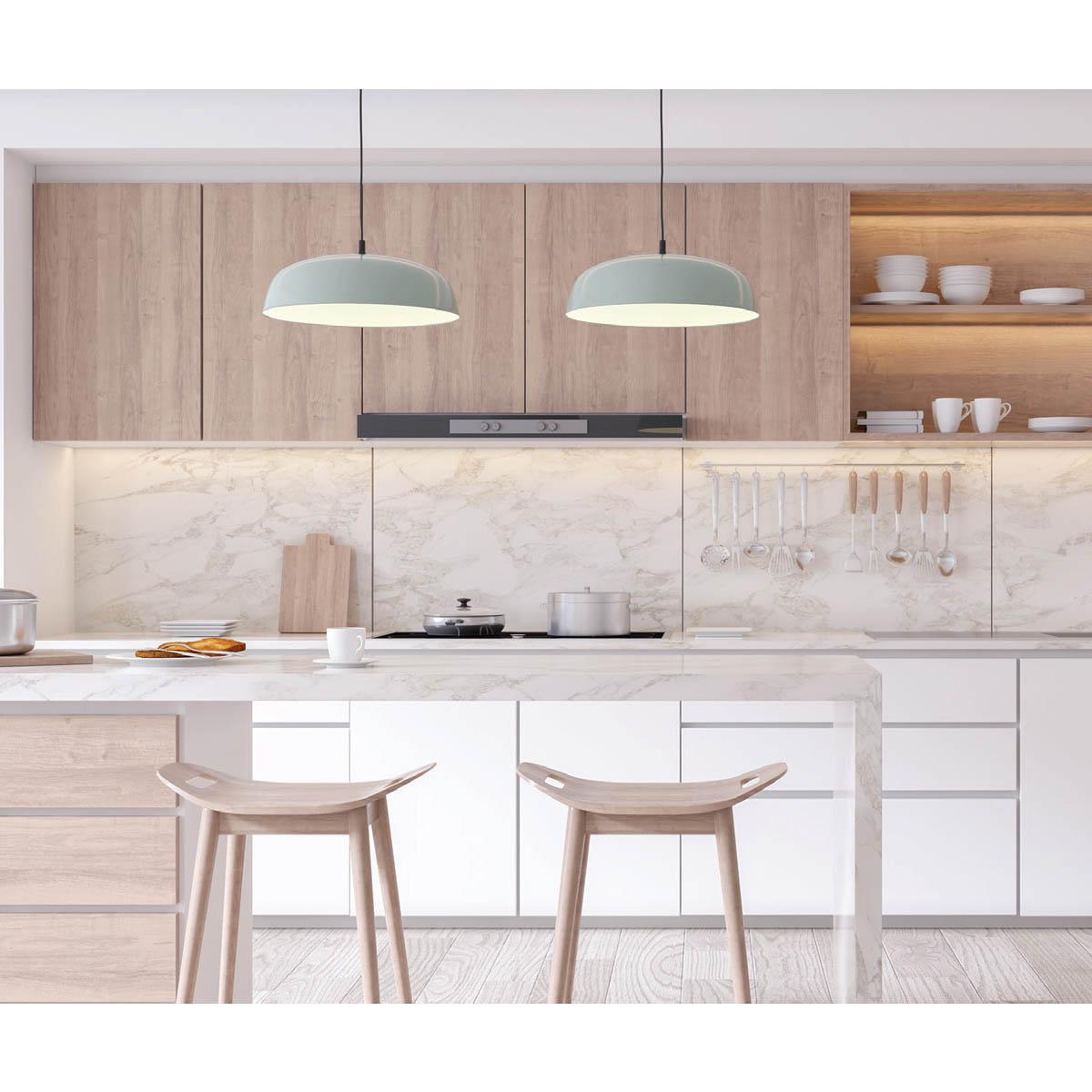

- Under cabinet lighting

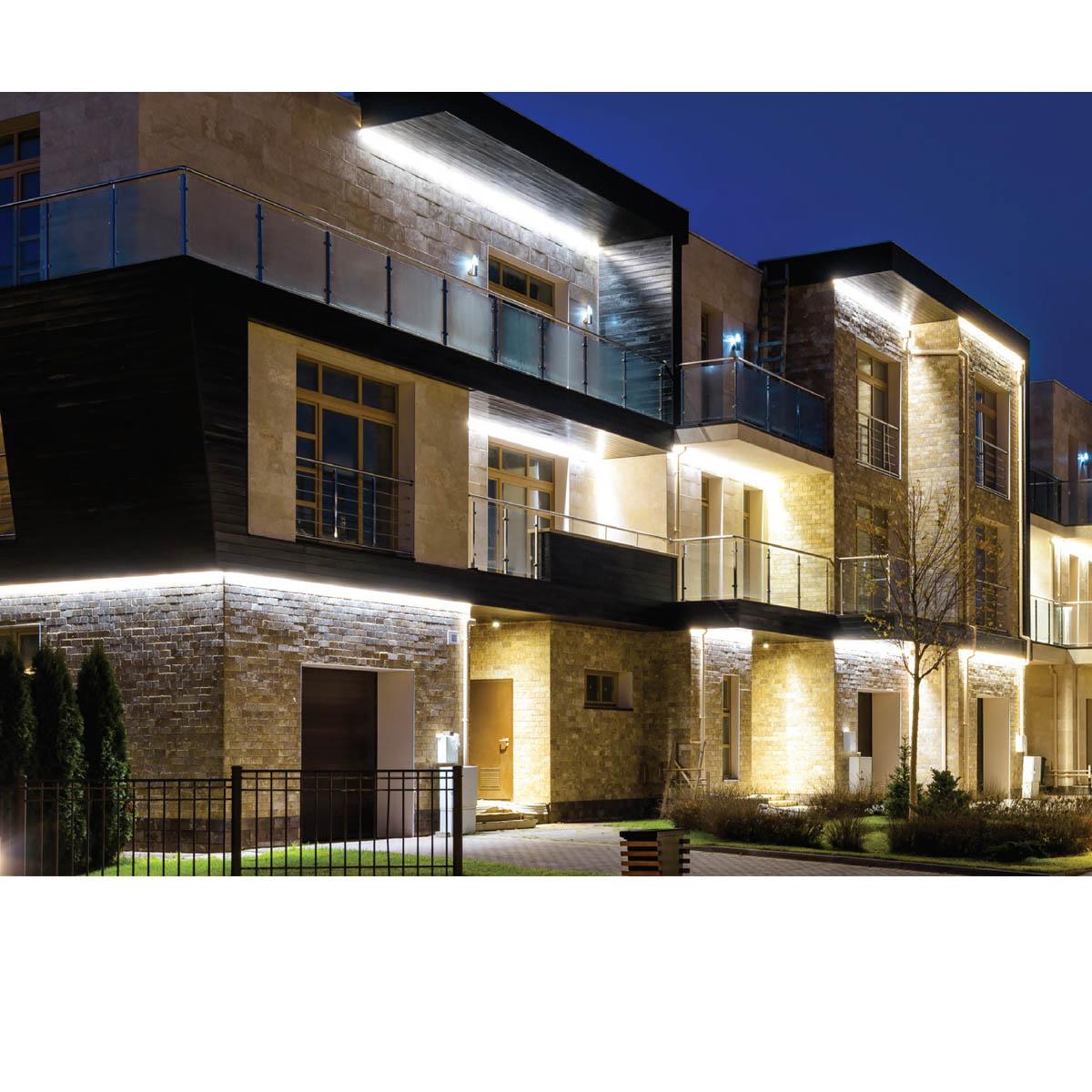

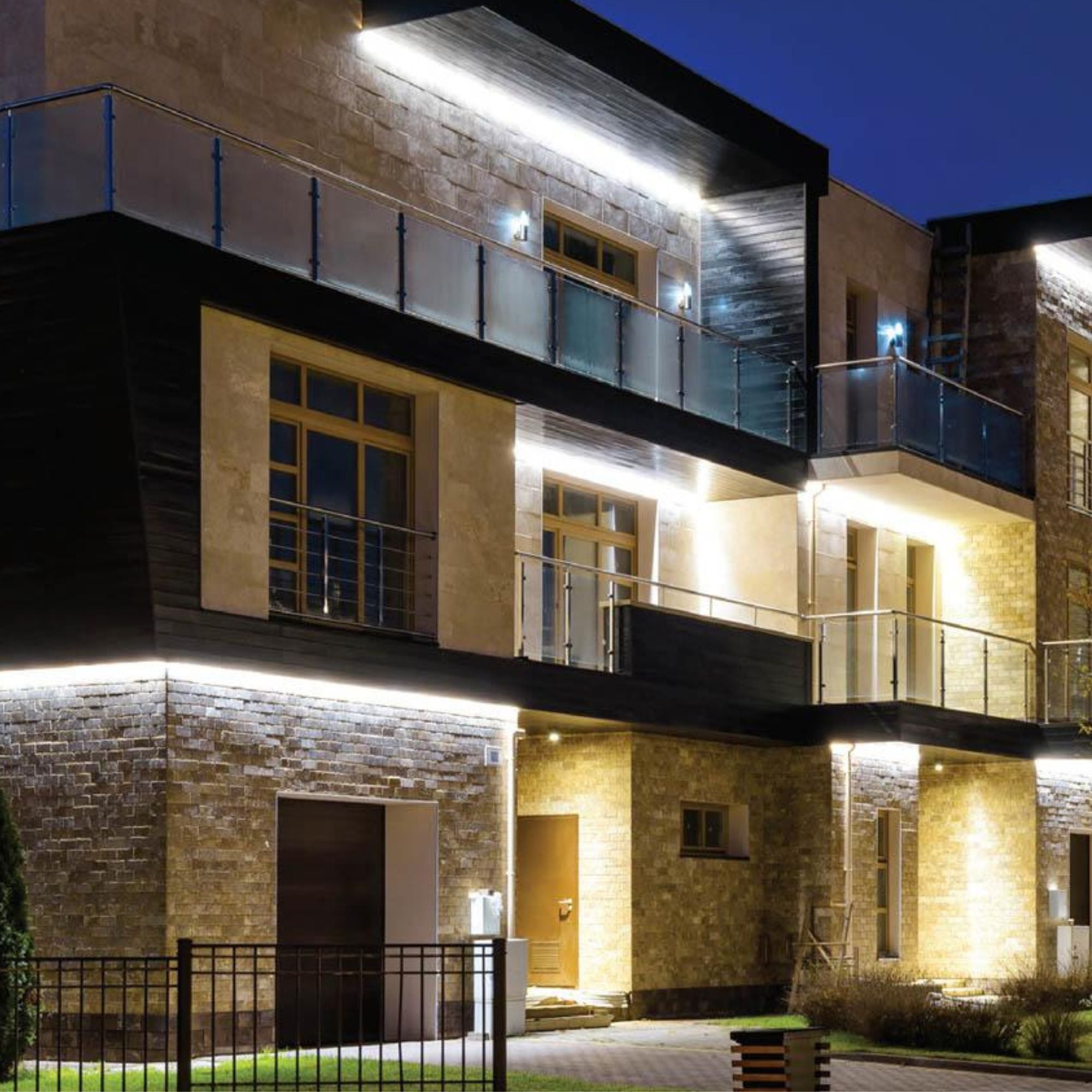

- Outdoor pathways
- Accent lighting
What's Included

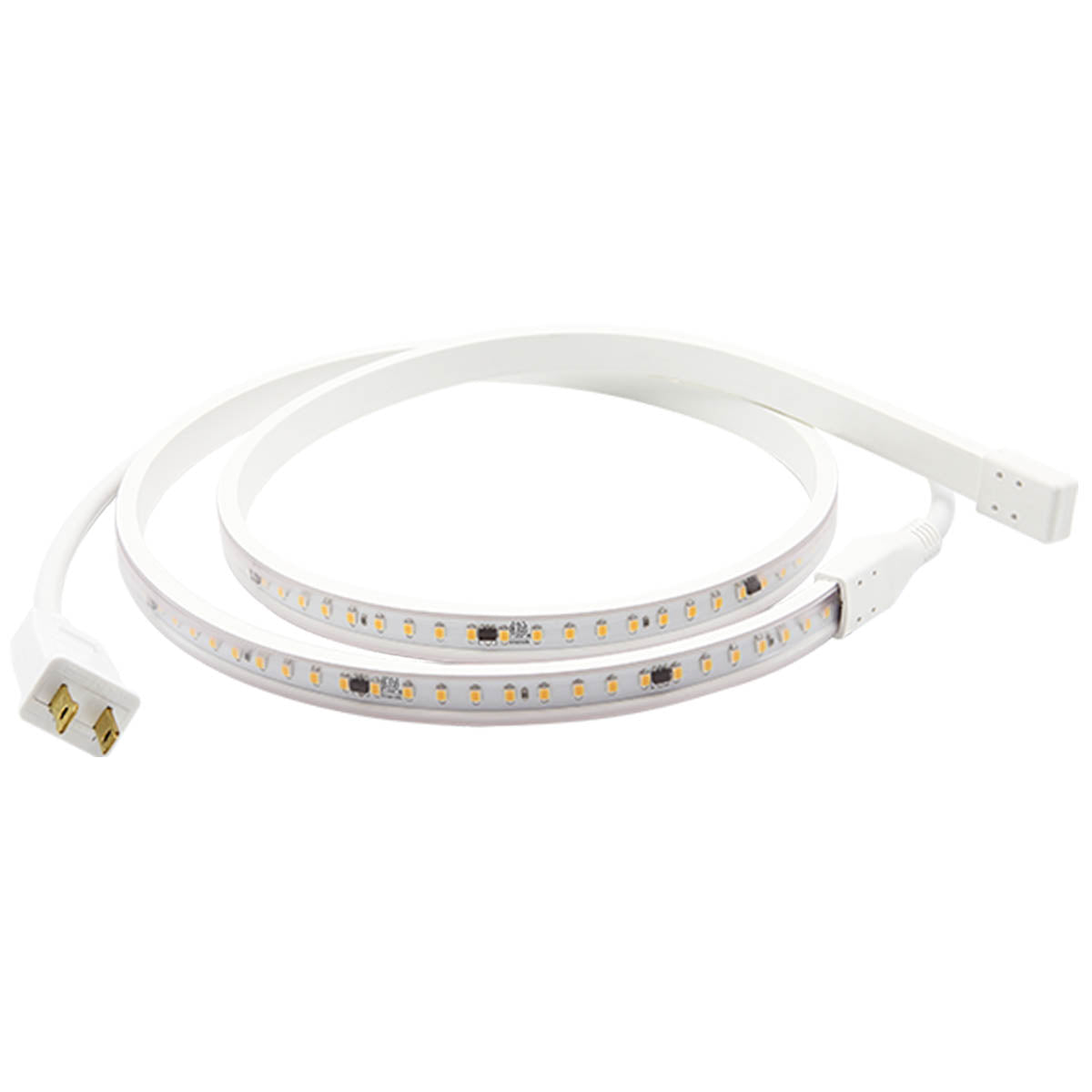

- 150ft reel of tape light
- 5ft attached power cord
- 4 connection kits
- 50 clear plastic mounting clips with screws
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the Hybrid 3 tape light?
What is the maximum run length for the Hybrid 3 tape light?
Can the Hybrid 3 tape light be cut to custom lengths?
Can the Hybrid 3 tape light be cut to custom lengths?
What voltage does the Hybrid 3 tape light operate on?
What voltage does the Hybrid 3 tape light operate on?
Is the Hybrid 3 tape light suitable for outdoor use?
Is the Hybrid 3 tape light suitable for outdoor use?
What is the CRI of the Hybrid 3 tape light?
What is the CRI of the Hybrid 3 tape light?
