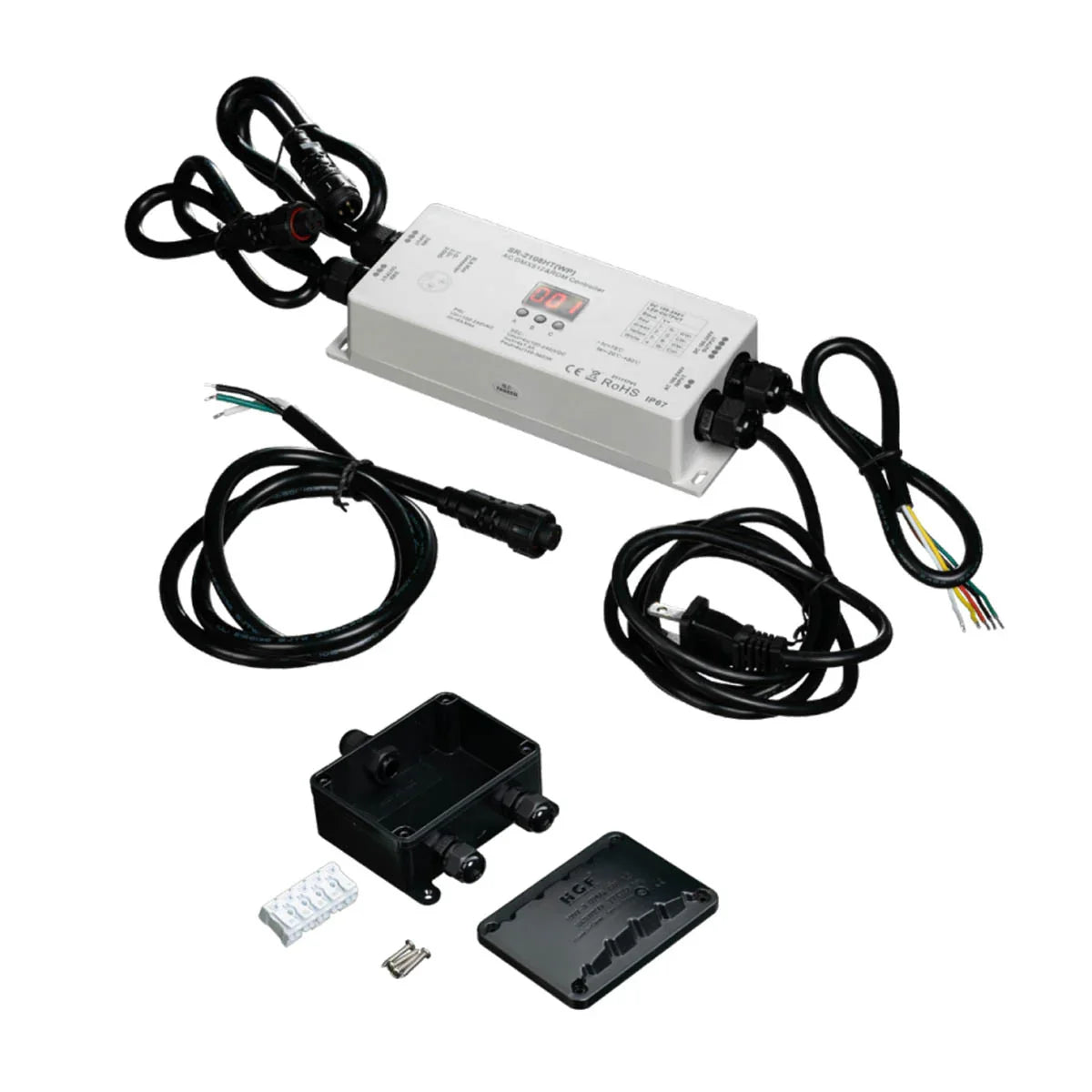

120V DC DMX Decoder, 4 Channel Controller with Junction Box, 100-240V AC Input
Usually Ships in 2 - 3 Business Days
Free Shipping Over $99
Shipping & Returns
Shipping Policy Message
Free Shipping Over $99
Return Policy Message
30 Days Return Policy

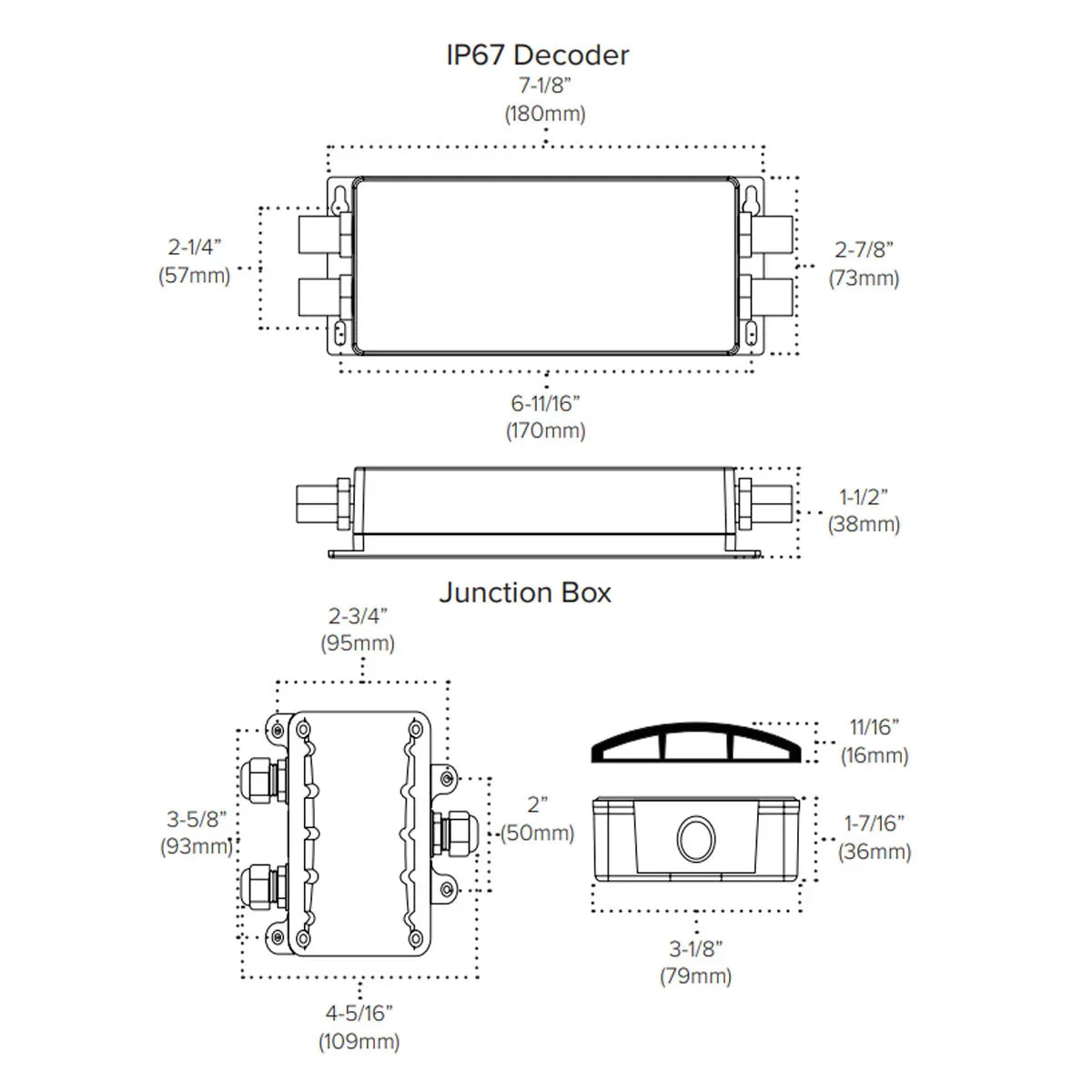

Dimensions & Measurements
Length :
Width :
Height :
Frequently Bought With
3ft linking cable for Hybrid 3 RGBW Strip Light
6ft linking cable for Hybrid 3 RGBW Strip Light
End Cap for Hybrid 3 RGBW Strip Light
PVC Mounting clips for Hybrid 3 RGBW Strip Light, Bag of 10
Plastic End Cap for H3 RGBW Aluminum Mounting Channel, Black
6in. linking cable for Hybrid 3 RGBW Strip Light
PRODUCT OVERVIEW
Introducing the 120-CTRL-4CH, the ultimate solution for controlling your LED lighting system. This American Lighting Controller features a 4 Channel DMX 512 controller with a convenient Junction Box. With its 100-240V AC input and DC output, it's compatible with a wide range of power sources. Plus, the maximum output of 4x1.5A ensures ample power to drive your LED lights. Whether you're setting the mood in your home or creating a captivating display in a commercial space, the 120-CTRL-4CH is your go-to controller. Its reliable performance and easy-to-use design make it a must-have for any lighting project. Don't settle for anything less than excellence when it comes to controlling your LED lights. Upgrade to the 120-CTRL-4CH 120V DC DMX Decoder today and experience superior control like never before.
- IP67 Rated (Wet Location), RoHS Compliant
- Output for high voltage DC100~240V DC LED
- DMX channel quantity from 1CH~4CH settable
- Output PWM frequency from 500HZ ~ 35K HZ settable, but do not set it higher than 3KHz
- Output dimming curve gamma value from 0.1 ~ 9.9 settable
Special Features
- Input Current: 20.5A / Output Current: 4x1.5A
- Input Current: 20.5A / Output Current: 4x1.5A
- Input Wire: 5" 18AWG
- Output Wire: 5" 20AWG
- Max Load: 660W@110V / 1320W@220V
PRODUCT OVERVIEW
PRODUCT OVERVIEW
Introducing the 120-CTRL-4CH, the ultimate solution for controlling your LED lighting system. This American Lighting Controller features a 4 Channel DMX 512 controller with a convenient Junction Box. With its 100-240V AC input and DC output, it's compatible with a wide range of power sources. Plus, the maximum output of 4x1.5A ensures ample power to drive your LED lights. Whether you're setting the mood in your home or creating a captivating display in a commercial space, the 120-CTRL-4CH is your go-to controller. Its reliable performance and easy-to-use design make it a must-have for any lighting project. Don't settle for anything less than excellence when it comes to controlling your LED lights. Upgrade to the 120-CTRL-4CH 120V DC DMX Decoder today and experience superior control like never before.
Manufacturer Resources
Product information
| Brand | American Lighting |
|---|---|
| Category | |
| Product Type | Lighting Components |
| MPN | 120-CTRL-4CH |
| UPC | 714176030333 |
Characteristics
Electrical and Operational
| Input Voltage | |
|---|---|
| Operating temperature | -20C to 50C |
| Output Voltage | |
| Amps Rating | 20.5 |
