AFX Lighting Gramercy GRAF4450L30WH LED Fixed Rail Track Light

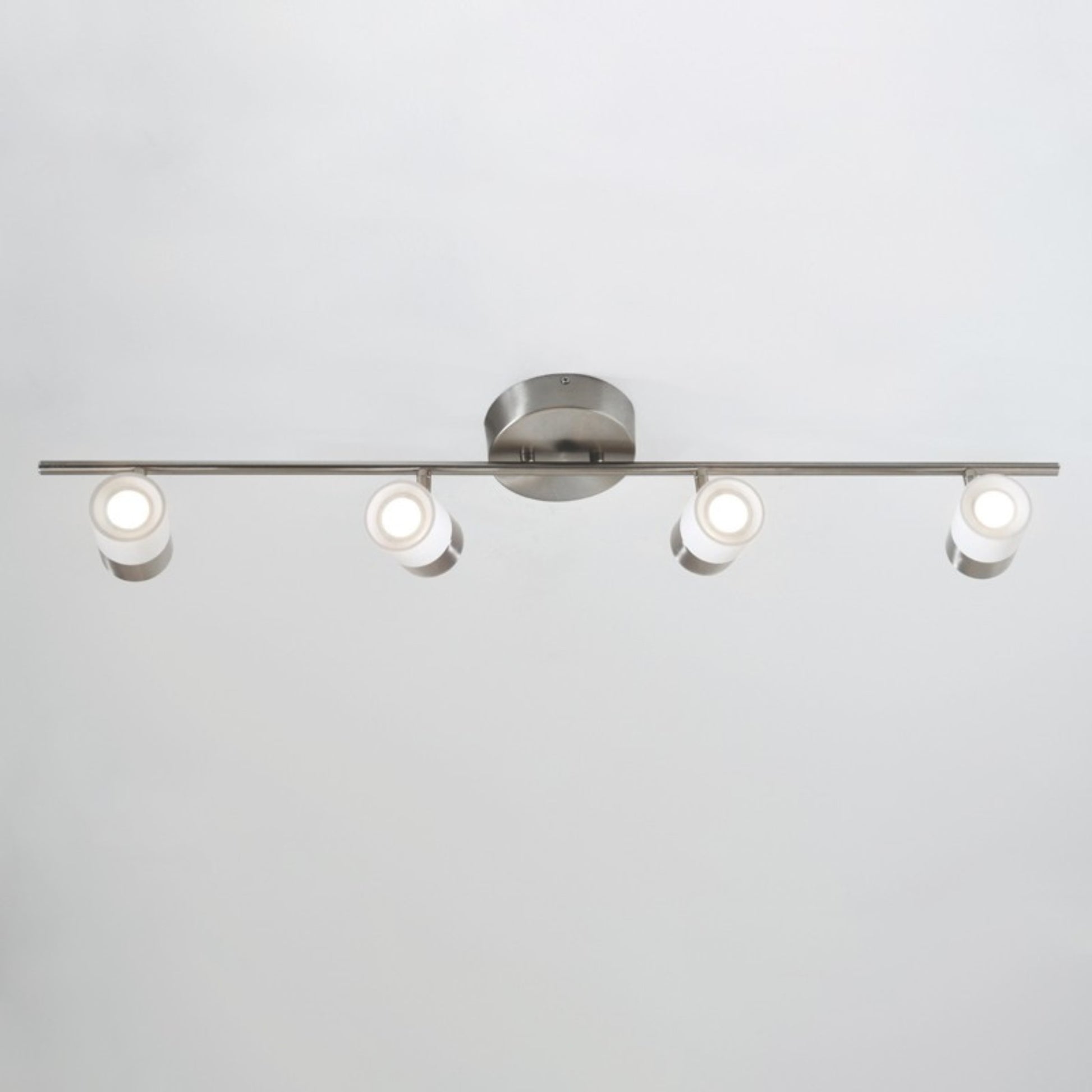

The AFX Lighting Gramercy GRAF4450L30WH fixed rail track light pairs four swivel-and-pivot heads with a slim Satin Nickel rail and canopy. The heads feature a two-tone White and Satin Nickel finish and frosted clear glass diffusers. Aim the individual heads toward kitchen work surfaces, office accents or retail displays. Its 26W integrated LED system produces 2600 source lumens and 1800 delivered lumens at fixed 3000K with 90 CRI. The complete fixture supports ceiling or wall mounting.

Key Features

• Fixture Type: Four-light LED fixed rail track light, nominal 37 in.
• Adjustable Heads: Four heads, swivel and pivot movement.
• LED System: Four integrated LED modules, 26W total.
• Light Output: 2600 source lumens, 1800 delivered lumens.
• Color Quality: Fixed 3000K warm white, 90 CRI.
• Dimming: Compatible with residential TRIAC and ELV dimmers.
• Finish: Satin Nickel canopy and rail, White and Satin Nickel heads, clear lacquer topcoat.
• Construction: 22-gauge stamped steel canopy, 20-gauge steel tube rail.
• Diffusers: Frosted clear glass.

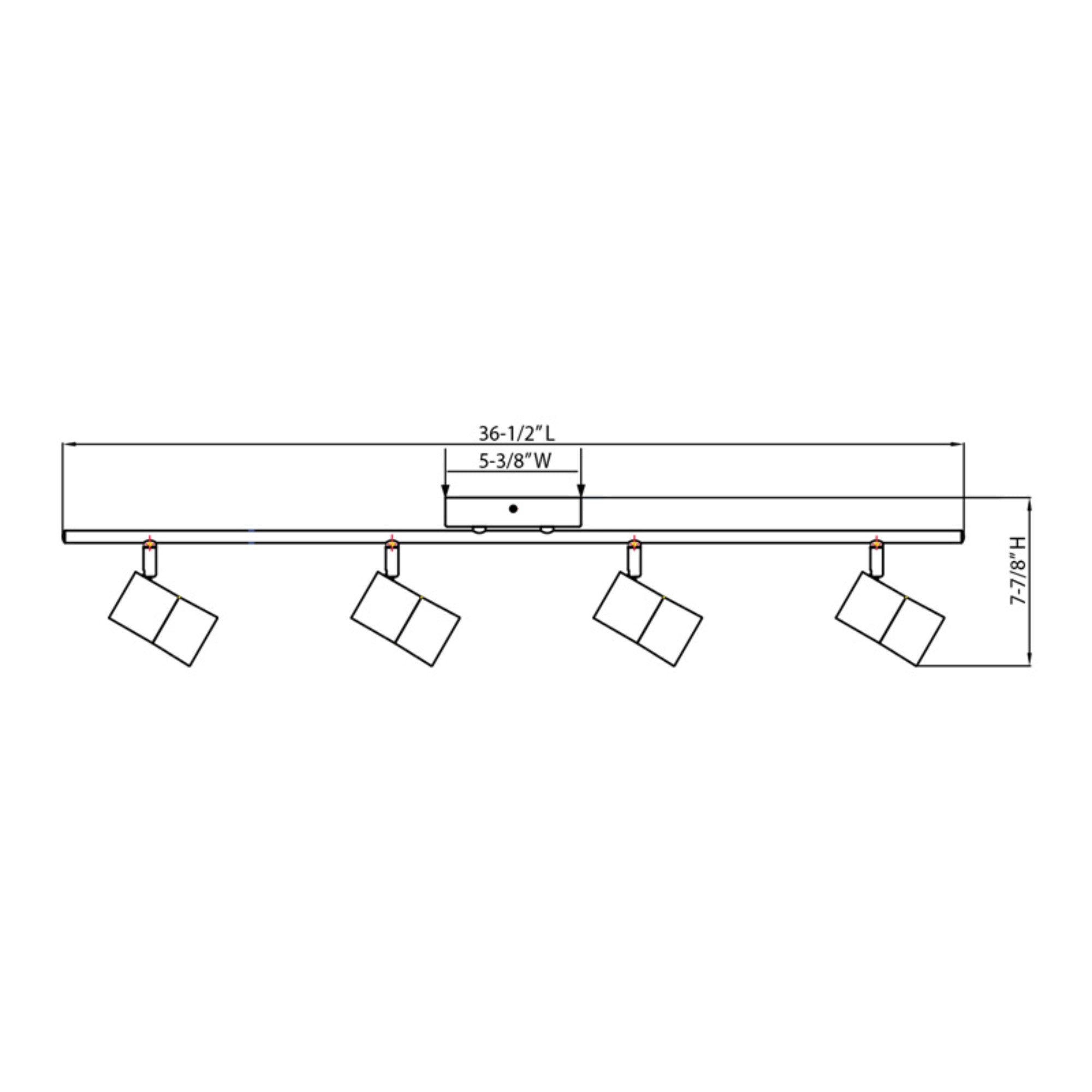

• Dimensions: 36 1/2 in long, 5 3/8 in wide, 7 7/8 in high.
• Electrical & Mounting: 120V AC, 60Hz, ceiling or wall installation.
• Life & Certification: 50,000 hours, cETLus indoor damp listing, Title 24/JA8 compliant.

Construction & Design

This fixed rail track light combines a linear rail and central canopy with four individually adjustable heads. The 22-gauge stamped steel canopy and 20-gauge steel tube rail are plated in Satin Nickel. Each head has a two-tone White and Satin Nickel finish with a clear lacquer topcoat, complemented by a frosted clear glass diffuser. Swivel and pivot adjustment helps direct illumination toward different surfaces. Overall dimensions are 36 1/2 in long, 5 3/8 in wide and 7 7/8 in high.

Light Output & Performance

Four integrated LED modules use 26W total to produce 2600 source lumens and 1800 delivered lumens. Fixed 3000K warm-white light and 90 CRI suit task, accent and display lighting. Compatible residential TRIAC and ELV dimmers provide brightness adjustment. Rated LED life is 50,000 hours.

Electrical & Installation

The AFX Lighting GRAF4450L30WH operates on 120V AC, 60Hz and mounts to a standard junction box on a ceiling or wall. Power-supply connections must be made inside the junction box, which is not included. Select a compatible TRIAC or ELV dimmer for dimming control. The fixture is cETLus listed for indoor damp locations and Title 24/JA8 compliant.

Typical Applications

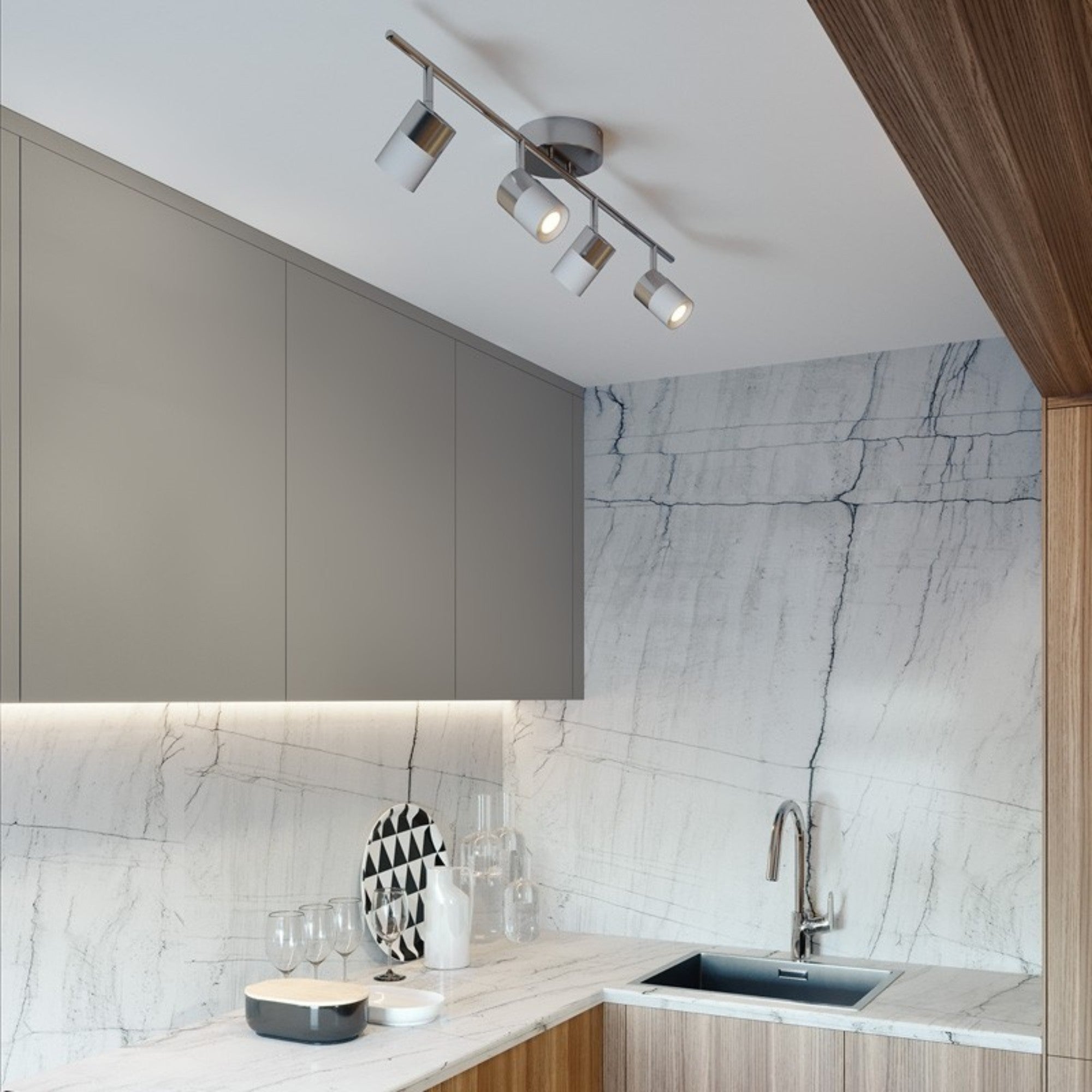

• Kitchen work surfaces and accents.
• Home office and study lighting.

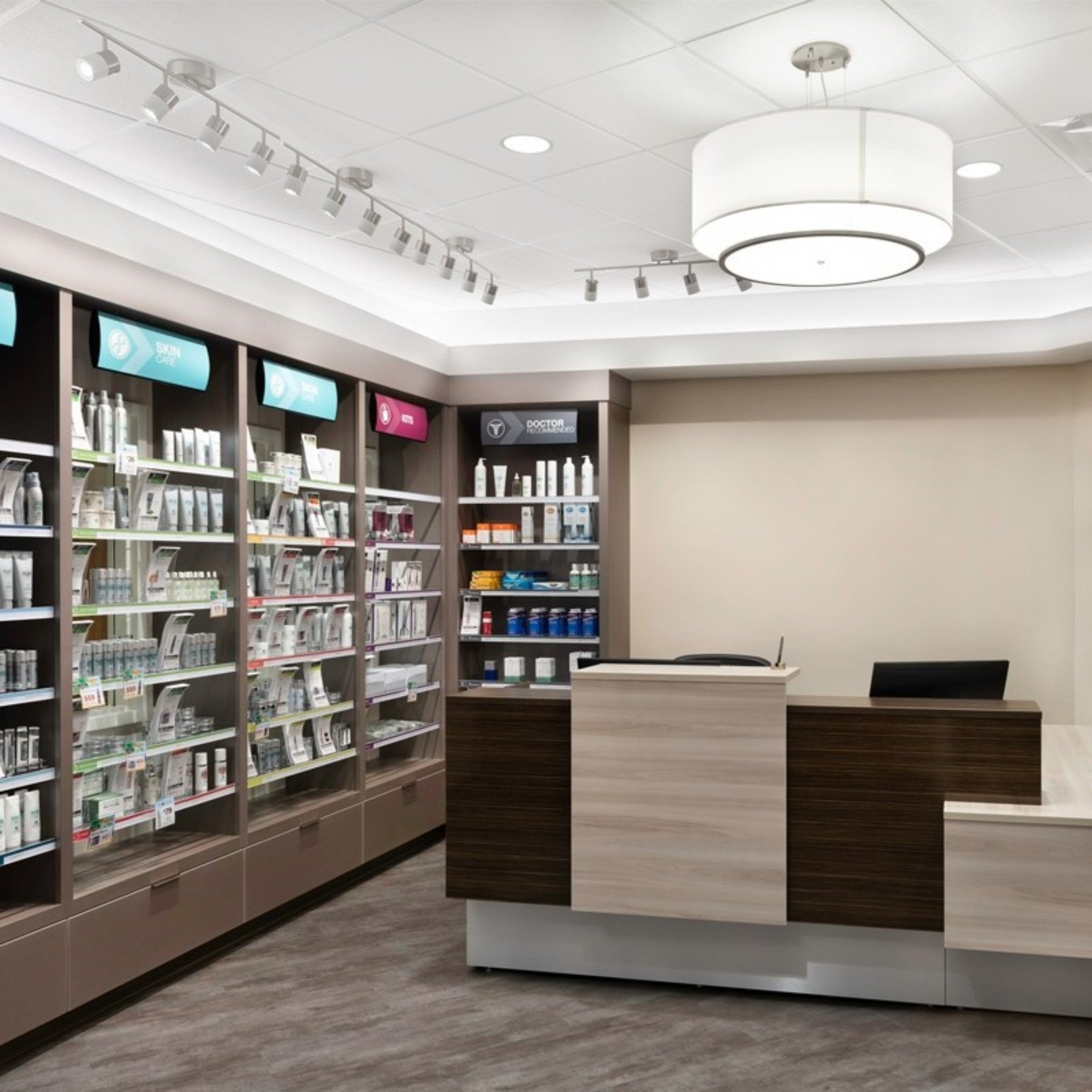

• Retail merchandise displays.
• Artwork and interior decorative features.

What's Included

• One AFX Lighting Gramercy GRAF4450L30WH fixed rail track light with Satin Nickel canopy and rail, four White and Satin Nickel swivel-and-pivot heads, four integrated LED modules and frosted clear glass diffusers.
