AFX Lighting Gage GGEF1313L30D1PC LED Round Fixed Rail Track Light

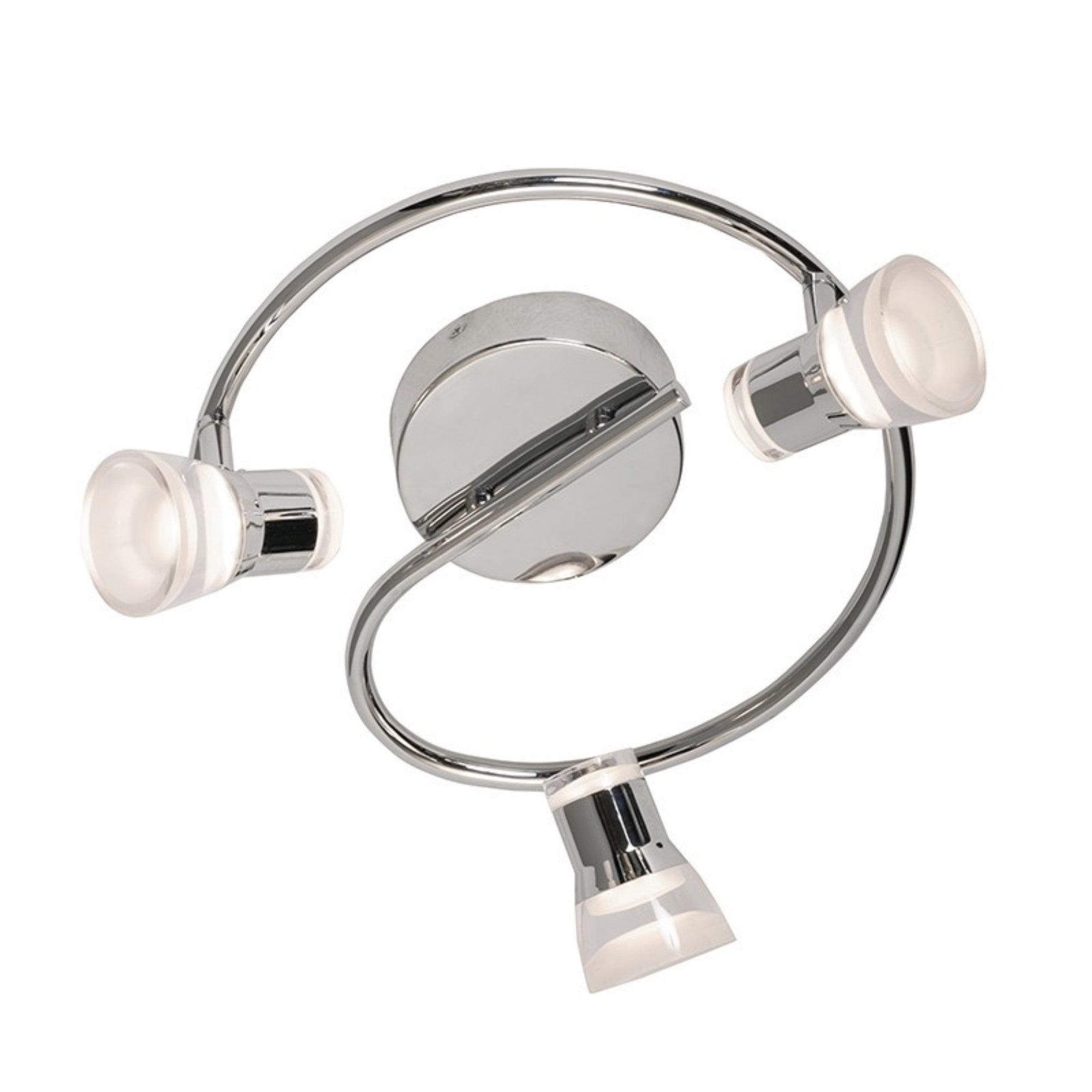

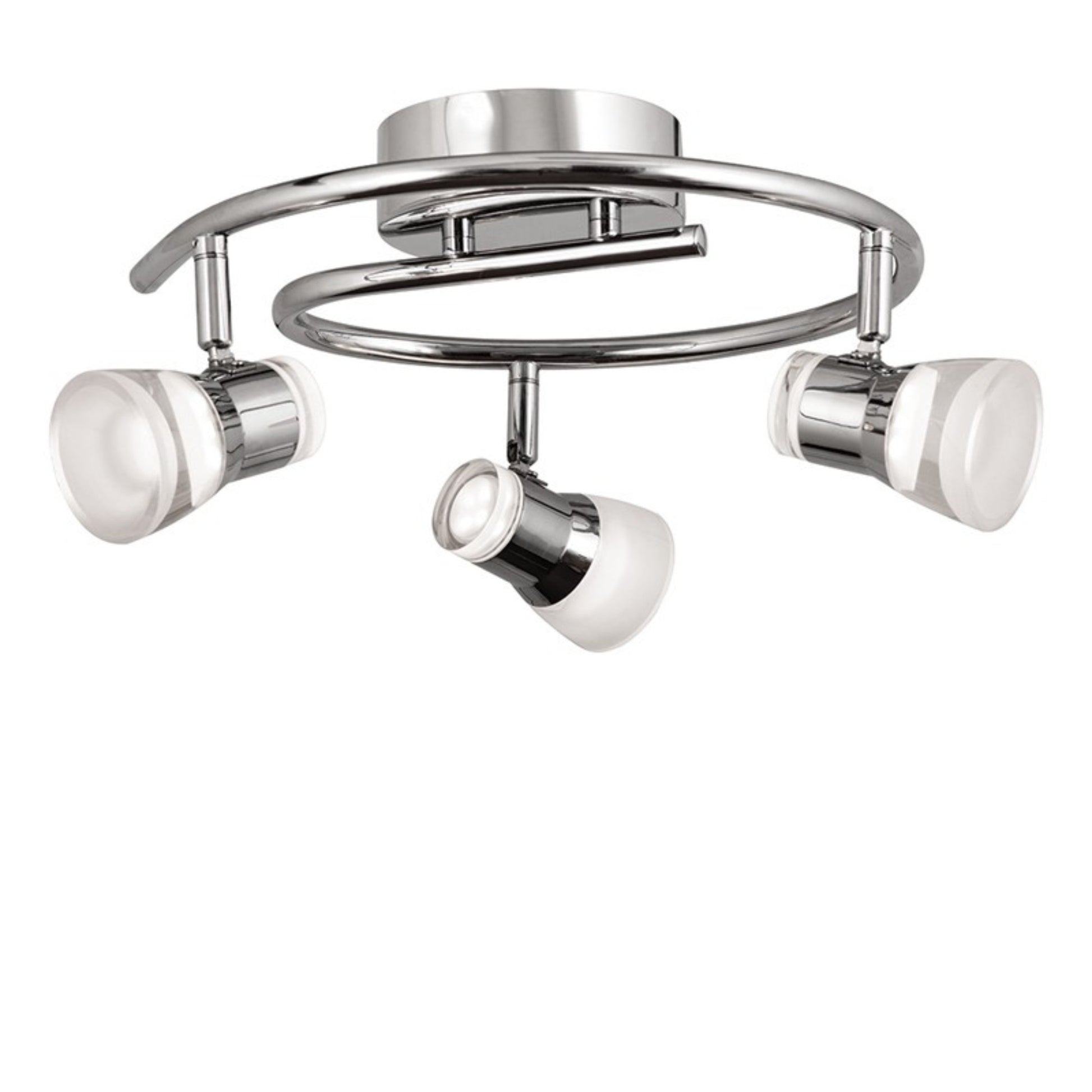

The AFX Lighting Gage GGEF1313L30D1PC fixed rail track light combines a compact round rail with three swivel-and-pivot heads in Polished Chrome. Combination frosted and clear acrylic diffusers soften the appearance of each head. Aim the lights toward kitchen surfaces, hallway features or office accents. Its 21W integrated LED system produces 1900 source lumens and 1277 delivered lumens at fixed 3000K with 90 CRI. The ceiling-mounted fixture measures 15 7/8 in in diameter and 6 in high.

Key Features

• Fixture Type: Round three-light LED fixed rail track light, nominal 16 in.
• Directional Heads: Three heads, swivel and pivot adjustment.
• LED System: Three integrated LED modules, 21W total.
• Light Output: 1900 source lumens, 1277 delivered lumens.
• Color Quality: Fixed 3000K warm white, 90 CRI.
• Dimming: Compatible with TRIAC and ELV dimmers.
• Finish: Plated Polished Chrome canopy, rail and heads.
• Construction: 22-gauge stamped steel canopy, 20-gauge steel tube rail.
• Diffusers: Combination frosted and clear acrylic.

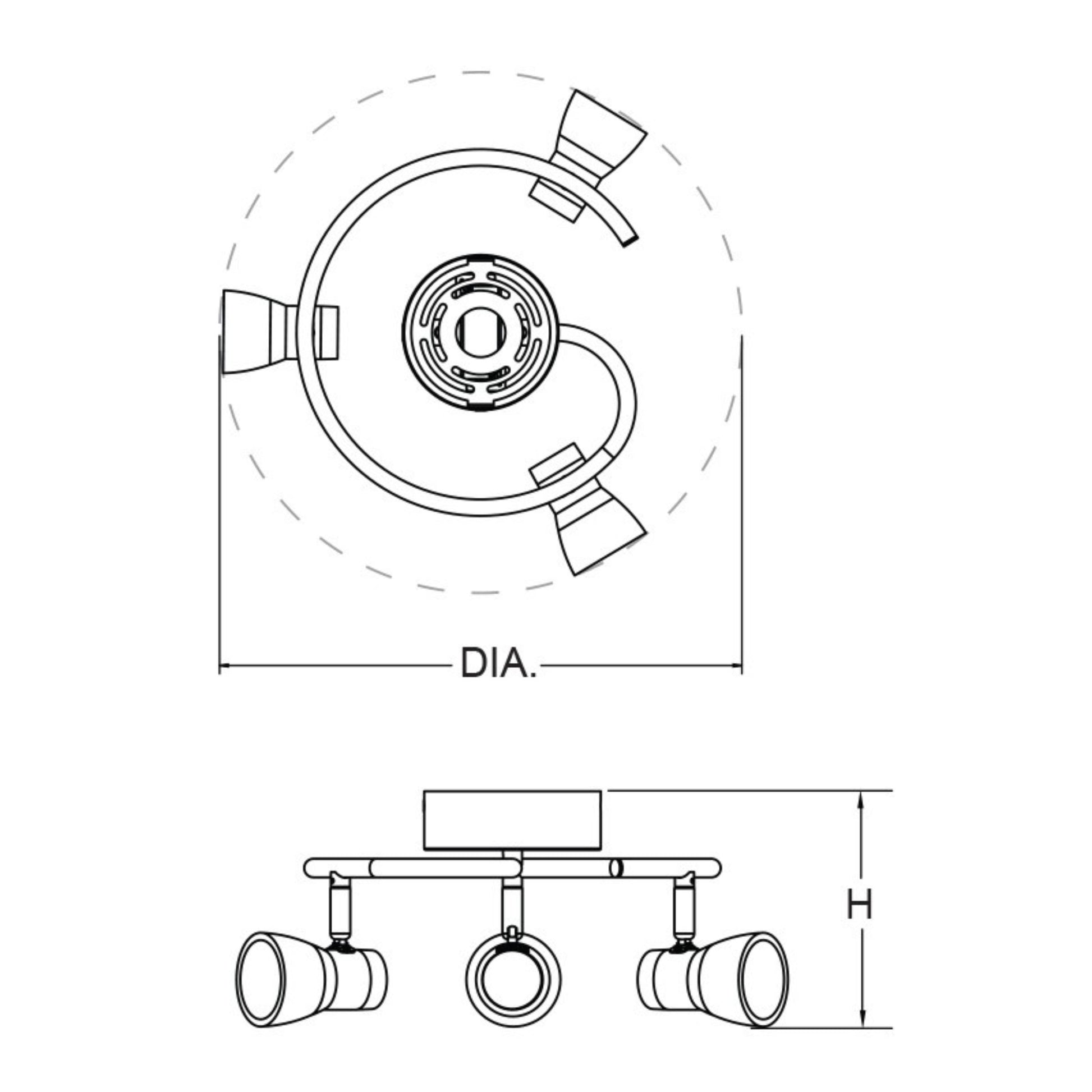

• Dimensions: 15 7/8 in diameter, 6 in height.
• Electrical: 120V AC, 60Hz, standard junction-box mounting.
• Life & Listing: 50,000 hours, cETLus listed for indoor damp locations.

Construction & Design

The round fixed rail track light arranges three adjustable heads around a curved rail for a compact ceiling installation. Each head swivels and pivots to direct light toward a different surface. The 22-gauge stamped steel canopy and 20-gauge steel tube rail provide the structure. The canopy, rail and individual heads are plated in Polished Chrome, with combination frosted and clear acrylic diffusers. Overall dimensions are 15 7/8 in diameter and 6 in high.

Light Output & Performance

Three integrated LED modules use 21W total and produce 1900 source lumens and 1277 delivered lumens. Fixed 3000K warm-white light and 90 CRI suit interior task and accent lighting. Adjust the heads individually to illuminate work surfaces or decorative features. Compatible TRIAC and ELV dimmers provide brightness control. Rated LED life is 50,000 hours.

Electrical & Installation

The AFX Lighting GGEF1313L30D1PC operates on 120V AC, 60Hz and mounts to a standard ceiling junction box. Power-supply connections must be made inside the junction box, which is not included. Use a compatible TRIAC or ELV dimmer for brightness adjustment. The fixture is cETLus listed for indoor damp locations.

Typical Applications

• Kitchen task and accent lighting.
• Hallway decorative features.
• Home office and study lighting.
• Artwork and interior displays.

What's Included

• One AFX Lighting Gage GGEF1313L30D1PC Polished Chrome round fixed rail track light with canopy, rail, three swivel-and-pivot heads, three integrated LED modules and combination frosted and clear acrylic diffusers.
