AFX Lighting Eva EVAF0618L30D1PC LED Fixed Rail Track Light

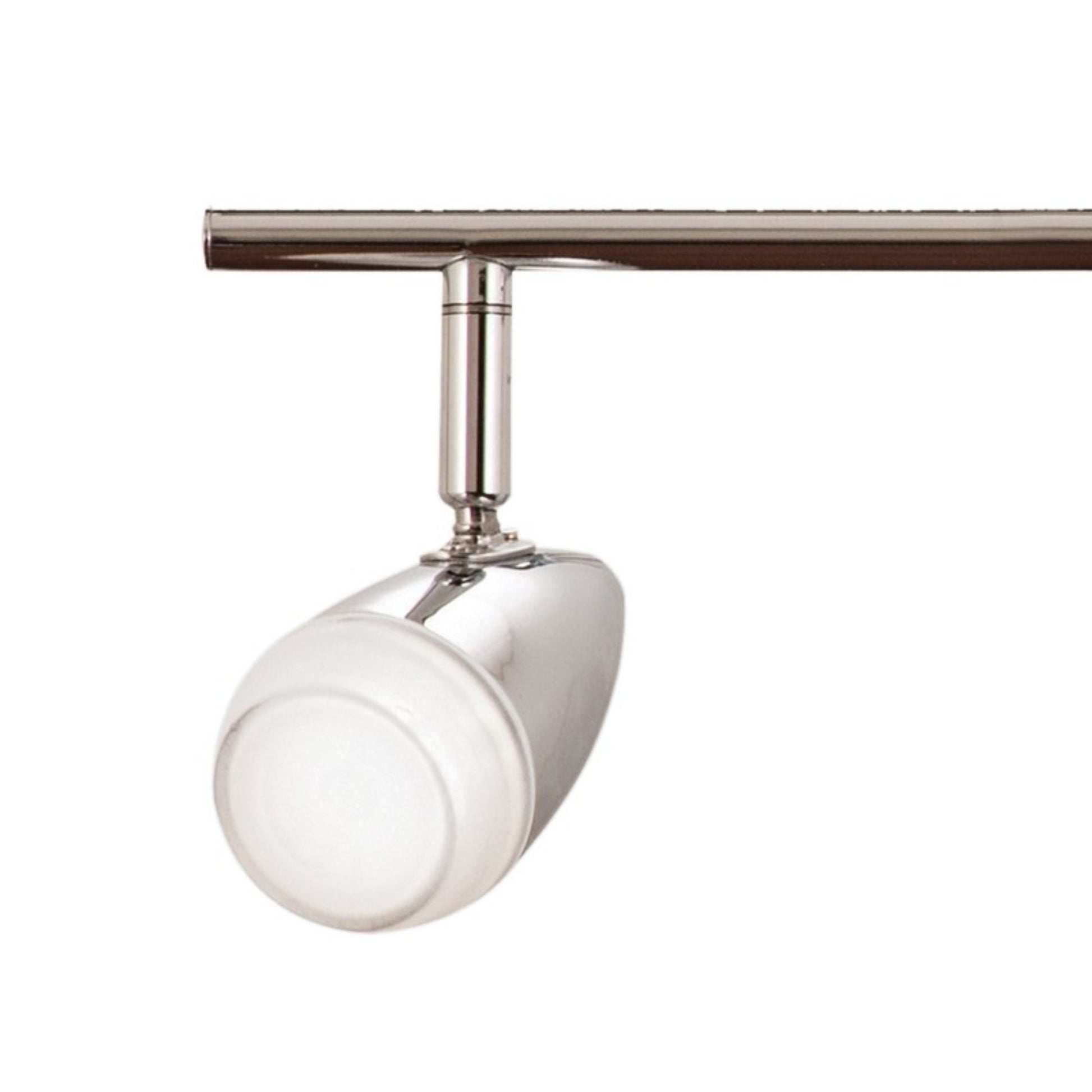

The AFX Lighting Eva EVAF0618L30D1PC fixed rail track light pairs four swivel-and-pivot heads with a slender rail and Polished Chrome finish for modern residential interiors. Aim individual heads toward kitchen surfaces, family-room features or office accents. Its 30W integrated LED system produces 3000 source lumens and 1924 delivered lumens of fixed 3000K warm-white light with 90 CRI. Frosted acrylic lens diffusers cover the light sources, and the complete fixture mounts on a ceiling or wall.

Key Features

• Fixture Type: Four-head LED fixed rail track light, nominal 30 in.
• Directional Heads: Four heads, swivel and pivot adjustment.
• LED System: Four integrated modules, 30W total fixture power.
• Light Output: 3000 source lumens, 1924 delivered lumens.
• Color Quality: Fixed 3000K, 90 CRI.
• Dimming: Compatible with TRIAC and ELV dimmers.
• Finish: Plated Polished Chrome canopy, rail and heads.
• Construction: 22-gauge stamped steel canopy, 20-gauge steel tube rail.
• Diffusers: Frosted acrylic lenses.
• Dimensions: 29 5/8 in long, 4 5/8 in wide, 6 1/2 in high.
• Electrical & Mounting: 120V AC, 60Hz, ceiling or wall mounting.
• Life & Listing: 50,000 hours, cETLus listed for indoor damp locations.

Construction & Design

Eva's fixed rail track light design combines four adjustable heads with a central canopy and slim metal rail. The heads swivel and pivot to direct light where needed. The 22-gauge stamped steel canopy and 20-gauge steel tube rail provide the structure, with the canopy, rail and heads plated in Polished Chrome. Frosted acrylic lens diffusers complete each head. Overall dimensions are 29 5/8 in long, 4 5/8 in wide and 6 1/2 in high.

Light Output & Performance

The four integrated LED modules use 30W total to produce 3000 source lumens and 1924 delivered lumens. Fixed 3000K light and 90 CRI provide warm illumination with accurate color rendering. Individually aim the heads across work surfaces or decorative features. Compatible TRIAC and ELV dimmers provide brightness control, and rated LED life is 50,000 hours.

Electrical & Installation

The AFX Lighting EVAF0618L30D1PC fixed rail track light operates on 120V AC, 60Hz and mounts to a standard junction box on a ceiling or wall. Power-supply connections must be made inside the junction box, which is not included. Select a compatible TRIAC or ELV dimmer for dimming control. The fixture is cETLus listed for indoor damp locations.

Typical Applications

• Kitchen work surfaces and accents.
• Family-room decorative features.
• Home office and study lighting.
• Artwork and interior display lighting.

What's Included

• One AFX Lighting Eva EVAF0618L30D1PC Polished Chrome fixed rail track light with canopy, rail, four swivel-and-pivot heads, four integrated LED modules and frosted acrylic lens diffusers.
