AFX Elena 10 in. Under Cabinet Light, White, Selectable CCT, 285 Lumens, 120V
AFX Elena 10 in. Under Cabinet Light, White, Selectable CCT, 285 Lumens, 120V
Available in stock (250)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Selectable CCT: Offers five color temperatures from 2700K to 5000K for versatile lighting needs.
- Dimmable: Compatible with most standard 2-wire and electronic low voltage dimmers for adjustable brightness.
- Construction: Made from durable extruded aluminum with a white polycarbonate diffuser.
- Installation: Features direct wire capability with multiple knockouts for flexible installation.
- Linkability: Can be linked up to 200 Watts for extended lighting runs.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
AFX Elena Under Cabinet Light — White & Selectable CCT

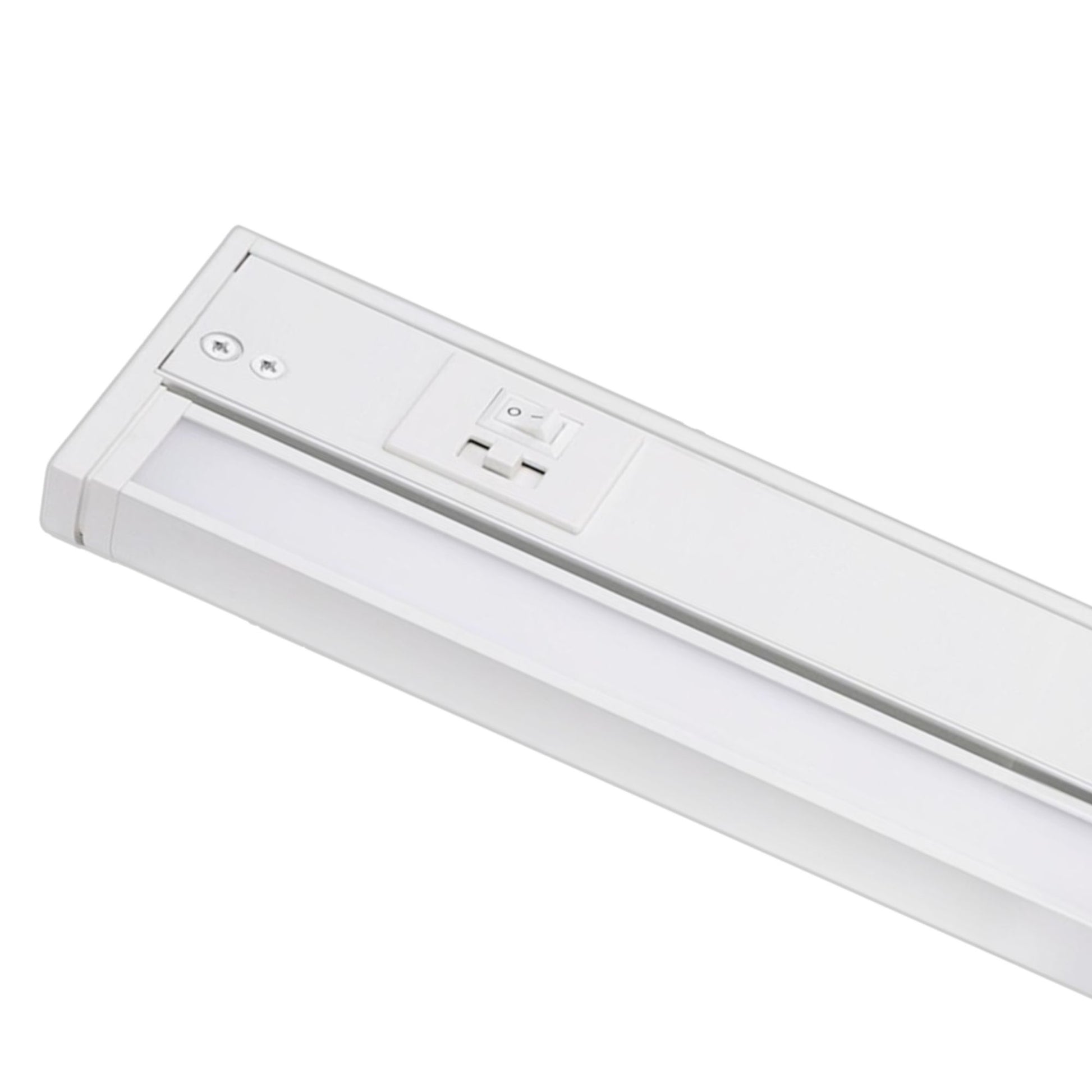

The AFX ELNU10WH is a white under cabinet light fixture made from extruded aluminum, measuring 10 in. in width. It features an integrated LED light source and operates at 120V. The fixture provides selectable color temperatures ranging from 2700K to 5000K, delivering 285 lumens of light output.
Key Features
- Dimensions: Measures 10 in. in width, 2.75 in. in length, and 1 in. in height.
- Voltage: Operates on 120V input for direct wire applications.
- Wattage: Consumes 5 watts of power.
- Lumens: Provides 285 lumens of light output.
- Color Temperature: Selectable CCT from 2700K to 5000K.
- CRI: High color rendering index of 90 for accurate color representation.
- Lifespan: Rated for 50,000 hours of operation.
- Pivoting Light Bar: Adjustable beam angle for targeted lighting.
- Linkable: Connect multiple units up to 200 Watts.
- Mounting: Includes captive mounting screws and direct connector.
Core Design & Profile
The fixture's slim profile and white finish make it suitable for various under cabinet applications. It features a white polycarbonate diffuser and is cETLus listed for indoor damp locations.
LED Illumination & Performance
With a light output of 285 lumens and a selectable CCT range, this fixture provides versatile lighting options. It is dimmable with compatible dimmers, offering flexibility in brightness control.
Power, Wiring & Linkability
This fixture supports direct wire installation with multiple knockouts for easy wiring. It can be linked with other units up to a total of 200 Watts, allowing for extended lighting configurations.
Where This Fixture Works Best
- Kitchen under cabinets
- Study areas
- Display lighting
- Workstations
- Retail shelving
What's Included
- Direct connector
- Captive mounting screws
