AFX Edge Round EGRF08LAJD1BK 8 in LED Flush Mount in Black

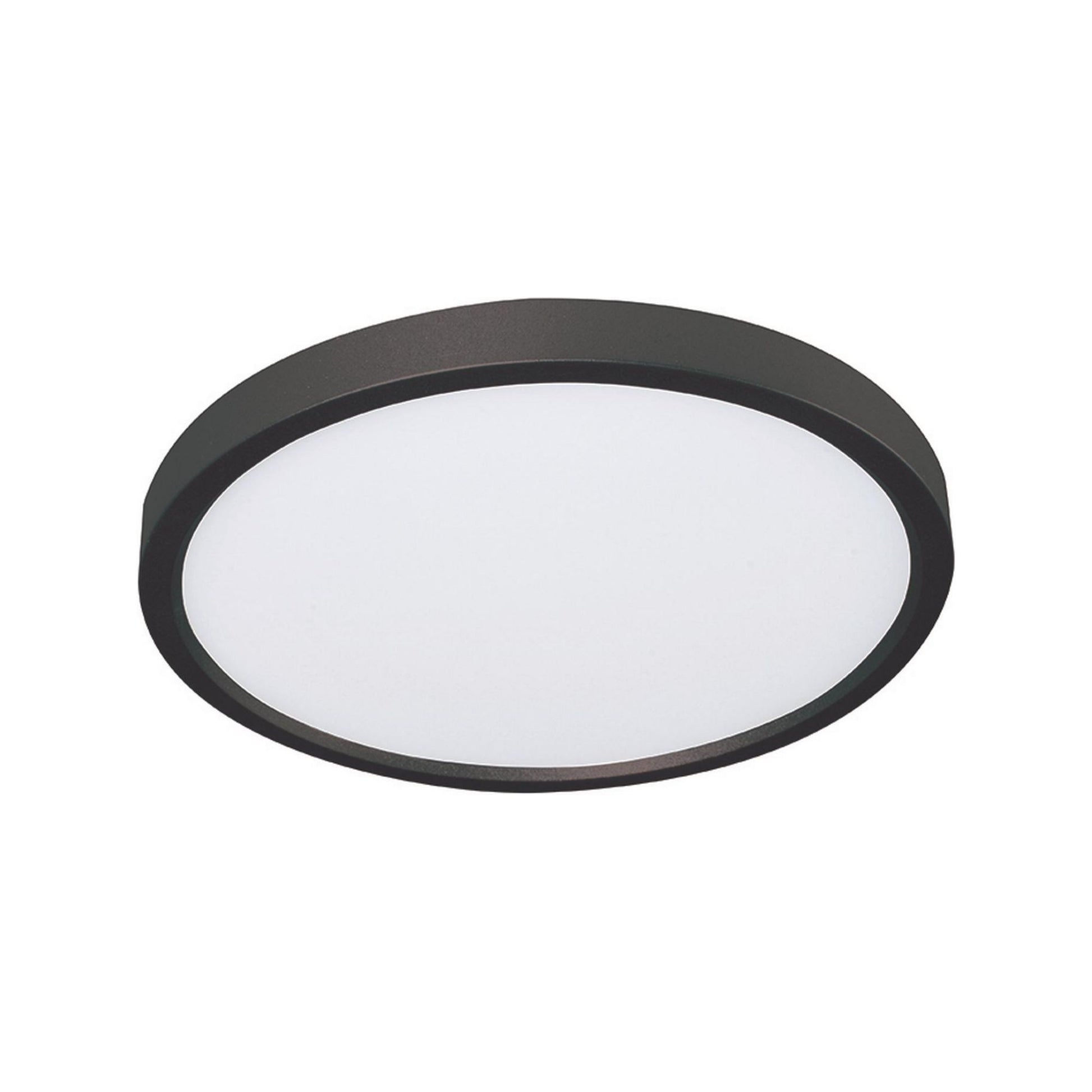

The AFX Edge Round EGRF08LAJD1BK edge-lit surface-mount disc light combines a Black finish with a white acrylic diffuser. Its 8 in diameter and 0.75 in depth keep projection low. The included 15W integrated LED delivers 1034 lumens with 90 CRI and five selectable color temperatures.

Key Features

• Fixture Type: Round edge-lit LED surface-mount disc light
• Finish: Black
• Construction: Injection-molded housing with aluminum backplate
• Diffuser: White acrylic
• Dimensions: 8 in diameter by 0.75 in depth
• LED Performance: 15W and 1034 delivered lumens
• Selectable CCT: 2700K, 3000K, 3500K, 4000K and 5000K; 90 CRI
• Electrical: Direct-wired 120V AC with constant-current low-voltage electronic LED driver
• Dimming: Down to 10% with compatible 2-wire TRIAC or ELV dimmer
• Mounting: Snap-in bracket and standard junction box; box not included
• Ratings: cETLus listed, ENERGY STAR qualified and Title 24/JA8 compliant; wet-location indoor use and covered outdoor ceiling mount only
• Life and Warranty: 50,000-hour rated life, rated for 24/7 operation at -20°C to 45°C; five-year limited warranty against defects in materials and workmanship from purchase date

Construction & Design

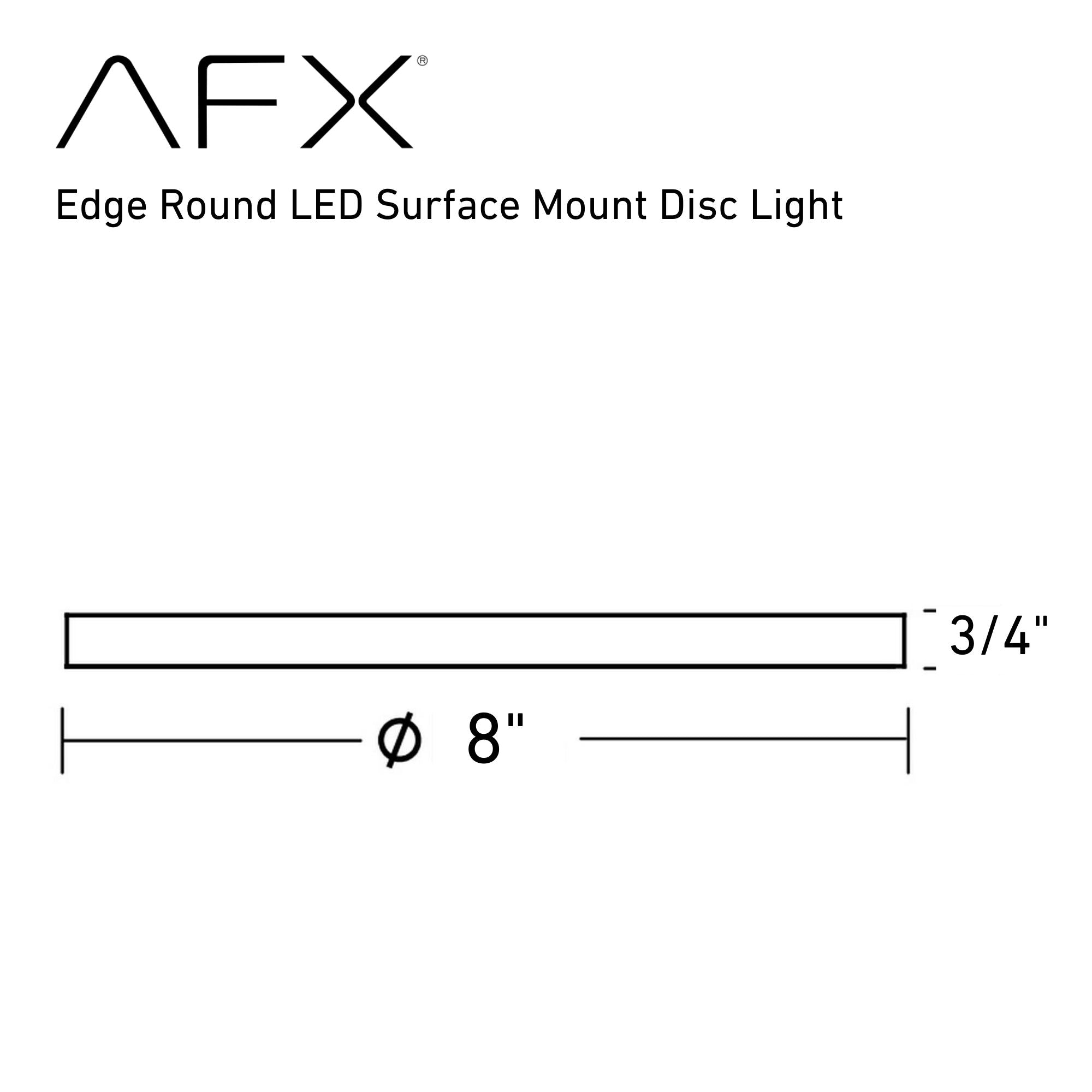

The Black injection-molded housing, aluminum backplate and white acrylic diffuser form a compact edge-lit disc. Actual dimensions are 8 in diameter by 0.75 in depth, keeping the fixture close to the mounting surface.

Light Output & Performance

The included 15W LED modules supply 1034 delivered lumens with 90 CRI. The black model's ordering row specifies five settings: 2700K, 3000K, 3500K, 4000K and 5000K. Rated life is 50,000 hours, with 24/7 operation rated at -20°C to 45°C.

Electrical & Installation

Direct-wire to 120V AC using the constant-current electronic LED driver. Compatible 2-wire TRIAC or ELV dimmers dim to 10% of full output. A snap-in bracket mounts the fixture to a standard junction box, not included; power connections must be inside the box. Indoor use supports wall or ceiling mounting. Outdoor use is restricted to covered ceiling mounting only. The sheet lists cETLus, ENERGY STAR and Title 24/JA8. Closet installation must follow the stated NEC 410.16 spacing requirements.

Compatible Accessories

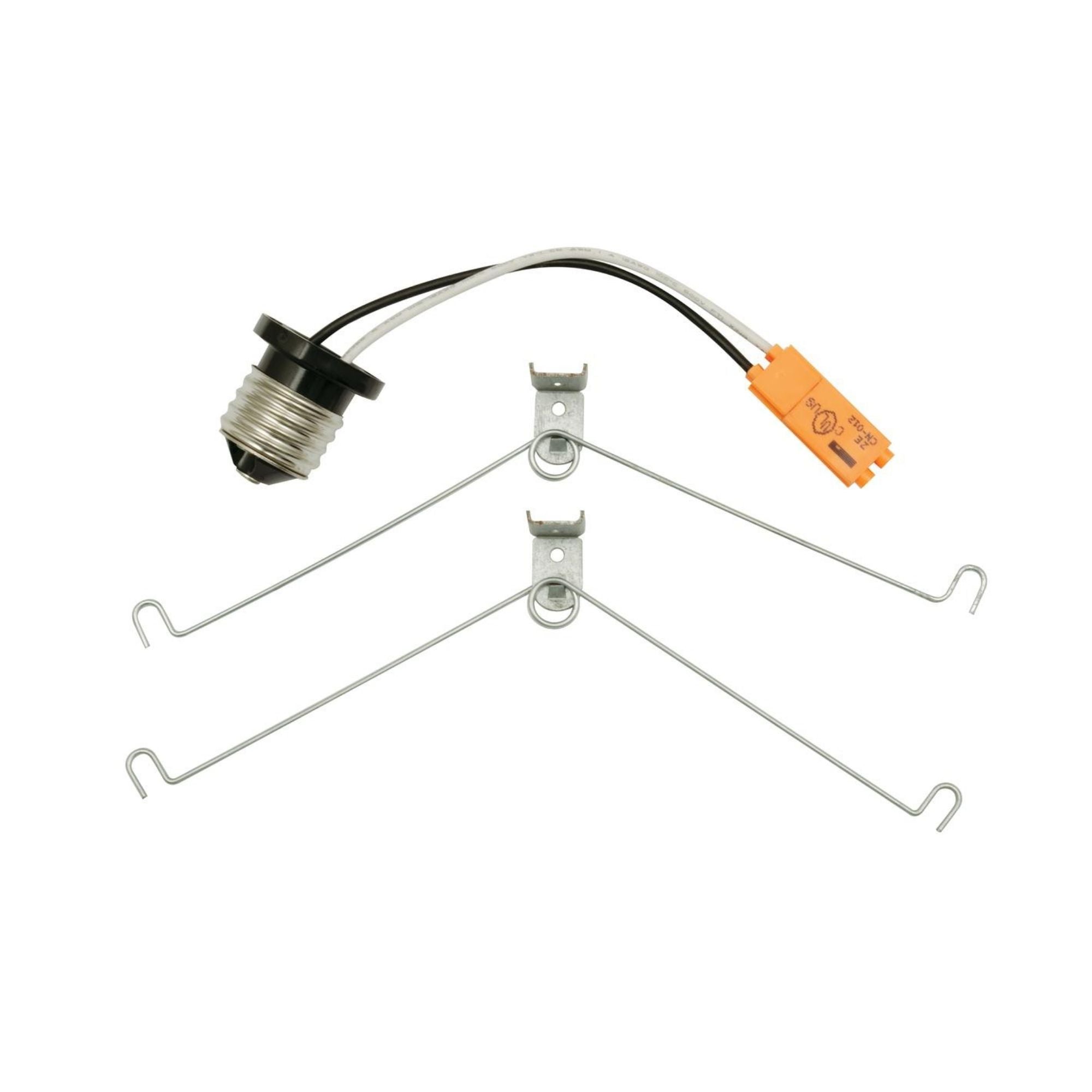

• EGRF-RET04: Sold-separately retrofit kit for a 4 in recessed ceiling can
• EGRF-RET06: Sold-separately retrofit kit for a 6 in recessed ceiling can
• EGRF-BB08: Sold-separately battery backup for 8 in models, available in white only
• EGRF-BB08PAN: Sold-separately spacing pan for 8 in models

Typical Applications

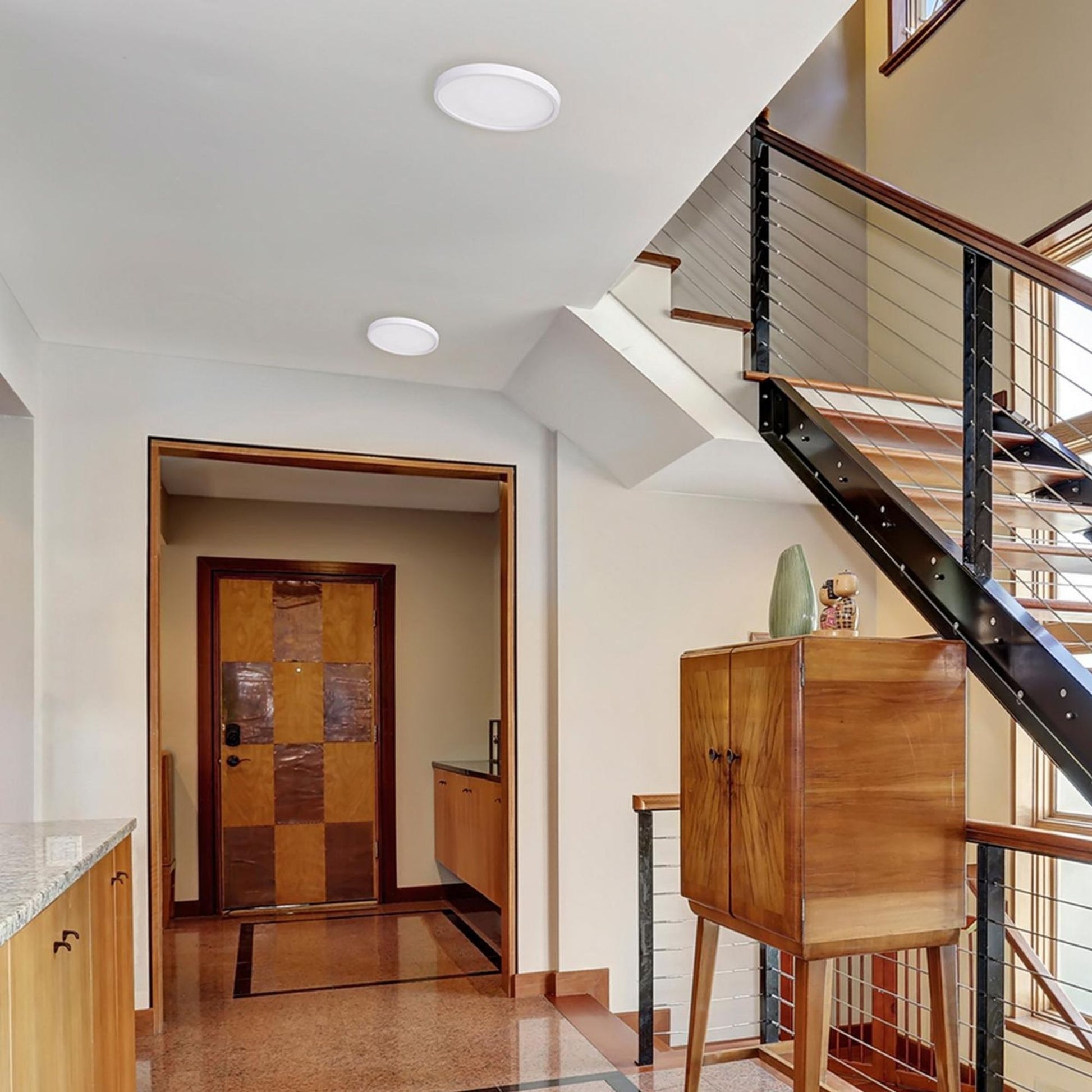

• Interior corridors and hallways

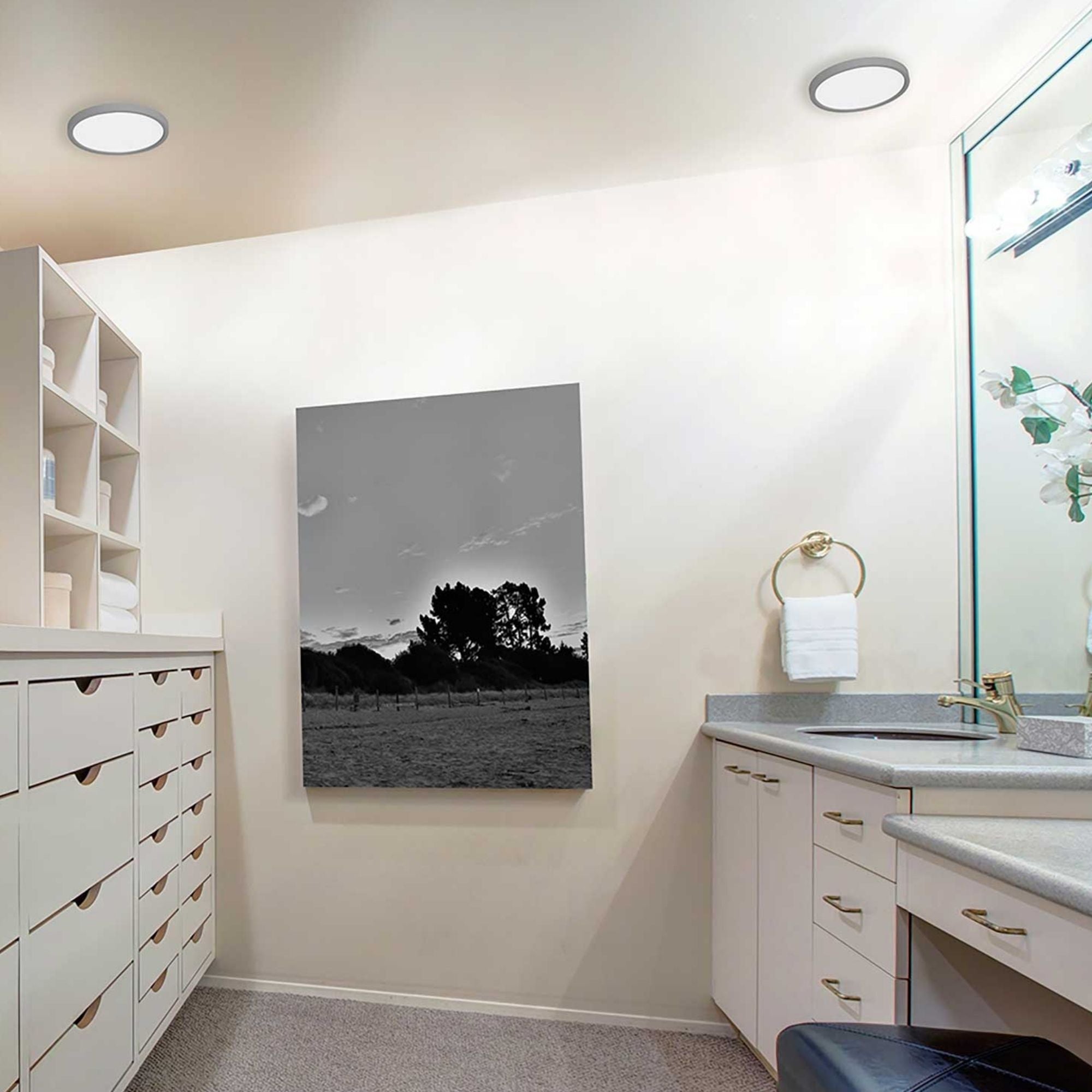

• Bathrooms and kitchens
• Closets installed with required spacing
• Covered outdoor ceiling locations

What's Included

• One AFX Edge Round EGRF08LAJD1BK fixture in Black with white acrylic diffuser
• Integrated LED modules and electronic LED driver
• Snap-in mounting bracket
