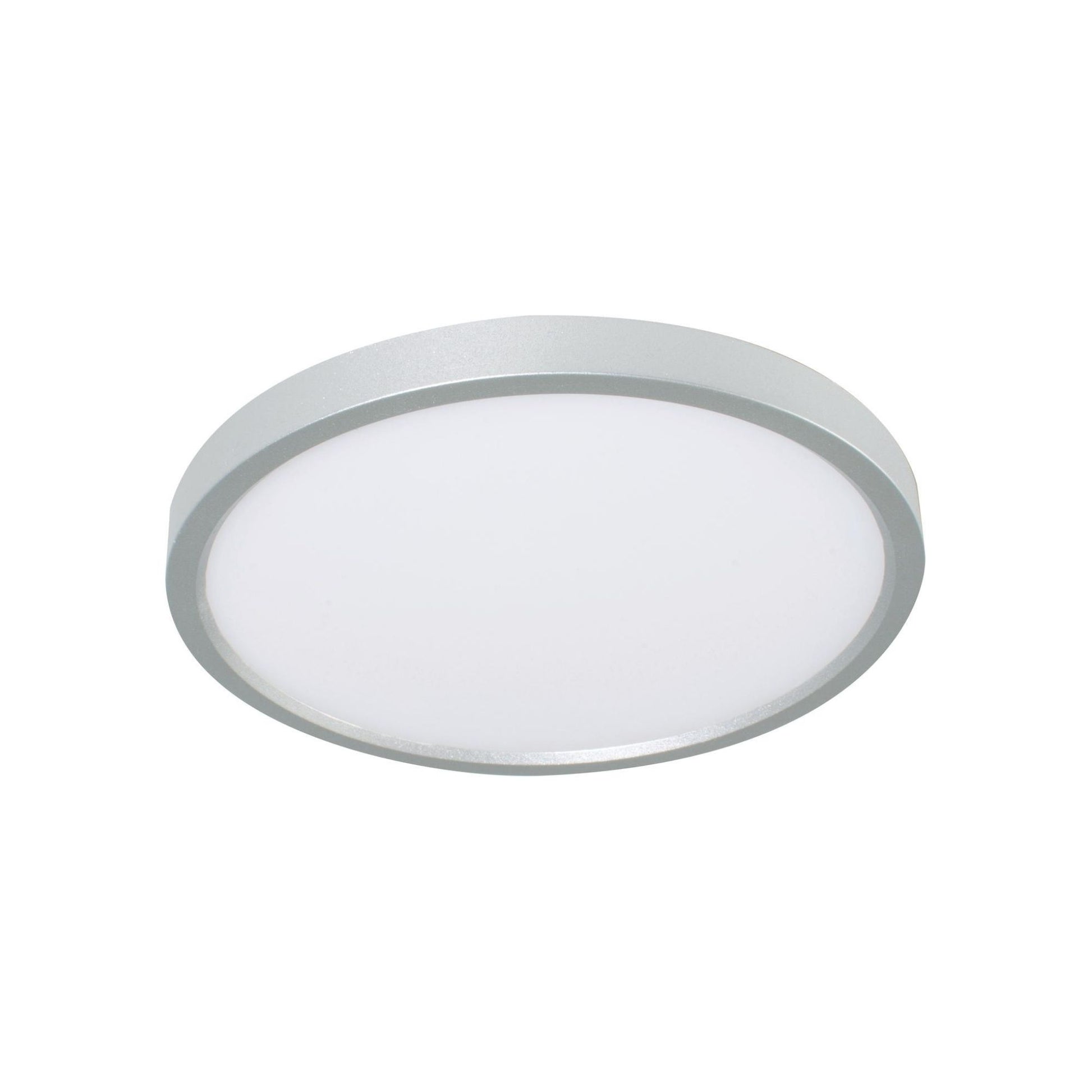

AFX Edge Round EGRF06LAJD1SN LED Flush Mount in Satin Nickel

The AFX Edge Round EGRF06LAJD1SN edge-lit surface-mount disc light combines a Satin Nickel finish with a white acrylic diffuser. Its 5.375 in diameter and 0.75 in depth minimize projection, while the included 12W integrated LED supplies 745 delivered lumens. Choose 3000K, 4000K or 5000K with 90 CRI to suit the space.

Key Features

• Fixture Type: Round edge-lit LED surface-mount disc light
• Finish: Satin Nickel
• Construction: Injection-molded housing with aluminum backplate
• Diffuser: White acrylic
• Dimensions: 5.375 in diameter by 0.75 in depth
• LED Performance: 12W and 745 delivered lumens
• Selectable CCT: 3000K, 4000K and 5000K; 90 CRI
• Electrical: Direct-wired 120V AC with constant-current low-voltage electronic LED driver
• Dimming: Down to 10% with compatible 2-wire TRIAC or ELV dimmer
• Mounting: Snap-in bracket and standard junction box; box not included
• Ratings: cETLus listed, ENERGY STAR qualified and Title 24/JA8 compliant; wet-location indoor use and covered outdoor ceiling mount only
• Life and Warranty: 50,000-hour rated life, rated for 24/7 operation at -20°C to 45°C; five-year limited warranty against defects in materials and workmanship from purchase date

Construction & Design

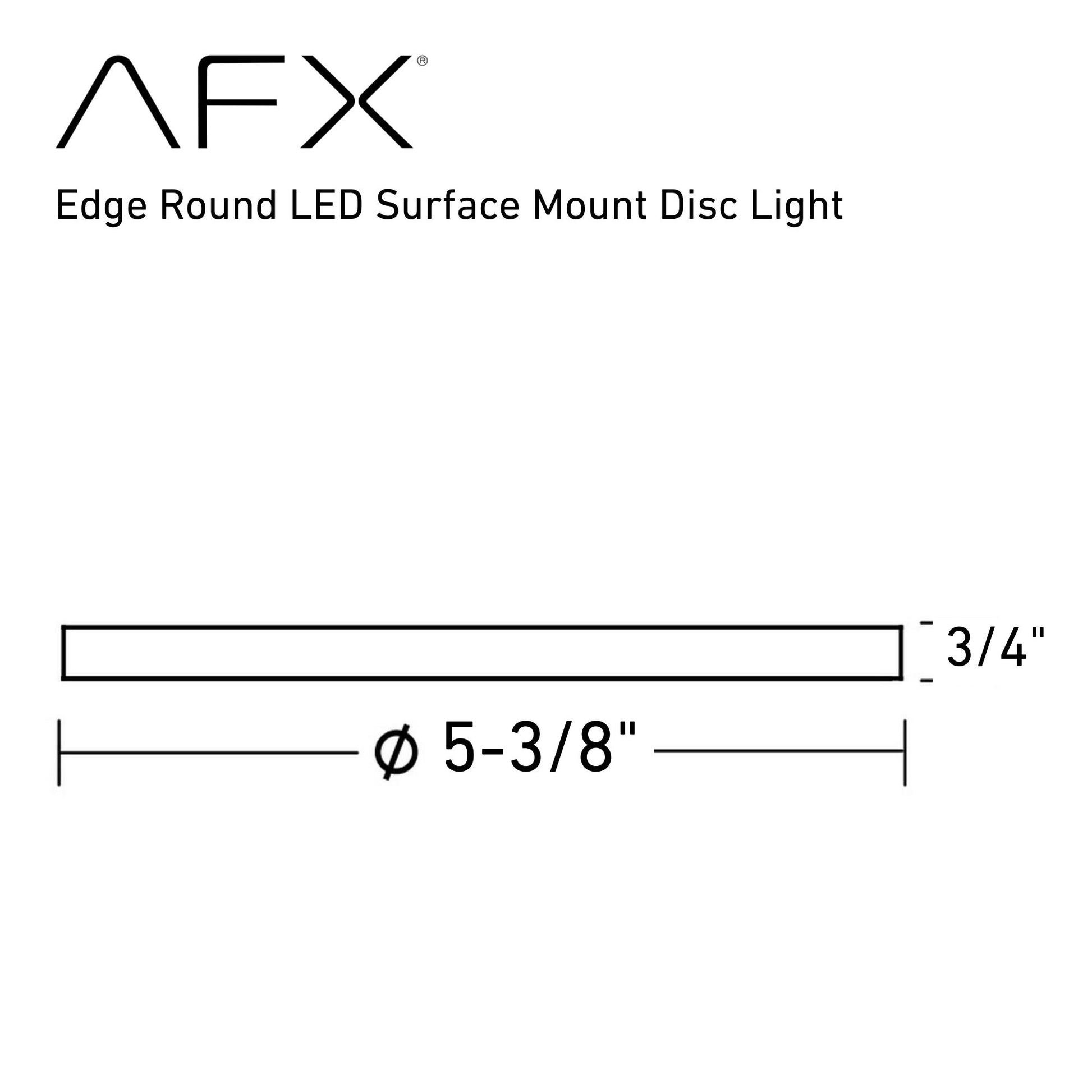

The Satin Nickel injection-molded housing, aluminum backplate and white acrylic diffuser create a compact edge-lit disc. Actual diameter is 5.375 in, with 0.75 in depth for low-clearance ceiling applications.

Light Output & Performance

The included 12W LED modules provide 745 delivered lumens with 90 CRI. This satin nickel model's ordering row specifies three settings: 3000K, 4000K and 5000K. Rated life is 50,000 hours, with 24/7 operation rated at -20°C to 45°C.

Electrical & Installation

Direct-wire to 120V AC using the constant-current electronic LED driver. Compatible 2-wire TRIAC or ELV dimmers dim to 10% of full output. A snap-in bracket mounts the fixture to a standard junction box, not included; power connections must be inside that box. Indoor installation supports wall or ceiling mounting. Outdoor use is restricted to covered ceiling mounting only. The sheet lists cETLus, ENERGY STAR and Title 24/JA8. Closet installation must follow the stated NEC 410.16 spacing requirements.

Compatible Accessories

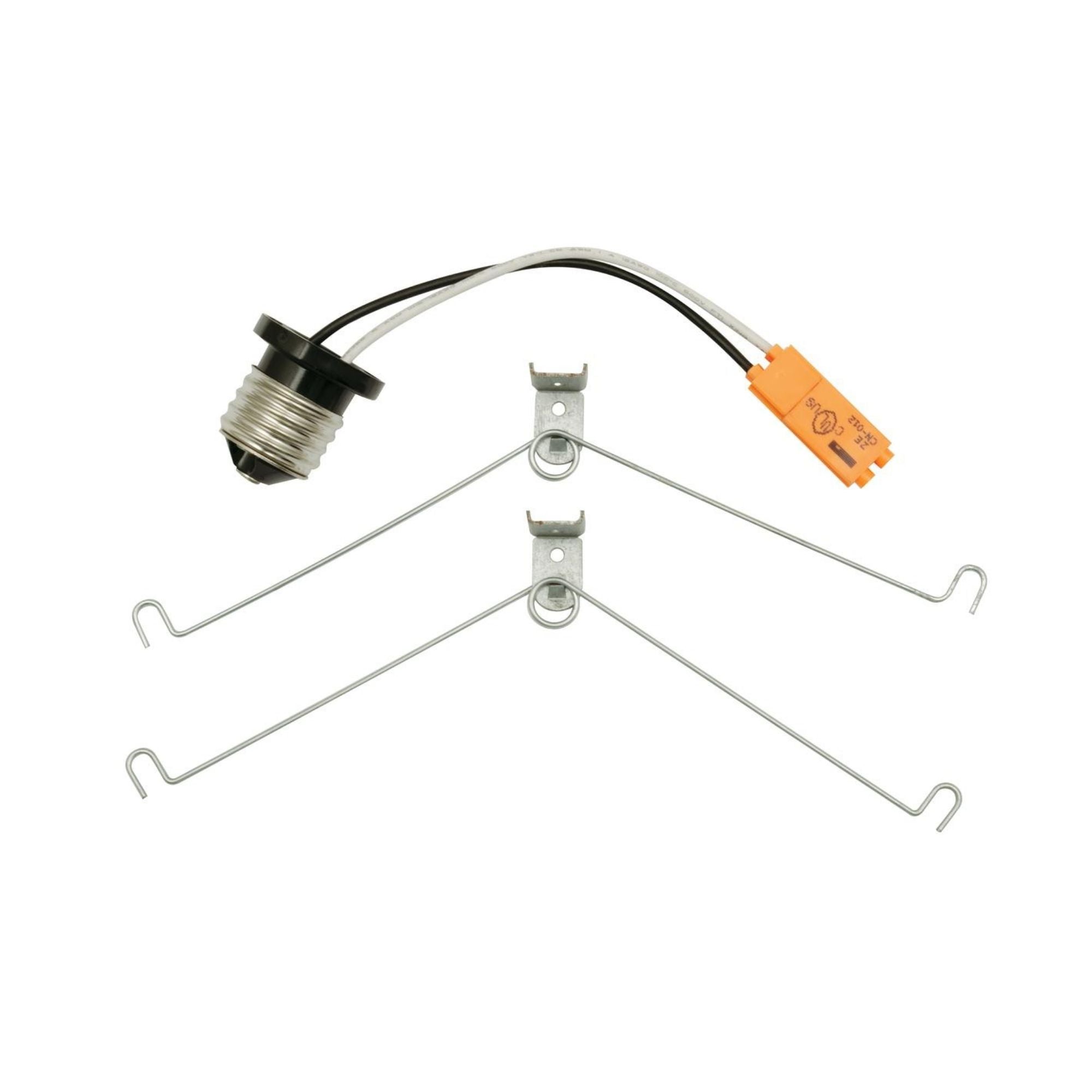

• EGRF-RET04: Sold-separately retrofit kit for a 4 in recessed ceiling can
• EGRF-RET06: Sold-separately retrofit kit for a 6 in recessed ceiling can

Typical Applications

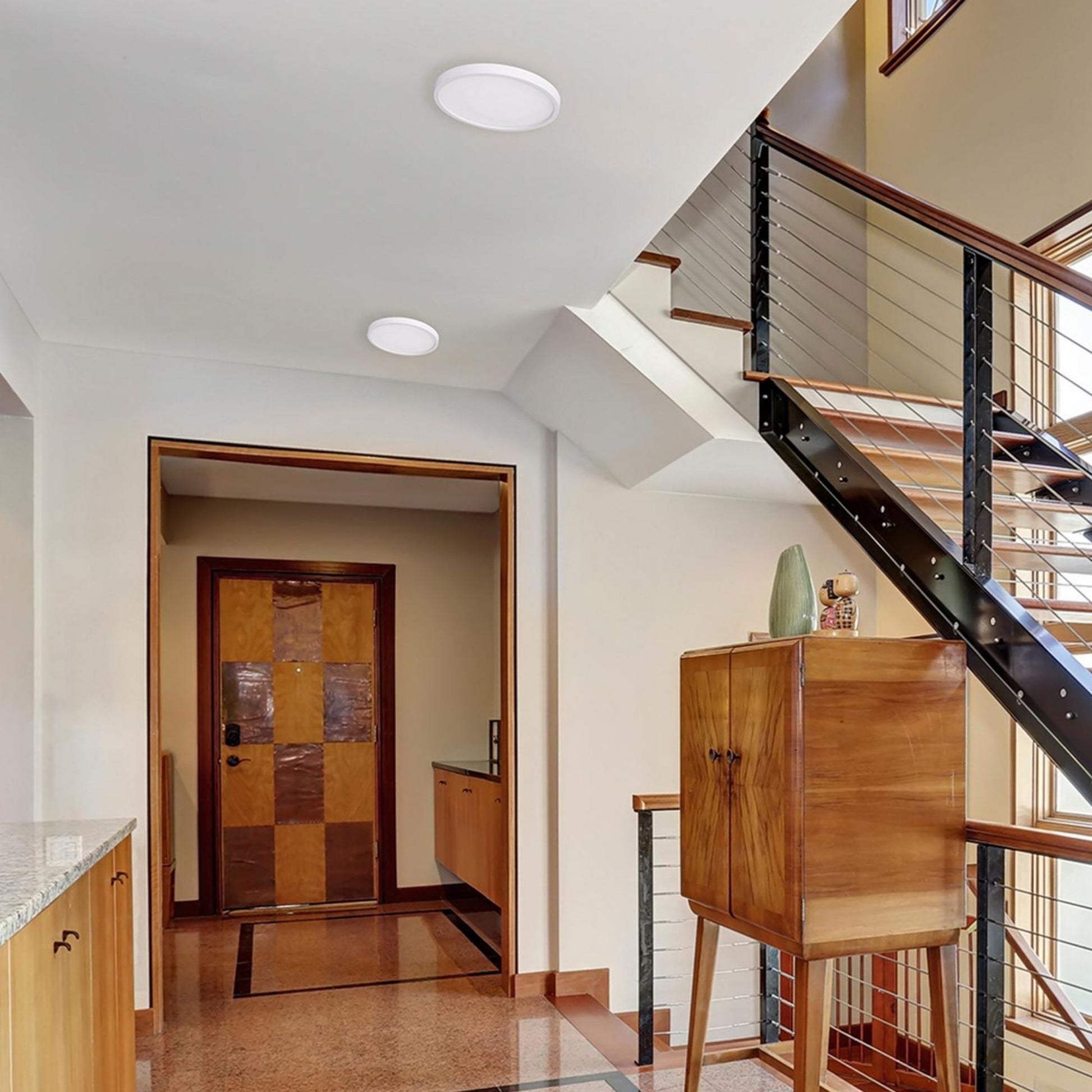

• Interior corridors and hallways

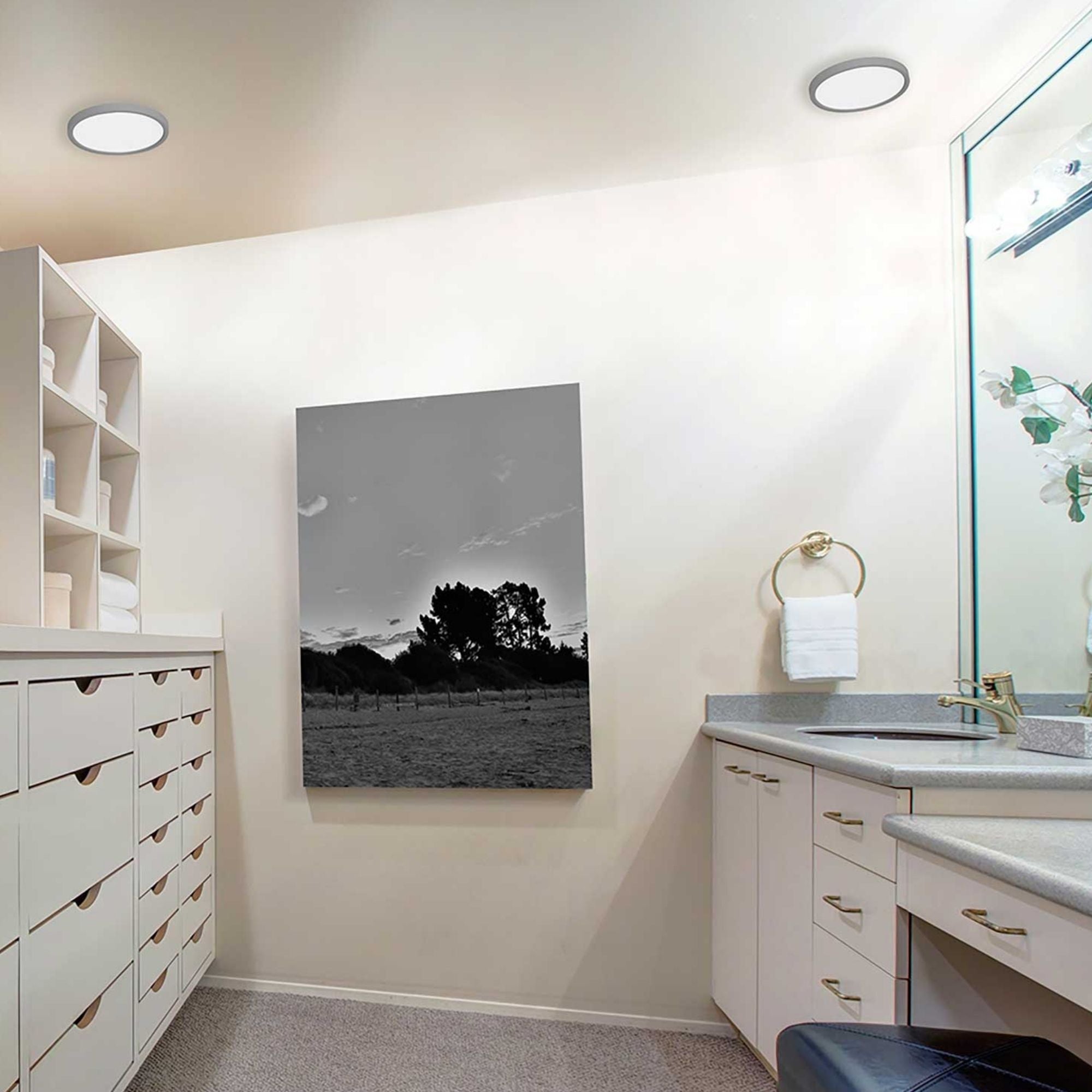

• Bathrooms and kitchens
• Closets installed with required spacing
• Covered outdoor ceiling locations

What's Included

• One AFX Edge Round EGRF06LAJD1SN fixture in Satin Nickel with white acrylic diffuser
• Integrated LED modules and electronic LED driver
• Snap-in mounting bracket
