AFX Edge Round LED Flush Mount 3 Sizes Selectable CCT 120V
Available in stock (250)
-
Estimated delivery: Oct 24 - Oct 28
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

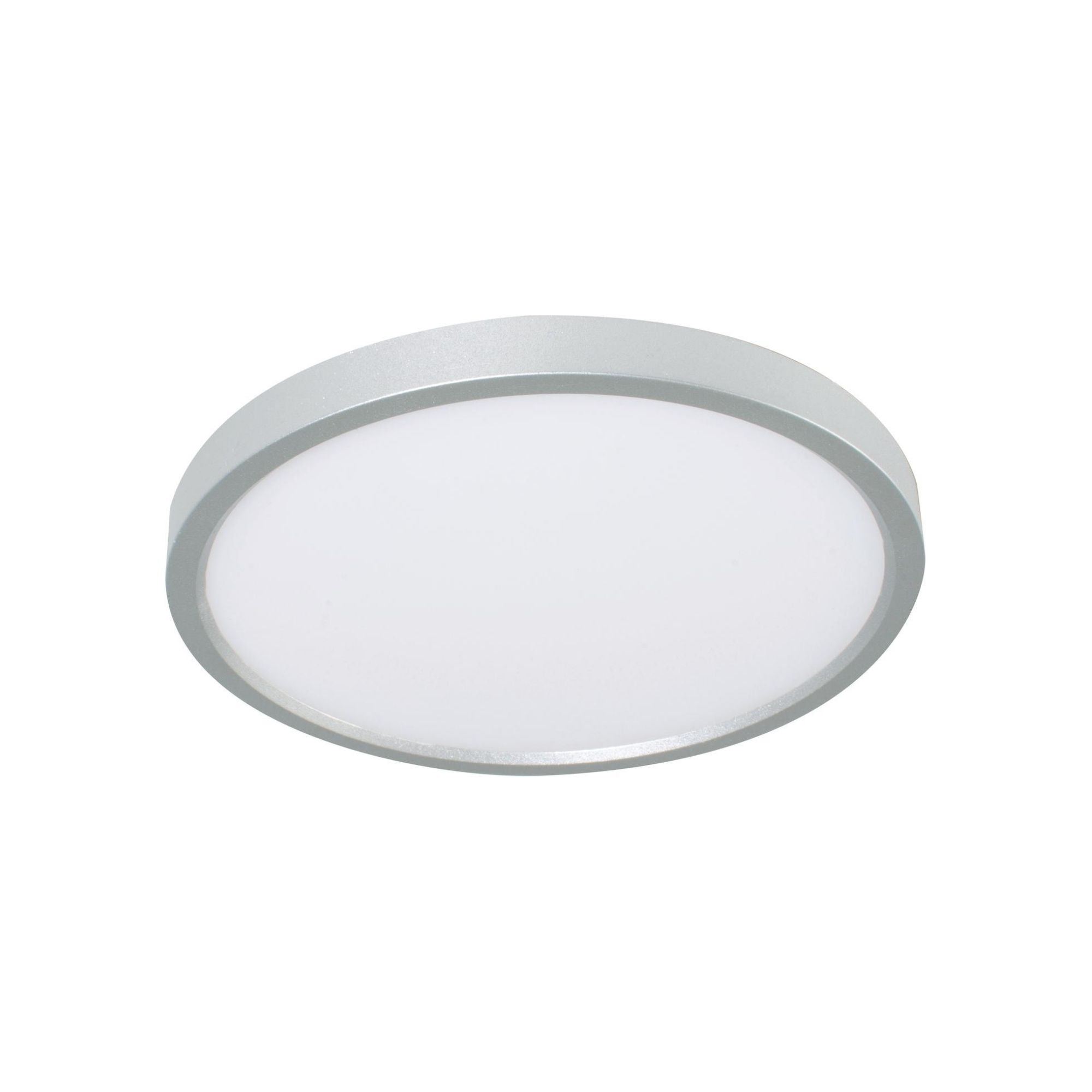

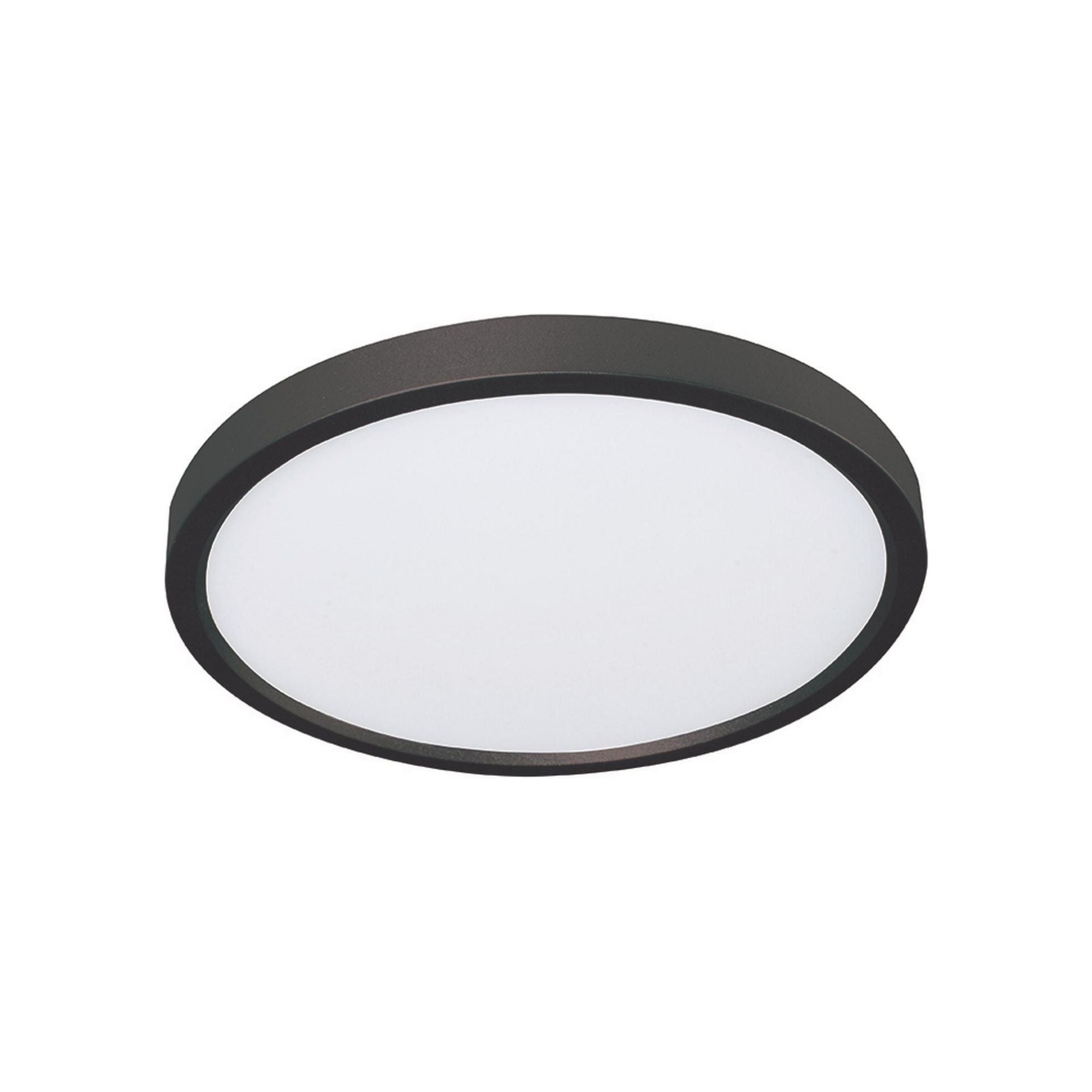

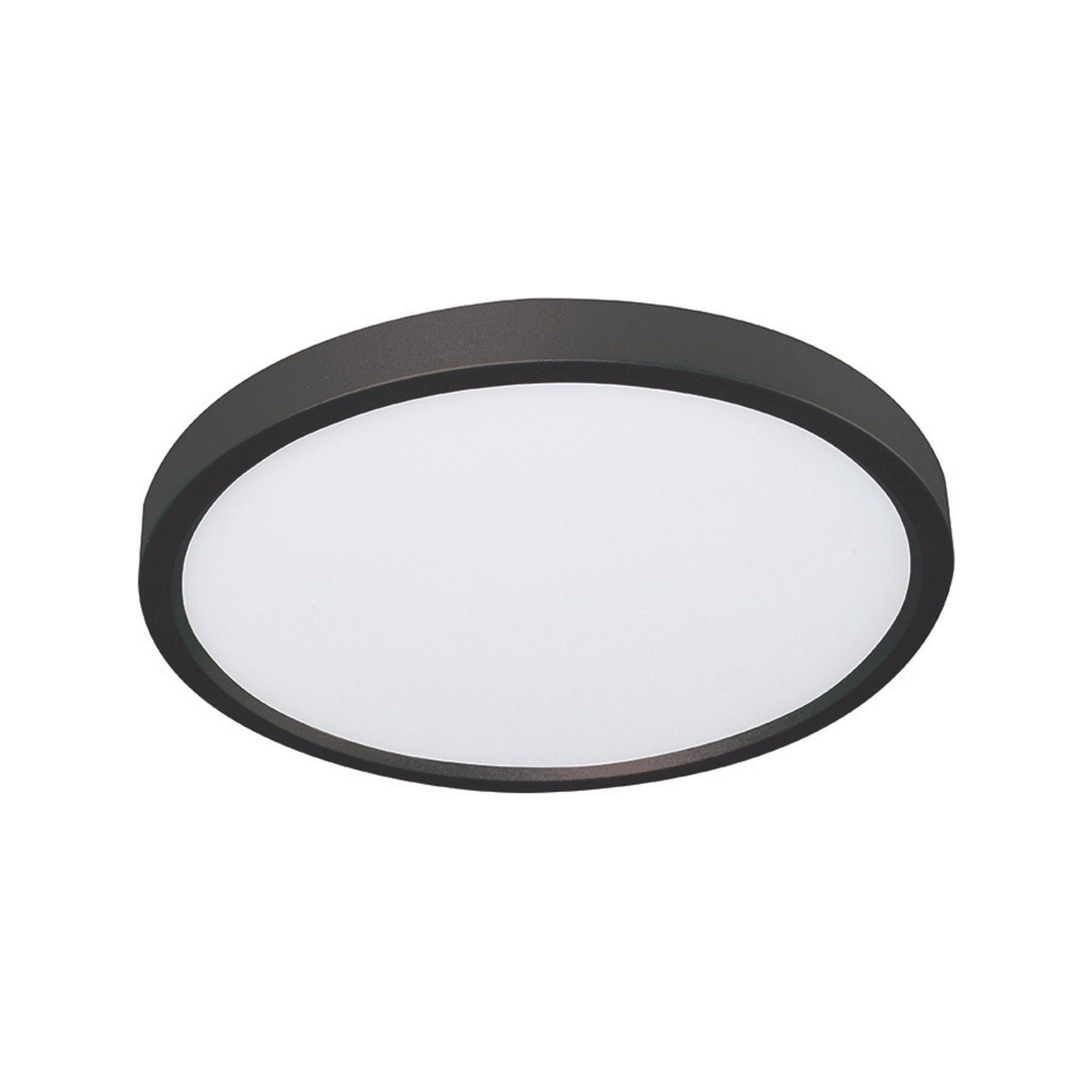

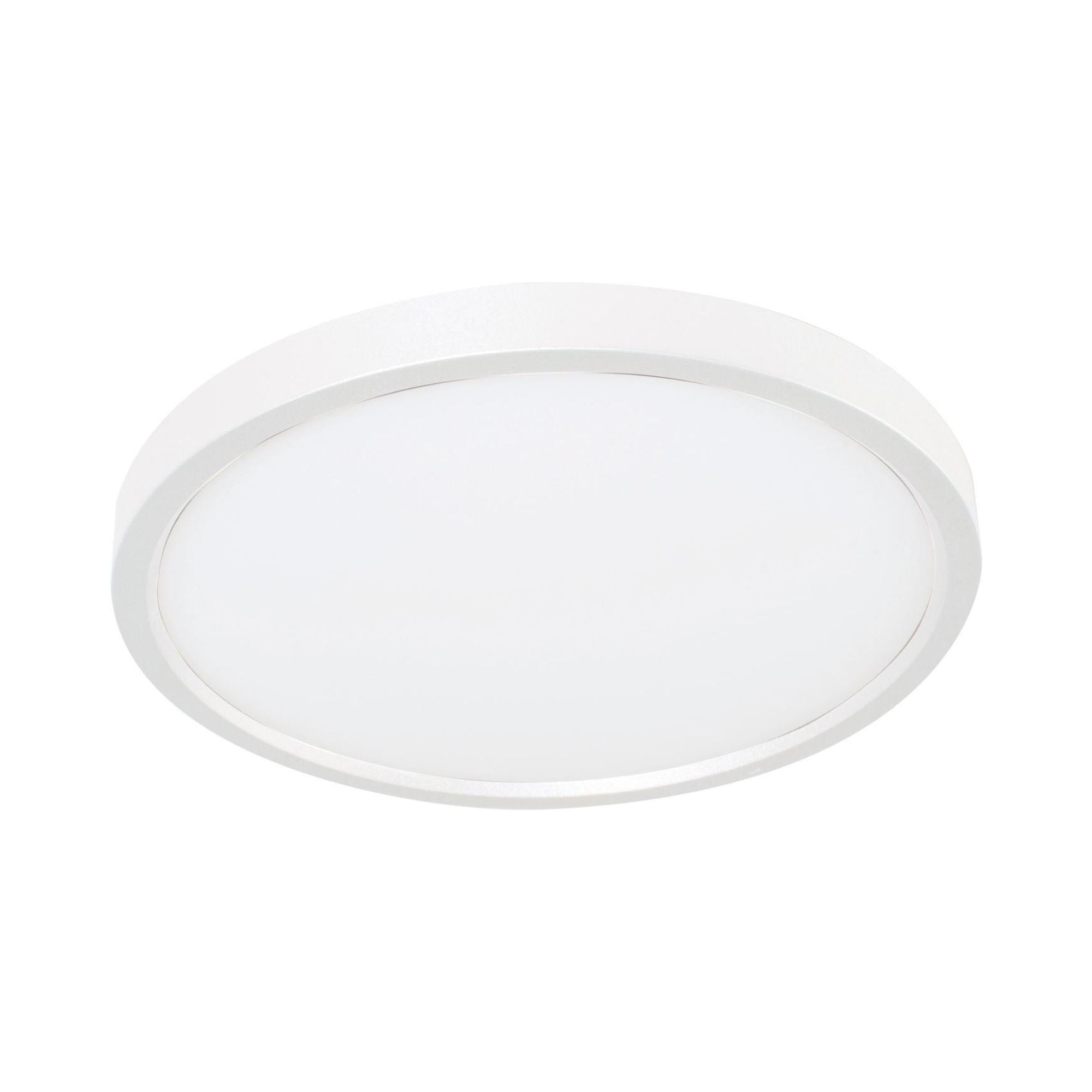

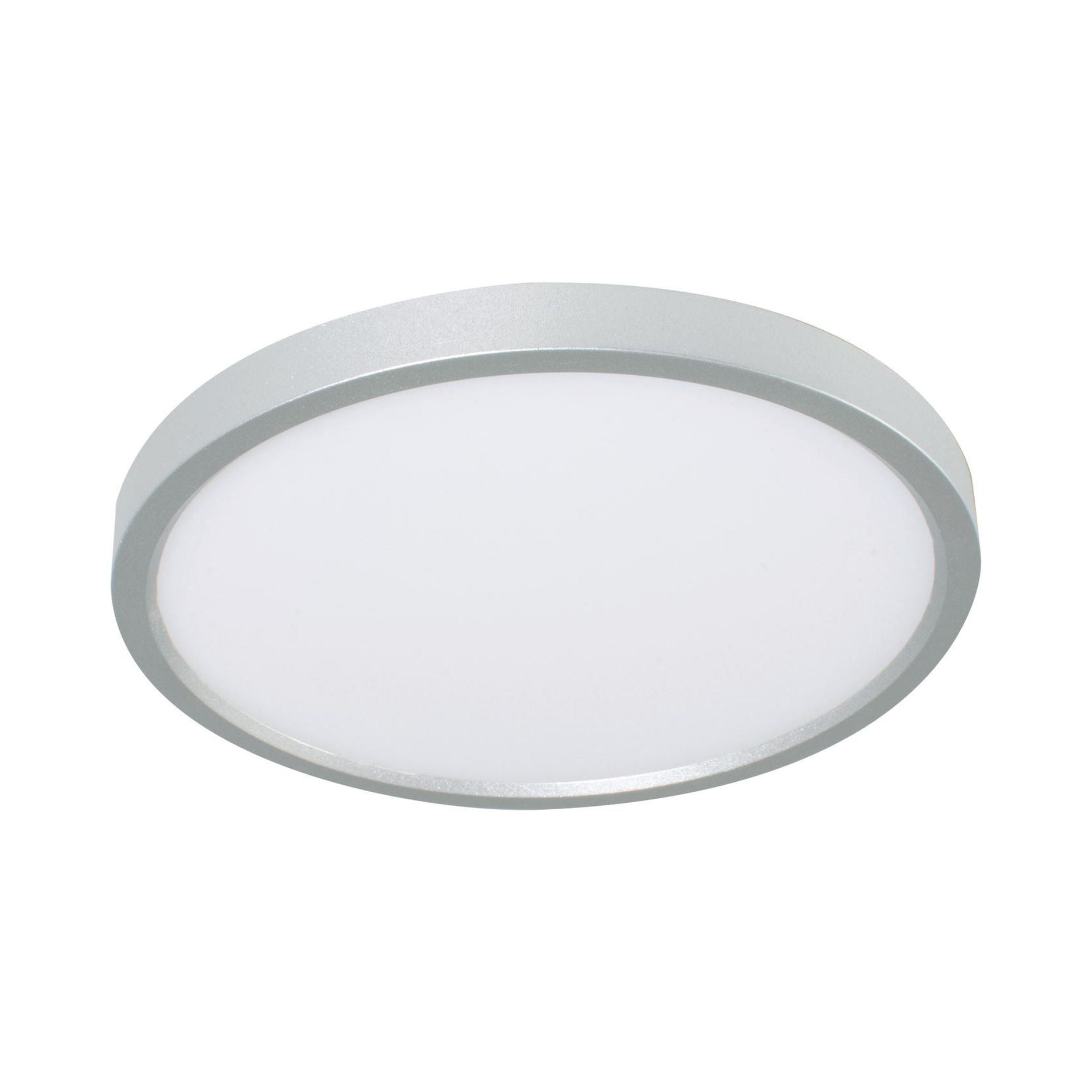

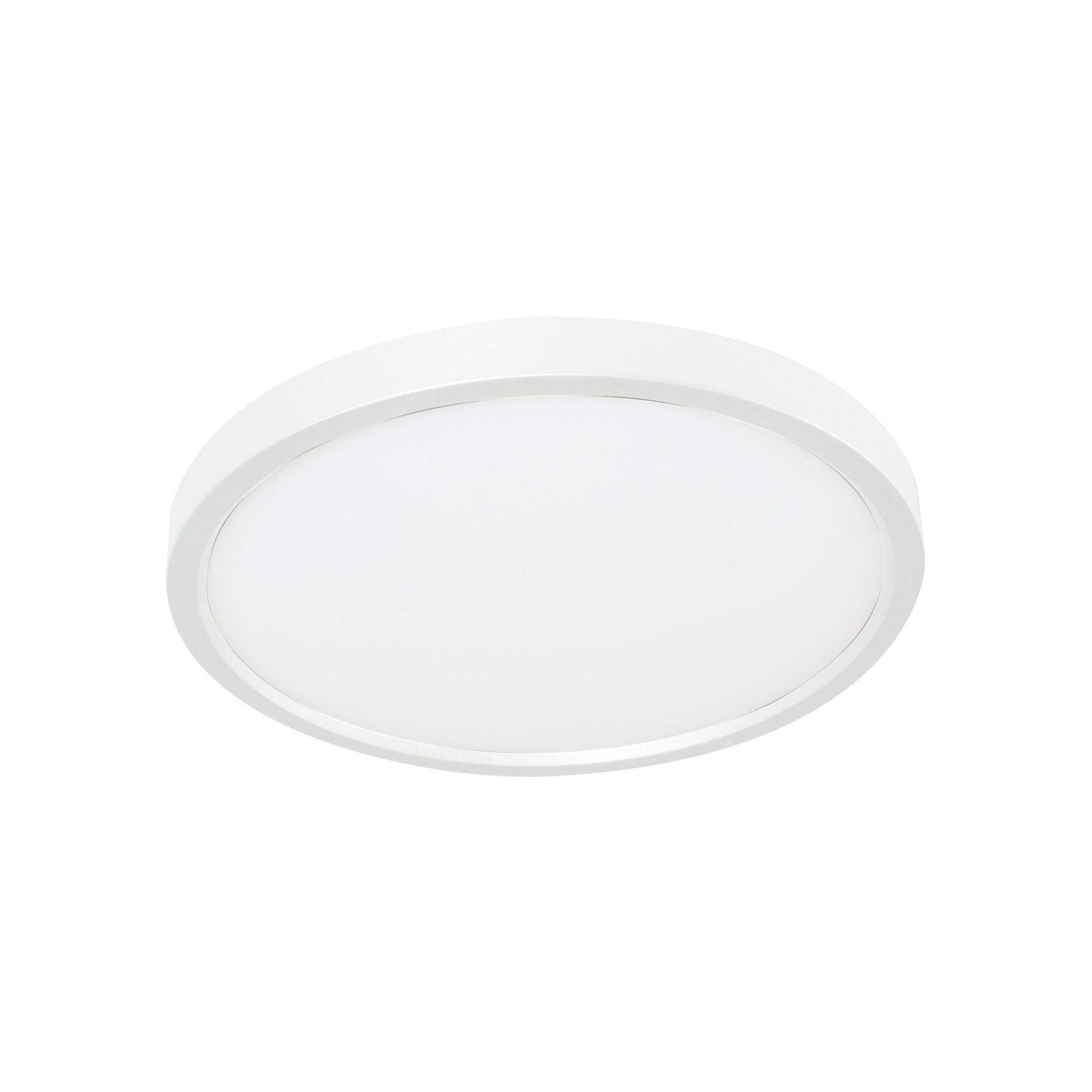

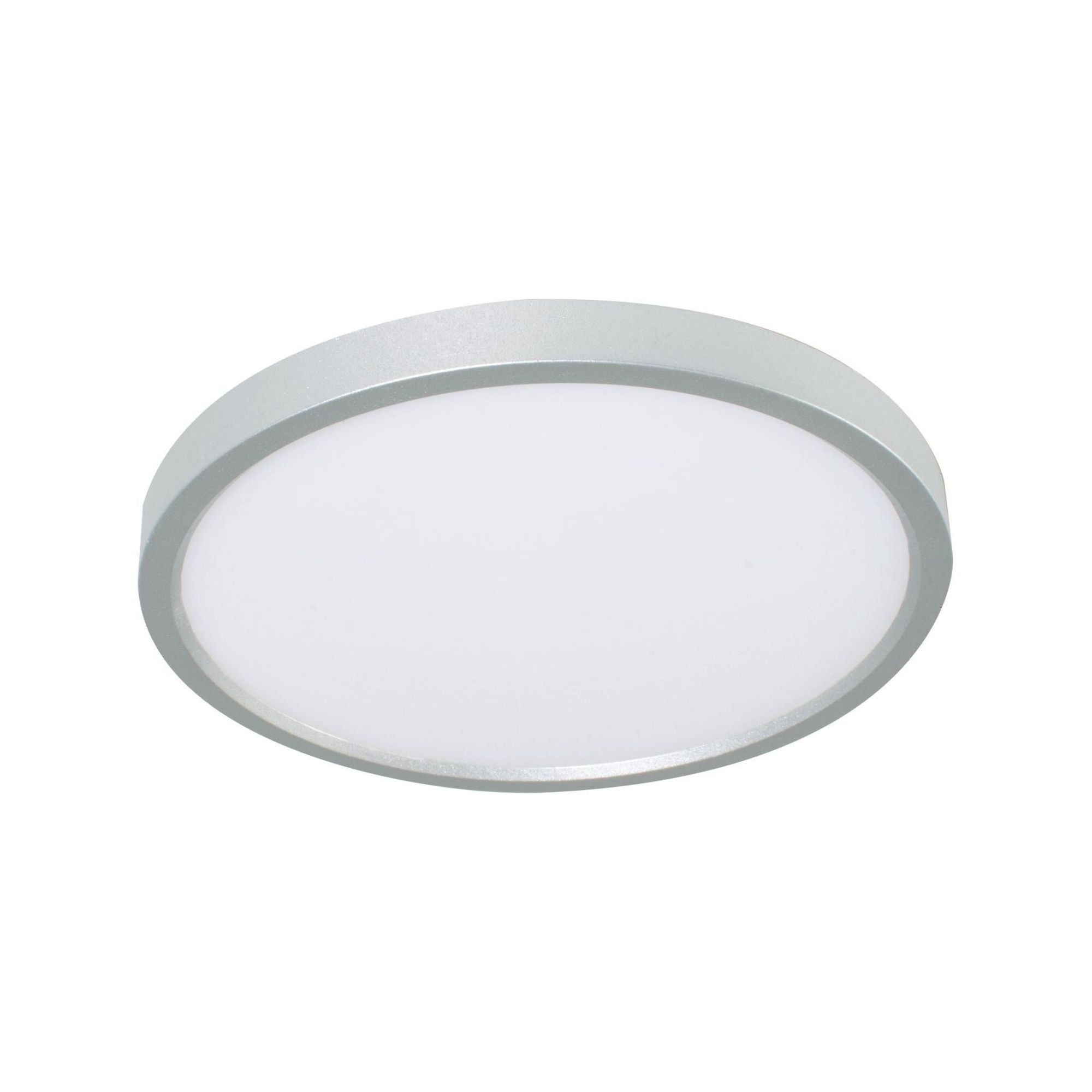

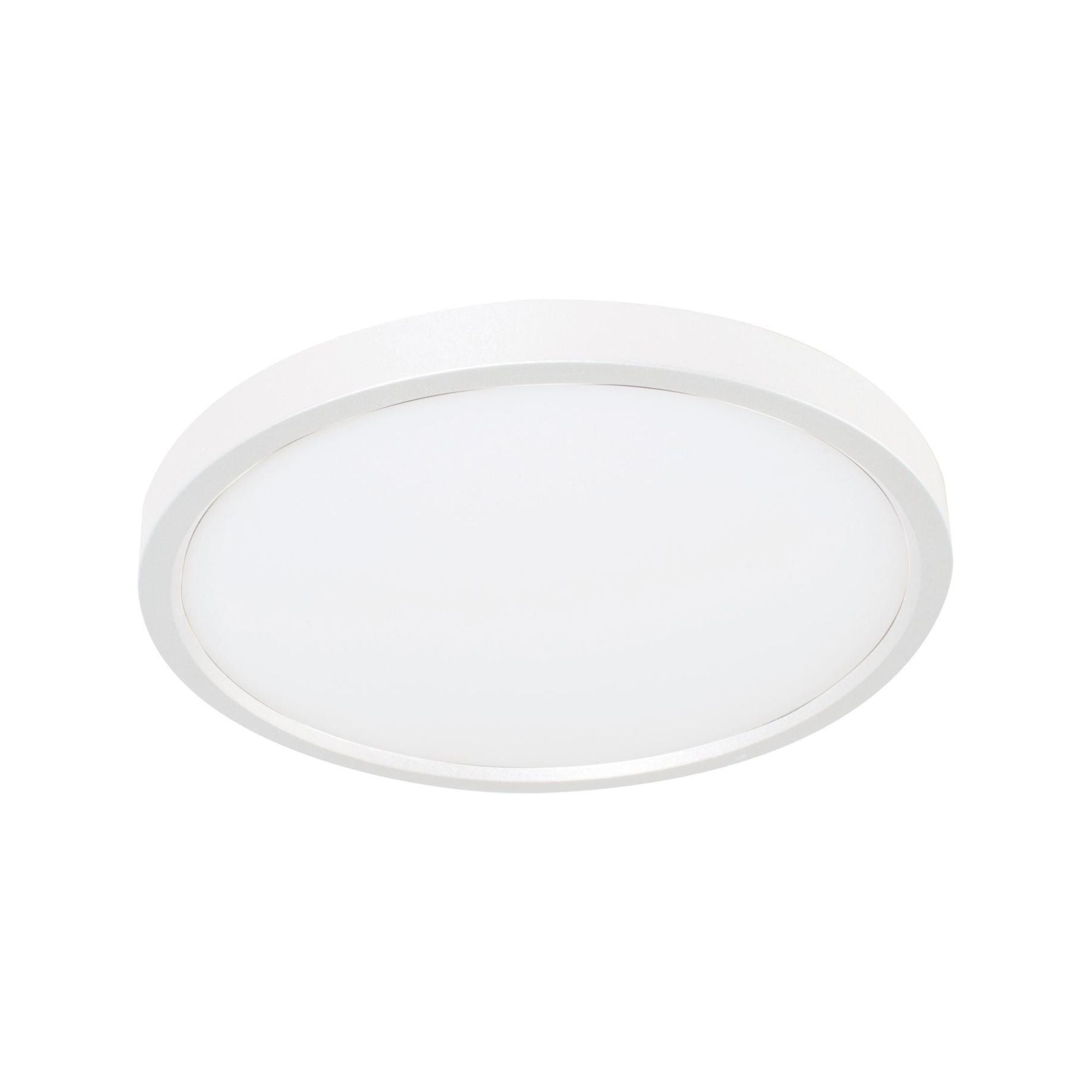

AFX Edge Round LED Flush Mount Collection, Three Sizes and Three Finishes
The AFX Edge Round integrated LED flush mount collection offers an edge-lit disc design in White, Black and Satin Nickel. Choose nominal 6, 8 or 12 in options, each with a 0.75 in depth, white acrylic diffuser and 90 CRI. Output and selectable color temperatures depend on the size and finish selected.
Key Features
- Design: Round edge-lit LED surface-mount disc
- Finishes: White, Black and Satin Nickel
- Construction: Injection-molded housing with aluminum backplate and white acrylic diffuser
- Nominal 6 in Models: Actual 5.375 in diameter, 12W and 745 delivered lumens
- 8 in Models: Actual 8 in diameter, 15W and 1034 delivered lumens
- 12 in Models: Actual 12 in diameter, 22W and 1320 delivered lumens
- Projection: All three sizes measure 0.75 in deep
- Color Quality: 90 CRI with model-specific selectable CCT settings
- Electrical: 120V AC electronic driver with TRIAC or ELV dimming
- Mounting: Included snap-in bracket mounts to a standard junction box, not included
- Ratings: cETLus and Title 24/JA8; wet-location indoor use and covered outdoor ceiling mounting only
- Service Life and Warranty: 50,000-hour rated life; five-year limited warranty against defects in materials and workmanship from purchase
Construction & Design
The injection-molded housing and aluminum backplate surround a white acrylic diffuser. The nominal 6 in option has an actual 5.375 in diameter; the other sizes measure 8 in and 12 in across. Every size projects 0.75 in, keeping a consistent low-profile appearance across a project.
Light Output & Performance
- Nominal 6 in: 12W, 745 delivered lumens. EGRF06LAJD1WH and EGRF06LAJD1BK offer 2700K, 3000K, 3500K, 4000K and 5000K; EGRF06LAJD1SN offers 3000K, 4000K and 5000K.
- 8 in: 15W, 1034 delivered lumens. EGRF08LAJD1WH and EGRF08LAJD1BK offer 2700K, 3000K, 3500K, 4000K and 5000K; EGRF08LAJD1SN offers 3000K, 4000K and 5000K.
- 12 in: 22W, 1320 delivered lumens. EGRF12LAJD1WH, EGRF12LAJD1BK and EGRF12LAJD1SN offer 2700K, 3000K, 3500K, 4000K and 5000K.
All models provide 90 CRI and a 50,000-hour rated life, with 24/7 operation supported at -20°C to 45°C.
Electrical & Installation
These D1 models operate on 120V AC with TRIAC or ELV dimming. Reviewed 6 and 8 in models dim to 10%; the 12 in sheet does not specify a dimming minimum. The separate D3 and D5 models' 1–10V specifications do not apply to these D1 options. The included snap-in bracket mounts to a standard junction box, sold separately, with all electrical connections inside the box. Indoor wall or ceiling mounting is supported; outdoor use is restricted to covered ceiling mounting only. The 0.75 in depth minimizes projection for low-clearance applications. Closet installations require the stated NEC 410.16 spacing. Reviewed 6 and 8 in sheets also list ENERGY STAR qualification.
Compatible Accessories
- EGRF-RET04 and EGRF-RET06: Sold-separately retrofit kits for 4 in and 6 in recessed ceiling cans
- 8 in Battery Backup: EGRF-BB08, available in White only, with EGRF-BB08PAN spacing pan; accessory finish differs from Black and Satin Nickel fixtures
- 12 in White Accessories: EGRF-BB12 battery backup and EGRF-BB12PAN spacer pan
- 12 in Black Accessories: EGRF-BB12-BK battery backup and EGRF-BB12PAN-BK spacer pan
For 12 in battery-backup products, installation and battery energization must occur within six months of purchase for warranty eligibility.
Typical Applications
- Interior corridors and hallways
- Bathrooms and kitchens
- Closets with required installation spacing
- Covered outdoor ceiling locations
What's Included
- One AFX Edge Round fixture in the selected size and finish with white acrylic diffuser
- Integrated LED modules and electronic LED driver
- Snap-in mounting bracket
