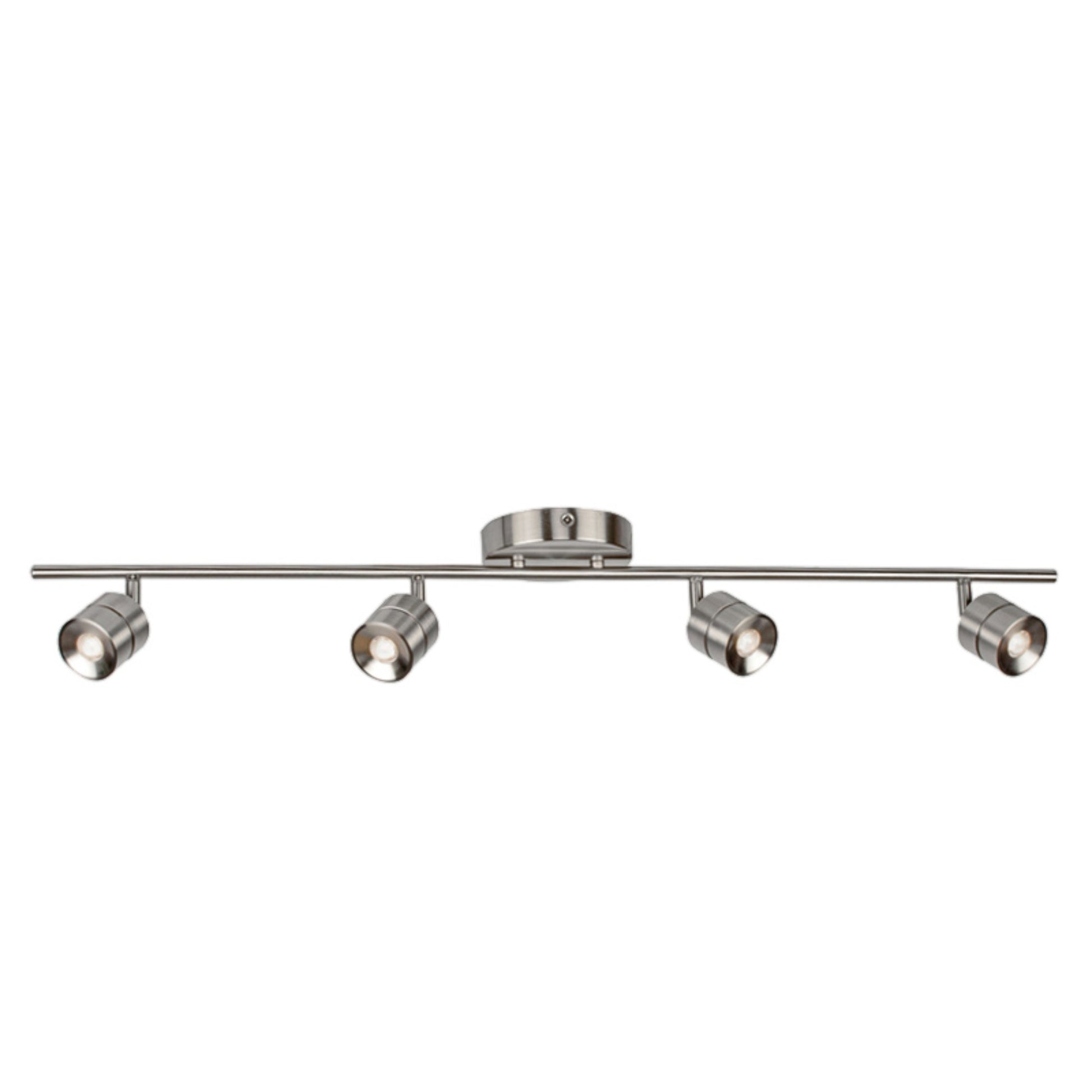

AFX Lighting Core CRRF4450L30SN LED Fixed Rail Track Light

The AFX Lighting Core CRRF4450L30SN fixed rail track light combines four cylindrical heads that swivel and pivot with a slim Satin Nickel rail. Aim the heads toward kitchen work surfaces, office features or retail displays to distribute light across several areas from one fixture. Its 26W integrated LED system provides 2600 source lumens and 1800 delivered lumens, fixed 3000K warm-white light and 90 CRI. The complete fixture supports ceiling or wall mounting.

Key Features

• Fixture Type: Four-head LED fixed rail track light, nominal 36 in.
• Adjustable Heads: Four cylindrical heads, swivel and pivot movement.
• LED System: Four integrated modules, 26W total.
• Light Output: 2600 source lumens, 1800 delivered lumens.
• Color Quality: Fixed 3000K, 90 CRI.
• Dimming: Compatible with TRIAC and ELV dimmers.
• Finish: Plated Satin Nickel, clear lacquer topcoat.
• Construction: 22-gauge stamped steel canopy, 20-gauge steel tube rail.
• Diffusers: Acrylic.

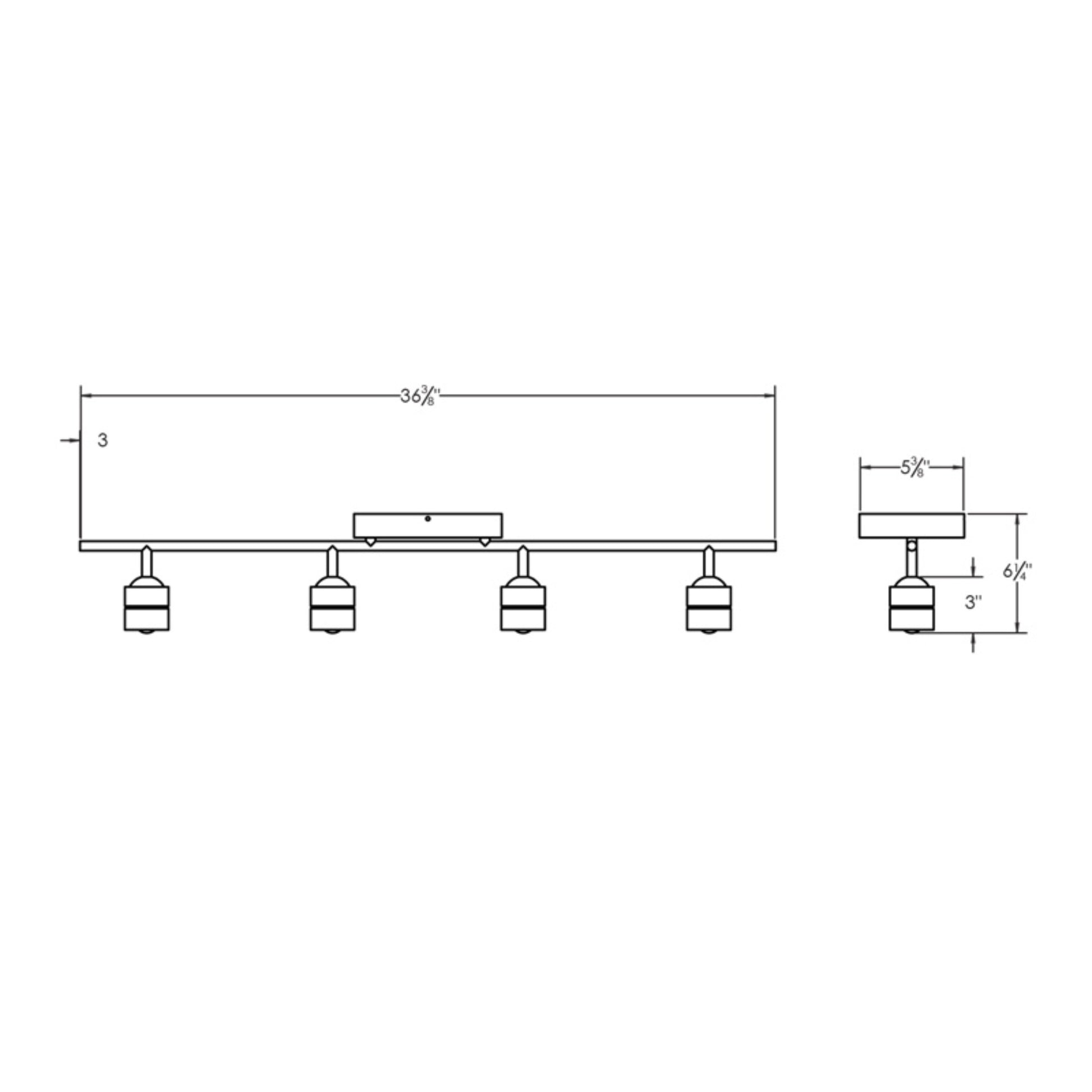

• Dimensions: 36 3/8 in long, 5 3/8 in wide, 6 1/4 in high.
• Electrical: 120V AC, 60Hz.
• Life & Listing: 50,000 hours, cETLus listed for indoor damp locations, Title 24/JA8 compliant.

Construction & Design

This modern fixed rail track light features four cylindrical heads along a slender rail with a central canopy. Each head swivels and pivots for individual aiming. The 22-gauge stamped steel canopy and 20-gauge steel tube rail are paired with acrylic diffusers. The canopy, rail and heads have a plated Satin Nickel finish with a clear lacquer topcoat. Overall dimensions are 36 3/8 in long, 5 3/8 in wide and 6 1/4 in high.

Light Output & Performance

The four integrated LED modules use 26W total and provide 2600 source lumens and 1800 delivered lumens of fixed 3000K light with 90 CRI. Individually adjustable heads let you direct illumination toward several work areas or decorative features. Compatible TRIAC and ELV dimmers provide brightness control. Rated LED life is 50,000 hours.

Electrical & Installation

The AFX Lighting CRRF4450L30SN fixed rail track light operates on 120V AC, 60Hz and mounts to a standard junction box on a ceiling or wall. Power-supply connections must be made inside the junction box, which is not included. Use a compatible TRIAC or ELV dimmer for dimming control. The fixture is cETLus listed for indoor damp locations and Title 24/JA8 compliant.

Typical Applications

• Kitchen work surfaces and accents.
• Home office and study lighting.
• Artwork and decorative interior features.
• Retail displays and office interior accents.

What's Included

• One AFX Lighting Core CRRF4450L30SN Satin Nickel fixed rail track light with canopy, rail, four swivel-and-pivot heads, four integrated LED modules and acrylic diffusers.
