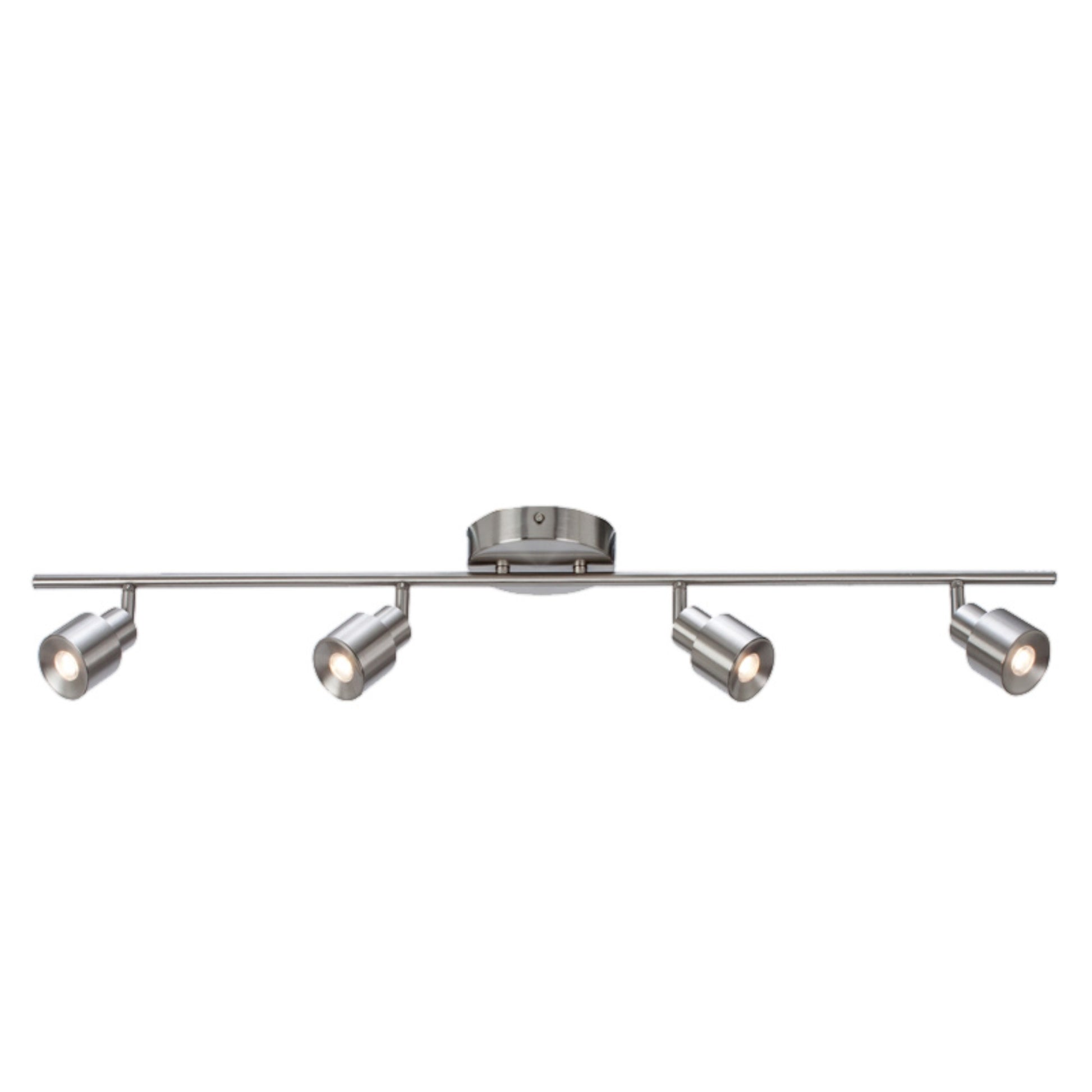

AFX Lighting Chappelle CHRF4450L30SN LED Fixed Rail Track Light

The AFX Lighting Chappelle CHRF4450L30SN LED fixed rail track light combines four cylindrical swivel-and-pivot heads with a slim rail for modern home and office interiors. Its Satin Nickel finish and frosted acrylic diffusers provide a coordinated look, while individually adjustable heads direct illumination toward work surfaces, artwork or displays. Four integrated LED modules use 26W total to deliver 1800 lumens of fixed 3000K warm-white light with 90 CRI. This complete track light mounts on a ceiling or wall.

Key Features

• Fixture Type: Complete four-head LED fixed rail track light, nominal 37 in length.
• Directional Heads: Four cylindrical heads, swivel and pivot adjustment.
• Integrated LED: Four LED modules, 26W total fixture power.
• Delivered Output: 1800 lumens, 2600 source lumens.
• Color Quality: Fixed 3000K, 90 CRI.
• Dimming: Compatible with TRIAC and ELV dimmers.
• Finish: Plated Satin Nickel, clear lacquer topcoat.
• Construction: 22-gauge stamped steel canopy, 20-gauge steel tube rail.
• Diffusers: Frosted acrylic.

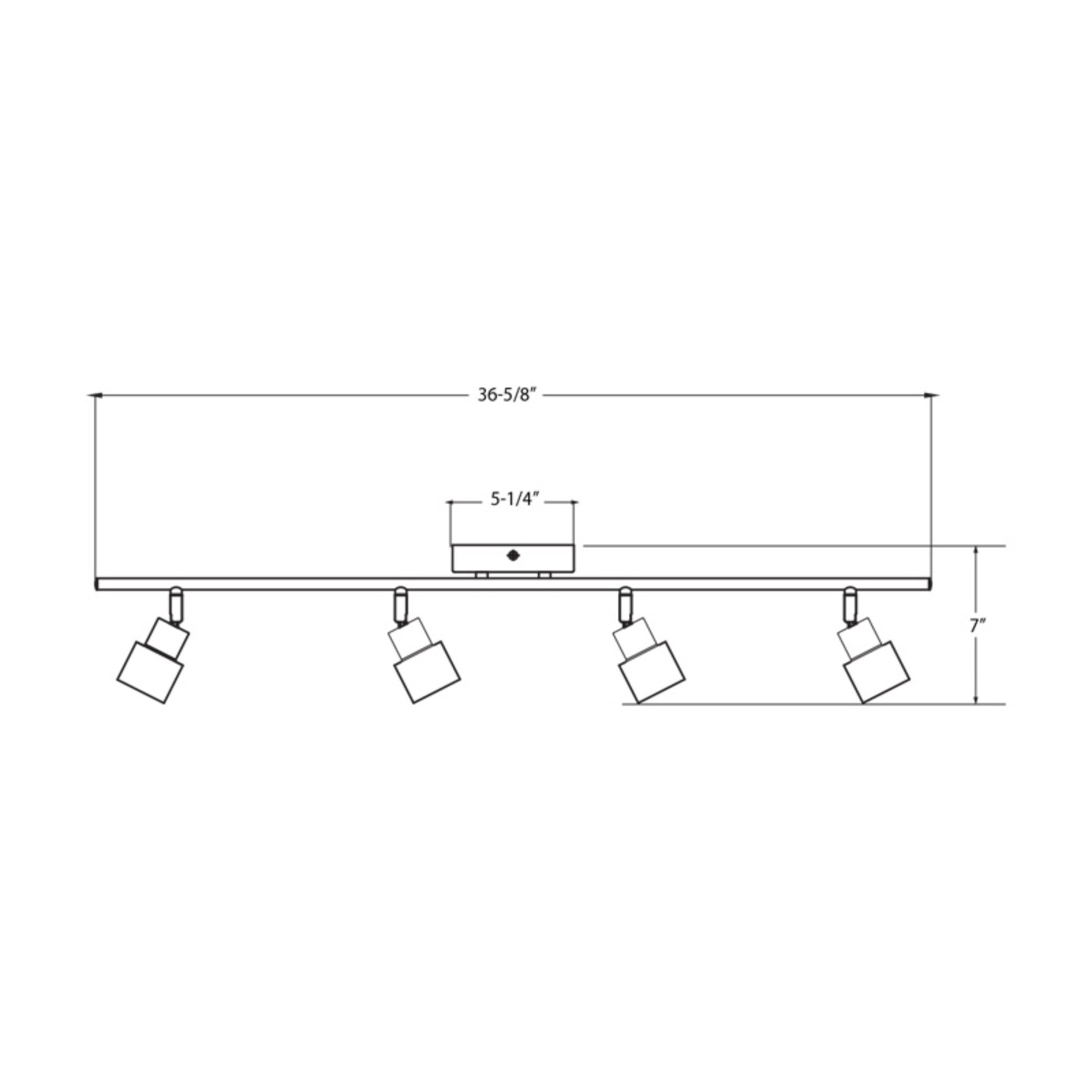

• Dimensions: 36 5/8 in long, 5 1/4 in wide, 7 in high.
• Electrical & Mounting: 120V AC, 60Hz, ceiling or wall mounting to a standard junction box.
• Life & Certification: 50,000 hours, cETLus listed for indoor damp locations, ENERGY STAR qualified, Title 24/JA8 compliant.

Construction & Design

Chappelle's fixed rail track light design pairs a narrow steel rail with four cylindrical heads and a central canopy. The heads swivel and pivot for directional illumination across several areas from one fixture. A 22-gauge stamped steel canopy and 20-gauge steel tube rail form the structure. The canopy, rail and individual heads are plated in Satin Nickel with a clear lacquer topcoat, complemented by frosted acrylic diffusers. Overall dimensions are 36 5/8 in long, 5 1/4 in wide and 7 in high.

Light Output & Performance

The four integrated LED modules produce 2600 source lumens and 1800 delivered lumens at 26W total fixture power. Fixed 3000K warm-white light and 90 CRI suit kitchens, workspaces and interior displays. Aim each head to place light where needed. This LED track light supports TRIAC and ELV dimming and has a 50,000-hour rated LED life. It is ENERGY STAR qualified.

Electrical & Installation

The AFX Lighting CHRF4450L30SN fixed rail track light operates on 120V AC, 60Hz and mounts to a standard junction box on a ceiling or wall. Power-supply connections must be made inside the junction box, which is not included. Select a compatible TRIAC or ELV dimmer for dimming control. The fixture is cETLus listed for indoor damp locations and Title 24/JA8 compliant.

Typical Applications

• Kitchen work surfaces and accent lighting.
• Home office and study lighting.
• Residential artwork and decorative features.
• Retail displays and office interior accents.

What's Included

• One AFX Lighting Chappelle CHRF4450L30SN Satin Nickel LED fixed rail track light with canopy, rail, four swivel-and-pivot heads, four integrated LED modules and frosted acrylic diffusers.
