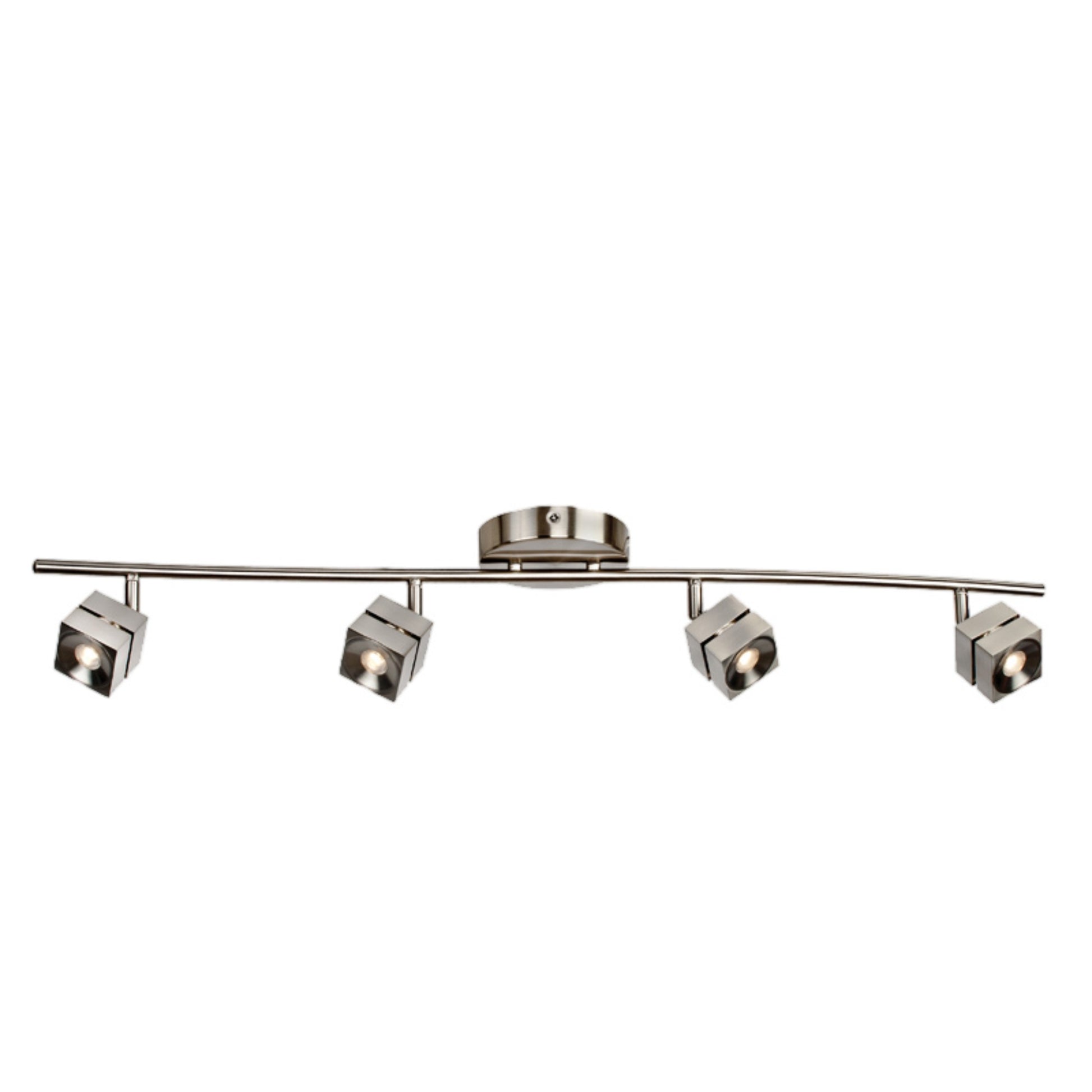

AFX Lighting Cantrell CARF4450L30SN LED Fixed Rail Track Light

The AFX Lighting Cantrell CARF4450L30SN LED fixed rail track light brings modern directional lighting to kitchens, home offices and retail interiors with four cube-shaped heads that swivel and pivot. A slim steel rail and Satin Nickel finish create a coordinated fixture, while frosted acrylic diffusers soften the illuminated surfaces. Its 26W integrated LED system delivers 1800 lumens of 3000K warm-white light with 90 CRI. Mount this complete track light on a ceiling or wall and aim the heads toward the areas you want to highlight.

Key Features

• Fixture Type: Complete four-head LED fixed rail track light, nominal 37 in length.
• Directional Heads: Four cube-shaped heads, swivel and pivot adjustment.
• Integrated LED: Four LED modules, 26W total fixture power.
• Delivered Output: 1800 lumens, 2600 source lumens.
• Color Quality: Fixed 3000K, 90 CRI.
• Dimming: Compatible with TRIAC and ELV dimmers.
• Finish: Plated Satin Nickel, clear lacquer topcoat.
• Construction: 22-gauge stamped steel canopy, 20-gauge steel tube rail.
• Diffusers: Frosted acrylic.

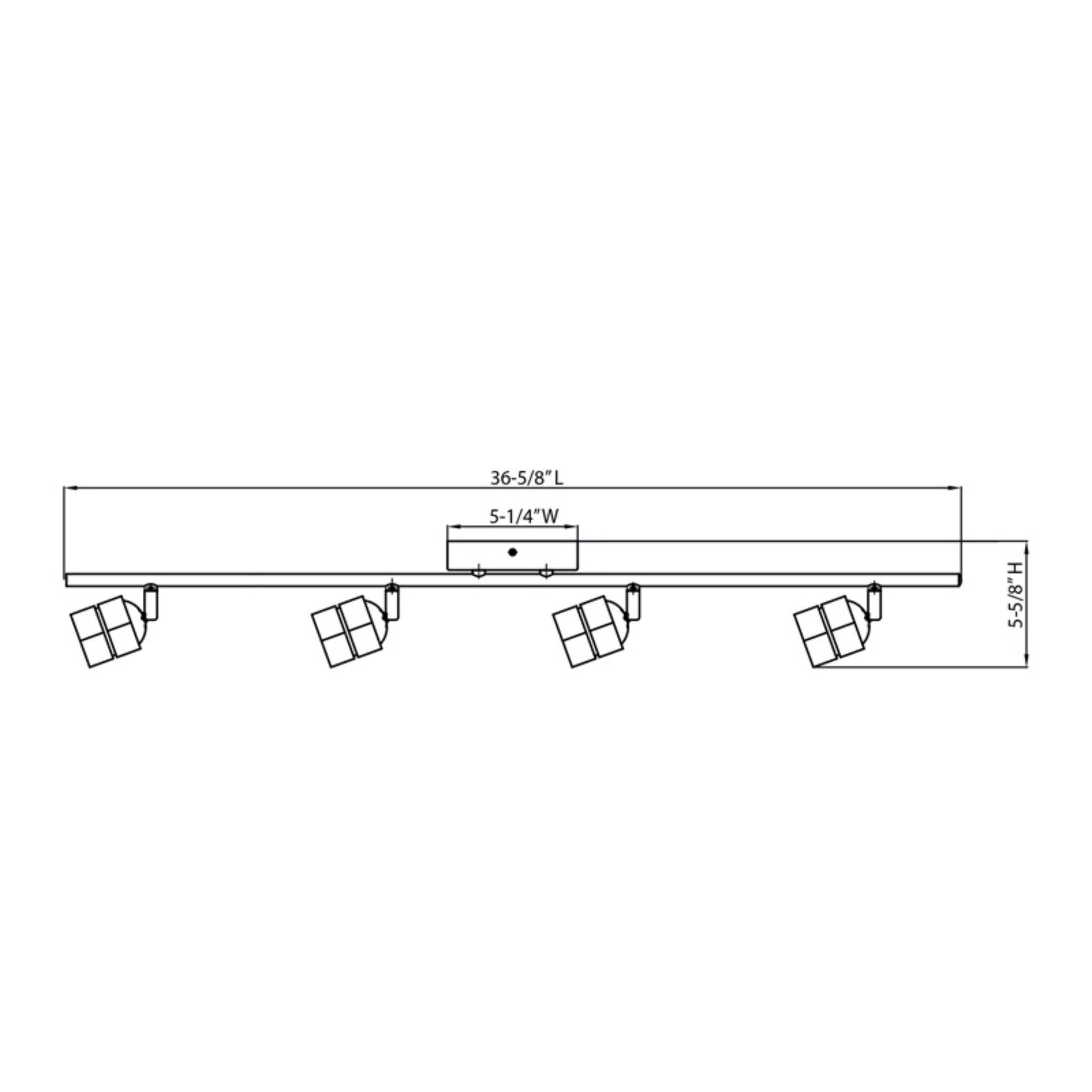

• Dimensions: 36 5/8 in long, 5 1/4 in wide, 5 5/8 in high.
• Electrical & Mounting: 120V AC, 60Hz, ceiling or wall mounting to a standard junction box.
• Life & Certification: 50,000 hours, cETLus listed for indoor damp locations, Title 24/JA8 compliant.

Construction & Design

This modern fixed rail track light pairs four cube-shaped heads with a narrow rail and central canopy. Each head swivels and pivots to direct light toward work surfaces, artwork or displays. The 22-gauge stamped steel canopy and 20-gauge steel tube rail provide a coordinated metal structure. The canopy, rail and heads are plated in Satin Nickel with a clear lacquer topcoat, complemented by frosted acrylic diffusers. Overall dimensions are 36 5/8 in long, 5 1/4 in wide and 5 5/8 in high.

Light Output & Performance

The four integrated LED modules use 26W total and produce 2600 source lumens and 1800 delivered lumens. Fixed 3000K warm-white light and 90 CRI support natural-looking colors in home and commercial interiors. Aim individual heads to distribute illumination across several features from one track light. The LEDs have a 50,000-hour rated life, and the fixture is compatible with TRIAC and ELV dimmers.

Electrical & Installation

The AFX Lighting CARF4450L30SN fixed rail track light operates on 120V AC, 60Hz and mounts to a standard junction box on a ceiling or wall. Power-supply connections must be made inside the junction box, which is not included. Select a compatible TRIAC or ELV dimmer for dimming control. This complete fixture is cETLus listed for indoor damp locations and Title 24/JA8 compliant.

Typical Applications

• Kitchen work surfaces and accent lighting.
• Home office and study lighting.
• Residential artwork and decorative features.
• Retail displays and office interior accents.

What's Included

• One AFX Lighting Cantrell CARF4450L30SN Satin Nickel LED fixed rail track light with canopy, rail, four swivel-and-pivot heads, four integrated LED modules and frosted acrylic diffusers.
