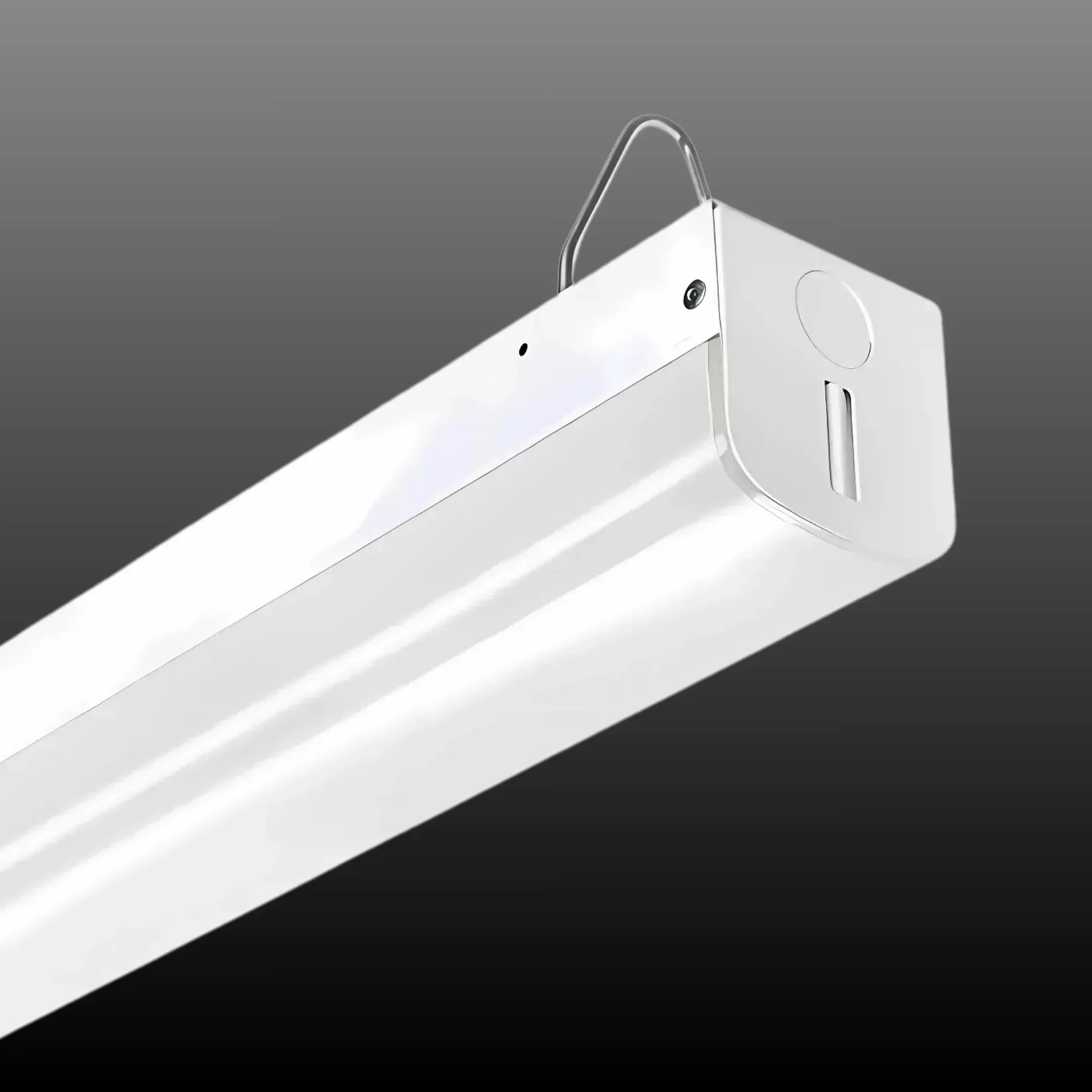

GLT LS LED Linear Strip Light — 4FT & 8FT — Selectable Wattage & CCT — White

Choose the GLT LS4-60L-CCT-D10 4ft LED linear strip with 40/34/28/22W settings and up to 5890 lm, or the LS8-100L-CCT-D10 8ft version with 70/62/54/46W settings and up to 10307 lm. Both offer 2700/3000/3500/4000/5000K selectable color temperature, 120–277 VAC input and 0–10V dimming from 10% to 100%. UL and cUL listed for damp locations and DLC Premium listed, this family lets you select fixture length, power and light color for your commercial lighting project.

Key Features

• Two lengths: Choose the 4ft LS4-60L-CCT-D10 or 8ft LS8-100L-CCT-D10.
• Selectable wattage: 40/34/28/22W for the 4ft model; 70/62/54/46W for the 8ft model.
• Model-specific output: Maximum output is 5890 lm for the 4ft model and 10307 lm for the 8ft model, both at 4000K and maximum wattage.
• Peak efficacy: Up to 157 lm/W for the 4ft model and 156 lm/W for the 8ft model at documented settings.
• Color rendering: 80 CRI with less than 5 SDCM color consistency.
• Selectable CCT: On-site settings for 2700K, 3000K, 3500K, 4000K and 5000K.
• PC lens: Designed for uniform, comfortable light.
• Dimming: 0–10V driver with a 10%–100% dimming range.
• Input voltage: Universal 120–277 VAC operation.
• Construction: Cold-rolled steel housing, heatsink and J-box cover.
• Location listing: UL and cUL listed for damp locations.
• Operating temperature: −4°F (−20°C) to 104°F (40°C) without emergency battery.
• LED lifespan: Estimated L70 ≥100,000 hours based on IES TM-21 calculations at 25°C.
• Warranty: Five-year limited warranty.

Performance & Light Output

4FT LS4-60L-CCT-D10:

At 40W: 5257 lm (2700K / 131 lm/W), 5531 lm (3000K / 138 lm/W), 5866 lm (3500K / 147 lm/W), 5890 lm (4000K / 147 lm/W), 5768 lm (5000K / 144 lm/W).

At 34W: 4586 lm (2700K / 135 lm/W), 4824 lm (3000K / 142 lm/W), 5117 lm (3500K / 151 lm/W), 5138 lm (4000K / 151 lm/W), 5031 lm (5000K / 148 lm/W).

At 28W: 3858 lm (2700K / 138 lm/W), 4059 lm (3000K / 145 lm/W), 4305 lm (3500K / 154 lm/W), 4322 lm (4000K / 154 lm/W), 4233 lm (5000K / 151 lm/W).

At 22W: 3080 lm (2700K / 140 lm/W), 3240 lm (3000K / 147 lm/W), 3437 lm (3500K / 156 lm/W), 3451 lm (4000K / 157 lm/W), 3379 lm (5000K / 154 lm/W).

8FT LS8-100L-CCT-D10:

At 70W: 9199 lm (2700K / 131 lm/W), 9679 lm (3000K / 138 lm/W), 10266 lm (3500K / 147 lm/W), 10307 lm (4000K / 147 lm/W), 10094 lm (5000K / 144 lm/W).

At 62W: 8362 lm (2700K / 135 lm/W), 8798 lm (3000K / 142 lm/W), 9332 lm (3500K / 151 lm/W), 9369 lm (4000K / 151 lm/W), 9175 lm (5000K / 148 lm/W).

At 54W: 7440 lm (2700K / 138 lm/W), 7828 lm (3000K / 145 lm/W), 8303 lm (3500K / 154 lm/W), 8336 lm (4000K / 154 lm/W), 8164 lm (5000K / 151 lm/W).

At 46W: 6440 lm (2700K / 140 lm/W), 6775 lm (3000K / 147 lm/W), 7187 lm (3500K / 156 lm/W), 7187 lm (4000K / 156 lm/W), 7038 lm (5000K / 153 lm/W).

Both models provide 80 CRI. Estimated L70 LED lifespan is ≥100,000 hours based on IES TM-21 calculations at 25°C. Performance values are design or typical laboratory values; actual performance varies with environment and application.

Smart & Control Features

The family supports an optional receptacle for plug-and-play sensor installation.

• PIR sensor with optional Bluetooth function, sold separately.
• DIVA-MWS12VDC microwave sensor kit, sold separately, with automatic motion detection.

Optional sensors are sold separately. Choose the sensor configuration appropriate for the selected fixture.

Electrical

Universal 120–277 VAC input, power factor >0.9 and THD <20%. The 0–10V dimming driver supports a 10%–100% dimming range.

Operating current across documented input voltages:

Construction

Housing & Thermal: Cold-rolled steel housing, heatsink and J-box cover. Housing components act as a heatsink for LED heat dissipation.

Lens & Optics: PC lens designed for light uniformity and comfortable light.

Finish: White.

Environmental Scope: UL and cUL listed for damp locations. Operating range without emergency battery is −4°F (−20°C) to 104°F (40°C); with optional emergency battery, 50°F (10°C) to 104°F (40°C).

Dimensions: 4ft model: 46.5 × 2.3 × 2.6 in (length × width × height). 8ft model: 93 × 2.3 × 2.6 in.

Installation & Mounting

Standard Hardware: Surface mount kit is the default mounting configuration.

Mounting Options: Surface, chain or steel-wire installation. Joiner brackets support continuous-row mounting.

Accessories Sold Separately:

• DIVA-CABLEMOUNT aircraft cable suspended mount kit, 5ft, sold separately.
• DIVA-CHAINMT chain suspended mount kit, 3.5ft, sold separately.
• DIVA-WG-LS4 4ft white wire guard kit, sold separately.
• DIVA-JB-KIT joiner bracket kit, sold separately.
• DIVA-MWS12VDC microwave sensor kit, sold separately.
• DIVA-CM08D-056A emergency battery, 8W output and 90-minute emergency time, sold separately.

Certifications & Rebates

• UL and cUL listed for damp locations.
• DLC Premium listed. Rebate availability varies by utility, program and location.

Typical Applications

• Commercial spaces: Selectable wattage allows on-site power settings.
• Warehouses: The 8ft model delivers up to 10307 lm at 70W and 4000K.
• Corridors: Joiner brackets support continuous-row mounting.
• Retail spaces: Five selectable color temperatures and 80 CRI provide documented light-color options.

What's Included

• One white GLT LS4-60L-CCT-D10 4ft LED linear strip or LS8-100L-CCT-D10 8ft LED linear strip, according to the selected size.
• Default surface mount kit.
