LEDVANCE SYLVANIA 62876 2FT Linear LED High Bay 29,000 Lumens 175/195/220W 4000K/5000K 120–277V White

LEDVANCE SYLVANIA 62876 Dual Selectable 5A 2FT Linear LED High Bay — 175/195/220W, 120–277V

The LEDVANCE SYLVANIA 62876 Dual Selectable 5A Linear LED High Bay is a 2FT commercial high bay delivering 24,400 to 29,000 lumens. This fixture features selectable 175W/195W/220W output and selectable 4000K or 5000K color temperature. Operating on 120–277V, it is rated for damp locations and includes a pre-wired sensor base for optional motion/daylight integration.

Key Features:

• Selectable Wattage: 175W / 195W / 220W
• Selectable CCT: 4000K / 5000K
• Delivered Lumens (@4000K): 24,400 / 26,900 / 29,000
• Efficacy: Up to 139 lm/W
• Voltage: 120–277V
• Dimming: 0–10V
• CRI: >80
• Surge Protection: 6kV
• Power Factor: >0.9
• THD: <20%
• Rated Life: 100,000 hours (L70)
• Certifications: cULus Listed, DLC 5.1 Premium, RoHS
• Location Rating: Damp Location

Typical Applications:

• Warehouses
• Manufacturing facilities
• Big-box retail
• Gymnasiums
• Loading docks

Performance & Light Output:
Delivers 24,400 lumens at 175W, 26,900 lumens at 195W, and 29,000 lumens at 220W (at 4000K). Rated for 100,000 hours (L70) with CRI greater than 80.

Electrical & Controls:
Operates on 120–277V at 50/60Hz using a constant current driver with 0–10V dimming. Surge protection is rated at 6kV. Power factor exceeds 0.9 and THD is below 20%.

Construction & Durability:
White steel housing with polycarbonate lens. Suitable for damp locations with ambient operating range of -22°F to +122°F (-30°C to +50°C).

Installation & Mounting:

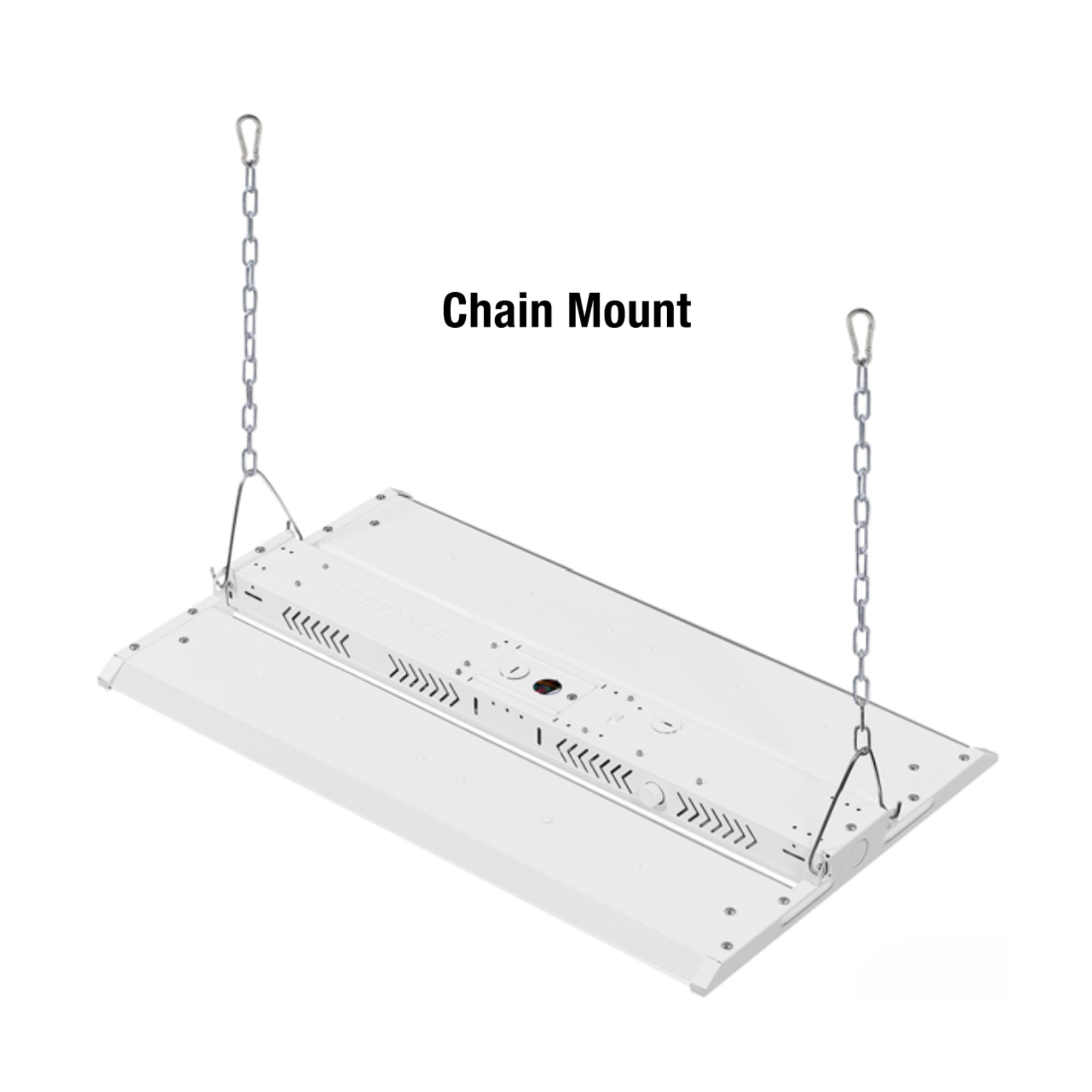

Includes V-hooks and 3-foot mounting chains. Optional surface mount, pendant mount, and cable mounting kits are available.

Included:
Linear high bay fixture, V-hooks, and 3-foot mounting chains.
