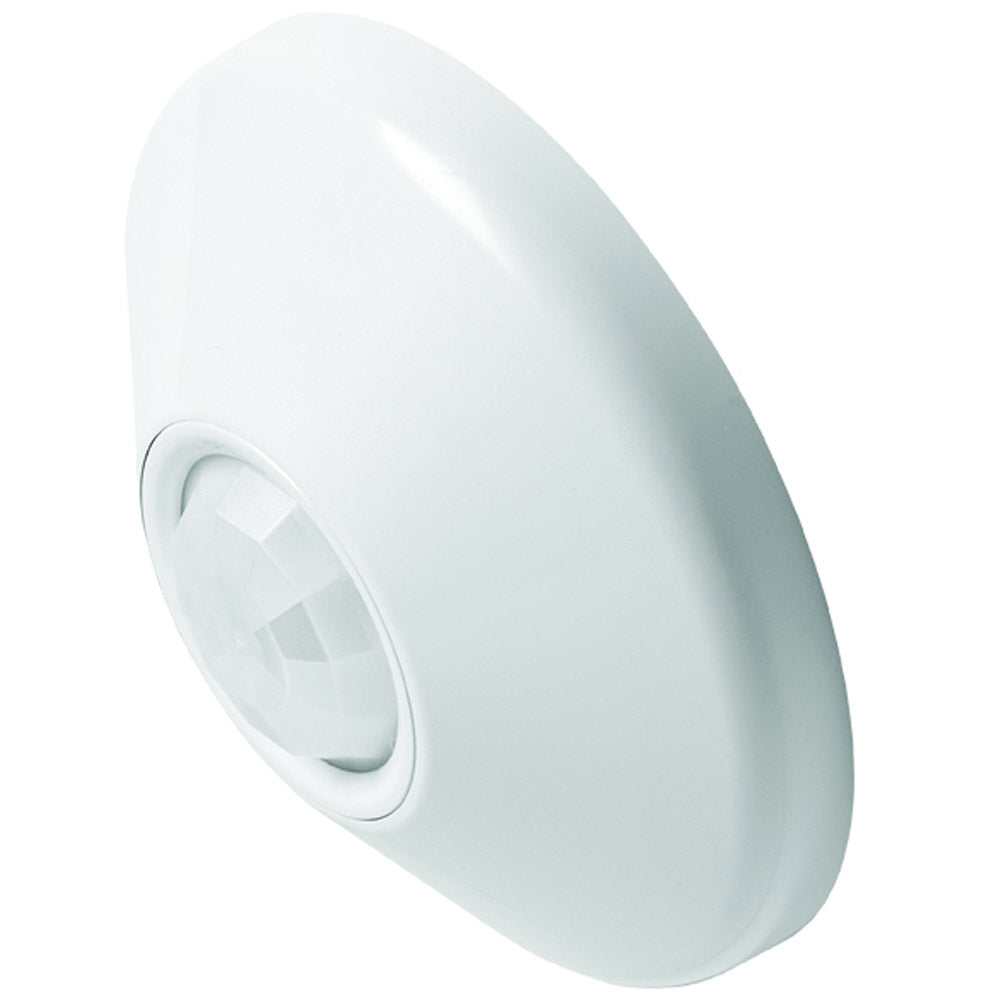

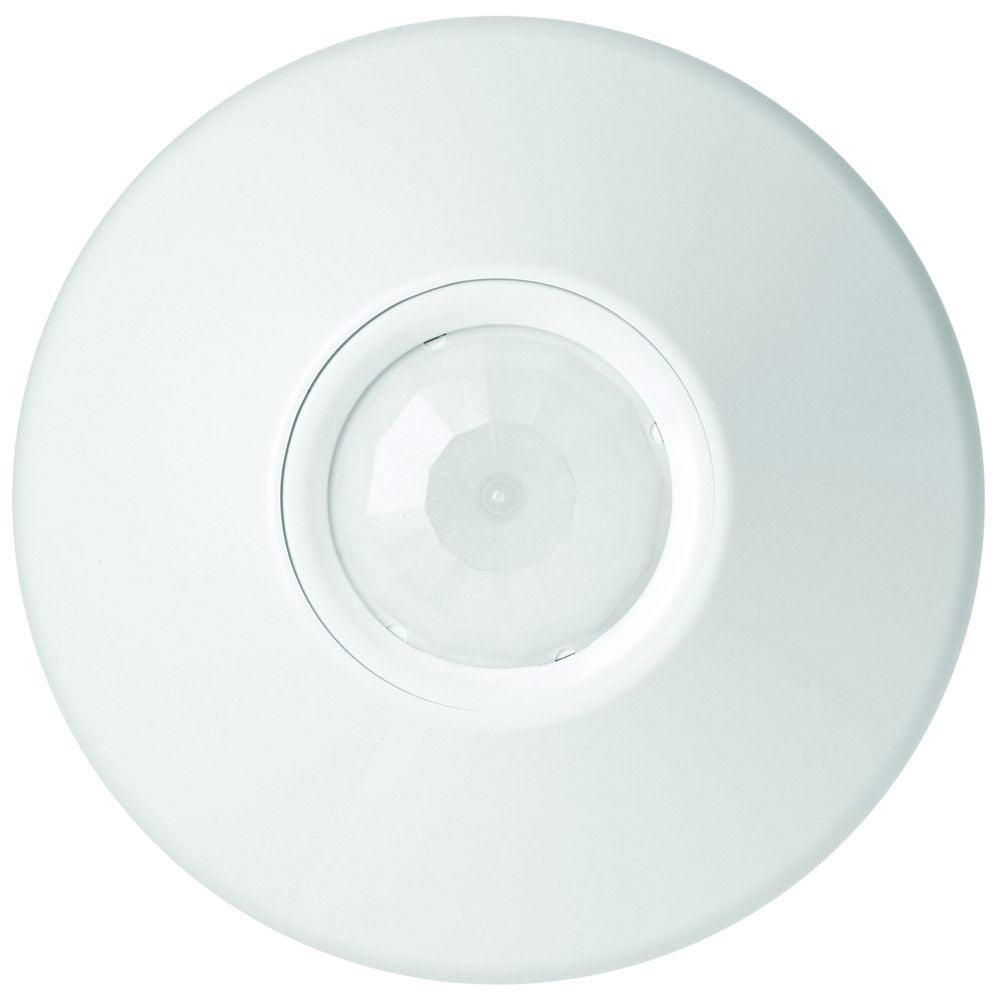

Automatic Dimming Control Photocell Ceiling Mount Low Voltage 0-10V Dimming
Automatic Dimming Control Photocell Ceiling Mount Low Voltage 0-10V Dimming
Regular price
$49.98
Sale price
$49.98
Regular price
$99.95
Shipping calculated at checkout.
Available in stock (2)
Must be ordered in quantities of .
Technical Resources
Technical Resources
Specifications
Specifications
Finish:
White
Size:
1.55'' L X 4.55'' W X 4.55'' H
Materials:
Thermoplastic
Shipping & Returns
Shipping & Returns
Shipping Policy
Enjoy FREE standard shipping on orders over $99 within the contiguous U.S. Flat rate fee for orders under $99. Specialty and commercial items (48+ inches or requiring special handling) have a surcharge, clearly noted on product pages.
For more information, read our shipping policy.
Return Policy
Product can be returned within 60 days with no restocking fee, return shipping fee applies. Product must be new, uninstalled and unused with all original packaging.
For more information, read our return policy.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Overview
Overview
The CM ADC Series of Automatic Dimming Control sensors provide continuous control of dimmable ballasts for daylight harvesting applications. Ideal for public spaces with windows like vestibules, corridors, or bathrooms; the CM ADC works by monitoring daylight conditions in a room, then controlling a 0-10 VDC dimmable ballast so as to insure that adequate lighting levels are maintained. To add full On/Off switching to the dimming control provided by the CM ADC, see the Technical Data Sheet on the CM PC ADC sensor. Additionally with the Dual Zone (DZ) option, a second customized controlled output is provided. All units are powered by 12 to 24 VAC/VDC.
- Automatically Dims/Brightens 0-10 VDC ballasts as daylight changes
- Capable of finding optimum set-point
- Digital Set-Point Control
- Programmable via simple push-button commands
- Dimming sinks up to 20 mA
Technical Resources
Specifications
Finish:
White
Size:
1.55'' L X 4.55'' W X 4.55'' H
Materials:
Thermoplastic
