SATCO|NUVO 67-117 Red Edge-Lit Exit Sign Dual Face 90-Min Backup 120-277V Silver
Available in stock (311)
About this item
About this item
- Battery Backup: Provides 90 minutes of emergency illumination to ensure safety during power outages.
- Illumination: Features a mirrored acrylic panel with red lettering for clear visibility.
- Input Voltage: Operates on a wide range of 120-277V, suitable for various electrical systems.

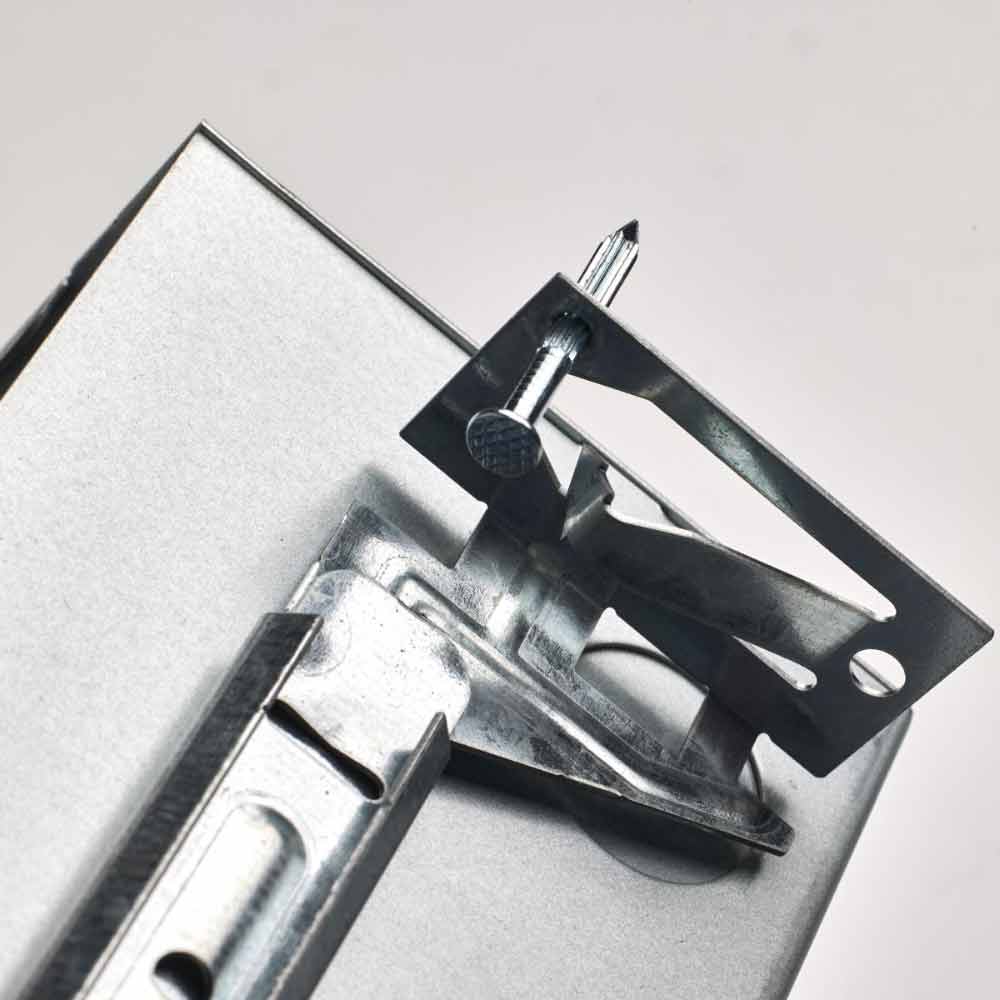

- Mounting: Includes all necessary hardware for easy installation in damp locations.
- Safety Certifications: ULus listed and Title 20 compliant, ensuring adherence to safety standards.
We process payments securely and do not store credit card information.
Description
Description
SATCO|NUVO Edge-Lit Exit Sign — Emergency Capability with 120-277V Input
The SATCO|NUVO 67-117 is a red edge-lit exit sign designed for dual face visibility and equipped with a 90-minute battery backup. Operating on 120-277V, this fixture is ideal for ensuring safety in emergency situations. Its damp rating makes it suitable for indoor installations where moisture may be present. Compliant with ULus and Title 20 standards, it meets stringent safety and efficiency requirements.
Key Features
- Battery Backup: Integrated 4.8V Ni-Cad battery provides 90 minutes of emergency power.
- Voltage Range: Compatible with both 120V and 277V systems for versatile installation.
- Face Type: Dual face with mirrored acrylic panel enhances visibility in emergency situations.
- Material: Constructed from durable aluminum with a silver finish for a sleek appearance.
- Mounting Hardware: Includes all necessary components for straightforward installation.
- Recharge Time: Fully recharges in 24 hours, ensuring readiness for the next emergency.
- Surge Protection: Built-in 3KV surge protection safeguards against electrical spikes.
- Operating Temperature: Functions effectively in temperatures ranging from 10C to 40C.
Performance & Illumination
This exit sign features a 6-inch letter height with a 0.75-inch stroke, providing clear visibility. The mirrored acrylic panel enhances the red lettering's prominence, ensuring it is easily seen in emergencies.
Electrical & Battery

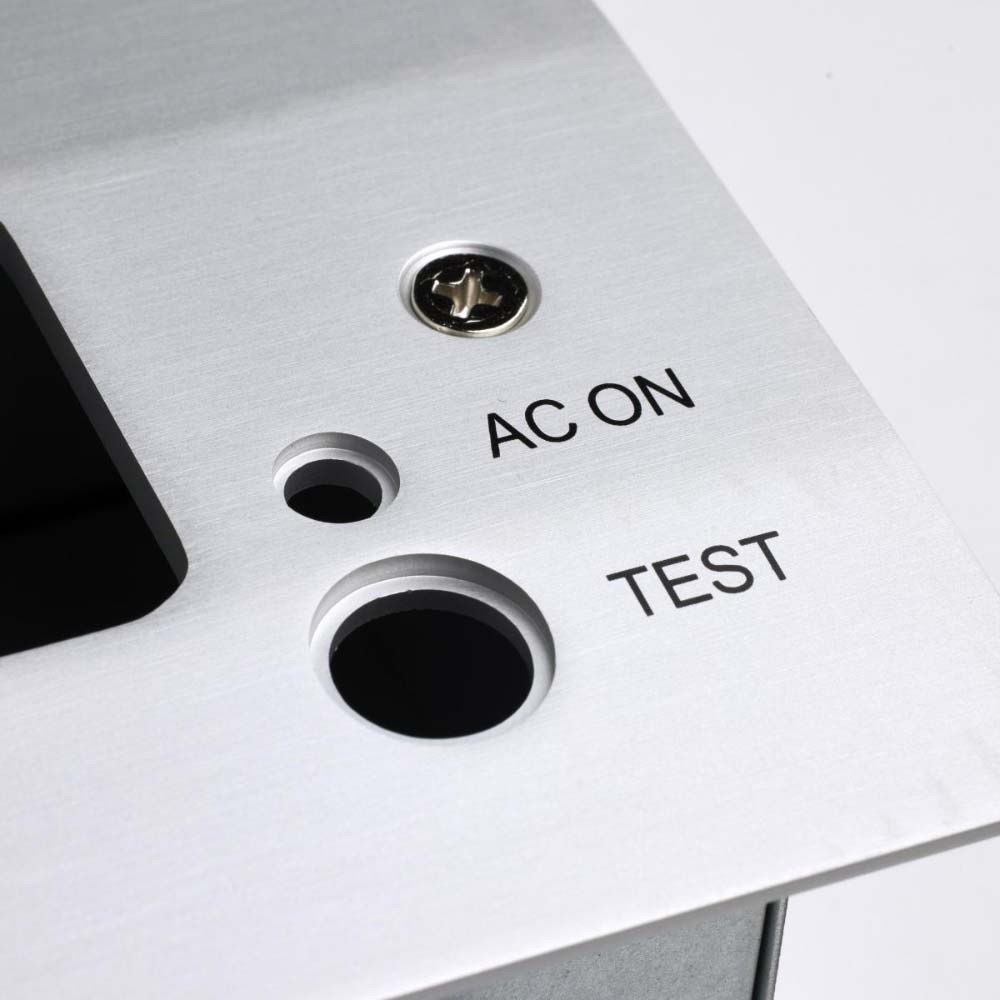

Designed to operate on 120-277V, this unit includes a 4.8V Ni-Cad battery that recharges in 24 hours. It features a built-in test switch and 3KV surge protection for reliable performance.
Physical & Installation Details

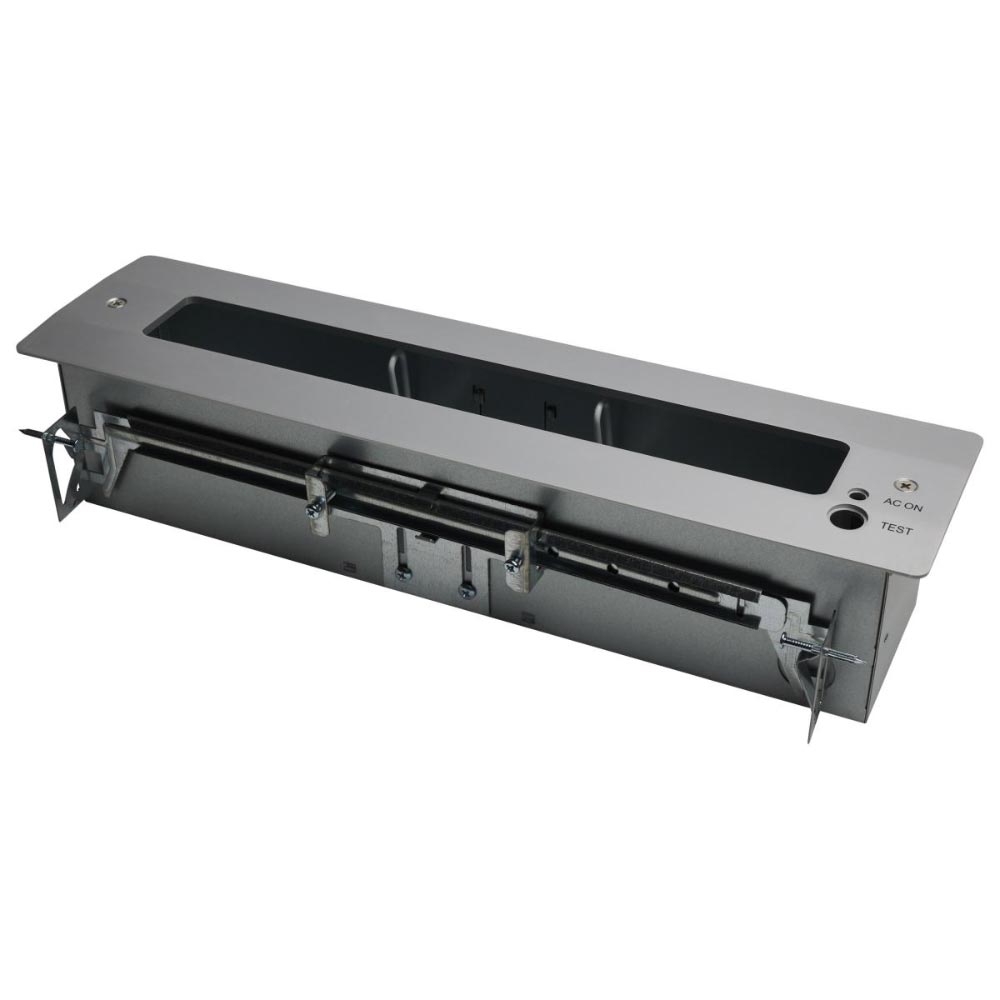

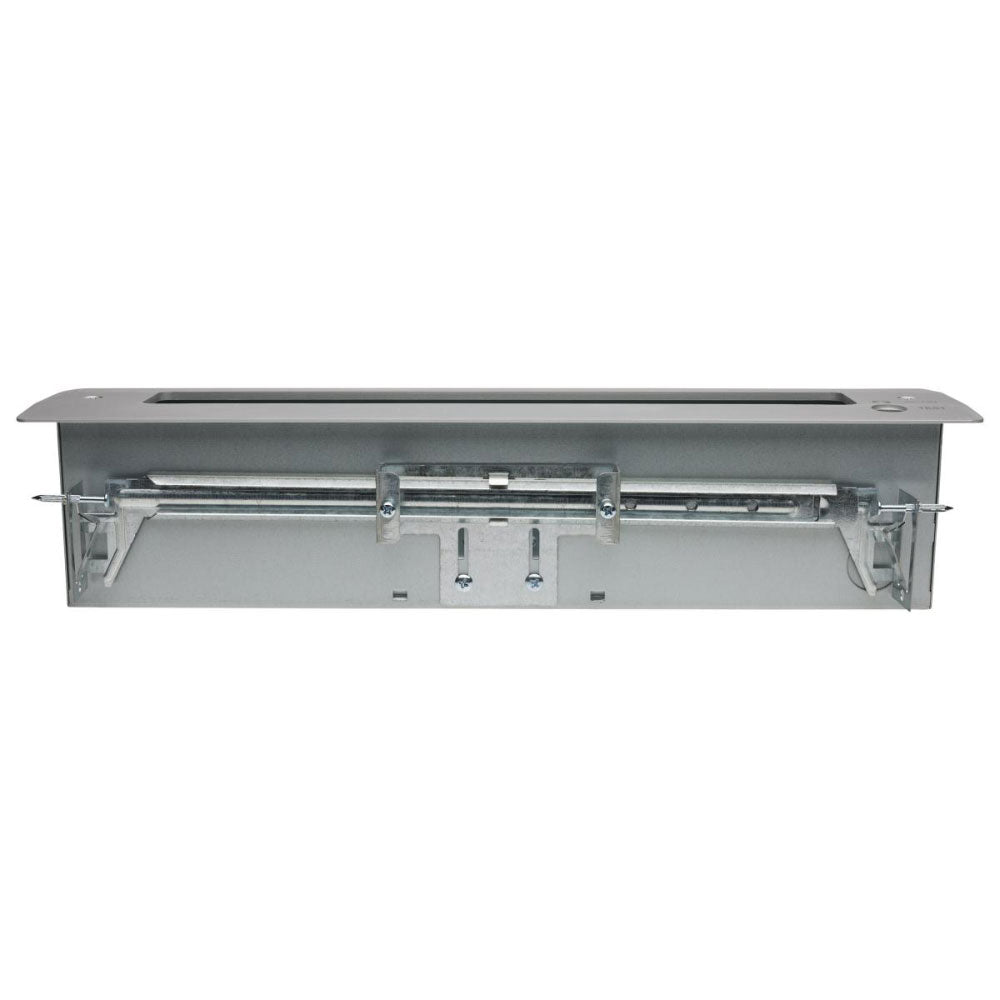

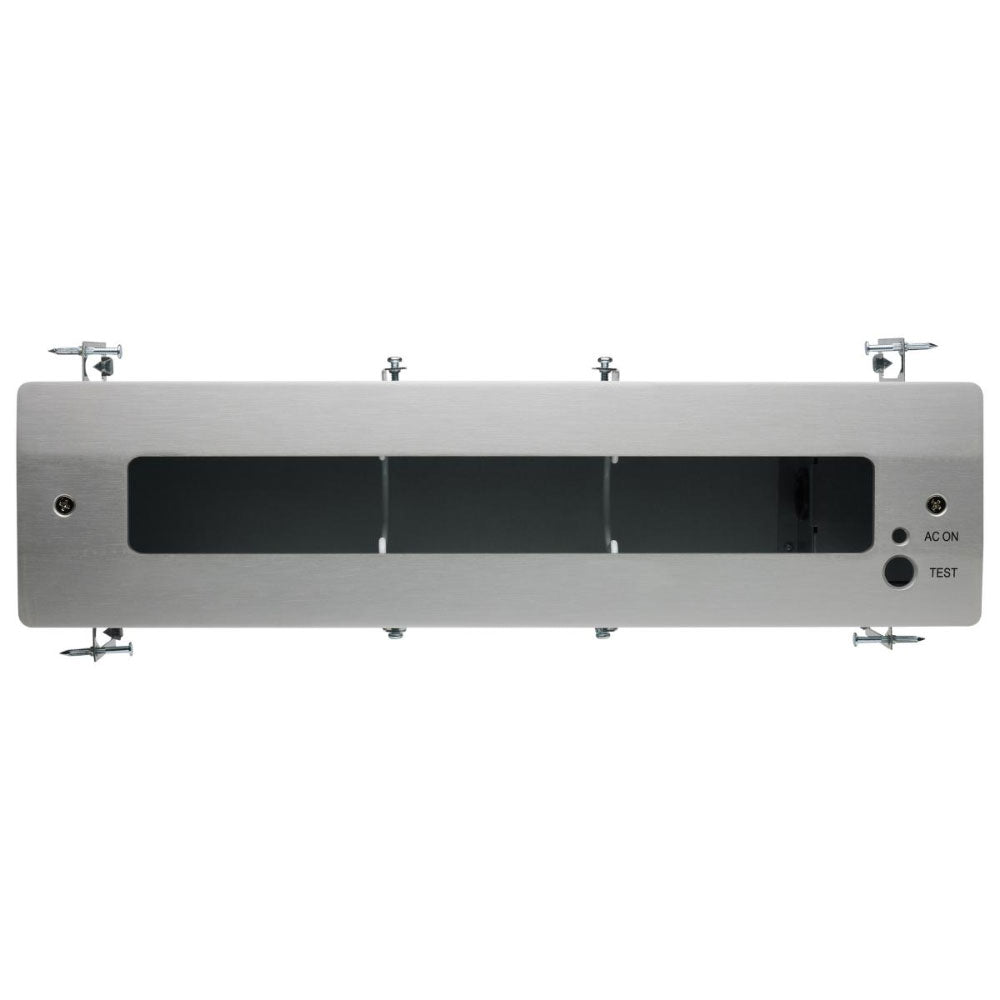

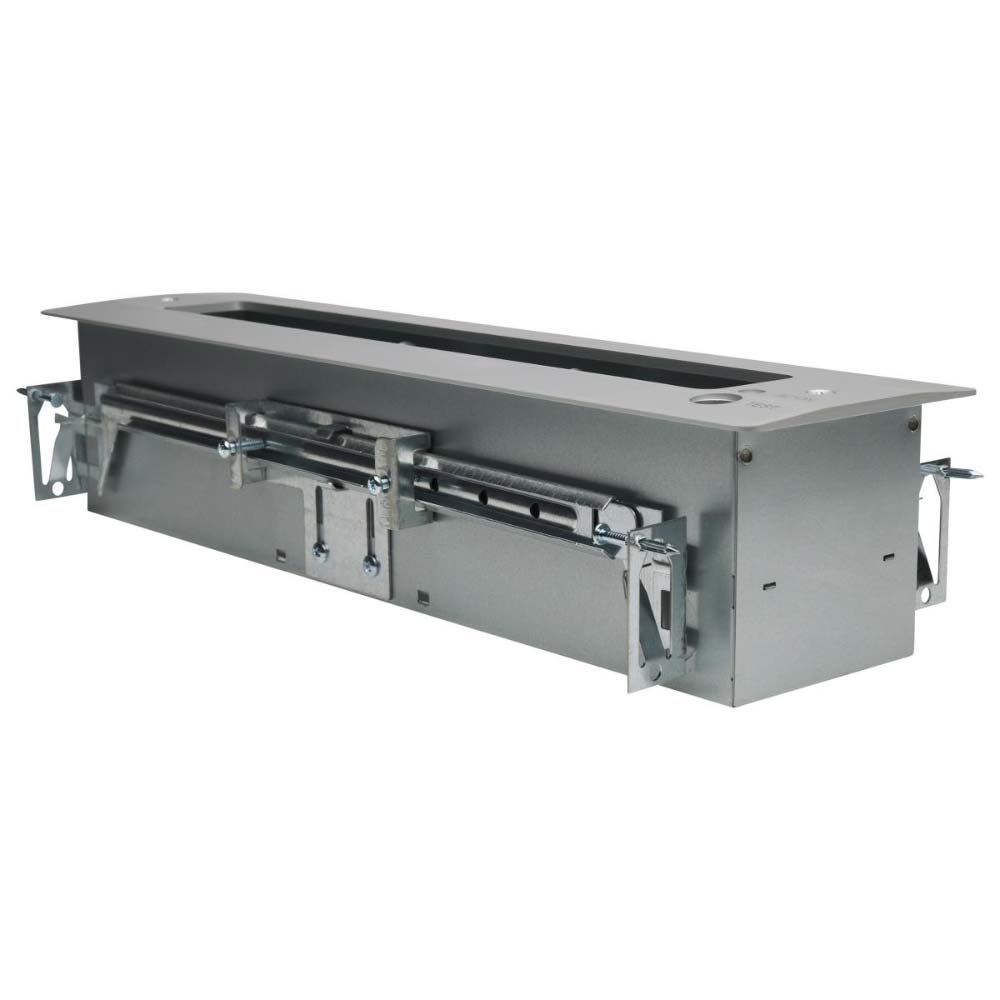

The aluminum housing with a silver finish provides durability and aesthetic appeal. The unit measures 16.34 inches in length, 4.72 inches in width, and 8.66 inches in height, and comes with all necessary mounting hardware.
Compliance & Safety
ULus listed and Title 20 compliant, this exit sign is suitable for damp locations and meets California's energy efficiency standards. It is also ROHS compliant, ensuring minimal environmental impact.
What's Included
- Edge-Lit Exit Sign
- Mounting hardware
- Installation instructions
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the battery backup duration for the SATCO|NUVO 67-117?
What is the battery backup duration for the SATCO|NUVO 67-117?
Is the SATCO|NUVO 67-117 suitable for damp locations?
Is the SATCO|NUVO 67-117 suitable for damp locations?
What voltage does the SATCO|NUVO 67-117 operate on?
What voltage does the SATCO|NUVO 67-117 operate on?
Does the SATCO|NUVO 67-117 include mounting hardware?
Does the SATCO|NUVO 67-117 include mounting hardware?
What safety certifications does the SATCO|NUVO 67-117 have?
What safety certifications does the SATCO|NUVO 67-117 have?
