Description

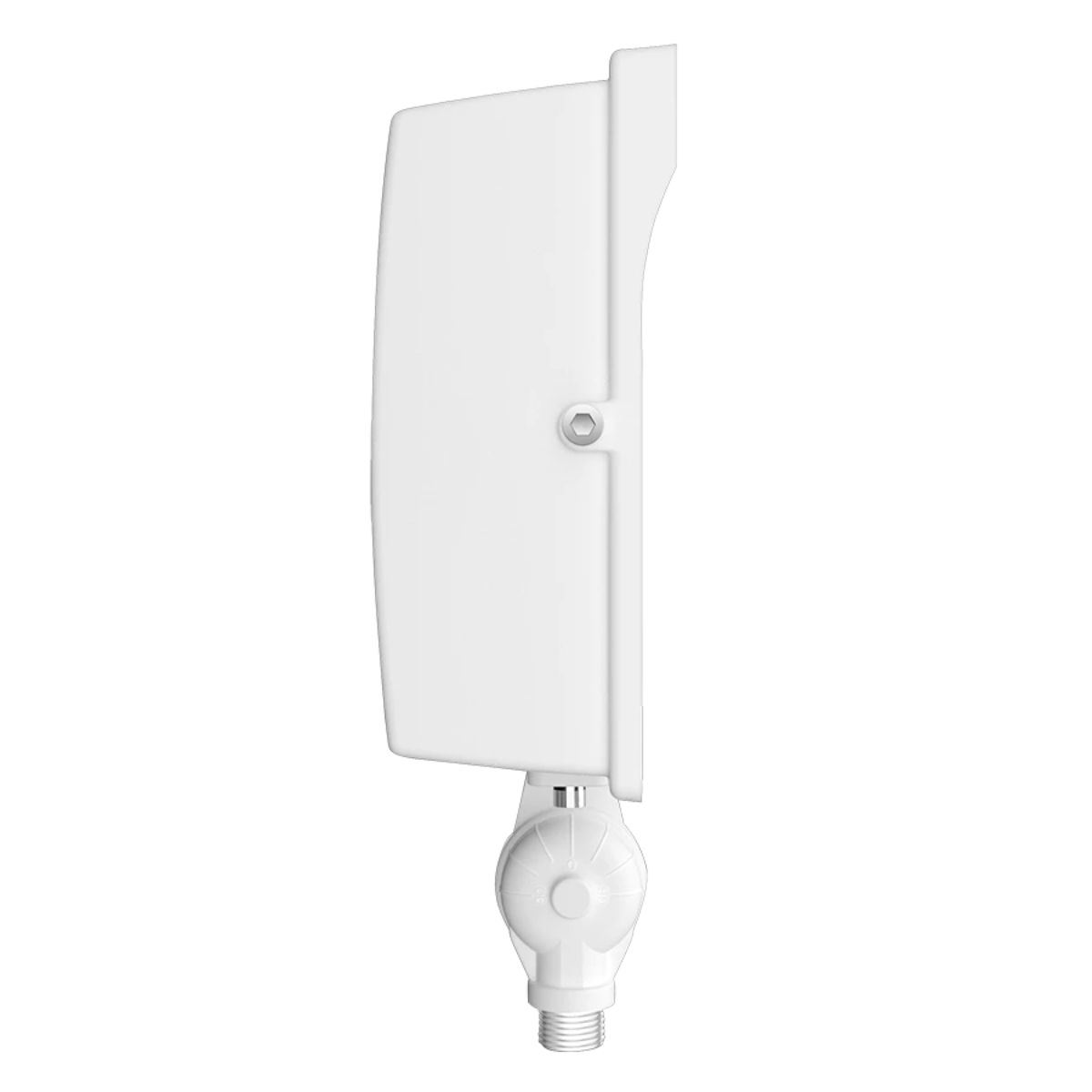

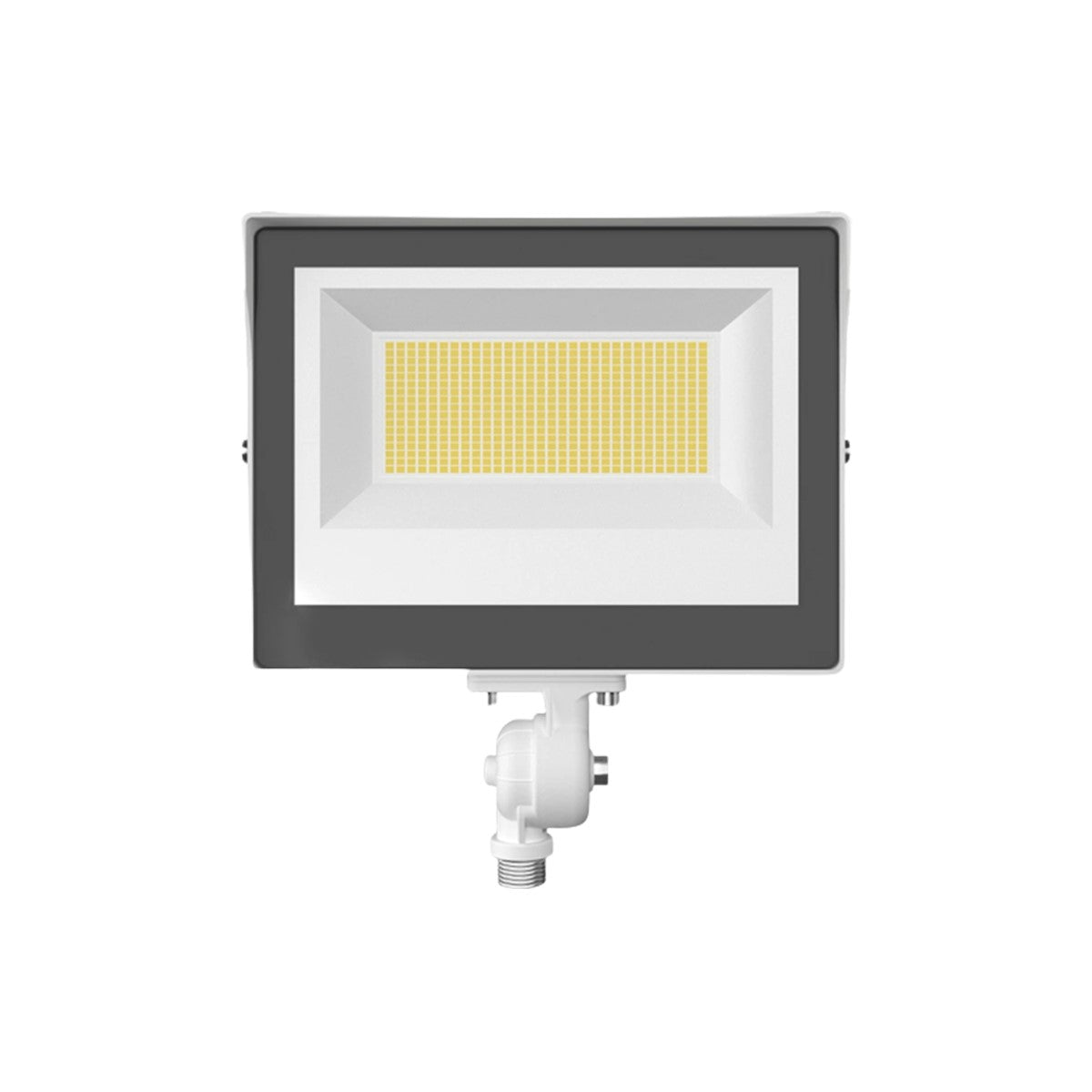

The RAB LED X17XFU60W is a cost effective solution for LED flood lighting. This flood light emits up to 8372 with a selectable color temperature (30K/40K/50K) while using up to 60 watts. This LED flood light is ideal for replacing 250 watt metal halide fixture. Moreover, This flood light is great for illuminating yards, driveways, signage, patios, warehouses as well as for security applications.

Specifications

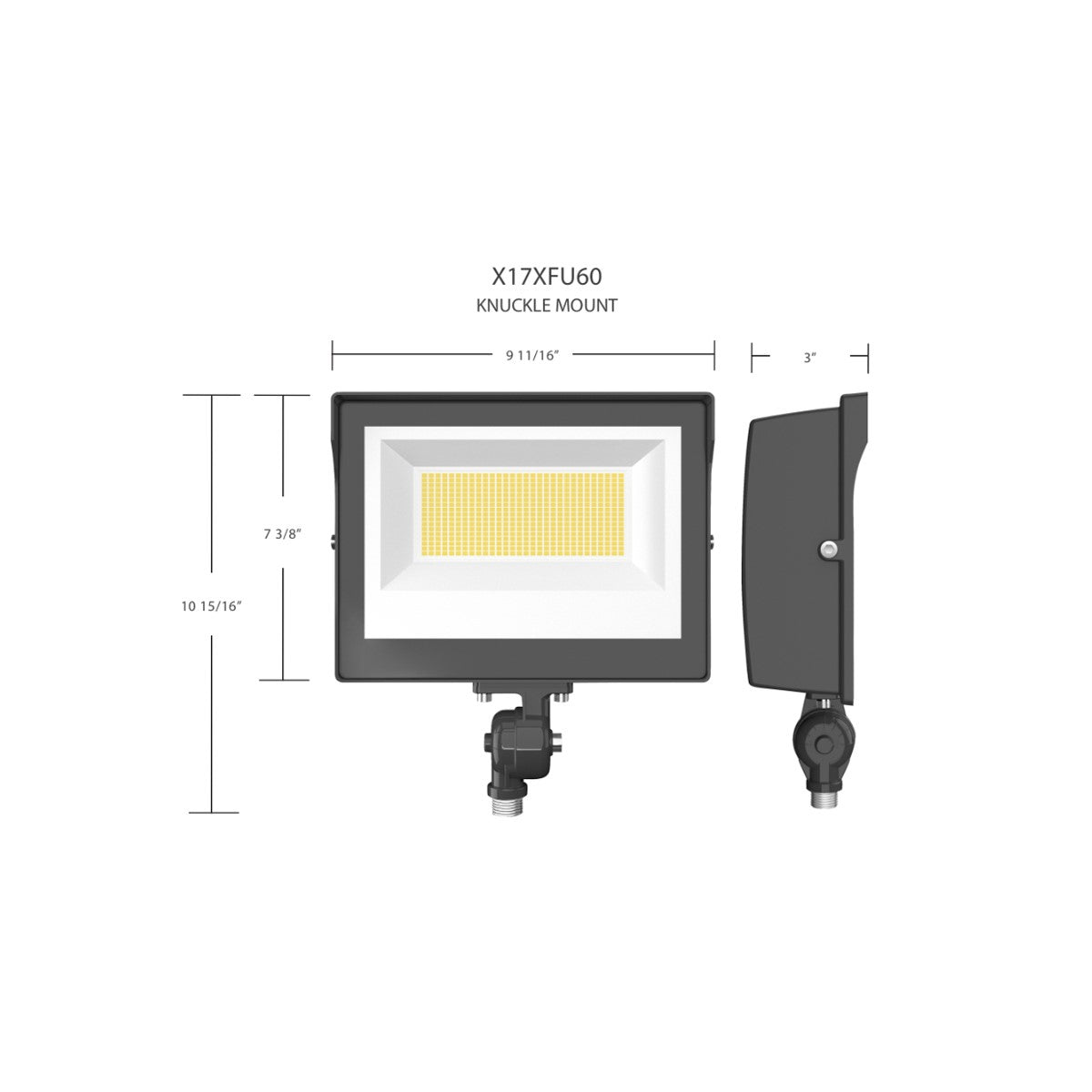

Dimensions

Length/Depth
9.69 in
Width/Diameter
3 in
Height
10.94 in
Weight
5.1 lb

Style & Materials

Material
Aluminum
Mounting Type
Knuckle mount

Characteristics & Features

Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
85 CRI
Delivered Lumens
8300
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
60W

Item Details

SKU
X17XFU60W
Brand
RAB Lighting
Family
X17 Field-Adjustable Floodlight
UPC
192552014984

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
100,000 Hours
Product Rating
IP65 Rated, Wet Rated

Frequently Asked Questions

What beam spread (NEMA Type) do I need?

For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.

How many lumens do I need for a backyard flood light?

For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.

What is a "Knuckle Mount"?

A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.

Can I use these lights with a dimmer?

Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.

What is the equivalent wattage for LED flood lights?

15W LED ≈ 100W Halogen (Bullet Light)

30W LED ≈ 70W Metal Halide

50W LED ≈ 150W Metal Halide

150W LED ≈ 400W Metal Halide (Large Commercial Flood)
