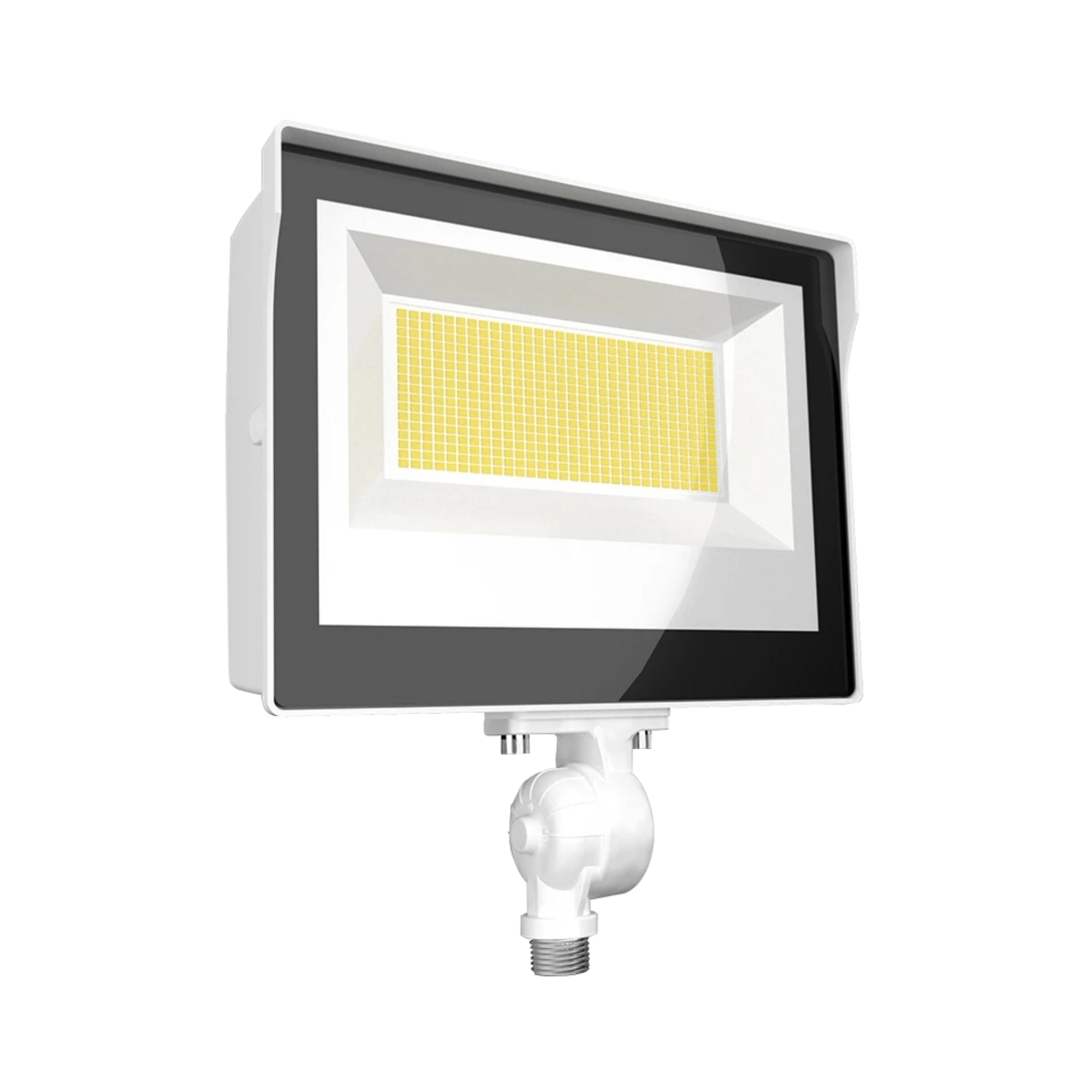

RAB X17FA60W LED Flood Light - 60W, 9140 Lumens, 3000K/4000K/5000K, Knuckle Mount
RAB X17FA60W LED Flood Light - 60W, 9140 Lumens, 3000K/4000K/5000K, Knuckle Mount
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Field-Selectable CCT: Choose 3000K/4000K/5000K color temperature on-site without stocking multiple fixtures
- High Output: Up to 9,140 lumens at 60W replaces 250W metal halide with efficacy up to 154.0 lm/W
- Adjustable Knuckle Mount: 180° swivel arm with 10° tilt increments for precise aiming
- Ultra-Economy: 100,000-hour lifespan reduces maintenance costs and replacement frequency
- All-Weather Durability: IP65 rated die-cast aluminum housing operates -40°F to 104°F with 5-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
RAB X17FA60W Ultra-Economy LED Flood Light
The RAB X17FA60W provides cost-effective outdoor flood lighting with field-selectable color temperature and knuckle mount for commercial and residential applications. This 60-watt LED flood light produces up to 9,140 lumens with selectable 3000K/4000K/5000K output, replacing traditional 250W metal halide fixtures for yards, driveways, signage, building facades, parking areas, and security lighting.
RAB X17FA60W Features
- Field-Selectable CCT: Choose 3000K warm white, 4000K neutral white, or 5000K daylight on-site
- High-Output Performance: Up to 9,140 lumens at 60W with efficacy reaching 154.0 lm/W
- Knuckle Mount: Robust knuckle mount with 180° adjustable swivel arm, tilt angle in 10° increments
- 100,000-Hour Lifespan: Long-life LEDs minimize maintenance and replacement costs
- IP65 Weatherproof: Sealed die-cast aluminum housing protects against dust and water
- Tempered Glass Lens: Durable tempered glass withstands harsh outdoor conditions
- Polycarbonate Reflector: Optimized light distribution with NEMA 7H x 7V beam spread
- Wide Voltage Range: 120-277V operation supports diverse electrical systems
- White Finish: Clean white powder-coat finish complements modern architecture
- Cold Weather Starting: Operates reliably in temperatures from -40°F to 104°F
Applications
Building facades, parking lots, yards, driveways, signage illumination, patios, warehouses, loading docks, security lighting, commercial entrances, outdoor area lighting.
RAB X17FA60W Specifications
- Model: RAB X17FA60W
- Wattage: 60W
- Lumen Output: 8,818 lm (3000K), 9,041 lm (4000K), 9,142 lm (5000K)
- Color Temperature: 3000K/4000K/5000K (field-selectable)
- Efficacy: 142.7/154.0/147.5 lm/W
- CRI: 82/82/81
- Voltage: 120-277V, 50/60 Hz
- Lifespan: 100,000 hours
- Operating Temperature: -40°F to 104°F
- IP Rating: IP65
- Housing: Die-cast aluminum
- Finish: White powder-coat
- Lens: Tempered glass
- Reflector: Polycarbonate
- Beam Spread: NEMA 7H x 7V
- Mounting: Knuckle mount with 180° adjustable swivel, 10° tilt increments
- Dimensions: 9 11/16" W x 10 15/16" H x 3" D
- Weight: 4.9 lbs
- Certifications: UL Listed, wet location rated, RoHS compliant
- Warranty: 5-year limited
Why Choose RAB X17FA60W
The X17FA60W combines ultra-economy pricing with field-selectable color temperature and robust knuckle mounting for maximum installation flexibility. The 100,000-hour lifespan and high-efficacy LEDs deliver exceptional long-term value, while IP65 weatherproof construction and extreme temperature rating ensure reliable year-round operation for demanding outdoor applications.
Why Buy From Bees Lighting
Bees Lighting stocks RAB X17FA60W flood lights with competitive pricing and fast shipping. Our lighting specialists provide expert support for outdoor lighting design and installation planning to help you achieve optimal illumination and energy savings.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What beam spread (NEMA Type) do I need?
What beam spread (NEMA Type) do I need?
For general area coverage, like a backyard or parking lot, choose a wide flood (NEMA 6x6 or 7x7), which spreads light over 100°+ to cover maximum ground. If you need to illuminate a specific object like a flag, sign, or tree from a distance, choose a narrow spot (NEMA 3x3 or 4x4) to concentrate the light where you need it.
How many lumens do I need for a backyard flood light?
How many lumens do I need for a backyard flood light?
For general backyard illumination, 1,500 to 3,000 lumens is usually sufficient. If you are lighting a large driveway or security zone, look for fixtures with 5,000 lumens or more.
What is a "Knuckle Mount"?
What is a "Knuckle Mount"?
A knuckle mount is an adjustable joint with a 1/2" threaded stem. It screws directly into a standard weatherproof junction box cover or landscape stake. It allows you to aim the light up or down and lock it in place.
Can I use these lights with a dimmer?
Can I use these lights with a dimmer?
Many commercial high output flood lights (typically 50W and above) come with 0-10V dimmable drivers. Smaller residential floods and bullet lights are often non-dimmable unless specified. Always check the product specifications if dimming is required.
What is the equivalent wattage for LED flood lights?
What is the equivalent wattage for LED flood lights?
15W LED ≈ 100W Halogen (Bullet Light)
30W LED ≈ 70W Metal Halide
50W LED ≈ 150W Metal Halide
150W LED ≈ 400W Metal Halide (Large Commercial Flood)
