RAB H17XL UFO High Bay 37,253 Lumens 240W/200W/150W Selectable 3000K/4000K/5000K 120-277V White
RAB H17XL UFO High Bay 37,253 Lumens 240W/200W/150W Selectable 3000K/4000K/5000K 120-277V White
Available in stock (100)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Output: Up to 37,253 lm; 160W / 200W / 240W selectable
- Voltage: 120–277V
- Durability: Wet location rated; IP65
- Controls: 0–10V dimming to 10%; sensor-ready port
- Certification: DLC Premium; UL Listed
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

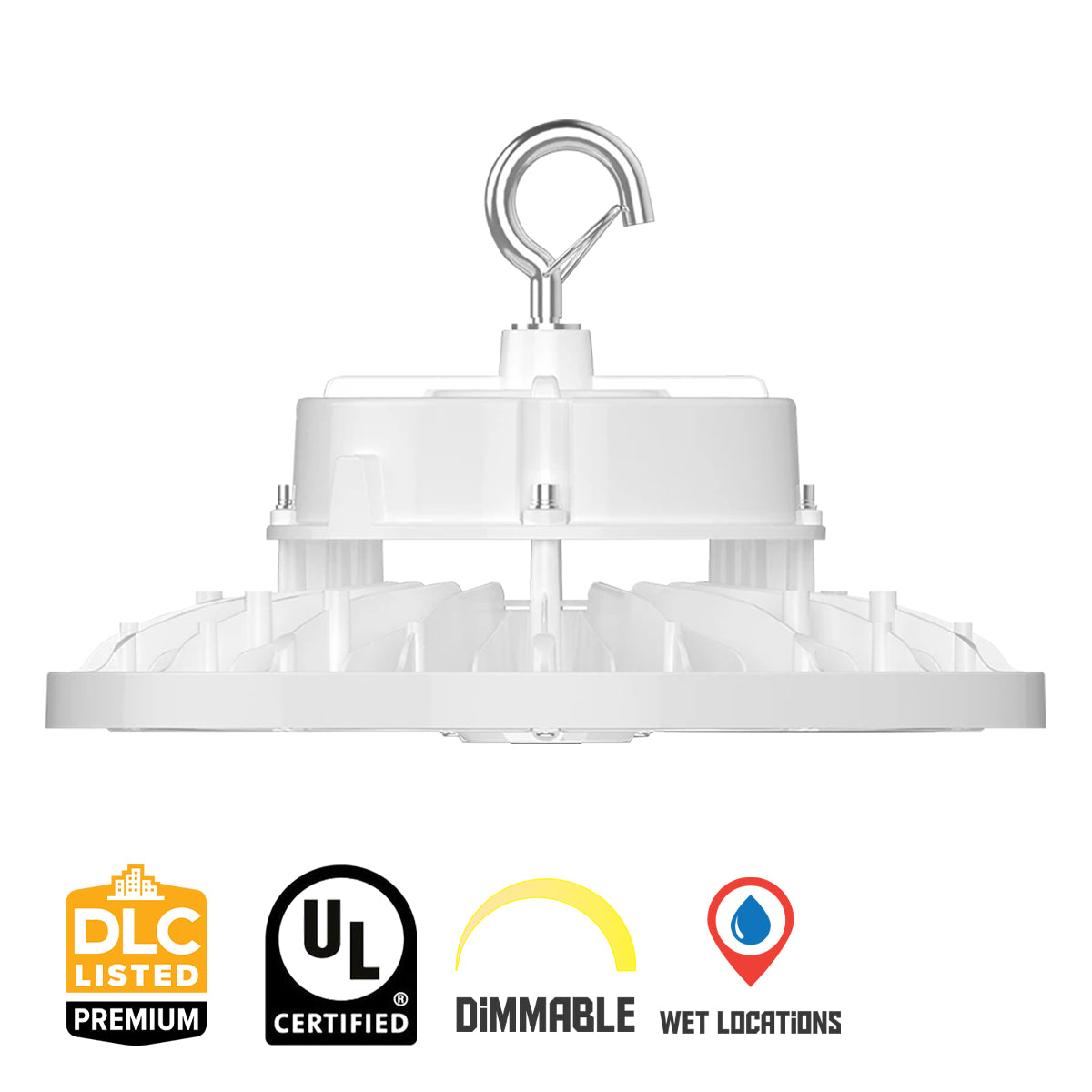

RAB H17XL Field-Adjustable UFO LED High Bay — 240W / 200W / 160W Selectable
The RAB H17XL is a field-adjustable UFO LED high bay delivering up to 37,253 lumens with selectable wattage options of 240W, 200W, and 160W and selectable CCT of 3000K / 4000K / 5000K. The fixture operates on universal 120-277V with integrated 0-10V dimming to 10%. It is UL Listed for wet locations with IP65 ingress protection and is DLC Premium Listed for rebate eligibility. Designed for warehouses, manufacturing facilities, gymnasiums, and other high-ceiling commercial or industrial environments requiring high output.
Key Features
- Selectable Wattage: 240W / 200W / 160W
- Selectable CCT: 3000K / 4000K / 5000K
- Maximum Output: Up to 37,253 lumens
- Voltage Range: 120-277V
- Dimming: 0-10V dimming to 10%
- Environmental Rating: Wet location listed, IP65
- Certifications: DLC Premium, UL Listed
- LED Lifespan: 100,000 hours (L70)
Typical Applications
- Warehouses
- Distribution centers
- Manufacturing facilities
- Gymnasiums
- Industrial workshops
- Retail stockrooms
- Aircraft hangars
Performance & Light Output:
Delivered lumen output ranges up to 37,253 lumens depending on selected wattage and CCT. Efficacy reaches up to 168 lm/W with CRI 80+. Rated for 100,000-hour L70 lifespan with LM-80/TM-21 testing data referenced by the manufacturer.
Electrical & Controls:
Operates on 120-277V, 50/60Hz with a constant current Class 1 driver. Includes integrated 0-10V dimming capable of dimming to 10%. Fixture includes a sensor-ready port compatible with RAB PIR and MVS sensors as well as Lightcloud control options. Surge protection rated 4kV L-N / 6kV L/N-PE.
Construction & Durability:
Precision die-cast aluminum housing with polycarbonate lens. Rated IP65 for wet location use. Operating temperature range -40°C to 50°C. Mercury-free and RoHS compliant.
Installation & Mounting:

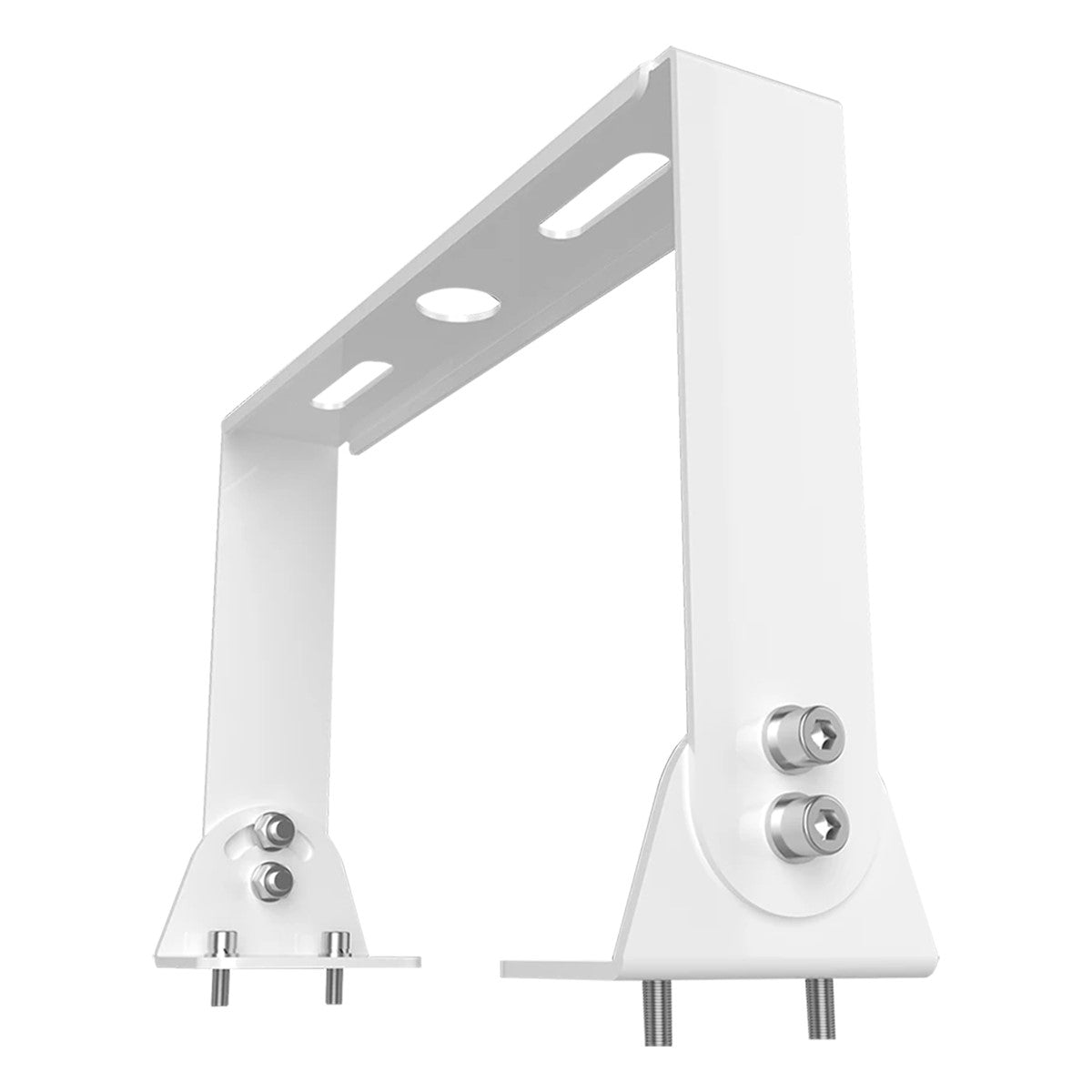

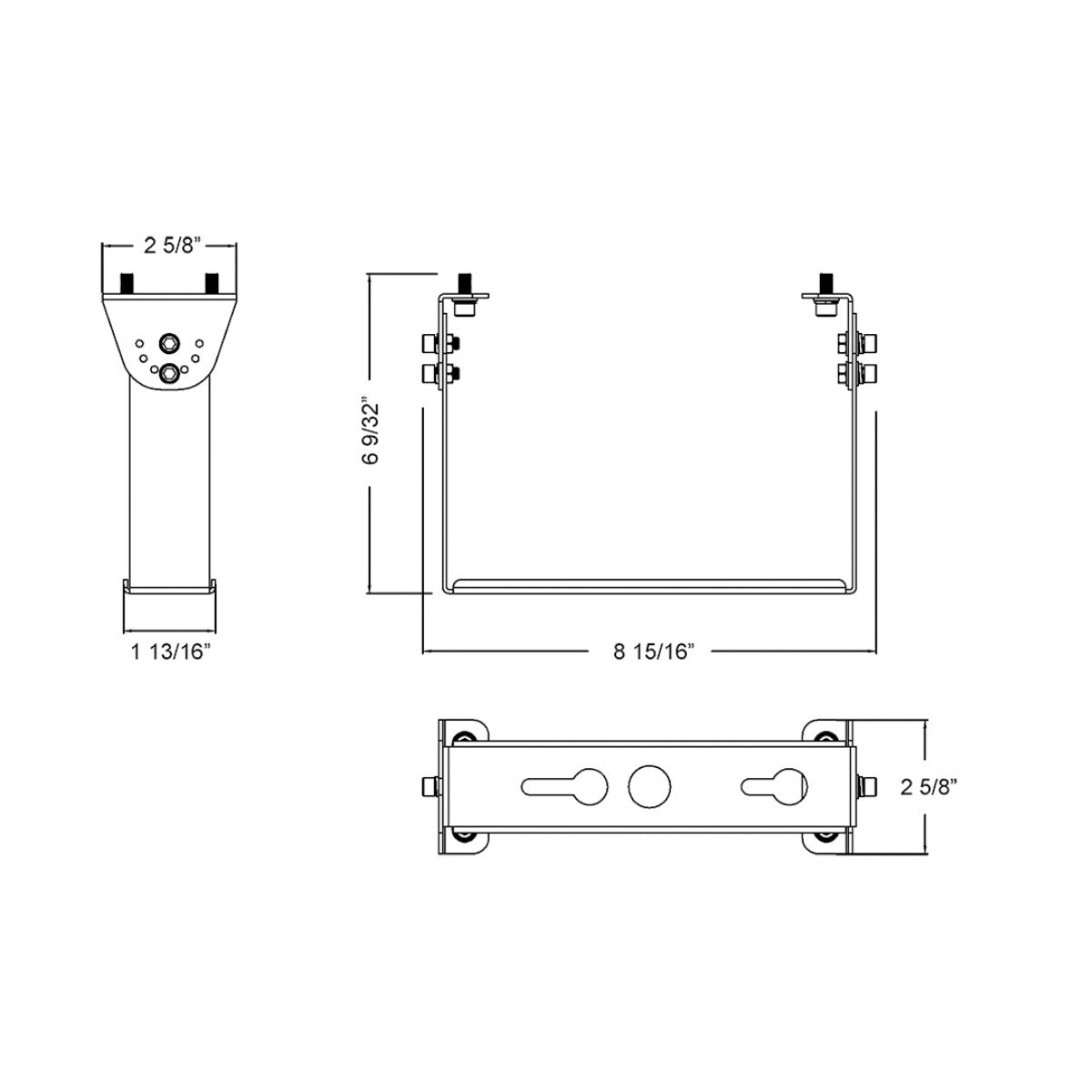

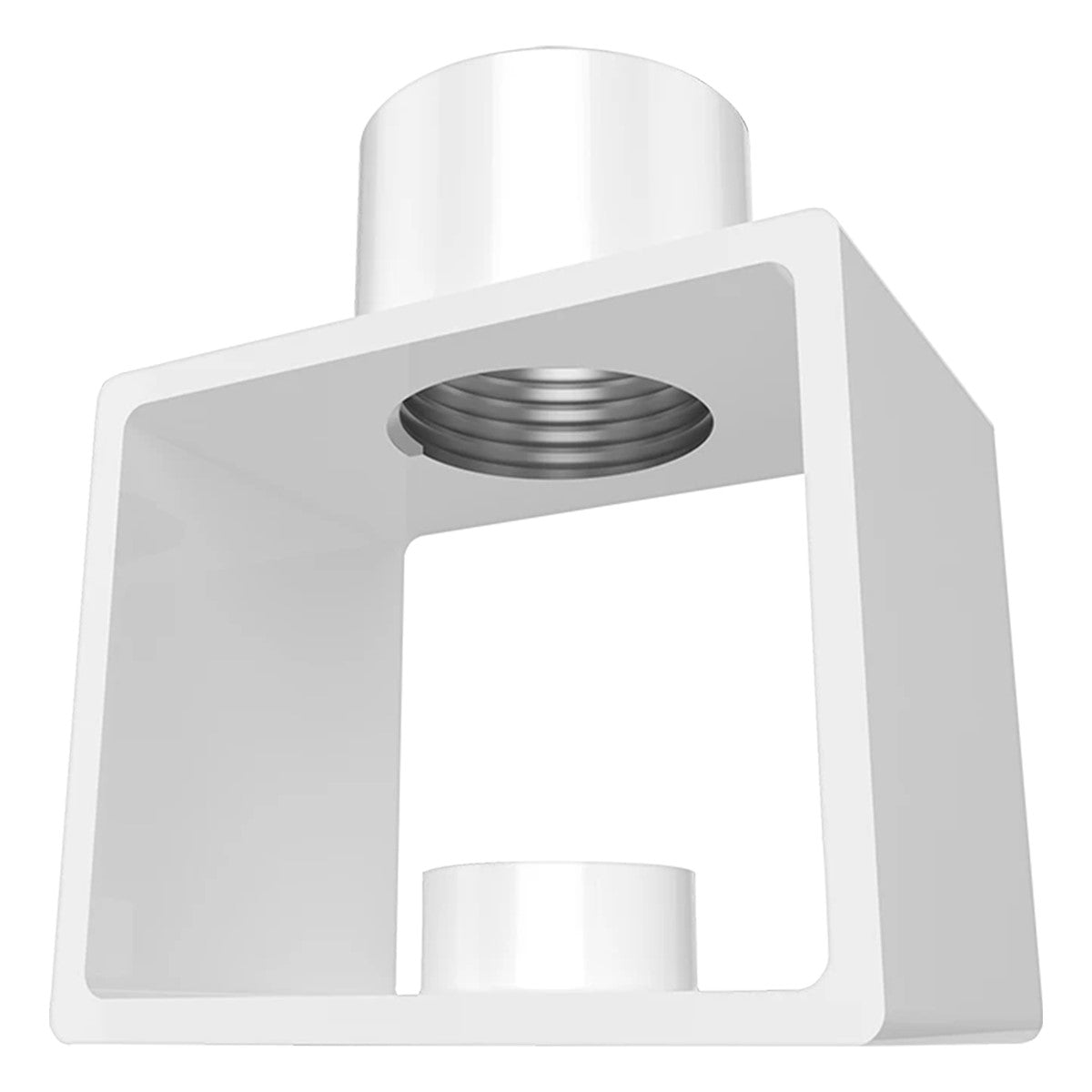

Includes 3/4"-14 NPT hook for suspension mounting. Compatible with optional pendant mounting and surface mount kits available separately. Optional cord and plug configurations available. Integrated sensor port located on fixture housing.
Included
LED high bay fixture and hanging hook.
Specifications
Specifications

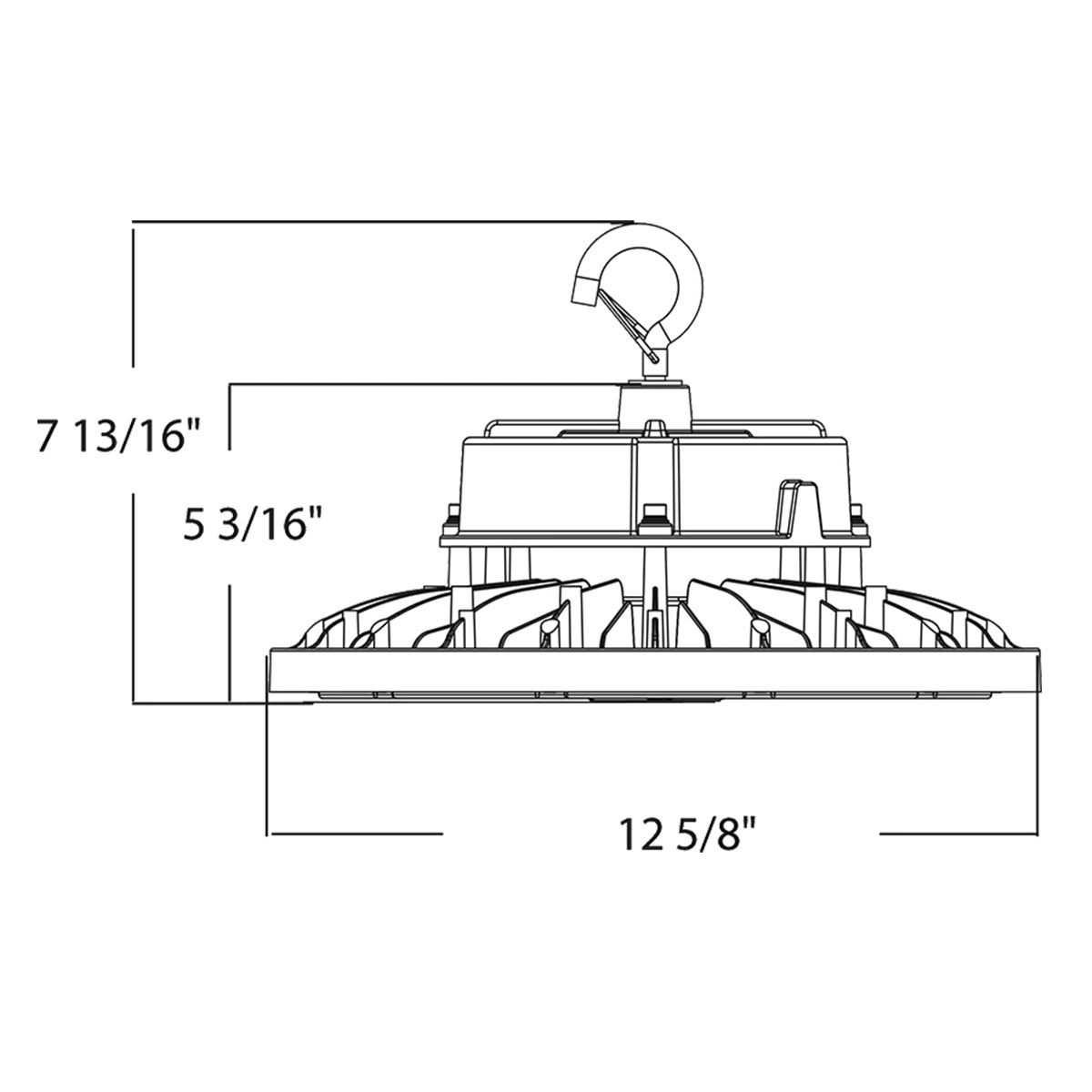

Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What mounting height is recommended?
What mounting height is recommended?
What voltage does this model operate on?
What voltage does this model operate on?
Can wattage and CCT be adjusted in the field?
Can wattage and CCT be adjusted in the field?
Is this fixture suitable for wet locations?
Is this fixture suitable for wet locations?
Is this model DLC listed for rebates?
Is this model DLC listed for rebates?
