Legrand TS400W Wattstopper Digital Time Switch, 1-12 Hour, 1200W, 120/277V, White
Legrand TS400W Wattstopper Digital Time Switch, 1-12 Hour, 1200W, 120/277V, White
Available in stock (23)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Simple Pushbutton Operation: Easy one-touch activation eliminates twist timer complexity
- Adjustable Timer Duration: 1-12 hours or 5-60 minutes with time scroll adjustment during operation
- Bright LCD Display: Electroluminescent display shows timer countdown for clear status monitoring
- No Neutral Wire Required: Simplified retrofit installation in existing electrical boxes
- Optional Audible/Visual Alerts: Configurable warnings before automatic shutoff
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Legrand TS-400-W Wattstopper Digital Time Switch

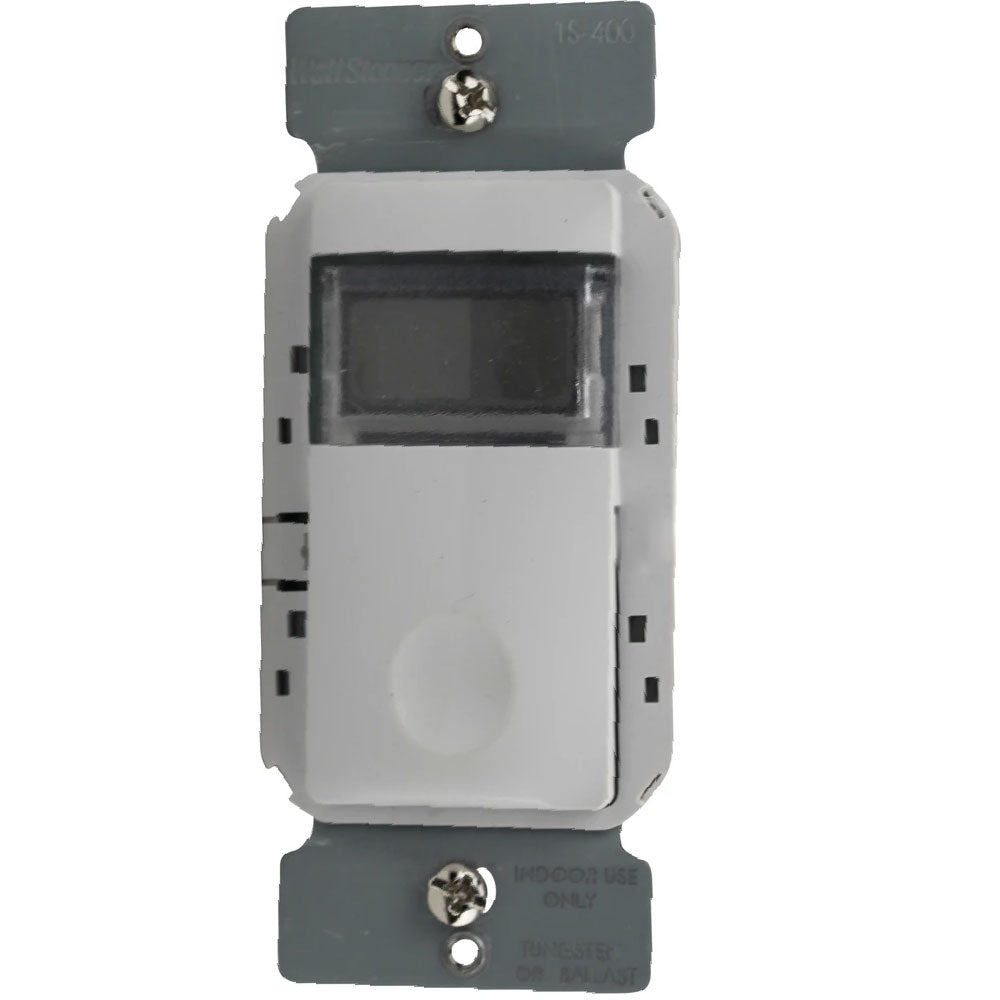

The TS400W is a Legrand Wattstopper InteliSwitch digital time switch in white designed for convenient time-out lighting control without the complexity of twist timers. Experience superior convenience with simple pushbutton operation featuring adjustable 1-12 hour countdown timer with 5-60 minute increments, bright electroluminescent LCD display, and optional audible or visual alerts. This commercial-grade timer features time scroll adjustment, terminal-style wiring for simplified installation, and no neutral wire required—ideal for commercial restrooms, break rooms, storage areas, and energy-saving applications.
Legrand Wattstopper TS-400-W Features
- Simple Pushbutton Operation: Easy one-touch activation with digital countdown display eliminates twist timer complexity
- Adjustable Timer Duration: 1-12 hours in 1-hour increments, or 5-60 minutes in 5-minute increments for flexible control
- Bright LCD Display: Electroluminescent display shows timer countdown for clear status monitoring
- Time Scroll Feature: Allows timer to adjust up or down during operation for added flexibility
- Optional Audible/Visual Alerts: Configurable alerts before lights turn off provide advance warning
- No Neutral Wire Required: Simplified installation in existing electrical boxes without neutral connection
- Terminal-Style Wiring: Easy wire connections for faster, cleaner installations
- Manual ON Function: Dedicated manual ON for continuous operation when needed
- Single-Pole Configuration: Replaces standard single-pole wall switches

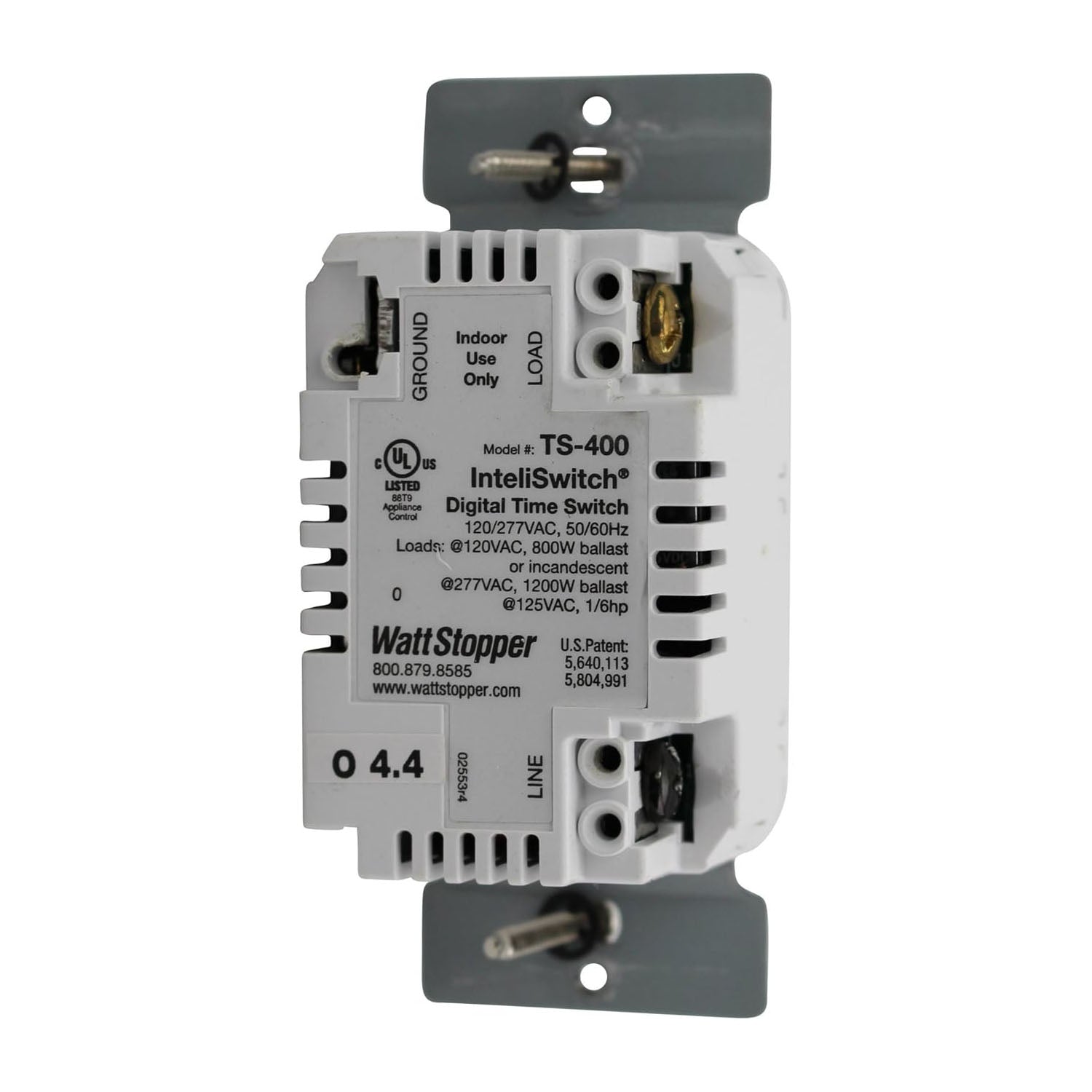

- High Capacity: Controls up to 1200W @ 277VAC or 800W @ 120VAC ballast loads
- UL & cUL Listed: Meets rigorous safety and performance standards
- 5-Year Warranty: Legrand's commitment to quality and long-term performance
InteliSwitch Digital Timer Applications
- Commercial restrooms and break rooms
- Storage areas and utility rooms
- Conference rooms and meeting spaces
- Warehouse and industrial facilities
- Educational facilities and classrooms
- Hospitality back-of-house areas
- Energy-saving automatic shutoff
- Commercial and institutional spaces
Installation & Operation
The Legrand Wattstopper TS400W installs easily in place of a standard single-pole wall switch, fitting into an existing electrical box with terminal-style wiring for simplified installation. Unlike many digital timers, the TS400W does not require a neutral wire connection, making it ideal for retrofit applications where neutral wires may not be available. After installation, operation is intuitive—simply press the pushbutton to activate the timer and turn lights on. The bright electroluminescent LCD display shows the countdown timer, providing clear status monitoring. The time scroll feature allows you to adjust the timer up or down during operation without restarting. Configure optional audible or visual alerts to warn occupants before lights automatically turn off. Use the manual ON function for continuous operation when extended lighting is needed. The simple pushbutton operation eliminates the nuisance and complexity of traditional twist timers.
Compatible Loads & Specifications
- Voltage: 120V AC / 277V AC, 50/60Hz
- Load Rating: 1200W @ 277VAC, 800W @ 120VAC (ballast)
- Amperage: 4.3A
- Timer Duration: 1-12 hours (1-hour increments), 5-60 minutes (5-minute increments)
- Number of Buttons: 1 pushbutton
- Configuration: Single Pole
- Requires Neutral Wire: No
- Operating Temperature: 32°F - 104°F
- Wire Connection Type: Flying Leads (terminal-style)
Why Choose Legrand Wattstopper InteliSwitch Timers
Legrand is a global leader in electrical and digital building infrastructures with over 150 years of innovation excellence. The Wattstopper InteliSwitch TS400 series represents commercial-grade digital time switches that eliminate the frustration of twist timers. The simple pushbutton operation provides users with convenient time-out lighting control without the nuisance of mechanical twist mechanisms that can break or become difficult to operate. The bright electroluminescent LCD display sets this timer apart, showing the countdown clearly so occupants know exactly when lights will turn off. The time scroll feature adds flexibility by allowing timer adjustments during operation. Optional audible or visual alerts provide advance warning before automatic shutoff. The no-neutral-wire-required design makes retrofit installations simple and cost-effective. With terminal-style wiring, high capacity ratings, and a 5-year warranty, the TS400W delivers professional-grade automation for commercial and institutional applications.
Why Buy From Us: As an authorized Legrand dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is a timer switch?
What is a timer switch?
A timer switch is a control that automatically turns a light or fan on and off based on a set schedule or a specified countdown duration.
Can I use a timer switch for LED lights?
Can I use a timer switch for LED lights?
Yes. Most modern timer switches for lights are compatible with LED bulbs. However, some older mechanical models may have a minimum load requirement, so ensure your unit is rated for low-wattage LED use.
Do I need a neutral wire to install an in wall timer?
Do I need a neutral wire to install an in wall timer?
Many digital models require a neutral wire (white) for constant power. If your electrical box only has two wires plus a ground, look for a mechanical intermatic timer or a battery-powered digital version.
What is the difference between a countdown timer and a programmable timer?
What is the difference between a countdown timer and a programmable timer?
A countdown timer turns the load off after a set time (like 30 minutes). A programmable timer follows a 24-hour or 7-day clock to turn things on and off at specific times (like 6:00 PM).
Is there a timer that adjusts for sunset automatically?
Is there a timer that adjusts for sunset automatically?
Yes. An astronomical timer uses your location to track the sun, so you never have to manually adjust the time as the seasons change.
